SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump

China SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier
SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump supplier

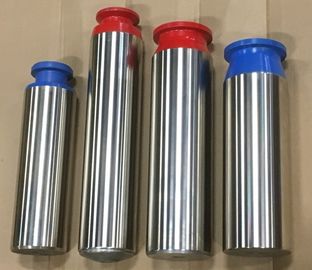

Large Image :  SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump

Product Details:

Place of Origin: CHINA
Brand Name: SPM, Halliburton, Gardner Denver, Serva
Certification: API
Model Number: TWS2250

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitable to shipment by sea and air
Delivery Time: In stock
Payment Terms: T/T, D/A, L/C, D/P, Western Union
Supply Ability: 10000 PER MONTH
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Hydraulic,diesel
Pressure: High Pressure Application: Conveying Mud And Flushing Fluids,mining,oil,Chemical
Structure: Piston Pump,Single-stage Pump,Screw Pump Fuel: Diesel
Standard Or Nonstandard: Standard Type: Diaphragm,Mud Pump
Color: Blue,red And So On Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty: 12 Months Product Name: Mud Pump
Oem: Can Be Accept,Applicable Condition: New

SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump

SPM Flow Control, Inc.,SPM PUMP,PART NO MODEL NO SPARE NO

P10453 1/4" PIPE PL
3P10149 2" 1502 BULL PLUG
3P10226 2" 1502 MALE SUB
3L13139 2" 1502 TRUE WYE
4L11982 2" PLUG VALVE REPAIR KIT
4L13694 2" PLUG VALVE SEAL KIT
2A17205 2" STYLE 10 SWIVEL MXM STYLE 1502
1A11742 2X2 FIG 1502 F X 2" FIG 1502 MALE PLUG VALVE
2A12568 3" 1502 NPS X 10 FT LONG STRAIGHT JOINT
2A12559 3" 1502 NPS X 4 FT LONG STRAIGHT JOINT
2A17658 3" 1502 STYLE 50 SWIVEL JOINT FXM
2A12037 3" 207 BLANKING UNION
3A21280 3" 602 BULL PLUG
3A23277 3" 602 FXM X 2" 1502 M TEE
2A12070 3" 602 HAMMER UNION COMPLETE
2A13765 3" 602 NPS X 10 FT LONG STRAIGHT JOINT
2A13760 3" 602 NPS X 2 FT LONG STRAIGHT JOINT
2A13761 3" 602 NPS X 4 FT LONG STRAIGHT JOINT
2A13764 3" 602 NPS X 8 FT LONG STRAIGHT JOINT
2A17291 3" STYLE 80 SWIVEL JOINT 6,000 FXM
4P100819 ADPTR/PKG/FMLE4.00 TWS600
1A13653-B BALL INJ ASSY/3-1502/MANUAL/.88DIABALL
1A24334 BALL INJ/RMTE CNTRL ASSY/POWER TORK
2A24244 BALL INJ/SCRW ASSY/1.25 BALL
2A25203 BF VA ASSY/3 IN/NITR SEAT/DI DISC/DI BDY
2A25208 BF VA ASSY/6 IN/NITR SEAT/DI DISC/DI BDY
2A25209 BF VA ASSY/8 IN/NITR SEAT/DI DISC/DI BDY
3P105099 BKUP/SEAL/SUC CVR/2.50 TWS600S
P100166 BRG CONE/PINION/TWS400
P100167 BRG CUP/4.6:1 RED/TWS600
P100165 BRG CUP/PINION/TWS400&600
P100108 BRG/CONN ROD//TWS400 & 600
P100111 BRG/MAIN/INNER/FLTNG/TWS400&6
P100110 BRG/MAIN/INNER/FXD/TWS600
P100109 BRG/MAIN/OUTER/FLTNG/TWS600
3P100089 BRG/PIN/WRIST/TWS400/600
P22691 CABLE LOOP 5/8 X 6 LOOP X LOOP W/NAMEPLATE
2P11684 CAP/BLNKNG/4-207
2A26950 CHK VA/CL/4-1002MXF/TP LOAD
1A23463 CHK VA/POPPET/2-1502MXF/CO2
3P100148 CLMP/PLNGR/5.0-6.75 TWS1300-QWS
P100066 CRANKCASE BREATHER CAP
3A23479 CROSS ASSY/4-602FX3-602FX4-602MX3-602F/4
2P106380 CRSSHD/TWS600/SHORT PIN
2P105139 CVR/DIS/3.00-4.50 TWS600/2 PC
2P109834 CVR/SUC/6.00 QWS/GL
2P100257 CVR/SUC/6.50&6.75 T18/6.50 QWS
3P101941 DIAPHRAM/3.50-4.50 RR500 HV
1P17651 ELLS/SWL/MXF BR/3 LR 15 HD
P019509 FLANGE SEAL D RING
3P100182 FLG/DIS/2-1502/2.75 BOSS/T600
3P102045 FLG/DIS/4-602 F TWS1800/2250
P22688 FSC/CABLE LOOP/5/8 X 3 FT LG
2A21200 FSC/QR/ASSY/2 PIPE/2.38 OD/STL
4P100087 GSKT/CVR/REAR/PWR END/TWS600
4P100091 GSKT/CVR/SIDE/TWS600
3P103019 GSKT/DIAPHRAM/TWS600S
4P100092 GSKT/HSG/BRG/MAIN OUTSIDE/TWS600
4P100104 GSKT/RET/PNY RD SEAL/TWS600
4P100122 GSKT/SPRAY BR FLG/RED/TWS600
2P102975 GUIDE/CRSSHD/TWS600S
4A12977 KIT/2-1502 DET NUT/SEGM
4L18114 KIT/PARTS/BALL INJ/3
P14897 NUT/HEX/1.00-8UNC/HVY
3P100812G NUT/PK/4.00 TWS 600
3P105134 NUT/RET/SUC&DISC.304.50 T600
4P100271 NUT/RET/SUC&DISC/6.5 QWS/6.75
1P105797 PLNGR/4.00 TWS 600FE TO RR500PE
2P103312 PLNGR/4.50 TWS600S
3P100233 PLNGR/5 TWS1300-QWS
3P107060 PLNGR/5.50 TWS 1300-QWS/REAR WELD
3P107062 PLNGR/6.00 TWS 1300-QWS/REAR
3P101407 PLNGR/6.75 TWS1800-QWS
1A14492 PLUG VA/2 SP 150 WU/LT/H2S
1A14483 PLUG VAL/1x2 SP 150 WU/LT
P10232 RET RNG/2-1502
3P10231 RET SEG/2-1502
4P10027 RET/SEAL/PNY ROD/TWS 1300-1800
P100342 RNG/HEADER/4X5
4P101409 RNG/LANTERN/6.5 TWS900-QWS
P100343 RNG/PKG/4.00 X 5.00/DBL/ACID
P102128 RNG/PKG/4.00 X 5.00/DBL/CMNT
P102044 RNG/PKG/6.75 x 7.75/DBL/CMNT (GRAY)
P105906 RNG/RET/WRIST PIN/TWS600S
3P103522 RNG/SEAL/PKG/2.50/TWS250
P20518 SCRW/FHCS/.38-16UNC X .63
4P22391 SEAL RNG/UNION/3-1502/2002.. (ANTI-EXCRUSION)
4P22394 SEAL RNG/UNION/3-1502/2002/2202.. (ANTI-EXCRUSION)
P108291 SEAL/D-RING/CVR/S&D/3.50-4.00 T900-QWS
P109129 SEAL/D-RING/CVR/S&D/5.50-6.00/T900-QWS
P105155 SEAL/OIL/DIAPHRAM/4.00 TWS600S
P105307 SEAL/OIL/DIAPHRAM/4.50 TWS600S
P101942 SEAL/OIL/RR500/WESTERN 138630
P100203 SEAL/OR42545013
P100156 SEAL/OR60065025
P109789 SEAL/PNY ROD/TWS13-QWS MODEL 26
P100106 SEAL/PNY ROD/TWS400-900
P16636 SEAL/PPK 050075125-250-B
P100204 SEAL/PPK 238275187 MOLY
P105095 SEAL/PPK 288350312
P101414 SEAL/PPK 400438187
P105029 SEAL/PPKP 288325187
2A109621 SEAT/ASSY/VA/SP/7
P105752 SEAT/VA/N/SEE DWG/4A105916
3P101930 SHIM SET/12/RED/TWS400/600
3P101929 SHIM SET/8/RED/TWS400/600
4P100084 SHIM SET/BRG/MAIN/TWS600
4P101245 SPCR/PKG/6.75 TWS900-QWS
4P100198 SPRNG/VA/4.50 TWS400/77 LB/IN
4P100281 SPRNG/VA/6.50-6.75 TWS900-QWS
4P104474 SPRNG/VA/TWS400/600/36 LB/IN
2P105375 STOP/SUC VA/6.75 T 1800 LG BLK
P14896 STUD/1.00-8UNC X 3.5LG/GRD B7
4P101714 STUD/PNY ROD/TWS400/600
2P12010 SUB/FEMALE/3-200/206/207 PS
P100197 SUCT/DISCHARGE. COVER
3P12309 SWG/INT FM/4-602 X 4.50-8SCT
2A17666 SWVL ASSY/STL 10 MXM/INT/3 LR1
2A17139 SWVL ASSY/STL 50 MXF/INT/2 LR
2A17757 SWVL ASSY/STL 50 MXF/INT/3 LR6 HD
3L11592 TEE ASSY/2-1502 FXMXF
3A14047 UNION/1 1/2 - 200 PS
3A12159 UNION/2-100
2A10223 UNION/2-1502 PS/BUNA
3A12006 UNION/2-200 PS
3A12054 UNION/2-602 PS
2A12167 UNION/3-100 PS
2A10252 UNION/3-1502 PS
2A12041 UNION/3-207 BLANKING
2A11831 UNION/4-200 PA
2A11637 UNION/4-206 PS
2A12038 UNION/4-207 PS/BLNKNG
2A24676 UNION/4-602 NPS/DET/PLAIN
2A14241 UNION/6-100 PS
2A109537PP VA/INSERT/ASSY/SP4-1/POLYMER PROD
2A109627PP VA/INSERT/ASSY/SP7/V1/POLYMER PRO
P100281 VALVE SPRING HEAVY DISCHARGE
3P10228 WING NUT/2-1502
2P10257 WING NUT/3-1502
2P11765 WING NUT/4-200/206
P101883 WIPER/ROD/4 FE/OPI AWS/BWS/CWS
2P20318 WYE/INT/2-1502 FXFXM
2P10318 WYE/INT/2-1502 FXFXM



SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump

Push Rod Subassembly
L-2 Spacer
  Loc Qty Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer 1 3 316.21066.
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 2 3 8.34020.
Tie Rod, Push Rod, L-Spacer, HT-400TM 3 3 316.25166.
Push Rod, Two Piece, L-Spacer, HT-400TM 4 3 316.21065.
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM 5 3 316.10012.
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM 6 3 316.10013.
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 7 3 70.33739.
Seal, Push Rod, L-Spacer, HT-400TM 8 6 316.10014.

Discharge Valve Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover, HT-400TM 1 3 316.2102. 316.2202. 316.2202. 316.2502. 316.2502.
Cover, Discharge, Double Guided Valve, HT-400TM 2 6 316.2107. 316.23091. 316.23091. 316.24044 316.24044
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM 3 3 316.21052. 316.22052. 316.22052. 316.25052 316.25052
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM 4 6 316.21051. 316.22051. 316.22051. 316.25051. 316.25051.
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass 5 6 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 6 6 316.22004. 316.22004. 316.22004. 316.22006 316.22006
Spring, Valve, HT-400TM, 36lb/in 7 6 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 6 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 6 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 6 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 6 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 6 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 6 316.21096 316.21096 316.23953 316.24043 316.24043

Suction Valve Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast 1 3 316.22977. 316.22977. 316.23034 316.25840. 316.25840.
Boot, Suction and Stop, HT-400TM 2 6 316.25233. 316.25233. 316.25233 316.25233. 316.25233.
Spring, Lock, HT-400 3 3 316.2125. 316.2125. 316.22252. 316.22253. 316.22253.
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass 4 6 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM 5 6 316.22004. 316.22004. 316.22004. 316.22006. 316.22006.
Spring, Valve, HT-400TM, 36lb/in 7 6 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 6 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 6 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 6 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 6 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 6 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 6 316.21096 316.21096 316.23953 316.24043 316.24043


Plunger/cylender Head Cover Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover HT-400TM 1 6 316.2102. 316.2102. 316.2202. 316.2502. 316.2506.
Cover, Cylinder Head, HT-400TM 2 3 316.2107. 316.2107. 316.2207. 316.2407. 316.2507.
Gasket, 4 Discharge Valve & Cylinder Head Cover 3 6 316.21052. 316.21052. 316.22052. 316.25052. 316.25074.
Ring, Spacer, Discharge Valve & Cylinder Head Cover 4 6 316.21051. 316.21051. 316.22051. 316.25051. 316.25073.
Nose, Plunger, HT-400TM 5 3 316.2131. 316.2231. 316.2331. 316.2331. 316.2331.
Seal, Plunger Nose Assembly, HT-400TM 6 3 316.2130. 316.2230. 316.2330. 316.2330. 316.2330.
Plunger, Hard Surface, L-Spacer, HT-400TM 7 3 316.21026. 316.22294. 316.23085. 316.24296. 316.25162.
Tie Rod, Plunger, HT-400TM 8 3 316.21028. 316.21028. 316.21028. 316.25165. 316.25165.
Adapter, Pushrod, HT-400TM, Two Piece Nose 9 3 316.21059. 316.22302. 316.23089. 316.24336. 316.25172.


Fluid-end/flange discharge section subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch
Flange, discharge, HT-400TM, BLANK 1 1   316.22980. 316.22980.
Flange, discharge, HT-400TM, CURVED, Rright Hand 1a 1 316.21676. 316.23019. 316.23019.
Flange, discharge, HT-400TM, CURVED, Left Hand 1b 1 316.21677. 316.23017. 316.23017.
Seal, Discharge passage,HT-400TM 2 6 315.27117. 316.2547. 316.2547.
Nut, 1-14NF, Internal Wrenching, 1.03 TL 3 4 316.11621. 316.11621. 316.11621.
Stud, HT-400TM Fluid End To Thick Discharge Flange 4 4 316.23013.   316.23013.
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC 5 1 316.27488. 316.27488. 316.27488.
Nut, Top Tie Bolt, HT-400TM, TC 6 2 316.25501. 316.25501. 316.25501.
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, 7 2 316.22493. 316.22493. 316.22493.
Spacer, Inner, Discharge Passage Seal,HT-400TM 8 2 316.2145. 316.2545. 316.2545.
Fluid End Section, HT-400TM PUMP,Not Sleeved 9 3 316.21951. 316.22982. 316.23951.
Nut, Elastic, Stop,3/4-in.,16 NF 10 2 70.32760.   70.32760.

Packing Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Adapter, Header 1 3 316.21503 316.22503 316.23503 316.24503 316.27503
Ring Header 2 3 316.21501 316.22501 316.23501 316.24501 316.27501
Packign Set, 4-in.x 5-in, x 1/2-in. Stock, 3 Rings, Hard, Acid Service 3 1 316.21525 316.22525 316.23525 316.24525 316.27525
Ring, Backup, Packing, 4-in x 5-in. 4 3 316.21393 316.22393 316.23393 316.24393 316.27393
Carrier, Seal and Packing, 4-in 5 3 316.21396 316.22396 316.23396 316.24396 316.27396
Seal, Lube, Packing, WQ, 4-in x 4-1/2-in. x 9/16-in 6 3 316.21395 316.22395 316.23395 316.24395 316.27395
O-Ring, 90D, 5-in. x 4 3/4-in.x 1/8-in 7 3 8.34040 8.34045 8.34049 8.34053 8.34058





压裂车SPM大泵-柱塞盘根(橡胶)P100195

压裂车SPM大泵-柱塞盘根(夹布)P100652

压裂车SPM大泵-凡尔体总成P105743

压裂车SPM大泵-柱塞SD100654

压裂车SPM大泵-凡尔座 P105753

压裂车SPM大泵-NET.NUT,SUCTION&DISCHARGE 3P105134

压裂车SPM大泵-SUCTION COVER 3P105132

压裂车SPM大泵-SPRING KEEPER 3P100176

压裂车SPM大泵-SPRINGS 4P100198

压裂车SPM大泵-PONY ROD STUD 4P101714

压裂车SPM大泵-DISCHARGE COVER 3P100178G

压裂车SPM TWS2250注塞泵G1207-3690-连杆轴承盖组套(上,下)-IP104056

压裂车SPM大泵-盘根垫-P105743

压裂车SPM大泵-盘根垫-P105761

压裂车SPM-大泵-卡箍-2A21219

压裂车SPM-由壬152201 2”FIG1502 15000PSI

压裂车SPM-由壬602201 2”FIG602 6000PSI T.E.UNION

压裂车SPM-旋塞阀 A14778 2”FIG1520MX 5000PSI

压裂车SPM-旋塞阀A14962 2”FIG602MXF

压裂车SPM-三通 2”三通,内螺纹,FIG1502

压裂车SPM-三通 2”内螺纹,FIG602

压裂车SPM-活动弯12534 2”FIG1502(STD)STYLE50M/F

压裂车SPM-活动弯头2533 2”FIG1502(STD)STYLE10M/M

压裂车SPM-旋转短接 3286 2”FIG1502(STD)STYLE20F/M

压裂车SPM-90度长半径弯头 13588 2”FIG1502(STD)M/F

压裂车SPM-QWS2500(5缸泵)行程:8英寸直径:4英寸PART NO:"B"

压裂车SPM大泵-鼓式垫-R10298

压裂车SPM-大泵-鼓式垫-R10195

压裂车SPM-大泵-拉杆-4R11714

压裂车SPM大泵-拉杆油封R10106

压裂车SPM大泵-拉杆油封R15307

压裂车SPM大泵-柱塞2R13344

压裂车SPM大泵-柱塞2R13312

压裂车SPM大泵-柱塞垫总成-3C15638

压裂车SPM大泵-柱塞垫总成3C15297

压裂车SPM大泵-大泵单流阀2C25509

压裂车SPM大泵-压力环4寸P100342HP

压裂车SPM大泵-凡尔胶皮3寸P105763

压裂车SPM振动脉冲传感器总成-(12339S113)

压裂车SPM振动脉冲传感器配件-传感器TMU M8传感器

压裂车SPM大泵机油滤子总成 281227

压裂车SPM大泵机油压力传感器 106228

压裂车SPM大泵压裂泵机油温度传感器 100389

美国SPM-高压管线-1.5" 2A12723

美国SPM-2"旋塞阀-气动头 MA3000

美国SPM-2”旋塞阀-9.8223

SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump

美国SPM压裂泵,美国SPM柱塞,美国SPM凡尔体,美国SPM凡尔座,美国SPM凡尔胶皮,美国SPM橡胶盘根,美国SPM夹布盘根,美国SPM水封,美国SPM弧形密封,美国SPM档油环,SPM旋塞阀,美国SPM蝶阀,美国SPM高压活动弯头,美国SPM由壬,美国SPM管接.型号包括TWS1600,TWS1800,TWS2000,TWS2250,TWS2500等

SPM柱塞,SPM凡尔体,SPM凡尔座,SPM凡尔胶皮配套于BJ,Gardner Denver,Halliburton哈里伯顿,Oilwell国民油井,Omega,Western等众多品牌的泵体.
哈里伯顿(HALLIBURTON)压裂车上的主泵HT-400包含以下三种规格:
1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382
SPM2000:
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062

SPM:
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”



SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump

The TWS 2250 is a dependable well service pump that has been utilized for years in the field with a superior performance record.



The TWS 2250 is a classic high-powered triplex plunger pump design. This durable pump has been used in the field for over a decade in fracturing duties.



The TWS 2250 is available in multiple plunger sizes offering impressive flow rate potential and can be customized with various features to be utilized in a variety of pumping operations.



TWS 2250 Performance Specs
Max Brake Horsepower:2,250 BHP(1,641 Kw) Approx. Length:89.75 Inches (2,280 mm)
Max Rod Load Capacity:225,000 lb(102,060 kg) Approx. Width:59.75 Inches(1,518 mm)
Stroke Length:8 Inches(203.2 mm) Approx. Height:44.25 Inches(1,124 mm)
Gear Ratio: 6.353 : 1 Approx. Weight (Dry): 12,680 lb(5,751 kg)

TWS 2250 Performance Data



PLUNGER
DIAMETER		 OUTPUT
PER REV		 DISPLACEMENT AT PUMP STROKES PER MINUTE / PINION RPM
75/476 115/731 200/1271 300/1906 330/2096
mm
(in)		 gal/rev
(liter/rev)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)
88.9
(31/2)		 3.8
(1.00)		 284
(75)		 1648
(23386)		 435
(115)		 1648
(23386)		 757
(200)		 1223
(17361)		 1135
(300)		 816
(11574)		 1249
(330)		 742
(10522)
95.3
(33/4)		 4.3
(1.15)		 326
(86)		 1436
(20372)		 499
(132)		 1436
(20372)		 869
(229)		 1066
(15124)		 1303
(344)		 711
(10082)		 1433
(379)		 646
(9166)
101.6
(4)		 4.9
(1.31)		 371
(98)		 1262
(17905)		 568
(150)		 1262
(17905)		 988
(261)		 937
(13292)		 1483
(392)		 624
(8861)		 1631
(431)		 568
(8056)
114.3
(41/2)		 6.3
(1.65)		 469
(124)		 997
(14147)		 719
(190)		 997
(14147)		 1251
(330)		 740
(10502)		 1876
(496)		 493
(7002)		 2064
(545)		 449
(6365)
127.0
(5)		 7.7
(2.04)		 579
(153)		 808
(11459)		 888
(235)		 808
(11459)		 1544
(408)		 600
(8507)		 2316
(612)		 400
(5671)		 2548
(673)		 363
(5156)
139.7
(51/2)		 9.3
(2.47)		 701
(185)		 667
(9470)		 1074
(284)		 667
(9470)		 1869
(494)		 495
(7031)		 2803
(741)		 330
(4687)		 3083
(815)		 300
(4261)
146.1
(53/4)		 10.2
(2.70)		 766
(202)		 611
(8665)		 1174
(310)		 611
(8665)		 2042
(540)		 453
(6433)		 3063
(809)		 302
(4288)		 3370
(890)		 275
(3898)
152.4
(6)		 11.1
(2.94)		 834
(220)		 561
(7958)		 1279
(338)		 561
(7958)		 2224
(588)		 416
(5908)		 3336
(881)		 278
(3938)		 3669
(969)		 252
(3580)
165.1
(61/2)		 13.0
(3.45)		 979
(259)		 478
(6781)		 1501
(396)		 478
(6781)		 2610
(690)		 355
(5034)		 3915
(1034)		 236
(3356)		 4306
(1138)		 215
(3051)
171.5
(63/4)		 14.1
(3.72)		 1055
(279)		 443
(6288)		 1618
(428)		 443
(6288)		 2810
(744)		 329
(4668)		 4222
(1115)		 219
(3112)		 4644
(1227)		 199
(2829)
177.8
(7)		 15.1
(4.00)		 1135
(300)		 412
(5847)		 1740
(460)		 412
(5847)		 3027
(800)		 306
(4340)		 4540
(1200)		 204
(2894)		 4994
(1319)		 185
(2630)
190.5
(71/2)		 17.4
(4.59)		 1303
(344)		 359
(5093)		 1998
(528)		 359
(5093)		 3475
(918)		 266
(3781)		 5212
(1377)		 178
(2521)		 5733
(1515)		 161
(2291)
INPUT POWER: BHP (Kw) 848(1,137) 1,301(1,743) 1,679(2,250) 1,679(2,250) 1,679(2,250)



1 .Based on 90% ME and 100% VE - Intermittent Service Only.
2 .For applications demanding pressures over 15,000 psi, contact SPM Engineering.

TWS 2250 Hydraulic Horsepower Curve

SPM TWS600S、TWS900、QWS1000S、TWS2500、QWS3500、TMP1650 TWS-300、QWS-1000、QWS-2250、QWS-2800 plunger pump

Note: This chart shows this pump’s performance at max hydraulic horsepower. Notice as the plunger size for the pump increases, a greater max flow rate is achieved while the max pressure decreases.



Table 6.1—3-3/8- and 4.0-inch (No. 3) Suction Valve Subassemblies
Loc SAP Part No. Legacy No. Qty Description
1 100058419 316.22977 3
Retainer, Stop and Spring, HT400, No. 3 Suction
Valve, Mach. Cast.
2 100002972 316.25233 6
Boot, Suction and Stop, HT-400™, No. 3, 4 and 5
Frac
3 100002841 316.2125 3 Spring, Lock, Suction Stop, No. 3, HT400
4 100002079 70.35717 6 Pin, Cotter, 1/8 x 1 1/2 Inch, HT-400™
5 100002868 316.22005 6
Liner, Two Piece Bushing, Valve Guide, HT400,
No.4 Frac, BrassFebruary 2008 Sec. 6—Standard Fluid-End Parts
6-3
HT-400™ Pump Maintenance and Repair Manual
6 100002867 316.22004 6
Insert, Two Piece Bushing, Valve Guide, Special,
HT-400™, No 4 Frac
7 100002837 316.2108 6
Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/
in
8 100002824 316.21007 6 Valve, HT400, 3.38, 4.0 In, Frac
9 101333083 316.21048 6
Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/
Frac Service (Yellow)
9 100002823 316.21006 6
Insert, Valve, HT400, No. 3 Frac, Urethane, Stan
dard Service (Brown)
10 100002825 316.21008 6 Seat Valve, HT400, No. 3 Frac, Tapered
11 100000968 8.34037 6 O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240
12 100002838 316.21096 6
Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch,
Tapered Seat Bore
Table 6.2—4-1/2-inch (No. 4) Suction Valve Subassemblies
Loc SAP Part No. Legacy No. Qty Description
1 100058432 316.23034 3
Retainer, Stop and Spring, HT400, No. 4 Suction
Valve, Mach. Cast.
2 100002972 316.25233 6
Boot, Suction and Stop, HT-400™, No. 3, 4 and 5
Frac
3 100007270 316.22252 3 Spring, Lock, Suction Stop, No. 4, HT400
5 100002868 316.22005 6
Liner, Two Piece Bushing, Valve Guide, HT400, No.4
Frac, Brass
6 100002867 316.22004 6
Insert, Two Piece Bushing, Valve Guide, Special, HT-
400™, No 4 Frac
7 100002936 316.2308 6 Spring, Valve, HT400, No. 4, 4.5 Inch, 25 lb/in
8 100002875 316.22048 6 Valve, HT400, 4.5 inch, Frac
9 101333104 316.22046 6
Insert, Valve, HT400, No. 4 Frac, Urethane, Acid/
Frac Service (Yellow)
9 100002876 316.22049 6
Insert, Valve, HT400, No. 4 Frac, Urethane, Standard
Service (Brown)
10 100002874 316.22047 6 Seat Valve, HT400, No. 4 Frac, Tapered
11 100000970 8.34041 6 O-ring, 90 Duro, 4 1/2 x 4 1/4 x 1/8, 568-244
12 100002955 316.23953 6
Retainer, Guide Bushing, HT400, No. 4, Tapered
Seat Bore



Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Well Service Pump Packing and Seals Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
