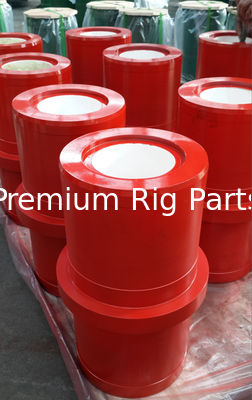

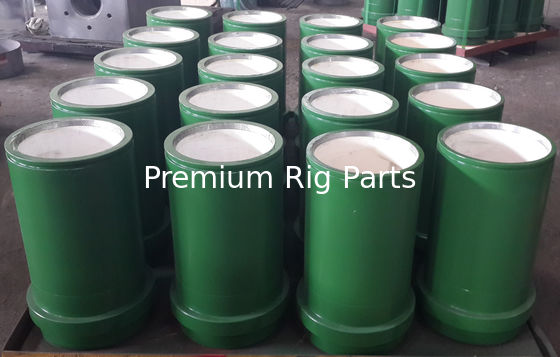

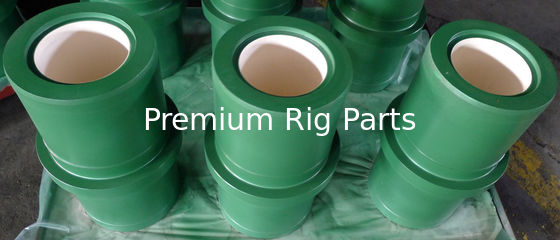

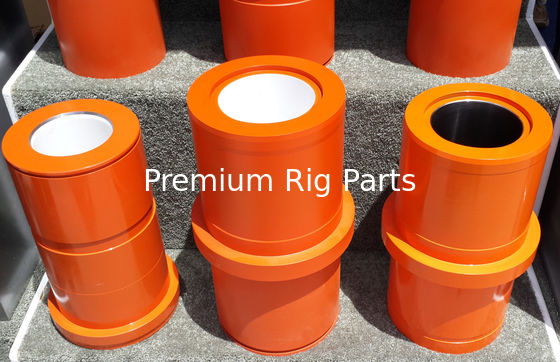

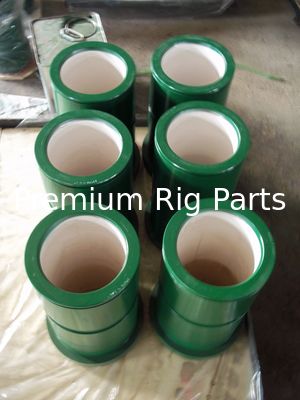

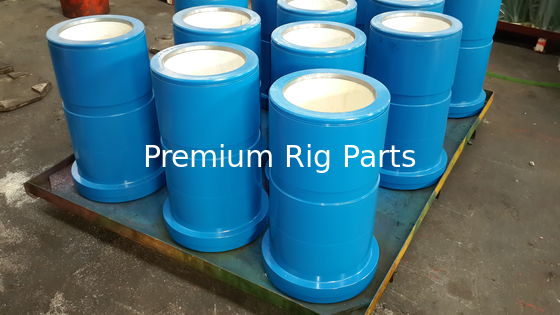

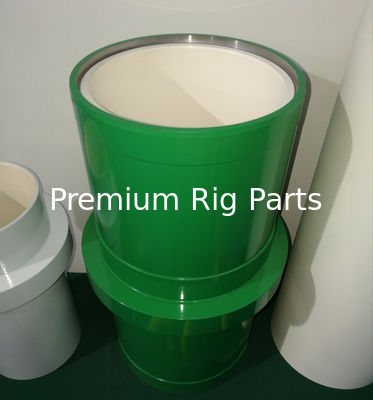

Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312

  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
  • Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312
Lieu d'origine Chine
Nom de marque SOUTHWEST, National, Gardner Denver
Certification API
Numéro de modèle LEWCO 12-P-WH 1612
Quantité de commande min 1 pièce
Prix 1 to 500 usd
Détails d'emballage Peut être expédié par voie maritime et aérienne
Délai de livraison En stock
Conditions de paiement LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement 1200 pièces par mois

Contactez-moi pour des aperçus gratuits et des bons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Usage Huile, l'eau, installation de perceuse Pouvoir Électrique
Pression Haute pression et basse pression Application du projet exploitation minière, pétrole
Structure Pompe à pistons carburant Diesel
Standard ou non standard Standard Taper Pompe à boue
Couleur Vert ou par conception de client Matériel Pompe aspirante de boue de fonte/acier inoxydable, alliage de Chrome
Garantie 12 mois Nom du produit Pompe à boue
OEM peut être accepter, applicable Condition Nouveau
Laisser un message
Description de produit

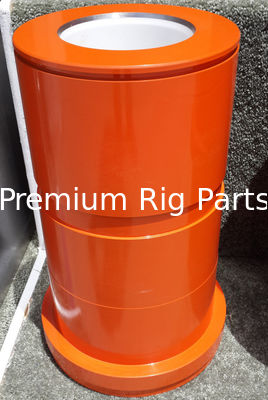

Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.



◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.



All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.



◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps

Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312 0



Southwest  mud pump zirconia liner part number:



Southwest T1300/1600 6307G06 PREM 6307G08 PREM 6307G1 PREM 6307G3 PREM 6307G5 PREM 6307G7 PREM 6307G9 PREM
Southwest A1400/1700PT 1388G06 PREM 1388G08 PREM 1388G1 PREM 1388G3 PREM 1388G5 PREM 1388G7 PREM 1388G9 PREM
Southwest LEWCO 12-P-WH 1612 1376G06 PREM 1376G08 PREM 1376G1 PREM 1376G3 PREM 1376G5 PREM 1376G7 PREM 1376G9 PREM



Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312 0





All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
