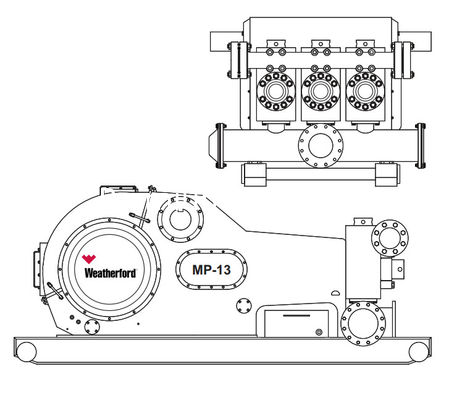

Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford

  • Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford
  • Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford
  • Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford
  • Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford
  • Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford
  • Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford
  • Weatherford MP-13 mud pump fluid end module, liners, pistons, valevs same as Weatherford
Luogo di origine Cina
Marca EWECO, WEATHERFORD
Certificazione API
Numero di modello POMPA FANGO MP-13
Imballaggi particolari Adatto alla spedizione via aerea e via mare
Tempi di consegna In magazzino

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Lasciate un messaggio
Descrizione di prodotto

Premium can produce the spare parts of WEATHERFORD MP-5 MUD PUMP , MP-8 MUD PUMP, E-447 MUD PUMP, MP-10 MUD PUMP, MP-13 MUD PUMP, MP-16 MUD PUMP, E-2200 MUD PUMP.


WEATHERFORD   MP-13       7 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4" 7499400 5499400 7916800 7211001 MB40-15 1502052   12180170   15180102
4 1/4"
4 1/2" 7499450 5499450 7916800 7211001 MB44-15 1502054 12180197 12180196 15180145 15180144
4 3/4"
5" 7499500 05499500* 7916800 7211001 MB50-15 1502056 12180254 12180253 15180186 15180185
5 1/4"
5 1/2" 7499550 05499550* 7916800 7211001 MB54-15 1502058 12180338 12180337 15180228 15180227
5 3/4"
6" 7499600 05499600* 7916800 7211001 MB60-15 1502060 12180395 12180394 15180269 15180268
6 1/4"   05499625* 7916800 7211001 MB62-15 1502061 12180494 12180493 15180285 15180284
6 1/2" 7499650 05499650* 7916800 7211001 MB64-15 1502062 12180536 12180535 15180301 15180300
6 3/4"
7" 7499700 05499700* 7916800 7211001 MB70-15 1502064 12180619 12180618 15180343 15180342
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.   For Bonded White Lightning Pistons add "XT" to Green Duo Part #
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 60155042   Valve Cover 7916741 7211006 N/A N/A N/A
VALVE-Urethane Insert 9700250 9700354 60155041   Cylinder Head 6308015 7916801
VALVE-Rubber Insert 9700293 N/A 60155033   Wear Plate 7916800 7211001 N/A N/A N/A
SEAT 9702504 9702504 61101507
SPRING 55213417 55213417 55413397
SPRING-Stainless     55403257
INSERT-Urethane 9705228 PFO7I 62400338   MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 62400239   Complete Assembly OEM HHF1600 FE N/A
SEAT PULLER ASSEMBLIES Discharge Module Studded N/A N/A
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded N/A N/A
Puller Head 8401985 8401985 181235300   One Piece OEM Style Studded 79101004 N/A

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Std. Clamp W/Flush Pony Rod Seal
7913077 1 Piece   7208502 1551703     5402052 PP601316 80701023 0-7602-2131-47
7913077 2 Piece 2095002 7208502 HT204A PPHT2145B 10305203NH 5402052 PP601316 80701023 0-7602-2132-76





Weatherford MP-13/MP-16 Fluid End (All Parts are Available)
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP AVAILABLE
    NA ASSY, COMPLETE FLUID END (INCLUDES MANIFOLDS) 1 OK
1   NA ASSY, COMPLETE FLUID END MODULE 3 OK
1A 889428 79101004 MODULE, STUDDED FLUID END (ITEMS 1A-14) 3 OK
2   EMSFB13LCS STUD, LINER THREADED RING 36 OK
3   PEP53 NUT, LINER THREADED RING STUD 36 OK
4   EMSFB13PFS STUD, POWER FRAME 18 OK
5   EMSF1000PFSN NUT, POWER FRAME STUD 18 OK
6   EMSFB13PFS STUD, TOP POWER FRAME 12 OK
7   EMSF1000PFSN NUT, TOP POWER FRAME STUD 12 OK
8   7602113 WASHER, LOCK TOP POWER FRAME STUD 1-1/2" (NOT SHOWN) 12 OK
9   79101005 STUD, THROUGH MODULE POWER FRAME 1-1/2-? X ? 12 OK
10   EMSF1000PFSN NUT, THROUGH MODULE POWER FRAME STUD 12 OK
11   EMSFB13TRS STUD, CYLINDER HEAD THREADED RING 30 OK
12   EMSF1000PFSN NUT, CYLINDER HEAD THREADED RING STUD 30 OK
13   EMSF1000DMS STUD, DISCHARGE MANIFOLD 12 OK
14   IDT800TRSN NUT, DISCHARGE MANIFOLD STUD 12 OK
15** 1134286 EMSFB13LVGA GUIDE, LOWER VALVE (WITH BUSHING) 3 OK
16**   EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3 OK
17**   EMSFB13BOLT LOCKBOLT, LOWER VALVE GUIDE 3 OK
18** 1134288 EMSFB13AR ALIGNMENT RING 3 OK
19 1134289 7916801 GASKET, HEAD SEAL 3 OK
20** 1134287 EMSFB13CYHPLG PLUG, CYLINDER HEAD 3 OK
21 1134283 EMSFB13CYHFLG RING, THREADED CYLINDER HEAD 3 OK
22 1134284 EMSFB13CYHCAP CAP, THREADED CYLINDER HEAD 3 OK
23 1134293 7916741 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3 OK
24 1134310 PEP79 SCREW, RETAINER UPPER) 12 OK
25 1134309 EMSRETAINER PLATE, RETAINER (UPPER) 3 OK
26 1134307 EMSF1000UVGB GUIDE, UPPER VALVE 3 OK
27 1134294 EMSFB13CAP COVER, VALVE POT 3 OK
28 1134311 7916800 GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3 OK
29 889432 EMSFB13WP PLATE, WEAR 3 OK
30 1134311 7916800 GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3 OK
31 1134296 EMSFB13LTR RING, LINER THREADED 3 OK
32 1134297 EMSFB13LL LINER LOCK 3 OK
33   99609343 GASKET, DISCHARGE MANIFOLD 3 OK
34   99609442 GASKET, SUCTION MANIFOLD 3 OK
35   0-7601-0333-30 SUCTION MANIFOLD CAPSCREW (NOT SHOWN) 18 OK
  889438   ROD, PISTON 3 OK
  1134301   CLAMP, PISTON ROD 3 OK
  1134306   MANIFOLD, SUCTION 1 OK
  1134290   MANIFOLD, DISCHARGE 1 OK
  1317099   LINER 4" 3 OK
  1317159   LINER 4.5" 3 OK
  1317213   LINER 5" 3 OK
  1317264   LINER 5.5" 3 OK
  1317313   LINER 6" 3 OK
  1317359   LINER 6.5" 3 OK
  1317396   LINER 7" 3 OK
  1317116   ZIRCONIA LINER 4" 3 OK
  1317175   ZIRCONIA LINER 4.5" 3 OK
  1317225   ZIRCONIA LINER 5" 3 OK
  1317276   ZIRCONIA LINER 5.5" 3 OK
  1317324   ZIRCONIA LINER 6" 3 OK
  1317370   ZIRCONIA LINER 6.5" 3 OK
  1317406   ZIRCONIA LINER 7" 3 OK
Weatherford MP-13/MP-16 Power End
1 908427   STRAP, ECCENTRIC 1 OK
2 908384   CRANKSHAFT 1 OK
3 908408   GEAR, ECCENTRIC RING 1 OK
4 1133853   BOLT, MAIN BEARING 2 OK
5 1133859   BEARING, MAIN 3 OK
6 1133857   BEARING, ECCENTRIC 3 OK
7 1134026   SHAFT, PINION 1 OK
8 1134027   RING, OIL SEAL WEAR 2 OK
9 908359   BEARING, PINIONSHAFT 2 OK
10 908399   CROSSHEAD 3 OK
11 1134260   GUIDE, CROSSHEAD UPPER 3 OK
12 1134263   BOX, DIAPHRAM STUFFING 3 OK
13 1134264   GASKET, BOX STUFFING 3 OK
14 1123535   SPRING, STUFFING BOX 3 OK
15 1134266   BAFFLE, FLUID DISC 3 OK
16 908402   EXTENSION CROSSHEAD 3 OK
17 908404   PIN, CROSSHEAD 3 OK
18 1134268   GUIDE, CROSSHEAD LOWER 3 OK
19 1124898   O-RING 140X7 3 OK
20 1134271   RETAINER,RING, SEAL, STUFFING BOX 3 OK
21 908429   BEARING, CROSSHEAD 3 OK







Weatherford is one of the world's largest multinational oil and natural gas service companies. The company provides products and services for drilling, evaluation, completion, production and intervention of oil and natural gas wells, along with pipeline construction and commissioning. Headquartered in Switzerland, Weatherford operates in more than 100 countries across the globe and employs more than 35,000 people (2016).





Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.
