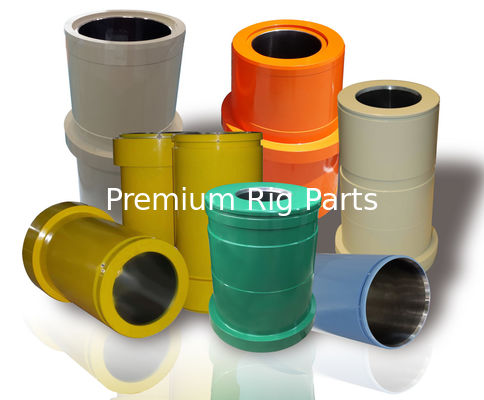

Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs

  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
  • Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs
원래 장소 중국, 미국
브랜드 이름 Wirth TPK
인증 API
모델 번호 TPK-2200, TPK-2000, TPK-1600, TPK1000
최소 주문 수량 1세트
가격 1 to 500 usd
포장 세부 사항 해상 및 항공 운송에 적합
배달 시간 재고 있음
지불 조건 L/C (신용장), 전신환, 인수 인도, D/P (지급도 조건), 웨스턴 유니온
공급 능력 한 달에 3000 조각

무료샘플과 쿠폰을 위해 나와 연락하세요.

WhatsApp:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
용법 기름, 물, 굴착 장비 힘 유압, 디젤
압력 고압 어플리케이션 광업, 석유
구조 피스톤 펌프 연료 디젤
표준 또는 비표준 기준 이론 원심펌프
유형 머드 펌프 무게 100-3700kg
색상 파란색, 빨간색 등, 녹색 또는 고객 디자인 당 재료 주철/스테인리스 진흙 흡입 펌프, 크롬 합금, 스테인리스 알루미늄 플라스틱 등
보증 1년 진흙 흡입 펌프 특징 진흙 흡입 펌프
제품명 머드 펌프 머리 10m 진흙 흡입 펌프
OEM 있을 수 있고 받아들입니다, 적용 가능합니다 인입관 (mm)/(in) DN200 / 8
상태 새로운
메시지를 남겨주세요
제품 설명

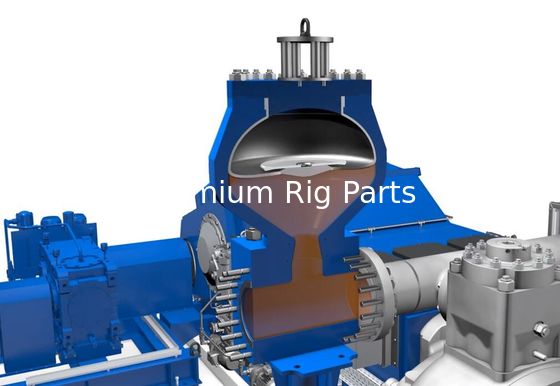

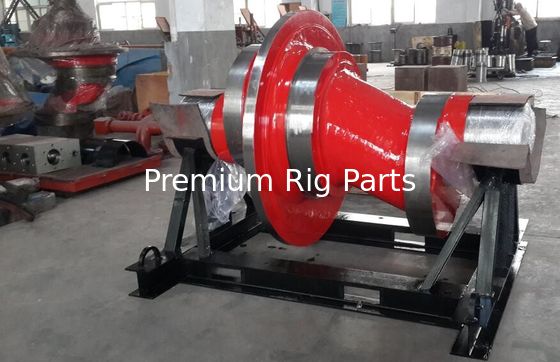

Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 0

MHWirth’s mud pumps deliver pressure and fluid volumes to meet all your project requirements both on- and offshore.



With less noise and vibration, our mud pumps reduce service costs and increase operational efficiency.



Our gear driven drive has an extended lifetime of up to 50 000 hours and is more durable than traditional chain or belt driven drives. Our AC water jacket motor reduces noise to less than 85 dBA and the hydraulic quick release system allows fast and safe replacement of fluid end parts.



We deliver mud pumps with a maximum discharge pressure of 10 000 psi and with various skid arrangements for rear or top mounted motors, we have a configuration to meet every on- or offshore rig arrangements.



Technical Specifications
The table below is a selection of typical variants.
TPK 2200-AC-TG-WJ
TPK 2200-AC-TG-WJ
TPK 2200-AC-RB-FV
Typical application
Offshore, mud circulation for ultra deepwater drillships and floaters,
jackups, fixed platforms
Onshore, mud circulation for deep
drilling
Discharge flow, max.
885 gpm (200.88 m³/h)
Operating pressure, max.
10 000 psi (690 bar)
7 500 psi (517 bar)
Standard main motor(s)
Single AC, water jacket
Double AC, forced ventilated
Standard drive
configuration
Top mounted, gear drive
Rear mounted, belt drive,
dual sided
Dry weight
104 716 lbs (47 500 kg)
102 515 lbs (46 500 kg)
106 924 lbs (48 500 kg)
Dimensions
Length
Width
Height
206 in (5 250 mm)
133 in (3 379 mm)
144 in (3 645 mm)
206 in (5 250 mm)
133 in (3 379 mm)
144 in (3 645 mm)
278 in (7 080 mm)
124 in (3 160 mm)
139 in (3 550 mm)

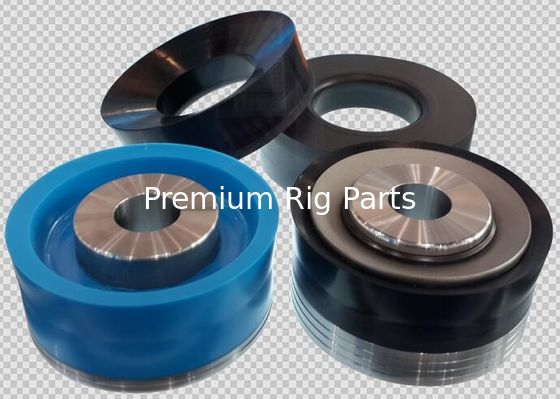

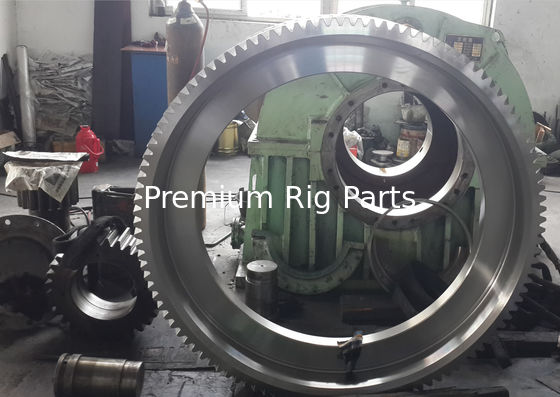

Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 1


All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

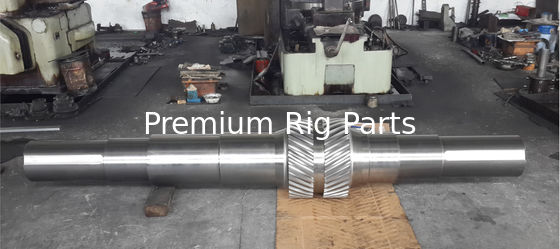

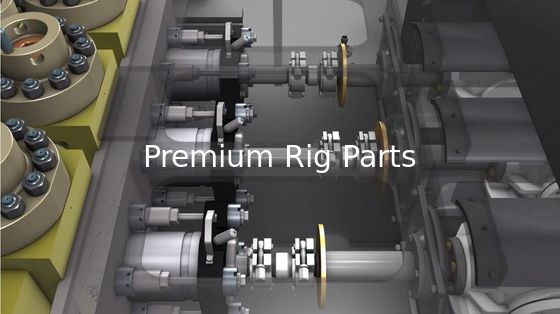

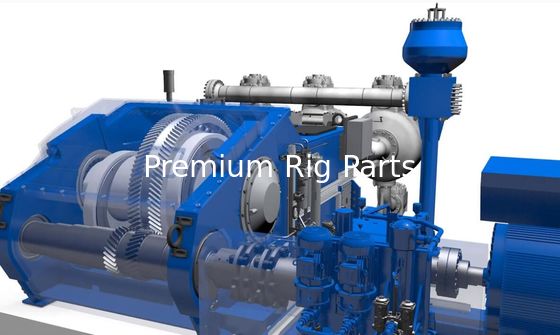

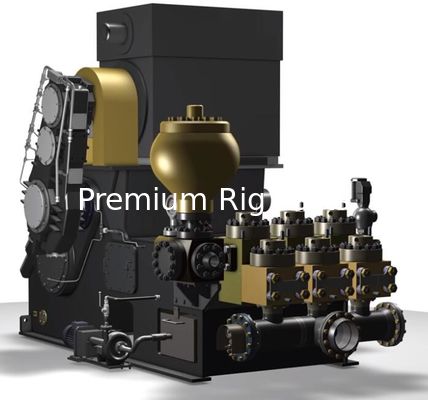

Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 2Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 3



Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900

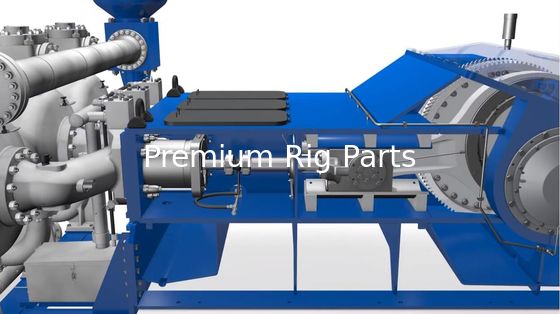

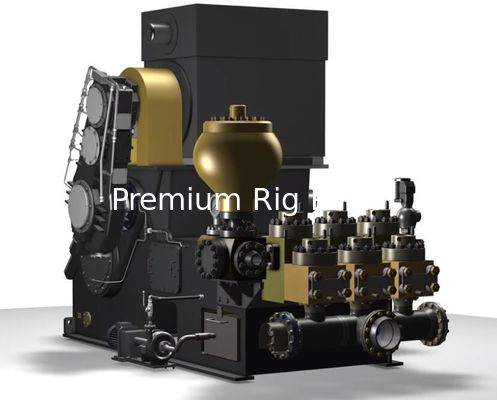

 Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 4

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

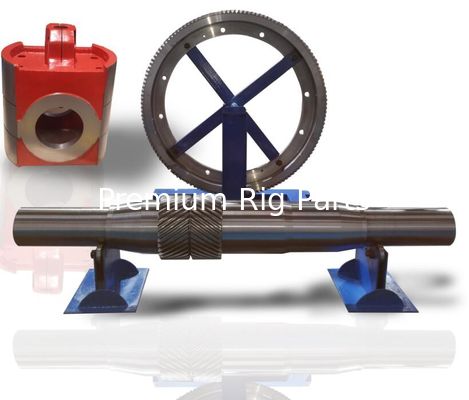

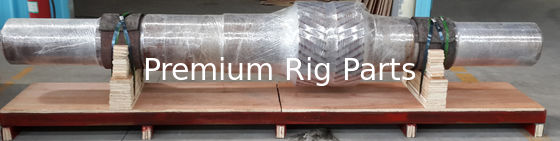

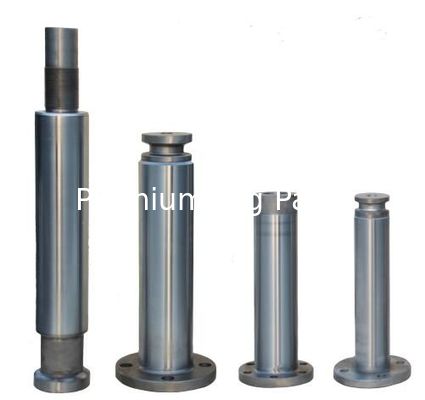

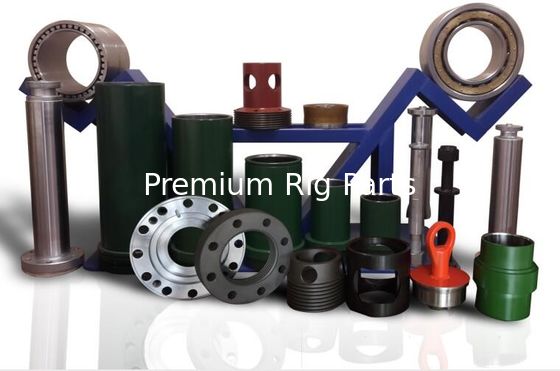

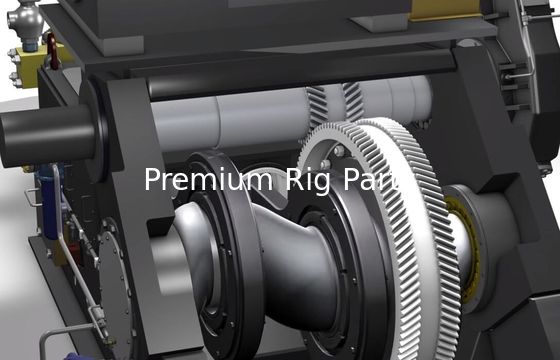

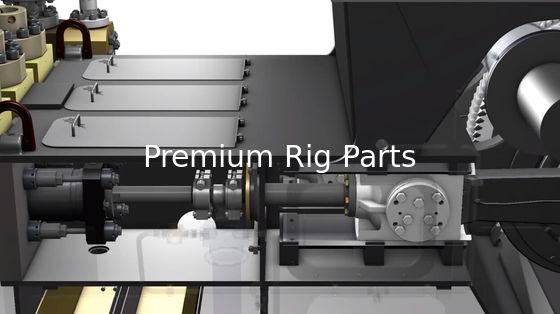

Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 5Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 6Wirth TPK2200 MUD PUMP Zirconia Liners, Ceramic Liners, TPK-1600 mud pump liners, TPK-1000 mud pump piston and valevs 7



CONTINENTAL EMSCO FB-1300, FB-1600
FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: EMSCO INDEX
1   EMSFEMF1000CA FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) 3
1A 6999008602 EMSFEMF1000 FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) 3
2 7507220500 EMSF100PFS STUD FRAME 18
3 7601063017 EMSF1000PFSN NUT (FOR ABOVE) 18
4 7507215000 EMSF100TRS STUD, THREADED RING 30
5 7601063028 EMSF1000TRSN NUT (FOR ABOVE) 30
6 7507210800 EMSF1000DMS STUD, DISCHARGE MANIFOLD 12
7 7601063024 IDT800TRSN NUT (FOR ABOVE) 12
8 6319002600 EMSF1000LC CAGE, LINER 3
9 6319008700 EMSF1000LVG GUIDE, LOWER VALVE (WITH BUSHING) 3
10 6319008900 EMSF1000LVC CLIP, LOCKING (FOR LOWER VALVE GUIDE) 3
11 7602220032 078070028200 GASKET, LINER 6
12 6319003100 EMSF1000CYHPLG PLUG, CYLINDER HEAD 3
13 6999008900 EMSF1000CYHFLG RING, THREADED CYLINDER HEAD 3
14 6319009000 EMSF1000CYHCAP CAP, THREADED CYLINDER HEAD 3
15 6319007600 077170074001 GASKET, VALVE COVER 3
16 7501005100 PEP79 SCREW, RETAINER (UPPER) 12
17 6397060300 EMSRETAINER RETAINER PLATE (UPPER) 3
18 6397057500 EMSF1000UVGB GUIDE, UPPER VALVE 3
19 6319002700 EMSF1000CAP COVER, VALVE POT 3
20 7602161046 1902415 GASKET, DISCHARGE MANIFOLD 3
21 7602160061 1904426 GASKET, SUCTION MANIFOLD 3
22 6316009600 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3
23     CAPSCREW, SUCTION MANIFOLD - NOT SHOWN
