TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve

  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
  • TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve
Lugar de origem China
Marca TSC
Certificação API
Número do modelo Ideco T1600
Quantidade de ordem mínima 1 peça
Preço 100 usd
Detalhes da embalagem Adequado para envio por mar e ar
Tempo de entrega Em estoque
Habilidade da fonte 3000 partes pelo mês

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Deixe um recado
Descrição de produto

    TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve 0TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve 1TSC Ideco T1600 mud pump fluid end, T1300 mud pump, T1000 mud pump, T800 mud pump, T500 mud pump liner, piston, Valve 2



  Premium can produce all series spare parts of TSC company.

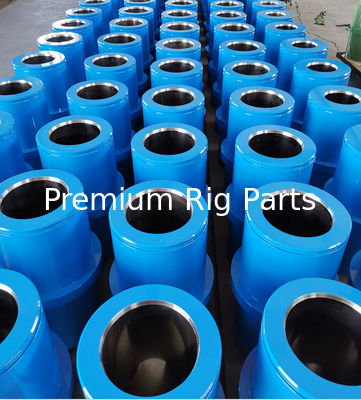

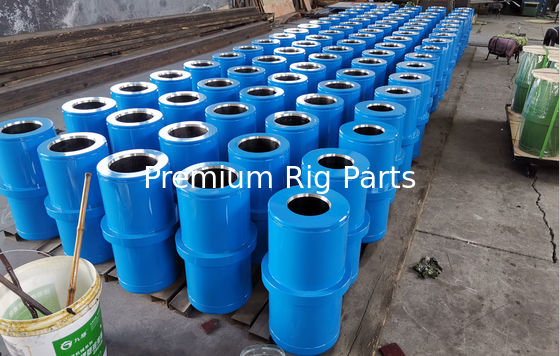

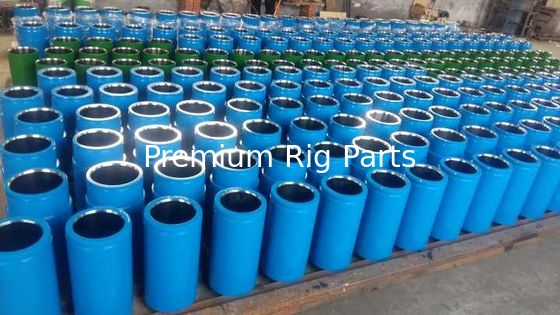

      TSC mud pump liners are designed and manufactured to meet or exceed original equipment specification and API standards for almost all types of mud pumps in use today.



      TSC Workforce (WF) series mud pumps are developed to offer superior performance for a variety of drilling operations and work environments. TSC Mud pump and parts for model WF1300 triplex Pump,WF1300BH,WF1300,WF 1300C,WF1600A,WF1600B,WF1600BH,WF1600CH,WF1600L,WF1600LH,WF2000,WF2200.WF400,WF700.

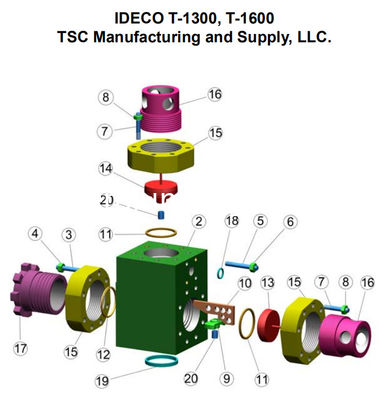

IDECO T-1300, T-1600
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION
01 TS-551-122-01 MODULE, FLUID END STUDDED (INCLUDES ITEMS 12,3,4,5,6,7)
02 TS-551-110-01 STUD, POWER FRAME
03 TS-IN415 NUT,POWER FRAME STUD
04 TS-551-110-02 STUD, DISCHARGE MANIFOLD
05 TS-IN416 NUT, DISCHARGE MANIFOLD STUD
06 TS-551-110-03 STUD, THREADED RING
07 TS-IN415 NUT, THREADED RING STUD
08 TS-551-105-07 ASSEMBLY, LOWER VALVE GUIDE (INCLUDES # 19 VALVE GUIDE BUSHING)
09 TS-551-105-08 RETAINER, LOWER VALVE GUIDE
10 TS-BTM16696308(G-782-Z) GASKET, VALVE COVER,CYLINDER HEAD
  G-782
11 TS-551-122-02 PLUG, CYLINDER HEAD
12 TS-551-122-02 COVER, VALVE
13 TS-551-105-03 RING, THREADED
14 TS-551-105-04 CAP, THREADED
15 TS-551-105-05 NUT, LINER ADAPTER
16 TS-IO548 GASKET, DISCHARGE MANIFOLD
17 TS-IO507 GASKET, SUCTION MANIFOLD
18 TS-551-105-06 GUIDE, UPPER VALVE (INCLUDES # 19 VALVE GUIDE BUSHING)
19 TS-99609339 BUSHING, VALVE GUIDE
