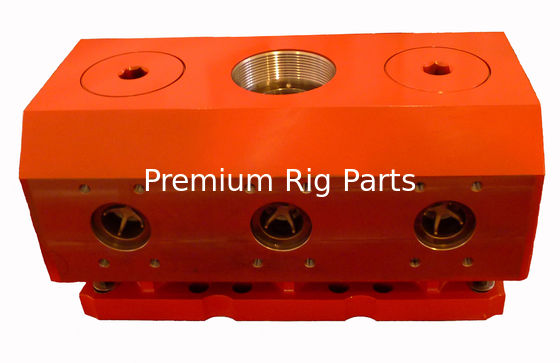

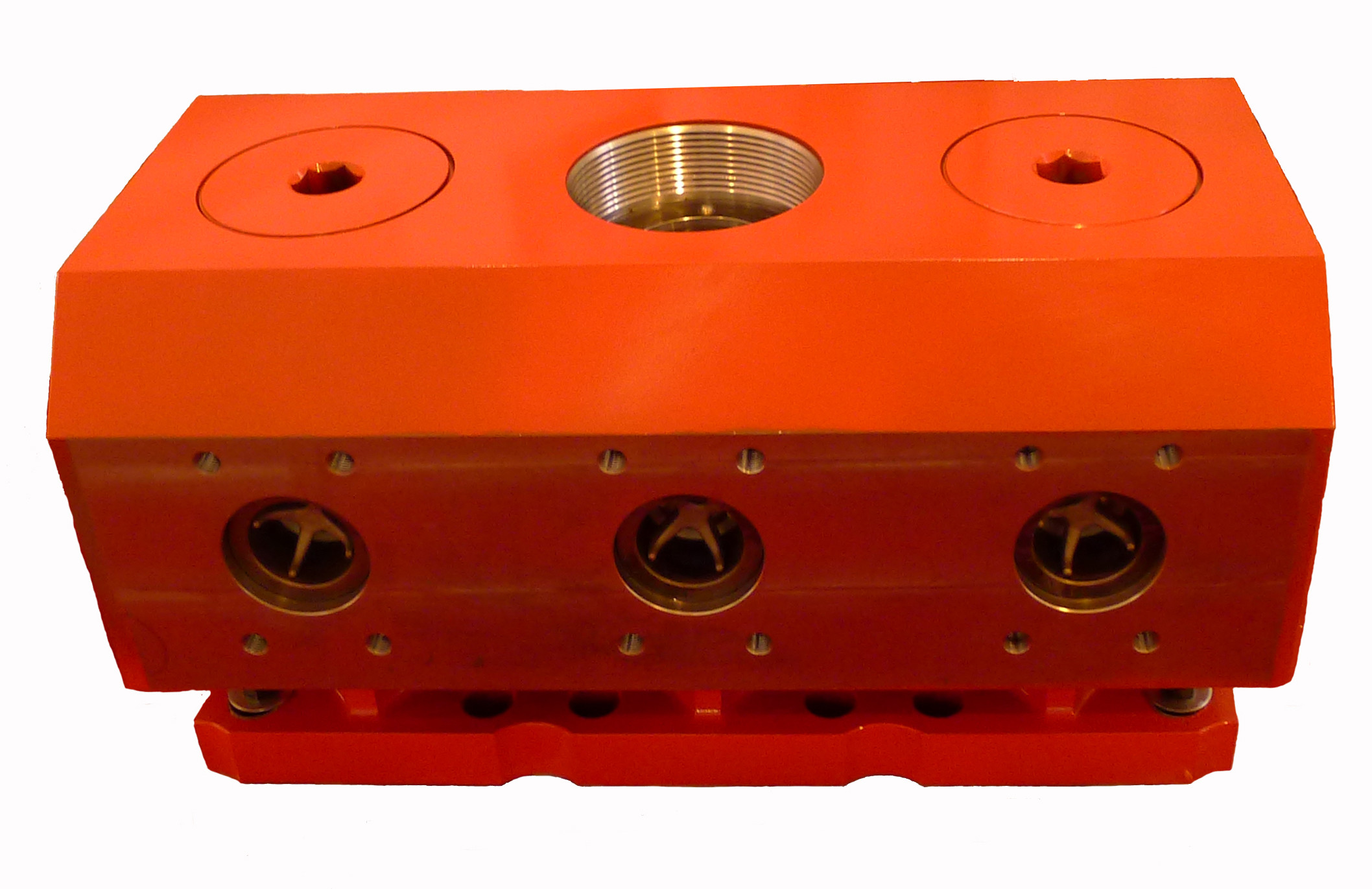

SPM TWS600 plunger pump

  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
  • SPM TWS600 plunger pump
Lugar de origem China
Marca SPM
Certificação API
Número do modelo TWS600
Quantidade de ordem mínima 1
Preço USD
Tempo de entrega Em estoque
Termos de pagamento T/T
Habilidade da fonte 10000 por mês

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Deixe um recado
Descrição de produto

    The TWS 600S is a versatile pump featuring a patented design, which can be utilized in a back-to-back configuration.

A patented feature unique to the TWS 600S pump is it’s offset crankshaft / crosshead design which substantially reduces the load on both the crosshead and crosshead guides, as well as the main roller bearings supporting the crankshaft.

With this patented offset, the pump develops a lower connecting rod angle on the power stroke. The result is reduced wear between the crosshead and the guide, increasing product life.

The TWS 600S can be utilized in acidizing, cementing, gravel packing and snubbing operations.

TWS 600S Performance Specs
Max Brake Horsepower :600 BHP (447 Kw) Approx. Length:50.25 Inches (1,276 mm)
Max Rod Load Capacity:100,000 lb (43,360 kg) Approx. Width: 52.93 Inches (1,344 mm)
Stroke Length:6 Inches(152.4 mm) Approx. Height:23.88 Inches(607 mm)
Gear Ratio: 4.61 : 1 Approx. Weight (Dry): 4 , 9 40 lb (2,240 kg)

TWS 600S Back-to-Back Layout

SPM TWS600 plunger pump 0

TWS 600S Performance Data



PLUNGER
DIAMETER		 OUTPUT
PER REV		 DISPLACEMENT AT PUMP STROKES PER MINUTE / PINION RPM
50/230 120/552 200/920 300/1380 450/2070
mm
(in)		 gal/rev
(liter/rev)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)		 gpm
(lpm)		 Kg/cm2
(PSI)
63.5
(21/2)		 1.4
(0.38)		 72
(19)		 1,436
(20,372)		 174
(46)		 1,421
(20,165)		 290
(76)		 853
(12,099)		 434
(115)		 568
(8,066)		 651
(172)		 379
(5,377)
69.9
(23/4)		 1.8
(0.46)		 87
(23)		 1,186
(16,836)		 210
(56)		 1,174
(16,665)		 350
(93)		 705
(9,999)		 526
(139)		 470
(6,666)		 788
(208)		 313
(4,444)
76.2
(3)		 2.1
(0.55)		 104
(28)		 997
(14,147)		 250
(66)		 987
(14.003)		 417
(110)		 592
(8,402)		 625
(165)		 395
(5,601)		 938
(248)		 263
(3,734)
88.9
(31/2)		 2.8
(0.75)		 142
(37)		 732
(10,394)		 341
(90)		 725
(10,288)		 568
(150)		 435
(6,173)		 851
(225)		 290
(4,115)		 1,277
(337)		 193
(2,744)
101.6
(4)		 3.7
(0.98)		 185
(49)		 561
(7,958)		 445
(118)		 555
(7,877)		 741
(196)		 333
(4,726)		 1,112
(294)		 222
(3,151)		 1,668
(441)		 148
(2,100)
114.3
(41/2)		 4.7
(1.24)		 235
(62)		 443
(6,288)		 563
(149)		 439
(6,224)		 938
(248)		 263
(3,734)		 1,407
(372)		 175
(2,489)		 2,111
(558)		 117
(1,660)
NPUT POWER: BHP (Kw) 188(253) 448(600) 448(600) 448(600) 448(600)



1 .Based on 90% ME and 100% VE - Intermittent Service Only.
2 .For applications demanding pressures over 15,000 psi, contact SPM Engineering.

TWS 600S Hydraulic Horsepower Curve

SPM TWS600 plunger pump 1

Note: This chart shows this pump’s performance at max hydraulic horsepower. Notice as the plunger size for the pump increases, a greater max flow rate is achieved while the max pressure decreases.
