SOUTHWEST IDECO T1300/1600 Mud Pump Zirconia Liners, TPK-2200 MUD PUMP CERAMIC LINER, WEATHERFORD E-2200 CERAMIC LINER



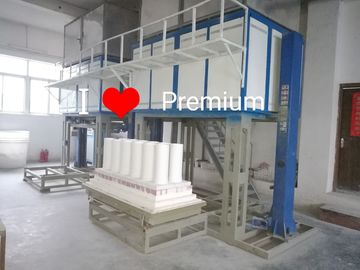

Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.



◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.



All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.



◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps



Southwest  mud pump zirconia liner part number:



Southwest T1300/1600	6307G06 PREM	6307G08 PREM	6307G1 PREM	6307G3 PREM	6307G5 PREM	6307G7 PREM	6307G9 PREM
Southwest A1400/1700PT	1388G06 PREM	1388G08 PREM	1388G1 PREM	1388G3 PREM	1388G5 PREM	1388G7 PREM	1388G9 PREM
Southwest LEWCO 12-P-WH 1612	1376G06 PREM	1376G08 PREM	1376G1 PREM	1376G3 PREM	1376G5 PREM	1376G7 PREM	1376G9 PREM



SOUTHWEST 8407-7A FLUID END FOR IDECO T-1600 / T-1300

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
	8407-7A	FLUID END ASSEMBLY: (CONSIST OF ITEMS: 3,4,17,18,19,20,21, 22,23,24,25,26,27,28,29,31,32,33,34,36,37)
1	6307YXX	LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX))	3
2	AJO507U	LINER CYLINDER HEAD AND VALVE COVER SEAL (URETHANE)	3
3	8407-10	WEARPLATE	3
3A	4018-98	WEARPLATE SOCKET HEAD CAP SCREW	9
4	2988	WEARPLATE AND MODULE SEAL	6
5	XX-BYY	PISTON (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND SIZE (XX))	3
5A	2932	PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE)	3
6	568-225	PISTON O-RING	3
7	6278-25	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1290-2	PISTON ROD CONNECTING STUD	3
10	6207-1	SUB ROD	3
11	6207CW	ROD CLAMP (CONSIST OF 11A, 11B, 11C)	3
11A	1200H30	HOSE (1/2” X 30” WITH ½” MALE X 3/8” MALE CONNECTIONS)	3
11B	1200140	PIPE (3/8” X 14” GALVANIZED, AND THREADED ON ONE END)	3
11C	4018-92	ROD CLAMP BOLT (5/8”-8” GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	6200G07	PONY ROD	3
13	SEE PAGE	VALVE	6
14	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
15	SEE PAGE	VALVE SPRING	6
16	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
	4475-2A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEM NO. 17-24)	6
17	4475	THREADED FLANGE	6
18	4575	SCREW GLAND	6
19	4675-2A	PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING)	6
20	P129	HP VALVE COVER PLUG SEAL	6
21	4775-2R	VALVE GUIDE (COMPLETE WITH BUSHING PART# 4700I)	6
22	4700I	VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU)	6
23	4016-99	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1-1/4”-7” HEAVY HEX NUT)	72
25	4018-68	POWER END AND LINER RETAINER STUD (WITH SW PART# HHN1500-8 1-1/2” -8” HEAVY HEX NUT)	24



ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
26	6407	LINER RETAINER FLANGE	3
27	6507	LINER RETAINER NUT	3
28	4016-97	SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2” -8” HEAVY HEX NUT)	18
29	4017-59	SUCTION MANIFOLD CAP SCREW	24
30	8407-8	SUCTION MANIFOLD	1
31	568-447	SUCTION MANIFOLD GASKET	3
32	8407-11S	SUCTION MODULE	3
33	8407-7D	DISCHARGE MODULE	3
34	8488-5	DOWEL PIN	6
35	8407-9	DISCHARGE MANIFOLD	1
36	568-339	DISCHARGE MANIFOLD SEAL	3
37	4017-50	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN11250-8 1-1/4”-8” HEAVY HEX NUT)	12
38	9070019	PONY ROD SEAL	3
39	9060012	BAFFLE	3



SOUTHWEST 5000 PSI IDECO T-1600/T-1300 GUIDE TO ORDERING
	PISTONS		LINERS			LINER GASKETS
SIZE	FAIL-SAFE	DUAL-DURO®	GRAYLOY®	ZIRCONIA		RUBBER	URETHANE
4"	76BFS	76BDD	6307G06			AJO507	AJO507U
4 1/4"	77BFS	77BDD	6307G07			AJO507	AJO507U
4 1/2"	78BFS	78BDD	6307G08			AJO507	AJO507U
4 3/4"	79BFS	79BDD	6307G09			AJO507	AJO507U
5"	81BFS	81BDD	6307G1			AJO507	AJO507U
5 1/4"	82BFS	82BDD	6307G2			AJO507	AJO507U
5 1/2"	83BFS	83BDD	6307G3	6307ZIR3		AJO507	AJO507U
5 3/4"	84BFS	84BDD	6307G4			AJO507	AJO507U
6"	85BFS	85BDD	6307G5	6307ZIR5		AJO507	AJO507U
6 1/4"	86BFS	86BDD	6307G6			AJO507	AJO507U
6 1/2"	87BFS	87BDD	6307G7	6307ZIR7		AJO507	AJO507U
6 3/4"	88BFS	88BDD	6307G8			AJO507	AJO507U
7"	89BFS	89BDD	6307GS9	6307ZIR9		AJO507	AJO507U
7 1/4"	91BFS	91BDD				AJO507	AJO507U
7 1/2"	92BFS	92BDD				AJO507	AJO507U





VALVES & SEATS SOUTHWEST 8407-7A IDECO T-1600 / T-1300







VALVES & SEATS SOUTHWEST 8407-7A IDECO T-1600 / T-1300
TYPE	VALVE	INSERT	SPRING	STAINLESS SPRING	SEAT	PULLER HEAD	PULLER HEAD STYLE
SOUTHWEST (Full Open)	777-8B	N/A	941	N/A	877-7	SWTM4250	SPLIT JAW
FULL OPEN-ROUGHNECK	SWND-7V2	N/A	SW5710-115L	N/A	SWND-7S1	SWTM40-SN SWND-7PH	SPLIT JAW PANCAKE
FULL OPEN-ROUGHNECK (High Temp)	SWND-7V2H	N/A	SW5710-115L	N/A	SWND-7S1	SWTM40-SN SWND-7PH	SPLIT JAW PANCAKE
FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert)	SWND-7V1	SWND-7I	SW5710-115L	N/A	SWND-7S1	SWTM40-SN SWND-7PH	SPLIT JAW PANCAKE
3 WEB DOUBLE ANGLE O-RING	SWR0500110	SWR0514275	SWR0513744	SWR0514790	SWR0509309	SWTM3-7T	3 J HOOK
3 WEB (High Temp)	SWR0520502	SWR0520501	SWR0513744	SWR0514790	SWR0509309	SWTM3-7T
3 WEB STANDARD PLATE	SWR0505062	SWR0504893	SWR0513937	SWR0514423	SWR0509309	SWTM3-7T
4 WEB	SWU5C-EEF	SWUDD-7B	SW5710-115	N/A	SW7DD-B1	SWTM4-7	4 J HOOK
4 WEB (High Temp)	SWU5C-EEFHT	SWUDD-7BHT	SW5710-115	N/A	SW7DD-B1	SWTM4-7



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.





1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5
