Home ProductsMud Pump Zirconia Liners

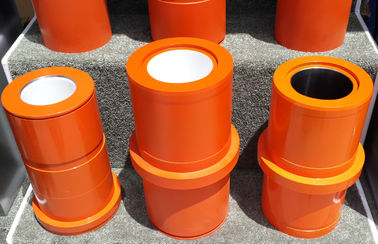

SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER

Certification
Good quality Mud Pump Zirconia Liners for sales
I'm Online Chat Now

SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER

China SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier
SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER supplier

Large Image :  SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER

Product Details:

Place of Origin: CHINA, USA
Brand Name: SOUTHWEST, NATIONAL OIWELL, EMSCO, BOMCO
Certification: API
Model Number: OILWELL A1400PT/A1700PT

Payment & Shipping Terms:

Minimum Order Quantity: 1 PIECE
Price: 1 TO 500 USD
Packaging Details: Stuitable to shipment by sea and air
Delivery Time: In stock
Payment Terms: L/C, T/T
Supply Ability: 1200 pieces per month
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric,diesel
Pressure: High Pressure,Low Pressure Application: Mining,oil
Structure: Piston Pump Fuel: Diesel,Gasoline,Electric
Theory: Centrifugal Pump Type: Mud Pump
Color: Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty: 12 Months Product Name: Mud Pump
Oem: Can Be Accept Condition: New



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.



◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.



All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.



◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



Southwest  mud pump zirconia liner part number:



Southwest T1300/1600 6307G06 PREM 6307G08 PREM 6307G1 PREM 6307G3 PREM 6307G5 PREM 6307G7 PREM 6307G9 PREM
Southwest A1400/1700PT 1388G06 PREM 1388G08 PREM 1388G1 PREM 1388G3 PREM 1388G5 PREM 1388G7 PREM 1388G9 PREM
Southwest LEWCO 12-P-WH 1612 1376G06 PREM 1376G08 PREM 1376G1 PREM 1376G3 PREM 1376G5 PREM 1376G7 PREM 1376G9 PREM



ITEM NO.



PART NO.



DESCRIPTION

QTY. REQ’D
  8488-1A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) 3
3 8488-4 WEARPLATE 3
4 2974-1 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD (WITH WATER HOLE) 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT (IF REQUIRED) 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS) 1
  4475-1A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24)
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-1A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) 6
20 P129 HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U) 6
21 4775R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
23 4018-88 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4016-96 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12

ITEM NO.



PART NO.



DESCRIPTION

QTY. REQ’D
26 4017-4 LINER RETAINER FERRY HEAD CAP SCREW 24
27 6488-1 LINER RETAINER FLANGE 3
28 6588-1 LINER RETAINER NUT (FOR LARGE BODY LINER) 3
28A 8488-7 LINER RETAINER SET SCREW 9
29 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
30 4018-70 SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER) 24
31 8588-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
32 80102003 SUCTION MANIFOLD GASKET 3
33 8488-2S SUCTION MODULE (STUDDED ONLY) 3
34 8488-1D DISCHARGE MODULE (STUDDED ONLY) 3
35 8488-5 DOWEL PIN 6
36 2988 MODULE GASKET 1
37 8388A DISCHARGE MANIFOLD 3
38 568-345 DISCHARGE MANIFOLD GASKET 12



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



SOUTHWEST 5000 PSI A-1700-PT/A-1400-PT GUIDE TO ORDERING
PISTONS LINERS LINER GASKET
SIZE FAIL-SAFE DUAL-DURO® BLACK CAT GRAYLOY ZIRCONIA RUBBER URETHANE
4" 76BFS 76BDD 76BBC 1388G06 1388ZIR06 2974-06 2974-06U
4 1/4" 77BFS 77BDD 77BBC 1388G07   2974-07 2974-07U
4 1/2" 78BFS 78BDD 78BBC 1388G08 1388ZIR08 2974-08 2974-08U
4 3/4" 79BFS 79BDD 79BBC 1388G09   2974-09 2974-09U
5" 81BFS 81BDD 81BBC 1388G1 1388ZIR1 2974-1 2974-1U
5 1/4" 82BFS 82BDD 82BBC 1388G2   2974-2 2974-2U
5 1/2" 83BFS 83BDD 83BBC 1388G3 1388ZIR3 2974-3 2974-3U
5 3/4" 84BFS 84BDD 84BBC 1388G4   2974-4 2974-4U
6" 85BFS 85BDD 85BBC 1388G5 1388ZIR5 2974-5 2974-5U
6 1/4" 86BFS 86BDD 86BBC 1388G6   2974-6 2974-6U
6 1/2" 87BFS 87BDD 87BBC 1388G7 1388ZIR7 2974-7 2974-7U
6 3/4" 88BFS 88BDD 88BBC 1388G8   2974-8 2974-8U
7" 89BFS 89BDD 89BBC 1388G9 1388ZIR9 2974-9 2974-9U
7 1/4" 110BFS 110BDD 110BBC N/A   2974-10 2974-10U
7 1/2" 111BFS 111BDD 111BBC N/A   2974-11 2974-11U



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



VALVES & SEATS A-1700-PT/A-1400-PT
TYPE VALVE INSERT SPRING

STAINLESS

SPRING

SEAT PULLER HEAD

PULLER HEAD

STYLE

SOUTHWEST (Full Open) 777-8B N/A 941 N/A 877-7 SWTM4250 SPLIT JAW
FULL OPEN-ROUGHNECK SWND-7V2 N/A SW5710-115L N/A SWND-7S1

SWTM40-SN

SWND-7PH

PANCAKE

SPLIT JAW

FULL OPEN-ROUGHNECK

(High Temp)

SWND-7V2H N/A SW5710-115L N/A SWND-7S1

SWTM40-SN

SWND-7PH

PANCAKE

SPLIT JAW

FULL OPEN-ROUGHNECK

(w/Replaceable Urethane Insert)

SWND-7V1 SWND-7I SW5710-115L N/A SWND-7S1

SWTM40-SN

SWND-7PH

PANCAKE

SPLIT JAW

3 WEB DOUBLE ANGLE O-RING SWR0500110 SWR0514275 SWR0513744 SWR0514790 SWR0509309 SWTM3-7T



3 J HOOK

3 WEB (High Temp) SWR0520502 SWR0520501 SWR0513744 SWR0514790 SWR0509309 SWTM3-7T
3 WEB STANDARD PLATE SWR0505062 SWR0504893 SWR0513937 SWR0514423 SWR0509309 SWTM3-7T
4 WEB SWU5C-EEF SWUDD-7B SW5710-110 N/A SW7DD-B1 SWTM4-7 4 J HOOK
4 WEB (High Temp) SWU5C-EEFHT SWUDD-7BHT SW5710-110 N/A SW7DD-B1 SWTM4-7




SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER







1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12

  8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS








SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING
PISTONS LINERS LINER SEALS
SIZE FAIL-SAFE DUAL-DURO® BLACK CAT GRAYLOY® ZIRCONIA RUBBER URETHANE
4" 76BFS 76BDD 76BBC 1376G06   2930-06 2930-06U
4 1/4" 77BFS 77BDD 77BBC 1376G07   2930-07 2930-07U
4 1/2" 78BFS 78BDD 78BBC 1376G08 1376ZIR08 2930-08 2930-08U
4 3/4" 79BFS 79BDD 79BBC 1376G09 1376ZIR09 2930-09 2930-09U
5" 81BFS 81BDD 81BBC 1376G1 1376ZIR1 2930-1 2930-1U
5 1/4" 82BFS 82BDD 82BBC 1376G2   2930-2 2930-2U
5 1/2" 83BFS 83BDD 83BBC 1376G3 1376ZIR3 2930-3 2930-3U
5 3/4" 84BFS 84BDD 84BBC 1376G4 1376ZIR4 2930-4 2930-4U
6" 85BFS 85BDD 85BBC 1376G5 1376ZIR5 2930-5 2930-5U
6 1/4" 86BFS 86BDD 86BBC 1376G6 1376ZIR6 2930-6 2930-6U
6 1/2" 87BFS 87BDD 87BBC 1376G7 1376ZIR7 2930-7 2930-7U
6 3/4" 88BFS 88BDD 88BBC 1376G8   2930-8 2930-8U
7" 89BFS 89BDD 89BBC 1376G9 1376ZIR9 2930-9 2930-9U
7 1/4" 91BFS 91BDD 91BBC 1376G10 1376ZIR10 2974-11 2974-11U
7 1/2" 92BFS 92BDD 92BBC 1376G11   2974-11 2974-11U





SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER



SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI FC-2200 9” X 15



ITEM P/ N DESCRIPTION QTY. REQ’D
  8494-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)
1 6394GXX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 AJO524S LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE) 6
3 8494-54-1 LINER WEARPLATE BASE 3
4 8494-54-2 LINER WEARPLATE 3
5 4020-36 LINER WEARPLATE CAPSCREW 18
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
7 568-225 PISTON SEAL 3
8 6293-33 PISTON ROD (WITH ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD NUT 3
10 6293-3 SUB ROD 3
11 6293-4 PISTON ROD CONNECTING STUD 3
12 6293CW ROD CLAMP 3
12A 1200H30 HOSE 3
12B 1200160 PIPE 3
12C 4019-92 ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS 6
13 6200G93 PONY ROD 3
14 SEE PAGE VALVE COMPLETE 6
15 SEE PAGE VALVE INSERT 6
16 SEE PAGE VALVE SPRING 6
17 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
18 4476 VALVE COVER FLANGE 6
19 4597 SCREW GLAND 6
20 4609-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24 6
21 P119 HP VALVE COVER PLUG NITRILE SEAL 6
22 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4016-98 VALVE GUIDE SCREW 12
25 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 72
26 4020-42 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 24
27 6494-25 LINER RETAINER FLANGE 3
28 4020-43 LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT) 48
29 6594-25 LINER RETAINER NUT 3
30 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
31 4020-27 SUCTION MANIFOLD CAPSCREW 18
32   SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD O-RING 3
34 8494-26S SUCTION MODULE 3
35 8494-27D DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 2988 MODULE SEAL 3
38 4020-44 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT) 12
39   DISCHARGE MANIFOLD 1
40 568-349 DISCHARGE MANIFOLD O-RING 3







SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER





SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI FB1300/1600 7-1/2” X 12”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8490-2A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) 3
1 6390YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) 3
2 AJO428S LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) 3
3 8490-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U Also available in urethane) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286-CWYFP14 PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) 3
11C 4020-29 BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
  4475-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) 6
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-2A PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) 6
20 P129 HP VALVE COVER PLUG SEAL (P129U Also available in urethane) 6
21 4775-2R VALVE GUIDE (complete with bushing #4700I) 6
22 4700I VALVE GUIDE BUSHING 6
23 4016-99 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) 72
25 4016-9 POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) 18
27 6490-3 LINER RETAINER FLANGE 3
28 8422-3 LINER RETAINER PILOT RING 3
29 6590-1 LINER RETAINER NUT 3
30 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 18
32 8590-6 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
33 568-442 SUCTION MANIFOLD SEAL 3
34 8490-2S SUCTION MODULE (STUDDED ONLY) 3
35 8490-1D DISCHARGE MODULE (STUDDED ONLY) 3
36 8488-5 DOWEL PIN 6
37 8390-50 DISCHARGE MANIFOLD 1
38 568-343 DISCHARGE MANIFOLD SEAL 3
39 4017-46 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) 12
40 ESN500 ELASTIC STOP NUT 12
41 LW875 LOCKWASHER 7/8 36
42 9070004 SINGLE LIP PONY ROD SEAL 3
43 9070005 DOUBLE LIP PONY ROD SEAL 3
44 9060012 SPLASH GUARD
  8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS


  6278-74 PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
    THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45 1388XX LINER 3
46 2974XX LINER SEAL 3
47 8490-20 LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL 3
48 8488-7 SET SCREW 12
49 6588-22-2 LINER NUT



SOUTHWEST OILWELL A1400PT/A1700PT Mud Pump Zirconia Liners, F1600 MUD PUMP CERAMIC LINER, FB1600 MUD PUMP ZIRCONIA LINER







Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900















Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)
