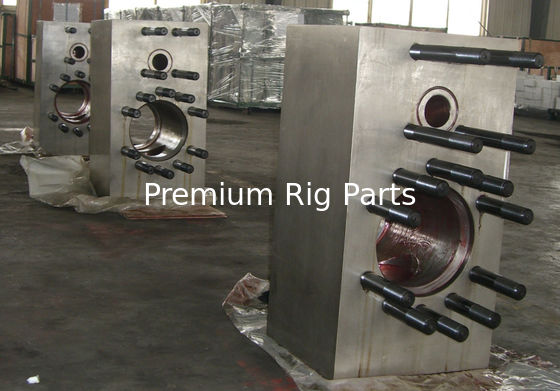

EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 0



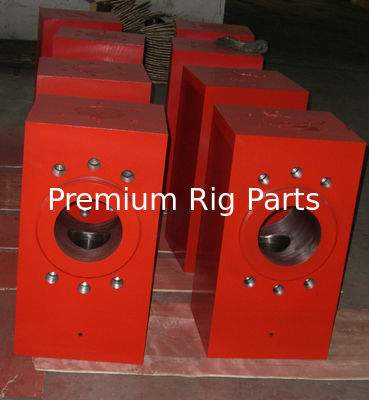

 CONTINENTAL EMSCO FB-1300, FB-1600 FLUID END MODULE



ITEM # OEM PART # MISSION PART # DESCRIPTION
-   - ASSY, COMPLETE FLUID END (INCLUDES MANIFOLDS)
1 - EMSFEMFB1300CA ASSY, COMPLETE FLUID END MODULE (ITEMS 1A-22, 24-28)
1A 0-6316-0357-00 EMSFEMFB1300 MODULE, STUDDED FLUID END(ITEMS 1A-9)
2 0-7507-2201-00 EMSFB13PFS STUD, POWER FRAME
3 0-7601-0630-17 EMSF1000PFSN NUT, POWER FRAME STUD
4 0-7507-2210-00 EMSFB13TRS STUD, CYLINDER HEAD THREADED RING
5 0-7601-0630-17 EMSF1000PFSN NUT, CYLINDER HEAD THREADED RING STUD
6 0-7507-2108-00 EMSF1000DMS STUD, DISCHARGE MANIFOLD
7 0-7601-0630-24 IDT800TRSN NUT, DISCHARGE MANIFOLD STUD
8 0-7507-2013-00 EMSFB13LCS STUD, LINER THREADED RING
9 6300160 PEP53 NUT, LINER THREADED RING STUD
8 0-6316-0354-00 EMSFB13LVGA GUIDE, LOWER VALVE (WITH BUSHING)
9 0-6316-0096-00 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE
10 0-6316-0360-00 EMSFB13BOLT LOCKBOLT, LOWER VALVE GUIDE
11 0-6316-0363-00 EMSFB13AR ALIGNMENT RING
12 0-6316-0369-00 7916801 GASKET, HEAD SEAL
13 0-6316-0364-90 EMSFB13CYHPLG PLUG, CYLINDER HEAD
14 0-6316-0361-00 EMSFB13CYHFLG RING, THREADED CYLINDER HEAD
15 0-6316-0362-90 EMSFB13CYHCAP CAP, THREADED CYLINDER HEAD
16 0-6316-0092-00 7916741 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
17 0-7501-0051-00 PEP79 SCREW, RETAINER UPPER)
18 0-6397-0603-00 EMSRETAINER PLATE, RETAINER (UPPER)
19 0-6397-0575-00 EMSF1000UVGB GUIDE, UPPER VALVE
20 0-6316-0039-90 EMSFB13CAP COVER, VALVE POT
21 0-6316-0373-00 7916800 GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
22 0-6316-0365-00 EMSFB13WP PLATE, WEAR
23 0-6316-0373-00 7916800 GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
24 0-6316-0366-00 EMSFB13LTR RING, LINER THREADED
25 0-6316-0367-20 EMSFB13LL LINER LOCK
26 0-7602-1600-25 99609343 GASKET, DISCHARGE MANIFOLD
27 0-7602-1600-61 99609442 GASKET, SUCTION MANIFOLD
28 0-7601-0333-30 0-7601-0333-30 SUCTION MANIFOLD CAPSCREW (NOT SHOWN)
    7924504

MODULE SEAL KIT: CONSISTING OF SUCTION MANIFOLD O RING, DISCHARGE MANIFOLD O RING, CYLINDER HEAD GASKET, VALVE COVER GASKET, & WEAR PLATE GASKET





EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 1



EMSCO
FB-1300 & FB-1600

Item P/N Description 产品名称 Qty.
1 0-6316-0357-00 Fluid Module Studded, (incl. Items 2-9) 阀箱带栓带母(包括2-9) 3
2 0-6316-0356-00 Fluid Module, Only 阀箱 3
3 0-7507-2210-00 Stud, 1 1/2 - 8 X 8 5/8 螺栓 30
4 0-7507-2201-00 Stud, 1 1/2 - 8 X 6 7/8 螺栓 18
5 0-7601-0630-17 Nut, 1 1/2 - 8 Hvy. Hex 六角螺母 48
6 0-7507-2013-00 Stud, 1 - 8 X 9 螺栓 36
7 0-7601-0610-18 Nut 1 - 8 Stud. Hex 六角螺母 36
8 0-7507-2108-00 Stud, 1 1/4 - 8 x 9 1/2 螺栓 12
9 0-7601-0630-24 Nut, 1 1/4 - 8 Hvy. Hex 六角螺母 12
10 0-6397-0603-00 Retainer, Valve Guide 上水阀导向体挡板 3
11 0-6397-0575-00 Upper Valve Guide 上水阀导向体 3
12 0-6316-0039-00 Valve Cover 阀盖 3
13 0-6316-0362-00 Cylinder Head 缸盖 3
14 0-6316-0361-00 Cylinder Thread Ring 丝扣圈 3
15 0-6316-0360-00 Lock Bolt, Valve Guide 导向体紧固螺栓 3
16 0-6316-0364-00 Cylinder Head Plug 缸盖压筒 3
17 0-6316-0354-00 Low Valve Guide & Bushing 下水阀导向体和衬套 3
18 0-6316-0363-00 Alignment Ring 定位圈 3
19 0-6316-0367-00 Liner Lock 缸套压筒 3
20 0-6316-0366-00 Liner Thread Ring 丝扣圈 3
21 0-6316-0373-00 Seal 缸套密封圈 3
22 0-7602-1600-25 Seal, Discharge Manifold 排出口密封圈 3
23 0-7602-1600-61 Seal, Suction Manifold 吸入口密封圈 3
24 0-7501-0051-00 Retainer Screw 导向体挡板螺丝 12
25 0-6316-0369-00 Head Seal 缸盖密封圈 3
26 0-6316-0092-00 Seal, Valve Pot Cover 阀盖密封圈 3
27 0-6316-0096-00 Valve Guide Bushing 导向体衬套 3
28 0-6316-0365-00 Wear Plate 耐磨垫 3



EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 2





EMSCO
F-800 & F-1000

Item P/N Description 产品名称 Qty.
1 0-6999-0086-02 Fluid Module Studded, (incl. Items 2-8) 阀箱带栓带母(包括2-8) 3
2 0-6999-0086-02 Fluid Module , Only 阀箱 3
3 0-7507-2108-00 Stud, 1 1/4 螺栓 12
4 0-7601-0630-24 Nut, 1 1/4 - 8 Hvy. Hex 六角螺母 12
5 0-7507-2205-00 Stud, 1 1/2 螺栓 18
6 0-7601-0630-17 Nut, 1 1/2 - 8 Hvy. Hex 六角螺母 18
7 0-7507-2150-00 Stud, 1 3/8 螺栓 30
8 0-7601-0630-26 Nut, 1 3/8 - 8 Hvy. Hex 六角螺母 30
9 0-6319-0026-00 Liner Cage 顶缸器 3
10 0-6999-0089-00 Thread Ring 丝扣圈 3
11 0-6319-0031-00 Cylinder Head 缸盖 3
12 0-6319-0027-00 Valve Cover 阀盖 3
13 0-6319-0090-00 Cylinder Head Plug 缸盖压筒 3
14 0-6397-0575-00 Valve Guide, Upper 上水阀导向体 3
15 0-6397-0603-00 Retainer, Valve Guide 导向体挡板 3
16 0-7602-1610-46 O-Ring, AN 6230-19 O型圈 3
17 0-6319-0076-00 Seal, Valve Cover 阀盖密封圈 3
18 0-7501-0051-00 Screw, Valve Guide Retainer 导向体挡板螺丝 3
19 0-7602-1600-61 O-Ring, Suction Manifold 吸入口O型圈 3
20 0-6319-0096-00 Bushing, Lower Valve Guide 下水阀导向体衬套 3
21 0-6319-0089-00 Locking Clip, Lower Valve 下水阀导向体锁紧夹 3
22 0-6319-0087-00 Lower Valve Guide 下水阀导向体 3
23 0-7602-2200-32 Liner Seal 缸套密封圈 3



EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 1





EMSCO
F-350,F-500 & F-650

Item OEM P/N Description 产品名称 Qty.
1 0-6318-0150-00 Fluid Module Studded 阀箱带栓带母 3
2 0-7507-2205-00 Stud, Frame 阀箱紧固螺栓 18
3 0-7601-0630-17 Nut Stud Frame 阀箱紧固螺母 18
4 0-7507-3402-00 Stud, Threaded Ring 丝扣圈螺栓 30
5 0-7601-0630-26 Nut Threaded Ring 丝扣圈螺母 30
6 0-7507-3407-00 Stud, Discharge Manifold 排出口螺栓 12
7 0-7601-0630-26 Nut Discharge Manifold 排出口螺母 12
8 0-6318-0148-00 Liner Cage 顶缸器 3
9 0-6318-0177-00 Guide, Lower Valve (with Bushing) 下水阀导向体(带衬套) 3
10 0-6318-0153-00 Clip, Locking (for Lower valve Guide) 下水阀导向体锁紧夹 3
11 0-7602-2200-34 Gasket, Liner 缸套垫圈 6
12 0-6318-0158-00 Cylinder Head Plug 缸盖压筒 3
13 0-6318-0130-00 Ring, Threaded Cylinder Head 缸盖法兰 3
14 0-6318-0157-00 Cap, Threaded Cylinder Head 缸盖 3
15 0-6310-0084-00 Gasket, Valve Cover 阀盖垫圈 3
16 0-7501-0057-00 Screw, Retainer (Upper) 紧固螺丝(上水阀导向体) 12
17 0-6310-0133-00 Retainer Plate (Upper) 扶正板(上水阀导向体) 3
18 0-6397-0602-00 Guide, Upper Valve 上水阀导向体 3
19 0-6310-0016-01 Cover, Valve Pot 阀盖压筒 3
20 0-7602-1600-23 Gasket, Discharge Manifold 排出口垫圈 3
21 0-7602-1600-33 Gasket, Suction Manifold 吸入口垫圈 3
22 0-6318-0155-00 Bushing, Lower Valve Guide 下水阀导向体衬套 3



EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 4



SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12

  8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS








SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING
PISTONS LINERS LINER SEALS
SIZE FAIL-SAFE DUAL-DURO® BLACK CAT GRAYLOY® ZIRCONIA RUBBER URETHANE
4" 76BFS 76BDD 76BBC 1376G06   2930-06 2930-06U
4 1/4" 77BFS 77BDD 77BBC 1376G07   2930-07 2930-07U
4 1/2" 78BFS 78BDD 78BBC 1376G08 1376ZIR08 2930-08 2930-08U
4 3/4" 79BFS 79BDD 79BBC 1376G09 1376ZIR09 2930-09 2930-09U
5" 81BFS 81BDD 81BBC 1376G1 1376ZIR1 2930-1 2930-1U
5 1/4" 82BFS 82BDD 82BBC 1376G2   2930-2 2930-2U
5 1/2" 83BFS 83BDD 83BBC 1376G3 1376ZIR3 2930-3 2930-3U
5 3/4" 84BFS 84BDD 84BBC 1376G4 1376ZIR4 2930-4 2930-4U
6" 85BFS 85BDD 85BBC 1376G5 1376ZIR5 2930-5 2930-5U
6 1/4" 86BFS 86BDD 86BBC 1376G6 1376ZIR6 2930-6 2930-6U
6 1/2" 87BFS 87BDD 87BBC 1376G7 1376ZIR7 2930-7 2930-7U
6 3/4" 88BFS 88BDD 88BBC 1376G8   2930-8 2930-8U
7" 89BFS 89BDD 89BBC 1376G9 1376ZIR9 2930-9 2930-9U
7 1/4" 91BFS 91BDD 91BBC 1376G10 1376ZIR10 2974-11 2974-11U
7 1/2" 92BFS 92BDD 92BBC 1376G11   2974-11 2974-11U



NOTE: DUAL-DURO® AND GRAYLOY® ARE REGISTERED TRADEMARKS OF SOUTHWEST OILFIELD PRODUCTS, INC.




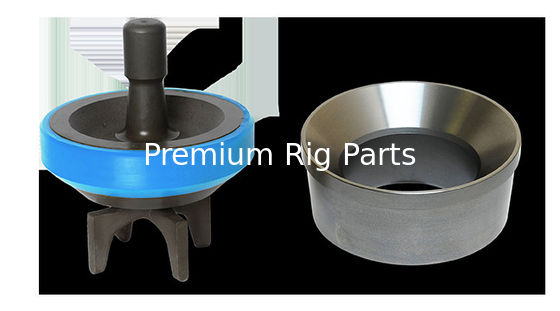

VALVES & SEATS (BOMCO F-1600)



TYPE



VALVE



INSERT



SPRING



STAINLESS SPRING



SEAT



PULLER HEAD

PULLER HEAD

STYLE
SOUTHWEST (Full Open) 773-1B N/A SW5710-110L N/A 873-1 SWTM3750 SPLIT JAW

FULL OPEN-ROUGHNECK

(Cast N Place Insert)

 SWND-6V2 N/A SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE

FULL OPEN-ROUGHNECK

(High Temp)

 SWND-6V2H N/A SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE

FULL OPEN-ROUGHNECK

(w/Replaceable Urethane Insert)

 SWND-6V1 SWND-6I SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE
3 WEB DOUBLE ANGLE O-RING SWR0500119 SWR0515845 SWR0513744 SWR0514790 SWR0512436 SWTM3-7D



3 J HOOK
3 WEB (High Temp) SWR0520586 SWR0520585 SWR0513744 SWR0514790 SWR0512436 SWTM3-7D
3 WEB STANDARD PLATE SWR0505038 SWR0504890 SWR0515575 SWR0514790 SWR0512436 SWTM3-7D
4 WEB SWU5B-EH SWUDD-6AB SW5710-115 N/A SW6ADD-B4 SWTM4-6 4 J HOOK



EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 5



SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI FC-2200 9” X 15”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8494-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)
1 6394GXX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 AJO524S LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE) 6
3 8494-54-1 LINER WEARPLATE BASE 3
4 8494-54-2 LINER WEARPLATE 3
5 4020-36 LINER WEARPLATE CAPSCREW 18
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
7 568-225 PISTON SEAL 3
8 6293-33 PISTON ROD (WITH ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD NUT 3
10 6293-3 SUB ROD 3
11 6293-4 PISTON ROD CONNECTING STUD 3
12 6293CW ROD CLAMP 3
12A 1200H30 HOSE 3
12B 1200160 PIPE 3
12C 4019-92 ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS 6
13 6200G93 PONY ROD 3
14 SEE PAGE VALVE COMPLETE 6
15 SEE PAGE VALVE INSERT 6
16 SEE PAGE VALVE SPRING 6
17 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
18 4476 VALVE COVER FLANGE 6
19 4597 SCREW GLAND 6
20 4609-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24 6
21 P119 HP VALVE COVER PLUG NITRILE SEAL 6
22 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4016-98 VALVE GUIDE SCREW 12
25 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 72
26 4020-42 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 24
27 6494-25 LINER RETAINER FLANGE 3
28 4020-43 LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT) 48
29 6594-25 LINER RETAINER NUT 3
30 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
31 4020-27 SUCTION MANIFOLD CAPSCREW 18
32   SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD O-RING 3
34 8494-26S SUCTION MODULE 3
35 8494-27D DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 2988 MODULE SEAL 3
38 4020-44 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT) 12
39   DISCHARGE MANIFOLD 1
40 568-349 DISCHARGE MANIFOLD O-RING 3







EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 6







MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160
FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: NATIONAL INDEX
    FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23) 3
1 8476-6S FEM12PSUCSWNS SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22) 3
2 8476-5D FEM12PDISSWNS DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   NAT8P80TRSN NUT, POWER END STUD (1 3/8"-6 2H) 30
7 8488-5 PEP70 DOWELL PIN 6
8 4017-65 PEP75 LINER RETAINER CAPSCREW, SOCKET HEAD 18
9 8476-3 PP6021260SW LINER WEAR PLATE 3
10 2988 1290344 WEAR PLATE AND MODULE GASKET 6
11 6476 12PLASW LINER RETAINER FLANGE (LINER BUSHING) 3
12 6576 12PLANSW LINER RETAINER NUT 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD (1 1/2"-6 2H) 72
15 4676-6A 12PVGASWNS PLUG (INCLUDES ITEMS 15, 19, 20, & 21) 6
16 4476 12PFLGSW THREADED RING (THREADED FLANGE) 6
17 4597 12PCAPSW THREADED CAP (SCREW GLAND) 6
18 P-119 07207119 VALVE COVER PLUG SEAL 6
19 4776R 12PVGSWNS VALVE GUIDE (INCLUDES ITEMS 19-21) 6
20 4700-I PZ789VGI VALVE GUIDE BUSHING 6
21 4016-98 PEP73 VALVE GUIDE SCREW 12
22 4018-19 700048511 SUCTION MANIFOLD CAPSCREW W/LOCKWASHER 24
23 AJO-419R 1540851 SUCTION MANIFOLD GASKET 3
24 8376-2 NAT12PDSMA DISCHARGE ADAPTER 2
25 2976-2 2410031437 DISCHARGE ADAPTER SEAL 4
26 8376-1 NAT12PDSMC DISCHARGE CONNECTOR 2
27 2976-1 2410031433 DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL 2
28 80852292 1292258 DISCHARGE SPACER FLANGE SEAL 2
29 4018-18 700030711 DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER) 16
30 8376-3 1292175 BACKUP RING-(DISCHARGE CONNECTOR) 4
31 4018-39 7006685 CAPSCREW, SOCKET HEAD 1 1/2" X 3 16





EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 7





SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI FB1300/1600 7-1/2” X 12”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8490-2A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) 3
1 6390YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) 3
2 AJO428S LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) 3
3 8490-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U Also available in urethane) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286-CWYFP14 PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) 3
11C 4020-29 BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
  4475-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) 6
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-2A PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) 6
20 P129 HP VALVE COVER PLUG SEAL (P129U Also available in urethane) 6
21 4775-2R VALVE GUIDE (complete with bushing #4700I) 6
22 4700I VALVE GUIDE BUSHING 6
23 4016-99 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) 72
25 4016-9 POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) 18
27 6490-3 LINER RETAINER FLANGE 3
28 8422-3 LINER RETAINER PILOT RING 3
29 6590-1 LINER RETAINER NUT 3
30 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 18
32 8590-6 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
33 568-442 SUCTION MANIFOLD SEAL 3
34 8490-2S SUCTION MODULE (STUDDED ONLY) 3
35 8490-1D DISCHARGE MODULE (STUDDED ONLY) 3
36 8488-5 DOWEL PIN 6
37 8390-50 DISCHARGE MANIFOLD 1
38 568-343 DISCHARGE MANIFOLD SEAL 3
39 4017-46 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) 12
40 ESN500 ELASTIC STOP NUT 12
41 LW875 LOCKWASHER 7/8 36
42 9070004 SINGLE LIP PONY ROD SEAL 3
43 9070005 DOUBLE LIP PONY ROD SEAL 3
44 9060012 SPLASH GUARD
  8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS


  6278-74 PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
    THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45 1388XX LINER 3
46 2974XX LINER SEAL 3
47 8490-20 LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL 3
48 8488-7 SET SCREW 12
49 6588-22-2 LINER NUT 3





EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 8

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

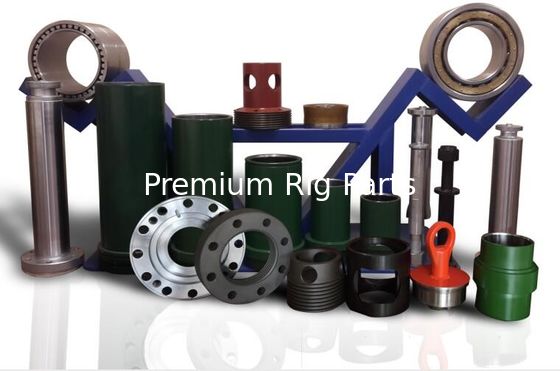

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900



Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 9

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)



EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 10



TECHNICAL PARAMETERS



Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)





EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 11



In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.



Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.





Technical Features



· F-1300, F-1600, F-1300L and F-1600L mud pump

EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 12has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.





· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.





· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.





· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.





EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 13F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.



A1. Power End



Power end features:

· Continuous tooth herringbone gear.

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 14

EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 15A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· L fluid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

filter are fitted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

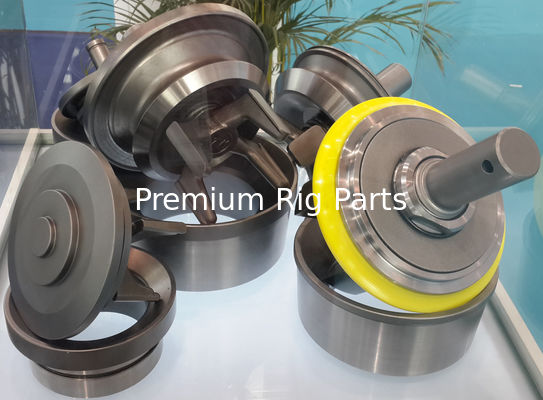

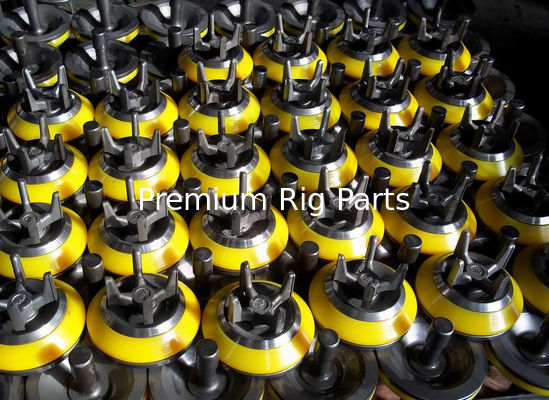

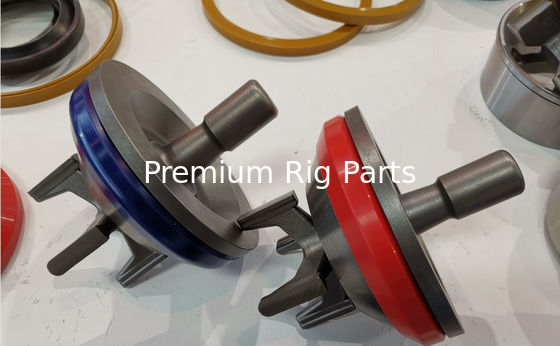

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

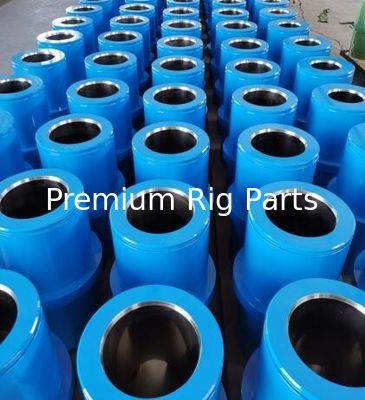

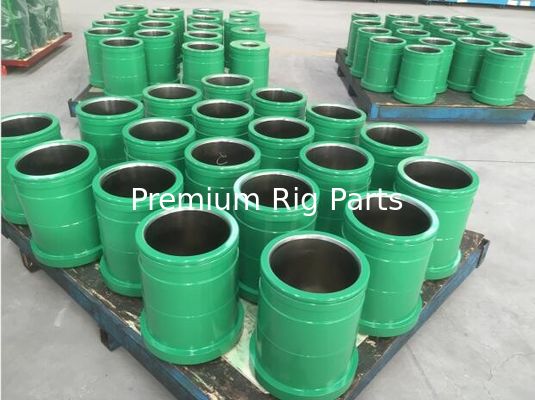

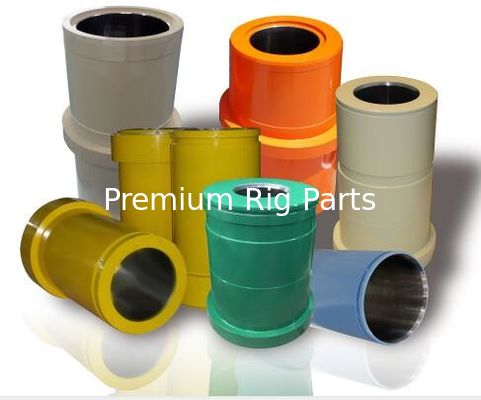

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

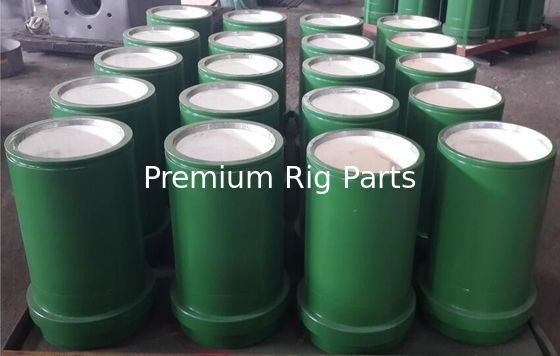

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

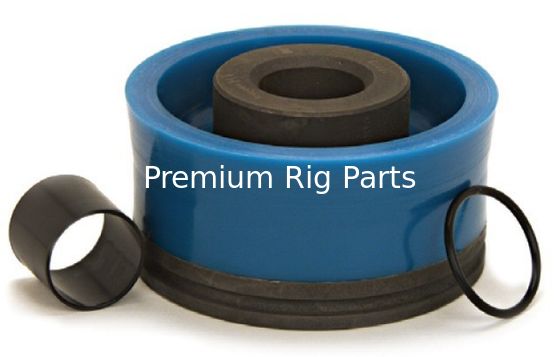

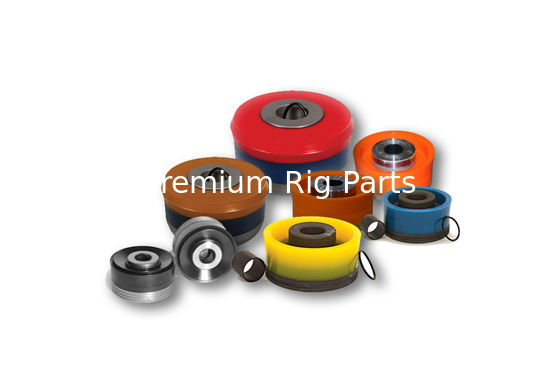

4. Pistons and Piston Rods

They are slide fitted, sealed with rubber seal ring and finally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

fluid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.



A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and flush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling fluid can rinse the contact surface between the piston and liner all the time. The durable fixed spray pipe may be used, too.



A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.



F1 -Series Drilling Mud Pumps



F1-series drilling mud pumps include power end, fluid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.



EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 16



Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.



Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· Discharge damper, shear relief valve and five way discharge are fitted at the discharge outlet.



Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.



Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.





Ⅵ.Specifications



Model F1-800 F1-1600
Type Triplex single acting piston Triplex single acting piston
Max. Liner size × strength

170×216mm

(6 3/4″×8.5″)

180×280mm

(7″×11″)
Strokes rating 160 r/min 130 r/min
Power Rating 597kW (800 hp) 1193kW (1600 hp)
Type of gear Herringbone gear Herringbone gear
Gear ratio 3.3143:1 3.7381:1
Lubrication Forcing and splashing Forcing and splashing
Suction inlet 8″flange(203mm) 10″flange(254mm)
Discharge outlet 4″Flange, 5000 psi 4″Flange, 5000 psi
Pinion Shaft Dia. 177.8mm(7″) 215.9mm(8-1/2″)
Key

44.45×44.45mm

(1 3/4″×1 3/4″)

 50.8×50.8mm (2″×2″)
Valve Pots valve-over-valve,API #6 valve-over-valve,API #7
Approx. Weight 11536kg (25430lb) 20700kg (45635lb)





EMSCO FB1600 mud pump Hy-Chrome Liners, Weatherford MP16 mud pump, Bomco F1600 mud pump, Honghua F1600 mud pump; Weatherford MP13 mud pump; Drillmec 14T2200 mud pump 17



Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine
