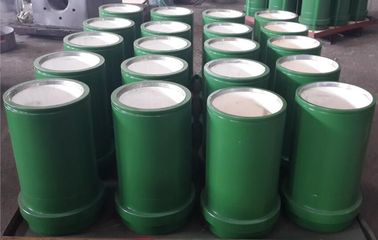

EMSCO F1000 mud pump Piston and valve， F1600 mud pump, National 12P160 mud pump, 14P220 mud pump, PZ9 mud pump, PZ8 pump
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Oil,drill Rig | Power: | Electric,diesel |
|---|---|---|---|
| Pressure: | High Pressure,Low Pressure | Application: | Conveying Mud And Flushing Fluids,mining,oil |
| Structure: | Piston Pump,Single-stage Pump,centrifugal Mud Suction Pump | Fuel: | Diesel |
| Standard Or Nonstandard: | Standard | Type: | Mud Pump |
| Weight: | 100-3700kg | Color: | Red And So On,Green,Green Or Per Customer Design |
| Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy,Stainless Steel Aluminum Plastic Etc | Warranty: | 12 Months |
| Feature: | Compact Size | Product Name: | Mud Pump |
| Head: | 10m Mud Suction Pump | Oem: | Can Be Accept,Applicable |
| Condition: | New |
www.premiumrigparts.com
CONTINENTAL EMSCO F-1000, F800 FLUID END MODULE
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION |
| 1 | EMSFEMF1000CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1A-22) | |
| 1A | 0-6999-0086-02 | EMSFEMF1000 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-7) |
| 1B | 80723010 | MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-7) | |
| 2 | 0-7507-2205-00 | EMSF1000PFS | STUD, POWER FRAME |
| 3 | 0-7601-0630-17 | EMSF1000PFSN | NUT, POWER FRAME STUD |
| 4 | 0-7507-2150-00 | EMSF1000TRS | STUD, THREADED RING |
| 5 | 0-7601-0630-28 | EMSF1000TRSN | NUT, THREADED RING STUD |
| 6 | 0-7507-2108-00 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD |
| 7 | 0-7601-0630-24 | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD |
| 8 | 0-6319-0026-00 | EMSF1000LC | CAGE, LINER |
| 9 | 0-6319-0087-00 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) |
| 10 | 0-6319-0089-00 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) |
| 11 | 0-7602-2200-32 | 7918282 | GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 12 | 0-6319-0031-00 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD |
| 13 | 0-6999-0089-00 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD |
| 14 | 0-6319-0090-00 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD |
| 15 | 7916740 | 7916740 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 16 | 0-7501-0051-00 | PEP79 | SCREW, RETAINER (UPPER) |
| 17 | 0-6397-0603-00 | EMSRETAINER | RETAINER PLATE (UPPER) |
| 18 | 0-6397-0575-00 | EMSF1000UVGB | GUIDE, UPPER VALVE |
| 19 | 0-6319-0027-00 | EMSF1000CAP | COVER, VALVE POT |
| 20 | 0-7602-1610-46 | 0-7602-1610-46 | GASKET, DISCHARGE MANIFOLD |
| 21 | 0-7602-1600-61 | 0-7602-1600-61 | GASKET, SUCTION MANIFOLD |
| 22 | 0-6316-0096-00 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE |
| 23 | 0-7601-0336-00 | 0-7601-0336-00 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN |
| 7924503 | MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
