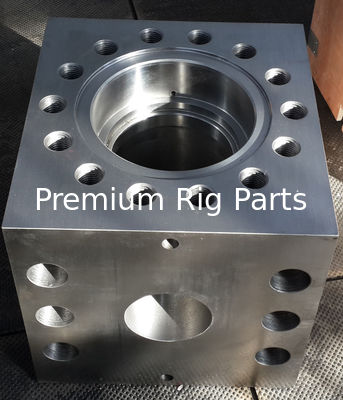

LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON

China LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier
LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON supplier

Large Image :  LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON

Product Details:

Place of Origin: CHINA
Brand Name: SOUTHWEST, OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Certification: API
Model Number: A1700PT

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitable to shipment by sea and air
Delivery Time: In Stock
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Diesel
Pressure: High Pressure,Low Pressure Application: Conveying Mud And Flushing Fluids,mining,oil,Chemical
Structure: Piston Pump Fuel: Diesel,Electric
Standard Or Nonstandard: Standard Type: Mud Pump
Color: Blue,red And So On Material: Chrome Alloy
Warranty: 12 Months Product Name: Mud Pump
Oem: Can Be Accept Condition: New

www.premiumrigparts.com

LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



LEWCO-W2215 Cameron Mud Pump
Item Part Number Description Qty. Unit
1 ES331 LINER WASH PUMP PACKING 18 Ea
2 EG199 API ring gasket (BX-169SS) 27 Ea
3 EG197 API ring gasket (BX-152SS) 3 Ea
4 EG163 suction manifold gasket 15 Ea
5 B105281 suction dampener/desurger 3 Ea
6 108-0609 stroke counter 12 Ea
7 108-1054 heat exchanger-liner wash 3 Ea
8 108-1055 heat exchanger-lube oil 3 Ea
9 108-0764 low presure switch 3 Ea
10 ES452 low presure switch 3 Ea
11 108-1324 low presure switch 3 Ea
12 108-1225 v-belt 6 Ea
13 EG195 mud pressure gauge 3 Ea
14 EG170 crank case cover gasket 888 inch
15 A162209 inspection cover gasket 3 Ea
16 A164103 main bearing cover gasket 6 Ea
17 C164404 cross head cover gasket 6 Ea
18 A164185 inspection cover gasket (large) 3 Ea
19 108-1095 breather cap 3 Ea
20 A164191 stroke counter bracket gasket 3 Ea
21 B164202 eccentric bearing 9 Ea
22 EB119 main (spherical roller) bearing 6 Ea
23 B164206 main bearing shim set 6 Ea
24 A167244 eccentric bearing shims 6 Ea
25 EB120 pinion (cylinderical roller) bearing 6 Ea
26 ES194 oil seal 6 Ea
27 A164505 pinion bearing carrier gasket 6 Ea
28 B164402 wrist pin bearing 6 Ea
29 C164323 piston rod clamp 18 Ea
30 B164407 baffle disc 9 Ea
31 A164453 crosshead shim set 9 Ea
32 B164425 diaphragm plate gasket 9 Ea
33 ES211 stuffing box seal 36 Ea
34 A164415 stuffing box gasket 9 Ea
35 E0175 o-ring ( 2/343) 9 Ea
36 E0301 o-ring ( 2/442) 9 Ea
37 A164705 valve cover seal 18 Ea
38 A167708 valve guide bushing 36 Ea
39 A167702 wear plate seal 18 Ea
40 816406 wear plate seal 9 Ea
41 EV116 valve spring 36 Ea
42 EV190 valve seat 36 Ea
43 EV178 valve 36 Ea
44 EL238 liner (5") 36 Ea
45 EL220 liner (5 1/2") 36 Ea
46 EL221 liner (6") 36 Ea
47 EL222 liner (6 1/2") 36 Ea
48 EL223 liner (7") 36 Ea
49 EL224 liner (7 1/2") 36 Ea
50 EL240 liner (8") 36 Ea
51 EP159 piston (5") 36 Ea
52 EP160 piston (5 1/2") 36 Ea
53 EP117 piston (6") 36 Ea
54 EP118 piston (6 1/2") 36 Ea
55 EP150 piston (7") 36 Ea
56 EP151 piston (7 1/2") 36 Ea
57 EP152 piston (8") 36 Ea
58 EP165 piston (5") 36 Ea
59 EP114 piston rubber(5 1/2") 36 Ea
60 EP115 piston rubber (6") 36 Ea
61 EP116 piston rubber (6 1/2") 36 Ea
62 EP147 piston rubber (7") 36 Ea
63 EP148 piston rubber(7 1/2") 36 Ea
64 EP149 piston rubber (8") 12 Ea
65 EG132 liner gasket (5") 36 Ea
66 EG138 liner gasket (5 1/2") 12 Ea
67 EG139 liner gasket(6") 36 Ea
68 EG140 liner gasket(6 1/2") 36 Ea
69 EG136 liner gasket(7") 36 Ea
70 EG142 liner gasket (7 1/2") 36 Ea
71 EG144 liner gasket (8") 12 Ea
72 EP194 lube oil pump 3 Ea
73 108-0054 relief valve, 15 psi 3 Ea
74 108-1088 relief valve, 65 psi 3 Ea
75 108-0135 check valve 3 Ea
76 108-1257 flow switch 6 Ea
77 EG105 pressure gauge, 0-60 psi 6 Ea
78 EG145 pressure gauge 6 Ea
79 EV215 charging valve 6 Ea
80 ES175 stud 2.25 8UN 8.50 B7 36 Ea
81 EM132 heavy hex nut 8UN A194-2H 36 Ea
82 002-1666 hex bolt 1.000 8NC 2.00 G8 3 Ea
83 002-1544 lock washer 1.000" 3 Ea
84 108-0620 stabilizer plate L-2010 3 Ea
85 108-0619 stabilizer L-20 3 Ea
86 EN137 havy hex nut 1.125 7NC A194-2H 24 Ea
87 EC181 bottom flange cap screw 24 Ea
88 108-0656 seal 429 BUNA 70 3 Ea
89 ES174 stud 1.125 7NC 6.5 B7 24 Ea
90 EO190 charging valve o-ring 6 Ea
91 108-0065 ring gasket BX-155S 3 Ea
92 B310066 charging valve hose assembly 3 Ea
93 108-0618 buna-N bladder ( standard) 6 Ea
94 108-1194 hydrogenated nitrile bladder
(high temperature mud)		 6 Ea
95 108-1195 Urthane bladder ( oil based mud) 6 Ea

LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON

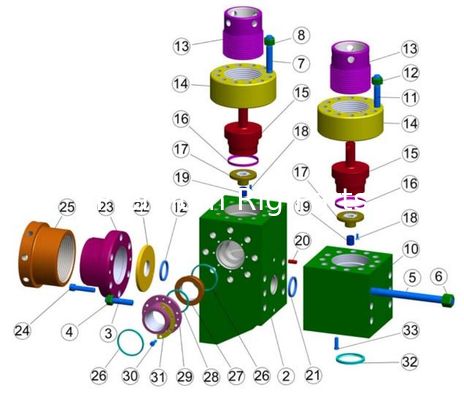

NATIONAL

12-P- 160



Item

P

Part Number



Description

 Qty per Pump

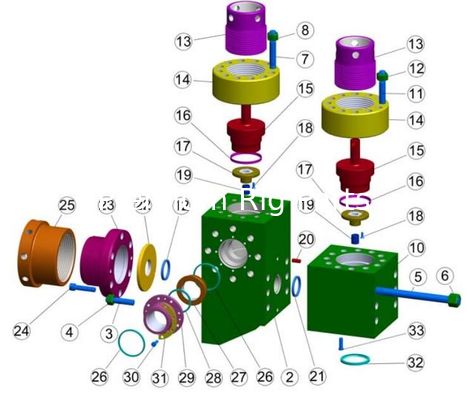

1 P-1292240 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1292241 Discharge Module, Only 3
3 P-6300220 Nut, 1 3/8“ Hvy. Hex 24
4 P-2408029 Stud, 1 3/8“ X 6 3/4”, Discharge to Frame 24
5 P-6300180 Nut, 1 1/8“ Hvy. Hex 18
6 P-2408028 Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing 18
7 P-6300281 Nut, 1 3/4“ Hvy. Hex 18
8 P-2408033 Stud, 1 3/4“ X 21 1/8”, Discharge to Suction 18
9 P-6300240 Nut, 1 1/2 Hvy. Hex 36
10 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
11 P-1292243 Suction Module Studded, (incl. Items 12-14) 3
12 P-1292244 Suction Module, Only 3
13 P-6300240 Nut, 1 1/2 Hvy. Hex 36
14 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
15 P-1293165 Bushing, Liner 3
16 P-1292174 Seal Retainer 6
17 P-1292172 Valve Cover 6
18 P-1292178 Screw, Wedge Adjusting 6
19 P-6300182 Nut, Wedge Adjusting 6
20 P-1292171 Washer, Wedge Adjusting Screw 6
21 P-1292176 Ring, Threaded 6
22 P-G-1292268 Wedge Assembly 6
23 P-1540127 Gasket, Valve Cover 6
24 P-1292140 Holder, Valve Guide Insert 6
25 P-1292141 Insert, Valve Guide 6
26 P-6511416 Pin Dowell 6
27 P-1292266 Plate, Wear 3
28 P-1292252 Connector, Discharge 2
29 P-7000-305-11 Screw Hex Head 16
30 P-7619050 Washer, Lock 16
31 P-1292253 Adapter, Discharge Connector 2
32 P-2410031-433 Packing, Rectangular 2
33 P-2410031-437 Packing, Rectangular 4
34 P-1292167 Clamp, Liner 3
35 P-7000491-10 Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer 6
36 P-6309140 Nut, 7/8“ Lock Type 6
37 P-1292169 Pin, Liner Clamp 3
38 P-1292168 Connector, Liner Clamp 3
39 P-2408015 Stud 1 1/2“ x 7 1/2” 16
40 P-6300240 Nut, 1 1/2“ Hvy. Hex 16

LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON

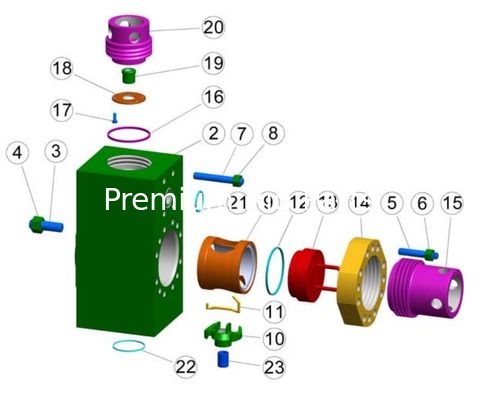

NATIONAL

7-P- 50





Item

P

Part Number



Description

 Qty per Pump
1 P-1291250 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1291251 Discharge Module, Only 3
3 P-6300160 Nut, 1“ Hvy. Hex 24
4 P-2408042 Stud, 1“ X 5”, Top Taper Lock 24
5 P-2408042 Stud, 1/4“ X 4 1/2”, Discharge to Liner Bushing 18
6 P-240803 Nut, 1“ Hvy. Hex 18
7 P-2408041 Stud, 1 1/4“ X 14 5/8”, Discharge to Suction 18
8 P-1294156 Suction Module Studded, (incl. Items 12-14) 3
9 P-1294156 Suction Module, Only 3
10 P-1294165 Bushing, Liner 3
11 P-1290174 Seal Retainer 6
12 P-1294172 Valve Cover 6
13 P-1290178 Screw, Wedge Adjusting 6
15 P-1290315 Washer, Wedge Adjusting Screw 6
16 P-1560701 Spring Wedge 6
17 P-G-1290376 Wedge Assembly 6
18 P-1540126 Gasket, Valve Cover 6
19 P-1292140 Holder, Valve Guide Insert 6
20 P-1292141 Insert, Valve Guide 6
21 P-6511416 Pin 7/8 X 2 Dowell 6
22 P-1294160 Plate, Wear 3
23 P-1294170 Connector, Discharge 2
24 P-7000305-11 Screw 1/2 X 1 1/2 Hex Head 16
25 P-7619050 Washer, Lock 1/2“ 16
26 P-1294171 Adapter, Discharge Connector 2
27 P-2410031-348 Packing, Rectangular 2
28 P-2410031-427 Packing, Rectangular 4
29 P-1291166 Clamp, Liner 3
30 P-7000403-10 Screw 5/8 X 3 1/2 Hex Hd. w/ Lock Washer 6
31 P-6309100 Nut, 5/8“ Lock Type 6
32 P-12911-69 Pin, Liner Clamp 3
33 P-12911-68 Connector, Liner Clamp 3
34 P-2402560 Stud 1 1/4“ x 6 1/4” 16
35 P-6300200 Nut, 1 1/4“ Hvy. Hex 16



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
    FEMPZ101175CA FLUID END MODULE COMPLETE ASSEMBLY 3
1 300PZL2039 FEMPZ101175 FLUID END MODULE-STUDDED (INCLUDES ITEMS 2, 18-23) 3
2 50B36 IDT800TRSN NUT 168
3 303PZL316   SEAL, WEAR RING (WEAR PLATE) 3
4 300PZL483   GUIDE, VALVE (UPPER) 3
5 300PZL234   RING, WEAR (WEAR PLATE) 3
6 300PZL205 PZ1011LVGR75 RETAINER, VALVE GUIDE 3
7 300PZL316   SEAL, CYL. HEAD & VALVE COVER - RUBBER (SEE DATASHEET FOR ALT. MATERIALS) 6
8 301PZL147 PZ1011VC75 COVER-VALVE (UPPER) 3
9 15P27   BOLT, EYE 6
10 300PZL387 PZ1011FLG75 RING-THREADED 6
11 300PZL587 PZ1011CAP75 CAP, THREADED 6
12 25BE41 07923283 GASKET, SUCTION MANIFOLD 3
13 655EG10N   SCREW, SUCTION MANIFOLD 24
14 302PZL316   GASKET, DISCHARGE MANIFOLD 3
15 300PZL229   BUSHING 12
16 300PZL147 PZ1011CYHPLG75 COVER, CYLINDER HEAD (LOWER) 3
17 301PZL483   GUIDE, VALVE (LOWER) 3
18 303PZL110 PZ1011LCS75 STUD, LINER CLAMP 36
19 300PZL110 PZ1011PFS75WP STUD, POWER FRAME (WEAR RING) 6
20 303PZL110 PZ1011PFS75 STUD, DISCHARGE MANIFOLD 6
21 301PZL110 PZ1011TRS75 STUD, THREADED RING 84
22 300PZL455 PZ1011LC75 CLAMP, LINER 3
23 300PZL234 PZ1011WP75 WEAR RING, (WEAR PLATE) 3



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON

NATIONAL

12-P-160





Item

Premium

Part Number



Description

 Qty per Pump
1 P-1292240 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1292241 Discharge Module, Only 3
3 P-6300220 Nut, 1 3/8“ Hvy. Hex 24
4 P-2408029 Stud, 1 3/8“ X 6 3/4”, Discharge to Frame 24
5 P-6300180 Nut, 1 1/8“ Hvy. Hex 18
6 P-2408028 Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing 18
7 P-6300281 Nut, 1 3/4“ Hvy. Hex 18
8 P-2408033 Stud, 1 3/4“ X 21 1/8”, Discharge to Suction 18
9 P-6300240 Nut, 1 1/2 Hvy. Hex 36
10 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
11 P-1292243 Suction Module Studded, (incl. Items 12-14) 3
12 P-1292244 Suction Module, Only 3
13 P-6300240 Nut, 1 1/2 Hvy. Hex 36
14 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
15 P-1293165 Bushing, Liner 3
16 P-1292174 Seal Retainer 6
17 P-1292172 Valve Cover 6
18 P-1292178 Screw, Wedge Adjusting 6
19 P-6300182 Nut, Wedge Adjusting 6
20 P-1292171 Washer, Wedge Adjusting Screw 6
21 P-1292176 Ring, Threaded 6
22 P-G-1292268 Wedge Assembly 6
23 P-1540127 Gasket, Valve Cover 6
24 P-1292140 Holder, Valve Guide Insert 6
25 P-1292141 Insert, Valve Guide 6
26 P-6511416 Pin Dowell 6
27 P-1292266 Plate, Wear 3
28 P-1292252 Connector, Discharge 2
29 P-7000-305-11 Screw Hex Head 16
30 P-7619050 Washer, Lock 16
31 P-1292253 Adapter, Discharge Connector 2
32 P-2410031-433 Packing, Rectangular 2
33 P-2410031-437 Packing, Rectangular 4
34 P-1292167 Clamp, Liner 3
35 P-7000491-10 Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer 6
36 P-6309140 Nut, 7/8“ Lock Type 6
37 P-1292169 Pin, Liner Clamp 3
38 P-1292168 Connector, Liner Clamp 3
39 P-2408015 Stud 1 1/2“ x 7 1/2” 16
40 P-6300240 Nut, 1 1/2“ Hvy. Hex 16





LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI FC-2200 9” X 15”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8494-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)
1 6394GXX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 AJO524S LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE) 6
3 8494-54-1 LINER WEARPLATE BASE 3
4 8494-54-2 LINER WEARPLATE 3
5 4020-36 LINER WEARPLATE CAPSCREW 18
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
7 568-225 PISTON SEAL 3
8 6293-33 PISTON ROD (WITH ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD NUT 3
10 6293-3 SUB ROD 3
11 6293-4 PISTON ROD CONNECTING STUD 3
12 6293CW ROD CLAMP 3
12A 1200H30 HOSE 3
12B 1200160 PIPE 3
12C 4019-92 ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS 6
13 6200G93 PONY ROD 3
14 SEE PAGE VALVE COMPLETE 6
15 SEE PAGE VALVE INSERT 6
16 SEE PAGE VALVE SPRING 6
17 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
18 4476 VALVE COVER FLANGE 6
19 4597 SCREW GLAND 6
20 4609-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24 6
21 P119 HP VALVE COVER PLUG NITRILE SEAL 6
22 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4016-98 VALVE GUIDE SCREW 12
25 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 72
26 4020-42 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 24
27 6494-25 LINER RETAINER FLANGE 3
28 4020-43 LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT) 48
29 6594-25 LINER RETAINER NUT 3
30 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
31 4020-27 SUCTION MANIFOLD CAPSCREW 18
32   SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD O-RING 3
34 8494-26S SUCTION MODULE 3
35 8494-27D DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 2988 MODULE SEAL 3
38 4020-44 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT) 12
39   DISCHARGE MANIFOLD 1
40 568-349 DISCHARGE MANIFOLD O-RING 3



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON





CONTINENTAL EMSCO FC-2200 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART #
    EMSFEMFC2200CA FLUID END MODULE COMPLETE ASSEMBLY
1 0-6323-0108-00 EMSFEMFC2200DIS DISCHARGE MODULE-STUDDED
2 0-6323-0109-00 EMSFEMFC2200SUC SUCTION MODULE-STUDDED
3 0-6323-0087-00   THREADED RETAINER
4 0-6323-0086-00   THREADED RING
5 0-6323-0083-00   VALVE POT COVER
6 0-6323-0103-00   VALVE GUIDE W/ BUSHING
7 0-6323-0126-00   HANDLER, VALVE POT
8 0-6323-0085-00   SUCTION MANIFOLD
9 0-6316-0105-95   FLANGE, SUCTION
10 0-6317-0074-95   FLANGE, BLIND
11 0-6323-0084-10   DISCHARGE MANIFOLD, 7500 PSI
12 0-6323-0097-00   WEAR PLATE
13
14 0-6323-0096-00   LINER THREAD RING
15 0-6323-0099-00   LINER LOCK
16
17 0-6323-0121-20   FEED PIPING ASSEMBLY
18 0-6323-0093-00   RETAINER, VALVE GUIDE
19 0-6323-0128-00   SEAL, F. E. MODULAR
20 0-6323-0127-00   WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
21
22 0-7602-1600-52   O-RING (SUCTION MANIFOLD)
23 0-7602-1600-61   O-RING (SUCTION MANIFOLD TO F. E.)
24 0-7602-1600-30   O-RING (DISCHARGE MANIFOLD TO F. E.)
25 0-7501-0051-00   SCREW, RETAINER
26 0-7602-5280-72   WIRE, SOFT IRON .06 X 144.00
27
28 0-7601-0331-39   SCREW, HEX HD 1" - 8 X 5.00
29 0-7601-0630-20   NUT, HEX 1" - 8
30
31 0-7601-0333-30   SCREW, HEX HD 7/8-9 X 2.50 GR 5





LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON

SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI FB1300/1600 7-1/2” X 12”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8490-2A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) 3
1 6390YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) 3
2 AJO428S LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) 3
3 8490-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U Also available in urethane) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286-CWYFP14 PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) 3
11C 4020-29 BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
  4475-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) 6
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-2A PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) 6
20 P129 HP VALVE COVER PLUG SEAL (P129U Also available in urethane) 6
21 4775-2R VALVE GUIDE (complete with bushing #4700I) 6
22 4700I VALVE GUIDE BUSHING 6
23 4016-99 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) 72
25 4016-9 POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) 18
27 6490-3 LINER RETAINER FLANGE 3
28 8422-3 LINER RETAINER PILOT RING 3
29 6590-1 LINER RETAINER NUT 3
30 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 18
32 8590-6 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
33 568-442 SUCTION MANIFOLD SEAL 3
34 8490-2S SUCTION MODULE (STUDDED ONLY) 3
35 8490-1D DISCHARGE MODULE (STUDDED ONLY) 3
36 8488-5 DOWEL PIN 6
37 8390-50 DISCHARGE MANIFOLD 1
38 568-343 DISCHARGE MANIFOLD SEAL 3
39 4017-46 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) 12
40 ESN500 ELASTIC STOP NUT 12
41 LW875 LOCKWASHER 7/8 36
42 9070004 SINGLE LIP PONY ROD SEAL 3
43 9070005 DOUBLE LIP PONY ROD SEAL 3
44 9060012 SPLASH GUARD
  8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS


  6278-74 PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
    THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45 1388XX LINER 3
46 2974XX LINER SEAL 3
47 8490-20 LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL 3
48 8488-7 SET SCREW 12
49 6588-22-2 LINER NUT 3




LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON





SOUTHWEST 8488-25A FLUID END FOR

OILWELL A-1700-PT/A-1400-PT



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI A-1700-PT / A-1400-PT 7-1/2” X 12”





ITEM P/ N DESCRIPTION QTY. REQ’D
  8488-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 34, 35, & 36)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (ALSO AVAILABLE IN URETHANE) 3
3 8488-28 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 9
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT (IF REQUIRED) 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 THREADED FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, & 23 6
20 P115 HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U) 6
21 4788R-25 VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4020-5 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 6588-1 LINER RETAINER NUT 3
27 8488-7 LINER RETAINER CAPSCREW 9
28 6488-25 LINER RETAINER FLANGE 3
29 4016-80 LINER RETAINER SOCKET HEAD CAP SCREW 24
30 4020-4 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4018-70 SUCTION MANIFOLD CAP SCREW 24
32 8588-50A SUCTION MANIFOLD 1
33 80102003 SUCTION MANIFOLD SEAL 3
34 8488-26 SUCTION MODULE 3
35 8488-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8388-25A DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
39 568-445 “O” RING – WEAR PLATE O.D. RETAINER 3
40 2932 PISTON BUSHING (1 5/8 TO 1 ½ DIA.) 3





LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



SOUTHWEST 7500 P.S.I. NATIONAL 12P-160 7-1/2” X 12”





ITEM P/N DESCRIPTION QTY. REQ’D
  8476-25A FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)
1 1376YXX LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE, AND DISCHARGE MANIFOLD SEAL 6
5 XX-BYY PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) 3
10C 4020-29 BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
16 4488-25 THREADED FLANGE 6
17 4588-25 SCREW GLAND 6
18 4690-25A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) 6
19 P115 HP VALVE COVER PLUG NITRILE SEAL 6
20 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4018-88 VALVE GUIDE SCREW 12
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-26S SUCTION MODULE 3
33 8476-27D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 8376-25MOD DISCHARGE MANIFOLD 1
36 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 18
37 LW500 LOCKWASHER 12
38 LW875 LOCKWASHER 24
39 9070012 PONY ROD SEAL 12
40 80491292 SPLASH GUARD 3
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON





SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

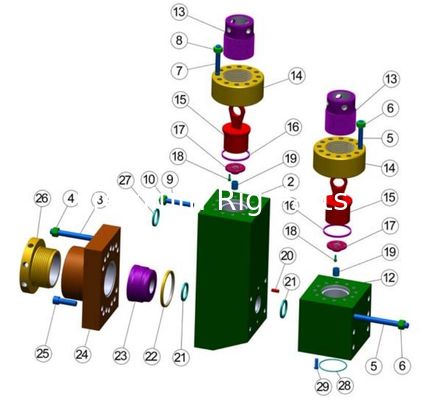

ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000压裂泵的型号及规格
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM压裂泵的型号
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

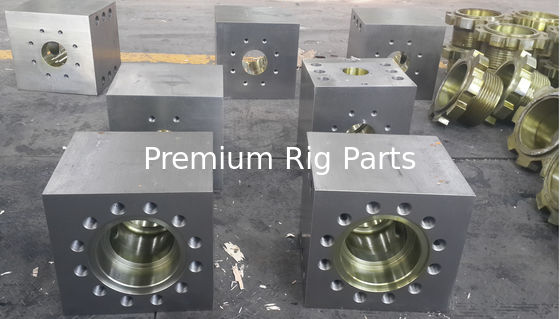

Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener

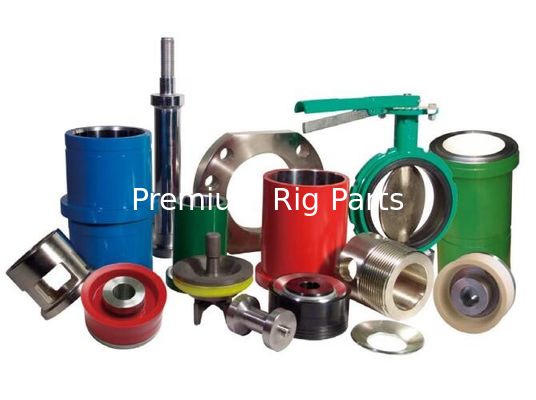

Popular Mud Pump Spare Parts



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900



LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener









Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Mud Pump Zirconia Liners Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
