LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP

China LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier
LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP supplier

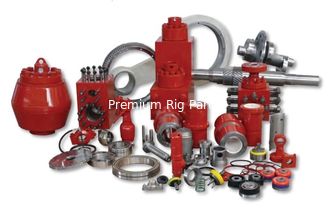

Large Image :  LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP

Product Details:

Place of Origin: CHINA
Brand Name: SOUTHWEST, OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Certification: API
Model Number: A1700PT

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitable to shipment by sea and air
Delivery Time: In Stock
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Diesel
Pressure: High Pressure,Low Pressure Application: Conveying Mud And Flushing Fluids,mining,oil,Chemical
Structure: Piston Pump Fuel: Diesel,Electric
Standard Or Nonstandard: Standard Type: Mud Pump
Color: Blue,red And So On Material: Chrome Alloy
Warranty: 12 Months Product Name: Mud Pump
Oem: Can Be Accept Condition: New

www.premiumrigparts.com

LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP

107. 29. 110.00 液力端总成 FLUID END ASSEMBLY (附图八)

序号 名称 Description 代 号 Part No. 数量 Qty
No. F-1600 F-1300
35 麟簧 SPRING, VALVE 055413397 055413397   6
36 全贓双魏柱(带嗥母) STUD WITH NUTS 7601-1260-47 7601-1260-47   16
37 椭圆形金属环垫 SEAL, RING JOINT 7602-0661-11 7602-0661-11   2
38 密封圈 SEAL, VALVE POT COVER 107.29.110.18 107.29.110.18   3
39 密封圈 SEAL, HEAD 107.29.110.19 107.29.110.19   3
40 安舗接管 PIPE, CONECTOR LS1292Z. 01.40.00 LS1292Z. 01.40.00   1
41 啓切式安全阀 SHEAR RELIEF VALVE AQF-IIA AQF-IIA   1
42 密封圈 SEAL 107.05C.03 107.05C.03   1
43 自锁姗 1 1/2"-8UN NUT, HEAVY LOCK LS7601-0720-58 LS7601-0720-58   3
44 自锁婀M39X3 NUT, HEAVY LOCK 107.35.124.00 107.35.124.00   3
45 0形密封圈7.975" O-RING RUBBER 7602-1600-44 7602-1600-44   3
46 钮套挡圈 RING LINER LOCK 107.29.110.20 107.29.110.20   3
47 阀总成(导架式) VALVE AND SEAT 107.11.140.00 107.11.140.00   6
48 阙总成(飜式) VALVE AND SEAT 107.11.144.00 107.11.144.00   6
49 阀賴 SPRING,VALVE 107.11.110.16 107.11.110.16   6
50 单头管丝1/2”x13” PIPE NIPPLE 107.29.110.21 107.29.110.21   3
51 拦水板 LINER END COVER 107.29.110.22 107.29.110.22   3
52 活塞杆卡麒成 CLAMP PI SION ROD 107.29.118.00 107.29.118.00   3
53 活塞杆(英制) ROD, PISTON 107.29.110.23 107.29.110.23   3
54 活塞杆(公制) ROD, PISTON 107.29.110.24 107.29.110.24   3
55 缸套 0)5.5"(6139.7) LINER 107.35.110.30 107.35.110.30   3
55 缸套 06” (6152.40) LINER 107.35.110.31 107.35.110.31   3




序号 名称 Description 代 号 Part No.

数量

Qty
No. F-1600 F-1300
55 缸套 66.25" (558.75) LINER 107.35.110.32 107.35.110.32   3
55 缸套 06.75" (6171.45) LINER 107.35.110.33 107.35.110.33   3
55 缸套 6 7" (6177.80) LINER 107.35.110.34 107.35.110.34   3
55 缸套 67.5" (6190.5) LINER 107.35.110.35 107.35.110.35   3
56 缸套0140 LINER 107.35.110.22 107.35.110.22   3
56 缸套0150 LINER 107.35.110.23 107.35.110.23   3
56 缸套0160 LINER 107.35.110.24 107.35.110.24   3
56 缸套0170 LINER 107.35.110.25 107.35.110.25   3
56 缸套0180 LINER 107.35.110.26 107.35.110.26   3
56 缸套0190 LINER 107.35.110.27 107.35.110.27   3
57 活塞誠05.5"伽39.70") PISTON 107.114.00 107.114.00   3
57 活蹒呻邮2.4") PISTON 107.116.00 107.116.00   3
57 醫誡 W25"(5>158J5") PISTON 107.117.00 107.117.00   3
57 活塞誠86.5"伽65」0") PISTON 107.118.00 107.118.00   3
57 證誠師75"何17L45") PISTON 107.119.00 107.119.00   3
57 活塞誠岫蚓7.78") PISTON 107.120.00 107.120.00   3
57 醫觥叽5"伽90.5") PISTON 107.122.00 107.122.00   3
58 活塞总成0140 PISTON 107.06.64.00 107.06.64.00   3
58 活塞总成0150 PISTON 107.06.66.00 107.06.66.00   3
58 活塞总成0160 PISTON 107.06.68.00 107.06.68.00   3
58 活塞总成财70 PISTON 107.06.70.00 107.06.70.00   3
58 活塞总成0180 PISTON 107.11.130.00 107.11.130.00   3
58 活塞总成0190 PISTON 107.11.135.00 107.11.135.00   3




序号 名称 Description 代号 Part No. 数量 Qty 序号 名称 Description 代号 Part No.

数量

Qty
No. No.
1 活塞杆卡腳 CLAMP PI SION ROD 107.29.118.00 3 24 嗥检 7/8"-9UNCx2.5"(63) SCREW LNB/AC1-1-07 18
2 喷淋软管 HOSE ASSEMBLY 107.29.116.00 3 25 吸入管 MANIFOLD, SUCTION 107.29.112.00 1
3 挡水板 BAFFLE DISK 107.29.110.22 3 26 吸入管法兰 FLANGE, SUCTION 107.29.110.03 1
4 单头管丝1/2”x13” PIPE NIPPLE 107.29.110.21 3 27 0 型潮 13.475° O-RING RUBBER 7602-1600-52 3
5 活塞杆(公制) ROD, PISTON 107.29.110.24 3 28 骡栓 1"-8UNCx5”(127) BOLT LNB/AC1-1-05 36
6 活塞杆(英制) ROD, PISTON 107.29.110.23 3 29 A醐 1"-8UNC NUT LNB/AC2-2-05 36
7 排岀管 DISCHARGE MANIFOLD 107.36.110.01 1 30 盲板 FLANGE, BLIND 107.29.110.04 1
8 0型密封圈3.725" O-RING RUBBER 7602-1600-25 3 31 定位销1"x2” DOWEL PIN LNB/AC4-2-05 12
9 法兰 RING,CYLINDER THREAD 107.36.110.02 6 32 密封垫 GASKET 107.35.110.09 6
10 压盖 THREAD RETAINER 107.36.110.03 6 33 排出睥检装配总成 STUDDED FLUID END (DICHARGE) 107.36.122.00 3
11 阀盖 VALVE POT COVER FLUID END 107.35.110.06 6 34 齣 1 1/2-6UNRCx5"(127)-2A SCREW LNB/AC1-4-09 24
12 密封圈 SEAL 107.29.110.18 6 35 耐磨垫 WEAR PLATE 107.36.110.04 3
13 定位板 RETAINER VALVE GUIDE LS6323-0093-00 6 36 密封垫 GASKET 107.29.110.17 3
14 螺栓 3/8"T6UNCx3/4”(19) SCREW LNB/AC1-2-05 24 37 自锁螺母1 1/2 “-8UN HEAVY HEX LOCK NUT LS7601-0720-58 3
15 钢丝们.6 L=2m WIRE 107.36.110.06 1 38 90.内外丝弯头1/2" ELBOW 7601-2570-89 3
16 闹导向 VALVE GUIDE 107.35.110.07 6 39 £1套座 SPACER, MODULE 107.36.110.05 3
17 导向套 BUSHING VALVE GUIDE 107.35.110.08 6 40 缸套压环 LOCK, LINER 107.29.110.15 3
18 阀賴 SPRING, VALVE LS55413421 6 41 0型密封圈7.975” O-RING RUBBER 7602-1600-44 3
19 阀总成(飜式)API 7# VALVE AND SEAT 060155041 6 42 任套挡圈 RING LINER LOCK 107.29.110.20 3
20 闹座(带筋式)API 7# VALVE SEAT 061101507 6 43 自鼬母1139x3 NUT,HEAVY LOCK 107.35.124.00 3
21 吊环螺钉3/4z,-10UNC LIFTING SCREW LNB/AC1-12-03 6 44 支架总成 SUPPORT ASSEMBLY 107.35.124.00 2
22 吸入睥栓装配总成 STUDDED FLUID END (SUCTION) 107.36.120.00 3 45 全螺纹双头嗥柱(带嗥母) STUD WITH NUTS 7601-1260-47 16
23 0形密封圈7.225” O-RING RUBBER 7602-1600-61 3 46 内夕曜丝 DN 25x15-NPTxNPT BUSHING 101-0401-03-19-008 3


LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP

LEWCO-W2215 Cameron Mud Pump
Item Part Number Description Qty. Unit
1 ES331 LINER WASH PUMP PACKING 18 Ea
2 EG199 API ring gasket (BX-169SS) 27 Ea
3 EG197 API ring gasket (BX-152SS) 3 Ea
4 EG163 suction manifold gasket 15 Ea
5 B105281 suction dampener/desurger 3 Ea
6 108-0609 stroke counter 12 Ea
7 108-1054 heat exchanger-liner wash 3 Ea
8 108-1055 heat exchanger-lube oil 3 Ea
9 108-0764 low presure switch 3 Ea
10 ES452 low presure switch 3 Ea
11 108-1324 low presure switch 3 Ea
12 108-1225 v-belt 6 Ea
13 EG195 mud pressure gauge 3 Ea
14 EG170 crank case cover gasket 888 inch
15 A162209 inspection cover gasket 3 Ea
16 A164103 main bearing cover gasket 6 Ea
17 C164404 cross head cover gasket 6 Ea
18 A164185 inspection cover gasket (large) 3 Ea
19 108-1095 breather cap 3 Ea
20 A164191 stroke counter bracket gasket 3 Ea
21 B164202 eccentric bearing 9 Ea
22 EB119 main (spherical roller) bearing 6 Ea
23 B164206 main bearing shim set 6 Ea
24 A167244 eccentric bearing shims 6 Ea
25 EB120 pinion (cylinderical roller) bearing 6 Ea
26 ES194 oil seal 6 Ea
27 A164505 pinion bearing carrier gasket 6 Ea
28 B164402 wrist pin bearing 6 Ea
29 C164323 piston rod clamp 18 Ea
30 B164407 baffle disc 9 Ea
31 A164453 crosshead shim set 9 Ea
32 B164425 diaphragm plate gasket 9 Ea
33 ES211 stuffing box seal 36 Ea
34 A164415 stuffing box gasket 9 Ea
35 E0175 o-ring ( 2/343) 9 Ea
36 E0301 o-ring ( 2/442) 9 Ea
37 A164705 valve cover seal 18 Ea
38 A167708 valve guide bushing 36 Ea
39 A167702 wear plate seal 18 Ea
40 816406 wear plate seal 9 Ea
41 EV116 valve spring 36 Ea
42 EV190 valve seat 36 Ea
43 EV178 valve 36 Ea
44 EL238 liner (5") 36 Ea
45 EL220 liner (5 1/2") 36 Ea
46 EL221 liner (6") 36 Ea
47 EL222 liner (6 1/2") 36 Ea
48 EL223 liner (7") 36 Ea
49 EL224 liner (7 1/2") 36 Ea
50 EL240 liner (8") 36 Ea
51 EP159 piston (5") 36 Ea
52 EP160 piston (5 1/2") 36 Ea
53 EP117 piston (6") 36 Ea
54 EP118 piston (6 1/2") 36 Ea
55 EP150 piston (7") 36 Ea
56 EP151 piston (7 1/2") 36 Ea
57 EP152 piston (8") 36 Ea
58 EP165 piston (5") 36 Ea
59 EP114 piston rubber(5 1/2") 36 Ea
60 EP115 piston rubber (6") 36 Ea
61 EP116 piston rubber (6 1/2") 36 Ea
62 EP147 piston rubber (7") 36 Ea
63 EP148 piston rubber(7 1/2") 36 Ea
64 EP149 piston rubber (8") 12 Ea
65 EG132 liner gasket (5") 36 Ea
66 EG138 liner gasket (5 1/2") 12 Ea
67 EG139 liner gasket(6") 36 Ea
68 EG140 liner gasket(6 1/2") 36 Ea
69 EG136 liner gasket(7") 36 Ea
70 EG142 liner gasket (7 1/2") 36 Ea
71 EG144 liner gasket (8") 12 Ea
72 EP194 lube oil pump 3 Ea
73 108-0054 relief valve, 15 psi 3 Ea
74 108-1088 relief valve, 65 psi 3 Ea
75 108-0135 check valve 3 Ea
76 108-1257 flow switch 6 Ea
77 EG105 pressure gauge, 0-60 psi 6 Ea
78 EG145 pressure gauge 6 Ea
79 EV215 charging valve 6 Ea
80 ES175 stud 2.25 8UN 8.50 B7 36 Ea
81 EM132 heavy hex nut 8UN A194-2H 36 Ea
82 002-1666 hex bolt 1.000 8NC 2.00 G8 3 Ea
83 002-1544 lock washer 1.000" 3 Ea
84 108-0620 stabilizer plate L-2010 3 Ea
85 108-0619 stabilizer L-20 3 Ea
86 EN137 havy hex nut 1.125 7NC A194-2H 24 Ea
87 EC181 bottom flange cap screw 24 Ea
88 108-0656 seal 429 BUNA 70 3 Ea
89 ES174 stud 1.125 7NC 6.5 B7 24 Ea
90 EO190 charging valve o-ring 6 Ea
91 108-0065 ring gasket BX-155S 3 Ea
92 B310066 charging valve hose assembly 3 Ea
93 108-0618 buna-N bladder ( standard) 6 Ea
94 108-1194 hydrogenated nitrile bladder
(high temperature mud)		 6 Ea
95 108-1195 Urthane bladder ( oil based mud) 6 Ea



LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP

NATIONAL

12-P- 160



Item

P

Part Number



Description

 Qty per Pump
1 P-1292240 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1292241 Discharge Module, Only 3
3 P-6300220 Nut, 1 3/8“ Hvy. Hex 24
4 P-2408029 Stud, 1 3/8“ X 6 3/4”, Discharge to Frame 24
5 P-6300180 Nut, 1 1/8“ Hvy. Hex 18
6 P-2408028 Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing 18
7 P-6300281 Nut, 1 3/4“ Hvy. Hex 18
8 P-2408033 Stud, 1 3/4“ X 21 1/8”, Discharge to Suction 18
9 P-6300240 Nut, 1 1/2 Hvy. Hex 36
10 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
11 P-1292243 Suction Module Studded, (incl. Items 12-14) 3
12 P-1292244 Suction Module, Only 3
13 P-6300240 Nut, 1 1/2 Hvy. Hex 36
14 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
15 P-1293165 Bushing, Liner 3
16 P-1292174 Seal Retainer 6
17 P-1292172 Valve Cover 6
18 P-1292178 Screw, Wedge Adjusting 6
19 P-6300182 Nut, Wedge Adjusting 6
20 P-1292171 Washer, Wedge Adjusting Screw 6
21 P-1292176 Ring, Threaded 6
22 P-G-1292268 Wedge Assembly 6
23 P-1540127 Gasket, Valve Cover 6
24 P-1292140 Holder, Valve Guide Insert 6
25 P-1292141 Insert, Valve Guide 6
26 P-6511416 Pin Dowell 6
27 P-1292266 Plate, Wear 3
28 P-1292252 Connector, Discharge 2
29 P-7000-305-11 Screw Hex Head 16
30 P-7619050 Washer, Lock 16
31 P-1292253 Adapter, Discharge Connector 2
32 P-2410031-433 Packing, Rectangular 2
33 P-2410031-437 Packing, Rectangular 4
34 P-1292167 Clamp, Liner 3
35 P-7000491-10 Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer 6
36 P-6309140 Nut, 7/8“ Lock Type 6
37 P-1292169 Pin, Liner Clamp 3
38 P-1292168 Connector, Liner Clamp 3
39 P-2408015 Stud 1 1/2“ x 7 1/2” 16
40 P-6300240 Nut, 1 1/2“ Hvy. Hex 16



NATIONAL

7-P- 50





Item

P

Part Number



Description

 Qty per Pump
1 P-1291250 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1291251 Discharge Module, Only 3
3 P-6300160 Nut, 1“ Hvy. Hex 24
4 P-2408042 Stud, 1“ X 5”, Top Taper Lock 24
5 P-2408042 Stud, 1/4“ X 4 1/2”, Discharge to Liner Bushing 18
6 P-240803 Nut, 1“ Hvy. Hex 18
7 P-2408041 Stud, 1 1/4“ X 14 5/8”, Discharge to Suction 18
8 P-1294156 Suction Module Studded, (incl. Items 12-14) 3
9 P-1294156 Suction Module, Only 3
10 P-1294165 Bushing, Liner 3
11 P-1290174 Seal Retainer 6
12 P-1294172 Valve Cover 6
13 P-1290178 Screw, Wedge Adjusting 6
15 P-1290315 Washer, Wedge Adjusting Screw 6
16 P-1560701 Spring Wedge 6
17 P-G-1290376 Wedge Assembly 6
18 P-1540126 Gasket, Valve Cover 6
19 P-1292140 Holder, Valve Guide Insert 6
20 P-1292141 Insert, Valve Guide 6
21 P-6511416 Pin 7/8 X 2 Dowell 6
22 P-1294160 Plate, Wear 3
23 P-1294170 Connector, Discharge 2
24 P-7000305-11 Screw 1/2 X 1 1/2 Hex Head 16
25 P-7619050 Washer, Lock 1/2“ 16
26 P-1294171 Adapter, Discharge Connector 2
27 P-2410031-348 Packing, Rectangular 2
28 P-2410031-427 Packing, Rectangular 4
29 P-1291166 Clamp, Liner 3
30 P-7000403-10 Screw 5/8 X 3 1/2 Hex Hd. w/ Lock Washer 6
31 P-6309100 Nut, 5/8“ Lock Type 6
32 P-12911-69 Pin, Liner Clamp 3
33 P-12911-68 Connector, Liner Clamp 3
34 P-2402560 Stud 1 1/4“ x 6 1/4” 16
35 P-6300200 Nut, 1 1/4“ Hvy. Hex 16



LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP





GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
    FEMPZ101175CA FLUID END MODULE COMPLETE ASSEMBLY 3
1 300PZL2039 FEMPZ101175 FLUID END MODULE-STUDDED (INCLUDES ITEMS 2, 18-23) 3
2 50B36 IDT800TRSN NUT 168
3 303PZL316   SEAL, WEAR RING (WEAR PLATE) 3
4 300PZL483   GUIDE, VALVE (UPPER) 3
5 300PZL234   RING, WEAR (WEAR PLATE) 3
6 300PZL205 PZ1011LVGR75 RETAINER, VALVE GUIDE 3
7 300PZL316   SEAL, CYL. HEAD & VALVE COVER - RUBBER (SEE DATASHEET FOR ALT. MATERIALS) 6
8 301PZL147 PZ1011VC75 COVER-VALVE (UPPER) 3
9 15P27   BOLT, EYE 6
10 300PZL387 PZ1011FLG75 RING-THREADED 6
11 300PZL587 PZ1011CAP75 CAP, THREADED 6
12 25BE41 07923283 GASKET, SUCTION MANIFOLD 3
13 655EG10N   SCREW, SUCTION MANIFOLD 24
14 302PZL316   GASKET, DISCHARGE MANIFOLD 3
15 300PZL229   BUSHING 12
16 300PZL147 PZ1011CYHPLG75 COVER, CYLINDER HEAD (LOWER) 3
17 301PZL483   GUIDE, VALVE (LOWER) 3
18 303PZL110 PZ1011LCS75 STUD, LINER CLAMP 36
19 300PZL110 PZ1011PFS75WP STUD, POWER FRAME (WEAR RING) 6
20 303PZL110 PZ1011PFS75 STUD, DISCHARGE MANIFOLD 6
21 301PZL110 PZ1011TRS75 STUD, THREADED RING 84
22 300PZL455 PZ1011LC75 CLAMP, LINER 3
23 300PZL234 PZ1011WP75 WEAR RING, (WEAR PLATE) 3



LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP

NATIONAL

12-P-160





Item

Premium

Part Number



Description

 Qty per Pump
1 P-1292240 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1292241 Discharge Module, Only 3
3 P-6300220 Nut, 1 3/8“ Hvy. Hex 24
4 P-2408029 Stud, 1 3/8“ X 6 3/4”, Discharge to Frame 24
5 P-6300180 Nut, 1 1/8“ Hvy. Hex 18
6 P-2408028 Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing 18
7 P-6300281 Nut, 1 3/4“ Hvy. Hex 18
8 P-2408033 Stud, 1 3/4“ X 21 1/8”, Discharge to Suction 18
9 P-6300240 Nut, 1 1/2 Hvy. Hex 36
10 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
11 P-1292243 Suction Module Studded, (incl. Items 12-14) 3
12 P-1292244 Suction Module, Only 3
13 P-6300240 Nut, 1 1/2 Hvy. Hex 36
14 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
15 P-1293165 Bushing, Liner 3
16 P-1292174 Seal Retainer 6
17 P-1292172 Valve Cover 6
18 P-1292178 Screw, Wedge Adjusting 6
19 P-6300182 Nut, Wedge Adjusting 6
20 P-1292171 Washer, Wedge Adjusting Screw 6
21 P-1292176 Ring, Threaded 6
22 P-G-1292268 Wedge Assembly 6
23 P-1540127 Gasket, Valve Cover 6
24 P-1292140 Holder, Valve Guide Insert 6
25 P-1292141 Insert, Valve Guide 6
26 P-6511416 Pin Dowell 6
27 P-1292266 Plate, Wear 3
28 P-1292252 Connector, Discharge 2
29 P-7000-305-11 Screw Hex Head 16
30 P-7619050 Washer, Lock 16
31 P-1292253 Adapter, Discharge Connector 2
32 P-2410031-433 Packing, Rectangular 2
33 P-2410031-437 Packing, Rectangular 4
34 P-1292167 Clamp, Liner 3
35 P-7000491-10 Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer 6
36 P-6309140 Nut, 7/8“ Lock Type 6
37 P-1292169 Pin, Liner Clamp 3
38 P-1292168 Connector, Liner Clamp 3
39 P-2408015 Stud 1 1/2“ x 7 1/2” 16
40 P-6300240 Nut, 1 1/2“ Hvy. Hex 16









SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI FC-2200 9” X 15”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8494-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)
1 6394GXX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 AJO524S LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE) 6
3 8494-54-1 LINER WEARPLATE BASE 3
4 8494-54-2 LINER WEARPLATE 3
5 4020-36 LINER WEARPLATE CAPSCREW 18
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
7 568-225 PISTON SEAL 3
8 6293-33 PISTON ROD (WITH ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD NUT 3
10 6293-3 SUB ROD 3
11 6293-4 PISTON ROD CONNECTING STUD 3
12 6293CW ROD CLAMP 3
12A 1200H30 HOSE 3
12B 1200160 PIPE 3
12C 4019-92 ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS 6
13 6200G93 PONY ROD 3
14 SEE PAGE VALVE COMPLETE 6
15 SEE PAGE VALVE INSERT 6
16 SEE PAGE VALVE SPRING 6
17 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
18 4476 VALVE COVER FLANGE 6
19 4597 SCREW GLAND 6
20 4609-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24 6
21 P119 HP VALVE COVER PLUG NITRILE SEAL 6
22 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4016-98 VALVE GUIDE SCREW 12
25 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 72
26 4020-42 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 24
27 6494-25 LINER RETAINER FLANGE 3
28 4020-43 LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT) 48
29 6594-25 LINER RETAINER NUT 3
30 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
31 4020-27 SUCTION MANIFOLD CAPSCREW 18
32   SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD O-RING 3
34 8494-26S SUCTION MODULE 3
35 8494-27D DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 2988 MODULE SEAL 3
38 4020-44 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT) 12
39   DISCHARGE MANIFOLD 1
40 568-349 DISCHARGE MANIFOLD O-RING 3



LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP



CONTINENTAL EMSCO FC-2200 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART #
    EMSFEMFC2200CA FLUID END MODULE COMPLETE ASSEMBLY
1 0-6323-0108-00 EMSFEMFC2200DIS DISCHARGE MODULE-STUDDED
2 0-6323-0109-00 EMSFEMFC2200SUC SUCTION MODULE-STUDDED
3 0-6323-0087-00   THREADED RETAINER
4 0-6323-0086-00   THREADED RING
5 0-6323-0083-00   VALVE POT COVER
6 0-6323-0103-00   VALVE GUIDE W/ BUSHING
7 0-6323-0126-00   HANDLER, VALVE POT
8 0-6323-0085-00   SUCTION MANIFOLD
9 0-6316-0105-95   FLANGE, SUCTION
10 0-6317-0074-95   FLANGE, BLIND
11 0-6323-0084-10   DISCHARGE MANIFOLD, 7500 PSI
12 0-6323-0097-00   WEAR PLATE
13
14 0-6323-0096-00   LINER THREAD RING
15 0-6323-0099-00   LINER LOCK
16
17 0-6323-0121-20   FEED PIPING ASSEMBLY
18 0-6323-0093-00   RETAINER, VALVE GUIDE
19 0-6323-0128-00   SEAL, F. E. MODULAR
20 0-6323-0127-00   WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
21
22 0-7602-1600-52   O-RING (SUCTION MANIFOLD)
23 0-7602-1600-61   O-RING (SUCTION MANIFOLD TO F. E.)
24 0-7602-1600-30   O-RING (DISCHARGE MANIFOLD TO F. E.)
25 0-7501-0051-00   SCREW, RETAINER
26 0-7602-5280-72   WIRE, SOFT IRON .06 X 144.00
27
28 0-7601-0331-39   SCREW, HEX HD 1" - 8 X 5.00
29 0-7601-0630-20   NUT, HEX 1" - 8
30
31 0-7601-0333-30   SCREW, HEX HD 7/8-9 X 2.50 GR 5





LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP

SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI FB1300/1600 7-1/2” X 12”



ITEM P/ N DESCRIPTION QTY. REQ’D
  8490-2A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) 3
1 6390YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) 3
2 AJO428S LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) 3
3 8490-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U Also available in urethane) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286-CWYFP14 PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) 3
11C 4020-29 BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
  4475-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) 6
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-2A PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) 6
20 P129 HP VALVE COVER PLUG SEAL (P129U Also available in urethane) 6
21 4775-2R VALVE GUIDE (complete with bushing #4700I) 6
22 4700I VALVE GUIDE BUSHING 6
23 4016-99 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) 72
25 4016-9 POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) 18
27 6490-3 LINER RETAINER FLANGE 3
28 8422-3 LINER RETAINER PILOT RING 3
29 6590-1 LINER RETAINER NUT 3
30 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 18
32 8590-6 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
33 568-442 SUCTION MANIFOLD SEAL 3
34 8490-2S SUCTION MODULE (STUDDED ONLY) 3
35 8490-1D DISCHARGE MODULE (STUDDED ONLY) 3
36 8488-5 DOWEL PIN 6
37 8390-50 DISCHARGE MANIFOLD 1
38 568-343 DISCHARGE MANIFOLD SEAL 3
39 4017-46 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) 12
40 ESN500 ELASTIC STOP NUT 12
41 LW875 LOCKWASHER 7/8 36
42 9070004 SINGLE LIP PONY ROD SEAL 3
43 9070005 DOUBLE LIP PONY ROD SEAL 3
44 9060012 SPLASH GUARD
  8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS


  6278-74 PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
    THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45 1388XX LINER 3
46 2974XX LINER SEAL 3
47 8490-20 LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL 3
48 8488-7 SET SCREW 12
49 6588-22-2 LINER NUT 3










SOUTHWEST 8488-25A FLUID END FOR

OILWELL A-1700-PT/A-1400-PT

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI A-1700-PT / A-1400-PT 7-1/2” X 12”





ITEM P/ N DESCRIPTION QTY. REQ’D
  8488-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 34, 35, & 36)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (ALSO AVAILABLE IN URETHANE) 3
3 8488-28 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 9
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT (IF REQUIRED) 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 THREADED FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, & 23 6
20 P115 HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U) 6
21 4788R-25 VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4020-5 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 6588-1 LINER RETAINER NUT 3
27 8488-7 LINER RETAINER CAPSCREW 9
28 6488-25 LINER RETAINER FLANGE 3
29 4016-80 LINER RETAINER SOCKET HEAD CAP SCREW 24
30 4020-4 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4018-70 SUCTION MANIFOLD CAP SCREW 24
32 8588-50A SUCTION MANIFOLD 1
33 80102003 SUCTION MANIFOLD SEAL 3
34 8488-26 SUCTION MODULE 3
35 8488-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8388-25A DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
39 568-445 “O” RING – WEAR PLATE O.D. RETAINER 3
40 2932 PISTON BUSHING (1 5/8 TO 1 ½ DIA.) 3



LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMPLS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP





SOUTHWEST 7500 P.S.I. NATIONAL 12P-160 7-1/2” X 12”





ITEM P/N DESCRIPTION QTY. REQ’D
  8476-25A FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)
1 1376YXX LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE, AND DISCHARGE MANIFOLD SEAL 6
5 XX-BYY PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) 3
10C 4020-29 BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
16 4488-25 THREADED FLANGE 6
17 4588-25 SCREW GLAND 6
18 4690-25A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) 6
19 P115 HP VALVE COVER PLUG NITRILE SEAL 6
20 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4018-88 VALVE GUIDE SCREW 12
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-26S SUCTION MODULE 3
33 8476-27D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 8376-25MOD DISCHARGE MANIFOLD 1
36 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 18
37 LW500 LOCKWASHER 12
38 LW875 LOCKWASHER 24
39 9070012 PONY ROD SEAL 12
40 80491292 SPLASH GUARD 3
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18



LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP





SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12



LS F-1600/F-1300/F-1600L SLUS Mud Pump, MUD PUMP FLUID END MODULE, LINER, PISTON, BOMCO F1600 MUD PUMP, F1600HL PUMP



Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Mud Pump Zirconia Liners Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
