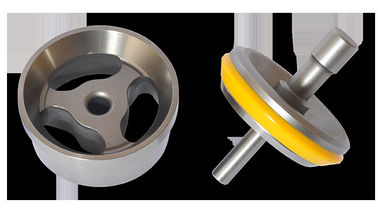

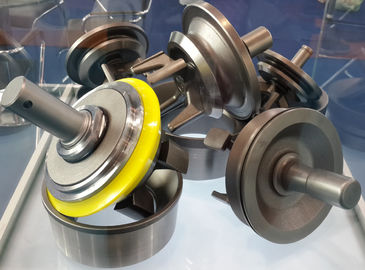

MUD PUMP VALVES HIGH TEMPERATURE, 4-WEB VALVE, 3-WEB VALVE, FULL OPEN VALVE, ROUGH NECK VALVE, DOUBLE ANGLE VALVE













SOUTHWEST 8482-A

National 14P-220

ITEM	P/N	DESCRIPTION	QTY
	8482-A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3, 4, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 32, 33, 34)
1	6382G-XX	LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX))	3
2	2930-XX	LINER SEAL	3
3	8482-4	WEARPLATE	3
4	2930-09	WEARPLATE & MODULE SEAL	6
5	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY))	3
6	568-225	PISTON O-RING	3
7	6282W32	PISTON ROD (W/ ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	6282-1	SUB ROD	3
10	6282CWY	ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY USE 6282C)	6
10A	1200H30	HOSE (1/2” X 30” WITH ½” MALE X 3/8” MALE CONNECTIONS)	6
10B	1200160	PIPE (3/8” X 16” GALVANIZED AND THREADED ON ONE END)	6
10C	4019-77	ROD CLAMP BOLT (3/4-10 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	12
11	6200G82	PONY ROD	3
12		VALVE	6

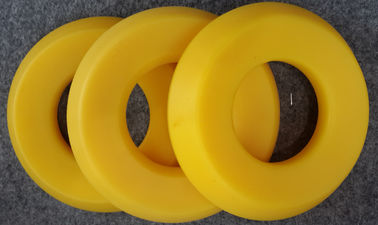

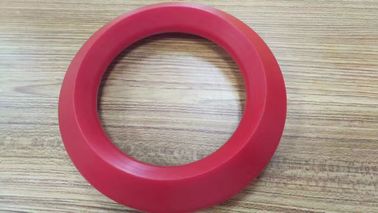

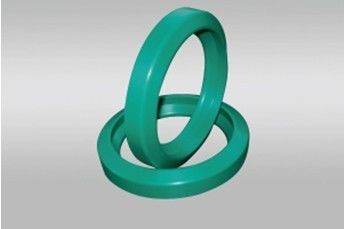

13		VALVE INSERT (IF REQUIRED)	6
14		VALVE SPRING	6
15		VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG)	1
16	4482	THREADED FLANGE	6
17	4582	SCREW GLAND	6
18	4682A	PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS, AND BUSHING)	6
19	P113	HP VALVE COVER PLUG NITRILE SEAL	6
20	4782R	VALVE GUIDE (COMPLETE W/ BUSHING #4700I)	6
21	4700I	VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART# 4700IU)	6
22	4019-75	VALVE GUIDE SCREW	24
23	4015-54	VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT)	84
24	4019-24	POWER END STUD (WITH SW PART# HHN1500-6 1 1/2-6 HEAVY HEX NUT)	30
25	6482	LINER RETAINER FLANGE	3
26	4015-52	LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	18
27	6582	LINER RETAINER NUT	3
28	4019-74	SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT)	18
29	4018-19	SUCTION MANIFOLD CAP SCREW	24
30	8582	SUCTION MANIFOLD	1
31	AJO326	SUCTION MANIFOLD SEAL	3
32	8482-2S	SUCTION MODULE	3
33	8482-1D	DISCHARGE MODULE	3
34	8488-5	DOWEL PIN	6
35	2982-3	DISCHARGE END ADAPTER SEAL	2
36	4017-4	DISCHARGE END ADAPTER CAP SCREW	24
37	BX169	RING JOINT	2
38	4020-21	BLIND FLANGE STUDS (WITH SW PART# HHN1125-7 1-1/8”-7 HEAVY HEX NUTS)	24
39	2982-2	DISCHARGE CONNECTOR SEAL	4
40	8382-1	DISCHARGE CONNECTOR	2
41	8382-3	DISCHARGE CONNECTOR BACK-UP RING	2
42	4018-18	DISCHARGE CONNECTOR CAPSCREW	16
43	2982-1	DISCHARGE CONNECTOR END SEAL	2
44	8382-2	DISCHARGE CONNECTOR ADAPTER	2
45	8382-4	DISCHARGE END FLANGE ADAPTER	2





Southwest Oilfield Products is a premier oil and gas equipment manufacturer that provides Their global customer base with best-in-class mud and well servicing pump solutions. They manufacture rugged and reliable equipment for your specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.



Their Mud Pump solutions team has been an industry leader since 1947 and is renowned for providing high quality mud pump fluid ends and consumable parts such as pistons, liners, valves and seats to drilling companies across the globe. With over 65 years of manufacturing experience, Their mission is to provide you with simply the best well servicing equipment and mud pump products.



Southwest Oilfield Products, Inc. is committed to delivering the highest quality products, on time, and creating positive significant impacts on their customers’ projects. They strive to maintain their innovative stance in the industry while partnering with our customers to share the focus on generating solutions.





Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.



◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.



All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.



◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps









Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

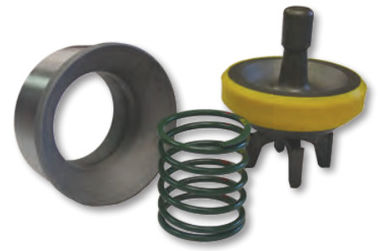

1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5







Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts



Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900
