Luogo di origine Cina
Marca Gardber Denver National Oilwell
Certificazione API
Numero di modello POMPA FANGO PZ9
Quantità di ordine minimo 1 pezzo
Prezzo 10 to 200 usd
Imballaggi particolari Adatto alla spedizione via aerea e via mare
Tempi di consegna In magazzino
Termini di pagamento D/A, D/P
Capacità di alimentazione 5000 pezzi al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Utilizzo Olio, acqua, impianto di perforazione di trapano Energia Elettrico, diesel
Pressione Pompa sommergibile per liquami draganti sabbia con pompa per fango ad alta pressione e bassa pressio Applicazione miniere, petrolio
Struttura Pompa a pistone carburante Diesel, motore diesel e motore idraulico per opzione
Standard o non standard Standard Tipo Pompa di fango
Colore rosso e così via, verde o secondo il disegno del cliente Materiale pompa di aspirazione del fango in ghisa/acciaio inossidabile, plastica in alluminio in acciaio inoss
Garanzia 12 mesi Caratteristica Dimensioni compatte
Nome del prodotto Pompa di fango OEM può essere accettare, applicabile
Condizione Nuovo
Lasciate un messaggio
Descrizione di prodotto

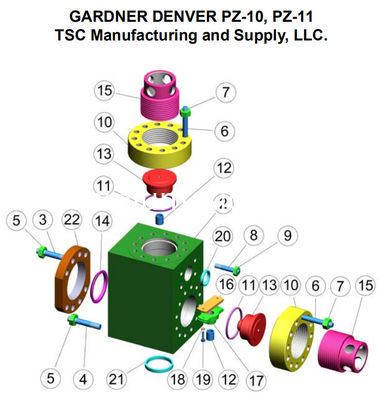

      Gardner Denver PZ9 mud pump fluid end module, Hy-chrome liner, valves, pistons, PZ8 mud pump, pz7 mud pump, pz11 pump 0

Premium can produce the spare parts of Gardner Denver PZ7 MUD PUMP , PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PX-11 2000 HP MUD PUMP.




GARDNER DENVER PZ-7, PZ-8, PZ-9 W/ WEAR PLATE FLUID END MODULE & ACCESSORIES

ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
    FEMPZ789WPCA ASSY, COMPLETE FLUID END MODULE W/ WEAR PLATE & SEAL (INCLUDES ITEMS 1-25) 3
1   FEMPZ789WP MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-25) 3
2 79L188 PZ789LCS STUD, FRAME & LINER CLAMP 24
3 50B36 6300200 NUT, FRAME & LINER CLAMP STUD 48
4 79L73 PZ789GPFS STUD, FRAME 12
5 50AQ30 PZ789PFSN NUT, FRAME STUD 12
6 79AL6 PZ789TRS STUD, VALVE COVER 48
7 50B34 PZ789TRSN NUT, VALVE COVER STUD 48
8 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
9 50B34 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD 12
10 2011861 PZ789EXPR RING, VALVE COVER GASKET EXPANDER 6
11 2011862 7916749 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
12 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
13 2011860 PZ789VC COVER, VALVE 6
14 2011699 PZ789FLG RING, VALVE COVER THREADED (2 1/2" THICK) 6
14A   PZ789HFLG RING, HEAVY VALVE COVER THREADED (3" THICK) 6
15 2011857 PZ789CAP CAP, VALVE COVER LOCK 6
16 2011701 PZ789PL PLATE, RETAINER 6
17 2011700 PZ789LVG GUIDE, LOWER VALVE SUCTION 3
18 95W2 PZLVGAWASHER WASHER, VALVE GUIDE LOCK 6
19 655EE06S PZLVGABOLT SCREW 1/2"x1 3/4" 316SS HX HD C/S 6
20 25AL35 7916747 GASKET, DISCHARGE MANIFOLD 3
21 25G41 7923283 GASKET, SUCTION MANIFOLD 3
22 1PV14 PZ789LC CLAMP, LINER 3
23   PZ910WPINTL PLATE, WEAR 3
24   20100019 SEAL, WEAR PLATE 3
25 2011706 PZ789LVGA ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) 3
26 75A74N 700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
27   7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24
    7924509 MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) 3






Description PZ-7 mud pump PZ-8 mud pump PZ-9 mud pump

PZ-10 and PZ-11

mud pump
Liner of Crosshead Upper 200PZG309 2012509 PZ222 200PZL309
Liner of Crosshead Lower 200PZG309 2012509 PZ222 200PZL309
Pin of Crosshead 200PZG189 200PZH189 PZ189 200PZL706

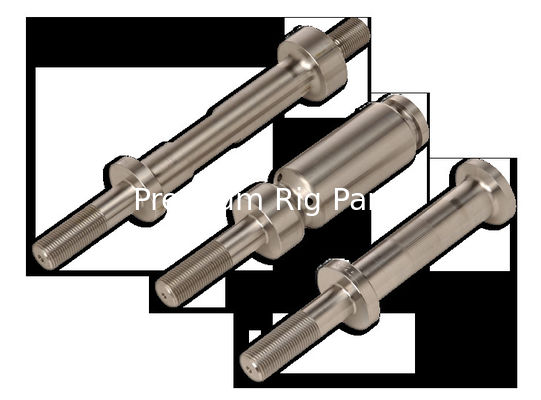

Extension Rod 200PZH839 1PO183 PZ183 200PZL839
Sub Rod
Crosshead 200PZG005 200PZH005 PZ175 200PZL005
Pinion Shaft 200PZG371 2012507 1PZ371 200PZK371
Connecting Rod 200PZG003 2012506 PZ417 200PZL003
Bull Gear 200PZG280 2012508 1PZ180 200PZK280
Bearing, Crosshead 97A29 12BA44 12AM3 12BA5
Bearing, Pinion Shanft 12W75 12W58 12W60 12W73
Bearing, Eccentric 12BA18 12W85 12W84 12BA6
Bearing, Main 12BA20 12GF38 12GF36 12BA4

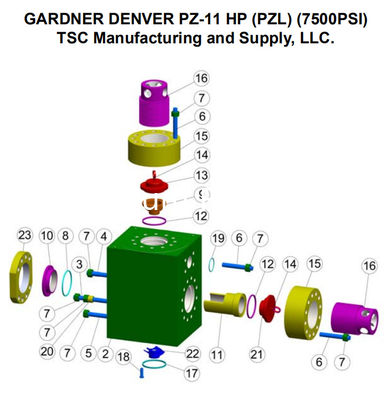

     Gardner Denver PZ9 mud pump fluid end module, Hy-chrome liner, valves, pistons, PZ8 mud pump, pz7 mud pump, pz11 pump 1

      Since creating the first drilling mud pump more than 100 years ago, Gardner Denver Pumps has had a reputation for setting new industry standards for high-performance mud pumps for drilling rigs. Our customers prefer our drilling pumps because of the field-tested durability and ease of maintenance.

All Gardner Denver triplex pumps are machined for extreme applications and built for resilience. Our sub-assemblies, including our power ends and long-lasting fluid ends, maximize the efficiency and productivity of each Gardner Denver mud pump.



www.gardnerdenverpumps.com





All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

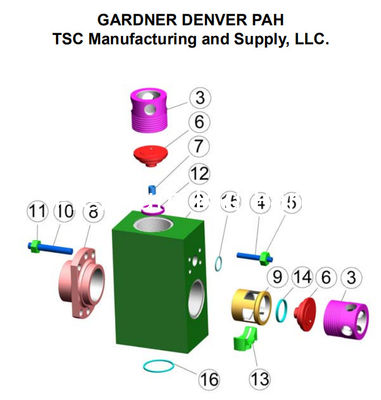

Gardner Denver PZ9 mud pump fluid end module, Hy-chrome liner, valves, pistons, PZ8 mud pump, pz7 mud pump, pz11 pump 2
