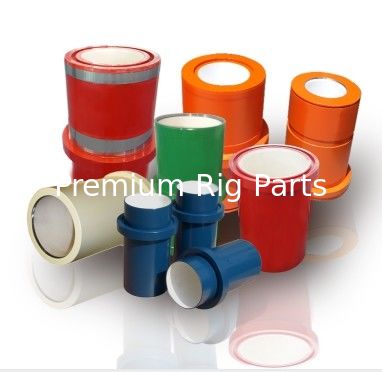

Oilwell A1100PT Mud Pump Zirconia Liners Ceramic Liners

  • Oilwell A1100PT Mud Pump Zirconia Liners Ceramic Liners
  • Oilwell A1100PT Mud Pump Zirconia Liners Ceramic Liners
Luogo di origine Cina
Marca Oilwell
Certificazione API
Numero di modello A1100PT
Quantità di ordine minimo 1
Tempi di consegna In magazzino
Termini di pagamento T/T
Capacità di alimentazione 3000 al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Lasciate un messaggio
Descrizione di prodotto

www.premiumrigparts.com

Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.

◎ Zirconia has three important property advantages compared to alumina.
◎ Zirconia exhibits better impact strength.
◎ Zirconia is harder than alumina.
◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.

All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.

◎ HP design with shoulder-on-hull design to prevent sleeve slippage
◎ Reduced liner and piston wear
◎ Rated for all drilling operations up to 7500 PSI
◎ Bore hardness of 92-94 Rockwell
◎ ID tolerances of +.010”/ -.000”
◎ Surface finish of 4 - 8 RMS
◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)
◎ High pressure design to prevent slippage
◎ Liner sizes are available from 4½” to 7” for all popular mud pumps


Mud Pump Models4”4-1/2”5”5-1/2”6”6-1/2”7”
Continental Emsco F-800 / 1000/074954500749550007495550074956000749565007495700
Continental Emsco FB-1300 / 160007499400074994500749950007499550074996000749965007499700
Continental Emsco FC-2200//0755150007551550075516000755165007551700
Gardner Denver PZ-7//0749308707493085074930830749308107493079
Gardner Denver PZ-8/907493400074934500749350007493550074936000749365007493700
Gardner Denver PZ-10/1107496400074964500749650007496550074966000749665007496700
Gardner Denver PZL07496400074964500749650007496550074966000749665007496700
Gardner Denver PZL-B-7500 PSI//07561500HP07561550HP07561600HP07561650HP07561700HP
Gardner Denver PZL W/SWFE 7500 PSI07465400HP07465450HP07465500HP07465550HP07465600HP07465650HP07465700HP
Gardner Denver PX-11 7500 PSI//07561500HP07561550HP07561600HP07561650HP07561700HP
Ideco T-500/075124500751250007512550075126000751265007512700
Ideco T-800 / 100007502400075024500750250007502550075026000750265007502700
Ideco T-1300 / 1600/075074500750750007507550075076000750765007507700
National 7P-500746604007466045074660500746605507466060//
National 8-P-80074644000746445007464500074645500746460007464650/
National 9-P-100 / 10-P-130074654000746545007465500074655500746560007465650/
National 12-P-16007466400074664500746650007466550074666000746665007466700
National 14-P-22007545400075454500754550007545550075456000754565007545700
Oilwell HD-1700-PT//0732650007326550073266000732665007326700
Oilwell A-600-PT07329400073294500732950007329550073296000732965007329700
Oilwell A-850-PT / A-1100-PT07330400073304500733050007330550073306000733065007330700
Oilwell A-1400-PT / A-1700-PT07326400073264500732650007326550073266000732665007326700
