Luogo di origine Cina
Marca SOUTHWEST, National, Gardner Denver
Certificazione API 7K
Numero di modello 12P160
Quantità di ordine minimo 1 pezzo
Prezzo 1 to 500 usd
Imballaggi particolari Adatto alla spedizione via mare e via aerea
Tempi di consegna In magazzino
Termini di pagamento L/C, D/P, T/T, Western Union
Capacità di alimentazione 3000 pezzi al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Utilizzo Olio, acqua, impianto di perforazione di trapano Energia Elettrico, idraulico, diesel
Pressione Alta pressione, bassa pressione Applicazione Estrazione mineraria, olio, prodotto chimico
Struttura Pompa a pistoni, pompa a singolo stadio carburante body{background-color:#FFFFFF} 非法阻断154 window.onload = function () { docu
Standard o non standard Standard Teoria Pompa centrifuga, pompa alternativa, pompa a membrana
Tipo Pompa di fango Peso 100-3700kg
Colore blu, rosso e così via, verde o su disegno del cliente Materiale Pompa aspirante del fango acciaio inossidabile/del ghisa, lega di Chrome
Garanzia 12 mesi Caratteristica Dimensioni compatte
Nome del prodotto Pompa di fango Testa Pompa di aspirazione del fango da 10 m
OEM può essere accettare, applicabile Tubo adduttore)/((di millimetro dentro) DN200/8
Condizione Nuovo
Lasciate un messaggio
Descrizione di prodotto









Southwest

National 12P-160 Mud Pump

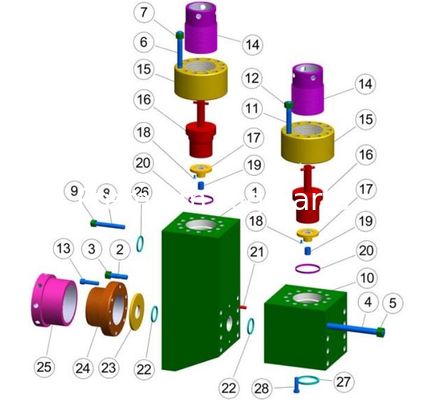

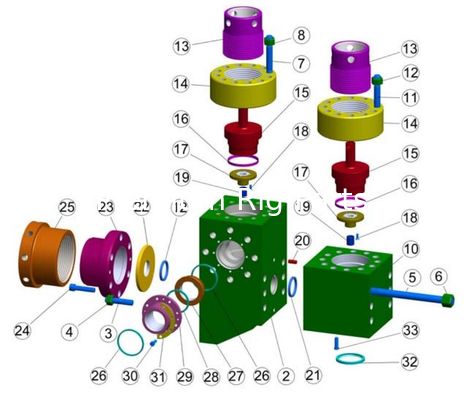

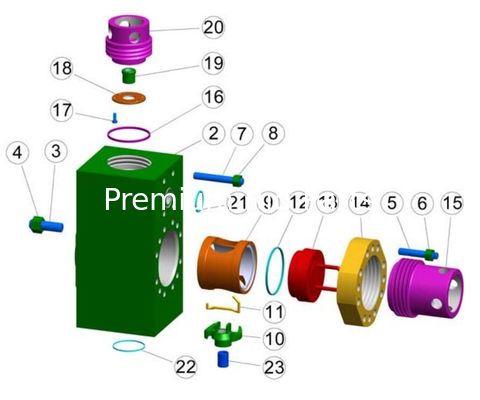

"L" NEW STYLE MODULE FOR NATIONAL 12-P-160 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
      FLUID END MODULE COMPLETE ASSEMBLY 3
1 8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED 3
2 8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD 72
15 4676-6A 12PVCASSYSWNS PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-119 07207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2





Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 0Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 1

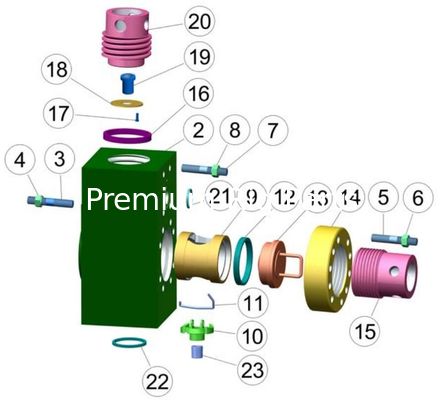

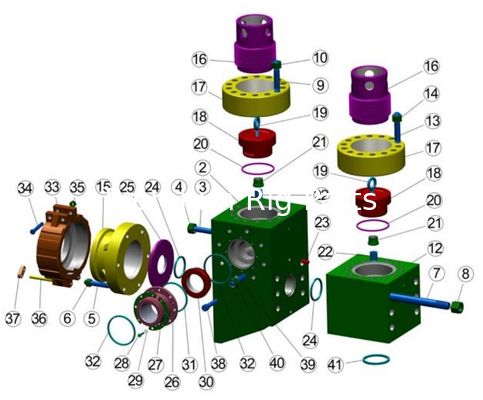

MISSION "L" MODULE FOR NATIONAL 14-P-220 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (REQUIRES DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
  80700031 FLUID END ASSEMBLY 14P220 (7500 PSI) 1
1 80700012 DISCHARGE MODULE STUDDED (INCL ITEMS 2-10) 3
2 80700000 MODULE,DISCHARGE- 14-P-220 7500PSI 3
3 80700014 STUD, 1-1/2-6 X12 TAPER LOK TOP 84
4 2408027 STUD,1-1/2 X 7-7/8 TOP TAPER LOK 30
5 2408047 STUD,1-1/4 X 7 TOP TAPER LOK 18
6 80700015 STUD, 2 X 26-1/2 DISCHARGE/SUCTION 24
7 6300200 NUT,HEX HEAVY 1-1/4-7UNC 18
8 6300240 NUT, HEX HEAVY 1-1/2-6UNC 2H 126
9 6300320 NUT,HEX HEAVY 2" 8UN-2A 24
10 80700016 NUT,HEX HEAVY 2" 8UN-2A 12
11 80700013 SUCTION MODULE STUDDED (INCL ITEMS 12,3,8) 3
12 80700001 SUCTION MODULE 3
13 80700002 DISCHARGE MANIFOLD 1
14 1295317 SUCTION MANIFOLD 1
15 700048511 SCREW,HEX HD CAP 7/8 X 3 24
16 1540021 SEAL,SUCTION 3
17 80700003 VALVE COVER 6
18 80700004 THREADED RING 6
19 80700005 THREADED CAP 6
20 88500223 WEAR PLATE OUTER 3
21 88500222 WEAR PLATE , GREASE 3
22 80700006 SHIM PACK 3
23 700039511 SCREW,HEX HD CAP 5/8 X 1-1/2 18
24 9700369 VALVE , WHITE LIGHTNING SERIES 8 6
25 9702653 SEAT , HD8-S07 6
26 9700372 INSERT,VALVE WL #8 series (INCLUDED IN ITEM 24) 6
27 55413256 SPRING, 5710-101 6
31 80700011 GUIDE,VALVE-DISCHARGE 3
32 80700010 GUIDE,VALVE -SUCTION 3
33 PZ789VGI INSERT,VALVE GUIDE 6
34 2405086 SCREW,DR HD HEX HD CAP 1/2 X 1-1/2 24
35 6511416 PIN, DOWELL STD HDN & GRD 7/8 3
36 1295266 PLATE,WEAR 14-P-220 3
37 07207109 GASKET, PLUG SEAL L STYLE - RUBBER (SEE DATASHEET FOR ALTERNATE MATLS) 6
38 1295257 SEAL,SUCTION MODULE 14-P-220 6
39 99607344 SEAL,DISCHARGE MANIFOLD 3

Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 2

Southwest Oilfield Products, Inc. manufacture rugged and reliable equipment for specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.



History of Southwest Oilfield Products

  • 1947 Founded with the Design of the First Bonded Piston, the Fail Safe Piston
  • 1974 Introduced the Two Piece L-Shaped Fluid-End
  • 1988 Introduced the Dual-Duro Piston
  • 1996 Introduced Ceramic Liners
  • 2000 Introduced Zirconia Liners
  • 2004 Introduced Black Cat Piston
  • 2013 Introduced Module Service Tool Kits; Research and Development of Frac Pump Consumables
  • 2014 Introduced BullDog Piston

Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 3



Southwest

A1400/1700PT Mud Pump

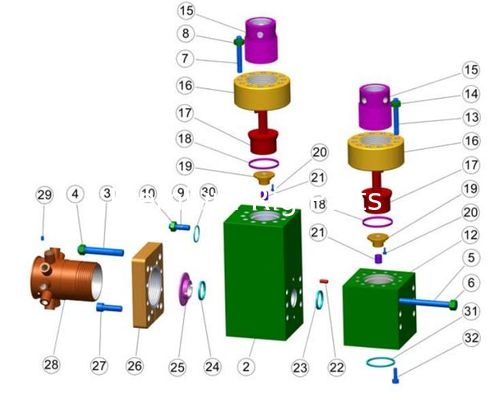

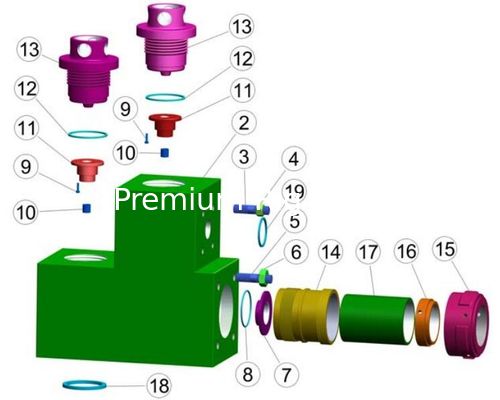

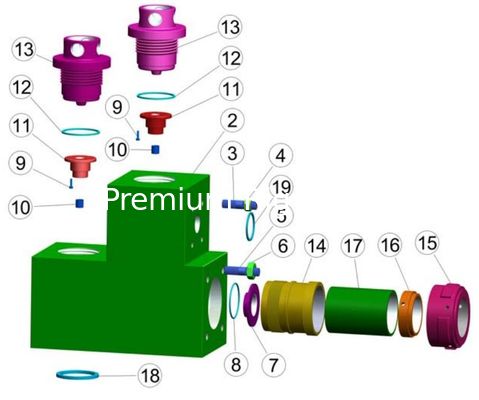

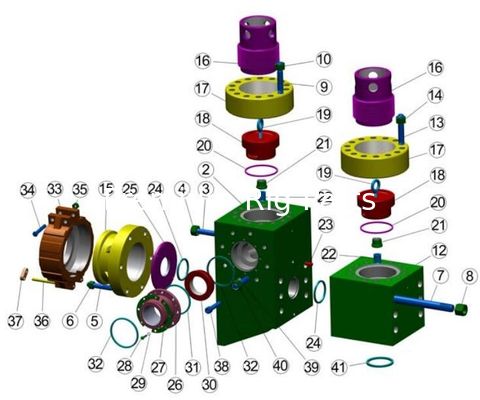

"L" MODULE FOR A-1400-PT, A-1700PT QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) 3
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) 3
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) 3
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER 3
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD 24
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD 12
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
8   PEP55 NUT, POWER FRAME STUD 12
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
10   EMSF1000PFSN NUT, FOR ABOVE STUD 18
11 4015-2 OWA17TRSSW STUD, THREADED RING 72
12   PZ789LCSN NUT, THREADED RING STUD 72
13 8488-5 PEP70 PIN, DOWELL 6
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 8488-4 PP602850 PLATE, WEAR 3
17 6588-1 OWA17LLNSW NUT, LINER LOCK 3
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER 12
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22) 6
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) 6
22 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 80102003 10300201 GASKET, SUCTION MANIFOLD 3
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD 3
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD 24
28 8488-7 PEP90 SETSCREW, LINER RETAINER 9







Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 4

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 5

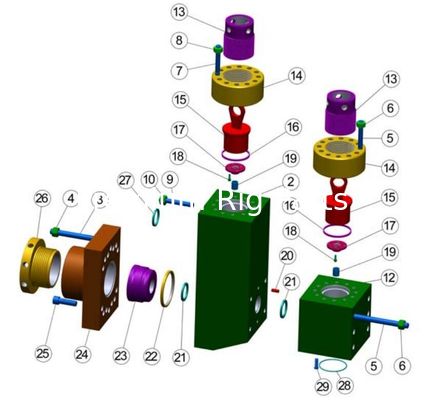

MISSION "L" MODULE FOR IDECO T-1300/T-1600 FLUID END MODULE & ACCESSORIES

ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
  8407-7A FEMT1316ASSYSW ASSY, FLUID END MODULE COMPLETE (INCLUDES ITEMS: 1 - 22) 3
1 8407-7D FEMT1316DISSW MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-11) 3
2 8407-11S FEMT1316SUCSW MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 5, 6) 3
3 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
4   0-7601-0630-17 NUT, DISCHARGE TO SUCTION MODULE STUD AND POWER FRAME STUD 18
5 /4015-2 OWA17TRSSW STUD, THREADED RING 72
6   6300200 NUT, THREADED RING STUD 72
7 4018-68 80711011 STUD, POWER FRAME 24
8 4017-50 T1316DMSSW STUD, DISCHARGE MANIFOLD 12
9   0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
10 /8488-5 6511416 PIN, DOWELL 6
11 2988 1290344 SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
12 /8407-10 T1316WPSW PLATE, LINER WEAR 3
13 6407 T1316LRFLGSW FLANGE, LINER RETAINER 3
14 6507 T1316LLNSW NUT, LINER LOCK 3
15 P-129 7207129 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
16 4016-99 PEP73 CAPSCREW, VALVE GUIDE 12
17 4700-I PZ789VGI* BUSHING, VALVE GUIDE 6
18 4775-2R EMSF1000VGASW GUIDE, VALVE (INCLUDES ITEM 18) 6
19 4675-2A EMSF1000VCASSYSW PLUG, VALVE (INCLUDES ITEMS 17-19) 6
20 4475 OWA17FLGSW RING, THREADED 6
21 4575 OWA17CAPSW CAP, THREADED 6
22 568-339 99609339 GASKET, DISCHARGE MANIFOLD 3
23 568-447 99609447 GASKET, SUCTION MANIFOLD 3
24 4017-59 PEP84 CAPSCREW, SUCTION MANIFOLD 24








Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 6



CONTINENTAL EMSCO FC-2200 FLUID END MODULE & ACCESSORIES
ITEM # PART # DESCRIPTION QTY PER PUMP
- 0-6323-0100-20 ASSY, FLUID END COMPLETE (INCLUDES DISCHARGE MANIFOLD) 1
1 0-6323-0108-00 MODULE, DISCHARGE STUDDED 3
2 0-6323-0109-00 MODULE, SUCTION STUDDED 3
3 0-6323-0087-90 RETAINER, THREADED 6
4 0-6323-0086-90 RING, THREADED 6
5 0-6323-0083-00 COVER, VALVE POT 6
6 0-6323-0103-00 GUIDE W/ BUSHING, VALVE 6
7 0-6323-0126-00 HANDLER, VALVE POT 6
8 0-6323-0107-20 COVER, LINER END 3
9 0-6323-0129-00 DISC, BAFFLE 3
10 0-6323-0085-00 MANIFOLD, SUCTION 1
11 0-6316-0105-95 FLANGE, SUCTION 1
12 0-6317-0074-95 FLANGE, BLIND 1
13 0-6323-0084-10 DISCHARGE MANIFOLD, 7500 PSI 1
14 0-6323-0097-90 WEAR PLATE 3
15 0-6323-0096-00 RING, LINER THREAD 3
16 0-6323-0099-00 LINER LOCK 3
17 0-6323-0093-00 RETAINER, VALVE GUIDE 6
18 0-6323-0128-00 SEAL, SUCTION TO DISCHAGE MODULE 3
19 0-6323-0127-00 SEAL, WEAR PLATE & LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
20 0-7602-1600-47 O-RING (LINER LOCK RING) 3
21 7817600456 O-RING (SUCTION MANIFOLD) 3
22 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F.E.) 3
23 0-7602-1600-30 O-RING (DISCHARGE MANIFOLD TO F.E.) 3
24 0-7501-0051-00 SCREW, RETAINER 24
25 7822095 WIRE, SAFETY SST 72
26 0-6323-0101-00 RING, LINER LOCK 3
27 7000534 SCREW, SUCTION FLANGE HEX HD 36
28 0-7601-0630-20 NUT, HEX 1" - 8 36
29 0-6323-0125-00 SEAL, VALVE POT COVER 6
30 0-7601-0333-30 SCREW, SUCTION MANIFOLD TO F.E. 18

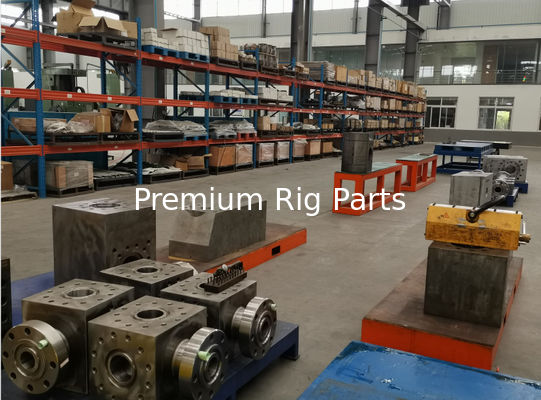

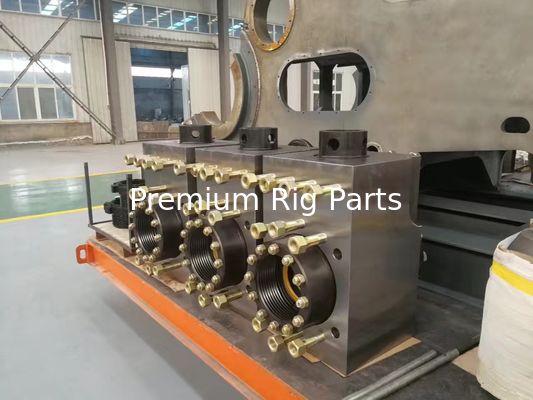

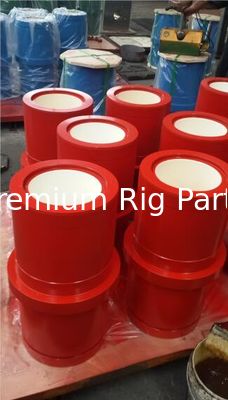

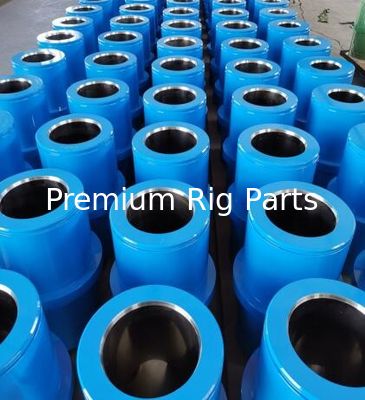

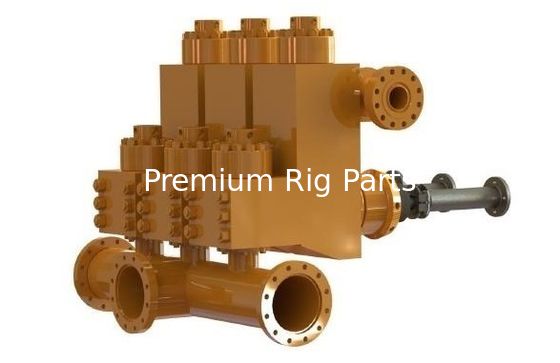

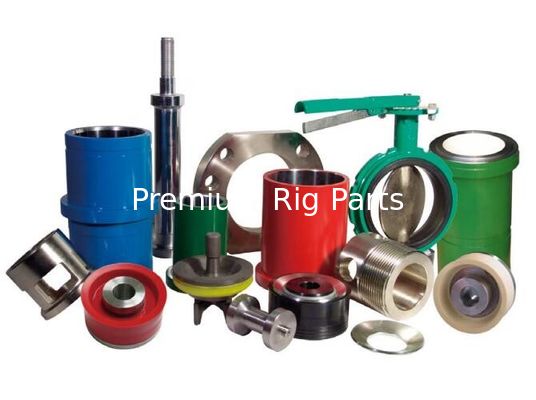

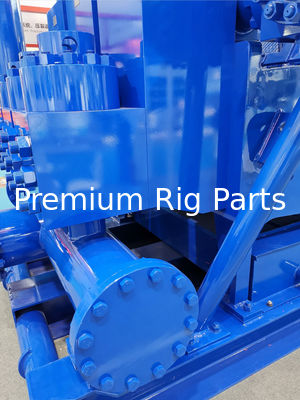

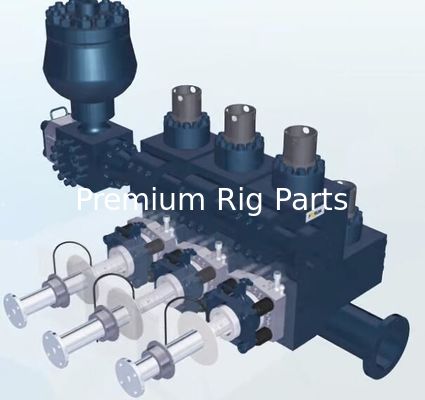

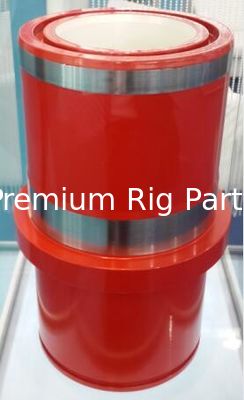

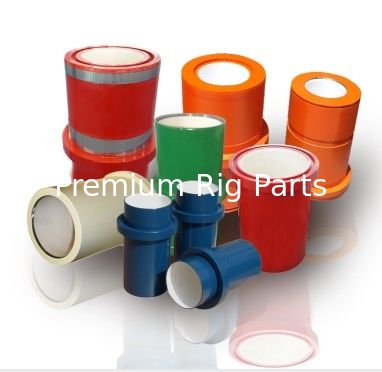

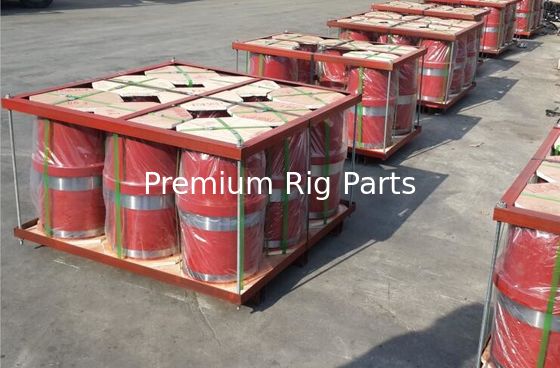

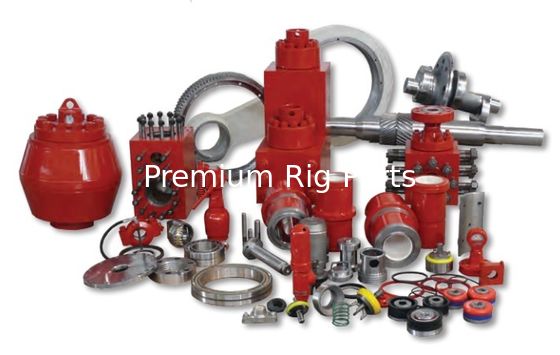

Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 7Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 8



Southwest Oilfield Products is a premier oil and gas equipment manufacturer that provides Their global customer base with best-in-class mud and well servicing pump solutions. They manufacture rugged and reliable equipment for your specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.

Their Mud Pump solutions team has been an industry leader since 1947 and is renowned for providing high quality mud pump fluid ends and consumable parts such as pistons, liners, valves and seats to drilling companies across the globe. With over 65 years of manufacturing experience, Their mission is to provide you with simply the best well servicing equipment and mud pump products.

Southwest Oilfield Products, Inc. is committed to delivering the highest quality products, on time, and creating positive significant impacts on their customers’ projects. They strive to maintain their innovative stance in the industry while partnering with our customers to share the focus on generating solutions.

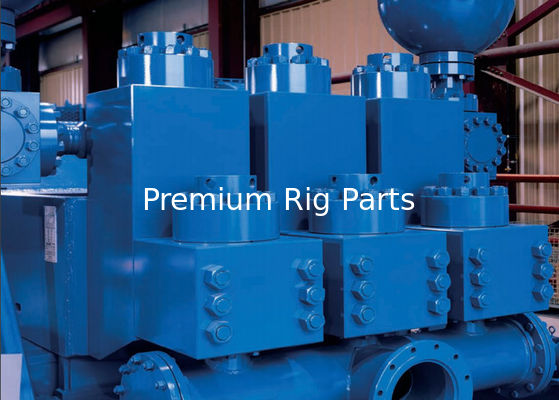

Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner 9

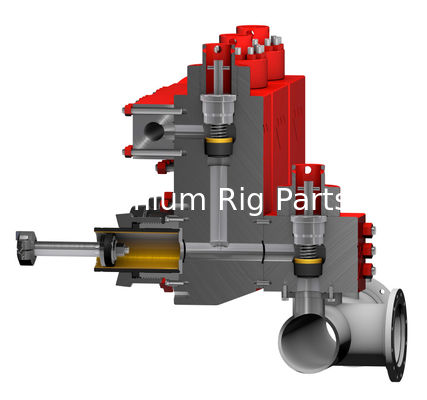

MISSION "L" MODULE FOR EMSCO FB-1300, FB-1600 FLUID END MODULE & ACCESSORIES
ITEM # SW PART # MISSION PART # DESCRIPTION QTY PER PUMP
  8490-2A FEMFB13ASSYSW FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-27) 3
1 8490-1D FEMFB13DISSW MODULE, STUDDED DISCHARGE (INCLUDES ITEMS 1, 3-10, 12) 3
2 8490-2S FEMFB13SUCSW MODULE, STUDDED SUCTION (INCLUDES ITEMS 2, 5, 6) 3
3 4016-97 EMSFB13DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
4   0-7601-0630-17 NUT, DISCHARGE TO SUCTION STUD 18
5 Feb-15 OWA17TRSSW STUD, THREADED RING 72
6   6300200 NUT, THREADED RING STUD 72
7 Sep-16 EMSFB13PFSSW STUD, POWER FRAME 18
8   0-7601-0630-17 NUT, POWER FRAME STUD 18
9 4017-36 PEP80 CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) 24
10 4017-46 EMSF1000DMSSW STUD, DISCHARGE MANIFOLD 12
11   0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
12 May-88 6511416 PIN, DOWELL 6
13 2988 1290344 SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
14 Mar-22 EMSF1000ARSW RING, LINER RETAINER PILOT 3
15 Mar-90 EMSFB13WPSW PLATE, LINER WEAR 3
16 Mar-90 EMSFB13LRPSW FLANGE, LINER RETAINER 3
17 Jan-90 EMSFB13LLSW NUT, LINER LOCK 3
18 P-129 7207129 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4016-99 PEP73 CAPSCREW, VALVE GUIDE 12
20 4700-I PZ789VGI* BUSHING, VALVE GUIDE 6
21 4775-2R EMSFB13VGASW GUIDE, VALVE (INCLUDES ITEM 20) 6
22 4675-2A EMSF1000VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19-22) 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 568-343 99609343 GASKET, DISCHARGE MANIFOLD 3
26 568-442 99609442 GASKET, SUCTION MANIFOLD 3
27 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 18
