"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump

  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
Luogo di origine Cina
Marca SOUTHWEST, OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Certificazione API 7K
Numero di modello A1400PT, A1700PT
Quantità di ordine minimo 1 pezzo
Prezzo 1 to 500 usd
Imballaggi particolari Adatto alla spedizione via mare e via aerea
Tempi di consegna In magazzino
Termini di pagamento L/C, D/P, T/T, Western Union
Capacità di alimentazione 3000 pezzi al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Utilizzo Olio, acqua, impianto di perforazione di trapano Energia Elettrico, idraulico, diesel
Pressione Alta pressione, bassa pressione Applicazione Estrazione mineraria, olio, prodotto chimico
Struttura Pompa a pistoni, pompa a singolo stadio carburante body{background-color:#FFFFFF} 非法阻断154 window.onload = function () { docu
Standard o non standard Standard Teoria Pompa centrifuga, pompa alternativa, pompa a membrana
Tipo Pompa di fango Peso 100-3700kg
Colore blu, rosso e così via, verde o su disegno del cliente Materiale Pompa aspirante del fango acciaio inossidabile/del ghisa, lega di Chrome
Garanzia 12 mesi Caratteristica Dimensioni compatte
Nome del prodotto Pompa di fango Testa Pompa di aspirazione del fango da 10 m
OEM può essere accettare, applicabile Tubo adduttore)/((di millimetro dentro) DN200/8
Condizione Nuovo
Lasciate un messaggio
Descrizione di prodotto

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 0

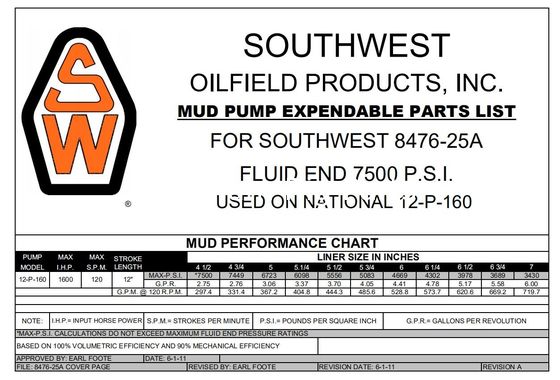

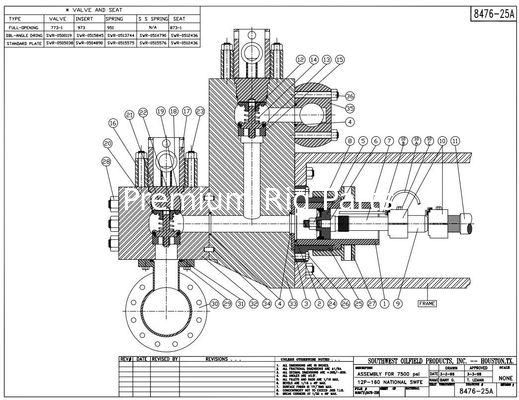

MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
  80704032 FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP 1
1 80704000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) 3
2 80704001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) 3
3 80704002 STUD, (DISCHARGE TO SUCTION MODULE) 24
4 PEP55 NUT, HEAVY HEX 24
5 80704003 THREADED RING 6
6 80704004 THREADED CAP 6
7 80704005 VALVE COVER (INCLUDES 11,12,& 17) 6
8 80704006 DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) 1
9 80702011 STUD, DISCHARGE MANIFOLD 12
10 IDT800TRSN NUT,HEX HEAVY 12
11 PZ789VGI BUSHING, VALVE GUIDE 6
12 12PVGASW GUIDE, VALVE 6
13 8P80TRSN NUT, POWER FRAME STUD 30
14 PEP75 CAPSCREW, LINER RETAINER 18
15 12PLASW RETAINER, LINER FLANGE 3
16 12PLANSW NUT, LINER RETAINER 3
17 7007303 SCREW, VALVE GUIDE 12
18 6300240 NUT, HEAVY HEX FOR THREADED RING 72
19 80700014 STUD, THREADED RING 72
20 PEP70 PIN, DOWELL 6
21 1290344 SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
22 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
23 99609235 SEAL, DISCHARGE MANIFOLD 3
24 1540851 SEAL, SUCTION MANIFOLD 3
25 700048511 CAPSCREW, SUCTION MANIFOLD 3
26 PP6021260SW WEARPLATE 3
27 NAT12P160PFS STUD, POWER FRAME 30

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 1

MISSION "L" MODULE FOR NATIONAL 14-P-220 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (REQUIRES DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
  80700031 FLUID END ASSEMBLY 14P220 (7500 PSI) 1
1 80700012 DISCHARGE MODULE STUDDED (INCL ITEMS 2-10) 3
2 80700000 MODULE,DISCHARGE- 14-P-220 7500PSI 3
3 80700014 STUD, 1-1/2-6 X12 TAPER LOK TOP 84
4 2408027 STUD,1-1/2 X 7-7/8 TOP TAPER LOK 30
5 2408047 STUD,1-1/4 X 7 TOP TAPER LOK 18
6 80700015 STUD, 2 X 26-1/2 DISCHARGE/SUCTION 24
7 6300200 NUT,HEX HEAVY 1-1/4-7UNC 18
8 6300240 NUT, HEX HEAVY 1-1/2-6UNC 2H 126
9 6300320 NUT,HEX HEAVY 2" 8UN-2A 24
10 80700016 NUT,HEX HEAVY 2" 8UN-2A 12
11 80700013 SUCTION MODULE STUDDED (INCL ITEMS 12,3,8) 3
12 80700001 SUCTION MODULE 3
13 80700002 DISCHARGE MANIFOLD 1
14 1295317 SUCTION MANIFOLD 1
15 700048511 SCREW,HEX HD CAP 7/8 X 3 24
16 1540021 SEAL,SUCTION 3
17 80700003 VALVE COVER 6
18 80700004 THREADED RING 6
19 80700005 THREADED CAP 6
20 88500223 WEAR PLATE OUTER 3
21 88500222 WEAR PLATE , GREASE 3
22 80700006 SHIM PACK 3
23 700039511 SCREW,HEX HD CAP 5/8 X 1-1/2 18
24 9700369 VALVE , WHITE LIGHTNING SERIES 8 6
25 9702653 SEAT , HD8-S07 6
26 9700372 INSERT,VALVE WL #8 series (INCLUDED IN ITEM 24) 6
27 55413256 SPRING, 5710-101 6
31 80700011 GUIDE,VALVE-DISCHARGE 3
32 80700010 GUIDE,VALVE -SUCTION 3
33 PZ789VGI INSERT,VALVE GUIDE 6
34 2405086 SCREW,DR HD HEX HD CAP 1/2 X 1-1/2 24
35 6511416 PIN, DOWELL STD HDN & GRD 7/8 3
36 1295266 PLATE,WEAR 14-P-220 3
37 07207109 GASKET, PLUG SEAL L STYLE - RUBBER (SEE DATASHEET FOR ALTERNATE MATLS) 6
38 1295257 SEAL,SUCTION MODULE 14-P-220 6
39 99607344 SEAL,DISCHARGE MANIFOLD 3







"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 2

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 3

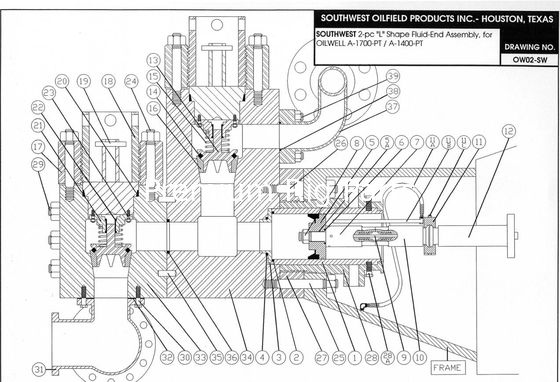

Southwest

A1400/1700PT Mud Pump

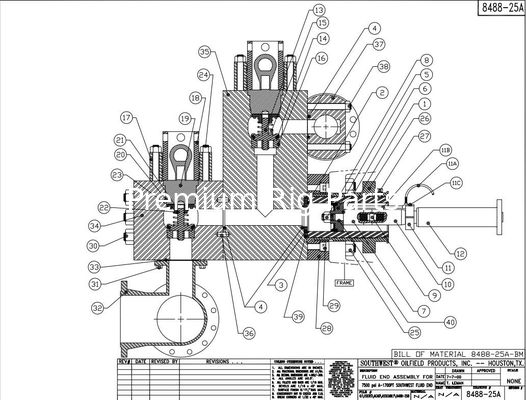

"L" MODULE FOR A-1400-PT, A-1700PT QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) 3
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) 3
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) 3
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER 3
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD 24
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD 12
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
8   PEP55 NUT, POWER FRAME STUD 12
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
10   EMSF1000PFSN NUT, FOR ABOVE STUD 18
11 4015-2 OWA17TRSSW STUD, THREADED RING 72
12   PZ789LCSN NUT, THREADED RING STUD 72
13 8488-5 PEP70 PIN, DOWELL 6
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 8488-4 PP602850 PLATE, WEAR 3
17 6588-1 OWA17LLNSW NUT, LINER LOCK 3
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER 12
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22) 6
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) 6
22 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 80102003 10300201 GASKET, SUCTION MANIFOLD 3
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD 3
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD 24
28 8488-7 PEP90 SETSCREW, LINER RETAINER 9







"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 4

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 5
"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 6
"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump 7





National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.
Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.
NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region
