"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump

  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
  • "L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump
Place of Origin CHINA
Brand Name SOUTHWEST, OILWELL, GARDNER DENVER, NATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Certification API 7K
Model Number A1400PT, A1700PT
Minimum Order Quantity 1 piece
Price 1 to 500 usd
Packaging Details Suitable to shipment by sea and air
Delivery Time In stock
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 3000 pieces per month
Product Details
Usage Oil,Water,drill Rig Power Electric,Hydraulic,diesel
Pressure High Pressure,Low Pressure Application Mining,oil,Chemical
Structure Piston Pump,Single-stage Pump Fuel Diesel,Electric
Standard Or Nonstandard Standard Theory Centrifugal Pump,Reciprocating Pump,Diaphragm Pump
Type Mud Pump Weight 100-3700kg
Color Blue,red And So On,Green Or Per Customer Design Material Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty 12 Months Feature Compact Size
Product Name Mud Pump Head 10m Mud Suction Pump
Oem Can Be Accept,Applicable Inlet Pipe (mm)/(in) DN200 / 8
Condition New
Leave a Message
Product Description

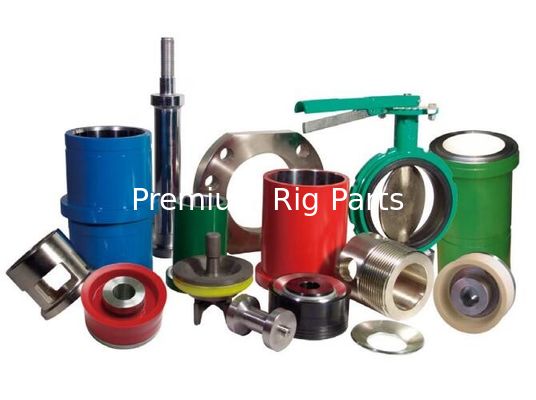

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 0

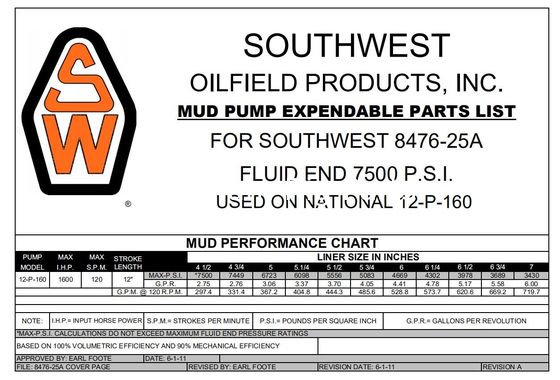

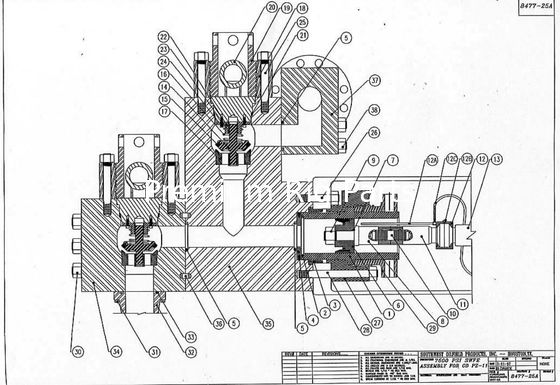

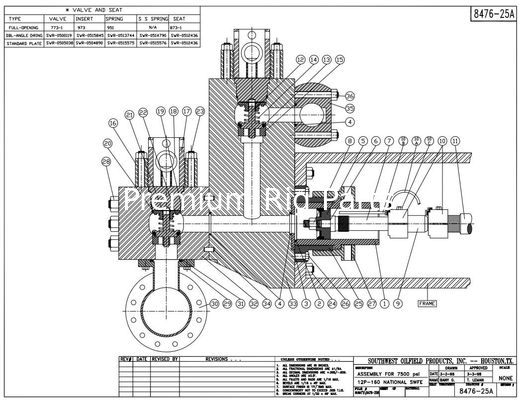

MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
  80704032 FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP 1
1 80704000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) 3
2 80704001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) 3
3 80704002 STUD, (DISCHARGE TO SUCTION MODULE) 24
4 PEP55 NUT, HEAVY HEX 24
5 80704003 THREADED RING 6
6 80704004 THREADED CAP 6
7 80704005 VALVE COVER (INCLUDES 11,12,& 17) 6
8 80704006 DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) 1
9 80702011 STUD, DISCHARGE MANIFOLD 12
10 IDT800TRSN NUT,HEX HEAVY 12
11 PZ789VGI BUSHING, VALVE GUIDE 6
12 12PVGASW GUIDE, VALVE 6
13 8P80TRSN NUT, POWER FRAME STUD 30
14 PEP75 CAPSCREW, LINER RETAINER 18
15 12PLASW RETAINER, LINER FLANGE 3
16 12PLANSW NUT, LINER RETAINER 3
17 7007303 SCREW, VALVE GUIDE 12
18 6300240 NUT, HEAVY HEX FOR THREADED RING 72
19 80700014 STUD, THREADED RING 72
20 PEP70 PIN, DOWELL 6
21 1290344 SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
22 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
23 99609235 SEAL, DISCHARGE MANIFOLD 3
24 1540851 SEAL, SUCTION MANIFOLD 3
25 700048511 CAPSCREW, SUCTION MANIFOLD 3
26 PP6021260SW WEARPLATE 3
27 NAT12P160PFS STUD, POWER FRAME 30

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 1

MISSION "L" MODULE FOR NATIONAL 14-P-220 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (REQUIRES DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
  80700031 FLUID END ASSEMBLY 14P220 (7500 PSI) 1
1 80700012 DISCHARGE MODULE STUDDED (INCL ITEMS 2-10) 3
2 80700000 MODULE,DISCHARGE- 14-P-220 7500PSI 3
3 80700014 STUD, 1-1/2-6 X12 TAPER LOK TOP 84
4 2408027 STUD,1-1/2 X 7-7/8 TOP TAPER LOK 30
5 2408047 STUD,1-1/4 X 7 TOP TAPER LOK 18
6 80700015 STUD, 2 X 26-1/2 DISCHARGE/SUCTION 24
7 6300200 NUT,HEX HEAVY 1-1/4-7UNC 18
8 6300240 NUT, HEX HEAVY 1-1/2-6UNC 2H 126
9 6300320 NUT,HEX HEAVY 2" 8UN-2A 24
10 80700016 NUT,HEX HEAVY 2" 8UN-2A 12
11 80700013 SUCTION MODULE STUDDED (INCL ITEMS 12,3,8) 3
12 80700001 SUCTION MODULE 3
13 80700002 DISCHARGE MANIFOLD 1
14 1295317 SUCTION MANIFOLD 1
15 700048511 SCREW,HEX HD CAP 7/8 X 3 24
16 1540021 SEAL,SUCTION 3
17 80700003 VALVE COVER 6
18 80700004 THREADED RING 6
19 80700005 THREADED CAP 6
20 88500223 WEAR PLATE OUTER 3
21 88500222 WEAR PLATE , GREASE 3
22 80700006 SHIM PACK 3
23 700039511 SCREW,HEX HD CAP 5/8 X 1-1/2 18
24 9700369 VALVE , WHITE LIGHTNING SERIES 8 6
25 9702653 SEAT , HD8-S07 6
26 9700372 INSERT,VALVE WL #8 series (INCLUDED IN ITEM 24) 6
27 55413256 SPRING, 5710-101 6
31 80700011 GUIDE,VALVE-DISCHARGE 3
32 80700010 GUIDE,VALVE -SUCTION 3
33 PZ789VGI INSERT,VALVE GUIDE 6
34 2405086 SCREW,DR HD HEX HD CAP 1/2 X 1-1/2 24
35 6511416 PIN, DOWELL STD HDN & GRD 7/8 3
36 1295266 PLATE,WEAR 14-P-220 3
37 07207109 GASKET, PLUG SEAL L STYLE - RUBBER (SEE DATASHEET FOR ALTERNATE MATLS) 6
38 1295257 SEAL,SUCTION MODULE 14-P-220 6
39 99607344 SEAL,DISCHARGE MANIFOLD 3







"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 2

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 3



Southwest

A1400/1700PT Mud Pump

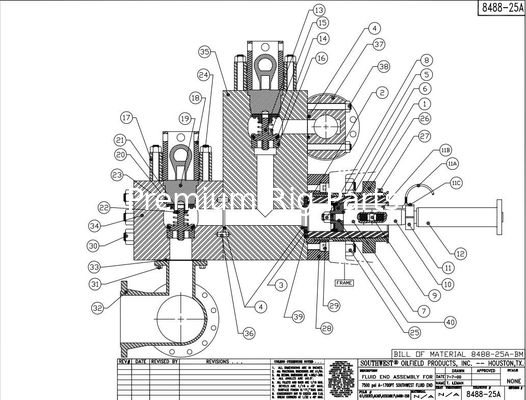

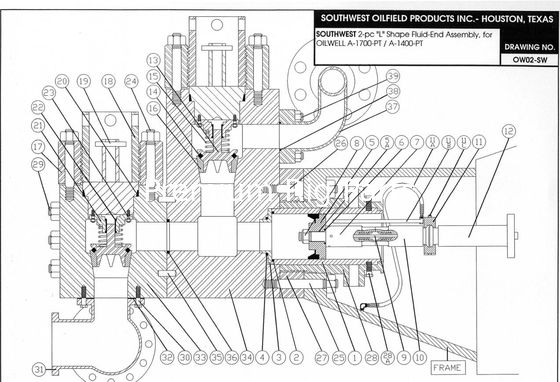

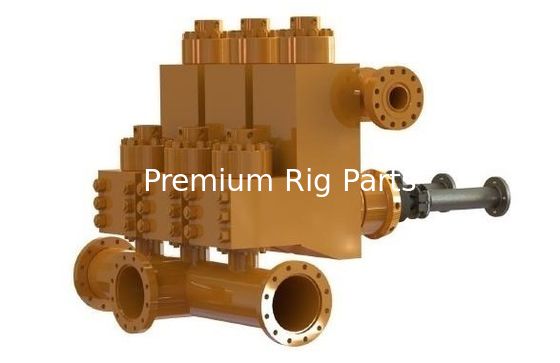

"L" MODULE FOR A-1400-PT, A-1700PT QTY PER PUMP

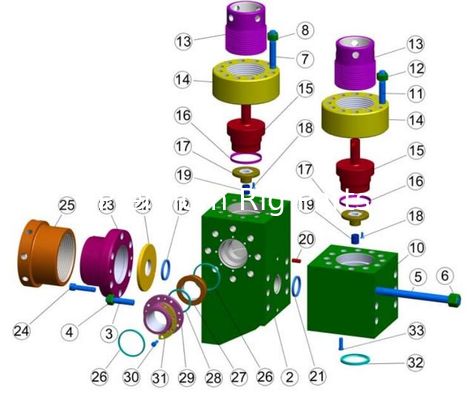

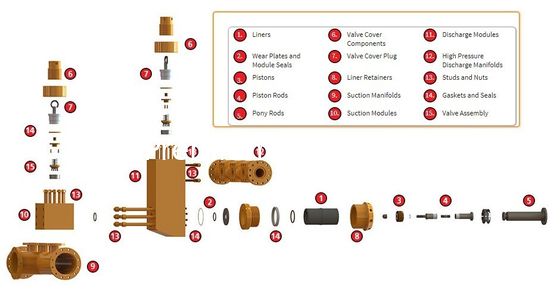

FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) 3
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) 3
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) 3
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER 3
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD 24
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD 12
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
8   PEP55 NUT, POWER FRAME STUD 12
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
10   EMSF1000PFSN NUT, FOR ABOVE STUD 18
11 4015-2 OWA17TRSSW STUD, THREADED RING 72
12   PZ789LCSN NUT, THREADED RING STUD 72
13 8488-5 PEP70 PIN, DOWELL 6
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 8488-4 PP602850 PLATE, WEAR 3
17 6588-1 OWA17LLNSW NUT, LINER LOCK 3
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER 12
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22) 6
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) 6
22 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 80102003 10300201 GASKET, SUCTION MANIFOLD 3
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD 3
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD 24
28 8488-7 PEP90 SETSCREW, LINER RETAINER 9







"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 4

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 5
"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 6
"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 7





National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.
Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.
NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region







"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 8"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 9



EMSCO

FB - 1300 & FB - 1600



Item

Premium

Part Number

 Description Qty per Pump
1 P-6316-0357-00 Fluid Module Studded, (incl. Items 2-9) 3
2 P-6316-0356-00 Fluid Module, Only 3
3 P-7507-2210-00 Stud, 1 1/2 - 8 X 8 5/8 30
4 P-7507-2201-00 Stud, 1 1/2 - 8 X 6 7/8 18
5 P-7601-0630-17 Nut, 1 1/2 - 8 Hvy. Hex 48
6 P-7507-2013-00 Stud, 1 - 8 X 9 36
7 P-7601-0610-18 Nut 1 - 8 Stud. Hex 36
8 P-7507-2108-00 Stud, 1 1/4 - 8 x 9 1/2 12
9 P-7601-0630-24 Nut, 1 1/4 - 8 Hvy. Hex 12
10 P-6397-0603-00 Retainer, Valve Guide 3
11 P-6397-0575-00 Upper Valve Guide 3
12 P-6316-0039-00 Valve Cover 3
13 P-6316-0362-00 Cylinder Head 3
14 P-6316-0361-00 Cylinder Thread Ring 3
15 P-6316-0360-00 Lock Bolt, Valve Guide 3
16 P-6316-0364-00 Cylinder Head Plug 3
17 P-6316-0354-00 Low Valve Guide & Bushing 3
18 P-6316-0363-00 Alignment Ring 3
19 P-6316-0367-00 Liner Lock 3
20 P-6316-0366-00 Liner Thread Ring 3
21 P-6316-0373-00 Seal 3
22 P-7602-1600-25 Seal, Discharge Manifold 3
23 P-7602-1600-61 Seal, Suction Manifold 3
24 P-7501-0051-00 Retainer Screw 12
25 P-6316-0369-00 Head Seal 3
26 P-6316-0092-00 Seal, Valve Pot Cover 3
27 P-6316-0096-00 Valve Guide Bushing 3
28 P-6316-0365-00 Wear Plate 3







Description F500 F800 F1000 F1300/1600 F1600HL F2200HL
Liner of Crosshead Upper AH0501010402 AH0801010402 AH1001010402 AH1301010402 AH1301010402 AH2202010402
Liner of Crosshead Lower   AH0801010408 AH1001010409 AH1301010412 AH1301010412 AH2202010403
Pin of Crosshead AH0501010404 AH0801010407 AH1001010408 AH1301010410 AH1301010410 AH2202010410
Extension Rod AH0501010410 AH0801010406 AH1001010407 AH1301010409 AH1301010409 AH2202010409
Sub Rod
Crosshead AH0501010401 AH0801010401 AH1001010401 AH1301010401 AH1301010401 AH2202010401
Pinion Shaft AH0501010302 AH0801010302 AH1001010302 AH1601010201 AH1601010201
Wear Ring of Pinion shaft AH0501010303 AH0801010303 AH1001010303 AH1301010303 AH1301010303 AH2202010306
Carrier, Bearing Left AH0501010212 AH0801010213 AH1001010212 AH1601010105 AH1601010105 AH2202010212
Carrier, Bearing Right AH0501010202 AH0801010202 AH1001010202 AH1601010101 AH1601010101 AH2202010202
Connecting Rod AH0501010206 AH0801010206 AH1001010206 AH1601010103 AH1601010103 AH2202010206
Bull Gear AH0501010210 AH0801010210 AH1001010219 AH160101010400 AH160101010400 AH220201021000
Bolt, Main Bearing AH051020207 AH0801020206 AH1001010215 AH1301010215 AH1301010215 AH2202010215
Bearing, Crosshead 5G354920Q 4G254735Q 5G254936Q AH1301010414 AH1301010414
Bearing, Pinion Shanft 4G32828H 4G32836H 4G32840H AH1301010312 AH1301010312 AH2202010315
Bearing, Eccentric 92984QU 928/508QU 929/558.8QU AH160101010700 AH160101010700 AH2202010217
Bearing, Main 3053738U 3053748H 4053156H AH160101010800 AH160101010800 AH2202010218



ITEM NO. PART NO.



DESCRIPTION

 QTY. REQ’D
  8476-4A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)

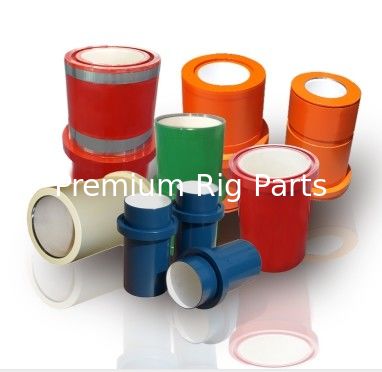

1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) 6

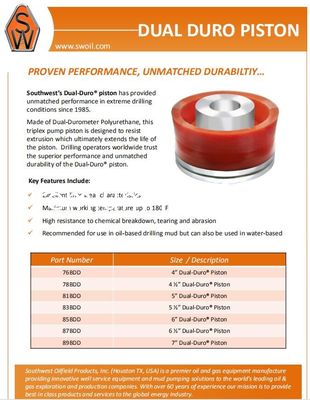

5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 DUAL SPRAY PIPE 3
10C 4020-29 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3

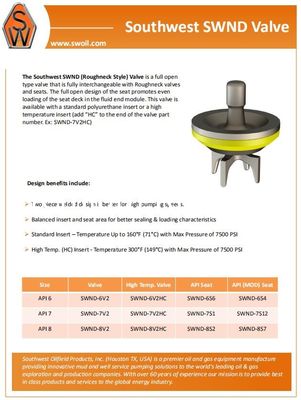

12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
  4476-6A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-6A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3




FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 P.S.I. NATIONAL 12-P-160 7-1/2” X 12”

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 10





ITEM NO.



PART NO.



DESCRIPTION



QTY. REQ’D
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-6S SUCTION MODULE (STUDDED ONLY) 3
33 8476-5D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16
58 5000-5BFLANGE BLIND FLANGE 5" 1
59 9070012 PONY ROD SEAL 12
60 80491292 SPLASH GUARD 3
61 8376-50A COMPLETE STRAINER CROSS 1
62 8376-50 STUDDED STRAINER CROSS ONLY 1





FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 11

ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

"L" MODULE FOR A-1400-PT, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, W446 mud pump, PZ7 mud pump, A850PT mud pump, A1400PT mud pump 12

ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12

  8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS
