SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump

  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
  • SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump
Place of Origin CHINA
Brand Name SOUTHWEST, National, Gardner Denver, Drillmec, Weatherford
Certification API 7K
Model Number PZ10, PZ11, 7TS600, FB1600, 14P220, T1600
Minimum Order Quantity 1 piece
Price 1 to 500 usd
Packaging Details Suitable to shipment by sea and air
Delivery Time In stock
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 3000 pieces per month
Product Details
Usage Oil,Water,drill Rig Power Electric,Hydraulic,diesel
Pressure High Pressure,Low Pressure Application Mining,oil,Chemical
Structure Piston Pump,Single-stage Pump Fuel Diesel,Electric
Standard Or Nonstandard Standard Theory Centrifugal Pump,Reciprocating Pump,Diaphragm Pump
Type Mud Pump Weight 100-3700kg
Color Blue,red And So On,Green Or Per Customer Design Material Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty 12 Months Feature Compact Size
Product Name Mud Pump Head 10m Mud Suction Pump
Oem Can Be Accept,Applicable Inlet Pipe (mm)/(in) DN200 / 8
Condition New
Leave a Message
Product Description



SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 0

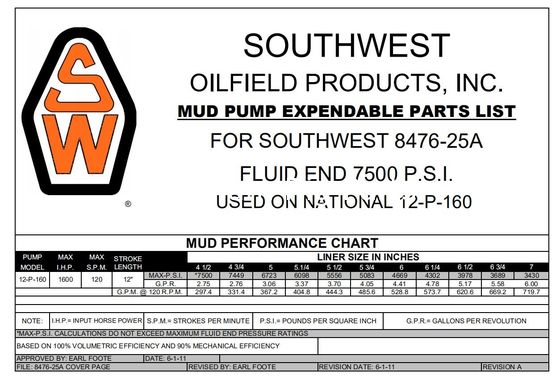

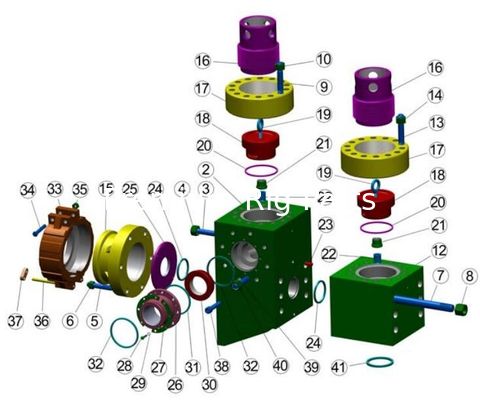

SOUTHWEST “NEW STYLE” 8476-4A

National 12-P-160

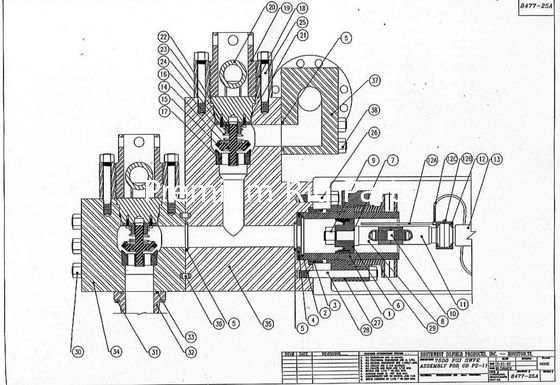

ITEM P/N DESCRIPTION QTY.
  8476-4A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 DUAL SPRAY PIPE 3
10C 4020-29 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
  4476-6A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-6A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-6S SUCTION MODULE (STUDDED ONLY) 3
33 8476-5D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16
58 5000-5BFLANGE BLIND FLANGE 5" 1
59 9070012 PONY ROD SEAL 12
60 80491292 SPLASH GUARD 3
61 8376-50A COMPLETE STRAINER CROSS 1
62 8376-50 STUDDED STRAINER CROSS ONLY 1







SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 1

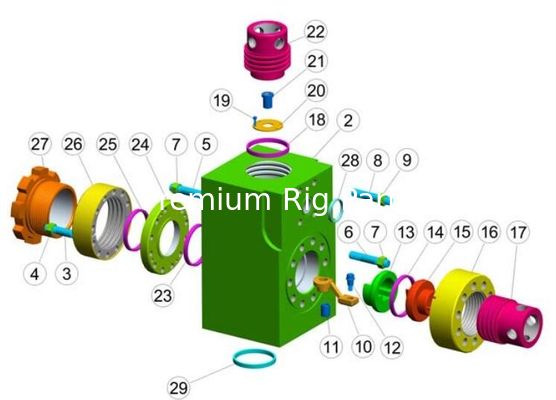

Southwest

A1400/1700PT Mud Pump

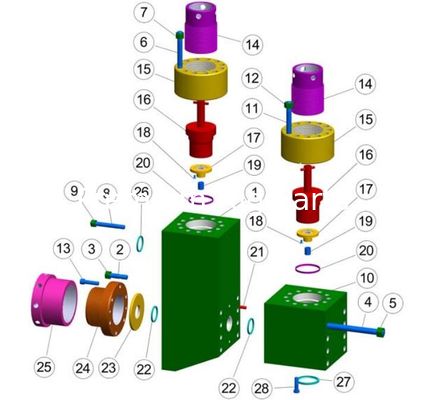

"L" MODULE FOR A-1400-PT, A-1700PT QTY PER PUMP

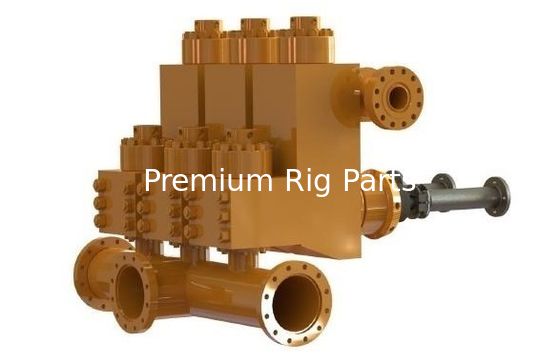

FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) 3
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) 3
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) 3
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER 3
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD 24
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD 12
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
8   PEP55 NUT, POWER FRAME STUD 12
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
10   EMSF1000PFSN NUT, FOR ABOVE STUD 18
11 4015-2 OWA17TRSSW STUD, THREADED RING 72
12   PZ789LCSN NUT, THREADED RING STUD 72
13 8488-5 PEP70 PIN, DOWELL 6
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 8488-4 PP602850 PLATE, WEAR 3
17 6588-1 OWA17LLNSW NUT, LINER LOCK 3
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER 12
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22) 6
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) 6
22 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 80102003 10300201 GASKET, SUCTION MANIFOLD 3
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD 3
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD 24
28 8488-7 PEP90 SETSCREW, LINER RETAINER 9



SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 2SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 3



SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 4

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 5
SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 6



GARDNER DENVER PZ-7, PZ-8, PZ-9       QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
1   FEMPZ789CA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22 + 24) 3
1A 200PZL029F FEMPZ789 FLUID END MODULE STUDDED (INCLUDES 1-9 & 24) 3
  205PZL029D
02 79L188 PZ789LCS STUD, FRAME & LINER CLAMP 24
03 50B36 PZ789LCSN NUT (FOR ABOVE) 24
04 79L73 PZ789GPFS STUD, FRAME 12
05 50AQ30 PZ789GPFSN NUT (FOR ABOVE) 12
06 79AL6 PZ789TRS STUD, VALVE COVER 48
07 50B34 PZ789TRSN NUT (FOR ABOVE) 48
08 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
09 50B34 PZ789TRSN NUT (FOR ABOVE) 12
10 2011861 PZ789EXPR RING, VALVE COVER GASKET EXPANDER 6
11 2011862 07916749 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
12 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
13 2011860 PZ789VC COVER, VALVE 6
14 2011699 PZ789FLG RING, VALVE COVER THREADED 6
15 2011857 PZ789CAP CAP, VALVE COVER LOCK 6
16 2011701 PZ789PL PLATE, RETAINER 6
17 2011700 PZ789LVG GUIDE, VALVE SUCTION 3
18 95W2 PZLVGAWASHER WASHER, LOCK 1/2" 316SS 6
19 655EE06S PZLVGABOLT SCREW 1/2"x1 3/4" 316SS HX HD C/S 6
20 25AL35 07916747 GASKET, DISCHARGE MANIFOLD 3
21 25G41 07923283 GASKET, SUCTION MANIFOLD 3
22 1PV14 PZ789LC CLAMP, LINER 3
23 2011706 PZ789LVGA ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) 3
24   700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
25   7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24






SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 7

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 8



GARDNER DENVER PZ-10,PZ-11 MISSION MODULE SERIES 6 VALVE SEAT DECKS       QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
  NA FEMPZ1011API6CA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-23) 3
1 NA FEMPZ1011API6 FLUID END MODULE STUDDED (INCLUDES ITEMS 1-8, 24) 3
2 NA PZ1011LCS STUD, FRAME & LINER CLAMP 24
3 NA PZ1011GPFS STUD MODULE TO POWER FRAME 24
4 NA PZ1011LCSN NUT, ITEM 2 & 3 72
5 NA PZ1011TRS STUD, VALVE COVER TO MODULE 72
6 NA PZ789TRSN NUT, VALVE COVER STUD 72
7 NA PZ789DMS DISCHARGE MANIFOLD STUD 12
8 NA PZ789TRSN NUT, DISCHARGE MANIFOLD STUD 12
9 NA PZ1011FLG RING, VALVE COVER 6
10 NA SWP119 GASKET, VALVE COVER (RUBBER) 6
11 NA SWP119URE GASKET, VALVE COVER (URETHANE) 6
12 NA PZ789VGI BUSHING, F/ VALVE GUIDES 12
13 NA PZ1011VC6 VALVE COVER 6
14 NA PZ1011CAP CAP VALVE COVER LOCK 6
15 NA PZ1011PL6 RETAINER PLATE 3
16 NA PZ1011LVG6 LOWER VALVE GUIDE, SUCTION VALVE 3
17 NA PZLVGAWASHER LOCK WASHER F/LOWER VALVE GUIDE 6
18 NA   HEX HEAD BOLT FOR LOWER VALVE GUIDE 6
19 NA 07916747 DISCHARGE MANIFOLD GASKET 3
20 NA 07923283 SUCTION MANIFOLD GASKET 3
21 NA PZ1011LC LINER CLAMP 3
22 NA PZ1011LVGA6 LOWER VALVE GUIDE ASSY. 3
23   700044111 CAPSCREW, SUCTION MANIFOLD (NOT SHOWN) 24
    7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24









SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 9



Southwest Oilfield Products is a premier oil and gas equipment manufacturer that provides Their global customer base with best-in-class mud and well servicing pump solutions. They manufacture rugged and reliable equipment for your specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.

Their Mud Pump solutions team has been an industry leader since 1947 and is renowned for providing high quality mud pump fluid ends and consumable parts such as pistons, liners, valves and seats to drilling companies across the globe. With over 65 years of manufacturing experience, Their mission is to provide you with simply the best well servicing equipment and mud pump products.

Southwest Oilfield Products, Inc. is committed to delivering the highest quality products, on time, and creating positive significant impacts on their customers’ projects. They strive to maintain their innovative stance in the industry while partnering with our customers to share the focus on generating solutions.

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 10





Triplex Mud Pumps Manufacturers and Brands
NATIONAL GD EMSCO OILWELL
7P50 PAH-275 F350/500/650 A350PT
8P80 PZ-7 F800 A560/600PT
9P100 PZ-8 F1000 A850PT
10P130 PZ-9 FB1300 A100PT
12P160 PZ-10 FB1600 A1400PT
14P220 PZ-11 FC2200 A1700PT
IDECO DRILLMEC WEATHERFORD BOMCO
T500 7TS500 MP-5 F500
T800 9T800 MP-8 F800/F1000
T1000 9T1000 MP-10 F1300
T1300 12T1600 MP-13/16 F1600
T1600 14T2200 E-447 F1600HL
    E-2200 F2200HL
TSC EWCO AMERICAN BLOCK EWECO
WF-400 W-440 K-800 E-447
WF-700 W-446 K-1000 E-600
WF-1300 WH-1312 K-1300 E-800
WF-1600 WH-1612 K-1600 E-1100
WF-2000 W-1712   E-1300
WF-2200 W-2214/W-2215   E-1600
HONGHUA LS NOV WIRTH Rongsheng
F500 3NB500C TPK-1000 W440/446
F800 3NB800C TPK-1600 F500
F1000 3NB1000C TPK-2000 F800
F1300 3NB1300C TPK-2200 F1000
F1600 3NB1600   F1600L
F1600HL/F2200HL F-1600/F-1600L
Other Mud pumps and Parts brands: Southwest, Mud King, Baker, Texma, Skytop, RG, Ellis Williams, Brewster





SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 0





Duplex/Well Services Mud Pumps Manufacturers and Brands
Emsco National Oilwell Ideco
D300 N1000-1600 6P-HD MM300
D500 K380 8P-HD MM500/500F
D550 K500 610P MM700/700F
D700 K500A 212P MM600/600F
D375 K700A 214P/14P MM200
  C150/C150B 218P MM300
  C250 18P
Gaso Gardner Denver Gardner Denver Ellis Williams
1563 5" x 6" FG FXG 7.5” x 8” FY FXX 15W600
1740-55 5" x 8" FD FXX 7.25" x 12" FZ FXZ 19W1000
2651 5.5" x 8" FD FXX 7.25" x 14" FXN
2652 FC-FXX/FC-FXD 7.25" x 14" FK FXK
  5" x 10" FD FXD FQ-FXQ
  5.5" x 10" FD FXD 7.25" x 10" FO FXO
  7.5" x 10" FY FXD 4.5" x 6" FG FXG
Drillmec Russian Gardner Denver
10D2C NB125 4x5 TEE Triplex
8D1S NB80 5-1/2x5 THE Triplex
  NB50 5x8 PAH Triplex
  NB32 PJ-8





SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 12



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

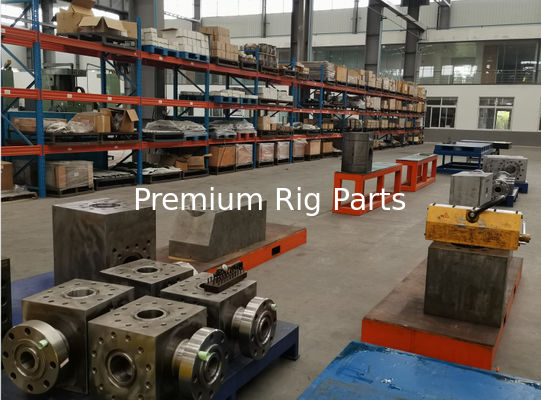

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

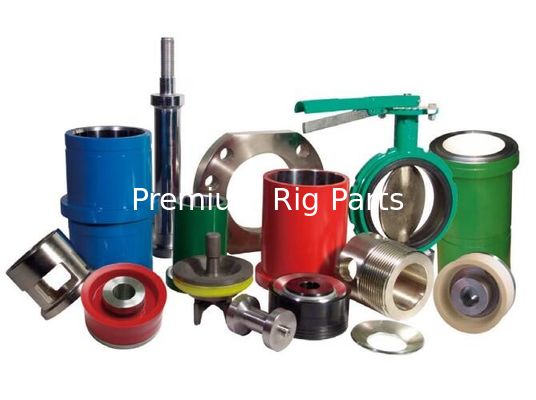

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 13

MISSION "L" MODULE FOR A-1400-PT, A-1700PT

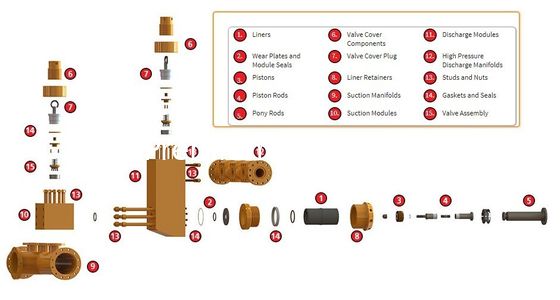

FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28)
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13)
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27)
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD
7 4016-96 OWA17PFSSW STUD, POWER FRAME
8   PEP55 NUT, POWER FRAME STUD
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE
10   EMSF1000PFSN NUT, FOR ABOVE STUD
11 4015-2 OWA17TRSSW STUD, THREADED RING
12   PZ789LCSN NUT, THREADED RING STUD
13 8488-5 PEP70 PIN, DOWELL
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
16 8488-4 PP602850 PLATE, WEAR
17 6588-1 OWA17LLNSW NUT, LINER LOCK
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22)
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22)
22 4700-I PZ789VGI BUSHING, VALVE GUIDE
23 4475 OWA17FLGSW RING, THREADED
24 4575 OWA17CAPSW CAP, THREADED
25 80102003 10300201 GASKET, SUCTION MANIFOLD
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD
28 8488-7 PEP90 SETSCREW, LINER RETAINER



Product Description

· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 14

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)



SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 15



TECHNICAL PARAMETERS



Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)





SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 16



In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.



Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.





Technical Features



· F-1300, F-1600, F-1300L and F-1600L mud pump

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 17has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.





· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.





· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.





· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.





SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 18F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.



A1. Power End



Power end features:

· Continuous tooth herringbone gear.

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 19

SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 20A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· L fluid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

filter are fitted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

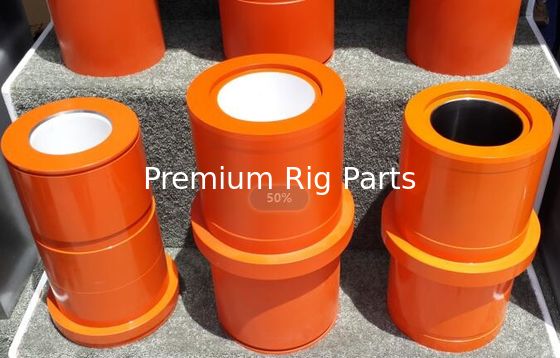

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

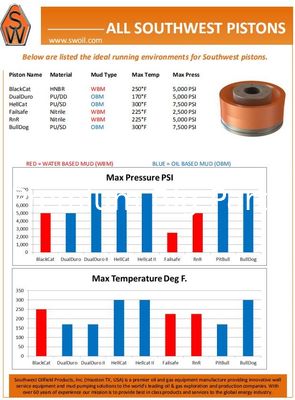

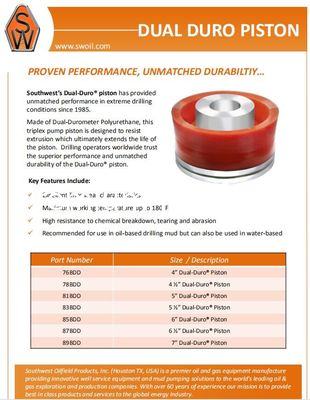

4. Pistons and Piston Rods

They are slide fitted, sealed with rubber seal ring and finally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

fluid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.



A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and flush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling fluid can rinse the contact surface between the piston and liner all the time. The durable fixed spray pipe may be used, too.



A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.



F1 -Series Drilling Mud Pumps



F1-series drilling mud pumps include power end, fluid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.



SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 21



Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.



Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· Discharge damper, shear relief valve and five way discharge are fitted at the discharge outlet.



Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.



Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.





Ⅵ.Specifications



Model F1-800 F1-1600
Type Triplex single acting piston Triplex single acting piston
Max. Liner size × strength

170×216mm

(6 3/4″×8.5″)

180×280mm

(7″×11″)
Strokes rating 160 r/min 130 r/min
Power Rating 597kW (800 hp) 1193kW (1600 hp)
Type of gear Herringbone gear Herringbone gear
Gear ratio 3.3143:1 3.7381:1
Lubrication Forcing and splashing Forcing and splashing
Suction inlet 8″flange(203mm) 10″flange(254mm)
Discharge outlet 4″Flange, 5000 psi 4″Flange, 5000 psi
Pinion Shaft Dia. 177.8mm(7″) 215.9mm(8-1/2″)
Key

44.45×44.45mm

(1 3/4″×1 3/4″)

 50.8×50.8mm (2″×2″)
Valve Pots valve-over-valve,API #6 valve-over-valve,API #7
Approx. Weight 11536kg (25430lb) 20700kg (45635lb)





SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO F1000 mud pump liner, Lewco W2214 mud pump, W2215 mud pump 22



Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine
