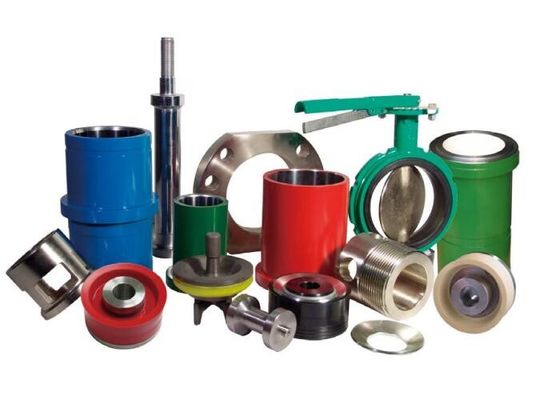

SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, Oilwell Mud Pumps A-1100-PT | 1400-PT |
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Oil,Water,drill Rig | Power: | Electric,Hydraulic,diesel |
|---|---|---|---|
| Pressure: | High Pressure,Low Pressure | Application: | Mining,oil,Chemical |
| Structure: | Piston Pump,Single-stage Pump | Fuel: | Diesel,Electric |
| Standard Or Nonstandard: | Standard | Theory: | Centrifugal Pump,Reciprocating Pump,Diaphragm Pump |
| Type: | Mud Pump | Weight: | 100-3700kg |
| Color: | Blue,red And So On,Green Or Per Customer Design | Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy |
| Warranty: | 12 Months | Feature: | Compact Size |
| Product Name: | Mud Pump | Head: | 10m Mud Suction Pump |
| Oem: | Can Be Accept,Applicable | Inlet Pipe (mm)/(in): | DN200 / 8 |
| Condition: | New |
SOUTHWEST 8482-25A
National 14-P-220 7500 PSI
| ITEM | P/N | DESCRIPTION | QTY |
| 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) | ||
| 1 | 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL | 3 |
| 3 | 8482-5 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6282W32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 6282-1 | SUB ROD | 3 |
| 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) | 6 |
| 10A | 1200H30 | HOSE | 3 |
| 10B | 1200160 | PIPE | 3 |
| 10C | 4019-77 | ROD CLAMP BOLT | 12 |
| 11 | 6200G82 | PONY ROD | 3 |
| 12 | VALVE | 6 | |
| 13 | VALVE INSERT (IF REQUIRED) | 6 | |
| 14 | VALVE SPRING | 6 | |
| 15 | VALVE SEAT | 6 | |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 |
| 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 30 |
| 25 | 6482 | LINER RETAINER FLANGE | 3 |
| 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 27 | 6582 | LINER RETAINER NUT | 3 |
| 28 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8582 | SUCTION MANIFOLD | 1 |
| 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8482-26 | SUCTION MODULE | 3 |
| 33 | 8482-27 | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 36 | 8382-25 | DISCHARGE MANIFOLD | 1 |
Southwest
A1400/1700PT Mud Pump
| "L" MODULE FOR A-1400-PT, A-1700PT | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | |
| 8488-1A | FEMA17ASSYSW | FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) | 3 | |
| 1 | 8488-1D | FEMA17DISSW | MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) | 3 |
| 2 | 8488-2S | FEMA17SUCSW | MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) | 3 |
| 3 | 6488-1 | OWA17LRPLATESW | PLATE, LINER RETAINER | 3 |
| 4 | 4017-4 | PEP68 | CAPSCREW, ALLEN HEAD | 24 |
| 5 | 4016-3 | OWA17DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 6 | EMSF1000TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 | |
| 7 | 4016-96 | OWA17PFSSW | STUD, POWER FRAME | 12 |
| 8 | PEP55 | NUT, POWER FRAME STUD | 12 | |
| 9 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 10 | EMSF1000PFSN | NUT, FOR ABOVE STUD | 18 | |
| 11 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 12 | PZ789LCSN | NUT, THREADED RING STUD | 72 | |
| 13 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 14 | 2988 | 1290344 | SEAL, DISCHARGE TO SUCTION MODULE | 3 |
| 15 | 2974-1 | 20100008 | SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 16 | 8488-4 | PP602850 | PLATE, WEAR | 3 |
| 17 | 6588-1 | OWA17LLNSW | NUT, LINER LOCK | 3 |
| 18 | P-129 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4018-88 | PEP73 | SCREW, VALVE COVER RETAINER | 12 |
| 20 | 4775R | OWA17VGSW | GUIDE, VALVE (INCLUDES ITEMS 20,& 22) | 6 |
| 21 | 4675-1A | OWA17VCASSYSW | PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) | 6 |
| 22 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 23 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 24 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 25 | 80102003 | 10300201 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | 568-345 | 99609345 | GASKET, DISCHARGE MANIFOLD | 3 |
| 27 | 4018-70 | 75634382 | CAPSCREW,SUCTION MANIFOLD | 24 |
| 28 | 8488-7 | PEP90 | SETSCREW, LINER RETAINER | 9 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Southwest Oilfield Products is a premier oil and gas equipment manufacturer that provides Their global customer base with best-in-class mud and well servicing pump solutions. They manufacture rugged and reliable equipment for your specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.
Their Mud Pump solutions team has been an industry leader since 1947 and is renowned for providing high quality mud pump fluid ends and consumable parts such as pistons, liners, valves and seats to drilling companies across the globe. With over 65 years of manufacturing experience, Their mission is to provide you with simply the best well servicing equipment and mud pump products.
Southwest Oilfield Products, Inc. is committed to delivering the highest quality products, on time, and creating positive significant impacts on their customers’ projects. They strive to maintain their innovative stance in the industry while partnering with our customers to share the focus on generating solutions.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| MISSION "L" MODULE FOR GARDNER DENVER PZL W/ 7500 PSI SWFE | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | SW PART # | MISSION PART | DESCRIPTION | |
| 1 | 8477-27 | DISCHARGE MODULE, STUDDED | 3 | |
| 2 | 8477-26 | SUCTION MODULE,STUDDED | 3 | |
| 3 | 4019-44 | STUD, DISCHARGE TO SUCTION MODULE | 18 | |
| 4 | 1-3/4-8 HH | NUT, DISCHARGE TO SUCTION STUD | 18 | |
| 5 | 8488/5/1- | 6511416 | DOWELL PIN | 3 |
| 6 | 8477-30 | LINER WEAR PLATE | 3 | |
| 7 | 2988 | 1290344 | WEAR PLATE AND MOD GASKET - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 8 | 4019-46 | STUD, POWER END | 24 | |
| 9 | 1-1/4-8 HH | NUT, POWER END STUD | 24 | |
| 10 | 4019-45 | STUD, LINER RETAINER | 24 | |
| 11 | 1-1/4-7 HH | NUT, LINER RETAINER STUD | 24 | |
| 12 | 6477-25 | LINER RETAINER FLANGE | 3 | |
| 13 | 6577-25 | LINER RETAINER NUT | 3 | |
| 14 | 8477-29 | RING. ALIGNMENT | 3 | |
| 15 | 4015/2/1- | OWA17TRSSW | STUD, THREADED RING | 72 |
| 16 | 1-1/4-7 HH | 6300200 | NUT, THREADED RING STUD | 72 |
| 17 | 4488-25 | FLANGE, VALVE COVER | 6 | |
| 18 | 4588-25 | THREADED CAP (SCREW GLAND) | 6 | |
| 19 | 4688-25 | VALVE COVER ASSEMBLY (INCLUDES ITEM #'S 21,23 & 25) | 6 | |
| 20 | VALVE COVER (PLUG) | 6 | ||
| 21 | P-115 | 7207115 | VALVE COVER PLUG SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 22 | 4788-25R | VALVE GUIDE (INCLUDES BUSHING) | 6 | |
| 23 | 4700-I | PZ789VGI* | BUSHING, VALVE GUIDE | 6 |
| 24 | 4018-18 | 700030511 | VALVE GUIDE SCREW | 12 |
| 25 | 4017-77 | 700044111 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
| 26 | 8577-25 | SUCTION MANIFOLD | 1 | |
| 27 | AJO-245 | SUCTION MANIFOLD SEAL | 3 | |
| 28 | 8377-27 | DISCHARGE MANIFOLD (F0R SERIAL # 9223 AND ABOVE) | 1 | |
| 29 | 8377-25 | DISCHARGE MANIFOLD (SERIAL # 9222 AND BELOW TO NOT RELOCATE DISC PIPING ) | ||
| 30 | 4019-45 | STUD, DISCHARGE MANIFOLD | 12 | |
| 31 | 1-1/4 -7 HH | NUT, DISCHARGE MANIFOLD STUD | 12 | |
| TSC PART # | DESCRIPTION |
| TS-0-6316-0357-00 | FLUID END MODULE STUDDED * (ITEMS 1, 2, 3, 4, 5, 6, 7,8) |
| TS-0-7507-2013-00 | STUD, MODULE TO LINER CLAMP |
| TS-0-7601-0610-18 | LINER CLAMP STUD NUT |
| TS-0-7507-2201-00 | POWER FRAME STUD |
| TS-0-7507-2210-00 | STUD, MODULE TO CYLINDER |
| TS-0-7601-0630-17 | NUT (FOR ABOVE) |
| TS-0-7507-2108-00 | STUD, MODULE TO DISC. MANIFOLD |
| TS-0-7601-0630-24 | NUT (FOR ABOVE) |
| TS-0-6316-0354-00 | GUIDE, LOWER VALVE (WITH BUSHING) |
| TS-0-6316-0096-00 | BUSHING, LOWER VALVE GUIDE |
| TS-0-6316-0360-00 | LOCKBOLT, LOWER VALVE GUIDE |
| TS-0-6316-0363-00 | ALIGNMENT RING |
| TS0-6316-0369-0099(G-801) | GASKET, HEAD SEAL |
| TS-0-6316-0364-00 | PLUG, CYLINDER HEAD |
| TS-0-6316-0361-00 | RING, THREADED CYLINDER HEAD |
| TS-0-6316-0362-00 | CAP, THREADED CYLINDER HEAD |
| TS-0-6316-0092-00(G-741) | GASKET, VALVE COVER |
| TS-0-7501-0051-00 | SCREW, RETAINER UPPER) |
| TS-0-6397-0603-00 | PLATE, RETAINER (UPPER) |
| TS-0-6397-0575-00 | GUIDE, UPPER VALVE |
| TS-0-6316-0039-00 | COVER, VALVE POT |
| TS-0-6316-0373-00 | GASKET, WEAR PLATE |
| TS-0-6316-0365-00 | PLATE, WEAR |
| TS-0-6316-0373-00(G-800) | GASKET, LINER |
| TS-0-6316-0366-00 | RING, LINER THREADED |
| TS-0-6316-0367-00 | LINER LOCK |
| TS-0-7602-1600-25 | GASKET, DISCHARGE MANIFOLD |
| TS-0-7602-1600-61 | GASKET, SUCTION MANIFOLD |
| MISSION "L" MODULE FOR EMSCO FB-1300, FB-1600 FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| 8490-2A | FEMFB13ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-27) | 3 | |
| 1 | 8490-1D | FEMFB13DISSW | MODULE, STUDDED DISCHARGE (INCLUDES ITEMS 1, 3-10, 12) | 3 |
| 2 | 8490-2S | FEMFB13SUCSW | MODULE, STUDDED SUCTION (INCLUDES ITEMS 2, 5, 6) | 3 |
| 3 | 4016-97 | EMSFB13DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | 0-7601-0630-17 | NUT, DISCHARGE TO SUCTION STUD | 18 | |
| 5 | 4015-2-1 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | 6300200 | NUT, THREADED RING STUD | 72 | |
| 7 | 4016-9-1 | EMSFB13PFSSW | STUD, POWER FRAME | 18 |
| 8 | 0-7601-0630-17 | NUT, POWER FRAME STUD | 18 | |
| 9 | 4017-36 | PEP80 | CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) | 24 |
| 10 | 4017-46 | EMSF1000DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | 0-7601-0630-24 | NUT, DISCHARGE MANIFOLD STUD | 12 | |
| 12 | 8488-5-1 | 6511416 | PIN, DOWELL | 6 |
| 13 | 2988 | 1290344 | SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 14 | 8422-3-1 | EMSF1000ARSW | RING, LINER RETAINER PILOT | 3 |
| 15 | 8490-3-1 | EMSFB13WPSW | PLATE, LINER WEAR | 3 |
| 16 | 6490-3-1 | EMSFB13LRPSW | FLANGE, LINER RETAINER | 3 |
| 17 | 6590-1-1 | EMSFB13LLSW | NUT, LINER LOCK | 3 |
| 18 | P-129 | 7207129 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4016-99 | PEP73 | CAPSCREW, VALVE GUIDE | 12 |
| 20 | 4700-I | PZ789VGI* | BUSHING, VALVE GUIDE | 6 |
| 21 | 4775-2R | EMSFB13VGASW | GUIDE, VALVE (INCLUDES ITEM 20) | 6 |
| 22 | 4675-2A | EMSF1000VCASSYSW | PLUG, VALVE COVER (INCLUDES ITEMS 19-22) | 6 |
| 23 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 24 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 25 | 568-343 | 99609343 | GASKET, DISCHARGE MANIFOLD | 3 |
| 26 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 27 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 18 |
| MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | QTY PER PUMP | |
| 80704032 | ASSY, FLUID END COMPLETE (INCLUDES ITEMS 1-27) ENOUGH FOR 1 PUMP | 1 | ||
| 80704035 | ASSY, FLUID END COMPLETE W/ BLAK-JAK LINER RETENTION SYSTEM | 1 | ||
| 80704038 | ASSY, FLUID END COMPLETE W/ ROUGHNECK VALVES L/ LINER BUSHING & NUT (#'S 19, 20) | 1 | ||
| 1 | /80704000 | NOV OEM DRAWING | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-10) | 3 |
| 2 | 80704001 | NOV OEM DRAWING | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 7-8) | 3 |
| 3 | 80704002 | STUD, DISCHARGE TO SUCTION MODULE | 24 | |
| 4 | 75510126 | NUT, HEAVY HEX | 24 | |
| 5 | 80704003 | NOV OEM DRAWING | THREADED RING | 6 |
| 6 | 80704004 | NOV OEM DRAWING | THREADED CAP | 6 |
| 7 | /80704005 | VALVE COVER | 6 | |
| 8 | 80704006 | DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) | 1 | |
| 9 | 80702011 | STUD, DISCHARGE MANIFOLD | 12 | |
| 10 | 0-7601-0630-24 | NUT, DISCHARGE MANIFOLD STUD | 12 | |
| 11 | 12PVGASW | GUIDE, VALVE | 6 | |
| 12 | PZ789VGI* | BUSHING, VALVE GUIDE | 6 | |
| 13 | 7007303 | SCREW, VALVE GUIDE | 12 | |
| 13 | PZ789VGI* | BUSHING, VALVE GUIDE | 6 | |
| 14 | PEP75 | CAPSCREW, LINER RETAINER | 18 | |
| 15 | 2408029 | |||
| 16 | 6300220 | NUT, POWER FRAME STUD | 30 | |
| 17 | PEP70 | DOWELL PIN | 6 | |
| 18 | 80700014 | STUD, THREADED RING | 72 | |
| 19 | 6300240 | NUT, THREADED RING STUD | 72 | |
| 20 | SUCTION MANIFOLD | 1 | ||
| 21 | 1290344 | SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 | |
| 22 | 7207119 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | |
| 23 | 99609235 | SEAL, DISCHARGE MANIFOLD | 3 | |
| 24 | 1540851 | SEAL, SUCTION MANIFOLD | 3 | |
| 25 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 3 | |
| 26 | PP6021260SW | PLATE, WEAR | 3 | |
| 27 | 12PLASW | RETAINER, LINER FLANGE | 3 | |
| 28 | 12PLANSW | NUT, LINER RETAINER | 3 | |
| BOMCO F1600 FLUID END SPARES & ACCESSORIES (All Parts are Available) | Return to Index | ||||
| ITEM # | Bomco PART # | NOV PART # | DESCRIPTION | QTY PER PUMP | AVAILABLE |
| FLUID END MODULE SPARES | |||||
| 1 | AH160201010400 | DISCHARGE MODULE | 3 | OK | |
| 2 | AH160201010500 | SUCTION MANIFOLD | 1 | OK | |
| 3 | AH1602010106 | VALVE COVER | 3 | OK | |
| 4 | AH1602010107 | WEAR PLATE | 3 | OK | |
| 5 | AH1602010108 | DISCHARGE MANIFOLD | 1 | OK | |
| 6 | AH16020101100 | SUCTION MODULE | 3 | OK | |
| 7 | AH160201011100 | PISTON | 3 | OK | |
| 8 | AH160201011200 | VALVE GUIDE | 6 | OK | |
| 9 | AH1602010114 | SEAL, MODULE | 3 | OK | |
| 10 | AH1602010114 | O RING, DISCHARGE MANIFOLD | 3 | OK | |
| 11 | AH1602010115 | GASKET, WEAR PLATE | 3 | OK | |
| 12 | AH1602010116B1 | GASKET SEAL, LINER | 3 | OK | |
| 13 | AH160201011700 | LINER | 3 | OK | |
| 14 | AH1301010518 | LINER, LOCK | 3 | OK | |
| 15 | AH1301010510 | GASKET, VALVE COVER | 6 | OK | |
| 16 | 5301012000070007 | O-RING 200X7 | 3 | OK | |
| 17 | AH00000102 | SPRING, VALVE | 6 | OK | |
| 18 | AH160201011900 | VALVE ASSY | 6 | OK | |
| 19 | 530301011850070007 | O-RING 185X7 | 3 | OK | |
| 20 | AH130101051900 | CLAMP, PISTON ROD | 3 | OK | |
| 21 | AH1301010516 | PISTON ROD | 3 | OK | |
| 22 | AH1301010520 | END COVER, LINER | 3 | OK | |
| 23 | AH130101051500 | LINER LOCK | 3 | OK | |
| 24 | AH1301010514 | FLANGE, LINER | 3 | OK | |
| POWER GEAR END SPARES | |||||
| 1 | AH36001.02.20.00 | 7602-020137 | Main bearing | 2 | OK |
| 2 | AH37001-01.01/01C | 6316-0042-00 | Main bearing end cover | 2 | OK |
| 3 | AH37001-01.02 | 6317-0177-00 | Main bearing sleeve(R) | 1 | OK |
| 4 | AH36001-02.03 | Seal ring | 2 | OK | |
| 5 | AH36001-02.04 | 6316-0070-00 | Inner snap ring | 1 | OK |
| 6 | AH37001-01.03 | 6316-0034-00 | Outer snap ring | 3 | OK |
| 7 | AH37001-01.04 | 6316-0023-00 | Connecting rod | 3 | OK |
| 8 | AH36001-02.07/AH3602-02.03 | 6316-0071-00 | Fixing ring(Ⅰ) | 1 | OK |
| 9 | AH36001-02.08A.00 | 6316-0021-01 | CRANKSHAFT | 1 | OK |
| 10 | AH36001-02.09/AH36002-02.05 | 6316-0076-00 | Fixing ring(Ⅱ) | 1 | OK |
| 11 | AH37001-01.05D.00 | 6316-0030-00 | Bull Gear | 1 | OK |
| 12 | AH36001-02.11A | Bolt M39×3-69×130 | 12 | OK | |
| 13 | AH36001-02.12 | 6316-0091-00 | Spacer main bearing | 2 | OK |
| 14 | AH37001-01.06 | 6317-0028-00 | Main bearing sleeve(L) | 1 | OK |
| 15 | AH37001-01.07 | 6316-0032-00 | 3 | OK | |
| 16 | AH36001-02.15 | 6316-0031-00 | 3 | OK | |
| 17 | AH36001-02.16C | 6316-0077-00 | Main bearing bolt | 6 | OK |
| 18 | AH37001-01.08.00 | 7602-021268 | Bearing, Eccentric | 3 | OK |
| 19 | AH37001-01.09.00 | 7602-020137 | Bearing, Main | 2 | OK |
| 20 | Pinion shaft | 6316-0027-00 | Pinion shaft | 1 | OK |
| 21 | Wear plate | 6301-0002-00 | Wear plate | 2 | OK |
| 22 | End cover | 6317-0103-00 | End cover | 2 | OK |
| 23 | Seal gasket | 7502-0840-00 | Seal gasket | 2 | OK |
| 24 | Seal gasket | 7502-0841-00 | Seal gasket | 2 | OK |
| 25 | 6317-0024-00 | 3 | OK | ||
| 26 | Oil seal | 7602-213118 | Oil seal | 2 | OK |
| 27 | AH36001-04.01A | 6316-0022-00 | Crosshead | 3 | OK |
| 28 | AH36001-04.02 | 6316-0181-00 | Top guidance | 3 | OK |
| 29 | AH36001-04.05 | 6397-0544-00 | Stuffing box | 3 | OK |
| 30 | AH36001-04.08.00A | 7602-213276 | Double lips oil seal | 6 | OK |
| 31 | AH36001-04.10 | 6316-0093-00 | Sheet | 3 | OK |
| 32 | AH36001-04.11 | 6316-0028-00 | Crosshead extension rob | 3 | OK |
| 33 | AH36001-04.12A | 6316-0087-00 | Crosshead pin | 3 | OK |
| 34 | AH36001-04.13 | 6397-0546-00 | Locking spring | 3 | OK |
| 35 | AH36001-04.15 | Washer | 3 | OK | |
| 36 | AH36001-04.17 | 6316-0182-00 | Low guidance | 3 | OK |
| 37 | AH36001-04.18 | 6316-0026-00 | Baffle & crosshead pin | 3 | OK |
Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd
Contact Person: Mr. Eric
Tel: 0086-15376875239
Other Products
-
SOUTHWEST 8482-25A National 14-P-220 7500 PSI mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner
-
SOUTHWEST “NEW STYLE” 8476-4A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner
-
Southwest National 12P-160 Mud Pump, A-1700PT mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner
-
SOUTHWEST “OLD STYLE” 8476-A National 12-P-16, National mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner
-
BOMCO F-1600 7500 PSI SWFE MUD PUMP PARTS, NATIONAL 14P-220 MUD PUMP, W-2215 MUD PUMP, DRILLMEC 14T-2200 MUD PUMP LINER
-
"L" MODULE FOR EMSCO FB-1600 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump
