Halliburton HT400 Valve and seat

  • Halliburton HT400 Valve and seat
  • Halliburton HT400 Valve and seat
  • Halliburton HT400 Valve and seat
  • Halliburton HT400 Valve and seat
원래 장소 중국
브랜드 이름 Halliburton
인증 API
모델 번호 HT400
최소 주문 수량 1
가격 USD
배달 시간 재고 있음
지불 조건 티/티
공급 능력 한 달에 10000

무료샘플과 쿠폰을 위해 나와 연락하세요.

WhatsApp:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
메시지를 남겨주세요
제품 설명

    Founded in 1919, Halliburton is one of the world's largest providers of products and services to the energy industry. With approximately 60,000 employees, representing 140 nationalities in more than 80 countries, the company helps its customers maximize value throughout the lifecycle of the reservoir – from locating hydrocarbons and managing geological data, to drilling and formation evaluation, well construction and completion, and optimizing production throughout the life of the asset.





Push Rod Subassembly
L-2 Spacer
  Loc Qty Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer 1 3 316.21066.PREM
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 2 3 8.34020.PREM
Tie Rod, Push Rod, L-Spacer, HT-400TM 3 3 316.25166.PREM
Push Rod, Two Piece, L-Spacer, HT-400TM 4 3 316.21065.PREM
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM 5 3 316.10012.PREM
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM 6 3 316.10013.PREM
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 7 3 70.33739.PREM
Seal, Push Rod, L-Spacer, HT-400TM 8 6 316.10014.PREM

Discharge Valve Subassembly
Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch
Retainer, Cover, HT-400TM 1 3 316.2102.PREM 316.2202.PREM 316.2202.PREM
Cover, Discharge, Double Guided Valve, HT-400TM 2 3 316.2107.PREM 316.23091.PREM 316.23091.PREM
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM 3 3 316.21052.PREM 316.22052.PREM 316.22052.PREM
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM 4 3 316.21051.PREM 316.22051.PREM 316.22051.PREM
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass 5 6 316.22005.PREM 316.22005.PREM 316.22005.PREM
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 6 6 316.22004.PREM 316.22004.PREM 316.22004.PREM
Spring, Valve, HT-400TM, 36lb/in 7 3 316.2108.PREM 316.2108.PREM 316.2308.PREM
Valve, HT-400, Frac 8 3 316.21007.PREM 316.21007.PREM 316.22048.PREM
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 3 316.21048.PREM 316.21048.PREM 316.22046.PREM
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 3 316.21006.PREM 316.21006.PREM 316.22049.PREM
Seat Valve, HT-400TM, Tapered 10 3 316.21008.PREM 316.21008.PREM 316.210047.PREM
O-ring, 90 Duro 11 3 8.34037.PREM 8.34037.PREM 8.34041.PREM


Suction Valve Subassembly
Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast 1 3 316.22977.PREM 316.22977.PREM 316.22242.PREM 316.25840.PREM 316.25840.PREM
Boot, Suction and Stop, HT-400TM 2 6 316.25233.PREM 316.25233.PREM 316.25233.PREM 316.25233.PREM 316.25233.PREM
Spring, Lock, HT-400 3 3 316.2125.PREM 316.2125.PREM 316.22252.PREM 316.22253.PREM 316.22253.PREM
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass 4 6 316.22005.PREM 316.22005.PREM 316.22005.PREM 316.22007.PREM 316.22007.PREM
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM 5 6 316.22004.PREM 316.22004.PREM 316.22004.PREM 316.22006.PREM 316.22006.PREM
Retainer Guide Bushing, HT-400, Tapered Seat Bore 11 3 316.21096.PREM 316.21096.PREM 316.23953.PREM 316.24043.PREM 316.24043.PREM


Plunger/cylender Head Cover Subassembly
Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover HT-400TM 1 6 316.2102.PREM 316.2102.PREM 316.2202.PREM 316.2502.PREM 316.2506.PREM
Cover, Cylinder Head, HT-400TM 2 3 316.2107.PREM 316.2107.PREM 316.2207.PREM 316.2407.PREM 316.2507.PREM
Gasket, 4 Discharge Valve & Cylinder Head Cover 3 6 316.21052.PREM 316.21052.PREM 316.22052.PREM 316.25052.PREM 316.25074.PREM
Ring, Spacer, Discharge Valve & Cylinder Head Cover 4 6 316.21051.PREM 316.21051.PREM 316.22051.PREM 316.25051.PREM 316.25073.PREM
Nose, Plunger, HT-400TM 5 3 316.2131.PREM 316.2231.PREM 316.2331.PREM 316.2331.PREM 316.2331.PREM

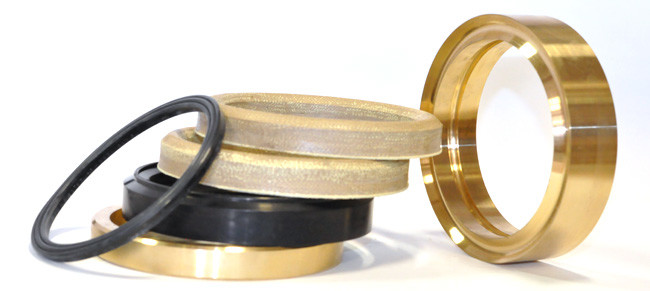

Seal, Plunger Nose Assembly, HT-400TM 6 3 316.2130.PREM 316.2230.PREM 316.2330.PREM 316.2330.PREM 316.2330.PREM

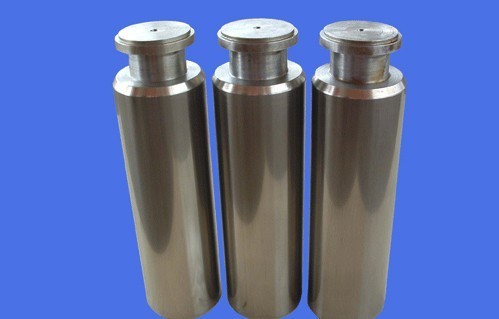

Plunger, Hard Surface, L-Spacer, HT-400TM 7 3 316.21026.PREM 316.22294.PREM 316.23085.PREM 316.24296.PREM 316.25162.PREM
Tie Rod, Plunger, HT-400TM 8 3 316.21028.PREM 316.21028.PREM 316.21028.PREM 316.25165.PREM 316.25165.PREM
Adapter, Pushrod, HT-400TM, Two Piece Nose 9 3 316.21059.PREM 316.22302.PREM 316.23089.PREM 316.24336.PREM 316.25172.PREM


Fluid-end/flange discharge section subassembly
Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch
Flange, discharge, HT-400TM, BLANK 1 1   316.22980.PREM 316.22980.PREM
Flange, discharge, HT-400TM, CURVED, Rright Hand 1a 1 316.21676.PREM 316.23019.PREM 316.23019.PREM
Flange, discharge, HT-400TM, CURVED, Left Hand 1b 1 316.21677.PREM 316.23017.PREM 316.23017.PREM
Seal, Discharge passage,HT-400TM 2 6 315.27117.PREM 316.2547.PREM 316.2547.PREM
Nut, 1-14NF, Internal Wrenching, 1.03 TL 3 4 316.11621.PREM 316.11621.PREM 316.11621.PREM
Stud, HT-400TM Fluid End To Thick Discharge Flange 4 4 316.23013.PREM   316.23013.PREM
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC 5 1 316.27488.PREM 316.27488.PREM 316.27488.PREM
Nut, Top Tie Bolt, HT-400TM, TC 6 2 316.25501.PREM 316.25501.PREM 316.25501.PREM
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, 7 2 316.22493.PREM 316.22493.PREM 316.22493.PREM
Spacer, Inner, Discharge Passage Seal,HT-400TM 8 2 316.2145.PREM 316.2545.PREM 316.2545.PREM

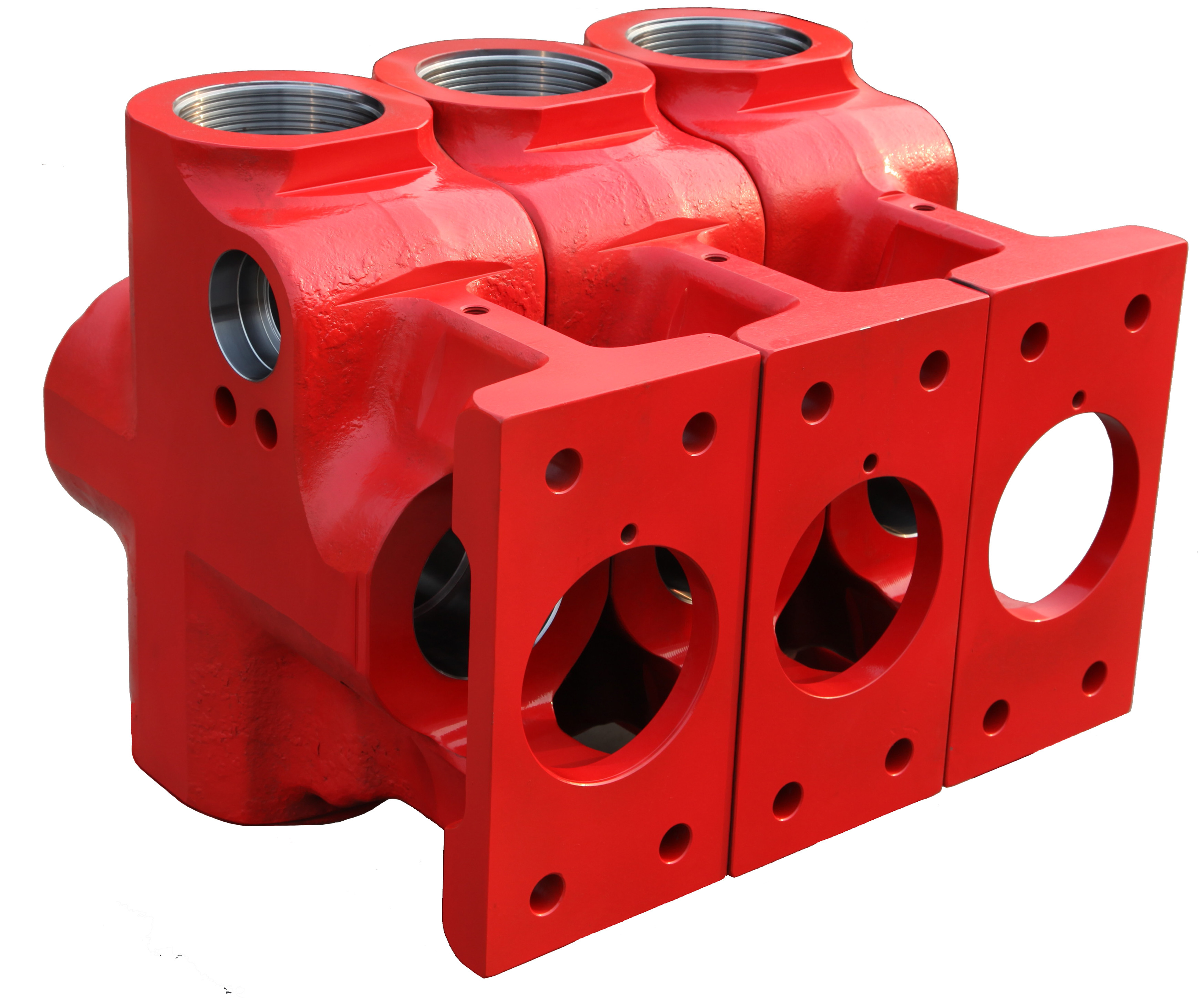

Fluid End Section, HT-400TM PUMP,Not Sleeved 9 3 316.21951.PREM 316.22982.PREM 316.23951.PREM
Nut, Elastic, Stop,3/4-in.,16 NF 10 2 70.32760.PREM   70.32760.PREM
