National JWS-400 Mud Pump Liners, National JWS340 mud pump, National 12P160 mud pump, National 14P220 mud pum; 10P130 MUD PUMP, 9P100 MUD PUMP; 8P80 MUD PUMPp

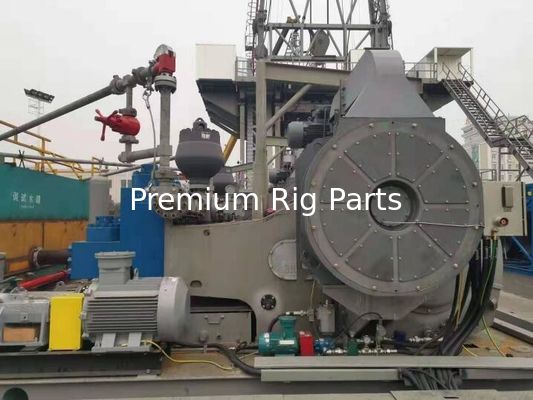

Premium offer 12-P-160 Mud Pump manufacturered according to API Standards and the quality as good as NATIONAL requirement, which is rated at 1600 input horsepower (1193 kw) at 120 strokes per minute, with a 12-inch (304.8 mm) stroke.

Multiple liner sizes allow pressures and volumes to handle circulation requirements in deep drilling applications.

1.P SERIES PUMPS.

Premium offers a full line of triplex mud pumps to handle any drilling requirement. These tough field-proven models cover input horsepower ratings in the 500 to 2,200 range. The 14-P-220 is the largest member of the P Series of pumps. It is rated for 2,200 input horsepower at 105 strokes per minute and can accommodate liners and pistons up to 9-inch in diameter. It can deliver as much as 1,215 gallons per minute at a pressure of 2,795 psi, or up to 375 GPM at 7,500 psi.* The six, P Series models offer a broad selection of fluid end combinations, drive options and other accessories to tailor pumping requirements to your exact needs.

2.ADDITIONAL POWER AND FLUID END FEATURES OF THE P SERIES PUMPS INCLUDE:

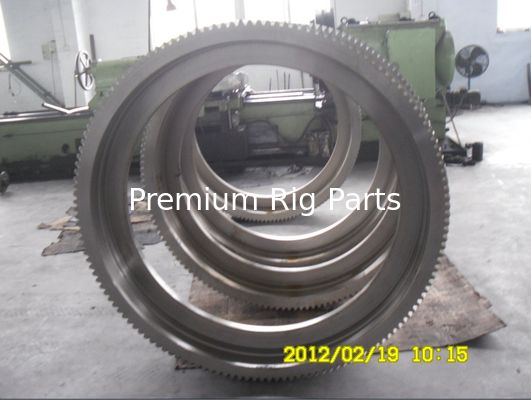

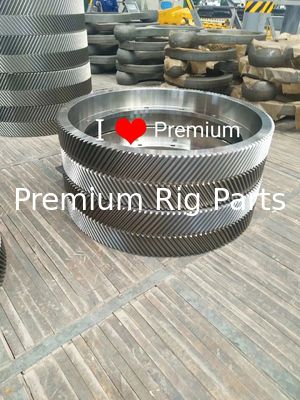

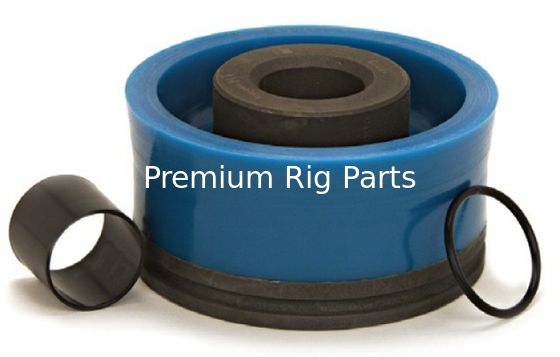

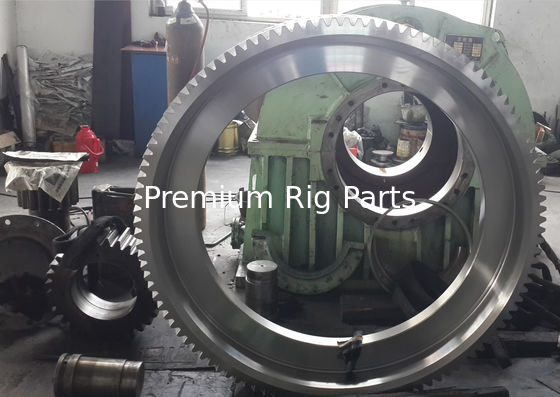

• One-piece construction of crankshaft, connecting rods and pinion shaft. • Roller bearings throughout. • Two-piece piston rod allows removal of piston without disturbing liner. • Clamps lock liners and piston rod assemblies in place. • Full-circle spray cools and lubricates liners regardless of pump speed. • Metal-to-metal liner retention. • Herringbone gears.

3.SELECT THE FLUID END MODULES THAT EXACTLY MATCH YOUR DRILLING REQUIREMENTS.

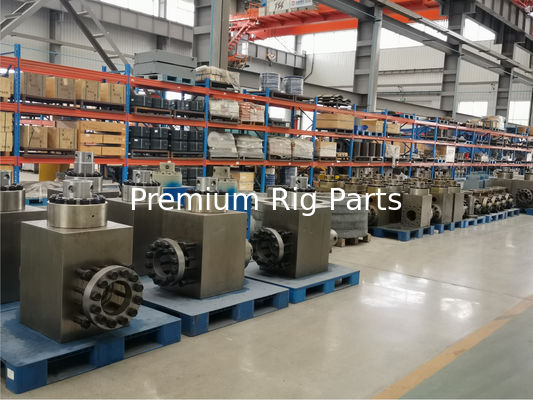

Premium offers a choice of fluid end modules and valve covers for every P Series pump model. All pump models can be equipped with either the standard or premium forged, two-piece interchangeable fluid modules

4.HIGH PRESSURE MODULES TO 7,500 PSI.

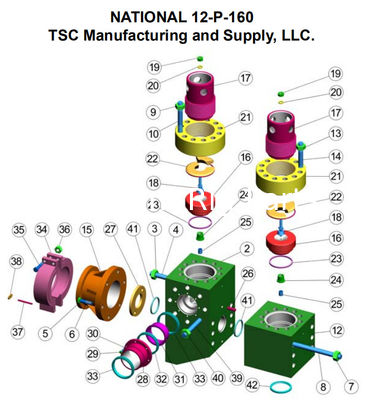

Also available for the 12-P-160 and 14-P-220 mud pumps are high- pressure modules. These are designed for working pressures up to 7,500 psi (527.4 kg/cm2). The 12-P-160 modules have smaller internal bores than the standard or premium modules in order to withstand the higher pressures. The bores for both the 12-P-160 and 14-P-220 high pressure modules, along with premium modules, are autofrettaged to provide improved fatigue life at the higher pres- sures.

5.DURABLE POWER END.

P Series power end features include: • Fabricated steel frame construction. • Accepts a variety of drive arrangements, on either or both sides. • Splash lubrication system (dual type on 14-P-220).

6.EASY-TO-SERVICE-FLUID END.

Fluid end features include: • Two-piece cylinder modules with complete interchangeability between modules. • Variety of valve covers are offered including a FAST CHANGE screw-type arrangement for quicker removal and installation. • Versatility in suction and discharge piping.

Premium can make and supply Hy-Chrome liners and Zicornia/Ceramic Liners for Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete mud pumps and their parts. Our reach extends to customers around the world.

Detailed Selling Lead Description

Ceramic liner for mud pump is a necessary grouting wearing part in the oil extraction industry, and thus it should has the features of anti-wear and anti-corrosion and working pressure of 200MPa. Duplex metal liner is normally used in oilfields, and its mean life is 300 to 500 hours.

By adopting unique technique, we mount metal outside the special ceramic liner so that the ceramic liner for mud pump can take the advantages of special ceramics, including high hardness, good anti-wear ability and small coefficient of thermal expansion. Its mean working life is 3,000 to 5,000 hours in general working conditions. Now we are exporting large quantities of ceramic liners for mud pumps to the United States and Germany.

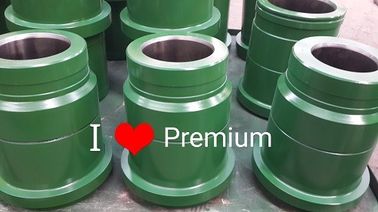

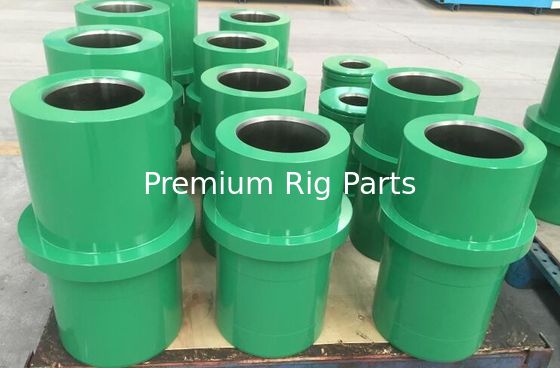

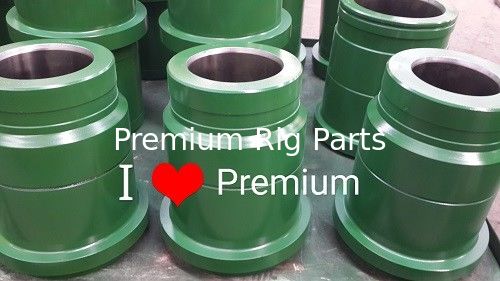

HY-CHROME LINERS

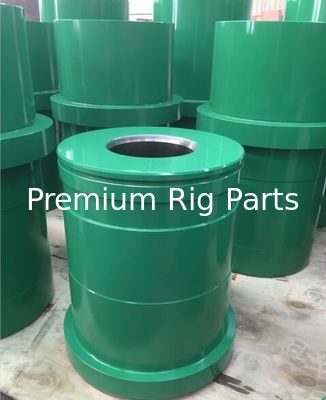

The outer hull, or body, of the liner is a high strength forging. We use forgings exclusively to ensure the consistent quality. The sleeve is centrifugally casted in the our facilities by skilled craftsmen. It has the maximum amount of chrome for the base metal and we add molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness that exceeds its counterparts. The liner is rated to match the pressure rating of the pump per liner size.

Our mud pump liners are designed and manufactured to meet or exceed the original equipment specifications and API standards for almost all types of mud pumps in the world. With advanced technology, metallurgical control and rigid inspection, both triplex and duplex liners are available in a wide range of sizes with unmatched performance and durability in the most severe drilling conditions.

All items are manufactured to API 7K quality standards. Parts are available for these popular pump models:

Emsco:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

Ideco: T-500, T-800, T-1000, T-1300, T-1600,

National: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF,FF-FXP,

Oilwell: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

OEM Style Modules Mission L Modules

Brewster B-1000-T/B-1100-T Mission L Brewster B-1300-T/B-1600-T

Brewster B-1300-T/B-1600-T Mission L Emsco F-800, F-1000

Ellis Williams 9-W-1000 Mission L Emsco FB-1300/FB-1600

Emsco F-350/F-500/F-650 Mission L Gardner Denver PZ-7

Emsco F-800/F-1000 Mission L Gardner Denver PZ-8

Emsco FB-1300/FB-1600 Mission L Gardner Denver PZ-9

Emsco FC-1600 Mission L Gardner Denver PZ-10/PZ-11

Emsco FC-2200 Mission L Ideco T-1300/T-1600

Gardner Denver PAH Mission L National 9-P-100

Gardner Denver TEE Mission L National 10-P-130

Gardner Denver PX-11(2000 HP) 7500 psi Mission L National 12-P-160

Gardner Denver PZ-7/PZ-8/PZ-9 Mission L National 12-P-160 "New Style"

Gardner Denver PZ-7/PZ-8/PZ-9 w/ Wear Plate Mission L Oilwell A-850-PT/A-1100-PT

Gardner Denver PZ-10/PZ-11 Mission L Oilwell A-1400-PT/A-1700-PT

Gardner Denver PZ-10/PZ-11 w/ Wear Plate Mission L Wirth TPK-1300/TPK-1600

Ideco T-500

Ideco T-800/T-1000

Ideco T-1300/T-1600 Mission "L" 7500 PSI Asemblies

National 7-P-50 Mission L National 12-P-160 (7500 PSI Working Pressure)

National 8-P-80 Tapr-Lok Mission L National 14-P-220 (7500 PSI Working Pressure)

National 8-P-80 Fast Change Mission L Oilwell A/HD-1700-PT 7500 PSI Working Pressure

National 9-P-100 Tapr-Lok

National 9-P-100 Fast Change

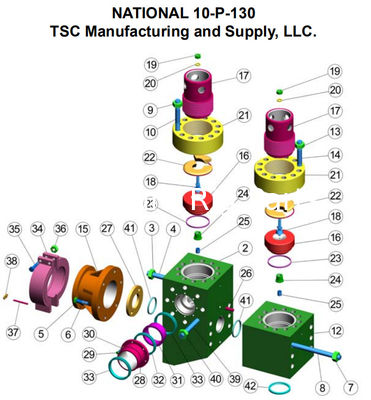

National 10-P-130 Tapr-Lok

National 10-P-130 Fast Change

National 12-P-160 Tapr-Lok

National 12-P-160 Fast Change

National 12-P-160 7500 PSI

National 14-P-220

Oilwell A-850/1100/1400/1700-PT
