Home ProductsMud Pump Chrome Liner

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump

Certification
Good quality Mud Pump Zirconia Liners for sales
I'm Online Chat Now

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump

China WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier
WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump supplier

Large Image :  WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump

Product Details:

Place of Origin: CHINA
Brand Name: ELLIS WILLIAMS (EWCO & LEWCO), NATIONAL, WEATHERFORD, DRILLMEC, MUD KING
Certification: API
Model Number: WH-1312 MUD PUMP

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitable to shipment by air and sea
Delivery Time: In stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric,Hydraulic,diesel
Pressure: High Pressure,Low Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump Application: Mining,oil
Structure: Piston Pump Fuel: Diesel
Standard Or Nonstandard: Standard Theory: Diaphragm Pump
Type: Mud Pump Weight: 100-3700kg
Color: Blue,red And So On,Green,yellow,Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty: 12 Months Product Name: Mud Pump
Head: 10m Mud Suction Pump Oem: Can Be Accept,Applicable
Condition: New

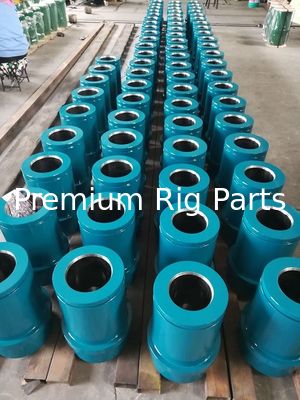

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump

Premium can produce the spare parts of ELLIS WILLIAMS (EWCO & LEWCO) W-440 MUD PUMP , W-446 MUD PUMP, WH-1312 MUD PUMP, WH-1612 MUD PUMP, WH-2214 MUD PUMP, WH-2215 MUD PUMP, W-1100 MUD PUMP.




EWCO     WH-1312       6-3/4 x 12

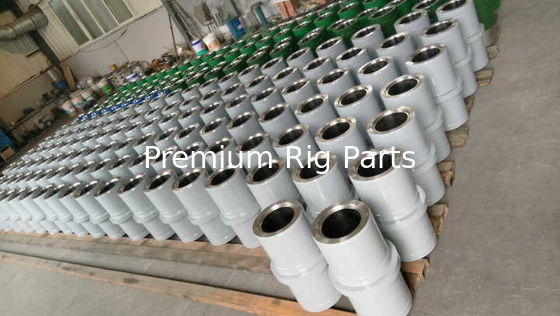

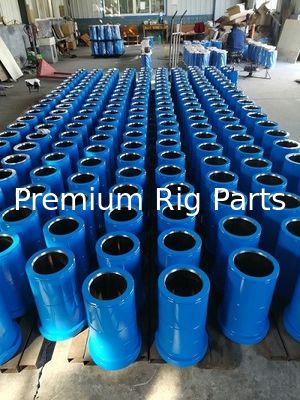

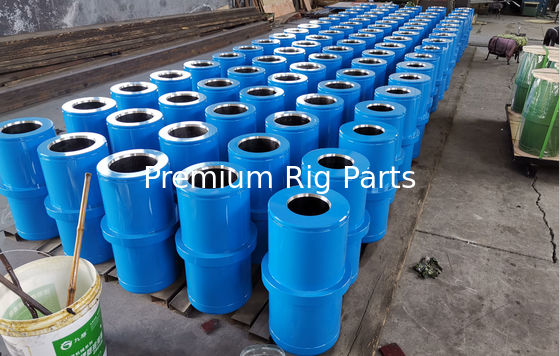

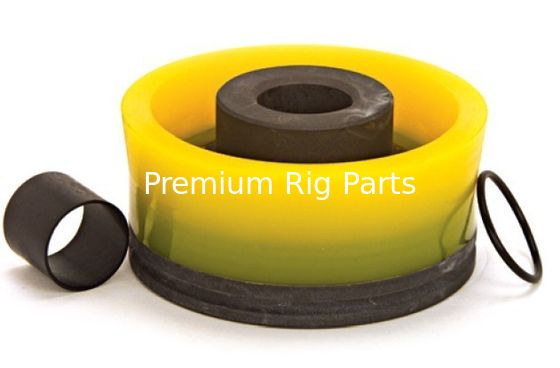

  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4" 7465400 5465400 7923274
4 1/4"
4 1/2" 7465450 5465450 7923274   MB44-15 1502054 12180197 12180196 15180145 15180144
4 3/4"
5" 7465500 5465500 7923265 7211011 MB50-15 1502056 12180254 12180253 15180186 15180185
5 1/4"
5 1/2" 7465550 05465550HP 7923263 7211005 MB54-15 1502058 12180338 12180337 15180228 15180227
5 3/4"
6" 7465600 05465600HP 7923261 7211004 MB60-15 1502060 12180395 12180394 15180269 15180268
6 1/4"   05465625HP       1502061   12180493 15180285 15180284
6 1/2"   05465650HP 7923283   MB64-15 1502062 12180536 12180535 15180301 15180300
6 3/4"
7"
7 1/4"
7 1/2"
7 3/4"
8"
          For Bonded White Lightning Pistons add "XT" to Green Duo Part #
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700367 9700359 60152809   Valve Cover 6143601
VALVE-Urethane Insert 9700285 9700353 60152808   Cylinder Head 7916839
VALVE-Rubber Insert 9702601 N/A 60122702   Wear Plate
SEAT 9702547 9702547 61102653
SPRING 8201684 8201684 55413421
SPRING-Stainless     8201820
INSERT-Urethane 9705090 9700363 62400106   MODULES OEM MISSION L
INSERT-Rubber 9705155 N/A 62400056   Complete Assembly
SEAT PULLER ASSEMBLIES Discharge Module Studded
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded
Puller Head 8401977 8401977 181235052   One Piece OEM Style Studded

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Covered Rod Nut Pony Rod Seal
              5402052   CRN-1






WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump



Weatherford is one of the world's largest multinational oil and natural gas service companies. The company provides products and services for drilling, evaluation, completion, production and intervention of oil and natural gas wells, along with pipeline construction and commissioning. Headquartered in Switzerland, Weatherford operates in more than 100 countries across the globe and employs more than 35,000 people (2016).





Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.

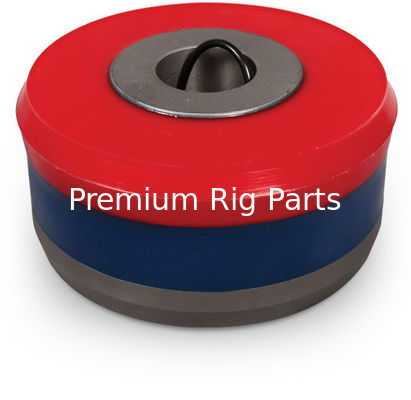

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump

All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



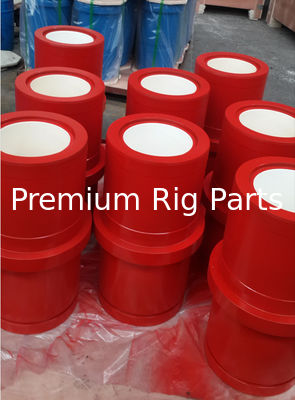

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump

Item Part number Description Qty Item Part number Description Qty
1 B-440343 Valve Cover 2 17 B-440321 Valve Guide, Suction 1
2 B-440323 Plug, Valve Cover 1 18 GB/T 3452.1 O- Ring φ150x5.3 1
3 W-440.01.010 Seal, Valve Cover 1 19 W0101 Stud 3/4-10UNCX1 11/16 4
4 W-440.01.004 Spring, Valve 2 20 W-440.01.008 Seal, Liner 1
5 W-440.01.03.00 Valve Assy(API #4) 2 21 W-440307-Re Liner 1
6 W-440.01.002 Seat, Valve 2 22 B-440322 Liner Clamp 1
7 GB/T 3452.1 O- Ringφ100x3.55 2 23 W-440.01.007 Self-Lock Nut 1
8 D-440342 Valve Cover Flange 2 24   Piston 1
9 D-440003 Fluid End Module 1 25 GB/T 3452.1 O- Ring φ25x3.55 1
10 W-440.01.013 Stud 3/4-10UNCX6 2 26 B-440308 Piston Rod 1
11 NF2-3/4 Nut 3/4-10UNC-2B 2 27 W0105 Nut 9/16-12UNC 2
12 GB/T 3452.1 O-Ring φ47.5x5.3 1 28 GB/T93 Washer 14 2
13 W-440.01.011 Stud 7/8-9UNCX4 1/2 12 29 B-440227.01 Washer Ring 1
14 NF2-7/8 Nut 7/8-9UNC 12 30 W0104 Stud 9/16-12UNCX4 2
15 B-440309 Plug, Cylinder Cover 1 31 W-440.01.006 Nut 1 1/8-8UN 4
16 W-440.01.001 Seal, Cylinder Cover 1 32 W-440.01.005 Stud 1 1/8-8UNX7 1/4 4





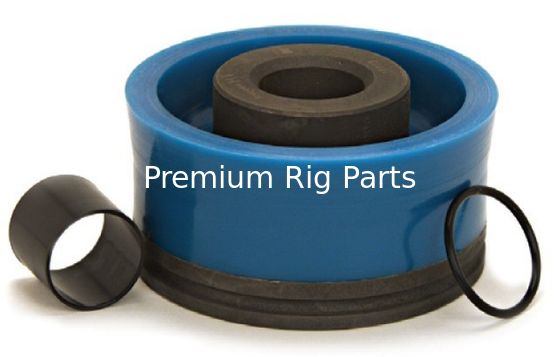

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump



SOUTHWEST 8477-25A FLUID END FOR GARDNER DENVER PZ-11/PZ-10



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. GARDNER DENVER PZ11/10 6 ¾” X 11”





ITEM P/N DESCRIPTION QTY. REQ’D
  8477-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39)
1

1367Y-XX

1367AY-XX

LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX)

LINER 6 ¼” THRU 6 ¾”

3
2

2930-XXU**

2974-XXU**

LINER SEAL

LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾”

3
3 8477-29 ALIGNMENT RING 3
4 8477-30 WEARPLATE (REPLACES WEARPLATE NO. 8477-28) 3
5 2988U** WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL 9
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
7 568-225 PISTON O-RING 3
8 6278-25 PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD ELASTIC STOP NUT 3
10 1290-2 PISTON ROD CONNECTING STUD 3
11 6279-1 SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) 3
12 1277CW ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) 3
12A 1200120 SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) 3
12B 4018-96 BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12C 1200H30 HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) 3
13 1200G77 PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) 3
14   VALVE 6
15   VALVE INSERT 6
16   VALVE SPRING 6
17   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
18 4488-25 VALVE COVER FLANGE 6
19 4588-25 SCREW GLAND 6
20 4688-25 PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) 6
21 P115 HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) 6
22 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4018-18 VALVE GUIDE SCREW 12
25 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
26 4019-46 POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
27 6477-25 LINER RETAINER FLANGE 3
28 4019-45 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
29 6577-25 LINER RETAINER NUT 3
30 4019-44 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4017-77 SUCTION MANIFOLD CAP SCREW 24
32 8577-25 SUCTION MANIFOLD 1
33 AJO245 SUCTION MANIFOLD SEAL 3
34 8477-26 SUCTION MODULE 3
35 8477-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8377-27 DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) 1
38 4019-45 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 12



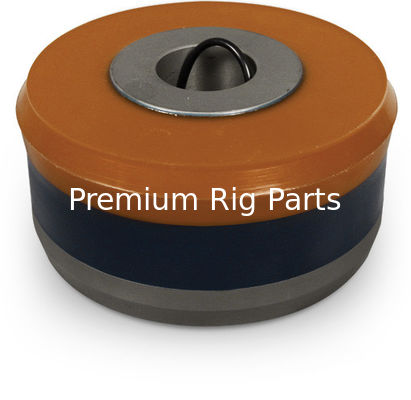

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump



SOUTHWEST “OLD STYLE” 8476-A FLUID END

FOR NATIONAL 12-P-160



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST (OLD STYLE) NATIONAL 12-P-160 7-1/2” X 12”





ITEM . P/N DESCRIPTION QTY. REQ’D
  8476-A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1200140 PIPE 3
10C 4018-92 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
  4476-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-2A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P107 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-2S SUCTION MODULE (STUDDED ONLY) 3
33 8476-1D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16





SOUTHWEST “NEW STYLE” 8476-4A FLUID END

FOR NATIONAL 12-P-160



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 P.S.I. NATIONAL 12-P-160 7-1/2” X 12”





ITEM P/N DESCRIPTION QTY. REQ’D
  8476-4A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 DUAL SPRAY PIPE 3
10C 4020-29 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
  4476-6A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-6A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-6S SUCTION MODULE (STUDDED ONLY) 3
33 8476-5D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16
58 5000-5BFLANGE BLIND FLANGE 5" 1
59 9070012 PONY ROD SEAL 12
60 80491292 SPLASH GUARD 3
61 8376-50A COMPLETE STRAINER CROSS 1
62 8376-50 STUDDED STRAINER CROSS ONLY 1





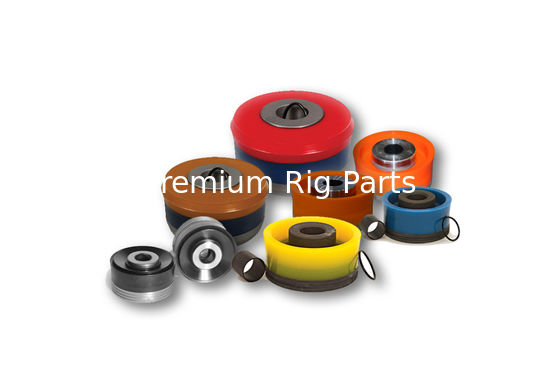

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump



NATIONAL

14-P- 220



Item

PREMIUM

Part Number



Description

Qty per Pump
1 P-1295240 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1295241 Discharge Module, Only 3
3 P-6300320 Nut, 2“ -8 Hvy. Hex 18
4 P-2408048 Stud, 2“ -8UNC X22 7/8” 18
5 P-6300180 Nut, 1 1/8“ Hvy. Hex 18
6 P-2408028 Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing 18
7 P-6300281 Nut, 1 3/4“ Hvy. Hex 18
8 P-2408033 Stud, 1 3/4“ X 21 1/8”, Discharge to Suction 18
9 P-6300240 Nut, 1 1/2 Hvy. Hex 36
10 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
11 P-1295243 Suction Module Studded, (incl. Items 12-14) 3
12 P-1295244 Suction Module, Only 3
13 P-6300240 Nut, 1 1/2 Hvy. Hex 36
14 P-2408049 Stud, 1 1/2“ X 9 7/8” Top, Thread Ring 36
15 P-1295165 Bushing, Liner 3
16 P-1295174 Seal Retainer 6
17 P-1295172 Valve Cover 6
18 Non Screw, Wedge Adjusting 6
19 Non Nut, Wedge Adjusting 6
20 Non Washer, Wedge Adjusting Screw 6
21 P-1295176 Ring, Threaded 6
22 Non Wedge Assembly 6
23 P-1540163 Gasket, Valve Cover 6
24 P-1292140 Holder, Valve Guide Insert 6
25 P-1292141 Insert, Valve Guide 6
26 P-6571620 Pin Dowell 6
27 P-1295266 Plate, Wear 3
28 P-1295252 Connector, Discharge 2
29 P-7000-307-11 Screw Hex Head 16
30 P-7619050 Washer, Lock 16
31 P-1295253 Adapter, Discharge Connector 2
32 P-2410031-440 Packing, Rectangular 2
33 P-2410031-438 Packing, Rectangular 4
34 P-1295167 Clamp, Liner 3
35 P-7000491-10 Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer 6
36 P-6309140 Nut, 7/8“ Lock Type 6
37 P-1292169 Pin, Liner Clamp 3
38 P-1295168 Connector, Liner Clamp 3
39 P-2408015 Stud 1 1/2“ x 7 1/2” 16
40 P-6300240 Nut, 1 1/2“ Hvy. Hex 16





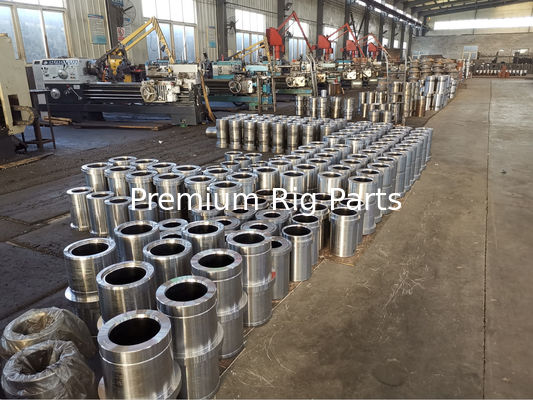

WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump





SOUTHWEST 8482-25A FLUID END

FOR NATIONAL 14-P-220

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. NATIONAL 14-P-220 9” X 14”





ITEM P/N DESCRIPTION QTY. REQ’D
  8482-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34)
1 6382G-XX LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL 3
3 8482-5 WEARPLATE 3
4 2988 WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) 6
10A 1200H30 HOSE 3
10B 1200160 PIPE 3
10C 4019-77 ROD CLAMP BOLT 12
11 6200G82 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4609-25 PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-26 SUCTION MODULE 3
33 8482-27 DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
36 8382-25 DISCHARGE MANIFOLD 1



WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump





SOUTHWEST 8482-25A FLUID END

FOR NATIONAL 14-P-220

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. NATIONAL 14-P-220 9” X 14”





ITEM P/N DESCRIPTION QTY. REQ’D
  8482-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34)
1 6382G-XX LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL 3
3 8482-5 WEARPLATE 3
4 2988 WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) 6
10A 1200H30 HOSE 3
10B 1200160 PIPE 3
10C 4019-77 ROD CLAMP BOLT 12
11 6200G82 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4609-25 PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-26 SUCTION MODULE 3
33 8482-27 DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
36 8382-25 DISCHARGE MANIFOLD 1





WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump



Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump



1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000压裂泵的型号及规格

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM压裂泵的型号

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900





Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)
