TSC, NATIONAL 14P220 Mud Pump, 12P160 MUD PUMP, WF1300 MUD PUMP. WF1600 MUD PUMP, WF2000 MUD PUMP, WF2200 MUD PUMP

TSC mud pump liners are designed and manufactured to meet or exceed original equipment specification and API standards for almost all types of mud pumps in use today.



TSC Workforce (WF) series mud pumps are developed to offer superior performance for a variety of drilling operations and work environments. TSC Mud pump and parts for model WF1300 triplex Pump,WF1300BH,WF1300,WF-1300C,WF1600A,WF1600B,WF1600BH,WF1600CH,WF1600L,WF1600LH,WF2000,WF2200.WF400,WF700.











TSC                               Mud King
Continental Emsco F-800 / 1000	07495400 PREM	07495450 PREM	07495500 PREM	07495550 PREM	07495600 PREM	07495650 PREM	/
Continental Emsco FB-1300 / 1600	07499400 PREM	07499450 PREM	07499500 PREM	07499550 PREM	07499600 PREM	07499650 PREM	07499700PREM
Continental Emsco FC1600	07499400 PREM	07499450 PREM	07499500 PREM	07499550 PREM	07499600 PREM	07499650 PREM	07499700PREM
Continental Emsco FC-2200	07551750 PREM	07551800 PREM	07551500 PREM	07551550 PREM	07551600 PREM	07551650 PREM	07551700 PREM
Gardner Denver PZ-7	07493091 PERM	07493089 PREM	07493087 PREM	07493085 PREM	07493083 PREM	07493081 PREM	/
Gardner Denver PZ-8/9	07493400 PREM	07493450 PREM	07493500 PREM	07493550 PREM	07493600 PREM	07493650 PREM	07493700 PREM
Gardner Denver PZ-10/11	07496400 PREM	07496450 PREM	07496500 PREM	07496550 PREM	07496600 PREM	07496650 PREM	07496700 PREM
Ideco T-800 / 1000	07502400 PREM	07502450 PREM	07502500 PREM	07502550 PREM	07502600 PREM	07502650 PREM	07502700 PREM
Ideco T-1300 / 1600	07507400 PREM	07507450 PREM	07507500 PREM	07507550 PREM	07507600 PREM	07507650 PREM	07507700 PREM
National 8-P-80	07464400 PREM	07464450 PREM	07464500 PREM	07464550 PREM	07464600 PREM	07464650 PREM	/
National 9-P-100 / 10-P-130	07465400 PREM	07465450 PREM	07465500 PREM	07465550 PREM	07465600 PREM	07465650 PREM	07465675 PREM
National 12-P-160	07466400 PREM	07466450 PREM	07466500 PREM	07466550 PREM	07466600 PREM	07466650 PREM	07466700 PREM
National 14-P-220	07545750 PREM	07545800 PREM	07545500 PREM	07545550 PREM	07545600 PREM	07545650 PREM	07545700 PREM
Oilwell A-1400-PT / A-1700-PT	/	07326450 PREM	07326500 PREM	07326550 PREM	07326600 PREM	07326650 PREM	07326700 PREM
Gardner Denver PZ HP PZL 7500 PSI	/	07561450 PREM	07561500 PREM	07561550 PREM	07561600 PREM	07561650 PREM	07561700 PREM
Gardner Denver PXL	/	07561450 PREM	07561500 PREM	07561550 PREM	07561600 PREM	07561650 PREM	07561700 PREM



Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.



◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.



All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.



◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps





All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.





MISSION "L" MODULE FOR PZ-10, PZ-11
FLUID END MODULE & ACCESSORIES
ITEM	OEM PART	MISSION PART	DESCRIPTION	QTY
#	#	#	RETURN TO GARDNER DENVER INDEX
		FEMPZ1011ASSYSW	FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-26)	3
1	8477-1D	FEMPZ1011DISSW	DISCHARGE MODULE, STUDDED (INCLUDES ITEMS 1, 3-11)	3
2	8477-2S	FEMPZ1011SUCSW	SUCTION MODULE, STUDDED - (INCLUDES ITEMS 2, 5, 6, 12 & 24)	3
3	4016-97	OWA17DSUCSSW	STUD, DISCHARGE TO SUCTION MODULE	18
4		EMSF1000PFSN	NUT, DISCHARGE TO SUCTION STUD	18
5	4015-2	OWA17TRSSW	STUD, THREADED RING	72
6		PZ789LCSN	NUT, THREADED RING STUD	72
7	4018-35	PZ1011GPFSSW	STUD, POWER FRAME (SHORT)	24
8		PZ789LCSN	NUT, POWER FRAME STUD	48
9	4018-34	PZ1011LCSSW	STUD, LINER RETAINER (LONG)	24
10	4017-5	PZ789DMSSW	STUD, DISCHARGE MANIFOLD	12
11		PZ789TRSN	NUT, DISCHARGE MANIFOLD STUD	12
12	8488-5	PEP70	DOWELL PIN	6
13	2988	1290344	SEAL, SUCTION TO DISCHARGE MODULE	3
14	2930-08	TOM JORDAN	SEAL, WEAR PLATE	3
15	8477-3	PZ1011WPSW	WEAR PLATE	3
16	6477	PZ1011LC	LINER RETAINER FLANGE	3
17	P-129	07207129	VALVE COVER SEAL	6
18	4018-88	PEP73	VALVE GUIDE SCREW	12
19	4775R	OWA17VGASW	VALVE GUIDE (INCLUDES ITEMS 19, 23)	6
20	4675-1A	OWA17VCASSYSW	VALVE COVER PLUG (INCLUDES ITEM 18-20 & 23)	6
21	4475	OWA17FLGSW	THREADED FLANGE	6
22	4575	OWA17CAPSW	THREADED CAP	6
23	4700-I	PZ789VGI	VALVE GUIDE BUSHING	6
24	4017-77		SUCTION MANIFOLD CAPSCREW	24
25	AJO-449R	077070074701	DISCHARGE MANIFOLD GASKET	3
26	8014G520	078070028300	SUCTION MANIFOLD GASKET	3





SOUTHWEST “NEW STYLE” 8476-4A FLUID END

FOR NATIONAL 12-P-160



FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 5000 P.S.I.	NATIONAL 12-P-160	7-1/2” X 12”





ITEM	P/N	DESCRIPTION	QTY. REQ’D
	8476-4A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1	1376YXX	LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX))	3
2	2930-XX	LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX))	3
3	8476-3	WEARPLATE	3
4	2988	WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE)	6
5	XX-BYY	PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY))	3
6	568-225	PISTON O-RING	3
7	1286-32	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1286-1	SUB ROD	3
10	1286CWY	ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C)	6
10A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
10B	1286CWYFP14	DUAL SPRAY PIPE	3
10C	4020-29	ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER)	12
11	1200G86	PONY ROD	3
12	SEE PAGE	VALVE	6
13	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
14	SEE PAGE	VALVE SPRING	6
15	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
	4476-6A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23)	6
16	4476	THREADED FLANGE	6
17	4597	SCREW GLAND	6
18	4676-6A	PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING)	6
19	P119	HP VALVE COVER PLUG SEAL	6
20	4776R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
21	4700I	VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE)	6
22	4016-98	VALVE GUIDE SCREW	12
23	4015-54	VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT)	72
24	4015-95	POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT)	30
25	4017-65	LINER RETAINER FERRY HEAD CAP SCREW	18
26	6476	LINER RETAINER FLANGE	3
27	6576	LINER RETAINER NUT	3
28	4018-17	SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT)	18
29	4018-19	SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)	24
30	8576-50	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
31	AJO419R	SUCTION MANIFOLD GASKET	3
32	8476-6S	SUCTION MODULE (STUDDED ONLY)	3
33	8476-5D	DISCHARGE MODULE (STUDDED ONLY)	3
34	8488-5	DOWEL PIN	6
		ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47	4018-18	DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER)	16
48	4018-39	DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW	16
49	8376-1	DISCHARGE CONNECTOR	2
50	8376-2	DISCHARGE ADAPTER	2
51	8376-3	BACK-UP RING	4
52	8376-4	DISCHARGE SPACER FLANGE	2
53	2976-3	DISCHARGE SPACER FLANGE SEAL	2
54	2976-1	DISCHARGE CONNECTOR / ADAPTER PACKING	2
55	2976-2	DISCHARGE CONNECTOR / ADAPTER PACKING	4
56	R44D	RING JOINT GASKET	2
57	4017-22	DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT)	16
58	5000-5BFLANGE	BLIND FLANGE 5"	1
59	9070012	PONY ROD SEAL	12
60	80491292	SPLASH GUARD	3
61	8376-50A	COMPLETE STRAINER CROSS	1
62	8376-50	STUDDED STRAINER CROSS ONLY	1





NATIONAL				12-P-160					7-1/4 x 12
	LINERS		LINER GASKETS		PISTONS				PISTON REPLACEMENT RUBBERS
SIZE	CERAMIC	SUPREME	RUBBER	URETHANE	WHITE LIGHTNING	SUPREME	GREEN DUO	FLEXLIP	WHITE LIGHTNING	SUPREME
4"						012180170	1502052	011102926		015180102
4 1/4"
4 1/2"					012180197	012180196	1502054	011102928	015180145	015180144
4 3/4"
5"	07466500	05466500*	07923265		012180254	012180253	1502056	011103033	015180186	015180185
5 1/4"
5 1/2"	07466550	05466550*	07923263		012180338	012180337	1502058	011103132	015180228	015180227
5 3/4"
6"	07466600	05466600*	07923261		012180395	012180394	1502060	011103629	015180269	015180268
6 1/4"		05466625*	07923283			012180493	1502061	011103322	015180285	015180284
6 1/2"	07466650	05466650*	07923284		012180536	012180535	1502062	011103827	015180301	015180300
6 3/4"
7"	07466700	05466700*	07923285		012180619	012180618	1502064	011103926	015180343	015180342
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS						GASKETS
	ROUGHNECK	ROUGHNECK HP	SUPREME	FKN		OEM	URETHANE	L STYLE	URETHANE
VALVE-White Lightning Insert	9700368	9700356	060155042	N/A	Valve Cover	07916771	07916467	07207119
VALVE-Urethane Insert	9700250	9700354	060155041	1560985	Cylinder Head
VALVE-Rubber Insert	9700293	N/A	060155033	1560984	Plug Seal
SEAT	9702539	9702539	061102505	1561440	HYDRA-LOK		OEM		MISSION L
SPRING	8201684	8201684	055413421	1560702	Complete Assembly		800500100		800500100
SPRING-Stainless			055402945
INSERT-Urethane	9705228	9700360	062400338	1560557	MODULES		OEM		MISSION L
INSERT-Rubber	9705244	N/A	062400239	1560558	Complete Assembly		FEMNAT12PCA		FEM12PASSYSWNS
SEAT PULLER ASSEMBLIES					Discharge Module Studded		FEMNATDIS12P		FEM12PDISSWNS
Puller Assembly 1	M 1060	M 1060	M 1060	M 1060	Suction Module Studded		FEMNATSUC12P		FEM12PSUCSWNS
Puller Head	8401985	8401985	181235300	M 1092	One Piece OEM Style Studded









NATIONAL			14-P-200 /14-P-220						9 x 14
	LINERS		LINER GASKETS		PISTONS				PISTON REPLACEMENT RUBBERS
SIZE	CERAMIC	SUPREME	RUBBER	URETHANE	WHITE LIGHTNING	SUPREME	GREEN DUO	FLEXLIP	WHITE LIGHTNING	SUPREME
4"						012180170	1502052	011102926		015180102
4 1/4"
4 1/2"					012180197	012180196	1502054	011102928	015180145	015180144
4 3/4"
5"	07545500	05545500	07923265		012180254	012180253	1502056	011103033	015180186	015180185
5 1/4"
5 1/2"	07545550	05545550HP	07923263		012180338	012180337	1502058	011103132	015180228	015180227
5 3/4"
6"	07545600	05545600HP	07923261		012180395	012180394	1502060	011103629	015180269	015180268
6 1/4"						012180493	1502061	011103322	015180285	015180284
6 1/2"	07545650	05545650HP	07923284		012180536	012180535	1502062	011103827	015180301	015180300
6 3/4"
7"	07545700	05545700HP	07923285		012180619	012180618	1502064	011103926	015180343	015180342
7 1/4"
7 1/2"	07545750	05545750HP	1540155		012180685	012180683			015180369	015180367
7 3/4"
8"	07545800	05545800HP	1540157			012180725
VALVES, SEATS, SPRINGS & INSERTS						GASKETS
	ROUGHNECK	ROUGHNECK HP	SUPREME	FKN		OEM	URETHANE	L STYLE	URETHANE
VALVE-White Lightning Insert	9700369			N/A	Valve Cover	1540163
VALVE-Urethane Insert	9700382		060135555	1560965	Cylinder Head
VALVE-Rubber Insert	N/A		060110053	1560964	Plug Seal
SEAT			061100954	1561410	HYDRA-LOK		OEM		MISSION L
SPRING	055413256		055409007	1560703	Complete Assembly		800500107
SPRING-Stainless			8201617
INSERT-Urethane	9705236		062400536	1560567	MODULES		OEM		MISSION L
INSERT-Rubber	N/A		062400437	1560705	Complete Assembly
SEAT PULLER ASSEMBLIES					Discharge Module Studded				FEM14PDISSW
Puller Assembly 1	M 1060	M 1060	M 1060	M 1060	Suction Module Studded				FEM14PSUCSW
Puller Head	8402256		181235706	M 1087	One Piece OEM Style Studded
Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod	Quick Connect	Self Aligning Rod Assembly	Pony Rod Baffle	Piston Rod	Sub Rod	Stud	Rod Nut	Clamp	Covered Rod Nut	Pony Rod Seal
		1195220	1292194	1295147	1295146		005402052		CRN-1









Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900





ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
	8404-25A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1	1376YXX	LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2930-XX	LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU)	3
3	8490-28	LINER WEARPLATE (WITH 568-443 O-RING)	3
4	2988	WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U)	6

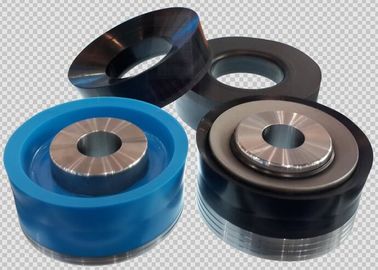

5	XX-BYY	PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY)	3
6	568-225	PISTON SEAL	3
7	6278-25	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD NUT	3
9	1290-2	PISTON ROD CONNECTING STUD	3
10	6284-1	SUB ROD	3
11	6274CWY	ROD CLAMP (WITH WATER JACKET)	3
11A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
11B	1286CWYFP	ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE	3
11C	4020-29	BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	1200G74	PONY ROD	3
13	SEE PAGE	VALVE	6
14	SEE PAGE	VALVE INSERT	6
15	SEE PAGE	VALVE SPRING	6
16	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG)	1
17	4488-25	VALVE COVER FLANGE	6
18	4588-25	SCREW GLAND	6
19	4690-25A	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23	6
20	P115	HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U)	6
21	4788-25R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
22	4700I	VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU)	6
23	4018-18	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT)	72



FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 P.S.I.	BOMCO F-1600	7 ½” X 12”



ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
25	4017-33	POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT)	30
26	568-443	WEARPLATE 'O' RING	3
27	6490-25	LINER RETAINER FLANGE	3
28	4019-51	LINER RETAINER CAPSCREW	36
29	6590-25	LINER RETAINER NUT	3
30	4019-61	SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT)	18
31	4018-19	SUCTION MANIFOLD CAPSCREW	18
32	8590-6	SUCTION MANIFOLD	1
33	568-442	SUCTION MANIFOLD 'O' RING	3
34	8404-26	SUCTION MODULE	3
35	8404-27	DISCHARGE MODULE	3
36	8488-5	DOWEL PIN	6
37	8376-25MOD	DISCHARGE MANIFOLD	1
38	4019-60	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT)	18
39	2988	DISCHARGE MANIFOLD SEAL	3
40	6490-25P	LINER RETAINER PULLER	1
41	LW875	LOCKWASHER 7/8	18
42	LW500	LOCKWASHER ½	12





OUTHWEST 8488-1A FLUID END FOR OILWELL A-1700-PT/A-1400-PT

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 5000 PSI	A-1700-PT / A-1400-PT	7-1/2” X 12” / 10”



ITEM	P/ N	DESCRIPTION	QTY. REQ’D
	8488-1A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39)
1	1388-XX	LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2974-XX	LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)	3
3	8488-4	WEARPLATE	3
4	2974-1	WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U)	6
5	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
5A	2932	PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE)	3
6	568-225	PISTON O-RING	3
7	1290HW25	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1290W2	PISTON ROD CONNECTING STUD (WITH WATER HOLE)	3
10	1290HW1	SUB ROD	3
11	1290CW	ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C)	3
11A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
11B	1200120	PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END)	3
11C	4018-94	ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	1200G90	PONY ROD	3
13		VALVE	6
14		VALVE INSERT (IF REQUIRED)	6
15		VALVE SPRING	6
16		VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS)	1
	4475-1A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24)
17	4475	THREADED FLANGE	6
18	4575	SCREW GLAND	6
19	4675-1A	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS)	6
20	P129	HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U)	6
21	4775R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
22	4700I	VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU)	6
23	4018-88	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	72
25	4016-96	POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT)	12
26	4017-4	LINER RETAINER FERRY HEAD CAP SCREW	24
27	6488-1	LINER RETAINER FLANGE	3
28	6588-1	LINER RETAINER NUT (FOR LARGE BODY LINER)	3
28A	8488-7	LINER RETAINER SET SCREW	9
29	4016-97	SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT)	18
30	4018-70	SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER)	24
31	8588-50	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
32	80102003	SUCTION MANIFOLD GASKET	3
33	8488-2S	SUCTION MODULE (STUDDED ONLY)	3
34	8488-1D	DISCHARGE MODULE (STUDDED ONLY)	3







Part Inquiry for LEWCO-W2215 Cameron Mud Pump
Item	Part Number	Description	Qty.	Unit
1	ES331	LINER WASH PUMP PACKING	18	Ea
2	EG199	API ring gasket (BX-169SS)	27	Ea
3	EG197	API ring gasket (BX-152SS)	3	Ea
4	EG163	suction manifold gasket	15	Ea
5	B105281	suction dampener/desurger	3	Ea
6	108-0609	stroke counter	12	Ea
7	108-1054	heat exchanger-liner wash	3	Ea
8	108-1055	heat exchanger-lube oil	3	Ea
9	108-0764	low presure switch	3	Ea
10	ES452	low presure switch	3	Ea
11	108-1324	low presure switch	3	Ea
12	108-1225	v-belt	6	Ea
13	EG195	mud pressure gauge	3	Ea
14	EG170	crank case cover gasket	888	inch
15	A162209	inspection cover gasket	3	Ea
16	A164103	main bearing cover gasket	6	Ea
17	C164404	cross head cover gasket	6	Ea
18	A164185	inspection cover gasket (large)	3	Ea
19	108-1095	breather cap	3	Ea
20	A164191	stroke counter bracket gasket	3	Ea
21	B164202	eccentric bearing	9	Ea
22	EB119	main (spherical roller) bearing	6	Ea
23	B164206	main bearing shim set	6	Ea
24	A167244	eccentric bearing shims	6	Ea
25	EB120	pinion (cylinderical roller) bearing	6	Ea
26	ES194	oil seal	6	Ea
27	A164505	pinion bearing carrier gasket	6	Ea
28	B164402	wrist pin bearing	6	Ea
29	C164323	piston rod clamp	18	Ea
30	B164407	baffle disc	9	Ea
31	A164453	crosshead shim set	9	Ea
32	B164425	diaphragm plate gasket	9	Ea
33	ES211	stuffing box seal	36	Ea
34	A164415	stuffing box gasket	9	Ea
35	E0175	o-ring ( 2/343)	9	Ea
36	E0301	o-ring ( 2/442)	9	Ea
37	A164705	valve cover seal	18	Ea
38	A167708	valve guide bushing	36	Ea
39	A167702	wear plate seal	18	Ea
40	816406	wear plate seal	9	Ea
41	EV116	valve spring	36	Ea
42	EV190	valve seat	36	Ea
43	EV178	valve	36	Ea
44	EL238	liner (5")	36	Ea
45	EL220	liner (5 1/2")	36	Ea
46	EL221	liner (6")	36	Ea
47	EL222	liner (6 1/2")	36	Ea
48	EL223	liner (7")	36	Ea
49	EL224	liner (7 1/2")	36	Ea
50	EL240	liner (8")	36	Ea
51	EP159	piston (5")	36	Ea
52	EP160	piston (5 1/2")	36	Ea
53	EP117	piston (6")	36	Ea
54	EP118	piston (6 1/2")	36	Ea
55	EP150	piston (7")	36	Ea
56	EP151	piston (7 1/2")	36	Ea
57	EP152	piston (8")	36	Ea
58	EP165	piston (5")	36	Ea
59	EP114	piston rubber(5 1/2")	36	Ea
60	EP115	piston rubber (6")	36	Ea
61	EP116	piston rubber (6 1/2")	36	Ea
62	EP147	piston rubber (7")	36	Ea
63	EP148	piston rubber(7 1/2")	36	Ea
64	EP149	piston rubber (8")	12	Ea
65	EG132	liner gasket (5")	36	Ea
66	EG138	liner gasket (5 1/2")	12	Ea
67	EG139	liner gasket(6")	36	Ea
68	EG140	liner gasket(6 1/2")	36	Ea
69	EG136	liner gasket(7")	36	Ea
70	EG142	liner gasket (7 1/2")	36	Ea
71	EG144	liner gasket (8")	12	Ea
72	EP194	lube oil pump	3	Ea
73	108-0054	relief valve, 15 psi	3	Ea
74	108-1088	relief valve, 65 psi	3	Ea
75	108-0135	check valve	3	Ea
76	108-1257	flow switch	6	Ea
77	EG105	pressure gauge, 0-60 psi	6	Ea
78	EG145	pressure gauge	6	Ea
79	EV215	charging valve	6	Ea
80	ES175	stud 2.25 8UN 8.50 B7	36	Ea
81	EM132	heavy hex nut 8UN A194-2H	36	Ea
82	002-1666	hex bolt 1.000 8NC 2.00 G8	3	Ea
83	002-1544	lock washer 1.000"	3	Ea
84	108-0620	stabilizer plate L-2010	3	Ea
85	108-0619	stabilizer L-20	3	Ea
86	EN137	havy hex nut 1.125 7NC A194-2H	24	Ea
87	EC181	bottom flange cap screw	24	Ea
88	108-0656	seal 429 BUNA 70	3	Ea
89	ES174	stud 1.125 7NC 6.5 B7	24	Ea
90	EO190	charging valve o-ring	6	Ea
91	108-0065	ring gasket BX-155S	3	Ea
92	B310066	charging valve hose assembly	3	Ea
93	108-0618	buna-N bladder ( standard)	6	Ea
94	108-1194	hydrogenated nitrile bladder (high temperature mud)	6	Ea
95	108-1195	Urthane bladder ( oil based mud)	6	Ea
