Home ProductsMud Pump Module

TSC IDECO T800/1000 mud pump fluid end module for IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners

Certification
Good quality Mud Pump Zirconia Liners for sales
I'm Online Chat Now

TSC IDECO T800/1000 mud pump fluid end module for IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners

China TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier
TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners supplier

Large Image :  TSC IDECO T800/1000 mud pump fluid end module for IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners

Product Details:

Place of Origin: China
Brand Name: TSC, NATIONAL, OILWELL, GARDNER DNEVER, DRILLMEC
Certification: API
Model Number: T800/1000 MUD PUMP, IDECO

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitablt to shipment by sea and air
Delivery Time: Some in stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric,diesel
Pressure: High Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump Application: Mining,oil
Structure: Piston Pump Fuel: Diesel
Standard Or Nonstandard: Standard Theory: Centrifugal Pump,Diaphragm Pump
Type: Mud Pump Weight: 100-3700kg
Color: Blue,red And So On,Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy,Stainless Steel Aluminum Plastic Etc
Warranty: 12 Months Product Name: Mud Pump
Head: 10m Mud Suction Pump Oem: Can Be Accept,Applicable
Condition: New

TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners

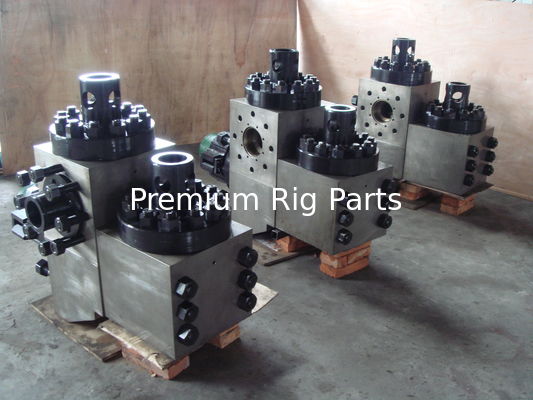

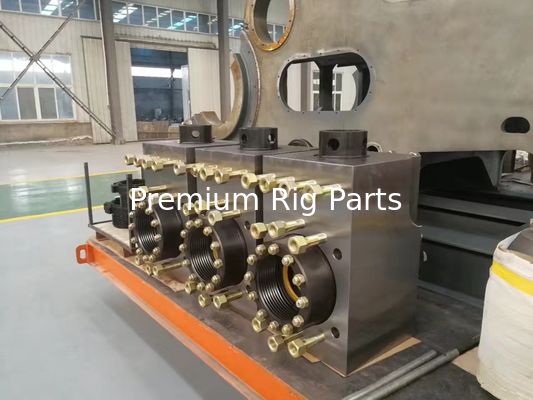

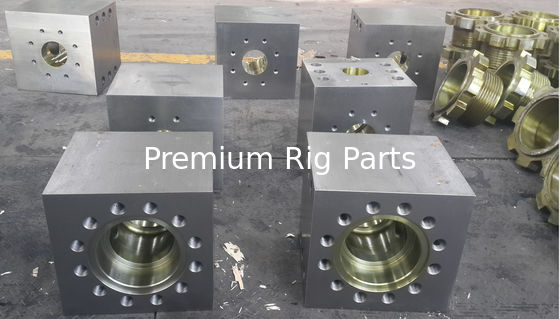

TSC Fluid end module of mud pumps:



Mud Pump Models Module with Stud Mud Pump Models Module with Stud



Continental Emsco F-800 / 1000 6999-0086-02 National 12-P-160 Discharge 1292240
Continental Emsco FB-1300 / 1600 6316-0357-00 National 12-P-160 Suction 1292243
Gardner Denver TEE 200PJH029B National 14-P-220 Discharge 1295601
Gardner Denver PAH 200PJH029B National 14-P-220 Suction 1295604
Gardner Denver PZ-7/8/9 205PZL029D Module, WF400 TSC-SP-WF400-01
Gardner Denver PZ-10/11 202PZL029B Module, WF700 TSC-SP-WF700-01
Ideco T-800 / 1000 551-458 Module, WF1300B TSC-SP-WF1300-01
Ideco T-1000 / 1300 551-122-01 Module, WF1300C TSC-SP-WF1300-02
Oilwell A-850-PT / A-1100-PT 10300181 Module, WF1300BH TSC-SP-WF1300-03
Oilwell A-1400-PT / A-1700-PT 10300181 Module, WF1600A TSC-SP-WF700-01
National 8-P-80 Discarge 1291280 Module, WF1600B TSC-SP-WF1600-01
National 8-P-80 Suction 1290338 Module, WF1600BH TSC-SP-WF1600-02
National 9-P-100 Discharge 1293240 Module, WF1600L TSC-SP-WF1600-03
National 9-P-100 Suction 1290338 Module, WF1600LH TSC-SP-WF1600-05
National 10-P-130 Discharge 1290335 Module, WF1600S TSC-SP-WF1600-06
National 10-P-130 Suction 1290338 Module, WF2000 TSC-SP-WF2000-01
    Module, WF2200 TSC-SP-WF2200-01

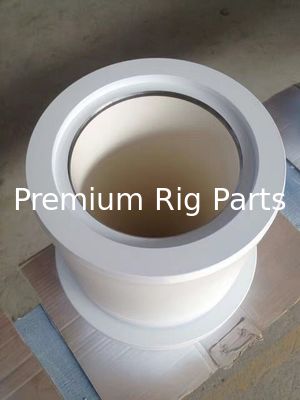

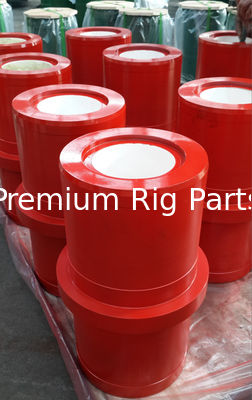

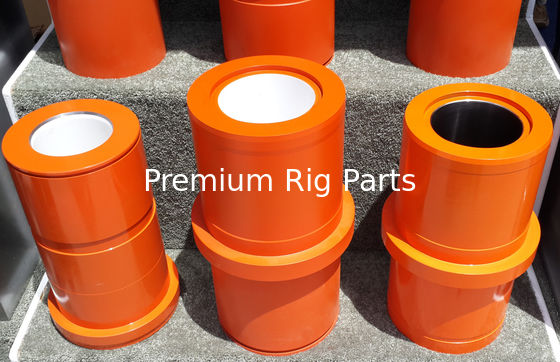

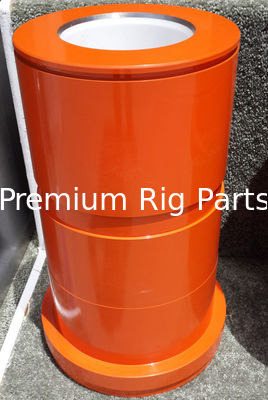

TSC mud pump liners are designed and manufactured to meet or exceed original equipment specification and API standards for almost all types of mud pumps in use today.



TSC Workforce (WF) series mud pumps are developed to offer superior performance for a variety of drilling operations and work environments. TSC Mud pump and parts for model:



WF1300 triplex Pump,WF1300BH,WF1300,WF-1300C,WF1600A,WF1600B,WF1600BH,WF1600CH,WF1600L,WF1600LH,WF2000,WF2200.WF400,WF700.



www.t-s-c.com



TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners



All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:

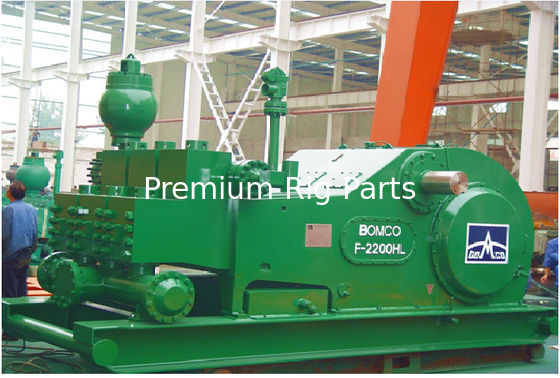

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners



Push Rod Subassembly
L-2 Spacer
  Loc Qty Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer 1 3 316.21066.
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 2 3 8.34020.
Tie Rod, Push Rod, L-Spacer, HT-400TM 3 3 316.25166.
Push Rod, Two Piece, L-Spacer, HT-400TM 4 3 316.21065.
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM 5 3 316.10012.
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM 6 3 316.10013.
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 7 3 70.33739.
Seal, Push Rod, L-Spacer, HT-400TM 8 6 316.10014.

Discharge Valve Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover, HT-400TM 1 3 316.2102. 316.2202. 316.2202. 316.2502. 316.2502.
Cover, Discharge, Double Guided Valve, HT-400TM 2 6 316.2107. 316.23091. 316.23091. 316.24044 316.24044
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM 3 3 316.21052. 316.22052. 316.22052. 316.25052 316.25052
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM 4 6 316.21051. 316.22051. 316.22051. 316.25051. 316.25051.
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass 5 6 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 6 6 316.22004. 316.22004. 316.22004. 316.22006 316.22006
Spring, Valve, HT-400TM, 36lb/in 7 6 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 6 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 6 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 6 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 6 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 6 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 6 316.21096 316.21096 316.23953 316.24043 316.24043

Suction Valve Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast 1 3 316.22977. 316.22977. 316.23034 316.25840. 316.25840.
Boot, Suction and Stop, HT-400TM 2 6 316.25233. 316.25233. 316.25233 316.25233. 316.25233.
Spring, Lock, HT-400 3 3 316.2125. 316.2125. 316.22252. 316.22253. 316.22253.
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass 4 6 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM 5 6 316.22004. 316.22004. 316.22004. 316.22006. 316.22006.
Spring, Valve, HT-400TM, 36lb/in 7 6 316.2108. 316.2108. 316.2308. 316.27259 316.27259
Valve, HT-400, Frac 8 6 316.21007. 316.21007. 316.22048. 316.24027 316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 9 6 316.21048. 316.21048. 316.22046. 316.24026 316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 9 6 316.21006. 316.21006. 316.22049. 316.24037 316.24037
Seat Valve, HT-400TM, Tapered 10 6 316.21008. 316.21008. 316.210047. 316.24024 316.24024
O-ring, 90 Duro 11 6 8.34037. 8.34037. 8.34041. 8.34045 8.34045
Retainer, Guide Bushing, HT400 12 6 316.21096 316.21096 316.23953 316.24043 316.24043


Plunger/cylender Head Cover Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover HT-400TM 1 6 316.2102. 316.2102. 316.2202. 316.2502. 316.2506.
Cover, Cylinder Head, HT-400TM 2 3 316.2107. 316.2107. 316.2207. 316.2407. 316.2507.
Gasket, 4 Discharge Valve & Cylinder Head Cover 3 6 316.21052. 316.21052. 316.22052. 316.25052. 316.25074.
Ring, Spacer, Discharge Valve & Cylinder Head Cover 4 6 316.21051. 316.21051. 316.22051. 316.25051. 316.25073.
Nose, Plunger, HT-400TM 5 3 316.2131. 316.2231. 316.2331. 316.2331. 316.2331.
Seal, Plunger Nose Assembly, HT-400TM 6 3 316.2130. 316.2230. 316.2330. 316.2330. 316.2330.
Plunger, Hard Surface, L-Spacer, HT-400TM 7 3 316.21026. 316.22294. 316.23085. 316.24296. 316.25162.
Tie Rod, Plunger, HT-400TM 8 3 316.21028. 316.21028. 316.21028. 316.25165. 316.25165.
Adapter, Pushrod, HT-400TM, Two Piece Nose 9 3 316.21059. 316.22302. 316.23089. 316.24336. 316.25172.


Fluid-end/flange discharge section subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch
Flange, discharge, HT-400TM, BLANK 1 1   316.22980. 316.22980.
Flange, discharge, HT-400TM, CURVED, Rright Hand 1a 1 316.21676. 316.23019. 316.23019.
Flange, discharge, HT-400TM, CURVED, Left Hand 1b 1 316.21677. 316.23017. 316.23017.
Seal, Discharge passage,HT-400TM 2 6 315.27117. 316.2547. 316.2547.
Nut, 1-14NF, Internal Wrenching, 1.03 TL 3 4 316.11621. 316.11621. 316.11621.
Stud, HT-400TM Fluid End To Thick Discharge Flange 4 4 316.23013.   316.23013.
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC 5 1 316.27488. 316.27488. 316.27488.
Nut, Top Tie Bolt, HT-400TM, TC 6 2 316.25501. 316.25501. 316.25501.
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, 7 2 316.22493. 316.22493. 316.22493.
Spacer, Inner, Discharge Passage Seal,HT-400TM 8 2 316.2145. 316.2545. 316.2545.
Fluid End Section, HT-400TM PUMP,Not Sleeved 9 3 316.21951. 316.22982. 316.23951.
Nut, Elastic, Stop,3/4-in.,16 NF 10 2 70.32760.   70.32760.

Packing Subassembly
      Plunger Size
  Loc Qty 3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Adapter, Header 1 3 316.21503 316.22503 316.23503 316.24503 316.27503
Ring Header 2 3 316.21501 316.22501 316.23501 316.24501 316.27501
Packign Set, 4-in.x 5-in, x 1/2-in. Stock, 3 Rings, Hard, Acid Service 3 1 316.21525 316.22525 316.23525 316.24525 316.27525
Ring, Backup, Packing, 4-in x 5-in. 4 3 316.21393 316.22393 316.23393 316.24393 316.27393
Carrier, Seal and Packing, 4-in 5 3 316.21396 316.22396 316.23396 316.24396 316.27396
Seal, Lube, Packing, WQ, 4-in x 4-1/2-in. x 9/16-in 6 3 316.21395 316.22395 316.23395 316.24395 316.27395
O-Ring, 90D, 5-in. x 4 3/4-in.x 1/8-in 7 3 8.34040 8.34045 8.34049 8.34053 8.34058



TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump linersTSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump linersTSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.







1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts

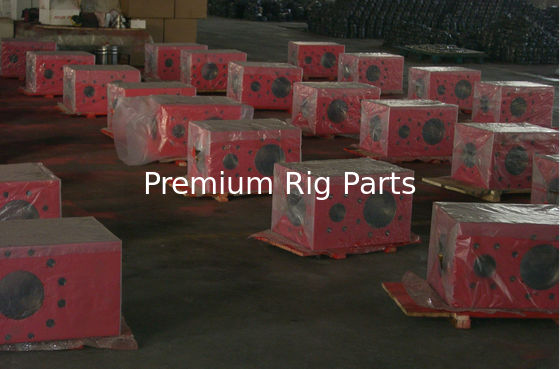

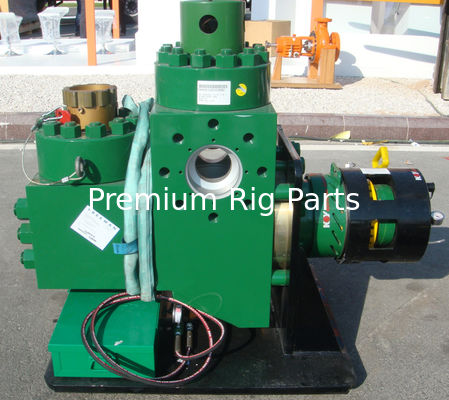

TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners

IDECO T-800, T-1000 FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
    FEMIDT1000CA ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-18) 3
1 551-458 FEMIDT1000 MODULE, STUDDED FLUID END (INCLUDES ITEMS 1-7) 3
2 551-410-01 IDT800PFS STUD, POWER FRAME 24
3 IN-416 0-7601-0630-24 NUT,POWER FRAME STUD 24
4 551-410-02 IDT800DMS STUD, DISCHARGE MANIFOLD 12
5 IN-416 0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
6 551-410-03 IDT800TRS STUD, THREADED RING 48
7 IN-416 0-7601-0630-24 NUT, THREADED RING STUD 48
8 551-405-07 IDT800LVG ASSY, LOWER VALVE GUIDE (INCLUDES # 18 VALVE GUIDE BUSHING) 3
9 551-422-04 IDT800VGR RETAINER, LOWER VALVE GUIDE 3
*10 BMT-1669-63-09 7916783 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 9
11 551-422-02 IDT800CYHPLG PLUG, CYLINDER HEAD 3
12 551-405-03 IDT800FLG RING, THREADED 9
13 551-422-03 IDT800VC COVER, VALVE 6
14 551-405-04 IDT800CAP PLUG, VALVE COVER 3
15 551-405-05 IDT800LAN NUT, LINER ADAPTER 3
16 IO-548 99609339 GASKET, DISCHARGE MANIFOLD 3
17 IO-521 99609447 GASKET, SUCTION MANIFOLD 3
18 551-405-09 IDVGI BUSHING, VALVE GUIDE 6
19 IC-1872   CAPSCREW, SUCTION MANIFOLD (NOT SHOWN IN DRAWING) 24





TSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump linersTSC IDECO T800/1000 mud pump fluid end module for  IDECO mud pump, T500 mud pump, T1300 mud pump, T1600 mud pump liners





IDECO T-1300, T-1600 FLUID END MODULE & ACCESSORIES

ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
    FEMIDT1316CA ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-19) 3
1 551-122-01 FEMIDT1316 MODULE, FLUID END STUDDED (INCLUDES ITEMS 1-7, 19) 3
2 551-110-01 IDT1316PFS STUD, POWER FRAME 24
3 IN-415 0-7601-0630-17 NUT,POWER FRAME STUD 24
4 551-110-02 IDT1316DMS STUD, DISCHARGE MANIFOLD 12
5 IN-416 0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
6 551-110-03 IDT1316TRS STUD, THREADED RING 48
7 IN-415 0-7601-0630-17 NUT, THREADED RING STUD 48
8 551-105-07 IDT1316LVG ASSEMBLY, LOWER VALVE GUIDE (INCLUDES # 18 VALVE GUIDE BUSHING) 3
9 551-105-08 IDT1316VGR RETAINER, LOWER VALVE GUIDE 3
*10 BMT-1669-63-08 7916782 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 9
11 551-122-02 IDT1316CYHPLG PLUG, CYLINDER HEAD 3
12 551-122-02 IDT1316VC COVER, VALVE (INCLUDES # 18 VALVE GUIDE BUSHING) 3
13 551-105-03 IDT1316FLG RING, THREADED 9
14 551-105-04 IDT1316CAP CAP, THREADED 6
15 551-105-05 IDT1316LAN NUT, LINER ADAPTER 3
16 IO-548 99609339 GASKET, DISCHARGE MANIFOLD 3
17 IO-507 99609447 GASKET, SUCTION MANIFOLD 3
18 551-105-09 IDVGI BUSHING, VALVE GUIDE 6
19 IC-1872 75635692 CAPSCREW, SUCTION MANIFOLD (NOT SHOWN IN DRAWING) 24











Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)
