Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP

  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
  • Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP
Place of Origin CHINA
Brand Name Southwest, NATIONAL OILWELL, MISSION, Drillmec, Ideco, Gardner Denver, TSC
Certification API
Model Number 12P160 7500 PSI; 14P220, W2214, W2215, A1700PT
Minimum Order Quantity 1 SET
Price 1 to 3000 usd
Packaging Details Suotable to shipment by sea and air
Delivery Time Quantity in stock
Payment Terms L/C, T/T
Supply Ability 20000 sets per month
Product Details
Usage Oil,Water,drill Rig Power Electric
Pressure High Pressure Structure Piston Pump
Fuel Diesel Standard Or Nonstandard Standard
Type Mud Pump Color Red And So On
Material Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy Warranty 12 Months
Product Name Mud Pump Oem Can Be Accept
Condition New
Leave a Message
Product Description

Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 0

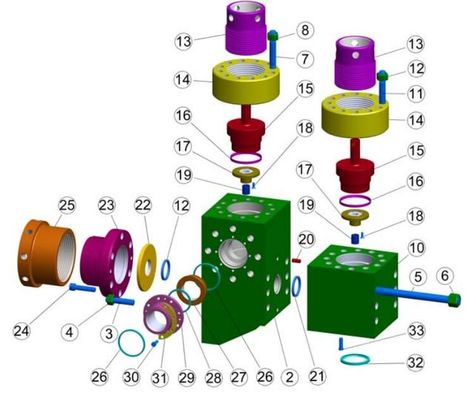

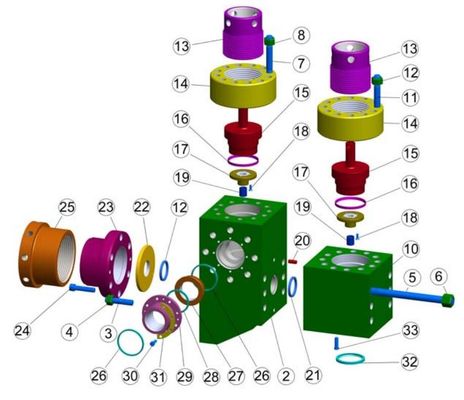

MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160





MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160       QTY PER PUMP

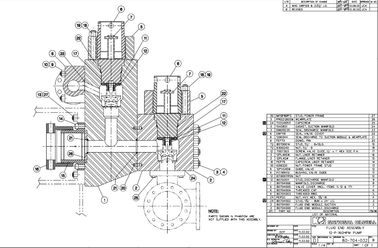

FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
    FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
1 8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
2 8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD 72
15 4676-6A 12PVCASSYSWNS PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-119 07207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
29 8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
30 4018-39 7006685 CAPSCREW, SOCKET HEAD 1 1/2" X 3" 16


Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 1

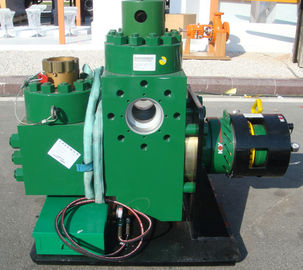

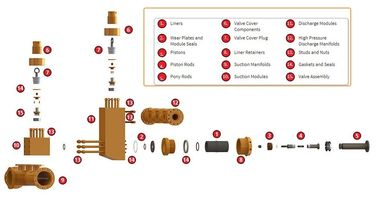

Mud Pump Modules



Premium's high-strength, triple reduction, forged steel triplex fluid end modules are made from 4130 alloy steel, heat treated for a long working life, machined to perfection and packaged for delivery with anti-corrosion protection. The precision-made jewelry, like the exterior finish, reflects the superior quality inside.



Features:

Completely interchangeable with OEM

Premium forged alloy steel

Made on CNC boring mills

Strict computer controlled heat treat procedures

Rigid inspection

Rated for all drilling operations up to 7,500 psi



Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 2



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200



Romania: 3PN-1000, 3PN-1600, 3PN-2000



Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 3

Southwest Mud Pumps







Mud Pump Models Module with Stud



Southwest 12-P-160 Discharge 8476-5D
Southwest 12-P-160 Suction 8476-6S
Southwest FB1600 Discharge 8490-1D
Southwest FB1600 Suction 8490-2S
Southwest PZ10 Discharge 8477-1D
Southwest PZ10 Suction 8477-2S
Southwest A1700PT Discharge 8488-1D
Southwest A1700PT Suction 8488-2S
Discharge Module 12P160 7500 PSI 8476-27D
Suction Module 12P160 7500 PSI 8476-26S
Discharge Module PZ10/11 7500 PSI 8477-27
Suction Module PZ10/11 7500 PSI 8477-26
Discharge Module 14P220 7500 PSI 8482-26
Suction Module 14P220 7500 PSI 8482-27
Discharge Module LEWCO W-2214 8482-27DLEW
Suction Module LEWCO W-2214 8482-26SLEW
Discharge Module LEWCO W-2215 8482-27DLEW
Suction Module LEWCO W-2215 8482-26SLEW
Discharge Module A-1700-PT/A-1400-PT/ HD-1700-PT/HD-1400-PT 7500 PSI 8488-27
Suction Module A-1700-PT/A-1400-PT/ HD-1700-PT/HD-1400-PT 7500 PSI 8488-26
Discharge Module NATIONAL 9-P-100 8495-1D
Suction Module NATIONAL 9-P-100 8467-2S

Discharge Module

LEWCO 12-P-WH 1612

 8476-5D
Suction Module LEWCO 12-P-WH 1612 8476-6S
Module PZLB (PZ11) & PXL 8477-75
Discharge Module BOMCO F1600 7500 PSI 8404-27
Suction Module BOMCO F1600 7500 PSI 8404-26



Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 4

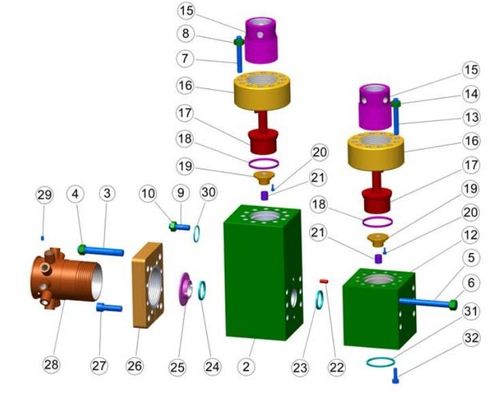

SOUTHWEST 8490-2A

Emsco FB1300/1600

ITEM P/ N DESCRIPTION QTY
  8490-2A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) 3
1 6390YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) 3
2 AJO428S LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) 3
3 8490-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U Also available in urethane) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286-CWYFP14 PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) 3
11C 4020-29 BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
  4475-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) 6
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-2A PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) 6
20 P129 HP VALVE COVER PLUG SEAL (P129U Also available in urethane) 6
21 4775-2R VALVE GUIDE (complete with bushing #4700I) 6
22 4700I VALVE GUIDE BUSHING 6
23 4016-99 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) 72
25 4016-9 POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) 18
27 6490-3 LINER RETAINER FLANGE 3
28 8422-3 LINER RETAINER PILOT RING 3
29 6590-1 LINER RETAINER NUT 3
30 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 18
32 8590-6 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
33 568-442 SUCTION MANIFOLD SEAL 3
34 8490-2S SUCTION MODULE (STUDDED ONLY) 3
35 8490-1D DISCHARGE MODULE (STUDDED ONLY) 3
36 8488-5 DOWEL PIN 6
37 8390-50 DISCHARGE MANIFOLD 1
38 568-343 DISCHARGE MANIFOLD SEAL 3
39 4017-46 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) 12



Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 5



GARDNER DENVER   PZ-7       7 x 7
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME     BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"   05493091     MB40-15 1502052   012180170   015180102
4 1/4"
4 1/2"   05493089     MB44-15 1502054 012180197 012180196 015180145 015180144
4 3/4"
5" 07493087 05493087 07916692 114248503 MB50-15 1502056 012180254 012180253 015180186 015180185
5 1/4"
5 1/2" 07493085 05493085 07916692 114248503 MB54-15 1502058 012180338 012180337 015180228 015180227
5 3/4"
6" 07493083 05493083 07916692 114248503 MB60-15 1502060 012180395 012180394 015180269 015180268
6 1/4"           1502061   012180493 015180285 015180284
6 1/2" 07493081 05493081 07916692 114248503 MB64-15 1502062 012180536 012180535 015180301 015180300
6 3/4"
7"         MB70-15 1502064 012180619 012180618 015180343 015180342

POLYURETHANE LINER GASKET 07211025
WHITE LIGHTNING LINER GASKET 07213025

* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 060155042   Valve Cover 07916749 07916449 07207129 07211007 07213007
VALVE-Urethane Insert 9700250 9700354 060155041   Cylinder Head 07916749 07916449
VALVE-Rubber Insert 9700293 N/A 060155033   Wear Plate     07932009
SEAT 9702504 9702504 061101507   HYDRA-LOK OEM MISSION L
SPRING 8201650 8201650 055413371   Complete Assembly
SPRING-Stainless 055413372 055413372 055402952
INSERT-Urethane 9705228 PFO7I 062400338   MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239   Complete Assembly FEMPZ789CA FEMPZ9ASSYSW
SEAT PULLER ASSEMBLIES Discharge Module Studded   FEMPZ9DISSW
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded   FEMPZ9SUCSW
Puller Head 8401985 8401985 181235300   One Piece OEM Style Studded FEMPZ789

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assy   Piston Rod Sub Rod Pony Rod Baffle Rod Nut Clamp Covered Rod Nut Pony Rod Seal
07913087   1095031 CLAMP 2404427     005402052 PP601022 CRN-1 07931171
07913063   1095036 THREADED 1551714     005402052   CRN-1 07931171





Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 5



IDECO     T-1300       7-1/2 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME     BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"         MB40-15 1502052   012180170   015180102
4 1/4"
4 1/2" 07507450 05507450 07916782 07916082 MB44-15 1502054 012180197 012180196 015180145 015180144
4 3/4"
5" 07507500 05507500 07916782 07916082 MB50-15 1502056 012180254 012180253 015180186 015180185
5 1/4"
5 1/2" 07507550 05507550 07916782 07916082 MB54-15 1502058 012180338 012180337 015180228 015180227
5 3/4"
6" 07507600 05507600 07916782 07916082 MB60-15 1502060 012180395 012180394 015180269 015180268
6 1/4"   05507625 07916782 07916082   1502061   012180493 015180285 015180284
6 1/2" 07507650 05507650 07916782 07916082 MB64-15 1502062 012180536 012180535 015180301 015180300
6 3/4"
7" 07507700 05507700 07916782 07916082 MB70-15 1502064 012180619 012180618 015180343 015180342



VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 060155042   Valve Cover 07916782 07916082 07207129 07211007 07213007
VALVE-Urethane Insert 9700250 9700354 060155041   Cylinder Head 07916782 07916082
VALVE-Rubber Insert 9700293 N/A 060155033   Wear Plate     1290344 07211023 07213023
SEAT 9702504 9702504 061101507   HYDRA-LOK OEM MISSION L
SPRING 8201684 8201684 055413421   Complete Assembly
SPRING-Stainless     055402945
INSERT-Urethane 9705228 PFO7I 062400338   MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239   Complete Assembly FEMIDT1316CA FEMT1316ASSYSW
SEAT PULLER ASSEMBLIES Discharge Module Studded   FEMT1316DISSW
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded   FEMT1316SUCSW
Puller Head 8401985 8401985 181235300   One Piece OEM Style Studded FEMIDT1316

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Rod Type Self Aligning Rod Assy Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Covered Rod Nut Pony Rod Seal
07913081 1 Piece   07208502 1551715     005402052 PPT604130 CRN-1 07931168
07913081 2 Piece 1093560 07208502 HT204C* HT204B 10305203 005402052 PPT604130 CRN-1 07931168





Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 2



OILWELL     A-1700-PT       7-1/2 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME     BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"     20100013   MB40-15 1502052   012180170   015180102
4"
4 1/2"     20100014   MB44-15 1502054 012180197 012180196 015180145 015180144
4 1/2"
5"   **05326501* 20100008 07211022 MB50-15 1502056 012180254 012180253 015180186 015180185
5" 07326501
5 1/2"   **05326551* 20100009 07211020 MB54-15 1502058 012180338 012180337 015180228 015180227
5 1/2" 07326551   20100010 07211016
6"   **05326601* 20100011 07211019 MB60-15 1502060 012180395 012180394 015180269 015180268
6" 07326601   6307701 07211027
6 1/2"   05326651* 20100012 07211018 MB64-15 1502062 012180536 012180535 015180301 015180300
6 1/2" 07326651   20100016 07211015
7"   05326700* 20100017 07211017 MB70-15 1502064 012180619 012180618 015180343 015180342
      20100020

* For HP style liner, add "HP" to end of part no.         ** Small size (Small O.D.) liner, change last digit of part no. to "0"
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 060155042   Valve Cover 10300011 07211021 07207129 07211007 07213007
VALVE-Urethane Insert 9700250 9700354 060155041   Wear Plate 20100008 07211022 20100008 07211022 07213022
VALVE-Rubber Insert 9700293 N/A 060155033   Liner Retention Systems OEM MISSION L
SEAT 9702504 9702504 061101507   Blak-JAK LOK-CEL 80501102 Use Mission Liners Only 80501101 Use Mission Liners Only
SPRING 8201650 8201650 055413371   Blak-JAK Hydra-Cell 80502102 80502102
SPRING-Stainless 055413372 055413372 055402952     80500102 80500103
INSERT-Urethane 9705228 PFO7I 062400338   MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239   Complete Assembly OWFEMA8517PTCA FEMA17ASSYSW
SEAT PULLER ASSEMBLIES Discharge Module Studded   FEMA17DISSW
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded   FEMA17SUCSW
Puller Head 8401985 8401985 181235300   One Piece OEM Style Studded OWFEMA8517PT

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assy Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Std Clamp W/Flush Pony Rod Seal
10300142   1095126 20460669 20150123 20150125 10305203 005402052 PP601020 80701021 07209114



Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 3





      QTY PER PUMP

OEM PART # MISSION PART #

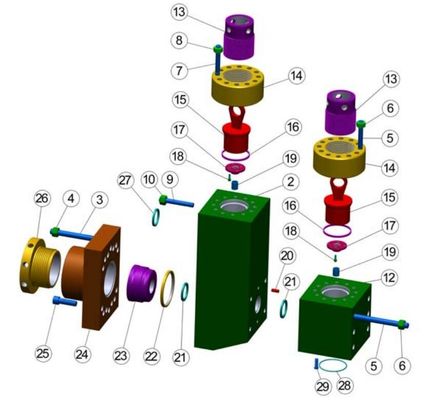

  FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
  PEP55 NUT, DISCHARGE TO SUCTION STUD 18
4015-95 NAT12P160PFS STUD, POWER END 30
  8P80TRSN NUT, POWER END STUD 30
8488-5 PEP70 PIN, DOWELL 6
4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
8476-3 PP6021260SW PLATE, LINER WEAR 3
2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
6576 12PLANSW NUT, LINER RETAINER 3
4015-54 12PTRSSW STUD, THREADED RING 72
  12P160TRSN NUT, THREADED RING STUD 72
4676-6A 12PVCASSYSWNS PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6

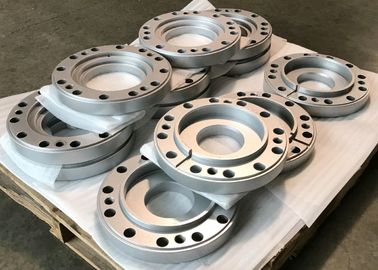

4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
P-119 07207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) 6
4700-I PZ789VGI BUSHING, VALVE GUIDE 6
4016-98 PEP73 SCREW, VALVE GUIDE 12
4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
4018-39 7006685 CAPSCREW, SOCKET HEAD 1 1/2" X 3" 16
  07924542 KIT, MODULE SEAL: (KIT INCLUDES SUCTION MANIFOLD GASKET, TWO VALVE COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, TWO DISCHARGE ADAPTING GASKETS, TWO DISCHARGE CONNECTING GASKETS, WEAR PLATE GASKET) 3





Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 9

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)



Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 10



TECHNICAL PARAMETERS



Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)





Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 11



In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.



Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.





Technical Features



· F-1300, F-1600, F-1300L and F-1600L mud pump

Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 12has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.





· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.





· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.





· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.





Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 13F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.



A1. Power End



Power end features:

· Continuous tooth herringbone gear.

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 14

Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 15A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· L fluid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

filter are fitted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

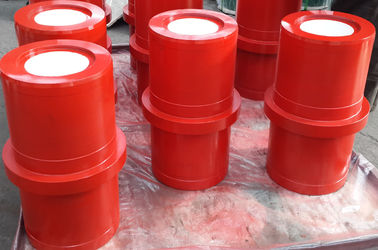

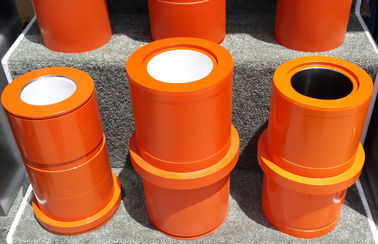

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

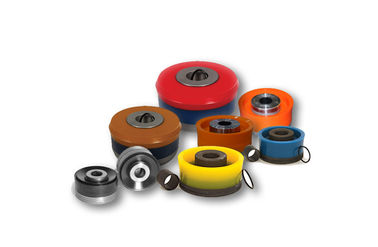

4. Pistons and Piston Rods

They are slide fitted, sealed with rubber seal ring and finally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

fluid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.



A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and flush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling fluid can rinse the contact surface between the piston and liner all the time. The durable fixed spray pipe may be used, too.



A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.



F1 -Series Drilling Mud Pumps



F1-series drilling mud pumps include power end, fluid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.



Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 16



Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.



Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· Discharge damper, shear relief valve and five way discharge are fitted at the discharge outlet.



Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.



Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.





Ⅵ.Specifications



Model F1-800 F1-1600
Type Triplex single acting piston Triplex single acting piston
Max. Liner size × strength

170×216mm

(6 3/4″×8.5″)

180×280mm

(7″×11″)
Strokes rating 160 r/min 130 r/min
Power Rating 597kW (800 hp) 1193kW (1600 hp)
Type of gear Herringbone gear Herringbone gear
Gear ratio 3.3143:1 3.7381:1
Lubrication Forcing and splashing Forcing and splashing
Suction inlet 8″flange(203mm) 10″flange(254mm)
Discharge outlet 4″Flange, 5000 psi 4″Flange, 5000 psi
Pinion Shaft Dia. 177.8mm(7″) 215.9mm(8-1/2″)
Key

44.45×44.45mm

(1 3/4″×1 3/4″)

 50.8×50.8mm (2″×2″)
Valve Pots valve-over-valve,API #6 valve-over-valve,API #7
Approx. Weight 11536kg (25430lb) 20700kg (45635lb)





Southwest 12P160 7500PSI mud pump Fluid end module, MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 MUD PUMP 17



Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine
