Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump

  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
  • Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump
Place of Origin CHINA
Brand Name Southwest, NATIONAL OILWELL, MISSION, Gardner Denver, Weatherford, TSC, Drillmec
Certification API
Model Number 12P160; 14P220, 9T1000, 12T1600, 14T2200
Minimum Order Quantity 1 SET
Price 1 to 3000 usd
Packaging Details Suotable to shipment by sea and air
Delivery Time Quantity in stock
Payment Terms L/C, T/T
Supply Ability 20000 sets per month
Product Details
Usage Oil,Water,drill Rig Power Electric
Pressure High Pressure Structure Piston Pump
Fuel Diesel Standard Or Nonstandard Standard
Type Mud Pump Color Red And So On
Material Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy Warranty 12 Months
Product Name Mud Pump Oem Can Be Accept
Condition New
Leave a Message
Product Description

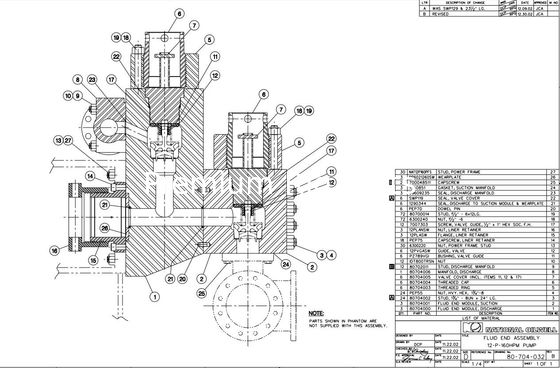

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 0

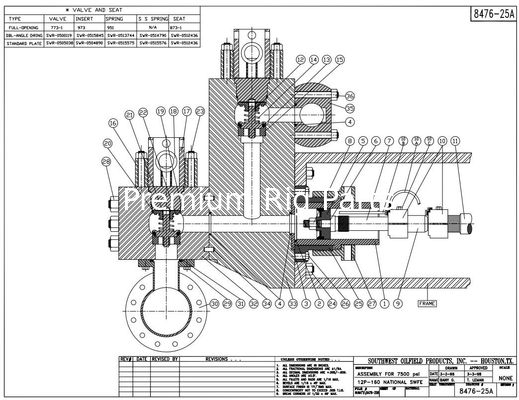

12P160 Mission 7500 PSI Fluid End



SouthWest 80704030
SouthWest Mission Description Material Details
  80704000 Discharge Module 12P160 8630 Mod
  80704001 Suction Module 12P160 8630 Mod
  80704002 Stud, 12P160 24" long B7 / AISI 4140 1-3/4 -8UN X 24 Long
HHN1750-8 PEP55 Nut, Heavy Hex A194 Grade 7 1-3/4 -8UN
  80704003 Ring, Threaded 12P160 AISI C1018/1022 Plate Bar or Forged Ring 9.500-2 ACME-2G
  80704004 Cap, Threaded 12P160 AISI C1018/1022 Plate Bar or Forged Ring 9.500-2 ACME-2G
  80704005 Assembly, Valve Cover C1020/1025 STEEL
  80704006 Manifold, Discharge Steel Casting
  80702011 Stud, Discharge Manifold B7 / AISI 4140 1-1/4 -8UN-2A
  IDT800TRSN Nut, Discharge Manifold ASTM A563 1-1/4 -8UN-2B
4700-I PZ789VGI Bushing Insert, Valve Guide Urethane
4788-R 12PVGASW Guide, Valve Steel
  9700250F Valve, Complete with insert   API 7 Modified
  055413371 Spring, valve   API 7 Modified
  9705228 Insert, Valve Urethane API 7 Modified
  9702539 Seat, Valve   API 7 Modified
4018-88 7007303 Screw, Valve Guide Socket Head c'sunk   1/2" X 1 Long
  6300240 Nut, Threaded Ring A194 Grade 7 1-1/2 -6UN
  80700014 Stud, Threaded Ring B7 / AISI 4140 1-1/2 -6UN
8488-5 PEP 70 Dowel Pin (National PN 6511416)
  1290344 Seal, Module and Wearplate Urethane
P 119 SWP119 Seal, Valve Cover Urethane
  99609235 Seal, Discharge Manifold Urethane
  1540851 Gasket, Suction Manifold Urethane
  700048511 Capscrew B7 / AISI 4140
8476-3 PP6021260SW Wear Plate, AISI 410 Stainless Steel
  NAT12P160PFS Stud, Power Frame B7 / AISI 4140 1-3/8 -6UNC



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 1

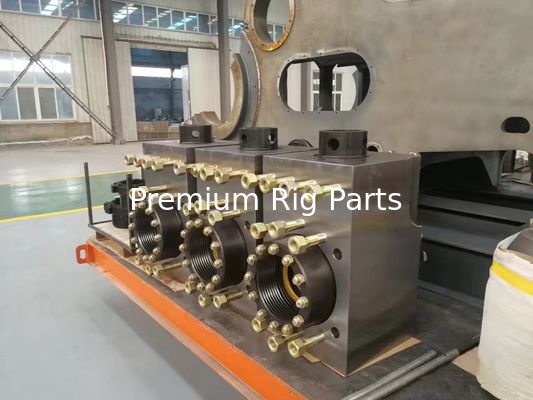

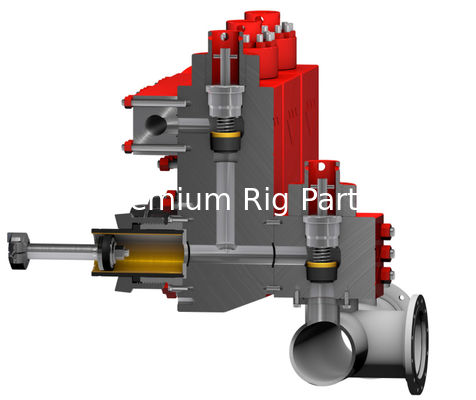

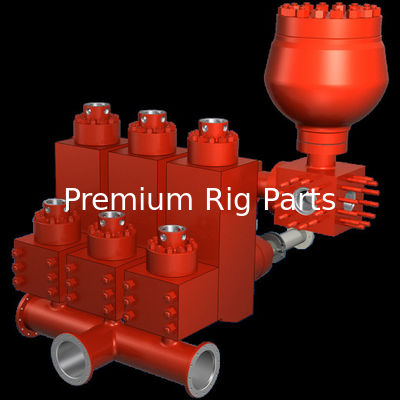

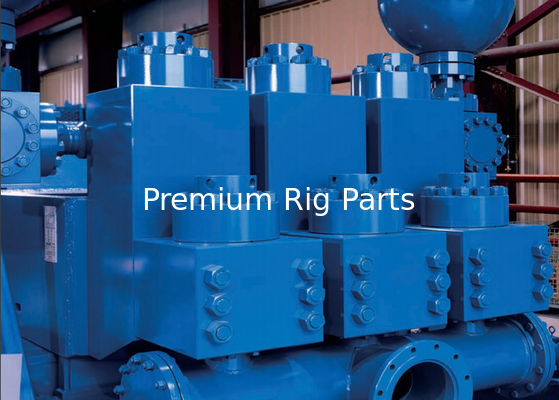

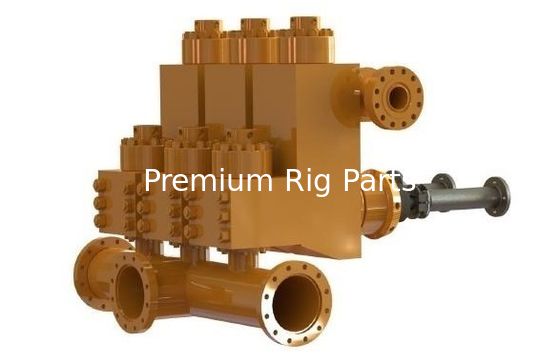

Mud Pump Modules



Premium's high-strength, triple reduction, forged steel triplex fluid end modules are made from 4130 alloy steel, heat treated for a long working life, machined to perfection and packaged for delivery with anti-corrosion protection. The precision-made jewelry, like the exterior finish, reflects the superior quality inside.



Features:

Completely interchangeable with OEM

Premium forged alloy steel

Made on CNC boring mills

Strict computer controlled heat treat procedures

Rigid inspection

Rated for all drilling operations up to 7,500 psi



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 2

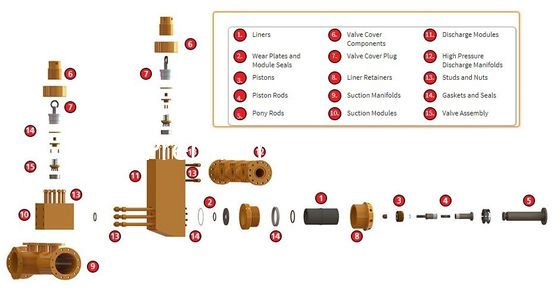

Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200



Romania: 3PN-1000, 3PN-1600, 3PN-2000



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 3

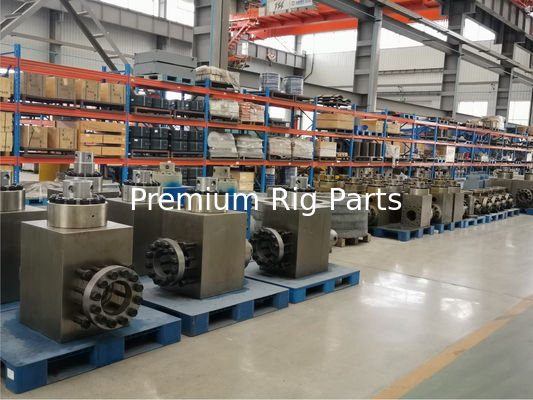

Southwest Mud Pumps







Mud Pump Models Module with Stud



Southwest 12-P-160 Discharge 8476-5D
Southwest 12-P-160 Suction 8476-6S
Southwest FB1600 Discharge 8490-1D
Southwest FB1600 Suction 8490-2S
Southwest PZ10 Discharge 8477-1D
Southwest PZ10 Suction 8477-2S
Southwest A1700PT Discharge 8488-1D
Southwest A1700PT Suction 8488-2S

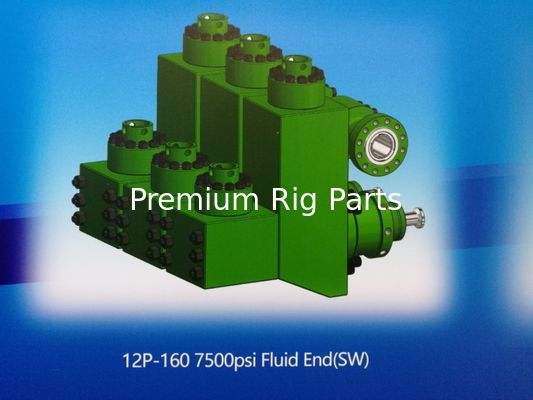

Discharge Module 12P160 7500 PSI 8476-27D
Suction Module 12P160 7500 PSI 8476-26S
Discharge Module PZ10/11 7500 PSI 8477-27
Suction Module PZ10/11 7500 PSI 8477-26
Discharge Module 14P220 7500 PSI 8482-26
Suction Module 14P220 7500 PSI 8482-27
Discharge Module LEWCO W-2214 8482-27DLEW
Suction Module LEWCO W-2214 8482-26SLEW
Discharge Module LEWCO W-2215 8482-27DLEW
Suction Module LEWCO W-2215 8482-26SLEW
Discharge Module A-1700-PT/A-1400-PT/ HD-1700-PT/HD-1400-PT 7500 PSI 8488-27
Suction Module A-1700-PT/A-1400-PT/ HD-1700-PT/HD-1400-PT 7500 PSI 8488-26
Discharge Module NATIONAL 9-P-100 8495-1D
Suction Module NATIONAL 9-P-100 8467-2S

Discharge Module

LEWCO 12-P-WH 1612

 8476-5D
Suction Module LEWCO 12-P-WH 1612 8476-6S
Module PZLB (PZ11) & PXL 8477-75

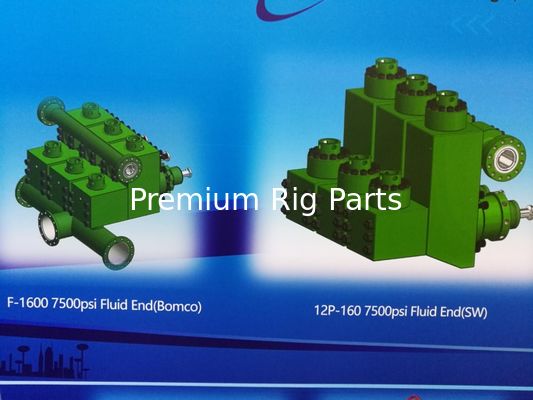

Discharge Module BOMCO F1600 7500 PSI 8404-27
Suction Module BOMCO F1600 7500 PSI 8404-26



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 4

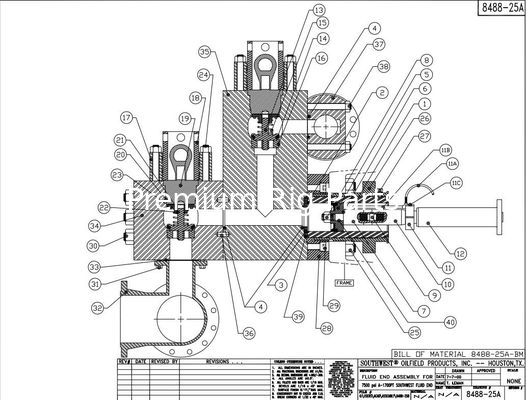

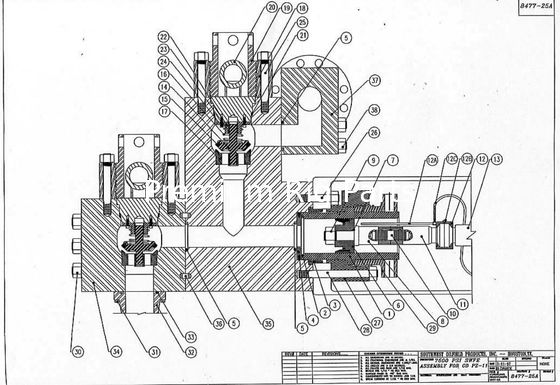

SOUTHWEST 8488-25A

Oilerll A-1700-PT/A-1400-PT

ITEM P/ N DESCRIPTION QTY
  8488-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 34, 35, & 36)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (ALSO AVAILABLE IN URETHANE) 3
3 8488-28 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 9

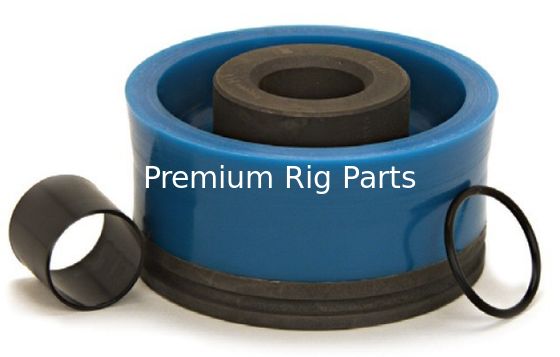

5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 THREADED FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, & 23 6
20 P115 HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U) 6
21 4788R-25 VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4020-5 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 6588-1 LINER RETAINER NUT 3
27 8488-7 LINER RETAINER CAPSCREW 9
28 6488-25 LINER RETAINER FLANGE 3
29 4016-80 LINER RETAINER SOCKET HEAD CAP SCREW 24
30 4020-4 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4018-70 SUCTION MANIFOLD CAP SCREW 24
32 8588-50A SUCTION MANIFOLD 1
33 80102003 SUCTION MANIFOLD SEAL 3
34 8488-26 SUCTION MODULE 3
35 8488-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8388-25A DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
39 568-445 “O” RING – WEAR PLATE O.D. RETAINER 3
40 2932 PISTON BUSHING (1 5/8 TO 1 ½ DIA.) 3



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 2



SOUTHWEST 8488-1A

Oilwell A-1700-PT/A-1400-PT

ITEM P/ N DESCRIPTION QTY
  8488-1A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) 3
3 8488-4 WEARPLATE 3
4 2974-1 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD (WITH WATER HOLE) 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS) 1
  4475-1A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24)
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-1A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) 6
20 P129 HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U) 6
21 4775R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
23 4018-88 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4016-96 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 4017-4 LINER RETAINER FERRY HEAD CAP SCREW 24
27 6488-1 LINER RETAINER FLANGE 3
28 6588-1 LINER RETAINER NUT (FOR LARGE BODY LINER) 3
28A 8488-7 LINER RETAINER SET SCREW 9
29 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
30 4018-70 SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER) 24
31 8588-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
32 80102003 SUCTION MANIFOLD GASKET 3
33 8488-2S SUCTION MODULE (STUDDED ONLY) 3
34 8488-1D DISCHARGE MODULE (STUDDED ONLY) 3
35 8488-5 DOWEL PIN 6
36 2988 MODULE GASKET 1
37 8388A DISCHARGE MANIFOLD 3
38 568-345 DISCHARGE MANIFOLD GASKET 12
39 4016-3 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1375-8 1-3/8”-8 HEAVY HEX NUT)



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 6

MISSION "L" MODULE FOR BOMCO F1600 7500 PSI SWOP VERSION QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # SW PART # MISSION PART # DESCRIPTION
  8404-25A   FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS) 3
1 8404-26   MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) 3
2 8404-27   MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) 3
3 4019-61   STUD, DISCHARGE TO SUCTION MODULE 18
4 1-3/4-8 HH 6300281 NUT, DISCHARGE TO SUCTION STUD 18
5 4017-33   STUD, POWER END 30
6 1-1/2-8 HH 0-7601-0630-28 NUT, POWER END STUD 30
7 Feb-15 OWA17TRSSW STUD, THREADED RING 72
8 1-1/4-7 HH 6300200 NUT, THREADED RING STUD 72
9 8488/5/1- 6511416 PIN, DOWELL 6
10 4019-51 7006444 CAPSCREW, LINER RETAINER FLANGE 3/4-10X3 18
11 8490-28   PLATE, LINER WEAR 3
12 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
13 568-443 99609443 O-RING, WEAR PLATE 3
14 6490-25   FLANGE, LINER RETAINER (LINER BUSHING) 3
15 6590-25   NUT, LINER RETAINER 3
16 4690-25A   ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) 6
17     PLUG, VALVE COVER 6
18 4488-25   RING, THREADED (THREADED FLANGE) 6
19 4588-25   CAP, THREADED (SCREW GLAND) 6
20 P-115 7207115 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
21 4788R-25   ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) 6
22 4700I *20200004 BUSHING, VALVE GUIDE (BUNA) 6
23 4018-18 700030711 SCREW, VALVE GUIDE 12
24 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
25 568-442 99609442 GASKET, SUCTION MANIFOLD 3
26 8376-25MOD   MANIFOLD, DISCHARGE 1
27 2988 1290344 SEAL, DISCHARGE MANIFOLD 3
28 8590/6/1-   SUCTION MANIFOLD 1

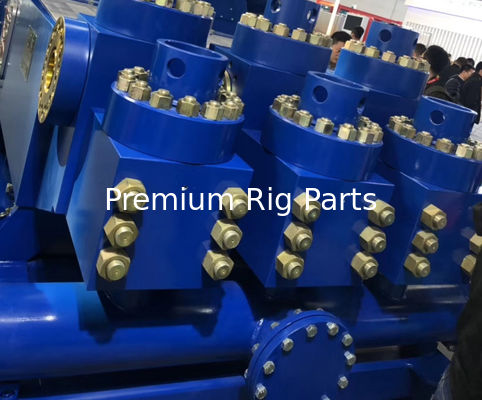

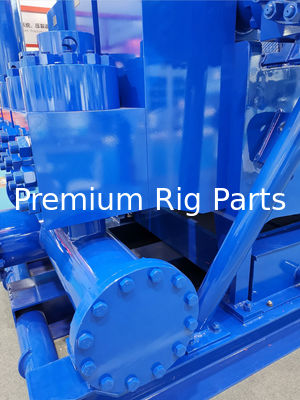

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 7



Item Description Part No.
  Complete Assembly 8490-2A
1 Threaded Flange 4475
2 Liner Wear Plate 8490-3
3 Module and Wear Plate Gasket 2988
4 Screw Gland 4575
5 Plug Assembly w/Guide & Bushing 4675-2A
6 Plug Seal P-129
7 Valve Guide 4775-2
8 Valve Guide Bushing 4700-I
9 Valve Guide Stud w/Nut 4016-99
10 Valve Cover Stud w/Nut 4015-2
11 Power End Stud w/Nut 4016-9
12 Liner Retainer Capscrew 4017-36
13 Liner Retainer Flange 6490-3
14 Liner Retainer Pilot Ring 8422-3
15 Liner Retainer Nut 6590-1
16 Suction Module Stud w/Nut 4016-97
17 Suction Module Studded 8490-2
18 Discharge Module Studded 8490-1
19 Dowel Pin 8488-5
20 Discharge Manifold Stud w/Nut 4017-46



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 2

The market demand for 7500 psi land drilling has continued to increase and forecasted to remain strong as drillers and operators seek to complete wells more faster and more efficiently. Premium has the expertise and ability to convert existing 5000 psi pump systems with our 7500 psi fluid end upgrade. In addition to replacing the existing valve-over-valve module with our proven L-Shaped design, a typical conversion also includes an upgraded liner retainer system, discharge cross/ strainer, high-pressure discharge manifold and 7500 psi pulsation dampener.



These modules create added value for contractors and operators by increasing the operating range of existing mud pump



Features/Benefits:

Maximum rated working pressure: 7500 psi

Individually forged, heat-treated alloy steel

Greater resistance to cracking, longer life

Hydro-statically tested and autofrettaged for material integrity

Direct replacement for the current 7500 psi wide body module (same outside dimensions and same external and internal components except valve cover, bore seal and Falcon spring retainer)







Available 7500 P.S.I. Models include:

  • BOMCO F1600
  • EMSCO FB1600
  • GARDNER DENVER PZ11
  • HH F1600
  • NATIONAL 12P160
  • OILWELL A1700PT
  • IDECO T1600

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 9







Item Description Part No.
  Complete Assembly 8477-A
1 Wear Plate 8477-3
2 Wear Plate Gasket 2930-08
3 Threaded Flange 4475
4 Screw Gland 4575
5 Plug Assembly w/Guide & Bushing 4675-1A
6 Valve Cover Plug Seal P-129
7 Valve Guide 4775R
8 Valve Guide Bushing 4700-I
9 Valve Guide Screw 4018-99
10 Valve Cover Stud w/Nut 4015-2
11 Power End Stud w/Nut 4017-35
12 Liner Retainer Stud 4018-34
13 Liner Retainer Flange 6477
14 Suction Module Stud w/Nut 4016-97
15 Suction Manifold Capscrew (not shown) 4017-77
16 Suction Module (Studded) 8477-2
17 Discharge Module (Studded) 8477-1
18 Dowel Pin 8488-5
19 Module Gasket 2988
20 Discharge Manifold Stud 4017-5
21 Piston rod 6278-25
22 Sub Rod 6279-1
23 Piston Rod Connecting Stud 1290-2
24 Rod Clamp w/Spray System 1277-CW



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 2

MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # QTY PER PUMP
  80704032 ASSY, FLUID END COMPLETE (INCLUDES ITEMS 1-27) ENOUGH FOR 1 PUMP 1
  80704035 ASSY, FLUID END COMPLETE W/ BLAK-JAK LINER RETENTION SYSTEM 1
  80704038 ASSY, FLUID END COMPLETE W/ ROUGHNECK VALVES L/ LINER BUSHING & NUT (#'S 19, 20) 1
1 /80704000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-10) 3
2 80704001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 7-8) 3
3 80704002 STUD, DISCHARGE TO SUCTION MODULE 24
4 75510126 NUT, HEAVY HEX 24
5 80704003 THREADED RING 6
6 80704004 THREADED CAP 6
7 /80704005 VALVE COVER 6
8 80704006 DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) 1
9 80702011 STUD, DISCHARGE MANIFOLD 12
10 0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
11 12PVGASW GUIDE, VALVE 6
12 PZ789VGI* BUSHING, VALVE GUIDE 6
13 7007303 SCREW, VALVE GUIDE 12
13 PZ789VGI* BUSHING, VALVE GUIDE 6
14 PEP75 CAPSCREW, LINER RETAINER 18
15 2408029
16 6300220 NUT, POWER FRAME STUD 30
17 PEP70 DOWELL PIN 6
18 80700014 STUD, THREADED RING 72
19 6300240 NUT, THREADED RING STUD 72
20   SUCTION MANIFOLD 1
21 1290344 SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
22 7207119 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
23 99609235 SEAL, DISCHARGE MANIFOLD 3
24 1540851 SEAL, SUCTION MANIFOLD 3
25 700048511 CAPSCREW, SUCTION MANIFOLD 3
26 PP6021260SW PLATE, WEAR 3
27 12PLASW RETAINER, LINER FLANGE 3
28 12PLANSW NUT, LINER RETAINER 3





Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 11



CONTINENTAL EMSCO FC-2200 FLUID END MODULE & ACCESSORIES
ITEM # PART # DESCRIPTION QTY PER PUMP
- 0-6323-0100-20 ASSY, FLUID END COMPLETE (INCLUDES DISCHARGE MANIFOLD) 1
1 0-6323-0108-00 MODULE, DISCHARGE STUDDED 3
2 0-6323-0109-00 MODULE, SUCTION STUDDED 3
3 0-6323-0087-90 RETAINER, THREADED 6
4 0-6323-0086-90 RING, THREADED 6
5 0-6323-0083-00 COVER, VALVE POT 6
6 0-6323-0103-00 GUIDE W/ BUSHING, VALVE 6
7 0-6323-0126-00 HANDLER, VALVE POT 6
8 0-6323-0107-20 COVER, LINER END 3
9 0-6323-0129-00 DISC, BAFFLE 3
10 0-6323-0085-00 MANIFOLD, SUCTION 1
11 0-6316-0105-95 FLANGE, SUCTION 1
12 0-6317-0074-95 FLANGE, BLIND 1
13 0-6323-0084-10 DISCHARGE MANIFOLD, 7500 PSI 1
14 0-6323-0097-90 WEAR PLATE 3
15 0-6323-0096-00 RING, LINER THREAD 3
16 0-6323-0099-00 LINER LOCK 3
17 0-6323-0093-00 RETAINER, VALVE GUIDE 6
18 0-6323-0128-00 SEAL, SUCTION TO DISCHAGE MODULE 3
19 0-6323-0127-00 SEAL, WEAR PLATE & LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
20 0-7602-1600-47 O-RING (LINER LOCK RING) 3
21 7817600456 O-RING (SUCTION MANIFOLD) 3
22 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F.E.) 3
23 0-7602-1600-30 O-RING (DISCHARGE MANIFOLD TO F.E.) 3
24 0-7501-0051-00 SCREW, RETAINER 24
25 7822095 WIRE, SAFETY SST 72
26 0-6323-0101-00 RING, LINER LOCK 3
27 7000534 SCREW, SUCTION FLANGE HEX HD 36
28 0-7601-0630-20 NUT, HEX 1" - 8 36
29 0-6323-0125-00 SEAL, VALVE POT COVER 6
30 0-7601-0333-30 SCREW, SUCTION MANIFOLD TO F.E. 18





Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 12



NATIONAL 14-P-220 (7500 PSI) W/ FAST CHANGE VALVE COVERS FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # DESCRIPTION QTY PER PUMP
  80718020 ASSY, COMPLETE FLUID END W/ VALVE SERVICE & SUCTION MANIFOLD 1
1 1295601 MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) 3
2 1295604 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) 3
3 2408049 STUD, VALVE COVER 84
4 6300240 NUT, VALVE COVER STUD 84
5 2408027 STUD, POWER FRAME 30
6 6300240 NUT, POWER FRAME STUD 30
7 2408047 STUD, LINER BUSHING 18
8 6300200 NUT, LINER BUSHING STUD 18
9 2408048 STUD, SUCTION TO DISCHARGE MODULE 18
10 6300320 NUT, SUCTION TO DISCHARGE MODULE STUD 18
11 2408014 STUD, DISCHARGE FLANGE 12
12 6300180 NUT, DISCHARGE FLANGE STUD 12
13 1295262 SPACER, STUDDED DISCHARGE (NOT SHOWN) INCLUDED ITEM# 11 AND 12 2
14 1295258 SEAL, DISCHARGE SPACER (NOT SHOWN) 2
15 7006609 CAPSCREW, DISCHARGE SPACER FLANGE 24
16 1295176 RING, THREADED F/C 6
17 1295172 CAP, VALVE COVER (THREADED) F/C 6
18 1292353 PULLER, SEAL RETAINER 6
19 1295174 RETAINER, SEAL 6
20 1540163 SEAL, VALVE COVER 6
21 1292140 HOLDER, VALVE GUIDE INSERT 6
22 1292141 INSERT, VALVE GUIDE 6
23 1540021 SEAL, SUCTION MANIFOLD 3
24 700048511 CAPSCREW, SUCTION MANIFOLD 24
25 2410031440 SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
26 1295253 ADAPTER, DISCHARGE CONNECTOR 2
27 2410031438 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 1295252 CONNECTOR, DISCHARGE 2
28A 1295175 RING, DISCHARGE CONNECTOR BACK UP 4
29 7619050 WASHER, DISCHARGE CONNECTOR CAPSCREW (NOT SHOWN) 16
30 700030711 CAPSCREW, DISCHARGE CONNECTOR 16
31 6511416 PIN, DOWELL 6
32 1295266 PLATE, WEAR 3
33 1295165 BUSHING, LINER 3
34 1295166 CLAMP COMPLETE, LINER (INCLUDES ITEMS 34A, 34B, 34C, 34D, 34E, 34F) 3
34A 1295167 CLAMP, LINER 3
34B 700049110 CAPSCREW, LINER CLAMP 6
34C 6309140 NUT, LINER CAPSCREW 6
34D 1292169 PIN, LINER CLAMP 6



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.







1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 13



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 11



Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900

Product Description

· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 15

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 16



TECHNICAL PARAMETERS



Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)





Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 17



In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.



Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.





Technical Features



· F-1300, F-1600, F-1300L and F-1600L mud pump

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 18has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.





· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.





· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.





· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.





Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 19F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.



A1. Power End



Power end features:

· Continuous tooth herringbone gear.

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 20

Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 21A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· L fluid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

filter are fitted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

4. Pistons and Piston Rods

They are slide fitted, sealed with rubber seal ring and finally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

fluid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.



A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and flush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling fluid can rinse the contact surface between the piston and liner all the time. The durable fixed spray pipe may be used, too.



A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.



F1 -Series Drilling Mud Pumps



F1-series drilling mud pumps include power end, fluid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.



Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 22



Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.



Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· Discharge damper, shear relief valve and five way discharge are fitted at the discharge outlet.



Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.



Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.





Ⅵ.Specifications



Model F1-800 F1-1600
Type Triplex single acting piston Triplex single acting piston
Max. Liner size × strength

170×216mm

(6 3/4″×8.5″)

180×280mm

(7″×11″)
Strokes rating 160 r/min 130 r/min
Power Rating 597kW (800 hp) 1193kW (1600 hp)
Type of gear Herringbone gear Herringbone gear
Gear ratio 3.3143:1 3.7381:1
Lubrication Forcing and splashing Forcing and splashing
Suction inlet 8″flange(203mm) 10″flange(254mm)
Discharge outlet 4″Flange, 5000 psi 4″Flange, 5000 psi
Pinion Shaft Dia. 177.8mm(7″) 215.9mm(8-1/2″)
Key

44.45×44.45mm

(1 3/4″×1 3/4″)

 50.8×50.8mm (2″×2″)
Valve Pots valve-over-valve,API #6 valve-over-valve,API #7
Approx. Weight 11536kg (25430lb) 20700kg (45635lb)





Southwest 12P160 7500PSI mud pump Fluid end module, Mission 12P160 7500PSI mud pump Fluid end Liner, National 12P160 MUD PUMP, Gardner Denver PZ7 mud pump, GD PZ8 mud pump, GD PZ9 mud pump 23



Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine
