Product Details:
Payment & Shipping Terms:
|
Usage: | Oil,Water,sewage With Sand,drill Rig | Power: | Electric,Hydraulic,Pneumatic,diesel |
---|---|---|---|
Pressure: | High Pressure,Low Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump,Medium Pressure | Application: | Sewage,mining,oil,Chemical |
Structure: | Piston Pump,Single-stage Pump,Diaphragm Pump,centrifugal Mud Suction Pump | Fuel: | Diesel,Gasoline,Electric |
Standard Or Nonstandard: | Standard | Theory: | Centrifugal Pump,Reciprocating Pump,Diaphragm Pump |
Type: | Mud Pump | Weight: | 100-3700kg |
Color: | Blue,red And So On,Green Or Per Customer Design | Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy,Stainless Steel Aluminum Plastic Etc |
Warranty: | 12 Months | Product Name: | Mud Pump |
Head: | 10m Mud Suction Pump | Oem: | Can Be Accept,Applicable |
Condition: | New |
Premium can produce the spare parts of WEATHERFORD MP-5 MUD PUMP , MP-8 MUD PUMP, E-447 MUD PUMP, MP-10 MUD PUMP, MP-13 MUD PUMP, MP-16 MUD PUMP, E-2200 MUD PUMP.
WEATHERFORD | MP-5 | 6-3/4 x 7-1/2 | ||||||||

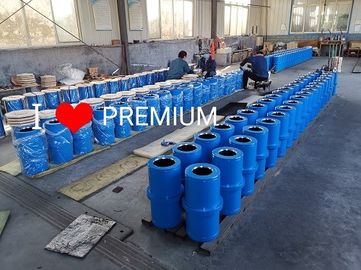

LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS | |||||||
SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
4" | 12180170 | 1502052 | 11102926 | 15180102 | ||||||
4 1/4" | ||||||||||
4 1/2" | 7414450 | 5414450 | 7918281 | 12180197 | 12180196 | 1502054 | 1110298 | 15180145 | 15180144 | |
4 3/4" | ||||||||||
5" | 7414500 | 5414500 | 7918281 | 12180254 | 12180253 | 1502056 | 11103033 | 15180186 | 15180185 | |
5 1/4" | ||||||||||
5 1/2" | 7414550 | 5414550 | 7918281 | 12180338 | 12180337 | 1502058 | 11103132 | 15180228 | 15180227 | |
5 3/4" | ||||||||||
6" | 7414600 | 5414600 | 7918281 | 12180395 | 12180394 | 1502060 | 11103629 | 15180269 | 15180268 | |
6 1/4" | 12180493 | 1502061 | 11103322 | 15180285 | 15180284 | |||||
6 1/2" | 5414650 | 12180536 | 12180535 | 1502062 | 11103827 | 15180301 | 15180300 | |||
6 3/4" | ||||||||||
7" | ||||||||||
7 1/4" | ||||||||||
7 1/2" | ||||||||||
7 3/4" | ||||||||||
8" | ||||||||||
For Bonded White Lightning Pistons add "XT" to Green Duo Part # | ||||||||||
VALVES, SEATS, SPRINGS & INSERTS | GASKETS | |||||||||
ROUGHNECK | ROUGHNECK HP | SUPREME | OEM | URETHANE | L STYLE | URETHANE | ||||
VALVE-White Lightning Insert | N/A | Valve Cover | 7916733 | |||||||
VALVE-Urethane Insert | 9700200 | 60152907 | Cylinder Head | 7918281 | ||||||
VALVE-Rubber Insert | N/A | 60122801 | Plug Seal | |||||||
SEAT | 80120207 | 61102703 | ||||||||
SPRING | 8201650 | 55413389 | ||||||||
SPRING-Stainless | 55413372 | 55403240 | ||||||||
INSERT-Urethane | 9705066 | 62400080 | MODULES | OEM | MISSION L | |||||
INSERT-Rubber | N/A | 62400072 | Complete Assembly | EMSFEMF500CA | ||||||
SEAT PULLER ASSEMBLIES | Discharge Module Studded | |||||||||
Puller Assembly 1 | M 1100 | M 1100 | Suction Module Studded | |||||||
Puller Head | 181234501 | 181240508 | One Piece OEM Style Studded | |||||||
Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods | ||||||||||
Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | Pony Rod Baffle | Piston Rod | Sub Rod | PISTON CONNECT | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
7913091 | 1-1/2" | 5402052 | PP600500 |
WEATHERFORD MP-5 FLUID END MODULE (All Parts are Available) | ||||
ITEM # | OEM PART # | WEATHERFORD # | DESCRIPTION | QTY PER PUMP |
1 | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-22) | 3 | ||
1A | 0-6318-0151-00 | 1198204 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-7) | 3 |
2 | 0-7507-2207-00 | STUD, POWER FRAME | 18 | |
3 | 0-7601-0630-17 | NUT, POWER FRAME STUD | 18 | |
4 | 0-7507-3402-00 | STUD, THREADED RING | 36 | |
5 | 0-7601-0630-26 | NUT, THREADED RING STUD | 36 | |
6 | 0-7507-3407-00 | STUD, DISCHARGE MANIFOLD | 12 | |
7 | 0-7601-0630-26 | NUT, DISCHARGE MANIFOLD STUD | 12 | |
8 | 0-6318-0148-00 | 1198209 | CAGE, LINER | 3 |
9 | 0-6318-0177-00 | 1198237 | GUIDE, LOWER VALVE (INCLUDES ITEM #22, BUSHING) | 3 |
10 | 0-6318-0153-00 | 1198236 | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
11 | 7918281 | 1198207 | GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
12 | 0-6318-0158-00 | 1198208 | PLUG, CYLINDER HEAD | 3 |
13 | 0-6318-0130-00 | 1198205 | RING, THREADED CYLINDER HEAD | 3 |
14 | 0-6318-0157-00 | 1198206 | CAP, THREADED CYLINDER HEAD | 3 |
15 | 7916733 | 1198207 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
16 | 0-7501-0051-00 | 1198218 | SCREW, RETAINER (UPPER) | 12 |
17 | 0-6397-0603-00 | 1198217 | RETAINER PLATE (UPPER) | 3 |
18 | 0-6397-0602-00 | 1198216 | GUIDE, UPPER VALVE | 3 |
19 | 0-6310-0016-02 | 1198211 | COVER, VALVE POT | 3 |
20 | 0-7602-1600-23 | GASKET, DISCHARGE MANIFOLD | 3 | |
21 | 0-7602-1600-38 | GASKET, SUCTION MANIFOLD | 3 | |
22 | 0-6318-0155-00 | BUSHING, LOWER VALVE GUIDE | 3 | |
23 | 0-7601-0340-53 | CAPSCREW, SUCTION MANIFOLD | ||
MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) | 3 | |||
1 | 1317093 | LINER 4" | ||
2 | 1317153 | LINER 4.5" | ||
3 | 1317209 | LINER 5" | ||
4 | 1317260 | LINER 5.5" | ||
5 | 1317309 | LINER 6" | ||
6 | 1317355 | LINER 6.5" | ||
7 | 1198232 | PISTON ROD | ||
8 | 1198235 | PISTON ROD CLAMP | ||
9 | 1198419 | Rod, Crosshead Extensio | ||
10 | 1198393 | Baffle | ||
11 | 1198383 | Crosshead Guide | ||
12 | 1317783 | eal, Double-Lip 4½” x 5½” x ½” | ||
13 | 1198398 | Spring | ||
14 | 1198401 | O-Ring, Wiper Retainer | ||
15 | 1198389 | Pin, Wrist | ||
16 | 1198380 | Crosshead | ||
17 | 1198346 | Shaft, Pinion | ||
18 | 1198357 | Bearing, Pinion Shaft | ||
19 | 1198356 | Seal, Oil 8½” x 10½” x ⅝” | ||
20 | 1198347 | Wear Ring, Oil Seal | ||
21 | 1198338 | Bearing, Main | ||
22 | 1198318 | Gear, Main | ||
23 | 1198311 | Crankshaft | ||
24 | 1198309 | Connecting Rod | ||
1198377 | Bearing, Eccentric |
Weatherford is one of the world's largest multinational oil and natural gas service companies. The company provides products and services for drilling, evaluation, completion, production and intervention of oil and natural gas wells, along with pipeline construction and commissioning. Headquartered in Switzerland, Weatherford operates in more than 100 countries across the globe and employs more than 35,000 people (2016).
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
Description |
MP-5 Mud Pump |
MP-10 Mud Pump |
MP-13 Mud Pump |
MP-16 Mud Pump |
Liner of Crosshead Upper | 1198383 | 1124876 | 1134260 | 1134260 |
Liner of Crosshead Lower | 1198383 | 1124887 | 1134268 | 1134268 |
Pin of Crosshead | 1198389 | 0908381 | 908404 | 908404 |
Extension Rod | 1198419 | 0908378 | 908402 | 908402 |
Crankshaft | 1198311 | 0908355 | 0908384 | 0908384 |
Crosshead | 1198380 | 0908368 | 908399 | 908399 |
Pinion Shaft | 1198346 | 1124723 | 1134026 | 1134026 |
Wear Ring of Pinion shaft | 1198347 | 1124724 | 1134027 | 1134027 |
Seal, Oil | 1198356 | 1124733 | 1844173 | 1844173 |
Double Oil Seal | 1317783 | 1317770 | 1133825 | 1133825 |
Connecting Rod | 1198309 | 0908362 | 0908427 | 0908427 |
Bull Gear | 1198318 | 0908357 | 0908408 | 0908408 |
Stuffing Box | 1198347 | 1124724 | 1134263 | 1134263 |
Bolt, Main Bearing | 1198328 | 1280235 | 1133853 | 1133853 |
Bearing, Wrist Pin | 0908364 | 908429 | 908429 | |
Bearing, Pinion Shanft | 1198357 | 0908356 | 0908397 | 0908397 |
Bearing, Eccentric | 1198337 | 1280232 | 0908442 | 0908442 |
Bearing, Main | 1198338 | 1280233 | 0908425 | 0908425 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
MISSION "L" MODULE FOR BOMCO F1600 7500 PSI SWOP VERSION | QTY PER PUMP | |||
FLUID END MODULE & ACCESSORIES | ||||
ITEM # | SW PART # | MISSION PART # | DESCRIPTION | |
8404-25A | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS) | 3 | ||
1 | 8404-26 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) | 3 | |
2 | 8404-27 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) | 3 | |
3 | 4019-61 | STUD, DISCHARGE TO SUCTION MODULE | 18 | |
4 | 1-3/4-8 HH | 6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
5 | 4017-33 | STUD, POWER END | 30 | |
6 | 1-1/2-8 HH | 0-7601-0630-28 | NUT, POWER END STUD | 30 |
7 | Feb-15 | OWA17TRSSW | STUD, THREADED RING | 72 |
8 | 1-1/4-7 HH | 6300200 | NUT, THREADED RING STUD | 72 |
9 | 8488/5/1- | 6511416 | PIN, DOWELL | 6 |
10 | 4019-51 | 7006444 | CAPSCREW, LINER RETAINER FLANGE 3/4-10X3 | 18 |
11 | 8490-28 | PLATE, LINER WEAR | 3 | |
12 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
13 | 568-443 | 99609443 | O-RING, WEAR PLATE | 3 |
14 | 6490-25 | FLANGE, LINER RETAINER (LINER BUSHING) | 3 | |
15 | 6590-25 | NUT, LINER RETAINER | 3 | |
16 | 4690-25A | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) | 6 | |
17 | PLUG, VALVE COVER | 6 | ||
18 | 4488-25 | RING, THREADED (THREADED FLANGE) | 6 | |
19 | 4588-25 | CAP, THREADED (SCREW GLAND) | 6 | |
20 | P-115 | 7207115 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
21 | 4788R-25 | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 | |
22 | 4700I | *20200004 | BUSHING, VALVE GUIDE (BUNA) | 6 |
23 | 4018-18 | 700030711 | SCREW, VALVE GUIDE | 12 |
24 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
25 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
26 | 8376-25MOD | MANIFOLD, DISCHARGE | 1 | |
27 | 2988 | 1290344 | SEAL, DISCHARGE MANIFOLD | 3 |
28 | 8590/6/1- | SUCTION MANIFOLD | 1 |
Weatherford is one of the world's largest multinational oil and natural gas service companies. The company provides products and services for drilling, evaluation, completion, production and intervention of oil and natural gas wells, along with pipeline construction and commissioning. Headquartered in Switzerland, Weatherford operates in more than 100 countries across the globe and employs more than 35,000 people (2016).
Contact Person: Mr. Eric
Tel: 0086-15376875239
