MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

China MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier
MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP supplier

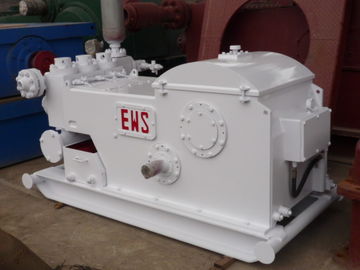

Large Image :  MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

Product Details:

Place of Origin: CHINA
Brand Name: WEATHERFORD
Certification: API
Model Number: MP10

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 40000 USD
Packaging Details: SUITABLE TO SHIPMENT
Delivery Time: IN STOCK
Payment Terms: T/T, L/C
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Usage: Oil,drill Rig Power: Electric,diesel
Pressure: High Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump Application: Mining,oil
Structure: Piston Pump Fuel: Diesel,diesel Engine And Hydraulic Motor For Option
Standard Or Nonstandard: Standard Theory: Centrifugal Pump,Reciprocating Pump,Diaphragm Pump
Type: Mud Pump Weight: 100-3700kg
Color: Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty: 12 Months Feature: Mud Suction Pump
Product Name: Mud Pump Head: 10m Mud Suction Pump
Oem: Can Be Accept,Applicable

MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

NATIONAL 12-P-160
FLUID END MODULE & ACCESSORIES

ITEM PART NUMBER DESCRIPTION QTY/PUMP
    FLUID END MODULE COMPLETE ASSEMBLY
1 TS-1292240 MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEM 2-10) 3
2 TS-1292241 DISCHARGE MODULE ONLY 3
3 TS-6300220 NUT, POWER FRAME STUD 24
4 TS-2408029 STUD, POWER FRAME 24
5 TS-6300180 NUT, LINER BUSHING STUD 18
6 TS-2408028 STUD, LINER BUSHING 18
7 TS-6300281 NUT, DISCHARGE TO SUCTION MODULE STUD 18
8 TS-2408033 STUD, DISCHARGE MODULE TO SUCTION MODULE 18
9 TS-6300240 NUT, THREADED RING STUD 36
10 TS-2408027 STUD, THREADED RING 36
11 TS-1292243 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEM 12,13,14 ) 3
12 TS-1292244 SUCTION MODULE ONLY 3
13 TS-6300240 NUT, THREADED RING STUD 36
14 TS-2408027 STUD, THREADED RING 36
15 TS-1292165 BUSHING, LINER 3
16 TS-1292174 RETAINER, SEAL 6
17 TS-1292172 CAP, VALVE COVER (THREADED) 6
18 TS-1292178 SCREW, ADJUSTING WEDGE 6
19 TS-1292171 WASHER, WEDGE ADJUSTING SCREW 6
20 TS-6300182 NUT, WEDGE ADJUSTING SCREW 6
21 TS-1292176 RING, THREADED 6
22 TS-G1292268 ASSEMBLY, WEDGE (INCLUDES ITEM 18) 6
23 TS-1540127 GASKET, VALVE COVER 6
24 TS-1292140 RETAINER, VALVE GUIDE BUSHING 6
25 TS-1292141 BUSHING, VALVE GUIDE 6
26 TS-6511416 PIN, DOWELL 6
27 TS-1292266 PLATE, WEAR 3
28 TS-1292252 CONNECTOR, DISCHARGE 2
29 TS-700030711 CAPSCREW, DISCHARGE CONNECTOR 16
30 N/A WASHER, LOCK 16
31 TS-1292253 ADAPTER, DISCHARGE CONNECTOR 2
32 TS-2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
33 TS-2410031437 SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
34 TS-1292166 ASSEMBLY, LINER CLAMP 3
35 TS-700049110 CAPSCREW, LINER CLAMP 6
36 TS-6309140 NUT, LINER CAPSCREW 6
37 TS-1292169 PIN, CONNECTOR 3
38 TS-1292168 CONNECTOR, LINER CLAMP 3
39 TS-2408015 STUD, TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES) 16
40 TS-6300240 NUT, STUD (BLIND RING AND WELD NECK FLANGES) 16
41 TM12P-STUDSSET   3
42 TM12P-SEALKIT



MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP



OILWELL A-1700PT-L
FLUID END MODULE & ACCESSORIES

ITEM PART# DESCRIPTION QTY
  TS-FEMA17DISSW MODULE,STUDDED DISCHARGE(INCLUDES ITEMS 1,3-11) 3
1 TS-FEMA17DISSW DISCHARGE MODULE ONLY 3
  TS-FEMA17SUCSW MODULE,STUDDED SUCTION (INCLUDES ITEMS 2,9-10) 3
2 TS-FEMA17SUCSW SUCTION MODULE ONLY 3
3 TS-OWA17DMSSW STUD,DISCHARGE MANIFOLD 12
4 TS-0-7601-0630-28 NUT, DISCHARGE MANIFOLD STUD 12
5 TS-OWA17PFSSW STUD,POWER FRAME 12
6 TS-75510126 NUT,POWER FRAME STUD 12
7 TS-OWA17DSUCSSW STUD,DISCHARGE TO SUCTION MODULE 18
8 TS-0-7601-0630-17 NUT,FOR ABOVE STUDE 18
9 TS-OWA17TRSSW STUD, THREADED RING 72
10 TS-6300200 NUT, THREADED RING STUD 72
11 TS-6511416 PIN,DOWELL 6
12 TS-OWA17LRPLATESW PLATE,LINER RETAINER 3
13 TS-PEP68 CAPSCREW,LINER RETAINER PLATE 24
14 TS-1290344 SEAL,DISCHARGE TO SUCTION MODULE 3
15 TS-20100008 SEAL,WEAR PLATE–RUBBER(SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 TS-10300184 PLATE WEAR 3
17 TS-OWA17LLNSW NUT,LINER LOCK 3
18 TS-07207129 SEAL,VALVE COVER-RUBBER(SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 TS-PEP73 SCREW,VALVE COVER RETAINER 12
20 TS-OWA17VGASW GUIDE,VALVE(INCLUDES ITEMS 20 & 22) 6
21 TS-OWA17VCASSYSW PLUG,VALVE COVER(INCLUDLES ITEMS 19-22) 6
22 TS-PZ789VGI* BUSHING,VALVE GUIDE 6
23 TS-OWA17FLGSW RING,THREADED 6
24 TS-OWA17CASW CAP,THREADED 6
25 TS-10300201 GASKET,SUCTION MANIFOLD 3
26 TS-99609345 GASKET,DISCHARGE MANIFOLD 3
27 TS-75634382 CAPSCREW,SUCTION MANIFOLD 24
28 TS-PEP90 SETSCREW,LINER RETAINER 9



MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP





NATIONAL FB1300/1600(SW)
FLUID END MODULE & ACCESSORIES

ITEM PART NUMBER DESCRIPTION QTY/PUMP
    FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 1-27) 3
1 TS-84901D MODULE, STUDDED DISCHARGE (INCLUDES ITEMS 1, 3-10, 11) 3
2 TS-84902S MODULE, STUDDED SUCTION (INCLUDES ITEMS 2, 12, 13) 3
3 TS-4016-97 STUD, DISCHARGE MODULE TO SUCTION MODULE 18
4 TS-0-7601-0630-17 NUT, DISCHARGE TO SUCTION MODULE STUD 18
5 TS-4015-2 STUD, THREADED RING 36
6 TS-6300200 NUT, THREADED RING STUD 36
7 TS-4016-9 STUD, POWER FRAME 18
8 TS-0-7601-0630-17 NUT, POWER FRAME STUD 18
9 TS-4017-46 STUD, DISCHARGE MANIFOLD 12
10 TS-0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
11 TS-4017-36 CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) 24
12 TS-4015-2 STUD, THREADED RING 36
13 TS-6300200 NUT, THREADED RING STUD 36
14 TS-8488-5 PIN, DOWELL 6
15 TS-2988 SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
16 TS-8422-3 RING, LINER RETAINER PILOT 3
17 TS-8490-3 PLATE, LINER WEAR 3
18 TS-6490-3 FLANGE, LINER RETAINER 3
19 TS-6590-1 NUT, LINER LOCK 3
20 TS-P-129 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
21 TS-4016-99 STUD,VALVE GUIDE 12
22   NUT,STUD VALVE GUIDE 12
23 TS-4700-I BUSHING, VALVE GUIDE 6
24 TS-4775-2R GUIDE, VALVE (INCLUDES ITEM 20) 6
25 TS-4675-2A PLUG, VALVE COVER 6
26 TS-4475 RING, THREADED 6
27 TS-4575 CAP, VALVE COVER (THREADED) 6





MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.

Weatherford is building one of the world’s leading reciprocating pump organizations by giving you more pump for your money.

We build in extra-value features that don’t cost extra and give you the lasting value of pump components built for maximum
reliability and service life.

Most importantly, our people bring invaluable experience and dedication to your application. They will help you choose from
our broad range of pumps and accessories and deliver them to you faster than anyone else in the industry.

MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMPMP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMPMP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMPMP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP


MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP


Description

MP-5

Mud Pump

MP-10

Mud Pump

MP-13

Mud Pump

MP-16

Mud Pump
Liner of Crosshead Upper 1198383 1124876 1134260 1134260
Liner of Crosshead Lower 1198383 1124887 1134268 1134268
Pin of Crosshead 1198389 0908381 908404 908404
Extension Rod 1198419 0908378 908402 908402
Crankshaft 1198311 0908355 0908384 0908384
Crosshead 1198380 0908368 908399 908399
Pinion Shaft 1198346 1124723 1134026 1134026
Wear Ring of Pinion shaft 1198347 1124724 1134027 1134027
Seal, Oil 1198356 1124733 1844173 1844173
Double Oil Seal 1317783 1317770 1133825 1133825
Connecting Rod 1198309 0908362 0908427 0908427
Bull Gear 1198318 0908357 0908408 0908408
Stuffing Box 1198347 1124724 1134263 1134263
Bolt, Main Bearing 1198328 1280235 1133853 1133853
Bearing, Wrist Pin   0908364 908429 908429
Bearing, Pinion Shanft 1198357 0908356 0908397 0908397
Bearing, Eccentric 1198337 1280232 0908442 0908442
Bearing, Main 1198338 1280233 0908425 0908425


MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP


Description

F500

mud pump

F800

mud pump

F1000

mud pump

F1300/1600

mud pump
Liner of Crosshead Upper RS11311.04.02 RS11308.04.002 RS11306.04.001 RS11309.04.002
Liner of Crosshead Lower RS11311.04.02 RS11308.04.009 RS11306.04.002 RS11309.04.013
Pin of Crosshead RS11311.04.13 RS11308.04.010 RS11306.04.011 RS11309.04.011
Extension Rod RS11311.04.06 RS11308.04.005 RS11306.04.007 RS11309.04.010
Crankshaft RS11311.02.08.00 RS11308.02.08 RS11306.02.08 RS11309.02.008
Crosshead RS11311.04.01 RS11308.04.001 RS11306.04.003 RS11309.04.001
Pinion Shaft RS11311.03.02 RS11308.03.007 RS11306.03.007 RS11309.03.002
Wear Ring of Pinion shaft RS11311.03.03 RS11308.03.002 RS11306.03.002 RS11309.03.003
Double Oil Seal RS11311.04.09 RS11308.04.008 RS11306.04.014 RS11309.04.007
Oil Seal, Pinionshaft RS11311.03.12 RS11308.03.011 RS11306.03.003 RS11309.03.011
Connecting Rod RS11311.02.07 RS11308.02.006 RS11306.02.006 RS11309.02.006
Bull Gear RS11311.02.10 RS11308.02.010 RS11306.02.010 RS11309.02.010
Stuffing Box RS11311.04.05 RS11308.04.003 RS11306.04.006 RS11309.04.005
Bolt, Main Bearing RS11311.02.04 RS11308.02.015 RS11306.02.015 RS11309.02.015
Bearing, Crosshead 5G354920Q 254735Q 5G254936Q RS11309.04.015
Bearing, Pinion Shanft 4G32828H 4G32836H 4G32840H RS11309.03.012
Bearing, Eccentric 92984QU 928/508QU 929/558.8QU RS11309.02.017
Bearing, Main 3G3053738H 3G3003748HY 3G4053156H RS11309.02.018

MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP


Description A850PT A1100PT A1400PT A1700PT
Liner of Crosshead Upper     10-300-141 10-300-141
Liner of Crosshead Lower     10-300-233 10-300-233
Pin of Crosshead     10-300-131 10-300-131
Extension Rod     10-300-142 10-300-142
Sub Rod     10-150-125 10-150-125
Crosshead     10-300-232 10-300-232
Pinion Shaft     10-301-004 10-301-004
Carrier, Bearing Left     10-300-024 10-300-024
Carrier, Bearing Right     10-300-024 10-300-024
Connecting Rod     10-300-071 10-300-071
Bull Gear     10-300-060 10-300-060
Crankshaft     10-301-013 10-300-154
Bearing, Crosshead     65-725-957 65-725-957
Bearing, Pinion Shanft     65-725-032 65-725-032
Bearing, Eccentric     65-725-936 65-725-936
Bearing, Main     65-725-034 65-725-034
Suction Manifold     10-300-193 10-300-193

MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP



1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000压裂泵的型号及规格

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM压裂泵的型号

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5





MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts


MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP
NATIONAL 14-P-220 (7500 PSI) W/ FAST CHANGE VALVE COVERS FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # DESCRIPTION QTY PER PUMP
  80718020 ASSY, COMPLETE FLUID END W/ VALVE SERVICE & SUCTION MANIFOLD 1
1 1295601 MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) 3
2 1295604 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) 3
3 2408049 STUD, VALVE COVER 84
4 6300240 NUT, VALVE COVER STUD 84
5 2408027 STUD, POWER FRAME 30
6 6300240 NUT, POWER FRAME STUD 30
7 2408047 STUD, LINER BUSHING 18
8 6300200 NUT, LINER BUSHING STUD 18
9 2408048 STUD, SUCTION TO DISCHARGE MODULE 18
10 6300320 NUT, SUCTION TO DISCHARGE MODULE STUD 18
11 2408014 STUD, DISCHARGE FLANGE 12
12 6300180 NUT, DISCHARGE FLANGE STUD 12
13 1295262 SPACER, STUDDED DISCHARGE (NOT SHOWN) INCLUDED ITEM# 11 AND 12 2
14 1295258 SEAL, DISCHARGE SPACER (NOT SHOWN) 2
15 7006609 CAPSCREW, DISCHARGE SPACER FLANGE 24
16 1295176 RING, THREADED F/C 6
17 1295172 CAP, VALVE COVER (THREADED) F/C 6
18 1292353 PULLER, SEAL RETAINER 6
19 1295174 RETAINER, SEAL 6
20 1540163 SEAL, VALVE COVER 6
21 1292140 HOLDER, VALVE GUIDE INSERT 6
22 1292141 INSERT, VALVE GUIDE 6
23 1540021 SEAL, SUCTION MANIFOLD 3
24 700048511 CAPSCREW, SUCTION MANIFOLD 24
25 2410031440 SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
26 1295253 ADAPTER, DISCHARGE CONNECTOR 2
27 2410031438 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 1295252 CONNECTOR, DISCHARGE 2
28A 1295175 RING, DISCHARGE CONNECTOR BACK UP 4
29 7619050 WASHER, DISCHARGE CONNECTOR CAPSCREW (NOT SHOWN) 16
30 700030711 CAPSCREW, DISCHARGE CONNECTOR 16
31 6511416 PIN, DOWELL 6
32 1295266 PLATE, WEAR 3
33 1295165 BUSHING, LINER 3
34 1295166 CLAMP COMPLETE, LINER (INCLUDES ITEMS 34A, 34B, 34C, 34D, 34E, 34F) 3
34A 1295167 CLAMP, LINER 3
34B 700049110 CAPSCREW, LINER CLAMP 6
34C 6309140 NUT, LINER CAPSCREW 6
34D 1292169 PIN, LINER CLAMP 6


MP16 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP

MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # QTY PER PUMP
  80704032 ASSY, FLUID END COMPLETE (INCLUDES ITEMS 1-27) ENOUGH FOR 1 PUMP 1
  80704035 ASSY, FLUID END COMPLETE W/ BLAK-JAK LINER RETENTION SYSTEM 1
  80704038 ASSY, FLUID END COMPLETE W/ ROUGHNECK VALVES L/ LINER BUSHING & NUT (#'S 19, 20) 1
1 /80704000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-10) 3
2 80704001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 7-8) 3
3 80704002 STUD, DISCHARGE TO SUCTION MODULE 24
4 75510126 NUT, HEAVY HEX 24
5 80704003 THREADED RING 6
6 80704004 THREADED CAP 6
7 /80704005 VALVE COVER 6
8 80704006 DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) 1
9 80702011 STUD, DISCHARGE MANIFOLD 12
10 0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
11 12PVGASW GUIDE, VALVE 6
12 PZ789VGI* BUSHING, VALVE GUIDE 6
13 7007303 SCREW, VALVE GUIDE 12
13 PZ789VGI* BUSHING, VALVE GUIDE 6
14 PEP75 CAPSCREW, LINER RETAINER 18
15 2408029
16 6300220 NUT, POWER FRAME STUD 30
17 PEP70 DOWELL PIN 6
18 80700014 STUD, THREADED RING 72
19 6300240 NUT, THREADED RING STUD 72
20   SUCTION MANIFOLD 1
21 1290344 SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
22 7207119 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
23 99609235 SEAL, DISCHARGE MANIFOLD 3
24 1540851 SEAL, SUCTION MANIFOLD 3
25 700048511 CAPSCREW, SUCTION MANIFOLD 3
26 PP6021260SW PLATE, WEAR 3
27 12PLASW RETAINER, LINER FLANGE 3


Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Weatherford Mud Pumps Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
