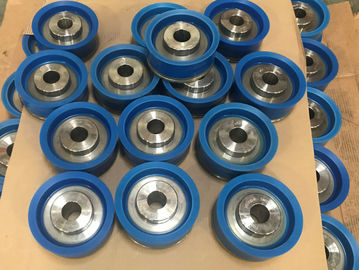

Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump

China Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier
Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump supplier

Large Image :  Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump

Product Details:

Place of Origin: CHINA
Brand Name: DRILLMEC,Weatherford, Wirth TPK, National, Oilwell
Certification: API
Model Number: 12T1600 MUD PUMP

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 100 to 500 usd
Packaging Details: Suitable to shipment by air and sea
Delivery Time: In stock
Payment Terms: D/P, L/C, D/A, D/P, T/T
Supply Ability: 5000 pieces per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric,diesel
Pressure: High Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump Application: Mining,oil
Structure: Piston Pump Fuel: Diesel
Standard Or Nonstandard: Standard Theory: Centrifugal Pump
Type: Mud Pump Color: Red And So On,Green Or Per Customer Design
Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy Warranty: 12 Months
Product Name: Mud Pump Oem: Can Be Accept,Applicable
Condition: New

   Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump

Premium can produce the spare parts of Drillmec 7TS-500 MUD PUMP , 7TS600 MUD PUMP, 9T800 MUD PUMP, 9T1000 MUD PUMP, 12T1600 MUD PUMP, 14T2200 MUD PUMP.

DRILLMEC 12T1600 FLUID END MODULE & ACCESSORIES

ITEM # DRILLMEC PART # MISSION PART # DESCRIPTION QTY PER PUMP AVAILABLE
1 40390797 DRILLMEC OEM DRAIWINGS VALVE HEAD 6 OK
2 40390798 DRILLMEC OEM DRAIWINGS VALVE SEAT 6 OK
3 RI40390796-03 DRILLMEC OEM DRAIWINGS SPRING 6 OK
4 40390797-01 DRILLMEC OEM DRAIWINGS INSERT 6 OK
5 01917638 DRILLMEC OEM DRAIWINGS LINER 4-1/2" 3 OK
6 01917639 DRILLMEC OEM DRAIWINGS LINER 5" 3 OK
7 01917446 DRILLMEC OEM DRAIWINGS LINER 5-1/2" 3 OK
8 01917431 DRILLMEC OEM DRAIWINGS LINER 6" 3 OK
9 01917447 DRILLMEC OEM DRAIWINGS LINER 6-1/4" 3 OK
10 01917448 DRILLMEC OEM DRAIWINGS LINER 6-1/2" 3 OK
11 01917449 DRILLMEC OEM DRAIWINGS LINER 6-3/4" 3 OK
12 01917450 DRILLMEC OEM DRAIWINGS LINER 7" 3 OK
13 01917451 DRILLMEC OEM DRAIWINGS LINER 7-1/4" 3 OK
14 01917452 DRILLMEC OEM DRAIWINGS LINER 7-1/2" 3 OK
15 01912152 DRILLMEC OEM DRAIWINGS 4-1/2" PISTON 3 OK
16 01912153 DRILLMEC OEM DRAIWINGS 5" PISTON 3 OK
17 01912154 DRILLMEC OEM DRAIWINGS 5-1/2' PISTON 3 OK
18 01912163 DRILLMEC OEM DRAIWINGS 6" PISTON 3 OK
19 01912278 DRILLMEC OEM DRAIWINGS 6-1/4" PISTON 3 OK
20 01912149 DRILLMEC OEM DRAIWINGS 6-1/2" PISTON 3 OK
21 01917130 DRILLMEC OEM DRAIWINGS 6-3/4" PISTON 3 OK
22 01912155 DRILLMEC OEM DRAIWINGS 7" PISTON 3 OK
23 01912164 DRILLMEC OEM DRAIWINGS 7-1/4" PISTON 3 OK
24 01912148 DRILLMEC OEM DRAIWINGS 7-1/2" PISTON 3 OK
25 01917364 DRILLMEC OEM DRAIWINGS SUCTION MODULE 3 OK
26 01917365 DRILLMEC OEM DRAIWINGS DELIVERY MODULE 3 OK
DRILLMEC 12T1600 POWER END & ACCESSORIES
27 01917366 DRILLMEC OEM DRAIWINGS SUCTION MANIFOLD 3 OK
28 01917351 DRILLMEC OEM DRAIWINGS CROSSHEAD 3 OK
29 01917341 DRILLMEC OEM DRAIWINGS CONNECTION ROD 3 OK
30 01917331 DRILLMEC OEM DRAIWINGS PINION SHAFT 1 OK
31 01917340 DRILLMEC OEM DRAIWINGS GEAR, BULL 1 OK
32 01917339 DRILLMEC OEM DRAIWINGS CRANKSHAFT 1 OK





DRILLMEC 12T1600 5000 PSI SWFE   7-1/2 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"
4 1/4"
4 1/2"     1540120   MB44-15 1502054 12180197 12180196 15180145 15180144
4 3/4"     1504121
5" 7466500 05466500* 7923264   MB50-15 1502056 12180254 12180253 15180186 15180185
5 1/4"
5 1/2" 7466550 05466550* 7923263 7211005 MB54-15 1502058 12180338 12180337 15180228 15180227
5 3/4"
6" 7466600 05466600* 7923261 7211004 MB60-15 1502060 12180395 12180394 15180269 15180268
6 1/4"   05466625* 7923283     1502061   12180493 15180285 15180284
6 1/2" 7466650 05466650* 7923284 7211003 MB64-15 1502062 12180536 12180535 15180301 15180300
6 3/4"
7" 7466700 05466700* 7923285 7211002 MB70-15 1502064 12180619 12180618 15180343 15180342
7 1/4"
7 1/2"
7 3/4"
8"         For Bonded White Lightning Pistons add "XT" to Green Duo Part #
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
Series 7 ROUGHNECK ROUGHNECK HP SUPREME FKN   OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 60155042 N/A Valve Cover NA NA 7207119 7211013 7213013
VALVE-Urethane Insert 9700250 9700354 60155041 1560985 Wear Plate NA   1290344 7211023 7213023
VALVE-Rubber Insert 9700293 N/A 60155033 1560984 Liner Retention Systems OEM MISSION L
SEAT 9702539 9702539 61102505 1561440 Blak-JAK LOK-CEL 80501100 80501100
SPRING 8201684 8201684 55413421 1560702 Blak-JAK Hydra-Cell 80502100 80502100
SPRING-Stainless     55402945   Hydra-LOK 80500100 80500100
INSERT-Urethane 9705228 PFO7I 62400338 1560557 MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 62400239 1560558 Complete Assembly NA FEM12PASSYSWNS
SEAT PULLER ASSEMBLIES Discharge Module Studded NA FEM12PDISSWNS
Puller Assembly 1 M 1060 M 1060 M 1060 M 1060 Suction Module Studded NA FEM12PSUCSWNS
Puller Head 8401985 8401985 181235300 M 1098 One Piece OEM Style Studded

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Rod Nut Piston Rod Sub Rod Pony Rod Baffle Piston Rod Clamp Covered Rod Nut Pony Rod Seal
XM-296   2095220 5402052 1292147 1292146 1292194 W/SPRAY 80701024 CRN-1 1292182
              WO/SPRAY 5417357









  Drillmec is a global contractor in the design and construction of drilling and work over rigs for the Onshore and Offshore Oil & Gas industries. Drillmec manufacture 7T450 mud pump, 7TS600 mud pump, 9T1000 mud pump, 12T1600 mud pump and 14T2200 mud pump.



Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump



NATIONAL

14-P- 220



Item

PREMIUM

Part Number



Description

 Qty per Pump
1 P-1295240 Discharge Module Studded, (incl. Items 2-10) 3
2 P-1295241 Discharge Module, Only 3
3 P-6300320 Nut, 2“ -8 Hvy. Hex 18
4 P-2408048 Stud, 2“ -8UNC X22 7/8” 18
5 P-6300180 Nut, 1 1/8“ Hvy. Hex 18
6 P-2408028 Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing 18
7 P-6300281 Nut, 1 3/4“ Hvy. Hex 18
8 P-2408033 Stud, 1 3/4“ X 21 1/8”, Discharge to Suction 18
9 P-6300240 Nut, 1 1/2 Hvy. Hex 36
10 P-2408027 Stud, 1 1/2“ X 7 7/8” Top, Thread Ring 36
11 P-1295243 Suction Module Studded, (incl. Items 12-14) 3
12 P-1295244 Suction Module, Only 3
13 P-6300240 Nut, 1 1/2 Hvy. Hex 36
14 P-2408049 Stud, 1 1/2“ X 9 7/8” Top, Thread Ring 36
15 P-1295165 Bushing, Liner 3
16 P-1295174 Seal Retainer 6
17 P-1295172 Valve Cover 6
18 Non Screw, Wedge Adjusting 6
19 Non Nut, Wedge Adjusting 6
20 Non Washer, Wedge Adjusting Screw 6
21 P-1295176 Ring, Threaded 6
22 Non Wedge Assembly 6
23 P-1540163 Gasket, Valve Cover 6
24 P-1292140 Holder, Valve Guide Insert 6
25 P-1292141 Insert, Valve Guide 6
26 P-6571620 Pin Dowell 6
27 P-1295266 Plate, Wear 3
28 P-1295252 Connector, Discharge 2
29 P-7000-307-11 Screw Hex Head 16
30 P-7619050 Washer, Lock 16
31 P-1295253 Adapter, Discharge Connector 2
32 P-2410031-440 Packing, Rectangular 2
33 P-2410031-438 Packing, Rectangular 4
34 P-1295167 Clamp, Liner 3
35 P-7000491-10 Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer 6
36 P-6309140 Nut, 7/8“ Lock Type 6
37 P-1292169 Pin, Liner Clamp 3
38 P-1295168 Connector, Liner Clamp 3
39 P-2408015 Stud 1 1/2“ x 7 1/2” 16
40 P-6300240 Nut, 1 1/2“ Hvy. Hex 16





Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump



GARDNER DENVER   PZ-10       7 x 10
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE WHITE LIGHTNING SUPREME GREEN DUO FLEXLIP WHITE LIGHTNING SUPREME
4" 07496400 05496400 07916692     012180170 1502052 011102926   015180102
4 1/4"
4 1/2" 07496450 05496450 07916692   012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5" 07496500 05496500 07916692   012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07496550 05496550* 07916692   012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07496600 05496600* 07916692   012180395 012180394 1502060 011103629 015180269 015180268
6 1/4"   05496625 07916692     012180493 1502061 011103322 015180285 015180284
6 1/2" 07496650 05496650* 07916692   012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7" 07496700 05496700* 07916692   012180619 012180618 1502064 011103926 015180343 015180342
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700368 9700356 060155042   Valve Cover 07916780 07916498 07207129
VALVE-Urethane Insert 9700250 9700354 060155041   Cylinder Head 07916780 07916498
VALVE-Rubber Insert 9700293 N/A 060155033   Plug Seal
SEAT 9702504 9702504 061101507   HYDRA-LOK OEM MISSION L
SPRING 8201650 8201650 055413371   Complete Assembly 80500104 80500104
SPRING-Stainless     055402952
INSERT-Urethane 9705228 9700360 062400338   MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239   Complete Assembly FEMPZ1011CA FEMPZ1011ASSYSW
SEAT PULLER ASSEMBLIES Discharge Module Studded   FEMPZ1011DISSW
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded   FEMPZ1011SUCSW
Puller Head 8401985 8401985 181235300   One Piece OEM Style Studded FEMPZ1011

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly   Piston Rod Sub Rod Pony Rod Baffle Rod Nut Clamp Covered Rod Nut Pony Rod Seal
07913078   1095030 CLAMP 1551712   07208503 005402052 PP601023 CRN-1 07931171





Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump



SOUTHWEST 8477-25A FLUID END FOR GARDNER DENVER PZ-11/PZ-10



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. GARDNER DENVER PZ11/10 6 ¾” X 11”





ITEM P/N DESCRIPTION QTY. REQ’D
  8477-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39)
1

1367Y-XX

1367AY-XX

LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX)

LINER 6 ¼” THRU 6 ¾”

 3
2

2930-XXU**

2974-XXU**

LINER SEAL

LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾”

 3
3 8477-29 ALIGNMENT RING 3
4 8477-30 WEARPLATE (REPLACES WEARPLATE NO. 8477-28) 3
5 2988U** WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL 9
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
7 568-225 PISTON O-RING 3
8 6278-25 PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD ELASTIC STOP NUT 3
10 1290-2 PISTON ROD CONNECTING STUD 3
11 6279-1 SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) 3
12 1277CW ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) 3
12A 1200120 SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) 3
12B 4018-96 BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12C 1200H30 HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) 3
13 1200G77 PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) 3
14   VALVE 6
15   VALVE INSERT 6
16   VALVE SPRING 6
17   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
18 4488-25 VALVE COVER FLANGE 6
19 4588-25 SCREW GLAND 6
20 4688-25 PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) 6
21 P115 HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) 6
22 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4018-18 VALVE GUIDE SCREW 12
25 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
26 4019-46 POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
27 6477-25 LINER RETAINER FLANGE 3
28 4019-45 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
29 6577-25 LINER RETAINER NUT 3
30 4019-44 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4017-77 SUCTION MANIFOLD CAP SCREW 24
32 8577-25 SUCTION MANIFOLD 1
33 AJO245 SUCTION MANIFOLD SEAL 3
34 8477-26 SUCTION MODULE 3
35 8477-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8377-27 DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) 1
38 4019-45 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 12





Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump



CONTINENTAL EMSCO FB-1300, FB-1600
FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: EMSCO INDEX
1   EMSFEMF1000CA FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) 3
1A 6999008602 EMSFEMF1000 FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) 3
2 7507220500 EMSF100PFS STUD FRAME 18
3 7601063017 EMSF1000PFSN NUT (FOR ABOVE) 18
4 7507215000 EMSF100TRS STUD, THREADED RING 30
5 7601063028 EMSF1000TRSN NUT (FOR ABOVE) 30
6 7507210800 EMSF1000DMS STUD, DISCHARGE MANIFOLD 12
7 7601063024 IDT800TRSN NUT (FOR ABOVE) 12
8 6319002600 EMSF1000LC CAGE, LINER 3
9 6319008700 EMSF1000LVG GUIDE, LOWER VALVE (WITH BUSHING) 3
10 6319008900 EMSF1000LVC CLIP, LOCKING (FOR LOWER VALVE GUIDE) 3
11 7602220032 078070028200 GASKET, LINER 6
12 6319003100 EMSF1000CYHPLG PLUG, CYLINDER HEAD 3
13 6999008900 EMSF1000CYHFLG RING, THREADED CYLINDER HEAD 3
14 6319009000 EMSF1000CYHCAP CAP, THREADED CYLINDER HEAD 3
15 6319007600 077170074001 GASKET, VALVE COVER 3
16 7501005100 PEP79 SCREW, RETAINER (UPPER) 12
17 6397060300 EMSRETAINER RETAINER PLATE (UPPER) 3
18 6397057500 EMSF1000UVGB GUIDE, UPPER VALVE 3
19 6319002700 EMSF1000CAP COVER, VALVE POT 3
20 7602161046 1902415 GASKET, DISCHARGE MANIFOLD 3
21 7602160061 1904426 GASKET, SUCTION MANIFOLD 3
22 6316009600 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3





Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump





Drillmec is a global contractor in the design and construction of drilling and work over rigs for the Onshore and Offshore Oil & Gas industries. Drillmec manufacture 7T450 mud pump, 7TS600 mud pump, 9T1000 mud pump, 12T1600 mud pump and 14T2200 mud pump.







Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900




Drillmec 12T1600 mud pump fluid end module, liners, pistons, valevs, Drillmec 14T220, Drillmec 9T100 mud pump





GARDNER DENVER PZ-7, PZ-8, PZ-9       QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
1   FEMPZ789CA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22 + 24) 3
1A 200PZL029F FEMPZ789 FLUID END MODULE STUDDED (INCLUDES 1-9 & 24) 3
  205PZL029D
02 79L188 PZ789LCS STUD, FRAME & LINER CLAMP 24
03 50B36 PZ789LCSN NUT (FOR ABOVE) 24
04 79L73 PZ789GPFS STUD, FRAME 12
05 50AQ30 PZ789GPFSN NUT (FOR ABOVE) 12
06 79AL6 PZ789TRS STUD, VALVE COVER 48
07 50B34 PZ789TRSN NUT (FOR ABOVE) 48
08 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
09 50B34 PZ789TRSN NUT (FOR ABOVE) 12
10 2011861 PZ789EXPR RING, VALVE COVER GASKET EXPANDER 6
11 2011862 07916749 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
12 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
13 2011860 PZ789VC COVER, VALVE 6
14 2011699 PZ789FLG RING, VALVE COVER THREADED 6
15 2011857 PZ789CAP CAP, VALVE COVER LOCK 6
16 2011701 PZ789PL PLATE, RETAINER 6
17 2011700 PZ789LVG GUIDE, VALVE SUCTION 3
18 95W2 PZLVGAWASHER WASHER, LOCK 1/2" 316SS 6
19 655EE06S PZLVGABOLT SCREW 1/2"x1 3/4" 316SS HX HD C/S 6
20 25AL35 07916747 GASKET, DISCHARGE MANIFOLD 3
21 25G41 07923283 GASKET, SUCTION MANIFOLD 3
22 1PV14 PZ789LC CLAMP, LINER 3
23 2011706 PZ789LVGA ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) 3
24   700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
25   7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24
    07924509 MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) 3









Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Drillmec Mud Pumps Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
