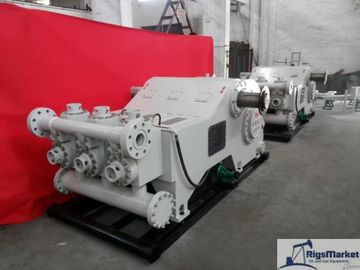

Gardner Denver PX11 mud pump fluid end module, Hy-chrome liner, valves, pistons
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Premium can produce the spare parts of Gardner Denver PZ7 MUD PUMP , PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PX-11 2000 HP MUD PUMP.
| GARDNER DENVER PX-11 2000 HP (7500 PS WORKING PRESSURE) FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| 1 | 300PXL2039 | 80705001 | MODULE, STUDDED FLUID END (ITEMS 1-6) | 3 |
| 2 | 303PXL110 | 80705002 | STUD, POWER FRAME (BOTTOM POWER FRAME-SHORT) 1 1/4"-7 x 7" | 6 |
| 3 | 301PXL110 | 80705003 | STUD, POWER FRAME (TOP POWER FRAME SHORT) 1 1/4"-7 x1 3/8"-6 X 7" | 6 |
| 4 | 302PXL110 | 80705004 | STUD, POWER FRAME (LONG) 1 1/4"-7 X 11" | 36 |
| 5 | 301PZL110 | 80705005 | STUD, CYL HEAD 7 VALVE COVER THREAD RING; DISCH MANIFOLD, 1 1/4"-7 X 9 1/4" | 84 |
| 6 | 50B36 | 6300200 | NUT, HEX 1 1/4"-7 | 168 |
| 7 | 303PZL316 | SEAL, WEAR PLATE | 3 | |
| 8 | 300PZL483 | GUIDE, UPPER VALVE | 3 | |
| 9 | 300PXL234 | RING, WEAR | 3 | |
| 10 | 300PZL205 | PZ1011LVGR75 | RETAINER, LOWER VALVE GUIDE | 3 |
| 11 | 300PZL316 | SEAL, CYL. HEAD & VALVE COVER - RUBBER (SEE DATASHEET FOR ALT. MATERIALS) | 6 | |
| 12 | 301PZL147 | PZ1011VC75 | COVER, VALVE (UPPER) | 3 |
| 13 | 15P27 | BOLT, EYE | 3 | |
| 14 | 300PZL387 | PZ1011FLG75 | RING, THREADED* | 6 |
| 15 | 300PZL587 | PZ1011CAP75 | CAP, THREADED | 6 |
| 16 | 25BE41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 |
| 17 | 655EG10N | SCREW, SUCTION MANIFOLD | 24 | |
| 18 | 302PZL316 | GASKET, DISCHARGE MANIFOLD | 3 | |
| 19 | 300PZL147 | COVER, CYLINDER HEAD (LOWER) | 3 | |
| 20 | 301PZL071 | GUIDE, LOWER VALVE | 3 | |
| 21 | 300PZL455 | PZ1011LC75 | CLAMP, LINER | 3 |
| Description | PZ-7 mud pump | PZ-8 mud pump | PZ-9 mud pump |
PZ-10 and PZ-11 mud pump |
| Liner of Crosshead Upper | 200PZG309 | 2012509 | PZ222 | 200PZL309 |
| Liner of Crosshead Lower | 200PZG309 | 2012509 | PZ222 | 200PZL309 |
| Pin of Crosshead | 200PZG189 | 200PZH189 | PZ189 | 200PZL706 |
| Extension Rod | 200PZH839 | 1PO183 | PZ183 | 200PZL839 |
| Sub Rod | ||||
| Crosshead | 200PZG005 | 200PZH005 | PZ175 | 200PZL005 |
| Pinion Shaft | 200PZG371 | 2012507 | 1PZ371 | 200PZK371 |
| Connecting Rod | 200PZG003 | 2012506 | PZ417 | 200PZL003 |
| Bull Gear | 200PZG280 | 2012508 | 1PZ180 | 200PZK280 |
| Bearing, Crosshead | 97A29 | 12BA44 | 12AM3 | 12BA5 |
| Bearing, Pinion Shanft | 12W75 | 12W58 | 12W60 | 12W73 |
| Bearing, Eccentric | 12BA18 | 12W85 | 12W84 | 12BA6 |
| Bearing, Main | 12BA20 | 12GF38 | 12GF36 | 12BA4 |
Since creating the first drilling mud pump more than 100 years ago, Gardner Denver Pumps has had a reputation for setting new industry standards for high-performance mud pumps for drilling rigs. Our customers prefer our drilling pumps because of the field-tested durability and ease of maintenance.
All Gardner Denver triplex pumps are machined for extreme applications and built for resilience. Our sub-assemblies, including our power ends and long-lasting fluid ends, maximize the efficiency and productivity of each Gardner Denver mud pump.
