GARDNER DENVER PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE,
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Oil,Water,drill Rig | Power: | Electric,diesel |
|---|---|---|---|
| Pressure: | High Pressure,Low Pressure | Application: | Mining,oil |
| Structure: | Piston Pump | Fuel: | Diesel |
| Standard Or Nonstandard: | Standard | Type: | Mud Pump |
| Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy | Warranty: | 12 Months |
| Feature: | Compact Size | Product Name: | Mud Pump |
| Oem: | Can Be Accept | Condition: | New |
We know pumps like no one knows pumps.
Since 1859, Gardner Denver has been a leading global manufacturer of industrial compressors, blowers, pumps, loading arms and fuel systems. We sell our highly engineered and innovative products through worldwide distribution networks for virtually every industry, including oil & gas, automotive, chemical, general and marine. Our customers listen to us because we listen to them, addressing their needs with long-term, high-value solutions.
DRILLING PUMPS MUD PUMPS:
PZ-2400 MUD PUMP
PXL MUD PUMP
PZL MUD PUMP
PZ11 MUD PUMP
PZ10 MUD PUMP
PZ9 MUD PUMP
PZ8 MUD PUMP
PZ7 MUD PUMP
PAH 275 MUD PUMP
THE MUD PUMP

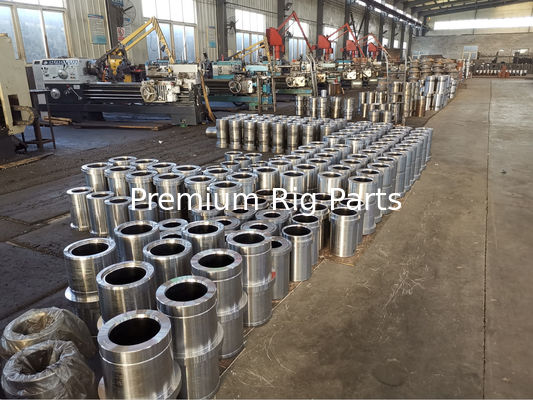

Premium can make and supply Hy-Chrome liners and Zicornia/Ceramic Liners for Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete mud pumps and their parts. Our reach extends to customers around the world.
| Description | PZ-7 | PZ-8 | PZ-9 | PZ-10 and PZ-11 |
| Fluid Cylinder | 205PZL029D | 205PZL029D | 205PZL029D | 202PZL029B |
| Valve Cover | 2011860 | 2011860 | 2011860 | 200PZL147 |
| Valve Cover Ring | 2011699 | 2011699 | 2011699 | 200PZL387 |
| Valve Cover Lock | 2011857 | 2011857 | 2011857 | 200PZL587 |
| Valve Guide Assembly | 2011706 | 2011706 | 2011706 | 200PZL483A |
| Valve Guide Suction | 2011700 | 2011700 | 2011700 | --- |
| Valve Guide Retainer Plate | 2011701 | 2011701 | 2011701 | 2011701 |
| Valve Cover Gasket | 2011862 | 2011862 | 2011862 | 204PZL715 |
| Valve Cover Gasket Retaining Ring | 2011861 | 2011861 | 2011861 | --- |
| Valve Guide Bushing | 2007674 | 2007674 | 2007674 | 2007674 |
| Piston Rod-Clamp Type | 201PZG060 | 1PZ183 | 1PZ183 | 200PZL060 |
| Extension Rod-Clamp Type | 200PZG839 | 1PO183 | PZ183 | 200PZL839 |
| Rod Clamp | 2012240 | 2012240 | 2012240 | 200PZL092A |
| Oil Stop Head Seal | 2011872 | 2011872 | 2011872 | 2011872 |
| Suction Manifold to Cylinder Gasket | 25G41 | 25G41 | 25G41 | 25G41 |
| Discharge Manifold to Cylinder Gasket | 25AL35 | 25AL35 | 25AL35 | 25AL35 |
| Liner to Cylinder Gasket | 25AT37 | 25AT37 | 25AT37 | 25AT37 |
| Valve Guide Washer | 95W2 | 95W2 | 95W2 | 95W2 |
| Valve Guide Capscrew | 75AA178 | 75AA178 | 75AA178 | 75AA178 |
| Liner Clamp | 1PV14 | 1PV14 | 1PV14 | 200PZL455 |
OEM Part Number for some popular brand mud pumps:
|
Mud Pump Models
Liner Inch |
4” | 4-1/2” | 5” | 5-1/2” | 6” | 6-1/2” | 7” |
| Continental Emsco F-800 / 1000 | / | 05495450 PREM | 05495500 PREM | 05495550 PREM | 05495600 PREM | 05495650 PREM | 05495700 PREM |
| Continental Emsco FB-1300 / 1600 | 05499400 PREM | 05499450 PREM | 05499500 PREM | 05499550 PREM | 05499600 PREM | 05499650 PREM | 05499700 PREM |
| Continental Emsco FC-2200 | / | / | 05551500 PREM | 05551550 PREM | 05551600 PREM | 05551650 PREM | 05551700 PREM |
| Gardner Denver PAH-275 |
PA I3940 05519400 PREM |
PA 13945 05445450 PREM |
PA 13950 05445500 PREM |
/ | / | / | / |
| Gardner Denver PZ-7 | PY13940 | PY13945 |
PY13950 05493087 PREM |
PY13955 05493085 PREM |
PY13960 05493083 PREM |
PY13965 05493081PREM |
PY13970 05493079 PREM |
| Gardner Denver PZ-8/9 |
206PZJ456 05493400 PREM |
205PZJ456 05493450 PREM |
204PZJ456 05493500 PREM |
203PZJ456 05493550 PREM |
202PZJ456 05493600 PREM |
200PZJ456 05493650 PREM |
207PZJ456 05493700 PREM |
| Gardner Denver PZ-10/11 |
206PZL456 05496400 PREM |
205PZL456 05496450 PREM |
204PZL456 05496500 PREM |
203PZL456 05496550 PREM |
202PZL456 05496600 PREM |
201PZL456 05496650 PREM |
200PZL456 05496700 PREM |
| Gardner Denver PZL |
206PZL456 05496400 PREM |
205PZL456 05496450 PREM |
204PZL456 05496500 PREM |
203PZL456 05496550 PREM |
202PZL456 05496600 PREM |
201PZL456 05496650 PREM |
200PZL456 05496700 PREM |
| Gardner Denver PZL-B-7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Gardner Denver PZL W/SWFE 7500 PSI | 05465400HP | 05465450HP | 05465500HP | 05465550HP | 05465600HP | 05465650HP | 05465700HP |
| Gardner Denver PX-11 7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Ideco T-500 | / | 05512450 PREM | 05512500 PREM | 05512550 PREM | 05512600 PREM | 05512650 PREM | 05512700 PREM |
| Ideco T-800 / 1000 | 05502400 PREM | 05502450 PREM | 05502500 PREM | 05502550 PREM | 05502600 PREM | 05502650 PREM | 05502700 PREM |
| Ideco T-1300 / 1600 | / | 05507450 PREM | 05507500 PREM | 05507550 PREM | 05507600 PREM | 05507650 PREM | 05507700 PREM |
| National 7P-50 | 05466040 PREM | 05466045 PREM | 05466050 PREM | 05466055 PREM | 05466060 PREM | / | / |
| National 8-P-80 | 05464400 PREM | 05464450 PREM | 05464500 PREM | 05464550 PREM | 05464600 PREM | 05464650 PREM | / |
| National 9-P-100 / 10-P-130 | 05465400 PREM | 05465450 PREM | 05465500 PREM | 05465550 PREM | 05465600 PREM | 05465650 PREM | / |
| National 12-P-160 | 05466400 PREM | 05466450 PREM | 05466500 PREM | 05466550 PREM | 05466600 PREM | 05466650 PREM | 05466700 PREM |
| National 14-P-220 | 05545400 PREM | 05545450 PREM | 05545500 PREM | 05545550 PREM | 05545600 PREM | 05545650 PREM | 05545700 PREM |
| National JWS-165/340 | 05531400 PREM | 05531450 PREM | / | / | / | / | / |
| National JWS-400 | 05524400 PREM | 05524450 PREM | 05524500 PREM | 05524550 PREM | 05524600 PREM | / | / |
| Oilwell HD-1700-PT | / | / | 05326500 PREM | 05326550 PREM | 05326600 PREM | 05326650 PREM | 05326700 PREM |
| Oilwell A-600-PT | 05329400 PREM | 05329450 PREM | 05329500 PREM | 05329550 PREM | 05329600 PREM | 05329650 PREM | 05329700 PREM |
| Oilwell A-850-PT / A-1100-PT | 05330400 PREM | 05330450 PREM | 05330500 PREM | 05330550 PREM | 05330600 PREM | 05330650 PREM | 05330700 PREM |
| Oilwell A-1400-PT / A-1700-PT | 05326400 PREM | 05326450 PREM | 05326500 PREM | 05326550 PREM | 05326600 PREM | 05326650 PREM | 05326700 PREM |
| Description | PZ-7 mud pump | PZ-8 mud pump | PZ-9 mud pump |
PZ-10 and PZ-11 mud pump |

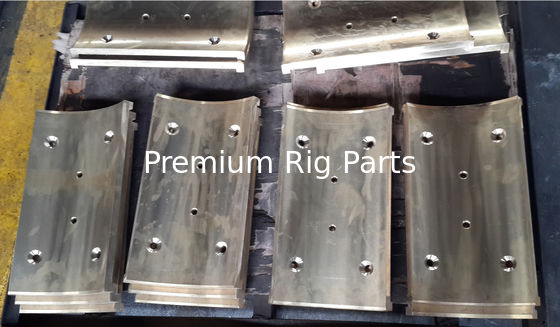

| Liner of Crosshead Upper | 200PZG309 | 2012509 | PZ222 | 200PZL309 |
| Liner of Crosshead Lower | 200PZG309 | 2012509 | PZ222 | 200PZL309 |
| Pin of Crosshead | 200PZG189 | 200PZH189 | PZ189 | 200PZL706 |
| Extension Rod | 200PZH839 | 1PO183 | PZ183 | 200PZL839 |
| Sub Rod | ||||

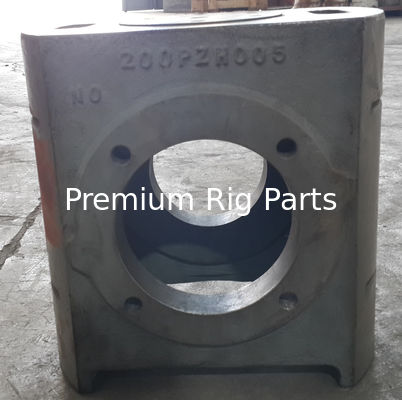

| Crosshead | 200PZG005 | 200PZH005 | PZ175 | 200PZL005 |
| Pinion Shaft | 200PZG371 | 2012507 | 1PZ371 | 200PZK371 |
| Connecting Rod | 200PZG003 | 2012506 | PZ417 | 200PZL003 |
| Bull Gear | 200PZG280 | 2012508 | 1PZ180 | 200PZK280 |
| Bearing, Crosshead | 97A29 | 12BA44 | 12AM3 | 12BA5 |
| Bearing, Pinion Shanft | 12W75 | 12W58 | 12W60 | 12W73 |
| Bearing, Eccentric | 12BA18 | 12W85 | 12W84 | 12BA6 |
| Bearing, Main | 12BA20 | 12GF38 | 12GF36 | 12BA4 |

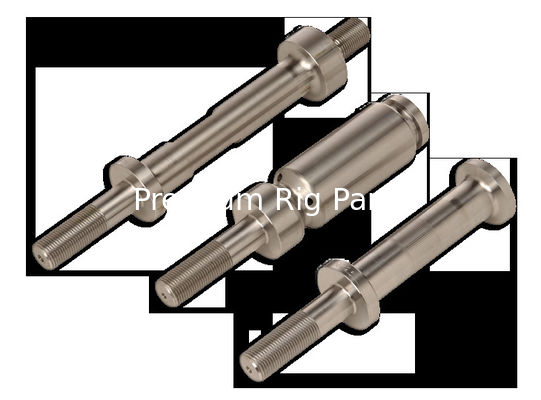

| PAH | Crosshead Rod | Piston Rod | Sub Rod | Extension Rod | Clamp | Rod Nut |
| Clamp Type | P-P-1551500 | NA | P-PP601022 | P-005402052 | ||
| PZ-7 | Crosshead Rod | Piston Rod | Sub Rod | Extension Rod | Clamp | Rod Nut |
| Clamp Type | P-07913087 | P-2404427 | NA | P-PP601022 | P-005402052 | |
| Thread Type | P-07913063 | P-1551714 | NA | NA | P-005402052 | |
| PZ-8 | Crosshead Rod | Piston Rod | Sub Rod | Extension Rod | Clamp | Rod Nut |
| Clamp Type | P-07913056 | P-1551510 | NA | P-PP601022 | P-005402052 | |
| Thread Type | P-07913063 | P-1551512 | NA | NA | P-005402052 | |
| PZ-9 | Crosshead Rod | Piston Rod | Sub Rod | Extension Rod | Clamp | Rod Nut |
| Clamp Type | P-07913065 | P-1551510 | NA | P-PP601022 | P-005402052 | |
| Thread Type | P-07913076 | P-1551512 | NA | NA | P-005402052 | |
| PZ-10 | Crosshead Rod | Piston Rod | Sub Rod | Extension Rod | Clamp | Rod Nut |
| Clamp Type | P-07913078 | P-1551712 | NA | P-PP601023 | P-005402052 | |
| Thread Type | P-07913076 | P-1551719 | NA | NA | P-005402052 | |
| PZ-11 | Crosshead Rod | Piston Rod | Sub Rod | Extension Rod | Clamp | Rod Nut |
| Clamp Type | P-07913078 | P-1551712 | NA | P-PP601023 | P-005402052 | |
| Thread Type | P-07913076 | P-1551719 | NA | NA | P-005402052 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:

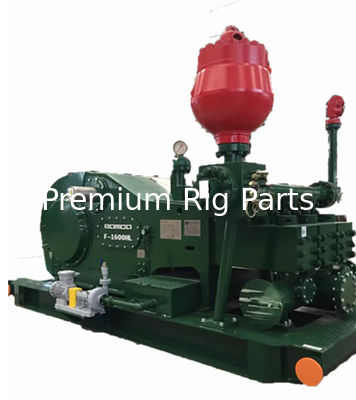

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

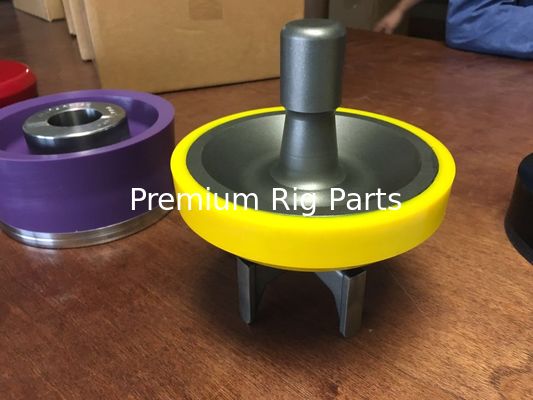

1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000

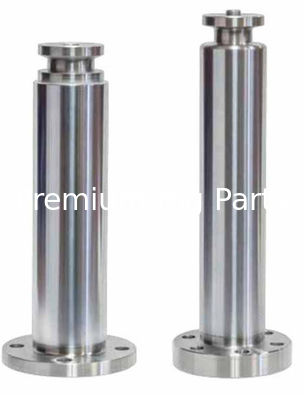

1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

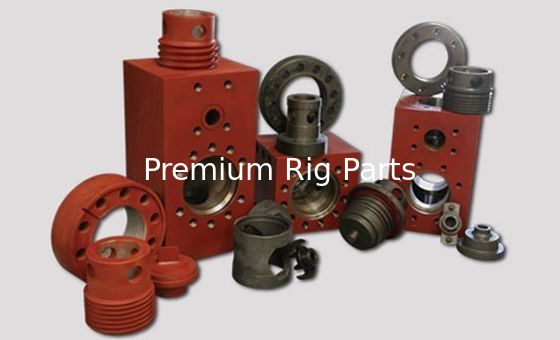

Fluid End Modules
GARDNER DENVER
PZ10/11 Mud Pump
| Item | P/N | Description | Qty. | Price $ | Weight kgs |
| 1 | 0202PZL029B | Fluid Module Studded, (incl. Items 2-9) | 3 | ||
| 2 | Fluid Module, Only | 3 | 3280 | 458 | |
| 3 | 201PZL110 | Stud, Long, Moudle to Frame | 24 | 12.3 | 2.3 |
| 4 | 205PZL110 | Stud, Short, Moudle to Frame | 24 | 9.6 | 1.6 |
| 5 | 50B36 | Nut, Module to Frame & Liner Clamp | 60 | 2.3 | 0.13 |
| 6 | 204PZL110 | Stud, Valve Cover to Moudle | 72 | 9.5 | 1.5 |
| 7 | 50B34 | Nut, Valve Cover to Moudle & Module to Discharge | 84 | 2.3 | 0.13 |
| 8 | 202PZL110 | Stud, Module to Discharge Manifold | 12 | 8.5 | 1.1 |
| 9 | 200PZL587 | Cap, Valve Lock | 6 | 244.0 | 24.0 |
| 10 | 200PZL147 | Cover, Valve | 6 | 154.5 | 11.2 |
| 11 | 2007674 | Bushing, Valve Guide,Discharge | 3 | 3.0 | 0.02 |
| 12 | 204PZL715 | Gasket, Valve Cover | 6 | 6.5 | 0.01 |
| 13 | 200PZL387 | Thread Ring | 6 | 245.5 | 25.6 |
| 200PZL483A | Valve Guide Assembly (incl.Items 16-20) | 3 | |||
| 14 | 2011701 | Plate, Retainer | 1 | 48.0 | 1.8 |
| 15 | 2011700 | Valve Guide, Suction | 1 | 51.0 | 2.0 |
| 16 | 2007674 | Bushing, Valve Guide,Suction | 1 | 3.5 | 0.02 |
| 17 | 95W2 | Lock Washer,Valve Guide | 2 | 0.5 | 0.01 |
| 18 | 655EE06S | Screw, Valve Guide | 2 | 3.0 | 0.02 |
| 19 | 25A135 | Gasket, Discharge Manifold to Module | 3 | 3.5 | 0.01 |
| 20 | 25G41 | Gasket, Suction Manifold to Moudule | 3 | 5.2 | 0.12 |
| 21 | 200PZL455 | Liner Clamp | 3 | 2.5 | 0.09 |
| 23 | PREM-3127-44 | Liner 4-1/2" | 3 | 231.2 | 84.3 |
| 24 | PREM-3127-50 | Liner 5" | 3 | 225.5 | 77.5 |
| 25 | PREM-3127-54 | Liner 5-1/2" | 3 | 220.0 | 70.0 |
| 26 | PREM-3127-60 | Liner 6" | 3 | 213.0 | 61.77 |
| 27 | PREM-3127-64 | Liner 6-1/2" | 3 | 205.6 | 52.8 |
| 28 | PREM-3127-66 | Liner 6-3/4" | 3 | 200.0 | 46.8 |
| PREM-3127-70 | Liner 7" | 3 | 193.8 | 43.2 | |

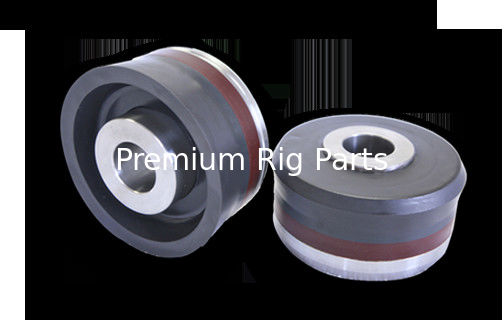

| 29 | 012180196 | Piston 4-1/2" | 3 | 39.8 | 3.6 |
| 30 | 012180253 | Piston 5" | 3 | 41.5 | 4.2 |
| 31 | 012180337 | Piston 5-1/2" | 3 | 45.3 | 5.7 |
| 32 | 012180394 | Piston 6" | 3 | 47.2 | 6.5 |
| 33 | 012180535 | Piston 6-1/2" | 3 | 55.2 | 7.6 |
| 34 | Piston 6-3/4" | 3 | 58 | 8.5 | |
| 012180618 | Piston 7" | 3 | 61.8 | 9.8 | |
| 35 | 9700250 | Valve Full Open 7FO-V1 | 6 | 39.8 | 4.9 |
| 36 | 9702504 | Seat 7S1 | 6 | 29.26 | 4.8 |
| 37 | HD7I | Valve Insert | 6 | 24.4 | 0.24 |
| 38 | 060155041 | Valve Cross arms | 6 | 29.6 | 4.6 |
| 39 | 061101507 | Seat Cross arms | 6 | 29 | 4.4 |
| 40 | UDD7B | Valve Insert | 6 | 26 | 0.23 |
| 41 | Piston rod | 3 | 86 | 10.3 | |
| 42 | Clamp | 3 | 75 | 6.5 | |
| 43 | Pony rod | 3 | 232 | 36.2 |
| GARDNER DENVER PZ-7, PZ-8, PZ-9 FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| 1 | FEMPZ789CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-22) | 3 | |
| 1A | 200PZL029F | FEMPZ789 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-9) | 3 |
| 205PZL029D | ||||
| 1B | 80721012 | MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-9) | ||
| 2 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 |
| 3 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 48 |
| 4 | 79L73 | PZ789GPFS | STUD, FRAME | 12 |
| 5 | 50AQ30 | PZ789PFSN | NUT, FRAME STUD | 12 |
| 6 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 |
| 7 | 50B34 | PZ789TRSN | NUT, VALVE COVER STUD | 48 |
| 8 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 9 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 |
| 11 | 2011862 | 7916749 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED (2 1/2" THICK) | 6 |
| 14A | PZ789HFLG | RING, HEAVY VALVE COVER THREADED (3" THICK) | 6 | |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 |
| 17 | 2011700 | PZ789LVG | GUIDE, LOWER VALVE SUCTION | 3 |
| 18 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 |
| 20 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 25G41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 |
| 23 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 |
| 24 | 75A74N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 |
| 25 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 | |
| 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 | ||
| Gardner Denver PZ-11 & PZ-10 FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| FEMPZ1011CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-21) | 3 | ||
| 1 | 202PZL029B | FEMPZ1011 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1-8) | 3 |
| 1B | 80721022 | MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-8) | ||
| 2 | 201PZL110 | PZ1011LCS | STUD, FRAME & LINER CLAMP LONG | 24 |
| 3 | 205PZL110 | PZ1011GPFS | STUD, FRAME & LINER CLAMP SHORT | 24 |
| 4 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 72 |
| 5 | 204PZL110 | PZ1011TRS | STUD, THREADED RING | 72 |
| 6 | 50B34 | PZ789TRSN | NUT, THREADED RING STUD | 72 |
| 7 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 8 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD (SAME AS ITEM 6) | 12 |
| 9 | 200PZL387 | PZ1011FLG | RING, VALVE COVER THREADED | 6 |
| 10 | 204PZL715 | 7916780 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 11 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 12 | 200PZL147 | PZ1011VC | COVER, VALVE | 6 |
| 13 | 200PZL587 | PZ1011CAP | CAP, VALVE COVER LOCK | 6 |
| 14 | 2011701 | PZ789PL | PLATE, RETAINER | 3 |
| 15 | 200PZL483 | PZ1011LVG | GUIDE, VALVE SUCTION | 3 |
| 16 | 655EE065 | PZLVGABOLT | SCREW, VALVE GUIDE TO RETAINER PLATE | 6 |
| 17 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 |
| 18 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 19 | 25BE41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 |
| 20 | 200PZL455 | PZ1011LC | CLAMP, LINER | 3 |
| 21 | 200PZL483A | PZ1011LVGA | ASSY, LOWER VALVE GUIDE ( INCLUDES ITEMS 11, 14-17) | 3 |
| 22 | 655EG08N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 |
| 23 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW 3/4" REGULAR SPRING LOC-NOT SHOWN | 24 | |
| 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 | ||
| GARDNER DENVER PZ-10, PZ-11 W/ WEAR PLATE FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| FEMPZ1011WPCA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-23) | 3 | ||
| 1 | FEMPZ1011WP | MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-8) | 3 | |
| 2 | 201PZL110 | PZ1011LCS | STUD, FRAME & LINER CLAMP LONG | 24 |
| 3 | 205PZL110 | PZ1011GPFS | STUD, FRAME & LINER CLAMP SHORT | 24 |
| 4 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 72 |
| 5 | 204PZL110 | PZ1011TRS | STUD, THREADED RING | 72 |
| 6 | 50B34 | PZ789TRSN | NUT, THREADED RING STUD | 72 |
| 7 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 8 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD (SAME AS ITEM 6) | 12 |
| 9 | 200PZL387 | PZ1011FLG | RING, VALVE COVER THREADED | 6 |
| 10 | 204PZL715 | 7916780 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 11 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 12 | 200PZL147 | PZ1011VC | COVER, VALVE | 6 |
| 13 | 200PZL587 | PZ1011CAP | CAP, VALVE COVER LOCK | 6 |
| 14 | 2011701 | PZ789PL | PLATE, RETAINER | 3 |
| 15 | 200PZL483 | PZ1011LVG | GUIDE, VALVE SUCTION | 3 |
| 16 | 655EE065 | PZLVGABOLT | SCREW, VALVE GUIDE TO RETAINER PLATE | 6 |
| 17 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 |
| 18 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 19 | 25BE41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 |
| 20 | 200PZL455 | PZ1011LC | CLAMP, LINER | 3 |
| 21 | PZ910WPINTL | PLATE, WEAR | 3 | |
| 22 | 20100019 | SEAL, WEAR PLATE | 3 | |
| 23 | 200PZL483A | PZ1011LVGA | ASSY, LOWER VALVE GUIDE (INCLUDES ITEMS 11, 14-17) | 3 |
| 24 | 655EG08N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 |
| 25 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 | |
| 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 | ||
| CONTINENTAL EMSCO FC-2200 FLUID END MODULE & ACCESSORIES | |||
| ITEM # | PART # | DESCRIPTION | QTY PER PUMP |
| - | 0-6323-0100-20 | ASSY, FLUID END COMPLETE (INCLUDES DISCHARGE MANIFOLD) | 1 |
| 1 | 0-6323-0108-00 | MODULE, DISCHARGE STUDDED | 3 |
| 2 | 0-6323-0109-00 | MODULE, SUCTION STUDDED | 3 |
| 3 | 0-6323-0087-90 | RETAINER, THREADED | 6 |
| 4 | 0-6323-0086-90 | RING, THREADED | 6 |
| 5 | 0-6323-0083-00 | COVER, VALVE POT | 6 |
| 6 | 0-6323-0103-00 | GUIDE W/ BUSHING, VALVE | 6 |
| 7 | 0-6323-0126-00 | HANDLER, VALVE POT | 6 |
| 8 | 0-6323-0107-20 | COVER, LINER END | 3 |
| 9 | 0-6323-0129-00 | DISC, BAFFLE | 3 |
| 10 | 0-6323-0085-00 | MANIFOLD, SUCTION | 1 |
| 11 | 0-6316-0105-95 | FLANGE, SUCTION | 1 |
| 12 | 0-6317-0074-95 | FLANGE, BLIND | 1 |
| 13 | 0-6323-0084-10 | DISCHARGE MANIFOLD, 7500 PSI | 1 |
| 14 | 0-6323-0097-90 | WEAR PLATE | 3 |
| 15 | 0-6323-0096-00 | RING, LINER THREAD | 3 |
| 16 | 0-6323-0099-00 | LINER LOCK | 3 |
| 17 | 0-6323-0093-00 | RETAINER, VALVE GUIDE | 6 |
| 18 | 0-6323-0128-00 | SEAL, SUCTION TO DISCHAGE MODULE | 3 |
| 19 | 0-6323-0127-00 | SEAL, WEAR PLATE & LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 20 | 0-7602-1600-47 | O-RING (LINER LOCK RING) | 3 |
| 21 | 7817600456 | O-RING (SUCTION MANIFOLD) | 3 |
| 22 | 0-7602-1600-61 | O-RING (SUCTION MANIFOLD TO F.E.) | 3 |
| 23 | 0-7602-1600-30 | O-RING (DISCHARGE MANIFOLD TO F.E.) | 3 |
| 24 | 0-7501-0051-00 | SCREW, RETAINER | 24 |
| 25 | 7822095 | WIRE, SAFETY SST | 72 |
| 26 | 0-6323-0101-00 | RING, LINER LOCK | 3 |
| 27 | 7000534 | SCREW, SUCTION FLANGE HEX HD | 36 |
| 28 | 0-7601-0630-20 | NUT, HEX 1" - 8 | 36 |
| 29 | 0-6323-0125-00 | SEAL, VALVE POT COVER | 6 |
| 30 | 0-7601-0333-30 | SCREW, SUCTION MANIFOLD TO F.E. | 18 |
Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd
Contact Person: Mr. Eric
Tel: 0086-15376875239
Other Products
-
FD-FXD Mud Pump, FK-FXK mud pump, FZ-FXZ mud pump,FXN mud pump, FG-FXG MUD PUMP, FD-FXX mud pump,FO-FXO mud pump
-
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
-
MISSION "L" MODULE FOR GARDNERDENVER PZ-10/PZ-11 mud pump liner, Gardner Denver PZ10/11 MUD PUMP FLUID END MODULE LINERS
-
Gardner Denver PZ8, PZ9, PZ10, PZ11, PAH 275, PZ11L mud pump fluid end module, Hy-chrome liner, valves, pistons
-
Mud Pump Power End spares, Crankshaft, Pinionshaft, bull gear, Crosshead,GARDNER DENVER PZ-9, PZ-10, PZ-11 MUD PUMP
-
PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP
