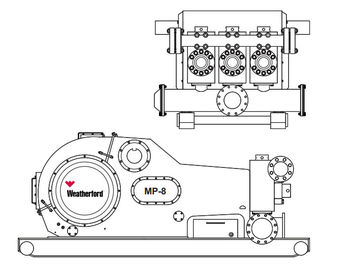

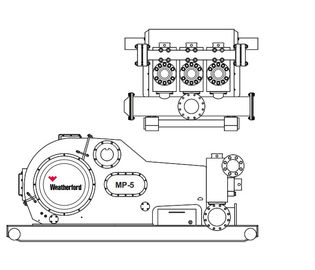

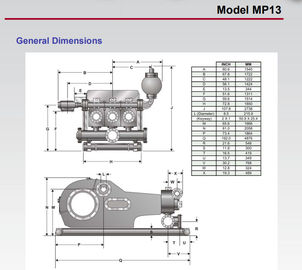

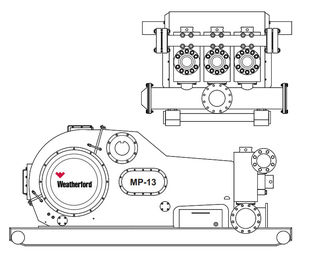

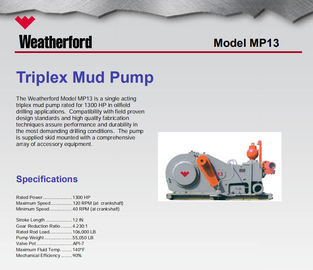

MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, WEATHERFORD MUD PUMP, MP16 MUD PUMP
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Oil,drill Rig | Power: | Electric,diesel |
|---|---|---|---|
| Pressure: | High Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump | Application: | Mining,oil |
| Structure: | Piston Pump | Fuel: | Diesel,diesel Engine And Hydraulic Motor For Option |
| Standard Or Nonstandard: | Standard | Theory: | Centrifugal Pump,Reciprocating Pump,Diaphragm Pump |
| Type: | Mud Pump | Weight: | 100-3700kg |
| Color: | Green Or Per Customer Design | Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy |
| Warranty: | 12 Months | Feature: | Mud Suction Pump |
| Product Name: | Mud Pump | Head: | 10m Mud Suction Pump |
| Oem: | Can Be Accept,Applicable |
Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.
Weatherford is building one of the world’s leading reciprocating pump organizations by giving you more pump for your money.
We build in extra-value features that don’t cost extra and give you the lasting value of pump components built for maximum
reliability and service life.
Most importantly, our people bring invaluable experience and dedication to your application. They will help you choose from
our broad range of pumps and accessories and deliver them to you faster than anyone else in the industry.

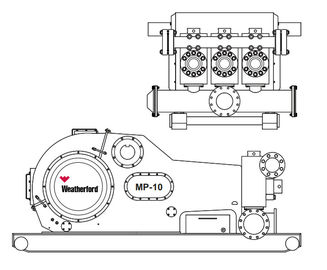

| Weatherford MP-10 SWFE 5K | ||
| JDE Part Number | Description | Qty. Req. |
| Fluid End Assembly ( Includes Suction Module, Discharge Module, Valve Cover Assy's, Liner Retainer, Suction Manifold, Discharge Manifold, All Studs, Nuts and Gaskets for Complete Pump Assembly) | 1 | |
| 1317095 | Liner, 4" Chrome Iron | 3 |
| 1317123 | Liner, 4-1/4" Chrome Iron | 3 |
| 1317155 | Liner, 4-1/2" Chrome Iron | 3 |
| 1317182 | Liner, 4-3/4" Chrome Iron | 3 |
| 1279784 | Liner, 5" Chrome Iron | 3 |
| 1317232 | Liner, 5-1/4" Chrome Iron | 3 |
| 1279787 | Liner, 5-1/2" Chrome Iron | 3 |
| 1317283 | Liner, 5-3/4" Chrome Iron | 3 |
| 1279819 | Liner, 6" Chrome Iron | 3 |
| 1317330 | Liner, 6-1/4" Chrome Iron | 3 |
| 1317356 | Liner, 6-1/2" Chrome Iron | 3 |
| 1317375 | Liner, 6-3/4" Chrome Iron | 3 |
| 1317107 | Liner, 4" Zirconia | 3 |
| 1317139 | Liner, 4-1/4" Zirconia | 3 |
| 1317166 | Liner, 4-1/2" Zirconia | 3 |
| 1317197 | Liner, 4-3/4" Zirconia | 3 |
| 1317220 | Liner, 5" Zirconia | 3 |
| 1317247 | Liner, 5-1/4" Zirconia | 3 |
| 1317271 | Liner, 5-1/2" Zirconia | 3 |
| 1317297 | Liner, 5-3/4" Zirconia | 3 |
| 1317319 | Liner, 6" Zirconia | 3 |
| 1317344 | Liner, 6-1/4" Zirconia | 3 |
| 1317365 | Liner, 6-1/2" Zirconia | 3 |
| 1317383 | Liner, 6-3/4" Zirconia | 3 |
| 1317734 | Seal, Liner NBR | 3 |
| 1317736 | Seal, Liner PUR | 3 |
| 1318075 | Wearplate CS | 3 |
| 1318094 | Wearplate SS | 3 |
| 1317809 | Wearplate Seal / Module NBR | 6 |
| 1317812 | Wearplate Seal / Module PUR | 6 |
| 1317542 | Piston, 4" Bonded DD PUR | 3 |
| 1317546 | Piston, 4-1/4" Bonded DD PUR | 3 |
| 1317550 | Piston, 4-1/2" Bonded DD PUR | 3 |
| 1317554 | Piston, 4-3/4" Bonded DD PUR | 3 |
| 1317558 | Piston, 5" Bonded DD PUR | 3 |
| 1317562 | Piston, 5-1/4" Bonded DD PUR | 3 |
| 1317566 | Piston, 5-1/2" Bonded DD PUR | 3 |
| 1317570 | Piston, 5-3/4" Bonded DD PUR | 3 |
| 1317574 | Piston, 6" Bonded DD PUR | 3 |
| 1317578 | Piston, 6-1/4" Bonded DD PUR | 3 |
| 1317582 | Piston, 6-1/2" Bonded DD PUR | 3 |
| 1317587 | Piston, 6-3/4" Bonded DD PUR | 3 |
| 1317541 | Piston, 4" Bonded DD HT PUR | 3 |
| 1317545 | Piston, 4-1/4" Bonded DD HT PUR | 3 |
| 1317549 | Piston, 4-1/2" Bonded DD HT PUR | 3 |
| 1317553 | Piston, 4-3/4" Bonded DD HT PUR | 3 |
| 1317557 | Piston, 5" Bonded DD HT PUR | 3 |
| 1317561 | Piston, 5-1/4" Bonded DD HT PUR | 3 |
| 1317565 | Piston, 5-1/2" Bonded DD HT PUR | 3 |
| 1317569 | Piston, 5-3/4" Bonded DD HT PUR | 3 |
| 1317573 | Piston, 6" Bonded DD HT PUR | 3 |
| 1317577 | Piston, 6-1/4" Bonded DD HT PUR | 3 |
| 1317581 | Piston, 6-1/2" Bonded DD HT PUR | 3 |
| 1317586 | Piston, 6-3/4" Bonded DD HT PUR | 3 |
| 1317543 | Piston, 4" Bonded, NBR | 3 |
| 1317547 | Piston, 4-1/4" Bonded, NBR | 3 |
| 1317551 | Piston, 4-1/2" Bonded, NBR | 3 |
| 1317555 | Piston, 4-3/4" Bonded, NBR | 3 |
| 1317559 | Piston, 5" Bonded, NBR | 3 |
| 1317563 | Piston, 5-1/4" Bonded, NBR | 3 |
| 1317567 | Piston, 5-1/2" Bonded, NBR | 3 |
| 1317571 | Piston, 5-3/4" Bonded, NBR | 3 |
| 1317575 | Piston, 6" Bonded, NBR | 3 |
| 1317579 | Piston, 6-1/4" Bonded, NBR | 3 |
| 1317584 | Piston, 6-1/2" Bonded, NBR | 3 |
| 1317588 | Piston, 6-3/4" Bonded, NBR | 3 |
| 1317544 | Piston, 4" K-Series Replacable Rubber Complete | 3 |
| 1317548 | Piston, 4-1/4" K-Series Replacable Rubber Complete | 3 |
| 1317552 | Piston, 4-1/2" B-Series Replacable Rubber Complete | 3 |
| 1317556 | Piston, 4-3/4" B-Series Replacable Rubber Complete | 3 |
| 1317560 | Piston, 5" B-Series Replacable Rubber Complete | 3 |
| 1317564 | Piston, 5-1/4" B-Series Replacable Rubber Complete | 3 |
| 1317568 | Piston, 5-1/2" B-Series Replacable Rubber Complete | 3 |
| 1317572 | Piston, 5-3/4" B-Series Replacable Rubber Complete | 3 |
| 1317576 | Piston, 6" B-Series Replacable Rubber Complete | 3 |
| 1317580 | Piston, 6-1/4" L-Series Replacable Rubber Complete | 3 |
| 1317585 | Piston, 6-1/2" L-Series Replacable Rubber Complete | 3 |
| 1317589 | Piston, 6-3/4" L-Series Replacable Rubber Complete | 3 |
| 1317520 | Piston Rubber, 4" K-Series Replacement Kit | 3 |
| 1317521 | Piston Rubber, 4-1/4" K-Series Replacement Kit | 3 |
| 1317522 | Piston Rubber, 4-1/2" B-Series Replacement Kit | 3 |
| 1317523 | Piston Rubber, 4-3/4" B-Series Replacement Kit | 3 |
| 1317524 | Piston Rubber, 5" B-Series Replacement Kit | 3 |
| 1317525 | Piston Rubber, 5-1/4" B-Series Replacement Kit | 3 |
| 1317526 | Piston Rubber, 5-1/2" B-Series Replacement Kit | 3 |
| 1317527 | Piston Rubber, 5-3/4" B-Series Replacement Kit | 3 |
| 1317528 | Piston Rubber, 6" B-Series Replacement Kit | 3 |
| 1317529 | Piston Rubber, 6-1/4" L-Series Replacement Kit | 3 |
| 1317530 | Piston Rubber, 6-1/2" L-Series Replacement Kit | 3 |
| 1317531 | Piston Rubber, 6-3/4" L-Series Replacement Kit | 3 |
| 1411483 | Bushing, Piston, 1.625 x 1.50, Plastic | 3 |
| 766945 | Seal, Piston | 3 |
| 1317518 | Rod, Piston | 3 |
| 1133856 | Nut, Rod, | 3 |
| 1323512 | Stud, Connecting, Piston Rod | 3 |
| 1317865 | Rod, Sub | 3 |
| 1316936 | Clamp, Rod | 3 |
| 1124997 | Ø Clamp, Rod | |
| 1317640 | Rod, Pony (Crosshead Extension) | 3 |
| 908378 | Ø Rod, Pony (Crosshead Extension) | 3 |
| 1317770 | Seal, Pony Rod, Single-Lip | 3 |
| 1317771 | Seal, Pony Rod, Double-Lip | 3 |
| 1318053 | Valve, API-6 FO w/Snap-On PUR Insert | 6 |
| 1317993 | Insert, API-6 FO PUR | 6 |
| 1318051 | Valve, API-6 FO w/ Bonded PUR Insert | 6 |
| 1318052 | Valve, API-6 FO w/ HT Bonded PUR Insert | 6 |
| 1318028 | Spring, Valve CS | 6 |
| 1318038 | Spring, Valve SS | 6 |
| 1318008 | Seat, API-6 FO | 6 |
| 1317875 | Puller Head, API-6 FO | 1 |
| 1318048 | Valve, API-6 CG 3-Web w/DBL-AOR PUR Insert | 6 |
| 1317985 | Insert, Valve, DBL-AOR PUR | 6 |
| 1318047 | Valve HT, API-6 CG 3-Web w/DBL-AOR PUR Insert | 6 |
| 1317988 | Insert HT, API-6 CG 3-Web w/DBL-AOR PUR Insert | 6 |
| 1318032 | Spring, Valve SS | 6 |
| 1318006 | Seat, API-6 CG 3-Web | 6 |
| 1317872 | Puller, Seat, API-6M CG 3-Web | 1 |
| 1318050 | Valve, CG API-6 f/ 4-Web Asm | 6 |
| 1317991 | Insert, CG API-6 f/ 4-Web | 6 |
| 1318049 | Valve HT, CG API-6 f/ 4-Web Asm | 6 |
| 1317992 | Insert HT, CG API-6 f/ 4-Web | 6 |
| 1318026 | Spring, Valve CS | 6 |
| N/A | Spring, Valve SS | 6 |
| 1318007 | Seat, CG API-6 4-Web | 6 |
| 1317874 | Puller Head, CG API-6 f/ 4-Web | 1 |
| Fluid End and Accessories | ||
| 1316959 | ***Module Assembly, Complete w/Accessories*** | 3 |
| 1317030 | Module, Suction (studded only) | 3 |
| 1317004 | Module, Discharge (studded only) | 3 |
| 1418004 | Pin, Dowel | |
| 1317949 | Valve Cover, SW-HPQC Conversion Assembly | 6 |
| 1317905 | Flange, Threaded, Valve Cover SW-HPQC | 6 |
| 1317966 | Gland, Screw SW-HPQC | 6 |
| 1317949 | Plug, Valve Cover SW-HPQC (complete w/ valve guide; screws; and bushing) | 6 |
| 1317766 | Seal, HP Valve Cover Plug, NBR | 6 |
| 1317767 | Seal, HP Valve Cover Plug, PUR | 6 |
| 1317926 | Guide, Valve (complete w/ bushing) | 6 |
| 1317886 | Bushing, Valve Guide, NBR | 6 |
| 1317889 | Bushing, Valve Guide, PUR | 6 |
| 1738844 | Stud, Valve Guide (1/2"-13 X 2" Gr. 8 w/ Nylock Nut) | 12 |
| 1317854 | Stud, Valve Cover (w/ 1-1/4"-7 HHN) *1350 Ft. Lbs. | 72 |
| 1738846 | Stud, Power End (w/ 1-1/2"-8 HHN) *2775 Ft. Lbs. | 24 |
| 1418005 | Stud, Suction Module (w/ 1-1/2"-8 HHN) *2775 Ft. Lbs. | 18 |
| 1383133 | Screw, Ferry Head Cap, Liner Retainer Flange (1-1/4"-7 X 5-1/ 2" Gr. 8 ) | 24 |
| 1917433 | Flange, Liner Retainer | 3 |
| 1317089 | Pilot Ring, Liner Retainer | 3 |
| 1317079 | Nut, Liner Retainer | 3 |
| 1317487 | Manifold, Suction Manifold (front or side inlet) | 1 |
| 1125003 | Ø Manifold, Suction Manifold (front or side inlet | 1 |
| 767109 | Seal, Suction Manifold | 3 |
| 1236089 | Cap Screw, Suction Manifold (7/8"-9 X 2-1/4" w/ lock washer) *500 Ft. Lbs. | 18 |
| 1125010 | Ø Bag, Air, Suction Manifold | 1 |
| 1317478 | Manifold, Discharge | 1 |
| 1124941 | Ø Manifold, Discharge | 1 |
| 1231042 | Seal, Discharge Manifold | 3 |
| 1738845 | Stud, Discharge Manifold (w/ 1-1/4"-8 HHN) | 12 |
| GARDNER DENVER PZ-7, PZ-8, PZ-9 | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| 1 | FEMPZ789CA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22 + 24) | 3 | |
| 1A | 200PZL029F | FEMPZ789 | FLUID END MODULE STUDDED (INCLUDES 1-9 & 24) | 3 |
| 205PZL029D | ||||
| 02 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 |
| 03 | 50B36 | PZ789LCSN | NUT (FOR ABOVE) | 24 |
| 04 | 79L73 | PZ789GPFS | STUD, FRAME | 12 |
| 05 | 50AQ30 | PZ789GPFSN | NUT (FOR ABOVE) | 12 |
| 06 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 |
| 07 | 50B34 | PZ789TRSN | NUT (FOR ABOVE) | 48 |
| 08 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 09 | 50B34 | PZ789TRSN | NUT (FOR ABOVE) | 12 |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 |
| 11 | 2011862 | 07916749 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED | 6 |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 |
| 17 | 2011700 | PZ789LVG | GUIDE, VALVE SUCTION | 3 |
| 18 | 95W2 | PZLVGAWASHER | WASHER, LOCK 1/2" 316SS | 6 |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 |
| 20 | 25AL35 | 07916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 25G41 | 07923283 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 |
| 23 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 |
| 24 | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 | |
| 25 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 |
| CONTINENTAL EMSCO FC-1600 | |||
| ITEM # | OEM PART # | ||
| FLUID END MODULE COMPLETE ASSEMBLY | |||
| 1 | 0-6316-0610-01 | DISCHARGE MODULE-STUDDED | |
| 2 | 0-6316-0611-00 | SUCTION MODULE-STUDDED | |
| 3 | 0-6316-0614-00 | THREADED RETAINER | |
| 4 | 0-6316-0615-00 | THREADED RING | |
| 5 | 0-6316-0616-00 | VALVE POT COVER | |
| 6 | 0-6316-0585-00 | VALVE GUIDE | |
| 7 | 0-7601-0040-11 | EYEBOLT, 3/4 X 4.50 | |
| 8 | 0-6316-0523-00 | SUCTION MANIFOLD | |
| 9 | 0-6316-0524-90 | FLANGE, SUCTION | |
| 10 | 0-6317-0074-90 | FLANGE, BLIND | |
| 11 | 0-6316-0566-01 | DISCHARGE MANIFOLD | |
| 12 | 0-6316-0668-00 | WEAR PLATE | |
| 13 | 0-6316-0613-00 | SPACER FLANGE | |
| 14 | |||
| 15 | 0-6316-0367-20 | LINER LOCK | |
| 16 | 0-7601-0820-10 | DOWEL PINS | |
| 17 | |||
| 18 | 0-6323-0093-00 | RETAINER, VALVE GUIDE | |
| 19 | 0-6316-0565-00 | SEAL, F. E. MODULE | |
| 20 | 0-7601-0342-29 | HX SOCKET HD CAPSCREW 1 1/2 - 6 X 5.00 | |
| 21 | 0-6316-0583-00 | BUSHING, VALVE GUIDE | |
| 22 | 0-7602-1600-52 | O-RING (SUCTION MANIFOLD) | |
| 23 | 0-7602-1600-61 | O-RING (SUCTION MANIFOLD TO F. E.) | |
| 24 | 0-7602-1600-25 | O-RING (DISCHARGE TO F. E.) | |
| 25 | 0-7501-0051-00 | SCREW RETAINER | |
| MISSION "L" MODULE FOR NATIONAL 14-P-220 (7500 PSI WORKING PRESSURE) | QTY PER PUMP | ||
| FLUID END MODULE & ACCESSORIES (REQUIRES DISCHARGE MANIFOLD) | |||
| ITEM # | MISSION PART # | DESCRIPTION | |
| 80700031 | FLUID END ASSEMBLY 14P220 (7500 PSI) | 1 | |
| 1 | 80700012 | DISCHARGE MODULE STUDDED (INCL ITEMS 2-10) | 3 |
| 2 | 80700000 | MODULE,DISCHARGE- 14-P-220 7500PSI | 3 |
| 3 | 80700014 | STUD, 1-1/2-6 X12 TAPER LOK TOP | 84 |
| 4 | 2408027 | STUD,1-1/2 X 7-7/8 TOP TAPER LOK | 30 |
| 5 | 2408047 | STUD,1-1/4 X 7 TOP TAPER LOK | 18 |
| 6 | 80700015 | STUD, 2 X 26-1/2 DISCHARGE/SUCTION | 24 |
| 7 | 6300200 | NUT,HEX HEAVY 1-1/4-7UNC | 18 |
| 8 | 6300240 | NUT, HEX HEAVY 1-1/2-6UNC 2H | 126 |
| 9 | 6300320 | NUT,HEX HEAVY 2" 8UN-2A | 24 |
| 10 | 80700016 | NUT,HEX HEAVY 2" 8UN-2A | 12 |
| 11 | 80700013 | SUCTION MODULE STUDDED (INCL ITEMS 12,3,8) | 3 |
| 12 | 80700001 | SUCTION MODULE | 3 |
| 13 | 80700002 | DISCHARGE MANIFOLD | 1 |
| 14 | 1295317 | SUCTION MANIFOLD | 1 |
| 15 | 700048511 | SCREW,HEX HD CAP 7/8 X 3 | 24 |
| 16 | 1540021 | SEAL,SUCTION | 3 |
| 17 | 80700003 | VALVE COVER | 6 |
| 18 | 80700004 | THREADED RING | 6 |
| 19 | 80700005 | THREADED CAP | 6 |
| 20 | 88500223 | WEAR PLATE OUTER | 3 |
| 21 | 88500222 | WEAR PLATE , GREASE | 3 |
| 22 | 80700006 | SHIM PACK | 3 |
| 23 | 700039511 | SCREW,HEX HD CAP 5/8 X 1-1/2 | 18 |
| 24 | 9700369 | VALVE , WHITE LIGHTNING SERIES 8 | 6 |
| 25 | 9702653 | SEAT , HD8-S07 | 6 |
| 26 | 9700372 | INSERT,VALVE WL #8 series (INCLUDED IN ITEM 24) | 6 |
| 27 | 55413256 | SPRING, 5710-101 | 6 |
| 31 | 80700011 | GUIDE,VALVE-DISCHARGE | 3 |
| 32 | 80700010 | GUIDE,VALVE -SUCTION | 3 |
| 33 | PZ789VGI | INSERT,VALVE GUIDE | 6 |
| 34 | 2405086 | SCREW,DR HD HEX HD CAP 1/2 X 1-1/2 | 24 |
| 35 | 6511416 | PIN, DOWELL STD HDN & GRD 7/8 | 3 |
| 36 | 1295266 | PLATE,WEAR 14-P-220 | 3 |
| 37 | 07207109 | GASKET, PLUG SEAL L STYLE - RUBBER (SEE DATASHEET FOR ALTERNATE MATLS) | 6 |
| 38 | 1295257 | SEAL,SUCTION MODULE 14-P-220 | 6 |
| 39 | 99607344 | SEAL,DISCHARGE MANIFOLD | 3 |
| MISSION "L" MODULE FOR GARDNER DENVER PZ-10/PZ-11 | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| FEMPZ1011ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-26) | 3 | ||
| 1 | 8477-1D | FEMPZ1011DISSW | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS: 1, 3-12) | 3 |
| 2 | 8477-2S | FEMPZ1011SUCSW | MODULE, SUCTION STUDDED - (INCLUDES ITEMS 2, 5, 6, & 24) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 | |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | PZ789LCSN | NUT, THREADED RING STUD | 72 | |
| 7 | 4018-35 | PZ1011GPFSSW | STUD, POWER FRAME (SHORT) | 24 |
| 8 | PZ789LCSN | NUT, POWER FRAME STUD | 72 | |
| 9 | 4018-34 | PZ1011LCSSW | STUD, LINER RETAINER (LONG) | 24 |
| 10 | 4017-5 | PZ1011DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 | |
| 12 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 13 | 2988 | 1290344 | SEAL, SUCTION TO DISCHARGE MODULE | 3 |
| 14 | 2930-08 | 07932009 | SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 15 | 8477-3 | PZ1011WPSW | PLATE, WEAR | 3 |
| 16 | 6477 | PZ1011LC | FLANGE, LINER RETAINER | 3 |
| 17 | P-129 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 18 | 4018-88 | PEP73 | SCREW, VALVE GUIDE | 12 |
| 19 | 4775R | OWA17VGASW | GUIDE, VALVE (INCLUDES ITEMS 19, & 23) | 6 |
| 20 | 4675-1A | OWA17VCASSYSW | PLUG, VALVE COVER (INCLUDES ITEM 18, 19, 20, & 23) | 6 |
| 21 | 4475 | OWA17FLGSW | FLANGE, THREADED | 6 |
| 22 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 23 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 24 | 4017-77 | 700044111 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | AJO-449R | 07916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 26 | 8014G520 | 07923283 | GASKET, SUCTION MANIFOLD | 3 |
| 27 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK-NOT SHOWN | 24 | |
| 6278-25 | HT204A | ROD, PISTON (INCLUDES CONNECTING STUD # 10305203) (NOT SHOWN) | 3 | |
| 6279-1 | HT204E | ROD, SUB (NOT SHOWN) | 3 | |
| 1290-2 | 10305203 | STUD, STEEL CONNECTING (NOT SHOWN) | 3 |
| GARDNER DENVER PAH | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| FEMGDPAHCA | FLUID END MODULE COMPLETE ASSEMBLY | 3 | ||
| 1 | 200PJH029B | FEMPAH | FLUID END MODULE STUDDED | 3 |
| 2 | 3PA587 | PAHCAP | THREADED CAP (COVER LOCK) | 6 |
| 3 | 79L142 | PAHDMS | DISCHARGE MANIFOLD STUD | 12 |
| 3A | NUT, DISCHARGE MANIFOLD STUD | 12 | ||
| 4 | 200PJH147 | PJHVC | VALVE COVER PAH | 6 |
| 5 | 2013547 | PAHVGB | PAH DISCHARGE VALVE GUIDE BUSHING | 3 |
| 6 | 1PA217 | PAHLC | PAH LINER CLAMP | 3 |
| 7 | 200PJH205 | PJHRET | PAH SUCTION VALVE GUIDE RETAINER | 3 |
| 8 | 79AJ2 | PAHLCS | LINER CLAMP STUD | 18 |
| 9 | 50B35 | 12P160LCSN | LINER CLAMP STUD NUT | 36 |
| 10 | 200PJH715 | 07916799 | VALVE COVER GASKET - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 11 | 200PJF483 | PAALVG | VALVE GUIDE, SUCTION |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

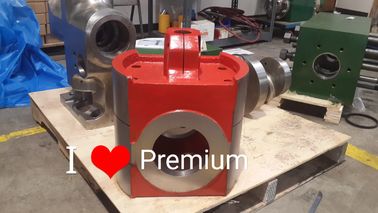

Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener

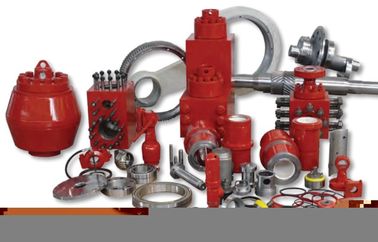

Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) | QTY PER PUMP | ||
| FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD) | |||
| ITEM # | MISSION PART # | DESCRIPTION | |
| 80704032 | FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP | 1 | |
| 1 | 80704000 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) | 3 |
| 2 | 80704001 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) | 3 |
| 3 | 80704002 | STUD, (DISCHARGE TO SUCTION MODULE) | 24 |
| 4 | PEP55 | NUT, HEAVY HEX | 24 |
| 5 | 80704003 | THREADED RING | 6 |
| 6 | 80704004 | THREADED CAP | 6 |
| 7 | 80704005 | VALVE COVER (INCLUDES 11,12,& 17) | 6 |
| 8 | 80704006 | DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) | 1 |
| 9 | 80702011 | STUD, DISCHARGE MANIFOLD | 12 |
| 10 | IDT800TRSN | NUT,HEX HEAVY | 12 |
| 11 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 12 | 12PVGASW | GUIDE, VALVE | 6 |
| 13 | 8P80TRSN | NUT, POWER FRAME STUD | 30 |
| 14 | PEP75 | CAPSCREW, LINER RETAINER | 18 |
| 15 | 12PLASW | RETAINER, LINER FLANGE | 3 |
| 16 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 17 | 7007303 | SCREW, VALVE GUIDE | 12 |
| 18 | 6300240 | NUT, HEAVY HEX FOR THREADED RING | 72 |
| 19 | 80700014 | STUD, THREADED RING | 72 |
| 20 | PEP70 | PIN, DOWELL | 6 |
| 21 | 1290344 | SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 22 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 23 | 99609235 | SEAL, DISCHARGE MANIFOLD | 3 |
| 24 | 1540851 | SEAL, SUCTION MANIFOLD | 3 |
| 25 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 3 |
| 26 | PP6021260SW | WEARPLATE | 3 |
| 27 | NAT12P160PFS | STUD, POWER FRAME | 30 |
| MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 | |||
| FLUID END MODULE & ACCESSORIES | |||
| ITEM # | OEM PART # | MISSION PART # | |
| FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) | ||
| 1 | 8476-6S | FEM12PSUCSWNS | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) |
| 2 | 8476-5D | FEM12PDISSWNS | MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE |
| 4 | PEP55 | NUT, DISCHARGE TO SUCTION STUD | |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END |
| 6 | 8P80TRSN | NUT, POWER END STUD | |
| 7 | 8488-5 | PEP70 | PIN, DOWELL |
| 8 | 4017-65 | PEP75 | CAPSCREW,LINER RETAINER SOCKET HEAD |
| 9 | 8476-3 | PP6021260SW | PLATE, LINER WEAR |
| 10 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) |
| 11 | 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) |
| 12 | 6576 | 12PLANSW | NUT, LINER RETAINER |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING |
| 14 | 12P160TRSN | NUT, THREADED RING STUD | |
| 15 | 4676-6A | 12PVCASSYSWNS | PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) |
| 16 | 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) |
| 17 | 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) |
| 18 | P-119 | 07207119 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 19 | 4776R | 12PVGASWNS | ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE |
| 21 | 4016-98 | PEP73 | SCREW, VALVE GUIDE |
| 22 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD |
| 23 | AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD |
| 24 | 8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE |
| 25 | 2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER |
| 26 | 8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE |
| 27 | 2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER |
| 28 | 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) |
| 29 | 8376-3 | 1292175 | RING, BACKUP (DISCHARGE CONNECTOR) |
| 30 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3" |
| 07924542 | KIT, MODULE SEAL: (KIT INCLUDES SUCTION MANIFOLD GASKET, TWO VALVE COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, TWO DISCHARGE ADAPTING GASKETS, TWO DISCHARGE CONNECTING GASKETS, WEAR PLATE GASKET) | ||
Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd
Contact Person: Mr. Eric
Tel: 0086-15376875239
Other Products
-
Russian UNBT1180 mud pump, UNBT950 mud pump, UNB600 mud pump, NBT300 mud pump, UNBT1180L mud pump liner, piston
-
Weatherford MP-16 mud pump pinionshaft and Bull gear, MP13 MUD PUMP, MP10 MUD PUMP, MP8 MUD PUMP, MP5 MUD PUMP LINER
-
Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner
-
Weatherford E-2200 mud pump fluid end module,E447 mud pump, MP16 mud pump, MP5 mud pump, WH1612 mud pump
-
Weatherford E-2200 mud pump, E-447 mud pump, MP-16 mud pump, MP-13 mud pump, MP-5 mud pump, MP10 mud pump, MP10 mud pump
-
SOUTHWEST 8404-25A FLUID END FOR BOMCO F-1600 MUD PUMP, SOUTHWEST 8404-25A FLUID END FOR HH F1600 MUD PUMP, 14P220
