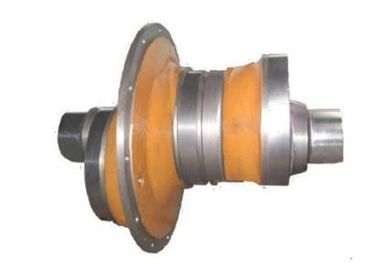

FB1600 MUD PUMP, BOMCO F1600 MUD PUMP, WEATHERFORD MUD PUMP, PZ9 MUD PUMP, MP10 MUD PUMP, PZ11 MUD PUMP, OIWELL MUD PUMP
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Oil,drill Rig | Power: | Electric,diesel |
|---|---|---|---|
| Pressure: | High Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump | Application: | Mining,oil |
| Structure: | Piston Pump | Fuel: | Diesel,diesel Engine And Hydraulic Motor For Option |
| Standard Or Nonstandard: | Standard | Theory: | Centrifugal Pump,Reciprocating Pump,Diaphragm Pump |
| Type: | Mud Pump | Weight: | 100-3700kg |
| Color: | Green Or Per Customer Design | Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy |
| Warranty: | 12 Months | Feature: | Mud Suction Pump |
| Product Name: | Mud Pump | Head: | 10m Mud Suction Pump |
| Oem: | Can Be Accept,Applicable |
Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.
Weatherford is building one of the world’s leading reciprocating pump organizations by giving you more pump for your money.
We build in extra-value features that don’t cost extra and give you the lasting value of pump components built for maximum
reliability and service life.
Most importantly, our people bring invaluable experience and dedication to your application. They will help you choose from
our broad range of pumps and accessories and deliver them to you faster than anyone else in the industry.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) | ||
| FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD) | ||
| ITEM # | MISSION PART # | DESCRIPTION |
| 80704032 | FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP | |
| 1 | 80704000 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) |
| 2 | 80704001 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) |
| 3 | 80704002 | STUD, (DISCHARGE TO SUCTION MODULE) |
| 4 | PEP55 | NUT, HEAVY HEX |
| 5 | 80704003 | THREADED RING |
| 6 | 80704004 | THREADED CAP |
| 7 | 80704005 | VALVE COVER (INCLUDES 11,12,& 17) |
| 8 | 80704006 | DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) |
| 9 | 80702011 | STUD, DISCHARGE MANIFOLD |
| 10 | IDT800TRSN | NUT,HEX HEAVY |
| 11 | PZ789VGI | BUSHING, VALVE GUIDE |
| 12 | 12PVGASW | GUIDE, VALVE |
| 13 | 8P80TRSN | NUT, POWER FRAME STUD |
| 14 | PEP75 | CAPSCREW, LINER RETAINER |
| 15 | 12PLASW | RETAINER, LINER FLANGE |
| 16 | 12PLANSW | NUT, LINER RETAINER |
| 17 | 7007303 | SCREW, VALVE GUIDE |
| 18 | 6300240 | NUT, HEAVY HEX FOR THREADED RING |
| 19 | 80700014 | STUD, THREADED RING |
| 20 | PEP70 | PIN, DOWELL |
| 21 | 1290344 | SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) |
| 22 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 23 | 99609235 | SEAL, DISCHARGE MANIFOLD |
| 24 | 1540851 | SEAL, SUCTION MANIFOLD |
| 25 | 700048511 | CAPSCREW, SUCTION MANIFOLD |
| 26 | PP6021260SW | WEARPLATE |
| 27 | NAT12P160PFS | STUD, POWER FRAME |
| ITEM NO. |
PART NO. |
DESCRIPTION |
QTY. REQ’D |
| 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | ||
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION |
QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
| Part Inquiry for LEWCO-W2215 Cameron Mud Pump | ||||
| Item | Part Number | Description | Qty. | Unit |
| 1 | ES331 | LINER WASH PUMP PACKING | 18 | Ea |
| 2 | EG199 | API ring gasket (BX-169SS) | 27 | Ea |
| 3 | EG197 | API ring gasket (BX-152SS) | 3 | Ea |
| 4 | EG163 | suction manifold gasket | 15 | Ea |
| 5 | B105281 | suction dampener/desurger | 3 | Ea |
| 6 | 108-0609 | stroke counter | 12 | Ea |
| 7 | 108-1054 | heat exchanger-liner wash | 3 | Ea |
| 8 | 108-1055 | heat exchanger-lube oil | 3 | Ea |
| 9 | 108-0764 | low presure switch | 3 | Ea |
| 10 | ES452 | low presure switch | 3 | Ea |
| 11 | 108-1324 | low presure switch | 3 | Ea |
| 12 | 108-1225 | v-belt | 6 | Ea |
| 13 | EG195 | mud pressure gauge | 3 | Ea |
| 14 | EG170 | crank case cover gasket | 888 | inch |
| 15 | A162209 | inspection cover gasket | 3 | Ea |
| 16 | A164103 | main bearing cover gasket | 6 | Ea |
| 17 | C164404 | cross head cover gasket | 6 | Ea |
| 18 | A164185 | inspection cover gasket (large) | 3 | Ea |
| 19 | 108-1095 | breather cap | 3 | Ea |
| 20 | A164191 | stroke counter bracket gasket | 3 | Ea |
| 21 | B164202 | eccentric bearing | 9 | Ea |
| 22 | EB119 | main (spherical roller) bearing | 6 | Ea |
| 23 | B164206 | main bearing shim set | 6 | Ea |
| 24 | A167244 | eccentric bearing shims | 6 | Ea |
| 25 | EB120 | pinion (cylinderical roller) bearing | 6 | Ea |
| 26 | ES194 | oil seal | 6 | Ea |
| 27 | A164505 | pinion bearing carrier gasket | 6 | Ea |
| 28 | B164402 | wrist pin bearing | 6 | Ea |
| 29 | C164323 | piston rod clamp | 18 | Ea |
| 30 | B164407 | baffle disc | 9 | Ea |
| 31 | A164453 | crosshead shim set | 9 | Ea |
| 32 | B164425 | diaphragm plate gasket | 9 | Ea |
| 33 | ES211 | stuffing box seal | 36 | Ea |
| 34 | A164415 | stuffing box gasket | 9 | Ea |
| 35 | E0175 | o-ring ( 2/343) | 9 | Ea |
| 36 | E0301 | o-ring ( 2/442) | 9 | Ea |
| 37 | A164705 | valve cover seal | 18 | Ea |
| 38 | A167708 | valve guide bushing | 36 | Ea |
| 39 | A167702 | wear plate seal | 18 | Ea |
| 40 | 816406 | wear plate seal | 9 | Ea |
| 41 | EV116 | valve spring | 36 | Ea |
| 42 | EV190 | valve seat | 36 | Ea |
| 43 | EV178 | valve | 36 | Ea |
| 44 | EL238 | liner (5") | 36 | Ea |
| 45 | EL220 | liner (5 1/2") | 36 | Ea |
| 46 | EL221 | liner (6") | 36 | Ea |
| 47 | EL222 | liner (6 1/2") | 36 | Ea |
| 48 | EL223 | liner (7") | 36 | Ea |
| 49 | EL224 | liner (7 1/2") | 36 | Ea |
| 50 | EL240 | liner (8") | 36 | Ea |
| 51 | EP159 | piston (5") | 36 | Ea |
| 52 | EP160 | piston (5 1/2") | 36 | Ea |
| 53 | EP117 | piston (6") | 36 | Ea |
| 54 | EP118 | piston (6 1/2") | 36 | Ea |
| 55 | EP150 | piston (7") | 36 | Ea |
| 56 | EP151 | piston (7 1/2") | 36 | Ea |
| 57 | EP152 | piston (8") | 36 | Ea |
| 58 | EP165 | piston (5") | 36 | Ea |
| 59 | EP114 | piston rubber(5 1/2") | 36 | Ea |
| 60 | EP115 | piston rubber (6") | 36 | Ea |
| 61 | EP116 | piston rubber (6 1/2") | 36 | Ea |
| 62 | EP147 | piston rubber (7") | 36 | Ea |
| 63 | EP148 | piston rubber(7 1/2") | 36 | Ea |
| 64 | EP149 | piston rubber (8") | 12 | Ea |
| 65 | EG132 | liner gasket (5") | 36 | Ea |
| 66 | EG138 | liner gasket (5 1/2") | 12 | Ea |
| 67 | EG139 | liner gasket(6") | 36 | Ea |
| 68 | EG140 | liner gasket(6 1/2") | 36 | Ea |
| 69 | EG136 | liner gasket(7") | 36 | Ea |
| 70 | EG142 | liner gasket (7 1/2") | 36 | Ea |
| 71 | EG144 | liner gasket (8") | 12 | Ea |
| 72 | EP194 | lube oil pump | 3 | Ea |
| 73 | 108-0054 | relief valve, 15 psi | 3 | Ea |
| 74 | 108-1088 | relief valve, 65 psi | 3 | Ea |
| 75 | 108-0135 | check valve | 3 | Ea |
| 76 | 108-1257 | flow switch | 6 | Ea |
| 77 | EG105 | pressure gauge, 0-60 psi | 6 | Ea |
| 78 | EG145 | pressure gauge | 6 | Ea |
| 79 | EV215 | charging valve | 6 | Ea |
| 80 | ES175 | stud 2.25 8UN 8.50 B7 | 36 | Ea |
| 81 | EM132 | heavy hex nut 8UN A194-2H | 36 | Ea |
| 82 | 002-1666 | hex bolt 1.000 8NC 2.00 G8 | 3 | Ea |
| 83 | 002-1544 | lock washer 1.000" | 3 | Ea |
| 84 | 108-0620 | stabilizer plate L-2010 | 3 | Ea |
| 85 | 108-0619 | stabilizer L-20 | 3 | Ea |
| 86 | EN137 | havy hex nut 1.125 7NC A194-2H | 24 | Ea |
| 87 | EC181 | bottom flange cap screw | 24 | Ea |
| 88 | 108-0656 | seal 429 BUNA 70 | 3 | Ea |
| 89 | ES174 | stud 1.125 7NC 6.5 B7 | 24 | Ea |
| 90 | EO190 | charging valve o-ring | 6 | Ea |
| 91 | 108-0065 | ring gasket BX-155S | 3 | Ea |
| 92 | B310066 | charging valve hose assembly | 3 | Ea |
| 93 | 108-0618 | buna-N bladder ( standard) | 6 | Ea |
| 94 | 108-1194 | hydrogenated nitrile bladder (high temperature mud) |
6 | Ea |
| 95 | 108-1195 | Urthane bladder ( oil based mud) | 6 | Ea |
SOUTHWEST 8477-A FLUID END FOR GARDNER DENVER PZ-11/PZ-10
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 5000 P.S.I. | GARDNER DENVER PZ11/10 | 7” X 11” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8477A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,17,18,19,20, 21, 22, 23, 24, 25, 26, 27, 28, 29,31,32,33, 34, 35,38,39) | ||
| 1 | 1377YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | 2975 | LINER SEAL | 3 |
| 3 | 8477-3 | WEARPLATE | 3 |
| 4 | 2930-08 | WEARPLATE GASKET | 3 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 5A | 2932 | PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6279-1 | SUB ROD (CLAMP TYPE) | 3 |
| 10A | 6280-1 | SUB ROD (SCREW TYPE) | 3 |
| 11 | 1277CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200120 | DUAL SPRAY PIPE | 3 |
| 11C | 4018-96 | ROD CLAMP BOLT (5/8” X 5-1/2” GRADE 8 BOLT W/ LOCK NUT AND WASHER) | 6 |
| 12 | 1200G77 | PONY ROD (CLAMP TYPE) | 3 |
| 12A | 1200G88 | PONY ROD (SCREW TYPE) | 3 |
| 13 | VALVE | 6 | |
| 14 | VALVE INSERT (IF REQUIRED) | 6 | |
| 15 | VALVE SPRING | 6 | |
| 16 | VALVE SEAT | 6 | |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS) | ||
| 4475-1A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEMS 17-24) | ||
| 17 | 4475 | THREADED FLANGE | 6 |
| 18 | 4575 | SCREW GLAND | 6 |
| 19 | 4675-1A | PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) | 6 |
| 20 | P129 | HP VALVE COVER PLUG SEAL (P129U URETHANE AVAILABLE) | 6 |
| 21 | 4775R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (4700IU URETHANE AVAILABLE) | 6 |
| 23 | 4018-88 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1-1/4”-7” HEAVY HEX NUT) | 72 |
| 25 | 4018-35 | POWER END STUD (WITH SW PART# HHN1250-7 1-1/4” – 7 HEAVY HEX HUT) | 24 |
| 26 | 4018-34 | LINER RETAINER FERRY HEAD CAP SCREW (WITH SW PART# HHN1250-7 1-1/4” – 7 HEAVY HEX NUTS) | 24 |
| 27 | 6477 | LINER RETAINER FLANGE | 3 |
| 28 | 4016-97 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2” – 8 HEAVY HEX NUT) | 18 |
| 29 | 4017-77 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8577 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO245 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8477-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 33 | 8477-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 2988 | MODULE SEAL | 3 |
SOUTHWEST “NEW STYLE” 8476-4A FLUID END
FOR NATIONAL 12-P-160
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 5000 P.S.I. | NATIONAL 12-P-160 | 7-1/2” X 12” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8476-4A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47) | ||
| 1 | 1376YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1286CWYFP14 | DUAL SPRAY PIPE | 3 |
| 10C | 4020-29 | ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | ||
| 4476-6A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) | 6 | |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4676-6A | PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) | 30 |
| 25 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 26 | 6476 | LINER RETAINER FLANGE | 3 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4018-17 | SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-6S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 33 | 8476-5D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY | |||
| 47 | 4018-18 | DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) | 16 |
| 48 | 4018-39 | DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW | 16 |
| 49 | 8376-1 | DISCHARGE CONNECTOR | 2 |
| 50 | 8376-2 | DISCHARGE ADAPTER | 2 |
| 51 | 8376-3 | BACK-UP RING | 4 |
| 52 | 8376-4 | DISCHARGE SPACER FLANGE | 2 |
| 53 | 2976-3 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 54 | 2976-1 | DISCHARGE CONNECTOR / ADAPTER PACKING | 2 |
| 55 | 2976-2 | DISCHARGE CONNECTOR / ADAPTER PACKING | 4 |
| 56 | R44D | RING JOINT GASKET | 2 |
| 57 | 4017-22 | DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) | 16 |
| 58 | 5000-5BFLANGE | BLIND FLANGE 5" | 1 |
| 59 | 9070012 | PONY ROD SEAL | 12 |
| 60 | 80491292 | SPLASH GUARD | 3 |
| 61 | 8376-50A | COMPLETE STRAINER CROSS | 1 |
Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd
Contact Person: Mr. Eric
Tel: 0086-15376875239
Other Products
-
Weatherford MP-16 mud pump pinionshaft and Bull gear, MP13 MUD PUMP, MP10 MUD PUMP, MP8 MUD PUMP, MP5 MUD PUMP LINER
-
MUD PUMP FOR OILWELL DRILLING, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP, MP16 MUD PUMP
-
MP16 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, WEATHERFORD MUD PUMP, MP5 MUD PUMP, MP10 MUD PUMP, MP13 MUD PUMP
-
SOUTHWEST 8404-25A FLUID END FOR BOMCO F-1600 MUD PUMP, SOUTHWEST 8404-25A FLUID END FOR HH F1600 MUD PUMP, 12P160
-
SOUTHWEST 8404-25A FLUID END FOR BOMCO F-1600 MUD PUMP, SOUTHWEST 8404-25A FLUID END FOR HH F1600 MUD PUMP, 14P220
-
Weatherford E-447 mud pump Zirconia Liner， E-2200 MUD PUMP, E-1600 MUD PUMP, E-800 MUD PUMP, E-600 MUD PUMP FLUID END
