LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER

Certification
Good quality Mud Pump Zirconia Liners for sales
I'm Online Chat Now

LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER

China LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier
LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER supplier

Large Image :  LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER

Product Details:

Place of Origin: CHINA, USA
Brand Name: LEWCO,WEATHERFORD, NATIONAL, OILWELL, GARDNER DENVER, DRILLMEC
Certification: API
Model Number: W-2215, W-2214, W-1612 MUD PUMP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1 to 500 usd
Packaging Details: suitable to shipment by sea and air
Delivery Time: In Stock
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 3000 pieces per month
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Hydraulic,diesel
Pressure: High Pressure Application: Mining,oil
Structure: Piston Pump Fuel: Diesel
Standard Or Nonstandard: Standard Theory: Centrifugal Pump
Type: Mud Pump Weight: 100-3700kg
Color: Blue,red And So On,Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy,Stainless Steel Aluminum Plastic Etc
Warranty: 1 Years Mud Suction Pump Feature: Mud Suction Pump
Product Name: Mud Pump Head: 10m Mud Suction Pump
Oem: Can Be Accept,Applicable Inlet Pipe (mm)/(in): DN200 / 8
Condition: New

Suitable for land and offshore drilling applications, the premium Ellis-Williams EQ-2200 pump offers the smoothest, quietest operation of any mud pump in the industry. The EQ-2200 quintuplex pump features a smaller footprint and higher maximum flow rates than traditional triplex pump designs in the same horsepower class.



With a five-piston system, the pump reduces mud-telemetry noise and pulsation by 25 to 70%, which gives you fast downhole communication for precise geosteering. The pump also improves flow rates by 40%, which reduces the number of pumps and total power draw at the wellsite.



Cost savings on mud pump spare parts and service:

Premium have delivered solid cost savings to our customers. This is due to our lower cost base, system with access to identical parts directly from manufacturer, and utilizing our experienced drilling equipment employees at very competitive rates.

Below selection of popular identical mud pump parts that can be supplied by Premium at major cost savings:

  • Liners

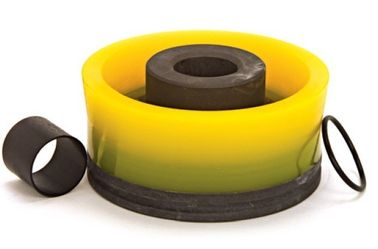

  • Piston
  • Full open Valves
  • Valve seats
  • Discharge modules
  • Suction modules
  • Crankshaft
  • Pinion shaft
  • Bearings
  • Wear plate
  • Rod wipers
  • Seals and gaskets
  • Studs and nuts
  • Pulsation dampeners
  • Pulsation bladders
  • Oil pump
  • LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER

Premium supplies overhaul and parts for the following mud pump models:

  • National 10-P-130 Triplex Mud Pump
  • National 12-P-160 Triplex Mud Pump
  • National 14-P-220 Triplex Mud Pump
  • Continental Emsco F-1000 Triplex Mud Pump
  • Continental Emsco FB-1300 Triplex Mud Pump
  • Continental Emsco FA-1600, FB-1600, FC-1600, FD-1600 Triplex Mud Pump
  • Continental Emsco DC-1000 Mud Pump
  • Wirth Mud Pump TPK 1000
  • Wirth Mud Pump TPK 1300
  • Wirth Mud Pump TPK 1600
  • Wirth Mud Pump TPK 2000
  • Wirth Mud Pump TPK 2200
  • Gardner Denver PAH
  • Gardner Denver PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
  • Gardner Denver TEEA, TEEB, TEEC, TEED, TEEE, TEEF, TEEG
  • Lewco Mud Pumps
  • Drillmec Mud Pumps

Premium can supply overhaul and parts compatible with the following Mud Pump makers and trademarks: National Oilwell Varco (NOV), MHWirth, Continental Emsco, Gardner Denver, Lewco, Drillmec, and others. Premium is an independent supplier of drilling equipment parts.



Premium is neither a licensee, nor is affiliated with any of the named original equipment manufacturers (OEM). The manufacturer’s names, equipment names, or trademarks used herein are solely for identification purposes, and are not intended by Premium to cause confusion as to the source, sponsorship, or quality of the parts supplied by Premium. The original equipment manufacturers named above and throughout this website do not sponsor, promote, warranty or endorse Premium’s supply of parts.

Description Part No.   Description Part No.
Discharge Module, Studded 1293240   Piston Rod Clamp 1293085
Suction Module, Studded 1290338   Crosshead, L.H. 1293090
Seal Retainer 1290174   Sub Rod 1293146
Back Up Ring 1290175   Piston Rod 1293147
Wedge Adjusting Screw 1290178   Liner Bushing 1293165
Wedge Retainer Spring 1290181   Liner Clamp 1293166
Valve Cover 1290307   Int. Rod Wiper Seal 1293182
Threaded Ring 1290308   Liner Spray Manifold 1293193
Wedge Adjusting Screw Washer 1290315   Intermediate Rod Baffle 1293194
Discharge Connector 1290342   Discharge Spacer, Studded 1293243
Discharge Connector Adapter 1290343   Valve Guide Insert Holder 1292140
Suction Module & Wear Plate Seal 1290344   Valve Guide Insert 1292141
Discharge Spacer Seal 1290345   Valve Cover Gasket 1540126
Wear Plate 1290357   Suction Manifold Seal 1590051
Crosshead, R.H.& Center 1293015   Rectangular Packing 2410031-348
Crosshead Liner 1293017   Rectangular Packing 2410031-427
Crosshead Pin 1293028   Locking Wedge Assembly 1290376
Intermediate Rod Oil Shield 1293016   Wedge Adjusting Screw Nut 6300160








LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER





All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER



National

8P80 Mud Pump

Item P/N Description Qty. Price $ weight
1 0-1290335 Discharge Module Studded, (incl. Items 2-10) 3   575
2 0-1290336 Discharge Module, Only 3 3520 512
3 0-6300240 Nut, 1 1/8“ Hvy. Hex 24 1.9 0.16
4 0-2408020 Stud, 1 1/8“ X 5 3/4”, Discharge to Frame 24 5 1.21
5 0-6300160 Nut, 3/4“ Hvy. Hex 18 1.8 0.15
6 0-2408018 Stud, 3/4“ X 5”, Discharge to Liner Bushing 18 2.1 0.50
7 0-6300241 Nut, 1 1/2 8UN-3A“ Hvy. Hex 18 2 0.2
8 0-2408034 Stud, 1 1/2“ X 19 1/8”, Discharge to Suction 18 12.0 2.2
9 0-6300220 Nut, 1 3/8 Hvy. Hex 36 2.6 0.16
10 0-2408019 Stud, 1 3/8“ X 7 1/4” Top, Thread Ring 36 5.3 1.2
11 0-1290338 Suction Module Studded, (incl. Items 12-14) 3   320
12 0-1290339 Nut, 1 3/8 Hvy. Hex 36 2.8 0.18
13 0-6300220 Stud, 1 3/8“ X 7 1/4” Top, Thread Ring 36 5.5 1.2
14 0-1290339 Suction Module, Only 3 2730 308
15 0-1291165 Bushing, Liner 3 532 38.6
16 0-1290174 Seal Retainer 6 185 25.2
17 0-1290307 Valve Cover 6 265.2 32.5
18 0-1290178 Screw, Wedge Adjusting 6 19 1.0
19 0-6300160 Nut, 1“ Hvy. Hex 6 1.6 0.12
20 0-1290315 Washer, Wedge Adjusting Screw 6 1 0.08
21 0-1290308 Ring, Threaded 6 265 31.6
22 0-G-1290376 Wedge Assembly 6 95.8 4.3
23 0-1540126 Gasket, Valve Cover 6 8.1 0.12
24 0-1292140 Holder, Valve Guide Insert 6 9.1 0.22
25 0-1292141 Insert, Valve Guide 6 2.0 0.02
26 0-6511416 Pin 7/8 X 2 Dowell 6 0.8 0.13
27 0-1290357 Plate, Wear 3 1 0.12
28 0-1290342 Connector, Discharge 2 120.8 3.1
29 0-7000305-11 Screw 1/2 X 1 ½ Hex Head 16 3.1 0.15
30 0-7619050 Washer, Lock ½“ 16 0.5 0.01
31 0-1290343 Adapter, Discharge Connector 2 92.6 2.1
32 0-2410031-348 Packing, Rectangular 2 1 0.06
33 0-2410031-427 Packing, Rectangular 4 0.8 0.05
34 0-1293167 Clamp, Liner 3 502 33.4
35 0-7000448-11 Screw 5/8 X 3 ½ Hex Hd. w/ Lock Washer 6 4.6 0.21
36 0-6309120 Nut, 5/8“ Lock Type 6 1.2 0.12
37 0-1290169 Pin, Liner Clamp 3 1.5 0.1
38 0-1290168 Connector, Liner Clamp 3 2.6 0.24
39 0-2402560 Stud 1 1/4“ x 6 1/4” 16 5.3 1.1
40 0-6300200 Nut, 1 1/4“ Hvy. Hex 16 1.7 0.13
41 PREM-5121-44 Liner 4-1/2" 3  205.3  56.5
42 PREM-5121-50 Liner 5" 3  198.2  50.0
43 PREM-5121-54 Liner 5-1/2" 3  190.3  42.3
44 PREM-5121-60 Liner 6" 3  183.7  34.0
45 PREM-5121-64 Liner 6-1/2" 3  180.0  25.1
46 PREM-5121-66 Liner 6-3/4" 3  173.5  20.4
47 012180196 Piston 4-1/2" 3  39.8  3.6
48 012180253 Piston 5" 3  41.5  4.2
49 012180337 Piston 5-1/2" 3  45.3  5.7
50 012180394 Piston 6" 3  47.2  6.5
51 012180535 Piston 6-1/2" 3  55.2  7.6
52   Piston 6-3/4" 3  57  8.5
53 1560995 Valve Full Open G2 6 38.2 4.6
54 1561450 Seat G2 6 29.3 4.5
55 1560587 Valve Insert 6 28 1.1
56 060152808 Valve Cross arms 6 29 4.4
57 061102604 Seat Cross arms 6 28.5 4.3
58   Valve Insert 6 22.8 0.22
59 1291277 Piston rod 3  74.8  11.6
60 1291085 Clamp 6  72  7.2
61 1602594 Pony rod 3  214.6  43.6
62 1291276 Sub rod 3 50.0

3.0







LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER



National

9P100 Mud Pump

Item P/N Description Qty. Price $ Weight
1 0-1293240 Discharge Module Studded, (incl. Items 2-10) 3   672
2 0-1293241 Discharge Module, Only 3 3850 622
3 0-6300200 Nut, 1 1/2“ Hvy. Hex 24 1.9 0.16
4 0-2408030 Stud, 1 1/4“ X 6”, Discharge to Frame 24 5 1.21
5 0-6300160 Nut, 1“ Hvy. Hex 18 1.8 0.15
6 0-2408018 Stud, 1“ X 5 7/8”, Discharge to Liner Bushing 18 2.1 0.50
7 0-6300241 Nut, 1 1/2 8UN-3A“ Hvy. Hex 18 2 0.2
8 0-2408034 Stud, 1 1/2“ X 19 1/8”, Discharge to Suction 18 12.0 2.2
9 0-6300220 Nut, 1 3/8 Hvy. Hex 36 2.6 0.16
10 0-2408019 Stud, 1 3/8“ X 7 1/4” Top, Thread Ring 36 5.3 1.2
11 0-1290338 Suction Module Studded, (incl. Items 12-14) 3   320
12 0-6300220 Nut, 1 3/8 Hvy. Hex 36 2.8 0.18
13 0-2408019 Stud, 1 3/8“ X 7 1/4” Top, Thread Ring 36 5.5 1.2
14 0-1290339 Suction Module, Only 3 2730 308
15 0-1293165 Bushing, Liner 3 545 45.6
16 0-1290174 Seal Retainer 6 185 25.2
17 0-1290307 Valve Cover 6 265.2 32.5
18 0-1290178 Screw, Wedge Adjusting 6 19 1.0
19 0-6300160 Nut, 1“ Hvy. Hex 6 1.6 0.12
20 0-1290315 Washer, Wedge Adjusting Screw 6 1 0.08
21 0-1290308 Ring, Threaded 6 265 31.6
22 0-G-1290376 Wedge Assembly 6 95.8 4.3
23 0-1540126 Gasket, Valve Cover 6 8.1 0.12
24 0-1292140 Holder, Valve Guide Insert 6 9.1 0.22
25 0-1292141 Insert, Valve Guide 6 2.0 0.02
26 0-6511416 Pin 7/8 X 2 Dowell 6 0.8 0.13
27 0-1290357 Plate, Wear 3 1 0.12
28 0-1290342 Connector, Discharge 2 120.8 3.1
29 0-7000305-11 Screw 1/2 X 1 ½ Hex Head 6 3.1 0.15
30 0-7619050 Washer, Lock ½“ 6 0.5 0.01
31 0-1290343 Adapter, Discharge Connector 2 92.6 2.1
32 0-2410031-348 Packing, Rectangular 2 1 0.06
33 0-2410031-427 Packing, Rectangular 4 0.8 0.05
34 0-1293167 Clamp, Liner 3 502 33.4
35 0-7000448-11 Screw 3/4 X 4 Hex Hd. W/ Lock Washer 6 4.6 0.21
36 0-6309120 Nut, 3/4“ Lock Type 6 1.2 0.12
37 0-1290169 Pin, Liner Clamp 3 1.5 0.1
38 0-1290168 Connector, Liner Clamp 3 2.6 0.24
39 0-2402560 Stud 1 1/4“ x 6 1/4” 16 5.3 1.1
40 0-6300200 Nut, 1 1/4“ Hvy. Hex 16 1.7 0.13
41 PREM-5120-44 Liner 4-1/2" 3 231 72.8
42 PREM-5120-50 Liner 5" 3 225 64.8
43 PREM-5120-54 Liner 5-1/2" 3 220 56.1
44 PREM-5120-60 Liner 6" 3 214.6 46.6
45 PREM-5120-64 Liner 6-1/2" 3 210 36.5
46 PREM-5120-66 Liner 6-3/4" 3 205.5 31
47 012180196 Piston 4-1/2" 3 39.8 3.6
48 012180253 Piston 5" 3 41.5 4.2
49 012180337 Piston 5-1/2" 3 45.3 5.7
50 012180394 Piston 6" 3 47.2 6.5
51 012180535 Piston 6-1/2" 3 55.2 7.6
52 012180196 Piston 6-3/4" 3 57 8.5
53 1560995 Valve Full Open G2 6 38.2 4.6
54 1561450 Seat G2 6 29.3 4.5
55 1560587 Valve Insert 6 28 1.1
56 060152808 Valve Cross arms 6 29 4.4
57 061102604 Seat Cross arms 6DDB4 6 28.5 4.3
58   Valve Insert 6 22.8 0.22
59 1292147 Piston rod 3 92 16.5
60 1292085 Clamp 6 80 7.8
61 1602586 Pony rod 3 262 64.2
62 1292146 Sub rod 3 50.5 2.8





LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER









Item Description Part No.
  Complete Assembly 8476-A
1 Threaded Flange 4476
2 Screw Gland 4597
3 Plug Assembly w/Guide & Bushing 4676-2A
4 Valve Guide 4776
5 Valve Guide Bushing 4700-I
6 Valve Guide Screw 4016-98
7 Valve Cover Stud w/Nut 4015-54
8 Power End Stud w/Nut 4015-95
9 Liner Retainer Capscrew 4017-65
10 Liner Retainer Flange 6476
11 Liner Retainer Nut 6576
12 Suction Module Stud w/Nut 4018-17
13 Suction Module (Studded) 8476-2
14 Discharge Module (Studded) 8476-1
15 Dowel Pin 8488-5
16 Wear Plate 8476-3
17 Valve Cover Plug Seal P-107
18 Module & Wear Plate Seal 2988
19 Piston Rod 1286-32
20 Sub Rod 1286-1
21 Rod Clamp w/Spray System 1286-CW





LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER





MISSION "L" MODULE FOR LEWCO W2215 7500 PSI W/ SWOP FE FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
  8482-25LEWA   FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22)
1 8482-27 80732001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) 3
2 8482-26 80732000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) 3
3 /4020-6 80732002 STUD, DISCHARGE TO SUCTION MODULE 18
4 2"-8 HH 7402422 NUT, DISCHARGE TO SUCTION STUD 18
5 4020-26 80732004 STUD, POWER END 30
6 1-1/2-6 HH 6300240 NUT, POWER END STUD 30
7 4015-54 12PTRSSW STUD, THREADED RING 72
8 1-1/2-6 HH 6300240 NUT, THREADED RING STUD 72
9 /8488-5 6511416 PIN, DOWELL 6
10 4015-52 80732005 STUD, LINER RETAINER FLANGE 18
11 1-1/4-7 HH   NUT, LINER RETAINER FLANGE STUD 3
12 May-82 80732007 PLATE, LINER WEAR 3
13 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
14 6482   FLANGE, LINER RETAINER (LINER BUSHING) 3
15 6582   NUT, LINER RETAINER 3
16 4609-25A   ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) 6
17     PLUG, VALVE COVER 6
18 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
19 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
20 P-119 7207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
21 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) 6
22 4700I PZ789VGI* BUSHING, VALVE GUIDE 6
23 4016-98 50C125KFCYB SCREW, VALVE GUIDE 12
24     CAPSCREW, SUCTION MANIFOLD
25     GASKET, SUCTION MANIFOLD 3
26 4019-60   STUD, DISCHARGE MANIFOLD 18
27 1-1/4-7 HH   NUT, DISCHARGE MANIFOLD 18
28 8382-25   MANIFOLD, DISCHARGE 1
29 2988 1290344 SEAL, DISCHARGE MANIFOLD 3







LEWCO W-2215 MUD PUMP, W-2214 MUD PUMP, W-1612 MUD PUMP, W440/446 MUD PUMP PISTON, VALVE AND SEAT, ZIRCONIA LINER







Item Description Part Number Type of pump
1 Suction Manifold T270001037 T028500429 12T1600 mud pump
2 Crosshead T885001035-2 12T1600 mud pump
3 Crankshaft T840001054 12T1600 mud pump
4 Bull Gear T207001063 12T1600 mud pump
5 Pinion Shaft T348001061 12T1600 mud pump
6 Connecting Rods T237001057 12T1600 mud pump
7 Discharge Module T669201195 12T1600 mud pump
8 Suction Module T066920306 12T1600 mud pump
9 Connector, Discharge T007601020 12T1600 mud pump
10 Bushing, Discharge T000301034 12T1600 mud pump
11 Flange T474001057 12T1600 mud pump
12 Valve Cover T536001111- 12T1600 mud pump
13 End Plate T551001033 12T1600 mud pump
14 Seal T041003953 12T1600 mud pump
15 Wear Plate   12T1600 mud pump
16 10“-150# Blind Flange T940001090 12T1600 mud pump
17 Liner 7-1/2" 01917452 12T1600 mud pump
18 Liner 7" 01917450 12T1600 mud pump
19 Liner 6-3/4" 01917449 12T1600 mud pump
20 Liner 6-1/2" 01917448 12T1600 mud pump
21 Liner 6-1/4" 01917447 12T1600 mud pump
22 Liner 5-1/2" 01917446 12T1600 mud pump
23 Liner 5" 01917639 12T1600 mud pump
24 Pistons   12T1600 mud pump
25 Valves & Seats   12T1600 mud pump
26 Liner Gaskets   12T1600 mud pump





















Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)
