Place of Origin CHINA
Brand Name Emsco, National, Southwest, Gardner Denver, Mud King, Bomco, EMSCO, TSC
Certification API 7K
Model Number HHF1600, HHF1300, HHF1000, HHF800, HHF500
Minimum Order Quantity 1 piece
Price 1 to 500 usd
Packaging Details Suitable to shipment by sea and air
Delivery Time In stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 3000 pieces per month
Product Details
Usage Oil,Water,drill Rig Power Electric,Hydraulic,diesel
Pressure High Pressure,Low Pressure Application Mining,oil,Chemical
Structure Piston Pump Fuel Diesel,Electric
Standard Or Nonstandard Standard Type Mud Pump
Color Green Or Per Customer Design Material Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty 12 Months Product Name Mud Pump
Oem Applicable Condition New
Leave a Message
Product Description

Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end, HHF1600HL mud pump, 12P-160 mud pum , Oilwell A1700PT mud pump 0





No. P/N Description Qty Drawing Code
1 11-3101-0401　　 Crosshead 1 GH3101.04.01
2 11-3101-0402　 Slide, upper 1 GH3101.04.02
3 11-3101-0420　　 Bolt, 1-8UNC-2Ax55 2 US standard
4 11-3101-0403　　 End cover 1 GH3101-04.03
5 B34521-175-355-69　 O-ring, 175×3.55G 1 GB/T3452.1-1992
6 11-3101-0404　　 Stuffing Box 1 GH3101-04.04
7 11-3101-0405　　 Seal ring 1 GH3101-04.05
8 11-3101-0406　　 Oil seal 1 GH3101-04.06
9 11-3101-0407　　 Pipe joint, NPT3/8x50.8 2 GH3101-04.07
10 11-3101-0408　　 Splashguard 1 GH3101-04.08
11 11-3101-0409　　 Extension rod 1 GH3101-04.09
12 11-3101-0410　　　 Crosshead pin 1 GH3101-04.10
13 11-3101-0421　 Bolt, 1-8UNC-2Ax65 8 US standard
14 11-3101-0411　　 Adjusting shim 2 GH3101-04.11
15 11-3101-0412　　 Slide, lower 1 GH3101-04.12
16 11-3101-0413　　　 Slide retainer plate 8 GH3101-04.13
17 B34521-140-700-69　 O-ring, 140×7.0G 1 GB/T3452.1-1992
18 11-3101-0422　 Bolt, 3/8-16UNC-2Ax35 4 US standard
19 B0093-10-59　　 Washer, 10 4 GB/T93-1987
20 11-3101-0414　　 Locking Spring 1 GH3101-04.14
21 11-3101-0423 　 Screw, 3/4-10UNC-2Ax55 8 US standard
22 11-3101-0415　　　 Gasket 1 GH3101-04.15
23 11-3101-0416　　 Crosshead Pin Cap 1 GH3101-04.16
24 11-3101-0417　　 Crosshead bearing, 5G254936Q 1 GH3101-04.17
25 11-3101-0418　　　 Oil seal, 4.5"×5.5"×0.5" 2 GH3101-04.18
26 11-3101-0419-00　　　 shims 8 GH3101-04.19.00
27 11-3101-0223　　 Sealant 1 242
28 B34521-115-530-69　 O-ring, 115×5.30G 1 GB/T3452.1-1992







Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end, HHF1600HL mud pump, 12P-160 mud pum , Oilwell A1700PT mud pump 1



No. P/N Description Qty Drawing Code
1 11-3101-0501-00　　 Cylinder assembly 3 GH3101-05.01.00
2 11-3101-0502　　 Cylinder Cover, Threaded ring 3 GH3101-05.02
3 11-3101-0503　　 Cylinder Cover, 3 GH3101-05.03
4 11-3101-0504　　 Seal ring, cylinder cover 6 GH3101-05.04
5 11-3101-0505　　 Plug, cylinder cover 3 GH3101-05.05
6 11-3101-0506 Puller 3 GH3101-05.06
7 B34521-975-355-69　 O-ring, 97.5×3.55G 3 GB/T3452.1-1992
8 11-3101-0507　　 Blind plate, discharge, 5 1/8" 1 GH3101-05.07
9 11-3101-0508　　 Discharge manifold 1 GH3101-05.08
10 11-3101-0509　　 Seal ring, valve cover 3 GH3101-05.09
11 11-3101-0510 Stud, 1 1/2-8UN-2A*262 16 GH3101-05.10
12 11-3101-0501-03　 Nut, 1 1/2-8UN-2B(SPL) 32 GH3101-05.01.03
13 11-3101-0511　　 Valve cover 3 GH3101-05.11
14 11-3101-0512　　 Guide, valve stem 3 GH3101-05.12
15 11-3101-0513-00　　 Spring guide 3 GH3101-05.13.00
16 11-3101-0514　　 Baffle 3 GH3101-05.14
17 11-3101-0515 Bolt, 3/8-16UNC-2A*20 12 GH3101-05.15
18 11-3161-0545　 Stainless steel wire, φ1.60(L=1830) 1 GB/T4240-1993
19 11-3101-0516　 Valve spring 6 GH3101-05.16
20 11-3101-0517-00　 Valve assembly,(API 6#) 6 GH3101-05.17.00
21 11-3101-0518-00　 Nut, piston 3 GH3101-05.18.00
22 11-3101-0519-00-1　 Piston 3 GH3101-05.19.00A
23 11-3101-0520　　 Seal ring, piston 3 GH3101-05.20
24 11-3101-0521 Piston rod 3 GH3101-05.21

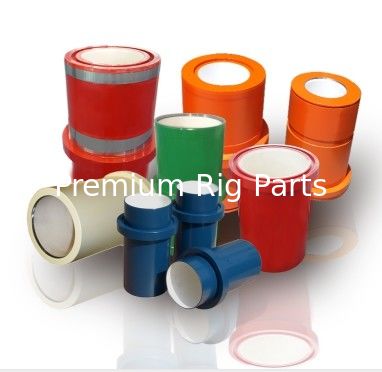

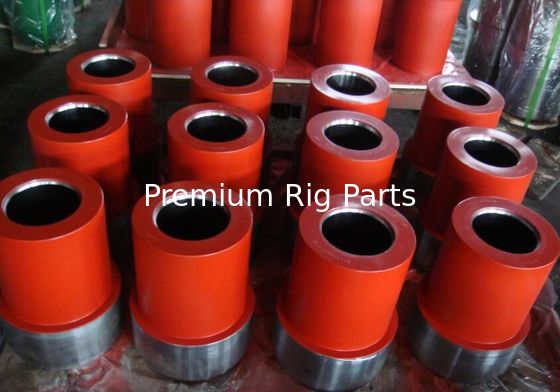

25 11-3101-0522-01-1 Ordinary liner 4 3/4 3 GH3101-05.22A
  11-3101-0522-02-1 Ordinary liner 5
  11-3101-0522-03-1 Ordinary liner 5 1/2
  11-3101-0522-04-1 Ordinary liner 6
  11-3101-0522-05-1 Ordinary liner 6 1/4
  11-3101-0522-06-1 Ordinary liner 6 1/2
  11-3101-0522-07-1 Ordinary liner 6 3/4
  11-3101-0522-01 Bi-metal liner 4 3/4   GH3101-05.22
  11-3101-0522-02 Bi-metal liner 5
  11-3101-0522-03 Bi-metal liner 5 1/2
  11-3101-0522-04 Bi-metal liner 6
  11-3101-0522-05 Bi-metal liner 6 1/4
  11-3101-0522-06 Bi-metal liner 6 1/2
26 11-3101-0523-00　　 Spraying pipe assembly 1 GH3101-05.23.00
27 11-3101-0524-00　　 Clamp assembly, piston rod 3 GH3101-05.24.00
28 11-3101-0525　　 Splash Shield, liner 3 GH3101-05.25
29 11-3101-0526 Fixing clamp 3 GH3101-05.26
30 11-3101-0527-00　　 Guide, valve stem(lower) 3 GH3101-05.27.00
31 B34521-190-700-69　 O-ring, 190×7.0G 3 GB/T3452.1-1992
32 11-3101-0536　 Bolt, 7/8-9UNC-2Ax55 18 US standard
33 11-3101-0528-00　　 Suction manifold 1 GH3101-05.28.00
34 11-3101-0529-00　　 Suction dampener 1 GH3101-05.29.00
35 11-3101-0530-00　 Shims 4 GH3101-05.30.00
36 11-3161-0544　 Bolt, 1 1/16-8UN-2A*90 36 US standard
37 11-3161-0543　 Nut, 1 1/16-8UN-2B(SPL) 36 US standard
38 B34521-345-700-69　 O-ring, 345×7.0G 3 GB/T3452.1-1992
39 11-3101-0531　　 Suction flange(Ⅰ) 1 GH3101-05.31
40 11-3101-0532　　 Suction flange(Ⅱ) 1 GH3101-05.32
41 11-3101-0533　　 Plug screw, NPT1 1/2 1 GN3101-05.33
42 11-3101-0534 Washer, 39 24 GH3101-05.34
43 11-3101-0535 Blind plate, suction inlet, 12" 1 GH3101-05.35



Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end, HHF1600HL mud pump, 12P-160 mud pum , Oilwell A1700PT mud pump 2













All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.





Description F500 mud pump F800 mud pump F1000 mud pump FB1300 mud pump FB1600 mud pump
Liner of Crosshead Upper 6322-0063-00 6320-0043-00 6319-0015-00 6316-0024-00 6316-0024-00
Liner of Crosshead Lower
Pin of Crosshead 6322-0066-00 6320-0011-00 6319-0017-00 6316-0087-00 6316-0087-00
Extension Rod 6322-0068-00 6320-0041-00 6319-0020-00 6316-0028-00 6316-0028-00
Crosshead 6322-0063-00 6320-0012-00 6319-0014-00 6316-0022-00 6316-0022-00
Pinion Shaft 6322-0022-00 6320-0039-00 6319-0012-00 6317-0021-00 6316-0027-00
Wear Ring of Pinion shaft 6322-0023-00 6320-0031-00 6319-0022-00 6301-0002-00 6301-0002-00
Carrier, Bearing Left 6322-0119-00 6320-0018-00 6319-0043-00 6317-0028-00 6316-0037-00
Carrier, Bearing Right 6322-0045-00 63230-0149-00 6319-0176-00 6317-0177-00 6316-0288-00
Connecting Rod 6322-0053-00 6320-0039-00 6319-0035-00 6317-0026-00 6316-0023-00
Bull Gear 6322-0012-00 6320-0017-00 6319-0011-00 6317-0022-00 6316-0030-00
Bolt, Main Bearing 7501-1281-00 6320-0044-00 6319-0034-00 6316-0077-00 6316-0077-00
Bearing, Crosshead 7602-021291 7602-021290 6397-0267-00 6301-0038-00 6301-0038-00
Bearing, Pinion Shanft 7602-021037 7602-021109 7602-021288 7602-021267 7602-021267
Bearing, Eccentric 6310-0012-00 7602-021289 6319-0078-00 7602-021269 7602-021268
Bearing, Main 7602-020053 7602-020054 7602-020147 7602-020138 7602-020137





Description

F500

mud pump

F800

mud pump

F1000

mud pump

F1300/1600

mud pump
Liner of Crosshead Upper RS11311.04.02 RS11308.04.002 RS11306.04.001 RS11309.04.002
Liner of Crosshead Lower RS11311.04.02 RS11308.04.009 RS11306.04.002 RS11309.04.013
Pin of Crosshead RS11311.04.13 RS11308.04.010 RS11306.04.011 RS11309.04.011
Extension Rod RS11311.04.06 RS11308.04.005 RS11306.04.007 RS11309.04.010
Crankshaft RS11311.02.08.00 RS11308.02.08 RS11306.02.08 RS11309.02.008
Crosshead RS11311.04.01 RS11308.04.001 RS11306.04.003 RS11309.04.001
Pinion Shaft RS11311.03.02 RS11308.03.007 RS11306.03.007 RS11309.03.002
Wear Ring of Pinion shaft RS11311.03.03 RS11308.03.002 RS11306.03.002 RS11309.03.003
Double Oil Seal RS11311.04.09 RS11308.04.008 RS11306.04.014 RS11309.04.007
Oil Seal, Pinionshaft RS11311.03.12 RS11308.03.011 RS11306.03.003 RS11309.03.011
Connecting Rod RS11311.02.07 RS11308.02.006 RS11306.02.006 RS11309.02.006
Bull Gear RS11311.02.10 RS11308.02.010 RS11306.02.010 RS11309.02.010
Stuffing Box RS11311.04.05 RS11308.04.003 RS11306.04.006 RS11309.04.005
Bolt, Main Bearing RS11311.02.04 RS11308.02.015 RS11306.02.015 RS11309.02.015
Bearing, Crosshead 5G354920Q 254735Q 5G254936Q RS11309.04.015
Bearing, Pinion Shanft 4G32828H 4G32836H 4G32840H RS11309.03.012
Bearing, Eccentric 92984QU 928/508QU 929/558.8QU RS11309.02.017
Bearing, Main 3G3053738H 3G3003748HY 3G4053156H RS11309.02.018





EMSCO

F800/1000 Mud Pump

Item P/N Description Qty. Price$ Weight
1 0-6999-0086-02 Fluid Module Studded, (incl. Items 2-8) 3   685
2 0-6999-0086-02 Fluid Module , Only 3 3349 640
3 0-7507-2108-00 Stud, 1 1/4 12 8.2 0.56
4 0-7601-0630-24 Nut, 1 1/4 - 8 Hvy. Hex 12 2.3 0.11
5 0-7507-2205-00 Stud, 1 1/2 18 9 0.6
6 0-7601-0630-17 Nut, 1 1/2 - 8 Hvy. Hex 18 2.5 0.13
7 0-7507-2150-00 Stud, 1 3/8 30 8.6 0.57
8 0-7601-0630-26 Nut, 1 3/8 - 8 Hvy. Hex 30 2.3 0.12
9 0-6319-0026-00 Liner Cage 3 178.8 10
10 0-6999-0089-00 Thread Ring 3 279.6 46.8
11 0-6319-0031-00 Cylinder Head 3 272 38.4
12 0-6319-0027-00 Valve Cover 3 275 41.5
13 0-6319-0090-00 Cylinder Head Plug 3 149.6 13.6
14 0-6397-0575-00 Valve Guide, Upper 3 5 0.22
15 0-6397-0603-00 Retainer, Valve Guide 3 15 0.32
16 0-7602-1610-46 O-Ring, AN 6230-19 3 1 0.01
17 0-6319-0076-00 Seal, Valve Cover 3 5.8 0.13
18 0-7501-0051-00 Screw, Valve Guide Retainer 3 2.5 0.16
19 0-7602-1600-61 O-Ring, Suction Manifold 3 1.6 0.02
20 0-6319-0096-00 Bushing, Lower Valve Guide 3 0.5 0.01
21 0-6319-0089-00 Locking Clip, Lower Valve 3 6.5 0.31
22 0-6319-0087-00 Lower Valve Guide 3 65 3.2
23 0-7602-2200-32 Liner Seal 3 6.5 0.12
23 PREM-2122-44 Liner 4-1/2" 3 215.6 60.2
24 PREM-2122-50 Liner 5" 3 210 53.4
25 PREM-2122-54 Liner 5-1/2" 3 204.3 45.5
26 PREM-2122-60 Liner 6" 3 198.3 37.1
27 PREM-2122-64 Liner 6-1/2" 3 190 28
28 PREM-2122-66 Liner 6-3/4" 3 183.6 23

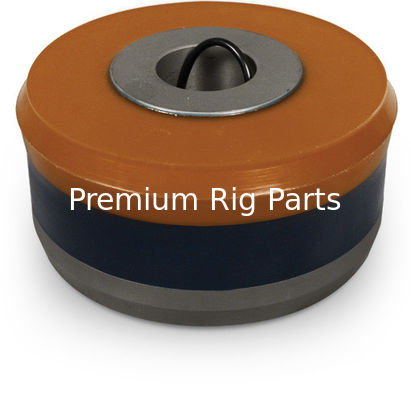

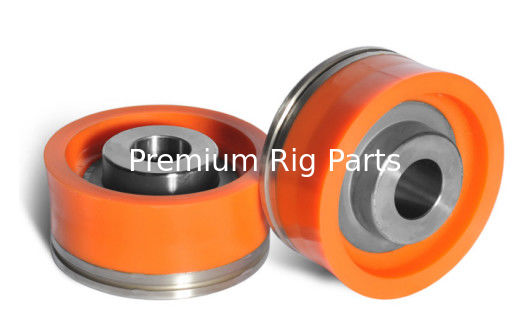

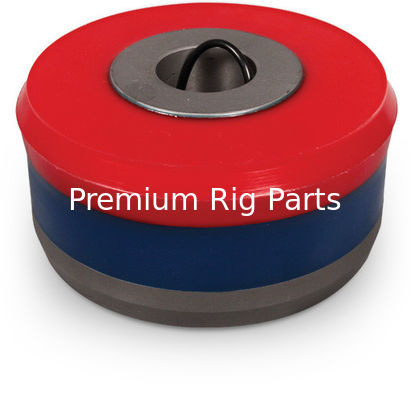

29 012180196 Piston 4-1/2" 3 39.8 3.6
30 012180253 Piston 5" 3 41.5 4.2
31 012180337 Piston 5-1/2" 3 45.3 5.7
32 012180394 Piston 6" 3 47.2 6.5
33 012180535 Piston 6-1/2" 3 55.2 7.6
34   Piston 6-3/4" 3 58 8.5
35 9700285 Valve Full Open 6FO-V1 6 38.2 4.3
36 9702547 Seat 6S6 6 28.4 3.9
37 HD6I Valve Insert 6 24.4 0.16
38 060152808 Valve Cross arms 6 29 4.4
39 061102653 Seat Cross arms 6 28.5 4.3
40   Valve Insert 6 22.8 0.22
41 1551702 Piston rod 3 78 13.5
42 PP601000 Clamp 3 72 8.6
43 07913070 Pony rod 3 235.7 48

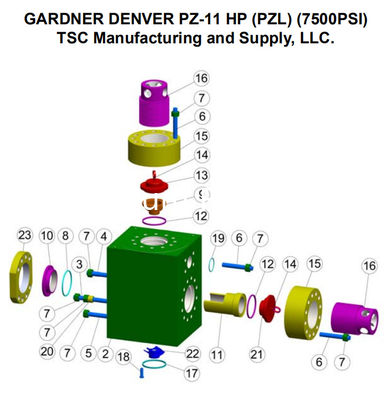

GARDNER DENVER

PZ10/11 Mud Pump



Item P/N Description Qty. Price $ Weight kgs
1 0202PZL029B Fluid Module Studded, (incl. Items 2-9) 3   　
2 　 Fluid Module, Only 3 3280 458
3 201PZL110 Stud, Long, Moudle to Frame 24 12.3 2.3
4 205PZL110 Stud, Short, Moudle to Frame 24 9.6 1.6
5 50B36 Nut, Module to Frame & Liner Clamp 60 2.3 0.13
6 204PZL110 Stud, Valve Cover to Moudle 72 9.5 1.5
7 50B34 Nut, Valve Cover to Moudle & Module to Discharge 84 2.3 0.13
8 202PZL110 Stud, Module to Discharge Manifold 12 8.5 1.1
9 200PZL587 Cap, Valve Lock 6 244.0 24.0
10 200PZL147 Cover, Valve 6 154.5 11.2
11 2007674 Bushing, Valve Guide,Discharge 3 3.0 0.02
12 204PZL715 Gasket, Valve Cover 6 6.5 0.01
13 200PZL387 Thread Ring 6 245.5 25.6
　 200PZL483A Valve Guide Assembly (incl.Items 16-20) 3
14 2011701 Plate, Retainer 1 48.0 1.8
15 2011700 Valve Guide, Suction 1 51.0 2.0
16 2007674 Bushing, Valve Guide,Suction 1 3.5 0.02
17 95W2 Lock Washer,Valve Guide 2 0.5 0.01
18 655EE06S Screw, Valve Guide 2 3.0 0.02
19 25A135 Gasket, Discharge Manifold to Module 3 3.5 0.01
20 25G41 Gasket, Suction Manifold to Moudule 3 5.2 0.12
21 200PZL455 Liner Clamp 3 2.5 0.09
23 PREM-3127-44 Liner 4-1/2" 3 231.2 84.3
24 PREM-3127-50 Liner 5" 3 225.5 77.5
25 PREM-3127-54 Liner 5-1/2" 3 220.0 70.0
26 PREM-3127-60 Liner 6" 3 213.0 61.77
27 PREM-3127-64 Liner 6-1/2" 3 205.6 52.8
28 PREM-3127-66 Liner 6-3/4" 3 200.0 46.8
　 PREM-3127-70 Liner 7" 3 193.8 43.2
29 012180196 Piston 4-1/2" 3 39.8 3.6
30 012180253 Piston 5" 3 41.5 4.2
31 012180337 Piston 5-1/2" 3 45.3 5.7
32 012180394 Piston 6" 3 47.2 6.5
33 012180535 Piston 6-1/2" 3 55.2 7.6
34   Piston 6-3/4" 3 58 8.5
　 012180618 Piston 7" 3 61.8 9.8
35 9700250 Valve Full Open 7FO-V1 6 39.8 4.9
36 9702504 Seat 7S1 6 29.26 4.8
37 HD7I Valve Insert 6 24.4 0.24
38 060155041 Valve Cross arms 6 29.6 4.6
39 061101507 Seat Cross arms 6 29 4.4
40 UDD7B Valve Insert 6 26 0.23
41   Piston rod 3 86 10.3
42 　 Clamp 3 75 6.5
43 　 Pony rod 3 232 36.2





Description

7P50

mud pump

8P80

mud pump

9P100

Mud pump

10P130

Mud pump

12P160

Mud pump

14P220

Mud pump
Liner of Crosshead Upper   1291017 1293017 1290017 1292017 1295017
Liner of Crosshead Lower
Pin of Crosshead 1294028 1291028 1293028 1290028 1292028 1295028
Extension Rod 1294083 1291083 1293083 1290083 1292083 1295083
Crosshead   1291090 1293090 1290015 1292090 1295015
Crosshead 1294015 1291015 1293015 1290090 1292015 1295090
Pinion Shaft 1294010 1291010 1293010 1290358 1292010 1295010
Cage, Main Bearing 1294011 1291011 1293011 1290011 1292011 1295011
Cap, Bearing Right 1294012 1291012 1293012 12960012 1292012 1295012
Connecting Rod 1294007 1291007 1293007 1290007 1292007 1295007
Bull Gear 1294008 1291008 1293008 1290008 1292008 1295008
Crankshaft   1291005 1293005 1290005 1292005 1295005
Bearing, Crosshead ZB-5620 ZB-6751 ZB-7120 ZB-7370 ZB-8253 ZB-9005
Bearing, Pinion Shanft ZB-6292 ZB-7081 ZB-7873 ZB-8662 ZB-10236
Bearing, Eccentric ZB-22000 ZB-23500 ZB-25500 ZB-26250 ZB-28515 ZB-32000
Bearing, Main ZT-10003 ZT-11812 ZT-13127 ZT-14500 ZT-15000 ZT-16125
