Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end

  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
  • Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end
Luogo di origine Cina
Marca Emsco, National, Southwest, Gardner Denver
Certificazione API 7K
Numero di modello HHF1600, HHF1300, HHF1000, HHF800, HHF500
Quantità di ordine minimo 1 pezzo
Prezzo 1 to 500 usd
Imballaggi particolari Adatto alla spedizione via mare e via aerea
Tempi di consegna In magazzino
Termini di pagamento L/C, D/A, D/P, T/T, Western Union
Capacità di alimentazione 3000 pezzi al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Utilizzo Olio, acqua, impianto di perforazione di trapano Energia Elettrico, idraulico, diesel
Pressione Alta pressione, bassa pressione Applicazione Estrazione mineraria, olio, prodotto chimico
Struttura Pompa a pistone carburante body{background-color:#FFFFFF} 非法阻断154 window.onload = function () { docu
Standard o non standard Standard Tipo Pompa di fango
Colore Verde o per progettazione del cliente Materiale Pompa aspirante del fango acciaio inossidabile/del ghisa, lega di Chrome
Garanzia 12 mesi Nome del prodotto Pompa di fango
OEM Applicabile Condizione Nuovo
Lasciate un messaggio
Descrizione di prodotto

Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end 0





No. P/N Description Qty Drawing Code
1 11-3101-0401　　 Crosshead 1 GH3101.04.01
2 11-3101-0402　 Slide, upper 1 GH3101.04.02
3 11-3101-0420　　 Bolt, 1-8UNC-2Ax55 2 US standard
4 11-3101-0403　　 End cover 1 GH3101-04.03
5 B34521-175-355-69　 O-ring, 175×3.55G 1 GB/T3452.1-1992
6 11-3101-0404　　 Stuffing Box 1 GH3101-04.04
7 11-3101-0405　　 Seal ring 1 GH3101-04.05
8 11-3101-0406　　 Oil seal 1 GH3101-04.06
9 11-3101-0407　　 Pipe joint, NPT3/8x50.8 2 GH3101-04.07
10 11-3101-0408　　 Splashguard 1 GH3101-04.08
11 11-3101-0409　　 Extension rod 1 GH3101-04.09
12 11-3101-0410　　　 Crosshead pin 1 GH3101-04.10
13 11-3101-0421　 Bolt, 1-8UNC-2Ax65 8 US standard
14 11-3101-0411　　 Adjusting shim 2 GH3101-04.11
15 11-3101-0412　　 Slide, lower 1 GH3101-04.12
16 11-3101-0413　　　 Slide retainer plate 8 GH3101-04.13
17 B34521-140-700-69　 O-ring, 140×7.0G 1 GB/T3452.1-1992
18 11-3101-0422　 Bolt, 3/8-16UNC-2Ax35 4 US standard
19 B0093-10-59　　 Washer, 10 4 GB/T93-1987
20 11-3101-0414　　 Locking Spring 1 GH3101-04.14
21 11-3101-0423 　 Screw, 3/4-10UNC-2Ax55 8 US standard
22 11-3101-0415　　　 Gasket 1 GH3101-04.15
23 11-3101-0416　　 Crosshead Pin Cap 1 GH3101-04.16
24 11-3101-0417　　 Crosshead bearing, 5G254936Q 1 GH3101-04.17
25 11-3101-0418　　　 Oil seal, 4.5"×5.5"×0.5" 2 GH3101-04.18
26 11-3101-0419-00　　　 shims 8 GH3101-04.19.00
27 11-3101-0223　　 Sealant 1 242
28 B34521-115-530-69　 O-ring, 115×5.30G 1 GB/T3452.1-1992







Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end 1



No. P/N Description Qty Drawing Code
1 11-3101-0501-00　　 Cylinder assembly 3 GH3101-05.01.00
2 11-3101-0502　　 Cylinder Cover, Threaded ring 3 GH3101-05.02
3 11-3101-0503　　 Cylinder Cover, 3 GH3101-05.03
4 11-3101-0504　　 Seal ring, cylinder cover 6 GH3101-05.04
5 11-3101-0505　　 Plug, cylinder cover 3 GH3101-05.05
6 11-3101-0506 Puller 3 GH3101-05.06
7 B34521-975-355-69　 O-ring, 97.5×3.55G 3 GB/T3452.1-1992
8 11-3101-0507　　 Blind plate, discharge, 5 1/8" 1 GH3101-05.07
9 11-3101-0508　　 Discharge manifold 1 GH3101-05.08
10 11-3101-0509　　 Seal ring, valve cover 3 GH3101-05.09
11 11-3101-0510 Stud, 1 1/2-8UN-2A*262 16 GH3101-05.10
12 11-3101-0501-03　 Nut, 1 1/2-8UN-2B(SPL) 32 GH3101-05.01.03
13 11-3101-0511　　 Valve cover 3 GH3101-05.11
14 11-3101-0512　　 Guide, valve stem 3 GH3101-05.12
15 11-3101-0513-00　　 Spring guide 3 GH3101-05.13.00
16 11-3101-0514　　 Baffle 3 GH3101-05.14
17 11-3101-0515 Bolt, 3/8-16UNC-2A*20 12 GH3101-05.15
18 11-3161-0545　 Stainless steel wire, φ1.60(L=1830) 1 GB/T4240-1993
19 11-3101-0516　 Valve spring 6 GH3101-05.16
20 11-3101-0517-00　 Valve assembly,(API 6#) 6 GH3101-05.17.00
21 11-3101-0518-00　 Nut, piston 3 GH3101-05.18.00

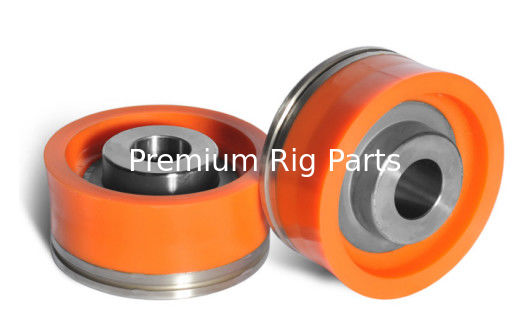

22 11-3101-0519-00-1　 Piston 3 GH3101-05.19.00A
23 11-3101-0520　　 Seal ring, piston 3 GH3101-05.20
24 11-3101-0521 Piston rod 3 GH3101-05.21

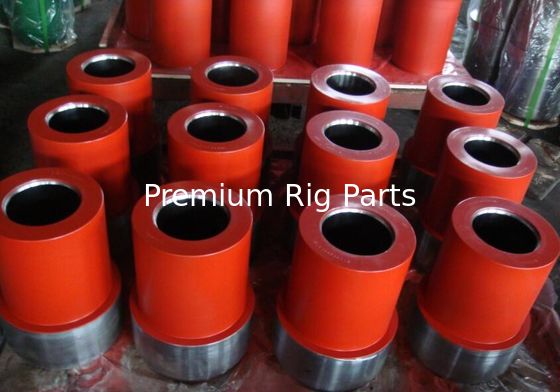

25 11-3101-0522-01-1 Ordinary liner 4 3/4 3 GH3101-05.22A
  11-3101-0522-02-1 Ordinary liner 5
  11-3101-0522-03-1 Ordinary liner 5 1/2
  11-3101-0522-04-1 Ordinary liner 6
  11-3101-0522-05-1 Ordinary liner 6 1/4
  11-3101-0522-06-1 Ordinary liner 6 1/2
  11-3101-0522-07-1 Ordinary liner 6 3/4
  11-3101-0522-01 Bi-metal liner 4 3/4   GH3101-05.22
  11-3101-0522-02 Bi-metal liner 5
  11-3101-0522-03 Bi-metal liner 5 1/2
  11-3101-0522-04 Bi-metal liner 6
  11-3101-0522-05 Bi-metal liner 6 1/4
  11-3101-0522-06 Bi-metal liner 6 1/2
26 11-3101-0523-00　　 Spraying pipe assembly 1 GH3101-05.23.00
27 11-3101-0524-00　　 Clamp assembly, piston rod 3 GH3101-05.24.00
28 11-3101-0525　　 Splash Shield, liner 3 GH3101-05.25
29 11-3101-0526 Fixing clamp 3 GH3101-05.26
30 11-3101-0527-00　　 Guide, valve stem(lower) 3 GH3101-05.27.00
31 B34521-190-700-69　 O-ring, 190×7.0G 3 GB/T3452.1-1992
32 11-3101-0536　 Bolt, 7/8-9UNC-2Ax55 18 US standard
33 11-3101-0528-00　　 Suction manifold 1 GH3101-05.28.00
34 11-3101-0529-00　　 Suction dampener 1 GH3101-05.29.00
35 11-3101-0530-00　 Shims 4 GH3101-05.30.00
36 11-3161-0544　 Bolt, 1 1/16-8UN-2A*90 36 US standard
37 11-3161-0543　 Nut, 1 1/16-8UN-2B(SPL) 36 US standard
38 B34521-345-700-69　 O-ring, 345×7.0G 3 GB/T3452.1-1992
39 11-3101-0531　　 Suction flange(Ⅰ) 1 GH3101-05.31
40 11-3101-0532　　 Suction flange(Ⅱ) 1 GH3101-05.32
41 11-3101-0533　　 Plug screw, NPT1 1/2 1 GN3101-05.33
42 11-3101-0534 Washer, 39 24 GH3101-05.34
43 11-3101-0535 Blind plate, suction inlet, 12" 1 GH3101-05.35



Honghua HHF1300/1600 mud pump， HHF1000 mudp ump, HHF800 mud pump, HHF500 mud pump Liners, Pistons, Valves, Fluid end 2

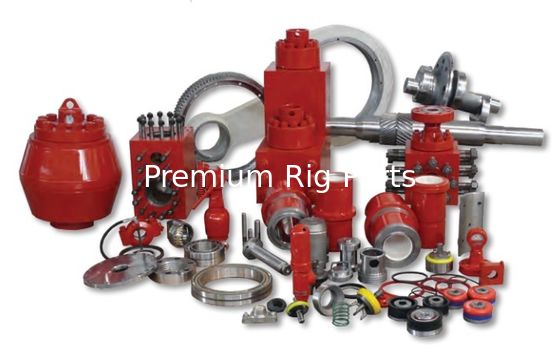

All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:

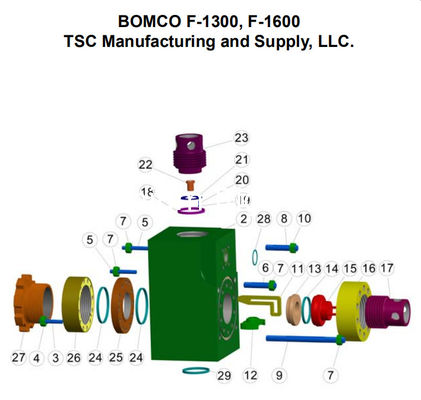

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
