SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump

China SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier
SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump supplier

Large Image :  SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump

Product Details:

Place of Origin: China
Brand Name: OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Certification: API
Model Number: 12P160,14P220, FB1600, PZ10, F1000, A1700PT

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 500 usd
Packaging Details: Suitable to shipment by sea and air
Delivery Time: In stock
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Hydraulic,diesel
Pressure: High Pressure,Low Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump Application: Mining,oil,Chemical
Structure: Piston Pump Fuel: Gasoline,air Operated,diesel Engine And Hydraulic Motor For Option
Standard Or Nonstandard: Standard Type: Mud Pump
Color: Red And So On,Green Or Per Customer Design Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy,Stainless Steel Aluminum Plastic Etc
Warranty: 12 Months Product Name: Mud Pump
Oem: Can Be Accept Condition: New

SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump



SOUTHWEST 5000 P.S.I. NATIONAL 12-P-160 7-1/2” X 12”





ITEM NO. PART NO.



DESCRIPTION

 QTY. REQ’D
  8476-4A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 DUAL SPRAY PIPE 3
10C 4020-29 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
  4476-6A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-6A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 P.S.I. NATIONAL 12-P-160 7-1/2” X 12”







ITEM NO.



PART NO.



DESCRIPTION



QTY. REQ’D
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-6S SUCTION MODULE (STUDDED ONLY) 3
33 8476-5D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16
58 5000-5BFLANGE BLIND FLANGE 5" 1
59 9070012 PONY ROD SEAL 12
60 80491292 SPLASH GUARD 3
61 8376-50A COMPLETE STRAINER CROSS 1
62 8376-50 STUDDED STRAINER CROSS ONLY 1







SOUTHWEST 7500 P.S.I. GARDNER DENVER PZ11/10 6 ¾” X 11”



ITEM NO. PART NO.



DESCRIPTION

 QTY. REQ’D
  8477-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39)
1

1367Y-XX

1367AY-XX

LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX)

LINER 6 ¼” THRU 6 ¾”

 3
2

2930-XXU**

2974-XXU**

LINER SEAL

LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾”

 3
3 8477-29 ALIGNMENT RING 3
4 8477-30 WEARPLATE (REPLACES WEARPLATE NO. 8477-28) 3
5 2988U** WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL 9
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
7 568-225 PISTON O-RING 3
8 6278-25 PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD ELASTIC STOP NUT 3
10 1290-2 PISTON ROD CONNECTING STUD 3
11 6279-1 SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) 3
12 1277CW ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) 3
12A 1200120 SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) 3
12B 4018-96 BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12C 1200H30 HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) 3
13 1200G77 PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) 3
14 SEE PAGE VALVE 6
15 SEE PAGE VALVE INSERT 6
16 SEE PAGE VALVE SPRING 6
17 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
18 4488-25 VALVE COVER FLANGE 6
19 4588-25 SCREW GLAND 6
20 4688-25 PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) 6
21 P115 HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) 6
22 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4018-18 VALVE GUIDE SCREW 12



SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump





FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. GARDNER DENVER PZ11/10 6 ¾” X 11”





ITEM NO. PART NO.



DESCRIPTION

 QTY. REQ’D
25 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
26 4019-46 POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
27 6477-25 LINER RETAINER FLANGE 3
28 4019-45 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 24
29 6577-25 LINER RETAINER NUT 3
30 4019-44 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4017-77 SUCTION MANIFOLD CAP SCREW 24
32 8577-25 SUCTION MANIFOLD 1
33 AJO245 SUCTION MANIFOLD SEAL 3
34 8477-26 SUCTION MODULE 3
35 8477-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8377-27 DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) 1
38 4019-45 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 12
39 LW500 LOCKWASHER 1/2 12











SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump











SOUTHWEST 7500 P.S.I. NATIONAL 12P-160 7-1/2” X 12”





ITEM NO. PART NO.



DESCRIPTION

 QTY. REQ’D
  8476-25A FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)
1 1376YXX LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE, AND DISCHARGE MANIFOLD SEAL 6
5 XX-BYY PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) 3
10C 4020-29 BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
16 4488-25 THREADED FLANGE 6
17 4588-25 SCREW GLAND 6
18 4690-25A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) 6
19 P115 HP VALVE COVER PLUG NITRILE SEAL 6
20 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4018-88 VALVE GUIDE SCREW 12



SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. NATIONAL 12P-160 7-1/2” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-26S SUCTION MODULE 3
33 8476-27D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 8376-25MOD DISCHARGE MANIFOLD 1
36 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 18
37 LW500 LOCKWASHER 12
38 LW875 LOCKWASHER 24
39 9070012 PONY ROD SEAL 12
40 80491292 SPLASH GUARD 3





SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump

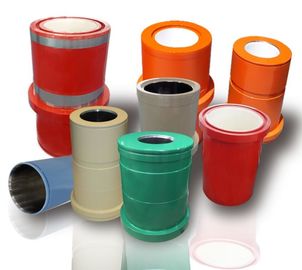

High Chrome Sleeve Liner



The outer hull, or body, of the liner is a high strength forging. Premium uses forgings exclusively to ensure the consistent quality. The sleeve is centrifugally cast in the Premium facilities by skilled craftsmen. It has the maximum amount of chrome for the base metal and Premium adds molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness that exceeds its counterparts. The liner is rated to match the pressure rating of the pump per liner size.



Rated for all drilling operations up to 5,000 PSI and above

Bore hardness is 62 - 69 Rockwell

Plip design to prevent inner sleeve slippage

Extremely long service life



Mud Pump Models



Liner Inch

 4” 4-1/2” 5” 5-1/2” 6” 6-1/2” 7”
Continental Emsco F-800 / 1000 / 05495450 05495500 05495550 05495600 05495650 05495700
Continental Emsco FB-1300 / 1600 05499400 05499450 05499500 05499550 05499600 05499650 05499700
Continental Emsco FC-2200 / / 05551500 05551550 05551600 05551650 05551700
Gardner Denver PAH-275

PA I3940

05519400

PA 13945

05445450

PA 13950

05445500

 / / / /
Gardner Denver PZ-7 PY13940 PY13945

PY13950

05493087

PY13955

05493085

PY13960

05493083

PY13965

05493081

PY13970

05493079
Gardner Denver PZ-8/9

206PZJ456

05493400

205PZJ456

05493450

204PZJ456

05493500

203PZJ456

05493550

202PZJ456

05493600

200PZJ456

05493650

207PZJ456

05493700
Gardner Denver PZ-10/11

206PZL456

05496400

205PZL456

05496450

204PZL456

05496500

203PZL456

05496550

202PZL456

05496600

201PZL456

05496650

200PZL456

05496700
Gardner Denver PZL

206PZL456

05496400

205PZL456

05496450

204PZL456

05496500

203PZL456

05496550

202PZL456

05496600

201PZL456

05496650

200PZL456

05496700
Gardner Denver PZL-B-7500 PSI / / 05561500HP 05561550HP 05561600HP 05561650HP 05561700HP
Gardner Denver PZL W/SWFE 7500 PSI 05465400HP 05465450HP 05465500HP 05465550HP 05465600HP 05465650HP 05465700HP
Gardner Denver PX-11 7500 PSI / / 05561500HP 05561550HP 05561600HP 05561650HP 05561700HP
Ideco T-500 / 05512450 05512500 05512550 05512600 05512650 05512700
Ideco T-800 / 1000 05502400 05502450 05502500 05502550 05502600 05502650 05502700
Ideco T-1300 / 1600 / 05507450 05507500 05507550 05507600 05507650 05507700
National 7P-50 05466040 05466045 05466050 05466055 05466060 / /
National 8-P-80 05464400 05464450 05464500 05464550 05464600 05464650 /
National 9-P-100 / 10-P-130 05465400 05465450 05465500 05465550 05465600 05465650 /
National 12-P-160 05466400 05466450 05466500 05466550 05466600 05466650 05466700
National 14-P-220 05545400 05545450 05545500 05545550 05545600 05545650 05545700
National JWS-165/340 05531400 05531450 / / / / /
National JWS-400 05524400 05524450 05524500 05524550 05524600 / /
Oilwell HD-1700-PT / / 05326500 05326550 05326600 05326650 05326700
Oilwell A-600-PT 05329400 05329450 05329500 05329550 05329600 05329650 05329700
Oilwell A-850-PT / A-1100-PT 05330400 05330450 05330500 05330550 05330600 05330650 05330700
Oilwell A-1400-PT / A-1700-PT 05326400 05326450 05326500 05326550 05326600 05326650 05326700





SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump





BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.







1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000压裂泵的型号及规格

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM压裂泵的型号

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts



NATIONAL     12-P-160       7-1/4 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME     BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"     1540120   MB40-15 1502052   012180170   015180102
4 1/4"
4 1/2"     1540120   MB44-15 1502054 012180197 012180196 015180145 015180144
4 3/4"     1504121
5" 07466500 05466500* 07923265 07211011 MB50-15 1502056 012180254 012180253 015180186 015180185
5 1/4"
5 1/2" 07466550 05466550* 07923263 07211005 MB54-15 1502058 012180338 012180337 015180228 015180227
5 3/4"
6" 07466600 05466600* 07923261 07211004 MB60-15 1502060 012180395 012180394 015180269 015180268
6 1/4"   05466625* 07923283     1502061   012180493 015180285 015180284
6 1/2" 07466650 05466650* 07923284 07211003 MB64-15 1502062 012180536 012180535 015180301 015180300
6 3/4"
7" 07466700 05466700* 07923285 07211002 MB70-15 1502064 012180619 012180618 015180343 015180342
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
Series 7 ROUGHNECK ROUGHNECK HP SUPREME FKN   OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 060155042 N/A Valve Cover 1540138 1540127 07207119 07211013 07213013
VALVE-Urethane Insert 9700250 9700354 060155041 1560985 Wear Plate 1292257   1290344 07211023 07213023
VALVE-Rubber Insert 9700293 N/A 060155033 1560984 Liner Retention Systems OEM MISSION L
SEAT 9702539 9702539 061102505 1561440 Liner Retention Systems 80501100 80501100
SPRING 8201684 8201684 055413421 1560702 Blak-JAK LOK-CEL 80502100 80502100
SPRING-Stainless     055402945   Blak-JAK Hydra-Cell 80500100 80500100
INSERT-Urethane 9705228 PFO7I 062400338 1560557 MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239 1560558 Complete Assembly FEMNAT12PCA FEM12PASSYSWNS
SEAT PULLER ASSEMBLIES Discharge Module Studded FEMNATDIS12P FEM12PDISSWNS
Puller Assembly 1 M 1060 M 1060 M 1060 M 1060 Suction Module Studded FEMNATSUC12P FEM12PSUCSWNS
Puller Head 8401985 8401985 181235300 M 1098 One Piece OEM Style Studded

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assy Rod Nut Piston Rod Sub Rod Pony Rod Baffle Piston Rod Clamp Covered Rod Nut Pony Rod Seal
1602586   2095220 005402052 1292147 1292146 1292194 W/SPRAY 80701024 CRN-1 07209103



SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump



NATIONAL   14-P-200 /14-P-220     9 x 14
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME     BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"         MB40-15 1502052   012180170   015180102
4 1/4"
4 1/2"         MB44-15 1502054 012180197 012180196 015180145 015180144
4 3/4"
5" 07545500 05545500 07923265 07211011 MB50-15 1502056 012180254 012180253 015180186 015180185
5 1/4"
5 1/2" 07545550 05545550HP 07923263 07211005 MB54-15 1502058 012180338 012180337 015180228 015180227
5 3/4"
6" 07545600 05545600HP 07923261 07211004 MB60-15 1502060 012180395 012180394 015180269 015180268
6 1/4"           1502061   012180493 015180285 015180284
6 1/2" 07545650 05545650HP 07923284 07211003 MB64-15 1502062 012180536 012180535 015180301 015180300
6 3/4"
7" 07545700 05545700HP 07923285 07211002 MB70-15 1502064 012180619 012180618 015180343 015180342
7 1/4"
7 1/2" 07545750 05545750HP 1540155       012180685 012180683 015180369 015180367
7 3/4"
8" 07545800 05545800HP 1540157         012180725

VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME FKN   OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700369     N/A Valve Cover 1540163   07207109
VALVE-Urethane Insert 9700382   060135555 1560965 Wear Plate
VALVE-Rubber Insert N/A   060110053 1560964 Liner Retention Systems OEM MISSION L
SEAT 9702751   061100954 1561410 Liner Retention Systems 80501109 80501109
SPRING 055413256   055409007 1560702 Blak-JAK LOK-CEL 80502100 80502100
SPRING-Stainless     8201617   Blak-JAK Hydra-Cell 80500107
INSERT-Urethane 9705236   062400536 1560567 MODULES OEM MISSION L
INSERT-Rubber N/A   062400437 1560705 Complete Assembly   80700031
SEAT PULLER ASSEMBLIES Discharge Module Studded   80700012
Puller Assembly 1 M 1060 M 1060 M 1060 M 1060 Suction Module Studded   80700001
Puller Head 8402256   181235706 M 1087 One Piece OEM Style Studded

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Covered Rod Nut Pony Rod Seal
1295083   1195220 1292194 1295147 1295146   005402052 1295085 CRN-1 07209104





SOUTHWEST “NEW STYLE” 8476-4A FLUID END FOR NATIONAL 12-P-160 MUD PUMP, FB1600 MUD PUMP, F1000 mud pump, PZ11 mud pump



NATIONAL 12-P-160 7500 PSI FE   7-1/4 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME     BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4" 07466400 05466400     MB40-15 1502052   012180170   015180102
4 1/4"
4 1/2" 07466450 05466450     MB44-15 1502054 012180197 012180196 015180145 015180144
4 3/4"
5" 07466500 05466500* 07923265 07211011 MB50-15 1502056 012180254 012180253 015180186 015180185
5 1/4"
5 1/2" 07466550 05466550* 07923263 07211005 MB54-15 1502058 012180338 012180337 015180228 015180227
5 3/4"
6" 07466600 05466600* 07923261 07211004 MB60-15 1502060 012180395 012180394 015180269 015180268
6 1/4"   05466625* 07923283     1502061   012180493 015180285 015180284
6 1/2" 07466650 05466650* 07923284 07211003 MB64-15 1502062 012180536 012180535 015180301 015180300
6 3/4"
7" 07466700 05466700* 07923285 07211002 MB70-15 1502064 012180619 012180618 015180343 015180342
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
Series 7 ROUGHNECK ROUGHNECK HP       OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356     Valve Cover     07207129 07211007 07213007
VALVE-Urethane Insert 9700250 9700354     Cylinder Head
          Wear Plate     1290344 07211023 07213023
SEAT 9702539 9702539     Liner Retention Systems OEM MISSION L
SPRING 8201650 8201650     Blak-JAK LOK-CEL 80501100 80501100
SPRING-Stainless 055413372 055413372     Blak-JAK Hydra-Cell 80502100 80502100
INSERT-Urethane 9705228 PFO7I     MODULES OEM MISSION L
          Complete Assembly   80704032
SEAT PULLER ASSEMBLIES Discharge Module Studded   80704000
Puller Assembly 1 M 1060-45 M 1060-45     Suction Module Studded   80704001
Puller Head 8401985 8401985     One Piece OEM Style Studded

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assy Rod Nut Piston Rod Sub Rod Pony Rod Baffle Piston Rod Clamp Covered Rod Nut Pony Rod Seal
1602586   2095220 005402052 1292147 1292146 1292194 W/SPRAY 80701024 CRN-1 07209103

Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China OILWELL Mud Pumps Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
