TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump

  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
  • TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump
Lugar de origen Porcelana
Nombre de la marca TSC, NATIONAL, OILWELL, GARDNER DNEVER, DRILLMEC
Certificación API
Número de modelo BOMBA DE LODO 12P160, NACIONAL
Cantidad de orden mínima 1 pieza
Precio 1 to 500 usd
Detalles de empaquetado Adecuado para envío por mar y aire.
Tiempo de entrega ALGUNOS EN STOCK
Condiciones de pago LC, D/A, D/P, T/T, Western Union
Capacidad de la fuente 200 conjuntos por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Uso Aceite, agua, aparejo de taladro Fuerza Eléctrico, hidráulico, diésel.
Presión Bomba de lodo sumergible de alta presión, baja presión y baja presión, bomba de lodo de dragado de a Aplicación minería, petróleo
Estructura Bomba de pistón combustible Diesel
Estándar o no estándar Estándar Teoría bomba centrífuga
Tipo Bomba de barro Peso 100-3700kg
Color Azul, rojo, etc., verde o según diseño del cliente. Material Arrabio/bomba de succión de acero inoxidable del fango, aleación de Chrome
Garantía 12 meses Nombre del producto Bomba de barro
OEM puede ser aceptar, aplicable Condición Nuevo
Deja un mensaje
Descripción de producto

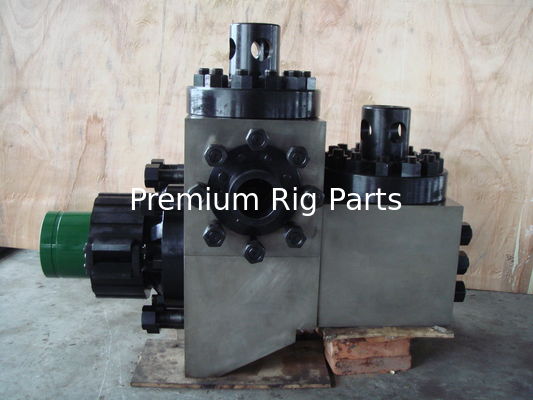

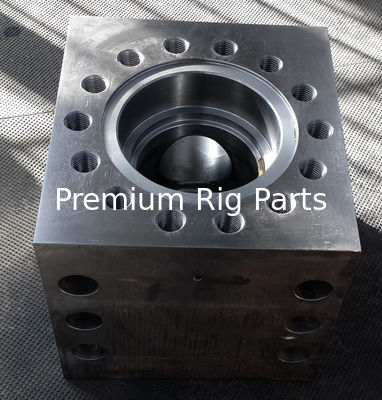

TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump 0

TSC Fluid end module of mud pumps:



Mud Pump Models Module with Stud Mud Pump Models Module with Stud



Continental Emsco F-800 / 1000 6999-0086-02 National 12-P-160 Discharge 1292240
Continental Emsco FB-1300 / 1600 6316-0357-00 National 12-P-160 Suction 1292243
Gardner Denver TEE 200PJH029B National 14-P-220 Discharge 1295601
Gardner Denver PAH 200PJH029B National 14-P-220 Suction 1295604
Gardner Denver PZ-7/8/9 205PZL029D Module, WF400 TSC-SP-WF400-01
Gardner Denver PZ-10/11 202PZL029B Module, WF700 TSC-SP-WF700-01
Ideco T-800 / 1000 551-458 Module, WF1300B TSC-SP-WF1300-01
Ideco T-1000 / 1300 551-122-01 Module, WF1300C TSC-SP-WF1300-02
Oilwell A-850-PT / A-1100-PT 10300181 Module, WF1300BH TSC-SP-WF1300-03
Oilwell A-1400-PT / A-1700-PT 10300181 Module, WF1600A TSC-SP-WF700-01
National 8-P-80 Discarge 1291280 Module, WF1600B TSC-SP-WF1600-01
National 8-P-80 Suction 1290338 Module, WF1600BH TSC-SP-WF1600-02
National 9-P-100 Discharge 1293240 Module, WF1600L TSC-SP-WF1600-03
National 9-P-100 Suction 1290338 Module, WF1600LH TSC-SP-WF1600-05
National 10-P-130 Discharge 1290335 Module, WF1600S TSC-SP-WF1600-06
National 10-P-130 Suction 1290338 Module, WF2000 TSC-SP-WF2000-01
    Module, WF2200 TSC-SP-WF2200-01





TSC mud pump liners are designed and manufactured to meet or exceed original equipment specification and API standards for almost all types of mud pumps in use today.



TSC Workforce (WF) series mud pumps are developed to offer superior performance for a variety of drilling operations and work environments. TSC Mud pump and parts for model:



WF1300 triplex Pump,WF1300BH,WF1300,WF-1300C,WF1600A,WF1600B,WF1600BH,WF1600CH,WF1600L,WF1600LH,WF2000,WF2200.WF400,WF700.



www.t-s-c.com



TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump 1

IDECO T-1300, T-1600
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION WEIGHT
01 TS-551-122-01 MODULE, FLUID END STUDDED (INCLUDES ITEMS 12,3,4,5,6,7)
02 TS-551-110-01 STUD, POWER FRAME
03 TS-IN415 NUT,POWER FRAME STUD
04 TS-551-110-02 STUD, DISCHARGE MANIFOLD
05 TS-IN416 NUT, DISCHARGE MANIFOLD STUD
06 TS-551-110-03 STUD, THREADED RING
07 TS-IN415 NUT, THREADED RING STUD
08 TS-551-105-07 ASSEMBLY, LOWER VALVE GUIDE (INCLUDES # 19 VALVE GUIDE BUSHING)
09 TS-551-105-08 RETAINER, LOWER VALVE GUIDE
10 TS-BTM16696308(G-782-Z) GASKET, VALVE COVER,CYLINDER HEAD
  G-782
11 TS-551-122-02 PLUG, CYLINDER HEAD
12 TS-551-122-02 COVER, VALVE
13 TS-551-105-03 RING, THREADED
14 TS-551-105-04 CAP, THREADED
15 TS-551-105-05 NUT, LINER ADAPTER
16 TS-IO548 GASKET, DISCHARGE MANIFOLD
17 TS-IO507 GASKET, SUCTION MANIFOLD
18 TS-551-105-06 GUIDE, UPPER VALVE (INCLUDES # 19 VALVE GUIDE BUSHING)
19 TS-99609339 BUSHING, VALVE GUIDE



TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump 2





NATIONAL 10-P-130
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION WEIGHT
01 TS-1290335 MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 30,&31) 1430
02 TS-1290338 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 ) 680
03 TS-2408019 STUD, THREADED RING 3.12
04 TS-6300220 NUT, THREADED RING STUD 0.73
05 TS-2408020 STUD, POWER FRAME 1.5
06 TS-6300240 NUT, POWER FRAME STUD 0.5
07 TS-2402560 STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES) 1.75
08 TS-6300220 NUT, STUD (BLIND RING AND WELD NECK FLANGES) 0.73
09 TS-2408034 STUD, DISCHARGE MODULE TO SUCTION MODULE 9.5
10 TS-6300241 NUT, DISCHARGE TO SUCTION MODULE STUD 0.94
11 TS-6511416 PIN, DOWELL 0.5
12 TS-1292141 BUSHING,VALVE GUIDE 1
13 TS-1292140 RETAINER, VALVE GUIDE BUSHING 1
14 TS-1540126 GASKET, VALVE COVER 0.2
15 TS-1290174 RETAINER, SEAL 38
16 TS-1290178 SCREW, ADJUSTING WEDGE 3
17 TS-G1290376 ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING) 7
18 TS-1290181 SPRING, WEDGE 1
19 TS-1290308 RING, THREADED 77
20 TS-1290307 CAP, VALVE COVER (THREADED) 57
21 TS-1290315 WASHER, WEDGE ADJUSTING SCREW 0.5
22 TS-6300160 NUT, WEDGE ADJUSTING SCREW 0.5
23 TS-1290343 ADAPTER, DISCHARGE CONNECTOR 5
24 TS-2410031427 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 0.5
25 TS-1290342 CONNECTOR, DISCHARGE 16.75
26 TS-2410031348 SEAL,SUCTION CONNECTOR TO DISCHARGE ADAPTER 0.5
27 TS-700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) 0.5
28 TS-1290357 PLATE, WEAR 10
29 TS-1290165 BUSHING, LINER 110
30 TS-2408018 STUD, LINER BUSHING 1.2
31 TS-6300160 NUT, LINER BUSHING STUD 0.5
32 TS-1290166 ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32,33,34,35,36,37) 150
33 TS-700044811 CAPSCREW, LINER CLAMP 0.5
34 TS-6309120 NUT, LINER CAPSCREW 0.12
35 TS-1290169 PIN, CONNECTOR 0.15
36 TS-1290168 CONNECTOR, LINER CLAMP 1
37 TS-6571420 PIN, SPRING 1
38 TS-1290344 SEAL, MODULE & WEARPLATE 0.5
39 TS-1590051 SEAL, SUCTION MANIFOLD 0.5



TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump 2





NATIONAL 8-P-80
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION WEIGHT
1 TS-1291280 MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 30.&31) 1130
2 TS-1290338 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 ) 680
3 TS-2408019 STUD, THREADED RING 3.12
4 TS-6300220 NUT, THREADED RING STUD 0.73
5 TS-2408026 STUD, POWER FRAME 1.37
6 TS-6300180 NUT, POWER FRAME STUD 0.5
7 TS-2402560 STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES) 1.75
8 TS-6300200 NUT, STUD (BLIND RING AND WELD NECK FLANGES) 0.75
9 TS-2408034 STUD, DISCHARGE MODULE TO SUCTION MODULE 9.5
10 TS-6300241 NUT, DISCHARGE TO SUCTION MODULE STUD 0.94
11 TS-6511416 PIN, DOWELL 0.5
12 TS-1292141 BUSHING,VALVE GUIDE 1
13 TS-1292140 RETAINER, VALVE GUIDE BUSHING 1
14 TS-1540126(G-768-Z) GASKET, VALVE COVER 0.2
15 TS-1290174 RETAINER, SEAL 38
16 TS-1290178 SCREW, ADJUSTING WEDGE 3
17 TS-G-1290376 ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING) 7
18 TS-1290181 SPRING, WEDGE 1
19 TS-1290308 RING, THREADED 77
20 TS-1290307 CAP, VALVE COVER (THREADED) 57
21 TS-1290315 WASHER, WEDGE ADJUSTING SCREW 0.5
22 TS-6300160 NUT, WEDGE ADJUSTING SCREW 0.5
23 TS-2410031427 SEAL,DISCHARGE CONNECTOR & DISCHARGE ADAPTER 0.05
24 TS-1290343 ADAPTER, DISCHARGE CONNECTOR 5
25 TS-2410031348 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 0.05
26 TS-1290342 CONNECTOR, DISCHARGE 16.75
27 TS-700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) 0.5
28 TS-1290357 PLATE, WEAR 10
29 TS-1291165 BUSHING, LINER 110
30 TS-2408025 STUD, LINER BUSHING 0.5
31 TS-6300120 NUT, LINER BUSHING STUD 2
32 TS-1291166 ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32,33,34,35,36,37) 56
33 TS-700040311 CAPSCREW, LINER CLAMP 0.5
34 TS-6309100 NUT, LINER CAPSCREW 0.1
35 TS-1291169 PIN, CONNECTOR 1
36 TS-1290168 CONNECTOR, LINER CLAMP 1
37 TS-6571014 PIN, SPRING
38 TS-1290344 SEAL, MODULE & WEARPLATE
39 TS-1590051 SEAL, SUCTION MANIFOLD

TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump 4





GARDNER DENVER PZ-7, PZ-8, PZ-9
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION WEIGHT
01 TS-205PZL029D FLUID END MODULE STUDDED (INCLUDES 1-9 )
02 TS-79L188 STUD, FRAME & LINER CLAMP
03 TS-50B36 NUT (FOR ABOVE)
04 TS-79L73 STUD, FRAME
05 TS-50AQ30 NUT (FOR ABOVE)
06 TS-79AL6 STUD, VALVE COVER
07 TS-50B34 NUT (FOR ABOVE)
08 TS-202PZL110 STUD, DISCHARGE MANIFOLD
09 TS-50B34 NUT (FOR ABOVE)
10 TS-2011861 RING, VALVE COVER GASKET EXPANDER
11 TS-2011862(G-749) GASKET, VALVE COVER
12 TS-2007674 BUSHING, VALVE GUIDE
13 TS-2011860 COVER, VALVE
14 TS-2011699 RING, VALVE COVER THREADED
15 TS-2011857 CAP, VALVE COVER LOCK
16 TS-2011701 PLATE, RETAINER
17 TS-2011700 GUIDE, VALVE SUCTION
18 TS-95W2 WASHER, LOCK 1/2" 316SS
19 TS-655EE06S SCREW 1/2"x1 3/4" 316SS HX HD C/S
20 TS-25AL35 GASKET, DISCHARGE MANIFOLD
21 TS-25G41 GASKET, SUCTION MANIFOLD
22 TS-1PV14 CLAMP, LINER
23 TS-2011706 ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19)





TSC 12P160 mud pump fluid end module for NATIONAL mud pump, WF-2200 mud pump, WF-2000 mud pump,WF-1600 mud pump 5



All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
