원래 장소 중국, 미국
브랜드 이름 Weatherford, National, Lewco, Eweco, Drillmec
인증 API
모델 번호 E1600 진흙 펌프
최소 주문 수량 1 Peice
가격 1 to 200 USD
포장 세부 사항 해상 및 항공 운송에 적합
배달 시간 재고 있음
지불 조건 전신환, L/C (신용장), 전신환
공급 능력 한 달에 3000

무료샘플과 쿠폰을 위해 나와 연락하세요.

WhatsApp:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
용법 기름, 물, 굴착 장비 힘 전기이고 디젤 엔진입니다
압력 고압, 저압 어플리케이션 광업, 석유
구조 피스톤 펌프 연료 디젤, 가솔린
표준 또는 비표준 기준 유형 머드 펌프
색상 빨간색 등, 녹색 또는 고객 디자인 당 재료 무쇠 / 스테인레스 강 머드 흡입 펌프, 크롬 합금
보증 12개월 특징 컴팩트한 사이즈
제품명 머드 펌프 OEM 있을 수 있고 받아들입니다
상태 새로운
메시지를 남겨주세요
제품 설명

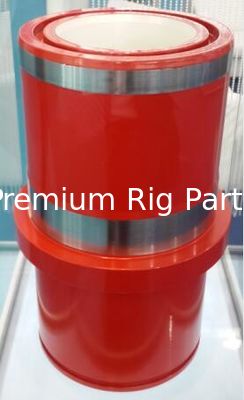

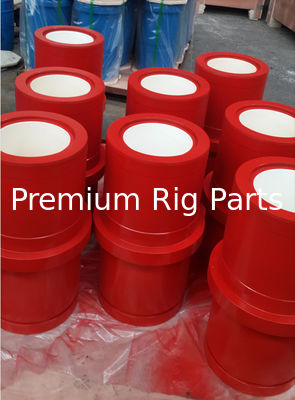

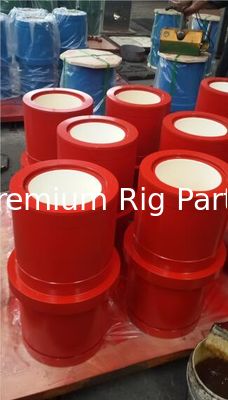

Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner 0Website: www.premiumrigparts.com

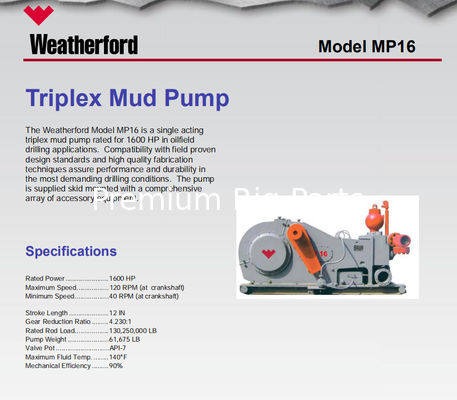

Weatherford is one of the world's largest multinational oil and natural gas service companies. The company provides products and services for drilling, evaluation, completion, production and intervention of oil and natural gas wells, along with pipeline construction and commissioning. Headquartered in Switzerland, Weatherford operates in more than 100 countries across the globe and employs more than 35,000 people (2016).





Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.



Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner 1




Weatherford
  4” 4-1/2” 5” 5-1/2” 6” 6-1/2” 7”
E-800 1317096 1317156 1317211 1317262 1317311 1317357 1317393
E-447 1244387 1244388 1244389 1244390 1244391 / /
E-2200 1806118

1806120/

1244331

1806122/

1292705

1806122/

1292705

1806124/

1280615

1806126/

1280614

1806128/

1244330
MP-8/10 1317095 1317155 1279784 1279787 1279819 117356 1317375
MP-13/16 1317099 1317159 1317213 1317264 1317313 1317359 1317396
MP-5 1317093 1317153 1317209 1317260 1317309 1317355 /

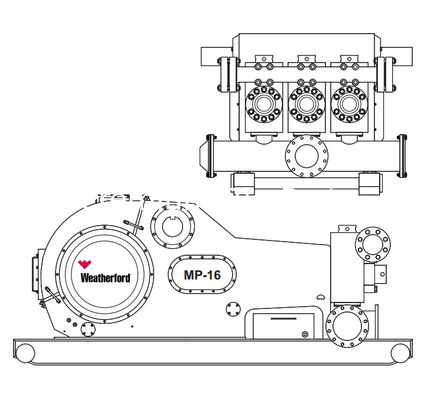

MP-16 2-Piece 5000 psi 1317099 1317159 1317213 1317264 1317313 1317359 1317396
MP-16 2-Piece 7500 psi 1280517 1280519 1280521 1280523 1280529 1280531 1280538
W165/340 1788209 1788210 1315942 1788208
Emsco F-800 / 1000 1317095 1279781 1279784 1279787 1279819 1317356/1279820 /
Emsco FB-1300 / 1600 / 1317190 1279899

1317264/

1279902

 1317313 1317359

1279970/

1317396
Gardner Denver PZ-8/9 / 1317167

1280679/

1317211

1280681/

1317272

1280684/

1317311

1280686/

1317357

1317393/

1317400
Gardner Denver PZ-10/11 1280702 1280704 1280706 1280709 1280711 1280715 1317394
Ideco T-800 / 1000 1280753 1280755 1280757 1280759 1280761 1280765 1280767
Ideco T-1300 / 1600 1317097 1317157 1317212 1317263 1317312 1317358 1317395
National 9-P-100 / 10-P-130 / / / 1317259 1317308 1317354 /
National 12-P-160 1280517 1280519 1280521 1280523 1280529 1280531 1280533
National 14-P-220 / / 1280378 1280386 1280390 1280410 1280412
National JWS-165/340 1788209 1788210 1315942 1788208 / / /
Oilwell A-1400-PT / A-1700-PT 1280105 1280108 1280109 1280112 1280114 1280117 1280119
Ellis Williams E-1600 / / 1320730-01 1320730-02 1320730-03 1320730-04 1320730-05





Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner 2



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner 3



"L" MODULE FOR EMSCO FB-1300, FB-1600 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
    FEMFB13ASSYSW FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1 - 27) 3
1 8490-1D FEMFB13DISSW MODULE, DISCHARGE STUDDED (INCLUDES ITEMS:1, 3-11) 3
2 8490-2S FEMFB13SUCSW MODULE, SUCTION STUDDED (INCLUDES ITEMS: 2, 5, 6, & 27) 3
3 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
4   EMSF1000PFSN NUT, DISCHARGE TO SUCTION STUD 18
5 4015-2 OWA17TRSSW STUD, THREADED RING 72
6   PZ789GPFSN NUT, THREADED RING STUD 72
7 4016-9 EMSFB13PFSSW STUD, POWER FRAME 18
8   EMSF1000PFSN NUT, POWER FRAME STUD 18
9 4017-36 PEP80 CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) 24
10 4017-46 FB1300DMSSW STUD, DISCHARGE MANIFOLD 12
11   IDT800TRSN NUT, DISCHARGE MANIFOLD STUD 12
12 8488-5 PEP70 PIN, DOWELL 6
13 2988 1290344 SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
14 8422-3 EMSF1000ARSW RING, LINER RETAINER PILOT 3
15 8490-3 EMSFB13WPSW PLATE, LINER WEAR 3
16 6490-3 EMSFB13LRPSW FLANGE, LINER RETAINER 3
17 6590-1 EMSFB13LLSW NUT, LINER LOCK 3
18 P-129 07207129 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4016-99 PEP73 CAPSCREW, VALVE GUIDE 12
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4775-2R EMSFB13VGASW GUIDE, VALVE (INCLUDES ITEMS 20, 21) 6
22 4675-2A EMSFB13VCASW PLUG, VALVE COVER (INCLUDES ITEMS 19-22) 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 568-343 99609343 GASKET, DISCHARGE MANIFOLD 3
26 568-442 99609442 GASKET, SUCTION MANIFOLD 3
27 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 18



Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner 4




Southwest

A1400/1700PT Mud Pump

"L" MODULE FOR A-1400-PT, A-1700PT QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
  8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) 3
1 8488-1D FEMA17DISSW MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) 3
2 8488-2S FEMA17SUCSW MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) 3
3 6488-1 OWA17LRPLATESW PLATE, LINER RETAINER 3
4 4017-4 PEP68 CAPSCREW, ALLEN HEAD 24
5 4016-3 OWA17DMSSW STUD, DISCHARGE MANIFOLD 12
6   EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
8   PEP55 NUT, POWER FRAME STUD 12
9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
10   EMSF1000PFSN NUT, FOR ABOVE STUD 18
11 4015-2 OWA17TRSSW STUD, THREADED RING 72
12   PZ789LCSN NUT, THREADED RING STUD 72
13 8488-5 PEP70 PIN, DOWELL 6
14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
15 2974-1 20100008 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
16 8488-4 PP602850 PLATE, WEAR 3
17 6588-1 OWA17LLNSW NUT, LINER LOCK 3
18 P-129 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4018-88 PEP73 SCREW, VALVE COVER RETAINER 12
20 4775R OWA17VGSW GUIDE, VALVE (INCLUDES ITEMS 20,& 22) 6
21 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) 6
22 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
23 4475 OWA17FLGSW RING, THREADED 6
24 4575 OWA17CAPSW CAP, THREADED 6
25 80102003 10300201 GASKET, SUCTION MANIFOLD 3
26 568-345 99609345 GASKET, DISCHARGE MANIFOLD 3
27 4018-70 75634382 CAPSCREW,SUCTION MANIFOLD 24
28 8488-7 PEP90 SETSCREW, LINER RETAINER 9





Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner 5



Southwest

National 12P-160 Mud Pump

"L" NEW STYLE MODULE FOR NATIONAL 12-P-160 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
      FLUID END MODULE COMPLETE ASSEMBLY 3
1 8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED 3
2 8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD 72
15 4676-6A 12PVCASSYSWNS PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-119 07207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2





Weatherford E-1600 mud pump Ceramic Liner, Weatherford E-2200 mud pump Zirconia Liner, W-2215 mud pump Hy-Chrome Liner 6





BOMCO F-1300/F-1600, LOADMASTER LSF-1600, TFI F-1600, Weatherford MP-13/MP-16
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
    NA ASSY, COMPLETE FLUID END (INCLUDES MANIFOLDS) 1
1   NA ASSY, COMPLETE FLUID END MODULE 3
1A   79101004 MODULE, STUDDED FLUID END (ITEMS 1A-14) 3
2   EMSFB13LCS STUD, LINER THREADED RING 36
3   PEP53 NUT, LINER THREADED RING STUD 36
4   EMSFB13PFS STUD, POWER FRAME 18
5   EMSF1000PFSN NUT, POWER FRAME STUD 18
6   EMSFB13PFS STUD, TOP POWER FRAME 12
7   EMSF1000PFSN NUT, TOP POWER FRAME STUD 12
8   7602113 WASHER, LOCK TOP POWER FRAME STUD 1-1/2" (NOT SHOWN) 12
9   79101005 STUD, THROUGH MODULE POWER FRAME 1-1/2-? X ? 12
10   EMSF1000PFSN NUT, THROUGH MODULE POWER FRAME STUD 12
11   EMSFB13TRS STUD, CYLINDER HEAD THREADED RING 30
12   EMSF1000PFSN NUT, CYLINDER HEAD THREADED RING STUD 30
13   EMSF1000DMS STUD, DISCHARGE MANIFOLD 12
14   IDT800TRSN NUT, DISCHARGE MANIFOLD STUD 12
15**   EMSFB13LVGA GUIDE, LOWER VALVE (WITH BUSHING) 3
16**   EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3
17**   EMSFB13BOLT LOCKBOLT, LOWER VALVE GUIDE 3
18**   EMSFB13AR ALIGNMENT RING 3
19   7916801 GASKET, HEAD SEAL 3
20**   EMSFB13CYHPLG PLUG, CYLINDER HEAD 3
21   EMSFB13CYHFLG RING, THREADED CYLINDER HEAD 3
22   EMSFB13CYHCAP CAP, THREADED CYLINDER HEAD 3
23   7916741 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
24   PEP79 SCREW, RETAINER UPPER) 12
25   EMSRETAINER PLATE, RETAINER (UPPER) 3
26   EMSF1000UVGB GUIDE, UPPER VALVE 3
27   EMSFB13CAP COVER, VALVE POT 3
28   7916800 GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
29   EMSFB13WP PLATE, WEAR 3
30   7916800 GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
31   EMSFB13LTR RING, LINER THREADED 3
32   EMSFB13LL LINER LOCK 3
33   99609343 GASKET, DISCHARGE MANIFOLD 3
34   99609442 GASKET, SUCTION MANIFOLD 3
35   0-7601-0333-30 SUCTION MANIFOLD CAPSCREW (NOT SHOWN) 18
