Oilwell A-850-PT / A-1100-PT Mud Pump Liners, Continental Emsco, mud pump, Mud pumps for drilling rigs, National
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Oil,Water,drill Rig,etc. | Power: | Electric |
|---|---|---|---|
| Pressure: | High Pressure | Application: | Mining,oil |
| Structure: | Piston Pump | Fuel: | Diesel,diesel Engine And Hydraulic Motor For Option |
| Standard Or Nonstandard: | Standard | Theory: | Centrifugal Pump |
| Type: | Mud Pump | Weight: | 100-3700kg |
| Color: | Green Or Per Customer Design | Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy |
| Warranty: | 12 Months | Feature: | Compact Size |
| Product Name: | Mud Pump | Head: | 10m Mud Suction Pump |
| Oem: | Can Be Accept,Applicable | Condition: | New |

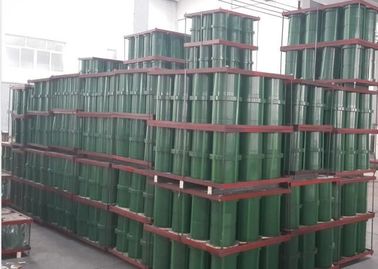

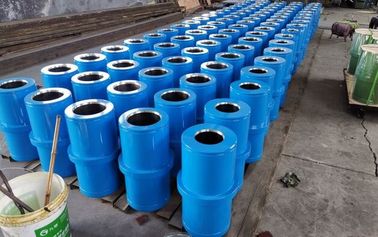

Premium can make and supply Hy-Chrome liners and Zicornia/Ceramic Liners for Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete mud pumps and their parts. Our reach extends to customers around the world.
|
Mud Pump Models
Liner Inch |
4” | 4-1/2” | 5” | 5-1/2” | 6” | 6-1/2” | 7” |
| Continental Emsco F-800 / 1000 | / | 05495450 PREM | 05495500 PREM | 05495550 PREM | 05495600 PREM | 05495650 PREM | 05495700 PREM |
| Continental Emsco FB-1300 / 1600 | 05499400 PREM | 05499450 PREM | 05499500 PREM | 05499550 PREM | 05499600 PREM | 05499650 PREM | 05499700 PREM |
| Continental Emsco FC-2200 | / | / | 05551500 PREM | 05551550 PREM | 05551600 PREM | 05551650 PREM | 05551700 PREM |
| Gardner Denver PAH-275 |
PA I3940 05519400 PREM |
PA 13945 05445450 PREM |
PA 13950 05445500 PREM |
/ | / | / | / |
| Gardner Denver PZ-7 | PY13940 | PY13945 |
PY13950 05493087 PREM |
PY13955 05493085 PREM |
PY13960 05493083 PREM |
PY13965 05493081PREM |
PY13970 05493079 PREM |
| Gardner Denver PZ-8/9 |
206PZJ456 05493400 PREM |
205PZJ456 05493450 PREM |
204PZJ456 05493500 PREM |
203PZJ456 05493550 PREM |
202PZJ456 05493600 PREM |
200PZJ456 05493650 PREM |
207PZJ456 05493700 PREM |
| Gardner Denver PZ-10/11 |
206PZL456 05496400 PREM |
205PZL456 05496450 PREM |
204PZL456 05496500 PREM |
203PZL456 05496550 PREM |
202PZL456 05496600 PREM |
201PZL456 05496650 PREM |
200PZL456 05496700 PREM |
| Gardner Denver PZL |
206PZL456 05496400 PREM |
205PZL456 05496450 PREM |
204PZL456 05496500 PREM |
203PZL456 05496550 PREM |
202PZL456 05496600 PREM |
201PZL456 05496650 PREM |
200PZL456 05496700 PREM |
| Gardner Denver PZL-B-7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Gardner Denver PZL W/SWFE 7500 PSI | 05465400HP | 05465450HP | 05465500HP | 05465550HP | 05465600HP | 05465650HP | 05465700HP |
| Gardner Denver PX-11 7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Ideco T-500 | / | 05512450 PREM | 05512500 PREM | 05512550 PREM | 05512600 PREM | 05512650 PREM | 05512700 PREM |
| Ideco T-800 / 1000 | 05502400 PREM | 05502450 PREM | 05502500 PREM | 05502550 PREM | 05502600 PREM | 05502650 PREM | 05502700 PREM |
| Ideco T-1300 / 1600 | / | 05507450 PREM | 05507500 PREM | 05507550 PREM | 05507600 PREM | 05507650 PREM | 05507700 PREM |
| National 7P-50 | 05466040 PREM | 05466045 PREM | 05466050 PREM | 05466055 PREM | 05466060 PREM | / | / |
| National 8-P-80 | 05464400 PREM | 05464450 PREM | 05464500 PREM | 05464550 PREM | 05464600 PREM | 05464650 PREM | / |
| National 9-P-100 / 10-P-130 | 05465400 PREM | 05465450 PREM | 05465500 PREM | 05465550 PREM | 05465600 PREM | 05465650 PREM | / |
| National 12-P-160 | 05466400 PREM | 05466450 PREM | 05466500 PREM | 05466550 PREM | 05466600 PREM | 05466650 PREM | 05466700 PREM |
| National 14-P-220 | 05545400 PREM | 05545450 PREM | 05545500 PREM | 05545550 PREM | 05545600 PREM | 05545650 PREM | 05545700 PREM |
| National JWS-165/340 | 05531400 PREM | 05531450 PREM | / | / | / | / | / |
| National JWS-400 | 05524400 PREM | 05524450 PREM | 05524500 PREM | 05524550 PREM | 05524600 PREM | / | / |
| Oilwell HD-1700-PT | / | / | 05326500 PREM | 05326550 PREM | 05326600 PREM | 05326650 PREM | 05326700 PREM |
| Oilwell A-600-PT | 05329400 PREM | 05329450 PREM | 05329500 PREM | 05329550 PREM | 05329600 PREM | 05329650 PREM | 05329700 PREM |
| Oilwell A-850-PT / A-1100-PT | 05330400 PREM | 05330450 PREM | 05330500 PREM | 05330550 PREM | 05330600 PREM | 05330650 PREM | 05330700 PREM |
| Oilwell A-1400-PT / A-1700-PT | 05326400 PREM | 05326450 PREM | 05326500 PREM | 05326550 PREM | 05326600 PREM | 05326650 PREM | 05326700 PREM |
All items are manufactured to API 7K quality standards. Parts are available for these popular pump models:
Emsco:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
Ideco: T-500, T-800, T-1000, T-1300, T-1600,
National: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF,FF-FXP,
Oilwell: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
OEM Style Modules Mission L Modules
Brewster B-1000-T/B-1100-T Mission L Brewster B-1300-T/B-1600-T
Brewster B-1300-T/B-1600-T Mission L Emsco F-800, F-1000
Ellis Williams 9-W-1000 Mission L Emsco FB-1300/FB-1600
Emsco F-350/F-500/F-650 Mission L Gardner Denver PZ-7
Emsco F-800/F-1000 Mission L Gardner Denver PZ-8
Emsco FB-1300/FB-1600 Mission L Gardner Denver PZ-9
Emsco FC-1600 Mission L Gardner Denver PZ-10/PZ-11
Emsco FC-2200 Mission L Ideco T-1300/T-1600
Gardner Denver PAH Mission L National 9-P-100
Gardner Denver TEE Mission L National 10-P-130
Gardner Denver PX-11(2000 HP) 7500 psi Mission L National 12-P-160
Gardner Denver PZ-7/PZ-8/PZ-9 Mission L National 12-P-160 "New Style"
Gardner Denver PZ-7/PZ-8/PZ-9 w/ Wear Plate Mission L Oilwell A-850-PT/A-1100-PT
Gardner Denver PZ-10/PZ-11 Mission L Oilwell A-1400-PT/A-1700-PT
Gardner Denver PZ-10/PZ-11 w/ Wear Plate Mission L Wirth TPK-1300/TPK-1600
Ideco T-500
Ideco T-800/T-1000
Ideco T-1300/T-1600 Mission "L" 7500 PSI Asemblies
National 7-P-50 Mission L National 12-P-160 (7500 PSI Working Pressure)
National 8-P-80 Tapr-Lok Mission L National 14-P-220 (7500 PSI Working Pressure)
National 8-P-80 Fast Change Mission L Oilwell A/HD-1700-PT 7500 PSI Working Pressure
National 9-P-100 Tapr-Lok
National 9-P-100 Fast Change
National 10-P-130 Tapr-Lok
National 10-P-130 Fast Change
National 12-P-160 Tapr-Lok
National 12-P-160 Fast Change
National 12-P-160 7500 PSI
National 14-P-220
Oilwell A-850/1100/1400/1700-PT
| CONTINENTAL EMSCO FB-1300, FB-1600 | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| 1 | 0-6316-0325-00 | EMSFEMFB1300CA | FLUID END MODULE COMPLETE ASSY. (ITEMS 1-22, 24- 28) | 3 |
| 1A | 0-6316-0357-00 | EMSFEMFB1300 | FLUID END MODULE STUDDED * (ITEMS 1, 2, 3, 4, 4A, 5, 6, 7, & 28) | 3 |
| 2 | EMSFB13LCS | STUD, MODULE TO LINER CLAMP | 36 | |
| 3 | 0-7601-0610-18 | PEP53 | LINER CLAMP STUD NUT | 36 |
| 4 | 0-7507-2201-00 | EMSFB13PFS | POWER FRAME STUD | 18 |
| 4A | 0-7507-2210-00 | EMSFB13TRS | STUD, MODULE TO CYLINDER | 18 |
| 5 | 0-7601-0630-17 | EMSF1000PFSN | NUT (FOR ABOVE) | 48 |
| 6 | 0-7507-2108-00 | EMSF1000DMS | STUD, MODULE TO DISC. MANIFOLD | 12 |
| 7 | 0-7601-0630-24 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
| 8 | 0-6316-0354-00 | EMSFB13LVGA | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 9 | 0-6316-0096-00 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| 10 | 0-6316-0360-00 | EMSFB13BOLT | LOCKBOLT, LOWER VALVE GUIDE | 3 |
| 11 | 0-6316-0363-00 | EMSFB13AR | ALIGNMENT RING | 3 |
| 12 | 0-6316-0369-00 | 07916801 | GASKET, HEAD SEAL | 3 |
| 13 | 0-6316-0364-90 | EMSFB13CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 14 | 0-6316-0361-00 | EMSFB13CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 15 | 0-6316-0362-00 | EMSFB13CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 16 | 0-6316-0092-00 | 07916741 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 17 | 0-7501-0051-00 | PEP79 | SCREW, RETAINER UPPER) | 12 |
| 18 | 0-6397-0603-00 | EMSRETAINER | PLATE, RETAINER (UPPER) | 3 |
| 19 | 0-6397-0575-00 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 20 | 0-6316-0039-00 | EMSFB13CAP | COVER, VALVE POT | 3 |
| 21 | 0-6316-0373-00 | 07916800 | GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 22 | 0-6316-0365-00 | EMSFB13WP | PLATE, WEAR | 3 |
| 23 | 0-6316-0373-00 | 07916800 | GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 24 | 0-6316-0366-00 | EMSFB13LTR | RING, LINER THREADED | 3 |
| 25 | 0-6316-0367-20 | EMSFB13LL | LINER LOCK | 3 |
| 26 | 0-7602-1600-25 | 99609343 | GASKET, DISCHARGE MANIFOLD | 3 |
| 27 | 0-7602-1600-61 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| MISSION "L" MODULE FOR A-1400-PT, A-1700PT | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| 8488-1A | FEMA17ASSYSW | FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS: 1-28) | 3 | |
| 1 | 8488-1D | FEMA17DISSW | MODULE, DISCHARGE - (INCLUDES ITEMS 1, 4,5,6,7,8,9,10,11,12,&13) | 3 |
| 2 | 8488-2S | FEMA17SUCSW | MODULE, SUCTION (INCLUDES ITEMS 2,11,12,& 27) | 3 |
| 3 | 6488-1 | OWA17LRPLATESW | PLATE, LINER RETAINER | 3 |
| 4 | 4017-4 | PEP68 | CAPSCREW, ALLEN HEAD | 24 |
| 5 | 4016-3 | OWA17DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 6 | EMSF1000TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 | |
| 7 | 4016-96 | OWA17PFSSW | STUD, POWER FRAME | 12 |
| 8 | PEP55 | NUT, POWER FRAME STUD | 12 | |
| 9 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 10 | EMSF1000PFSN | NUT, FOR ABOVE STUD | 18 | |
| 11 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 12 | PZ789LCSN | NUT, THREADED RING STUD | 72 | |
| 13 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 14 | 2988 | 1290344 | SEAL, DISCHARGE TO SUCTION MODULE | 3 |
| 15 | 2974-1 | 20100008 | SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 16 | 8488-4 | PP602850 | PLATE, WEAR | 3 |
| 17 | 6588-1 | OWA17LLNSW | NUT, LINER LOCK | 3 |
| 18 | P-129 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4018-88 | PEP73 | SCREW, VALVE COVER RETAINER | 12 |
| 20 | 4775R | OWA17VGSW | GUIDE, VALVE (INCLUDES ITEMS 20,& 22) | 6 |
| 21 | 4675-1A | OWA17VCASSYSW | PLUG, VALVE COVER (INCLUDES ITEMS 19,20,21,&22) | 6 |
| 22 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 23 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 24 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 25 | 80102003 | 10300201 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | 568-345 | 99609345 | GASKET, DISCHARGE MANIFOLD | 3 |
| 27 | 4018-70 | 75634382 | CAPSCREW,SUCTION MANIFOLD | 24 |
| 28 | 8488-7 | PEP90 | SETSCREW, LINER RETAINER | 9 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| Item | Description | Part No. |
| Complete Assembly | 8490-2A | |
| 1 | Threaded Flange | 4475 |
| 2 | Liner Wear Plate | 8490-3 |
| 3 | Module and Wear Plate Gasket | 2988 |
| 4 | Screw Gland | 4575 |
| 5 | Plug Assembly w/Guide & Bushing | 4675-2A |
| 6 | Plug Seal | P-129 |
| 7 | Valve Guide | 4775-2 |
| 8 | Valve Guide Bushing | 4700-I |
| 9 | Valve Guide Stud w/Nut | 4016-99 |
| 10 | Valve Cover Stud w/Nut | 4015-2 |
| 11 | Power End Stud w/Nut | 4016-9 |
| 12 | Liner Retainer Capscrew | 4017-36 |
| 13 | Liner Retainer Flange | 6490-3 |
| 14 | Liner Retainer Pilot Ring | 8422-3 |
| 15 | Liner Retainer Nut | 6590-1 |
| 16 | Suction Module Stud w/Nut | 4016-97 |
| 17 | Suction Module Studded | 8490-2 |
| 18 | Discharge Module Studded | 8490-1 |
| 19 | Dowel Pin | 8488-5 |
| 20 | Discharge Manifold Stud w/Nut | 4017-46 |
Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd
Contact Person: Mr. Eric
Tel: 0086-15376875239
Other Products
-
White Star WS1300 1600 mud pump, Southwest, Gardner Denver, Oilwell, National, Ideco, Honghua, RG mud pump parts
-
WH-1312 mud pump fluid end module, Cameron CMP2200 Mud Pump Schlumberger, WH-1612 mud pump, W2214 mud pump
-
EWCO W-446 mud pump fluid end module, liners, pistons, valevs, W-440 mud pump fluid end liner, E-1600 mud pump liner
-
Bomco F2200HL mud pump, F1600HL mud pump, F1600 mud pump Crankshaft, Pinionshaft, Crosshead, Ceramic Liner, Pistons
-
Emsco D375 Mud Pump Liners, Liners for National, Drillmec, Ideco, Southwest, Gardner Denver, Bomco, Honghua, RG mud pump
-
Gardner Denver PZ10/11 mud pump liner, SW PZ7 mud pump, National 12P160, National 14P220, Oilwell A1400PT mud pump
