PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP

China PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier
PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP supplier

Large Image :  PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP

Product Details:

Place of Origin: China
Brand Name: Cameron LEWCO, Gardner Denver, Drillmec, National Oilwell, Emsco
Certification: API
Model Number: GD PZ7/8/9/10/11, PAH275

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 to 200 usd
Packaging Details: Suitable to shipment by sea and air
Delivery Time: Some in stock
Payment Terms: L/C, T/T
Supply Ability: 3000 pieces per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric,diesel
Pressure: High Pressure,Low Pressure Application: Mining,oil
Structure: Piston Pump Fuel: Diesel
Standard Or Nonstandard: Standard Type: Mud Pump
Color: Red And So On Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty: 12 Months Feature: Compact Size
Product Name: Mud Pump Oem: Can Be Accept
Condition: New

PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP

We know pumps like no one knows pumps.

Since 1859, Gardner Denver has been a leading global manufacturer of industrial compressors, blowers, pumps, loading arms and fuel systems. We sell our highly engineered and innovative products through worldwide distribution networks for virtually every industry, including oil & gas, automotive, chemical, general and marine. Our customers listen to us because we listen to them, addressing their needs with long-term, high-value solutions.

DRILLING PUMPS MUD PUMPS:

PZ-2400 MUD PUMP

PXL MUD PUMP

PZL MUD PUMP

PZ11 MUD PUMP

PZ10 MUD PUMP

PZ9 MUD PUMP

PZ8 MUD PUMP

PZ7 MUD PUMP

PAH 275 MUD PUMP

THE MUD PUMP



PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP





Premium can make and supply Hy-Chrome liners and Zicornia/Ceramic Liners for Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete mud pumps and their parts. Our reach extends to customers around the world.







Description PZ-7 PZ-8 PZ-9 PZ-10 and PZ-11
Fluid Cylinder 205PZL029D 205PZL029D 205PZL029D 202PZL029B
Valve Cover 2011860 2011860 2011860 200PZL147
Valve Cover Ring 2011699 2011699 2011699 200PZL387
Valve Cover Lock 2011857 2011857 2011857 200PZL587
Valve Guide Assembly 2011706 2011706 2011706 200PZL483A
Valve Guide Suction 2011700 2011700 2011700 ---
Valve Guide Retainer Plate 2011701 2011701 2011701 2011701
Valve Cover Gasket 2011862 2011862 2011862 204PZL715
Valve Cover Gasket Retaining Ring 2011861 2011861 2011861 ---
Valve Guide Bushing 2007674 2007674 2007674 2007674
Piston Rod-Clamp Type 201PZG060 1PZ183 1PZ183 200PZL060
Extension Rod-Clamp Type 200PZG839 1PO183 PZ183 200PZL839
Rod Clamp 2012240 2012240 2012240 200PZL092A
Oil Stop Head Seal 2011872 2011872 2011872 2011872
Suction Manifold to Cylinder Gasket 25G41 25G41 25G41 25G41
Discharge Manifold to Cylinder Gasket 25AL35 25AL35 25AL35 25AL35
Liner to Cylinder Gasket 25AT37 25AT37 25AT37 25AT37
Valve Guide Washer 95W2 95W2 95W2 95W2
Valve Guide Capscrew 75AA178 75AA178 75AA178 75AA178
Liner Clamp 1PV14 1PV14 1PV14 200PZL455









PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP





OEM Part Number for some popular brand mud pumps:



Mud Pump Models



Liner Inch

 4” 4-1/2” 5” 5-1/2” 6” 6-1/2” 7”
Continental Emsco F-800 / 1000 / 05495450 PREM 05495500 PREM 05495550 PREM 05495600 PREM 05495650 PREM 05495700 PREM
Continental Emsco FB-1300 / 1600 05499400 PREM 05499450 PREM 05499500 PREM 05499550 PREM 05499600 PREM 05499650 PREM 05499700 PREM
Continental Emsco FC-2200 / / 05551500 PREM 05551550 PREM 05551600 PREM 05551650 PREM 05551700 PREM
Gardner Denver PAH-275

PA I3940

05519400 PREM

PA 13945

05445450 PREM

PA 13950

05445500 PREM

 / / / /
Gardner Denver PZ-7 PY13940 PY13945

PY13950

05493087 PREM

PY13955

05493085 PREM

PY13960

05493083 PREM

PY13965

05493081PREM

PY13970

05493079 PREM
Gardner Denver PZ-8/9

206PZJ456

05493400 PREM

205PZJ456

05493450 PREM

204PZJ456

05493500 PREM

203PZJ456

05493550 PREM

202PZJ456

05493600 PREM

200PZJ456

05493650 PREM

207PZJ456

05493700 PREM
Gardner Denver PZ-10/11

206PZL456

05496400 PREM

205PZL456

05496450 PREM

204PZL456

05496500 PREM

203PZL456

05496550 PREM

202PZL456

05496600 PREM

201PZL456

05496650 PREM

200PZL456

05496700 PREM
Gardner Denver PZL

206PZL456

05496400 PREM

205PZL456

05496450 PREM

204PZL456

05496500 PREM

203PZL456

05496550 PREM

202PZL456

05496600 PREM

201PZL456

05496650 PREM

200PZL456

05496700 PREM
Gardner Denver PZL-B-7500 PSI / / 05561500HP 05561550HP 05561600HP 05561650HP 05561700HP
Gardner Denver PZL W/SWFE 7500 PSI 05465400HP 05465450HP 05465500HP 05465550HP 05465600HP 05465650HP 05465700HP
Gardner Denver PX-11 7500 PSI / / 05561500HP 05561550HP 05561600HP 05561650HP 05561700HP
Ideco T-500 / 05512450 PREM 05512500 PREM 05512550 PREM 05512600 PREM 05512650 PREM 05512700 PREM
Ideco T-800 / 1000 05502400 PREM 05502450 PREM 05502500 PREM 05502550 PREM 05502600 PREM 05502650 PREM 05502700 PREM
Ideco T-1300 / 1600 / 05507450 PREM 05507500 PREM 05507550 PREM 05507600 PREM 05507650 PREM 05507700 PREM
National 7P-50 05466040 PREM 05466045 PREM 05466050 PREM 05466055 PREM 05466060 PREM / /
National 8-P-80 05464400 PREM 05464450 PREM 05464500 PREM 05464550 PREM 05464600 PREM 05464650 PREM /
National 9-P-100 / 10-P-130 05465400 PREM 05465450 PREM 05465500 PREM 05465550 PREM 05465600 PREM 05465650 PREM /
National 12-P-160 05466400 PREM 05466450 PREM 05466500 PREM 05466550 PREM 05466600 PREM 05466650 PREM 05466700 PREM
National 14-P-220 05545400 PREM 05545450 PREM 05545500 PREM 05545550 PREM 05545600 PREM 05545650 PREM 05545700 PREM
National JWS-165/340 05531400 PREM 05531450 PREM / / / / /
National JWS-400 05524400 PREM 05524450 PREM 05524500 PREM 05524550 PREM 05524600 PREM / /
Oilwell HD-1700-PT / / 05326500 PREM 05326550 PREM 05326600 PREM 05326650 PREM 05326700 PREM
Oilwell A-600-PT 05329400 PREM 05329450 PREM 05329500 PREM 05329550 PREM 05329600 PREM 05329650 PREM 05329700 PREM
Oilwell A-850-PT / A-1100-PT 05330400 PREM 05330450 PREM 05330500 PREM 05330550 PREM 05330600 PREM 05330650 PREM 05330700 PREM
Oilwell A-1400-PT / A-1700-PT 05326400 PREM 05326450 PREM 05326500 PREM 05326550 PREM 05326600 PREM 05326650 PREM 05326700 PREM







Description PZ-7 mud pump PZ-8 mud pump PZ-9 mud pump

PZ-10 and PZ-11

mud pump
Liner of Crosshead Upper 200PZG309 2012509 PZ222 200PZL309
Liner of Crosshead Lower 200PZG309 2012509 PZ222 200PZL309
Pin of Crosshead 200PZG189 200PZH189 PZ189 200PZL706
Extension Rod 200PZH839 1PO183 PZ183 200PZL839
Sub Rod
Crosshead 200PZG005 200PZH005 PZ175 200PZL005
Pinion Shaft 200PZG371 2012507 1PZ371 200PZK371
Connecting Rod 200PZG003 2012506 PZ417 200PZL003
Bull Gear 200PZG280 2012508 1PZ180 200PZK280
Bearing, Crosshead 97A29 12BA44 12AM3 12BA5
Bearing, Pinion Shanft 12W75 12W58 12W60 12W73
Bearing, Eccentric 12BA18 12W85 12W84 12BA6
Bearing, Main 12BA20 12GF38 12GF36 12BA4



PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP



PAH Crosshead Rod Piston Rod Sub Rod Extension Rod Clamp Rod Nut
Clamp Type   P-P-1551500 NA   P-PP601022 P-005402052
PZ-7 Crosshead Rod Piston Rod Sub Rod Extension Rod Clamp Rod Nut
Clamp Type P-07913087 P-2404427 NA   P-PP601022 P-005402052
Thread Type P-07913063 P-1551714 NA   NA P-005402052
PZ-8 Crosshead Rod Piston Rod Sub Rod Extension Rod Clamp Rod Nut
Clamp Type P-07913056 P-1551510 NA   P-PP601022 P-005402052
Thread Type P-07913063 P-1551512 NA   NA P-005402052
PZ-9 Crosshead Rod Piston Rod Sub Rod Extension Rod Clamp Rod Nut
Clamp Type P-07913065 P-1551510 NA   P-PP601022 P-005402052
Thread Type P-07913076 P-1551512 NA   NA P-005402052
PZ-10 Crosshead Rod Piston Rod Sub Rod Extension Rod Clamp Rod Nut
Clamp Type P-07913078 P-1551712 NA   P-PP601023 P-005402052
Thread Type P-07913076 P-1551719 NA   NA P-005402052
PZ-11 Crosshead Rod Piston Rod Sub Rod Extension Rod Clamp Rod Nut
Clamp Type P-07913078 P-1551712 NA   P-PP601023 P-005402052
Thread Type P-07913076 P-1551719 NA   NA P-005402052

PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP


All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.







1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000压裂泵的型号及规格
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM压裂泵的型号
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5







Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules



GARDNER DENVER

PZ10/11 Mud Pump



Item P/N Description Qty. Price $ Weight kgs
1 0202PZL029B Fluid Module Studded, (incl. Items 2-9) 3   　
2 　 Fluid Module, Only 3 3280 458
3 201PZL110 Stud, Long, Moudle to Frame 24 12.3 2.3
4 205PZL110 Stud, Short, Moudle to Frame 24 9.6 1.6
5 50B36 Nut, Module to Frame & Liner Clamp 60 2.3 0.13
6 204PZL110 Stud, Valve Cover to Moudle 72 9.5 1.5
7 50B34 Nut, Valve Cover to Moudle & Module to Discharge 84 2.3 0.13
8 202PZL110 Stud, Module to Discharge Manifold 12 8.5 1.1
9 200PZL587 Cap, Valve Lock 6 244.0 24.0
10 200PZL147 Cover, Valve 6 154.5 11.2
11 2007674 Bushing, Valve Guide,Discharge 3 3.0 0.02
12 204PZL715 Gasket, Valve Cover 6 6.5 0.01
13 200PZL387 Thread Ring 6 245.5 25.6
　 200PZL483A Valve Guide Assembly (incl.Items 16-20) 3
14 2011701 Plate, Retainer 1 48.0 1.8
15 2011700 Valve Guide, Suction 1 51.0 2.0
16 2007674 Bushing, Valve Guide,Suction 1 3.5 0.02
17 95W2 Lock Washer,Valve Guide 2 0.5 0.01
18 655EE06S Screw, Valve Guide 2 3.0 0.02
19 25A135 Gasket, Discharge Manifold to Module 3 3.5 0.01
20 25G41 Gasket, Suction Manifold to Moudule 3 5.2 0.12
21 200PZL455 Liner Clamp 3 2.5 0.09
23 PREM-3127-44 Liner 4-1/2" 3 231.2 84.3
24 PREM-3127-50 Liner 5" 3 225.5 77.5
25 PREM-3127-54 Liner 5-1/2" 3 220.0 70.0
26 PREM-3127-60 Liner 6" 3 213.0 61.77
27 PREM-3127-64 Liner 6-1/2" 3 205.6 52.8
28 PREM-3127-66 Liner 6-3/4" 3 200.0 46.8
　 PREM-3127-70 Liner 7" 3 193.8 43.2
29 012180196 Piston 4-1/2" 3 39.8 3.6
30 012180253 Piston 5" 3 41.5 4.2
31 012180337 Piston 5-1/2" 3 45.3 5.7
32 012180394 Piston 6" 3 47.2 6.5
33 012180535 Piston 6-1/2" 3 55.2 7.6
34   Piston 6-3/4" 3 58 8.5
　 012180618 Piston 7" 3 61.8 9.8

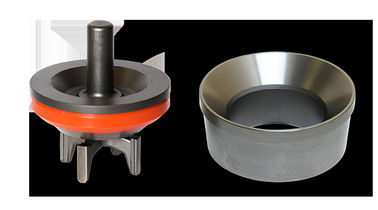

35 9700250 Valve Full Open 7FO-V1 6 39.8 4.9
36 9702504 Seat 7S1 6 29.26 4.8
37 HD7I Valve Insert 6 24.4 0.24
38 060155041 Valve Cross arms 6 29.6 4.6
39 061101507 Seat Cross arms 6 29 4.4
40 UDD7B Valve Insert 6 26 0.23
41   Piston rod 3 86 10.3
42 　 Clamp 3 75 6.5
43 　 Pony rod 3 232 36.2



PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP







GARDNER DENVER PZ-7, PZ-8, PZ-9 FLUID END MODULE & ACCESSORIES

ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
1   FEMPZ789CA ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-22) 3
1A 200PZL029F FEMPZ789 MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-9) 3
  205PZL029D
1B   80721012 MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-9)
2 79L188 PZ789LCS STUD, FRAME & LINER CLAMP 24
3 50B36 6300200 NUT, FRAME & LINER CLAMP STUD 48
4 79L73 PZ789GPFS STUD, FRAME 12
5 50AQ30 PZ789PFSN NUT, FRAME STUD 12
6 79AL6 PZ789TRS STUD, VALVE COVER 48
7 50B34 PZ789TRSN NUT, VALVE COVER STUD 48
8 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
9 50B34 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD 12
10 2011861 PZ789EXPR RING, VALVE COVER GASKET EXPANDER 6
11 2011862 7916749 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
12 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
13 2011860 PZ789VC COVER, VALVE 6
14 2011699 PZ789FLG RING, VALVE COVER THREADED (2 1/2" THICK) 6
14A   PZ789HFLG RING, HEAVY VALVE COVER THREADED (3" THICK) 6
15 2011857 PZ789CAP CAP, VALVE COVER LOCK 6
16 2011701 PZ789PL PLATE, RETAINER 6
17 2011700 PZ789LVG GUIDE, LOWER VALVE SUCTION 3
18 95W2 PZLVGAWASHER WASHER, VALVE GUIDE LOCK 6
19 655EE06S PZLVGABOLT SCREW 1/2"x1 3/4" 316SS HX HD C/S 6
20 25AL35 7916747 GASKET, DISCHARGE MANIFOLD 3
21 25G41 7923283 GASKET, SUCTION MANIFOLD 3
22 1PV14 PZ789LC CLAMP, LINER 3
23 2011706 PZ789LVGA ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) 3
24 75A74N 700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
25   7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24
    7924509 MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) 3





PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP





Gardner Denver PZ-11 & PZ-10 FLUID END MODULE & ACCESSORIES

ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
    FEMPZ1011CA ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-21) 3
1 202PZL029B FEMPZ1011 MODULE, STUDDED FLUID END (INCLUDES ITEMS 1-8) 3
1B   80721022 MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-8)
2 201PZL110 PZ1011LCS STUD, FRAME & LINER CLAMP LONG 24
3 205PZL110 PZ1011GPFS STUD, FRAME & LINER CLAMP SHORT 24
4 50B36 6300200 NUT, FRAME & LINER CLAMP STUD 72
5 204PZL110 PZ1011TRS STUD, THREADED RING 72
6 50B34 PZ789TRSN NUT, THREADED RING STUD 72
7 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
8 50B34 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD (SAME AS ITEM 6) 12
9 200PZL387 PZ1011FLG RING, VALVE COVER THREADED 6
10 204PZL715 7916780 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
11 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
12 200PZL147 PZ1011VC COVER, VALVE 6
13 200PZL587 PZ1011CAP CAP, VALVE COVER LOCK 6
14 2011701 PZ789PL PLATE, RETAINER 3
15 200PZL483 PZ1011LVG GUIDE, VALVE SUCTION 3
16 655EE065 PZLVGABOLT SCREW, VALVE GUIDE TO RETAINER PLATE 6
17 95W2 PZLVGAWASHER WASHER, VALVE GUIDE LOCK 6
18 25AL35 7916747 GASKET, DISCHARGE MANIFOLD 3
19 25BE41 7923283 GASKET, SUCTION MANIFOLD 3
20 200PZL455 PZ1011LC CLAMP, LINER 3
21 200PZL483A PZ1011LVGA ASSY, LOWER VALVE GUIDE ( INCLUDES ITEMS 11, 14-17) 3
22 655EG08N 700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
23   7619066 WASHER, SUCTION MANIFOLD CAPSCREW 3/4" REGULAR SPRING LOC-NOT SHOWN 24
    7924509 MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) 3





PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP





GARDNER DENVER PZ-10, PZ-11 W/ WEAR PLATE FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
    FEMPZ1011WPCA ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-23) 3
1   FEMPZ1011WP MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-8) 3
2 201PZL110 PZ1011LCS STUD, FRAME & LINER CLAMP LONG 24
3 205PZL110 PZ1011GPFS STUD, FRAME & LINER CLAMP SHORT 24
4 50B36 6300200 NUT, FRAME & LINER CLAMP STUD 72
5 204PZL110 PZ1011TRS STUD, THREADED RING 72
6 50B34 PZ789TRSN NUT, THREADED RING STUD 72
7 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
8 50B34 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD (SAME AS ITEM 6) 12
9 200PZL387 PZ1011FLG RING, VALVE COVER THREADED 6
10 204PZL715 7916780 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
11 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
12 200PZL147 PZ1011VC COVER, VALVE 6
13 200PZL587 PZ1011CAP CAP, VALVE COVER LOCK 6
14 2011701 PZ789PL PLATE, RETAINER 3
15 200PZL483 PZ1011LVG GUIDE, VALVE SUCTION 3
16 655EE065 PZLVGABOLT SCREW, VALVE GUIDE TO RETAINER PLATE 6
17 95W2 PZLVGAWASHER WASHER, VALVE GUIDE LOCK 6
18 25AL35 7916747 GASKET, DISCHARGE MANIFOLD 3
19 25BE41 7923283 GASKET, SUCTION MANIFOLD 3
20 200PZL455 PZ1011LC CLAMP, LINER 3
21   PZ910WPINTL PLATE, WEAR 3
22   20100019 SEAL, WEAR PLATE 3
23 200PZL483A PZ1011LVGA ASSY, LOWER VALVE GUIDE (INCLUDES ITEMS 11, 14-17) 3
24 655EG08N 700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
25   7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24
    7924509 MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) 3






PZ-7 Mud Pump Liners, PZ-8 Zirconia Liner, PZ-9 Ceramic Liner, PZ-10/11 MUD PUMP FLUID END MODULE, PAH275 MUD PUMP





CONTINENTAL EMSCO FC-2200 FLUID END MODULE & ACCESSORIES
ITEM # PART # DESCRIPTION QTY PER PUMP
- 0-6323-0100-20 ASSY, FLUID END COMPLETE (INCLUDES DISCHARGE MANIFOLD) 1
1 0-6323-0108-00 MODULE, DISCHARGE STUDDED 3
2 0-6323-0109-00 MODULE, SUCTION STUDDED 3
3 0-6323-0087-90 RETAINER, THREADED 6
4 0-6323-0086-90 RING, THREADED 6
5 0-6323-0083-00 COVER, VALVE POT 6
6 0-6323-0103-00 GUIDE W/ BUSHING, VALVE 6
7 0-6323-0126-00 HANDLER, VALVE POT 6
8 0-6323-0107-20 COVER, LINER END 3
9 0-6323-0129-00 DISC, BAFFLE 3
10 0-6323-0085-00 MANIFOLD, SUCTION 1
11 0-6316-0105-95 FLANGE, SUCTION 1
12 0-6317-0074-95 FLANGE, BLIND 1
13 0-6323-0084-10 DISCHARGE MANIFOLD, 7500 PSI 1
14 0-6323-0097-90 WEAR PLATE 3
15 0-6323-0096-00 RING, LINER THREAD 3
16 0-6323-0099-00 LINER LOCK 3
17 0-6323-0093-00 RETAINER, VALVE GUIDE 6
18 0-6323-0128-00 SEAL, SUCTION TO DISCHAGE MODULE 3
19 0-6323-0127-00 SEAL, WEAR PLATE & LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
20 0-7602-1600-47 O-RING (LINER LOCK RING) 3
21 7817600456 O-RING (SUCTION MANIFOLD) 3
22 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F.E.) 3
23 0-7602-1600-30 O-RING (DISCHARGE MANIFOLD TO F.E.) 3
24 0-7501-0051-00 SCREW, RETAINER 24
25 7822095 WIRE, SAFETY SST 72
26 0-6323-0101-00 RING, LINER LOCK 3
27 7000534 SCREW, SUCTION FLANGE HEX HD 36
28 0-7601-0630-20 NUT, HEX 1" - 8 36
29 0-6323-0125-00 SEAL, VALVE POT COVER 6
30 0-7601-0333-30 SCREW, SUCTION MANIFOLD TO F.E. 18





Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Gardner Denver Mud Pumps Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
