Product Details:
Payment & Shipping Terms:
|
Usage: | Oil,Water,sewage With Sand,drill Rig | Power: | Electric,Hydraulic |
---|---|---|---|
Pressure: | High Pressure,Low Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump | Application: | Conveying Mud And Flushing Fluids,mining,oil,Chemical |
Structure: | Piston Pump | Fuel: | Diesel,diesel Engine And Hydraulic Motor For Option |
Standard Or Nonstandard: | Standard | Type: | Mud Pump |
Color: | Green Or Per Customer Design | Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy |
Warranty: | 12 Months | Product Name: | Mud Pump |
Oem: | Can Be Accept,Applicable | Condition: | New |
The QWS 2500 Classic is a durable quintuplex plunger pump that offers powerful flow rate capabilities in a field proven design.
The QWS 2500 Classic is a field-proven pump to be utilized in fracturing operations. As a cost effective alternative to the QWS 2500SD, the Classic model offers similar flow rate capabilities for operators not operating in harsh pumping conditions.
The versatile QWS 2500 Classic can be customized with a variety of options chosen by the customer to outfit the pump for various pumping conditions and operations.
QWS 2500 Classic Performance Specs
Max Brake Horsepower: 2,500 BHP(1,866 Kw) Approx. Length:84.75 Inches(2,153 mm)
Max Rod Load Capacity:192,325 lb(87,239 kg) Approx. Width:73.875 Inches(1,877 mm)
Stroke Length:8 Inches(203.2 mm) Approx. Height:43.375 Inches (1,102 mm)
Gear Ratio: 6.353:1 Approx. Weight (Dry): 15,180 lb (6,885 kg)
QWS 2500 Classic Performance Data
PLUNGER DIAMETER |
OUTPUT PER REV |
DISPLACEMENT AT PUMP STROKES PER MINUTE / PINION RPM | |||||||||
111/705 | 150/953 | 200/1271 | 250/1588 | 330/2100 | |||||||
mm (in) |
gal/re (liter/rev) |
gpm (lpm) |
Kg/cm2 (PSI) |
gpm (lpm) |
Kg/cm2 (PSI) |
gpm (lpm) |
Kg/cm2 (PSI) |
gpm (lpm) |
Kg/cm2 (PSI) |
gpm (lpm) |
Kg/cm2 (PSI) |
88.9 (31/2) |
6.3 (1.67) |
700 (185) |
1406 (20000) |
950 (251) |
1083 (15365) |
1264 (334) |
814 (11546) |
1582 (418) |
650 (9226) |
2086 (551) |
493 (6999) |
95.3 (33/4) |
7.2 (1.91) |
802 (212) |
1255 (17420) |
1086 (287) |
947 (13437) |
1446 (382) |
711 (10096) |
1809 (478) |
569 (8068) |
2385 (630) |
431 (6121) |
101.6 (4) |
8.2 (2.17) |
912 (241) |
1077 (15315) |
1234 (326) |
834 (11830) |
1643 (434) |
626 (8886) |
2055 (543) |
500 (7102) |
2710 (716) |
380 (5386) |
114.3 (41/2) |
10.4 (2.75) |
1154 (305) |
851 (12100) |
1563 (413) |
658 (9338) |
2082 (550) |
494 (7012) |
2604 (688) |
395 (5605) |
3437 (908) |
299 (4247) |
127.0 (5) |
12.9 (3.40) |
1427 (377) |
689 (9800) |
1930 (510) |
533 (7562) |
2574 (680) |
400 (5671) |
3217 (850) |
320 (4537) |
4247 (1122) |
242 (3437) |
139.7 (51/2) |
15.6 (4.11) |
1726 (456) |
569 (8100) |
2335 (617) |
440 (6250) |
3111 (822) |
331 (4692) |
3891 (1028) |
264 (3751) |
5132 (1356) |
200 (2844) |
146.1 (53/4) |
17.0 (4.49) |
1885 (498) |
521 (7410) |
2551 (674) |
403 (5722) |
3399 (898) |
303 (4295) |
4251 (1123) |
242 (3434) |
5609 (1482) |
183 (2602) |
152.4 (6) |
18.5 (4.89) |
2055 (543) |
478 (6805) |
2778 (734) |
370 (5254) |
3702 (978) |
278 (3943) |
4629 (1223) |
222 (3153) |
6109 (1619) |
168 (2382) |
165.1 (61/2) |
21.7 (5.74) |
2411 (637) |
408 (5800) |
3259 (861) |
316 (4479) |
4345 (1148) |
237 (3359) |
5431 (1435) |
189 (2687) |
7169 (1894) |
143 (2036) |
INPUT POWER: BHP (Kw) | 1790(2400) | 1866(2500) | 1866(2500) | 1866(2500) | 1866(2500) |
1. Based on 90% ME and 100% VE - Intermittent Service Only.
2 .Pumps with pressures in excess of 15,000 psi require special gauge and discharge flanges. Contact SPM Engineering for information.
QWS 2500 Classic Hydraulic Horsepower Curve
Note: This chart shows this pump’s performance at max hydraulic horsepower. Notice as the plunger size for the pump increases, a greater max flow rate is achieved while the max pressure decreases .
HT400 FLUID END SPARES
Push Rod Subassembly | |||||||
L-2 Spacer | |||||||
Loc | Qty | Part No. | |||||
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer | 1 | 3 | 316.21066.PREM | ||||
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 | 2 | 3 | 8.34020.PREM | ||||
Tie Rod, Push Rod, L-Spacer, HT-400TM | 3 | 3 | 316.25166.PREM | ||||
Push Rod, Two Piece, L-Spacer, HT-400TM | 4 | 3 | 316.21065.PREM | ||||
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM | 5 | 3 | 316.10012.PREM | ||||
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM | 6 | 3 | 316.10013.PREM | ||||
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 | 7 | 3 | 70.33739.PREM | ||||
Seal, Push Rod, L-Spacer, HT-400TM | 8 | 6 | 316.10014.PREM | ||||
Discharge Valve Subassembly | |||||||
Plunger Size | |||||||
Loc | Qty | 3-3/8 inch | 4-inch | 4-1/2 inch | |||
Retainer, Cover, HT-400TM | 1 | 3 | 316.2102.PREM | 316.2202.PREM | 316.2202.PREM | ||
Cover, Discharge, Double Guided Valve, HT-400TM | 2 | 3 | 316.2107.PREM | 316.23091.PREM | 316.23091.PREM | ||
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM | 3 | 3 | 316.21052.PREM | 316.22052.PREM | 316.22052.PREM | ||
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM | 4 | 3 | 316.21051.PREM | 316.22051.PREM | 316.22051.PREM | ||
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass | 5 | 6 | 316.22005.PREM | 316.22005.PREM | 316.22005.PREM | ||
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 | 6 | 6 | 316.22004.PREM | 316.22004.PREM | 316.22004.PREM | ||
Spring, Valve, HT-400TM, 36lb/in | 7 | 3 | 316.2108.PREM | 316.2108.PREM | 316.2308.PREM | ||
Valve, HT-400, Frac | 8 | 3 | 316.21007.PREM | 316.21007.PREM | 316.22048.PREM | ||
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) | 9 | 3 | 316.21048.PREM | 316.21048.PREM | 316.22046.PREM | ||
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) | 9 | 3 | 316.21006.PREM | 316.21006.PREM | 316.22049.PREM | ||
Seat Valve, HT-400TM, Tapered | 10 | 3 | 316.21008.PREM | 316.21008.PREM | 316.210047.PREM | ||
O-ring, 90 Duro | 11 | 3 | 8.34037.PREM | 8.34037.PREM | 8.34041.PREM | ||
Suction Valve Subassembly | |||||||
Plunger Size | |||||||
Loc | Qty | 3-3/8 inch | 4-inch | 4-1/2 inch | 5-inch | 6-inch | |
Retainer, Stop and Spring, HT-400TM, Mach. Cast | 1 | 3 | 316.22977.PREM | 316.22977.PREM | 316.22242.PREM | 316.25840.PREM | 316.25840.PREM |
Boot, Suction and Stop, HT-400TM | 2 | 6 | 316.25233.PREM | 316.25233.PREM | 316.25233.PREM | 316.25233.PREM | 316.25233.PREM |
Spring, Lock, HT-400 | 3 | 3 | 316.2125.PREM | 316.2125.PREM | 316.22252.PREM | 316.22253.PREM | 316.22253.PREM |
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass | 4 | 6 | 316.22005.PREM | 316.22005.PREM | 316.22005.PREM | 316.22007.PREM | 316.22007.PREM |
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM | 5 | 6 | 316.22004.PREM | 316.22004.PREM | 316.22004.PREM | 316.22006.PREM | 316.22006.PREM |
Retainer Guide Bushing, HT-400, Tapered Seat Bore | 11 | 3 | 316.21096.PREM | 316.21096.PREM | 316.23953.PREM | 316.24043.PREM | 316.24043.PREM |
Plunger/cylender Head Cover Subassembly | |||||||
Plunger Size | |||||||
Loc | Qty | 3-3/8 inch | 4-inch | 4-1/2 inch | 5-inch | 6-inch | |
Retainer, Cover HT-400TM | 1 | 6 | 316.2102.PREM | 316.2102.PREM | 316.2202.PREM | 316.2502.PREM | 316.2506.PREM |
Cover, Cylinder Head, HT-400TM | 2 | 3 | 316.2107.PREM | 316.2107.PREM | 316.2207.PREM | 316.2407.PREM | 316.2507.PREM |
Gasket, 4 Discharge Valve & Cylinder Head Cover | 3 | 6 | 316.21052.PREM | 316.21052.PREM | 316.22052.PREM | 316.25052.PREM | 316.25074.PREM |
Ring, Spacer, Discharge Valve & Cylinder Head Cover | 4 | 6 | 316.21051.PREM | 316.21051.PREM | 316.22051.PREM | 316.25051.PREM | 316.25073.PREM |
Nose, Plunger, HT-400TM | 5 | 3 | 316.2131.PREM | 316.2231.PREM | 316.2331.PREM | 316.2331.PREM | 316.2331.PREM |
Seal, Plunger Nose Assembly, HT-400TM | 6 | 3 | 316.2130.PREM | 316.2230.PREM | 316.2330.PREM | 316.2330.PREM | 316.2330.PREM |
Plunger, Hard Surface, L-Spacer, HT-400TM | 7 | 3 | 316.21026.PREM | 316.22294.PREM | 316.23085.PREM | 316.24296.PREM | 316.25162.PREM |
Tie Rod, Plunger, HT-400TM | 8 | 3 | 316.21028.PREM | 316.21028.PREM | 316.21028.PREM | 316.25165.PREM | 316.25165.PREM |
Adapter, Pushrod, HT-400TM, Two Piece Nose | 9 | 3 | 316.21059.PREM | 316.22302.PREM | 316.23089.PREM | 316.24336.PREM | 316.25172.PREM |
Fluid-end/flange discharge section subassembly | |||||||
Plunger Size | |||||||
Loc | Qty | 3-3/8 inch | 4-inch | 4-1/2 inch | |||
Flange, discharge, HT-400TM, BLANK | 1 | 1 | 316.22980.PREM | 316.22980.PREM | |||
Flange, discharge, HT-400TM, CURVED, Rright Hand | 1a | 1 | 316.21676.PREM | 316.23019.PREM | 316.23019.PREM | ||
Flange, discharge, HT-400TM, CURVED, Left Hand | 1b | 1 | 316.21677.PREM | 316.23017.PREM | 316.23017.PREM | ||
Seal, Discharge passage,HT-400TM | 2 | 6 | 315.27117.PREM | 316.2547.PREM | 316.2547.PREM | ||
Nut, 1-14NF, Internal Wrenching, 1.03 TL | 3 | 4 | 316.11621.PREM | 316.11621.PREM | 316.11621.PREM | ||
Stud, HT-400TM Fluid End To Thick Discharge Flange | 4 | 4 | 316.23013.PREM | 316.23013.PREM | |||
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC | 5 | 1 | 316.27488.PREM | 316.27488.PREM | 316.27488.PREM | ||
Nut, Top Tie Bolt, HT-400TM, TC | 6 | 2 | 316.25501.PREM | 316.25501.PREM | 316.25501.PREM | ||
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, | 7 | 2 | 316.22493.PREM | 316.22493.PREM | 316.22493.PREM | ||
Spacer, Inner, Discharge Passage Seal,HT-400TM | 8 | 2 | 316.2145.PREM | 316.2545.PREM | 316.2545.PREM | ||
Fluid End Section, HT-400TM PUMP,Not Sleeved | 9 | 3 | 316.21951.PREM | 316.22982.PREM | 316.23951.PREM | ||
Nut, Elastic, Stop,3/4-in.,16 NF | 10 | 2 | 70.32760.PREM | 70.32760.PREM |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062

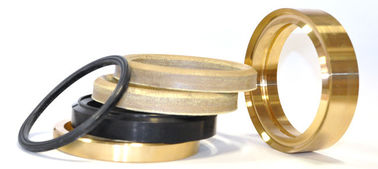

SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
