TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve

China TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier
TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve supplier

Large Image :  TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve

Product Details:

Place of Origin: China
Brand Name: TSC, Southwest, NATIONAL OILWELL, MISSION
Certification: API
Model Number: F1600, F1300 mud pump,W440, PZ7, PZ8, PZ9, 12P160, 14P220

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 1 to 3000 usd
Packaging Details: Suotable to shipment by sea and air
Delivery Time: Quantity in stock
Payment Terms: L/C, T/T
Supply Ability: 20000 sets per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric
Pressure: High Pressure Structure: Piston Pump
Fuel: Diesel Standard Or Nonstandard: Standard
Type: Mud Pump Color: Red And So On
Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy Warranty: 12 Months
Product Name: Mud Pump Oem: Can Be Accept
Condition: New

TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve



NATIONAL 9-P-100
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION
1 TS-1293240 MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 30&31)
2 TS-1290338 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 )
3 TS-2408019 STUD, THREADED RING
4 TS-6300220 NUT, THREADED RING STUD
5 TS-2408030 STUD, POWER FRAME
6 TS-6300200 NUT, POWER FRAME STUD
7 TS-2402560 STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES)
8 TS-6300200 NUT, STUD (BLIND RING AND WELD NECK FLANGES)
9 TS-2408034 STUD, DISCHARGE MODULE TO SUCTION MODULE
10 TS-6300241 NUT, DISCHARGE TO SUCTION MODULE STUD
11 TS-6511416 PIN, DOWELL
12 TS-1292141 BUSHING,VALVE GUIDE
13 TS-1292140 RETAINER, VALVE GUIDE BUSHING
14 TS-1540126 GASKET, VALVE COVER
15 TS-1290174 RETAINER, SEAL
16 TS-1290178 SCREW, ADJUSTING WEDGE
17 TS-G-1290376 ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING)
18 TS-1290181 SPRING, WEDGE
19 TS-1290308 RING, THREADED
20 TS-1290307 CAP, VALVE COVER (THREADED)
21 TS-1290315 WASHER, WEDGE ADJUSTING SCREW
22 TS-6300160 NUT, WEDGE ADJUSTING SCREW
23 TS-2410031427 SEAL,DISCHARGE CONNECTOR & DISCHARGE ADAPTER
24 TS-1290343 ADAPTER, DISCHARGE CONNECTOR
25 TS-2410031348 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER
26 TS-1290342 CONNECTOR, DISCHARGE
27 TS-700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED)
28 TS-1290357 PLATE, WEAR
29 TS-1293165 BUSHING, LINER(SAME AS 8P-80 & 10P-130)
30 TS-2408018 STUD, LINER BUSHING
31 TS-6300160 NUT, LINER BUSHING STUD
32 TS-1293166 ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32,33,34,35,36,37)
33 TS-7000448-11 CAPSCREW, LINER CLAMP
34 TS-6309120 NUT, LINER CAPSCREW
35 TS-1290169 PIN, CONNECTOR
36 TS-1290168 CONNECTOR, LINER CLAMP
37 TS-6571420 PIN, SPRING
38 TS-1290344 SEAL, MODULE & WEARPLATE
39 TS-1590051 SEAL, SUCTION MANIFOLD



TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve

NATIONAL 10-P-130
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION
01 TS-1290335 MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 30,&31)
02 TS-1290338 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 )
03 TS-2408019 STUD, THREADED RING
04 TS-6300220 NUT, THREADED RING STUD
05 TS-2408020 STUD, POWER FRAME
06 TS-6300240 NUT, POWER FRAME STUD
07 TS-2402560 STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES)
08 TS-6300220 NUT, STUD (BLIND RING AND WELD NECK FLANGES)
09 TS-2408034 STUD, DISCHARGE MODULE TO SUCTION MODULE
10 TS-6300241 NUT, DISCHARGE TO SUCTION MODULE STUD
11 TS-6511416 PIN, DOWELL
12 TS-1292141 BUSHING,VALVE GUIDE
13 TS-1292140 RETAINER, VALVE GUIDE BUSHING
14 TS-1540126 GASKET, VALVE COVER
15 TS-1290174 RETAINER, SEAL
16 TS-1290178 SCREW, ADJUSTING WEDGE
17 TS-G1290376 ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING)
18 TS-1290181 SPRING, WEDGE
19 TS-1290308 RING, THREADED
20 TS-1290307 CAP, VALVE COVER (THREADED)
21 TS-1290315 WASHER, WEDGE ADJUSTING SCREW
22 TS-6300160 NUT, WEDGE ADJUSTING SCREW
23 TS-1290343 ADAPTER, DISCHARGE CONNECTOR
24 TS-2410031427 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER
25 TS-1290342 CONNECTOR, DISCHARGE
26 TS-2410031348 SEAL,SUCTION CONNECTOR TO DISCHARGE ADAPTER
27 TS-700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED)
28 TS-1290357 PLATE, WEAR
29 TS-1290165 BUSHING, LINER
30 TS-2408018 STUD, LINER BUSHING
31 TS-6300160 NUT, LINER BUSHING STUD
32 TS-1290166 ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32,33,34,35,36,37)
33 TS-700044811 CAPSCREW, LINER CLAMP
34 TS-6309120 NUT, LINER CAPSCREW
35 TS-1290169 PIN, CONNECTOR
36 TS-1290168 CONNECTOR, LINER CLAMP
37 TS-6571420 PIN, SPRING
38 TS-1290344 SEAL, MODULE & WEARPLATE
39 TS-1590051 SEAL, SUCTION MANIFOLD



TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve

GARDNER DENVER PZ-7, PZ-8, PZ-9
FLUID END MODULE & ACCESSORIES
ITEM # TSC PART # DESCRIPTION
01 TS-205PZL029D FLUID END MODULE STUDDED (INCLUDES 1-9 )
02 TS-79L188 STUD, FRAME & LINER CLAMP
03 TS-50B36 NUT (FOR ABOVE)
04 TS-79L73 STUD, FRAME
05 TS-50AQ30 NUT (FOR ABOVE)
06 TS-79AL6 STUD, VALVE COVER
07 TS-50B34 NUT (FOR ABOVE)
08 TS-202PZL110 STUD, DISCHARGE MANIFOLD
09 TS-50B34 NUT (FOR ABOVE)
10 TS-2011861 RING, VALVE COVER GASKET EXPANDER
11 TS-2011862(G-749) GASKET, VALVE COVER
12 TS-2007674 BUSHING, VALVE GUIDE
13 TS-2011860 COVER, VALVE
14 TS-2011699 RING, VALVE COVER THREADED
15 TS-2011857 CAP, VALVE COVER LOCK
16 TS-2011701 PLATE, RETAINER
17 TS-2011700 GUIDE, VALVE SUCTION
18 TS-95W2 WASHER, LOCK 1/2" 316SS
19 TS-655EE06S SCREW 1/2"x1 3/4" 316SS HX HD C/S
20 TS-25AL35 GASKET, DISCHARGE MANIFOLD
21 TS-25G41 GASKET, SUCTION MANIFOLD
22 TS-1PV14 CLAMP, LINER
23 TS-2011706 ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19)



TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve

SOUTHWEST 8482-A

National 14P-220

ITEM P/N DESCRIPTION QTY
  8482-A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3, 4, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 32, 33, 34)
1 6382G-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)) 3
2 2930-XX LINER SEAL 3
3 8482-4 WEARPLATE 3
4 2930-09 WEARPLATE & MODULE SEAL 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (W/ ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY USE 6282C) 6
10A 1200H30 HOSE (1/2” X 30” WITH ½” MALE X 3/8” MALE CONNECTIONS) 6
10B 1200160 PIPE (3/8” X 16” GALVANIZED AND THREADED ON ONE END) 6
10C 4019-77 ROD CLAMP BOLT (3/4-10 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 6200G82 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4482 THREADED FLANGE 6
17 4582 SCREW GLAND 6
18 4682A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS, AND BUSHING) 6
19 P113 HP VALVE COVER PLUG NITRILE SEAL 6
20 4782R VALVE GUIDE (COMPLETE W/ BUSHING #4700I) 6
21 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4019-75 VALVE GUIDE SCREW 24
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 1/2-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4019-74 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-2S SUCTION MODULE 3
33 8482-1D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 2982-3 DISCHARGE END ADAPTER SEAL 2
36 4017-4 DISCHARGE END ADAPTER CAP SCREW 24
37 BX169 RING JOINT 2
38 4020-21 BLIND FLANGE STUDS (WITH SW PART# HHN1125-7 1-1/8”-7 HEAVY HEX NUTS) 24
39 2982-2 DISCHARGE CONNECTOR SEAL 4
40 8382-1 DISCHARGE CONNECTOR 2
41 8382-3 DISCHARGE CONNECTOR BACK-UP RING 2
42 4018-18 DISCHARGE CONNECTOR CAPSCREW 16
43 2982-1 DISCHARGE CONNECTOR END SEAL 2
44 8382-2 DISCHARGE CONNECTOR ADAPTER 2
45 8382-4 DISCHARGE END FLANGE ADAPTER 2

TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve

SOUTHWEST 8488-1A

Oilwell A-1700-PT/A-1400-PT

ITEM P/ N DESCRIPTION QTY
  8488-1A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) 3
3 8488-4 WEARPLATE 3
4 2974-1 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD (WITH WATER HOLE) 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13   VALVE 6
14   VALVE INSERT (IF REQUIRED) 6
15   VALVE SPRING 6
16   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS) 1
  4475-1A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24)
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-1A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) 6
20 P129 HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U) 6
21 4775R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
23 4018-88 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4016-96 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 4017-4 LINER RETAINER FERRY HEAD CAP SCREW 24
27 6488-1 LINER RETAINER FLANGE 3
28 6588-1 LINER RETAINER NUT (FOR LARGE BODY LINER) 3
28A 8488-7 LINER RETAINER SET SCREW 9
29 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
30 4018-70 SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER) 24
31 8588-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
32 80102003 SUCTION MANIFOLD GASKET 3
33 8488-2S SUCTION MODULE (STUDDED ONLY) 3
34 8488-1D DISCHARGE MODULE (STUDDED ONLY) 3
35 8488-5 DOWEL PIN 6
36 2988 MODULE GASKET 1
37 8388A DISCHARGE MANIFOLD 3
38 568-345 DISCHARGE MANIFOLD GASKET 12
39 4016-3 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1375-8 1-3/8”-8 HEAVY HEX NUT)

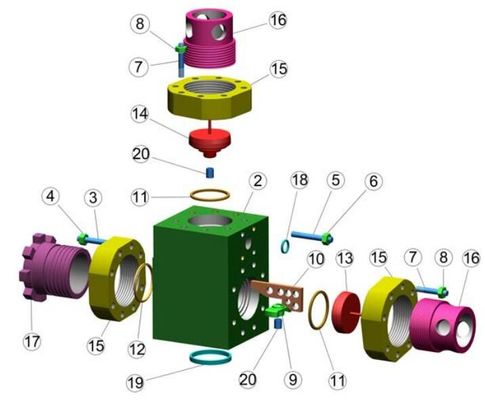

TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve



1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



TSC F1600 mud pump fluid end, TSC 12P160 mud pump liner, TSC FB1600 mud pump piston, TSC PZ7, PZ8, PZ9 mud pump valve



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

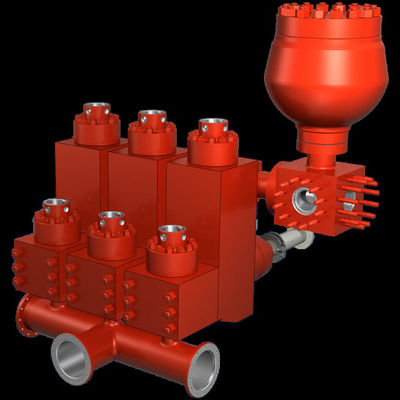

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts



Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China Rongsheng Mud Pumps Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
