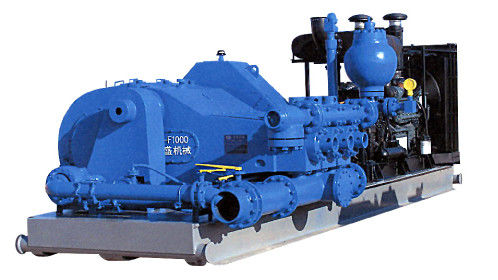

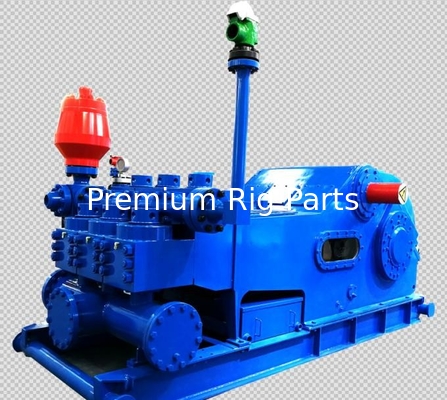

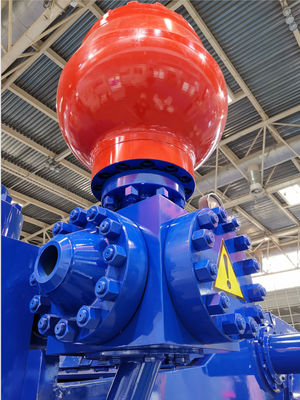

Rongsheng F1000 mud pump CYLINDER, FLUIDED END MODULE, Rongsheng F1600 mud pump liner, Rongsheng F1300 mud pump piston,
| Place of Origin | China |
|---|---|
| Brand Name | Rongsheng, EMSCO, HONGHUA, BOMCO |
| Certification | ISO 9001:2015 |
| Model Number | RSF-1000, RSF-800 mud pump |
| Minimum Order Quantity | 1 SET |
| Price | 1 to 3000 usd |
| Packaging Details | Suotable to shipment by sea and air |
| Delivery Time | Quantity in stock |
| Payment Terms | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| Supply Ability | 20000 sets per month |
Product Details
| Usage | Oil,Water,drill Rig | Power | Electric |
|---|---|---|---|
| Pressure | High Pressure | Structure | Piston Pump |
| Fuel | Diesel | Standard Or Nonstandard | Standard |
| Type | Mud Pump | Color | Red And So On |
| Material | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy | Warranty | 12 Months |
| Product Name | Mud Pump | Oem | Can Be Accept |
| Condition | New |
Product Description
TECHNICAL PARAMETERS
| Model | F-500 | F-800 | F-1000 | F-1300 |
| Max. Liner Size × Stroke |
170×191 (6-3/4×7.5) |
170×229 (6-3/4×9) |
170×254 (6-3/4×10) |
180×305 (7×12) |
| Strokes Rating, r/min | 165 | 150 | 140 | 120 |
| Power Rating, kW(HP) | 373(500) | 597 (800) | 746 (1000) | 969 (1300) |
| Gear Type | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 |
| Suction Inlet Flange , in | 8 | 10 | 12 | 12 |
| Discharge Outlet Flange , in | 4 | 5 | 5 | 5 |

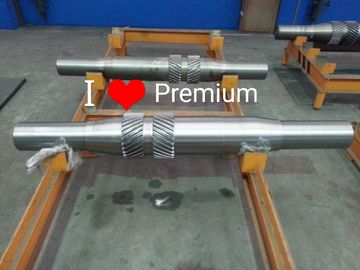

| Pinion Shaft Dia., mm(in) | 139.7(5-1/2) | 177.8(7) | 196.9(7-3/4) | 215.9(8-1/2) |
| Key, mm(in) |
31.75×31.75 (1-1/4×1-1/4) |
44.45×44.45 (1-3/4×1-3/4) |
50.8×50.8 (2×2) |
50.8×50.8 (2×2) |
| Valve Cavity | Valve-Over-Valve, API #5 | Valve-Over-Valve, API #6 | Valve-Over-Valve, API #6 | Valve-Over-Valve, API #7 |
| Approx. Weight, kg(lb) | 9770 (21540) | 14500 (31970) | 18790 (41420) | 26700 (54170) |
TECHNICAL PARAMETERS
| Model | F-1600/1600L | F-1600HL | F-2200 | F-2200HL |
| Type | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston |
| Max. Liner size×stroke length | 180×305(7×12) | 190×305(7-1/2×12) | 230×356(9×14) | 230×356(9×14) |
| Strokes Rating,r/min | 120 | 120 | 105 | 105 |
| Power Rating,kW(HP) | 1193 (1600) | 1193 (1600) | 1640 (2200) | 1640 (2200) |
| Gear Ratio | 4.206:1 | 4.206:1 | 3.512:1 | 3.512:1 |
| Discharge Outlet Flange, in |
5″ Flange, 5000 psi |
5″ Flange, 10000psi(110 mm) |
5″ Flange, 5000 psi(130 mm) |
5″ Flange, 10000 psi(130 mm) |
| Pinion Shaft Dia.,mm(in) | 215.9(8-1/2) | 215.9(8-1/2) | 254(10) | 254(10) |
| Key,mm(in) |
50.8×50.8 (2×2) |
50.8×50.8 (2×2) |
63.5×44.45 (2-1/2×1-3/4) |
63.5×44.45 (2-1/2×1-3/4) |
| Valve Pots |
Valve-Over-Valve,API #7/ L type,API #7 |
L type, API #7 |
Valve-Over -Valve,API #8 |
L type, API #8 |
| Approx. Weight ,kg(lb) | 24791 (54660) /27020kg(57100lb) | 29400 (64820) | 38460 (84790) | 44000 (94980) |
|
Параметр
|
Тип насоса | |
| RS-F1000 | RS-F800 | |
| номинальная водная мощность | 735kW(1000HP) | 590kW(800HP) |
| Номинальный такт | 140такт/мин(140SPM) | 150такт/мин(150SPM) |
| такт | 254mm(10″) | 229mm(9″) |
| Передаточное отношение | 4.207:1 | 4.185:1 |
| Максимальное работающее давление | 34.5MPa | 34.5MPa |
| Полость клапана | API#6 | API# 6 |
| Диаметр максимальной оболочки | 170mm | 170mm |
| Насосное давление максмальной оболочки | 16.4MPa (2410psi) | 13.6MPa (1954psi) |
| всасывающая труба | 305mm(12″)фланец | 254mm(10″) фланец |
| Выпускная труба | 5 1/8″5000psiфланец | 5 1/8″5000psiфланец |
| диаметр маленького плавающего шестерни | 196.9mm(7 3/4″) | 177.8mm(7″) |
| клавиша | 50.8ⅹ50.8mm(2″ⅹ2″) | 44.4x44.45mm(1 3/4x1 3/4″) |
| габарат(главного процессора) | 4267X2350X1862mm | 3963X2000X1694mm |
| вес(главного процессора) | 18642kg | 14000kg |
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200
Romania: 3PN-1000, 3PN-1600, 3PN-2000

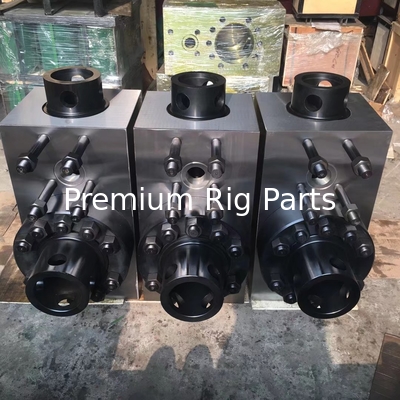

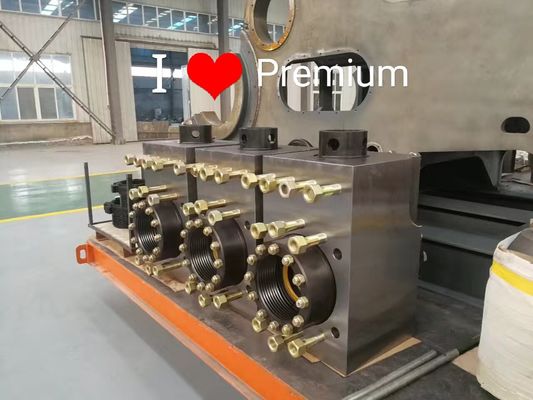

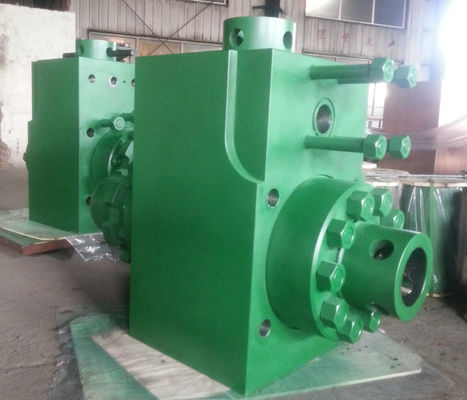

Гидровлический конец в сборе
| NO. | Условное обозначение |
Наименование Наименование |
Ко-во Количество |
| 1 | RS11306A.05.009 | Крышка клапана | 1 |
| 2 | RS11306.05.008 | Уплотнительное кольцо крышки клапана | 1 |
| 3 | RS11306.05.010 | 阀杆导向器(上) | 1 |
| 4 | RS11306.05.012 | Щит | 1 |
| 5 | BG.05.001 | Болт M10X20 | 4 |
| 6 | RS11306.05.11.00 | Направляющая пружина | 1 |
| 7 | RS11306.05.013 | Пружина | 2 |
| 8 | API #6 клапан в сборе | 2 | |
| 9 | API #6 основание в сборе | 2 | |
| 10 | RS11306A.05.01.0011 | Цилиндра | 1 |
| 11 | BG.05.003 | Болт M33X2-M33X3X256 | 4 |
| 12 | NG.05.002 | Гайка M33X3 | 4 |
| 13 | GB/T 3452.1 | O-образное кольцо φ97.5X3.55 | 1 |
| 14 | RS11306.05.002 | Фланец | 1 |
| 15 | BG.05.004 | Болт M36X2-M36X3X218 | 10 |
| 16 | RS11306A.05.18.00 | Цилиндра | 1 |
| 17 | NG.05.003 | ГайкаM36X3 | 10 |
| 18 | RS11306.05.004 | Уплотнительное кольцо цилиндра | 2 |
| 19 | RS11306.05.006 | 顶缸器 | 1 |
| 20 | RS11306.05.005 | Пробка | 1 |
| 21 | RS11306.05.003 | Крышка цилиндра | 1 |
| 22 | RS11306.05.025 | Карта фиксации | 1 |
| 23 | RS11306.05.26.001 | Направляющая | 1 |
| 24 | RS11306.05.26.002 | Направляющая | 1 |
| 25 | RS11306A.05.15.00 | Гайка M39X3 | 1 |

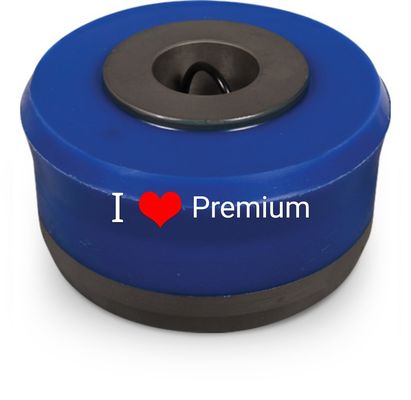

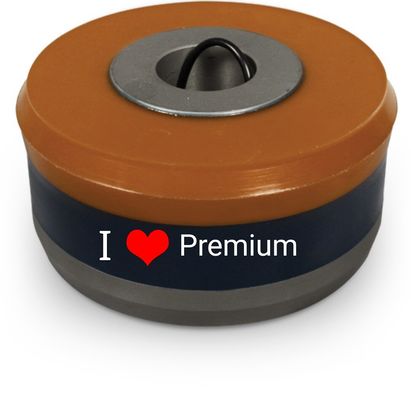

| 26 | Поршня | 1 | |
| 27 | RS11305.01.36.1.01 | Уплотнительное кольцо | 1 |
| 28 | RS11306A.05.017 | Шток (F1000) | 1 |
| RS11308A.05.008 | Шток (F800) | 1 | |
| 29 | RS11306A.05.20.0011 | Хомут (F1000) | 1 |
| RS11308A.05.02.0011 | Хомут(F800) | 1 | |
| 30 | GB/T 93 | Пружиная прокладка 22(F1000) | 2 |
| Пружиная прокладка 20(F800) | |||
| 31 | GB/T 5782 | Болт M22X100 | 2 |
| Болт M20X90 | |||
| 32 | RS11306.05.022 | Крышка цилиндра | 1 |
| 33 | NG.05.001 | Гайка M39X3 | 8 |
| 34 | BG.05.002 | Болт M39X2-M39X3X165 | 8 |
Примечание: 1 если под одому номеру есть 2 ряда, первый—знчитRS-F1000, в второй RS-F800.
2норма цилиндра и поршни в пункте 16и26:100mm(F800),110mm,120mm,130mm,140mm,150mm,160mm,170mm
3. надо плюс 3 получится количество крейцкопфа одного насоса.
| NO. | Условное обозначение |
Наименование Наименование |
Ко-во Количество |
| 1 | BG.05.005 | Болт с двумя голавами M39X3X255 | 16 |
| 2 | NG.05.001 | Гайка M39X3 | 32 |
| 3 | RS11306.05.007 | Выходный трубопровод | 1 |
| RS11308.05.001 | |||
| 4 | GB/T 5782 | БолтM27X110 | 12 |
| БолтM22X90 | 24 | ||
| 5 | GB/T 6170 | Гайка M27 | 36 |
| ГайкаM22 | 36 | ||
| 6 | RS11306.05.031 | Всасывающтй фланец (II) | 1 |
| RS11308.05.006 | |||
| 7 | GB/T 3452.1 | O-образное кольцоφ345X7 | 2 |
| O-образное кольцоφ290X7 | |||
| 8 | RS11306.05.27.00 | Всасывающий трубопровод | 1 |
| RS11308.05.03.00 | |||
| 9 | RS11306.05.29.00 | Прокладки | 2 |
| 10 | GB/T 5782 | БолтM27X90 | 24 |
Крейцкопф в сборе
| NO. | Условное обозначение |
Наименование Наименование |
Ко-во Количество |
| 1 | RS11306.04.001 | Верхний ползун | 1 |
| RS11308.04.002 | |||
| 2 | RS11306.04.002 | Ниякий ползун | 1 |
| RS11308.04.009 | |||
| 3 | RS11306A.04.003 | Крейцкопф | 1 |
| RS11308A.04.002 | |||
| 4 | RS11306.04.004 | патрубок3/8”X2 | 2 |
| 5 | RS11306.04.005 | Уплотнительная прокладка | 1 |
| RS11308.04.011 | |||
| 6 | RS11306.04.006 | Сальник | 1 |
| RS11308.04.003 | |||
| 7 | RS11306.04.007 | Промежуточный тяговой рычаг | 1 |
| RS11308.04.005 | |||
| 8 | RS11306.04.008 | Шит | 1 |
| RS11308.04.004 | |||
| 9 | GB/T 70.1 | Болт M20X57 | 8 |
| БолтM16X55 | |||
| 10 | RS11306A.04.009 | Щит крепния | 8 |
| RS11308A.04.010 | |||
| 11 | RS11306A.04.010 | Щит крейцкопфа | 1 |
| RS11308A.04.013 | |||
| 12 | 5G254936Q | Подшипник крейцкопфа | 1 |
| 254735Q | |||
| 13 | RS11306A.04.011 | Крейцкопфа | 1 |
| RS11308A.04.014 | |||
| 14 | BG.04.001 | Болт M24X65 | 4 |
| RS11308A.04.015 | Болт M20X50 | ||
| 15 | Проволока φ1.6 | По требованием | |
| 16 | Проволокаφ1.6 | По требованием | |
| 17 | RS11306.04.012 | Прокладки | 8 |
| 18 | BG.04.002 | Болт M24X55 | 2 |
| RS11308A.04.016 | Болт M20X40 | ||
| 19 | RS11306.04.013 | Регулирующая прокладка | 4 |
| RS11308.04.012 | |||
| 20 | BG.04.003 | Болт M24X65 | 4 |
| RS11308A.04.017 | БолтM20X50 | ||
| 21 | Проволока φ1.6 | 4 | |
| 22 | GB/T 3452.1 | O-образное кольцо175X3.55 | 1 |
| O-образное кольцо160X3.55 | |||
| 23 | RS11306.04.014 | Лвухгубное уплотнительное кольцо 4.5X5.5X0.5” | 2 |
| RS11308.04.008 | Лвухгубное уплотнительное кольцо4X5X0.5” | ||
| 24 | GB/T 3452.1 | O-образное кольцо115X5.3 | 1 |
| 25 | RS11306.04.015 | Кольцо сальника | 1 |
| RS11308.04.007 | |||
| 26 | GB/T 3452.1 | O-образное кольцо140X7 | 1 |
| O-образное кольцо128X7 | |||
| 27 | GB/T 5783 | Болт M10X25 | 4 |
| 28 | GB/T 93 | Прокладка 10 | 4 |
| 29 | RS11306.04.016 | Прижина | 1 |
| RS11308.04.006 | |||
| 30 | Клей 242 | По требованием |
Примечание: если под одому номеру есть 2 ряда, первый—знчит RS-F1000, в второй RS-F800. надо плюс 3 получится количество крейцкопфа одного насоса.
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria
Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan
South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela
Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua
Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam
Europe:
Norway
Poland
United Kingdom
Others:
Australia
Canada
China
Japan
Mexico
Ukraine

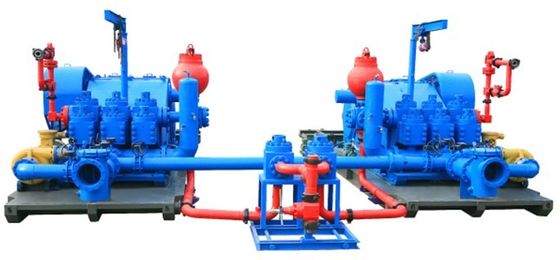

Product Description
· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.
· Reliable, compact, well-balanced design: designed for the most severe conditions.

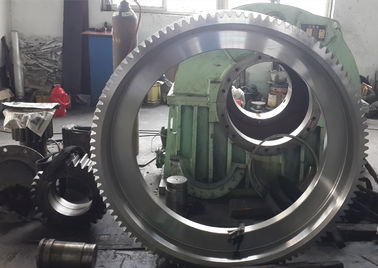

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.
· Fluid end & consumables: interchangeable with multiple OEM.
· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.
· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).
· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.
· Suitable for multiple brand piston & valve quick change tools, liner retention systems.
· Standard qualification and certification satisfies customer demand.
Recommended Products
