FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump

China FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier
FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump supplier

Large Image :  FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump

Product Details:

Place of Origin: China
Brand Name: LS-NATIONAL OILWELL, Southwest, NATIONAL OILWELL, MISSION
Certification: API
Model Number: FB1600, FB1300 mud pump, 3NB1600, F1600L, PZ8, PZ9

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 1 to 3000 usd
Packaging Details: Suotable to shipment by sea and air
Delivery Time: Quantity in stock
Payment Terms: L/C, T/T
Supply Ability: 20000 sets per month
Contact Now
Detailed Product Description
Usage: Oil,Water,drill Rig Power: Electric
Pressure: High Pressure Structure: Piston Pump
Fuel: Diesel Standard Or Nonstandard: Standard
Type: Mud Pump Color: Red And So On
Material: Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy Warranty: 12 Months
Product Name: Mud Pump Oem: Can Be Accept
Condition: New



Qingdao National Premium Oilwell Machinery Co.,Ltd
Wechat/Tel:0086-15376875239

www.premiumrigparts.com         www.premiummudpump.com



MISSION "L" MODULE FOR NATIONAL12-P-160
FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: NATIONAL INDEX
  8476-A FEM12PASSYSW FLUID END MODULE COMPLETE ASSEMBLY 3
1 8476-2S FEM12PSUCSW SUCTION MODULE-STUDDED - (INCLUDES ITEMS 1, 7, 13, 14, 22) 3
2 8476-1D FEM12PDISSW DISCHARGE MODULE (INCLUDES 2-6, 8, 13, 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD (1 3/4"-8 2H) 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   NAT8P80TRSN NUT, POWER END STUD (1 3/8"-6 2H) 30
7 8488-5 PEP70 DOWELL PIN 6
8 4017-65 PEP75 LINER RETAINER CAPSCREW, SOCKET HEAD 18
9 8476-3 PP6021260SW LINER WEAR PLATE 3
10 2988 1290344 WEAR PLATE AND MODULE GASKET 6
11 6476 12PLASW LINER RETAINER FLANGE (LINER BUSHING) 3
12 6576 12PLANSW LINER RETAINER NUT 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD (1 1/2"-6 2H) 72
15 4676-2A 12PVCSW PLUG (INCLUDES ITEMS 15, 19-21) 6
16 4476 12PFLGSW THREADED RING (THREADED FLANGE) 6
17 4597 12PCAPSW THREADED CAP (SCREW GLAND) 6
18 P-107 07207107 VALVE COVER SEAL 6
19 4776R 12PVGSWNS VALVE GUIDE (INCLUDES ITEMS 19-21) 6
20 4700-I PZ789VGI VALVE GUIDE BUSHING 6
21 4016-98 PEP73 VALVE GUIDE RETAINER SCREW 12
22 4018-19 700048511 SUCTION MANIFOLD CAPSCREW W/LOCKWASHER 24
23 AJO-419R 1540851 SUCTION MANIFOLD GASKET 3
24 8376-2 NAT12PDSMA DISCHARGE ADAPTER 2
25 2976-2 2410031437 DISCHARGE ADAPTER SEAL 4
26 8376-1 NAT12PDSMC DISCHARGE CONNECTOR 2
27 2976-1 2410031433 DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL 2
28 2976-3 700030711 CAPSCREW, DISCHARGE CONNECTOR 16
29 4018-18 1292175 BACKUP RING, DISCHARGE CONNECTOR 4
30 8376-3   DISCHARGE FLANGE STUD 16
32 4018-18 1292175 BACKUP RING, DISCHARGE CONNECTOR 4



FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump



ITEM OEM PART MISSION PART DESCRIPTION QTY
# # #
1   EMSFEMF1000CA FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) 3
1A 6999008602 EMSFEMF1000 FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) 3
2 7507220500 EMSF100PFS STUD FRAME 18
3 7601063017 EMSF1000PFSN NUT (FOR ABOVE) 18
4 7507215000 EMSF100TRS STUD, THREADED RING 30
5 7601063028 EMSF1000TRSN NUT (FOR ABOVE) 30
6 7507210800 EMSF1000DMS STUD, DISCHARGE MANIFOLD 12
7 7601063024 IDT800TRSN NUT (FOR ABOVE) 12
8 6319002600 EMSF1000LC CAGE, LINER 3
9 6319008700 EMSF1000LVG GUIDE, LOWER VALVE (WITH BUSHING) 3
10 6319008900 EMSF1000LVC CLIP, LOCKING (FOR LOWER VALVE GUIDE) 3
11 7602220032 078070028200 GASKET, LINER 6
12 6319003100 EMSF1000CYHPLG PLUG, CYLINDER HEAD 3
13 6999008900 EMSF1000CYHFLG RING, THREADED CYLINDER HEAD 3
14 6319009000 EMSF1000CYHCAP CAP, THREADED CYLINDER HEAD 3
15 6319007600 077170074001 GASKET, VALVE COVER 3
16 7501005100 PEP79 SCREW, RETAINER (UPPER) 12
17 6397060300 EMSRETAINER RETAINER PLATE (UPPER) 3
18 6397057500 EMSF1000UVGB GUIDE, UPPER VALVE 3
19 6319002700 EMSF1000CAP COVER, VALVE POT 3
20 7602161046 1902415 GASKET, DISCHARGE MANIFOLD 3
21 7602160061 1904426 GASKET, SUCTION MANIFOLD 3
22 6316009600 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3
23     CAPSCREW, SUCTION MANIFOLD - NOT SHOWN
    07924503 MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) 3



FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump

CONTINENTAL EMSCO F-800, F-1000
FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: EMSCO INDEX
1   EMSFEMF1000CA FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) 3
1A 6999008602 EMSFEMF1000 FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) 3
2 7507220500 EMSF100PFS STUD FRAME 18
3 7601063017 EMSF1000PFSN NUT (FOR ABOVE) 18
4 7507215000 EMSF100TRS STUD, THREADED RING 30
5 7601063028 EMSF1000TRSN NUT (FOR ABOVE) 30
6 7507210800 EMSF1000DMS STUD, DISCHARGE MANIFOLD 12
7 7601063024 IDT800TRSN NUT (FOR ABOVE) 12
8 6319002600 EMSF1000LC CAGE, LINER 3
9 6319008700 EMSF1000LVG GUIDE, LOWER VALVE (WITH BUSHING) 3
10 6319008900 EMSF1000LVC CLIP, LOCKING (FOR LOWER VALVE GUIDE) 3
11 7602220032 078070028200 GASKET, LINER 6
12 6319003100 EMSF1000CYHPLG PLUG, CYLINDER HEAD 3
13 6999008900 EMSF1000CYHFLG RING, THREADED CYLINDER HEAD 3
14 6319009000 EMSF1000CYHCAP CAP, THREADED CYLINDER HEAD 3
15 6319007600 077170074001 GASKET, VALVE COVER 3
16 7501005100 PEP79 SCREW, RETAINER (UPPER) 12
17 6397060300 EMSRETAINER RETAINER PLATE (UPPER) 3
18 6397057500 EMSF1000UVGB GUIDE, UPPER VALVE 3
19 6319002700 EMSF1000CAP COVER, VALVE POT 3
20 7602161046 1902415 GASKET, DISCHARGE MANIFOLD 3
21 7602160061 1904426 GASKET, SUCTION MANIFOLD 3
22 6316009600 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3
23     CAPSCREW, SUCTION MANIFOLD - NOT SHOWN
    07924503 MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) 3








FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump



MISSION "L" MODULE FOR NATIONAL12-P-160       QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
  8476-A FEM12PASSYSW FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
1 8476-2S FEM12PSUCSW MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
2 8476-1D FEM12PDISSW MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD 72
15 4676-2A 12PVCSW PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-107 07207107 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGSWNS GUIDE, VALVE (INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
29 8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
30 4018-39 7006685 CAPSCREW, SOCKET HEAD 16



FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump



MISSION "L" MODULE FOR NATIONAL12-P-160       QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
  8476-A FEM12PASSYSW FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
1 8476-2S FEM12PSUCSW MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
2 8476-1D FEM12PDISSW MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4   PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6   8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14   12P160TRSN NUT, THREADED RING STUD 72
15 4676-2A 12PVCSW PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-107 07207107 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGSWNS GUIDE, VALVE (INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
29 8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
30 4018-39 7006685 CAPSCREW, SOCKET HEAD 16



FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump



All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600



Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,



National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,



Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump

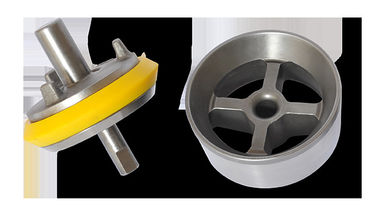

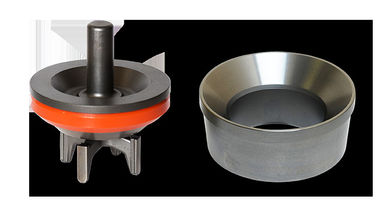

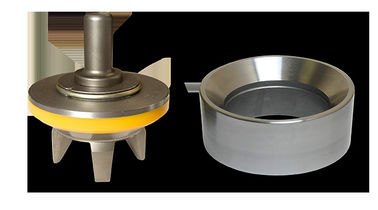

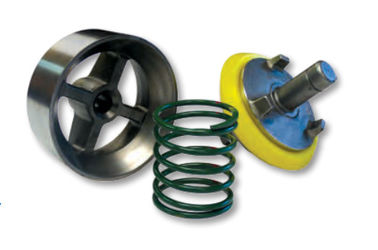

1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000压裂泵的型号及规格

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM压裂泵的型号

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5



FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

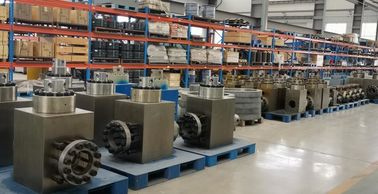

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts



FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900



Contact Details
Qingdao National Premium Oilwell Machinery Co.,Ltd

Contact Person: Mr. Eric

Tel: 0086-15376875239

Send your inquiry directly to us (0 / 3000)

About Us
Weatherford Mud Pumps
National Mud Pumps
Mud Pump Chrome Liner
Contact Us
Mobile Site
Privacy Policy | China National Mud Pumps Supplier. Copyright © 2019 - 2024 premiummudpump.com. All Rights Reserved. Developed by ECER
