National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump

  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
  • National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump
Place of Origin CHINA
Brand Name National Oilwell NOV Mission, SOUTHWEST, BOMCO
Certification API
Model Number 14P220 MUD PUMP
Minimum Order Quantity 1 piece
Price 200 to 500 usd
Packaging Details Suitable to shipment by air and sea
Delivery Time In stock
Supply Ability 5000 pieces per month
Product Details
Usage Oil,Water,drill Rig Power Electric
Pressure High Pressure,low Pressure Submersible Mud Pump Sand Dredging Slurry Pump Application Mining,oil
Structure Piston Pump Fuel Diesel,diesel Engine And Hydraulic Motor For Option
Standard Or Nonstandard Standard Type Mud Pump
Color Red And So On,Green Or Per Customer Design Material Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy
Warranty 12 Months Feature Compact Size
Product Name Mud Pump Oem Can Be Accept,Applicable
Condition New
Leave a Message
Product Description

National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.


Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.


NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region



   National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 0

  Premium can produce the spare parts of National 7P50 MUD PUMP , 8P80 MUD PUMP, 9P100 MUD PUMP, 10P130 MUD PUMP, 12P160 MUD PUMP, 14P220 MUD PUMP.

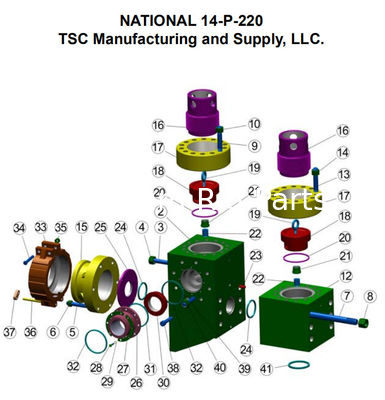

NATIONAL 14-P-220 (7500 PSI) W/ FAST CHANGE VALVE COVERS FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # DESCRIPTION QTY PER PUMP
  80718020 ASSY, COMPLETE FLUID END W/ VALVE SERVICE & SUCTION MANIFOLD 1
1 1295601 MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) 3
2 1295604 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) 3
3 2408049 STUD, VALVE COVER 84
4 6300240 NUT, VALVE COVER STUD 84
5 2408027 STUD, POWER FRAME 30
6 6300240 NUT, POWER FRAME STUD 30
7 2408047 STUD, LINER BUSHING 18
8 6300200 NUT, LINER BUSHING STUD 18
9 2408048 STUD, SUCTION TO DISCHARGE MODULE 18
10 6300320 NUT, SUCTION TO DISCHARGE MODULE STUD 18
11 2408014 STUD, DISCHARGE FLANGE 12
12 6300180 NUT, DISCHARGE FLANGE STUD 12
13 1295262 SPACER, STUDDED DISCHARGE (NOT SHOWN) INCLUDED ITEM# 11 AND 12 2
14 1295258 SEAL, DISCHARGE SPACER (NOT SHOWN) 2
15 7006609 CAPSCREW, DISCHARGE SPACER FLANGE 24
16 1295176 RING, THREADED F/C 6
17 1295172 CAP, VALVE COVER (THREADED) F/C 6
18 1292353 PULLER, SEAL RETAINER 6
19 1295174 RETAINER, SEAL 6
20 1540163 SEAL, VALVE COVER 6
21 1292140 HOLDER, VALVE GUIDE INSERT 6
22 1292141 INSERT, VALVE GUIDE 6
23 1540021 SEAL, SUCTION MANIFOLD 3
24 700048511 CAPSCREW, SUCTION MANIFOLD 24
25 2410031440 SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
26 1295253 ADAPTER, DISCHARGE CONNECTOR 2
27 2410031438 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 1295252 CONNECTOR, DISCHARGE 2
28A 1295175 RING, DISCHARGE CONNECTOR BACK UP 4
29 7619050 WASHER, DISCHARGE CONNECTOR CAPSCREW (NOT SHOWN) 16
30 700030711 CAPSCREW, DISCHARGE CONNECTOR 16
31 6511416 PIN, DOWELL 6
32 1295266 PLATE, WEAR 3
33 1295165 BUSHING, LINER 3
34 1295166 CLAMP COMPLETE, LINER (INCLUDES ITEMS 34A, 34B, 34C, 34D, 34E, 34F) 3
34A 1295167 CLAMP, LINER 3
34B 700049110 CAPSCREW, LINER CLAMP 6
34C 6309140 NUT, LINER CAPSCREW 6
34D 1292169 PIN, LINER CLAMP 6
34E G1292168P CONNECTOR, LINER CLAMP 6
34F 6571620 PIN, SPRING 12





    National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 1
NOV offer a full line of triplex mud pumps to handle any drilling requirement.
These tough field-proven models cover input horse power ratings in the 500 to 2,200 range. Our extensive product line include the National P-Series and Continental Emsco FD-Series and F-Series pumps.

National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.
Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.
NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region
  National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 2



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 3



Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts



National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 4



GARDNER DENVER PZ-7, PZ-8, PZ-9 W/ WEAR PLATE FLUID END MODULE & ACCESSORIES

ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
    FEMPZ789WPCA ASSY, COMPLETE FLUID END MODULE W/ WEAR PLATE & SEAL (INCLUDES ITEMS 1-25) 3
1   FEMPZ789WP MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-25) 3
2 79L188 PZ789LCS STUD, FRAME & LINER CLAMP 24
3 50B36 6300200 NUT, FRAME & LINER CLAMP STUD 48
4 79L73 PZ789GPFS STUD, FRAME 12
5 50AQ30 PZ789PFSN NUT, FRAME STUD 12
6 79AL6 PZ789TRS STUD, VALVE COVER 48
7 50B34 PZ789TRSN NUT, VALVE COVER STUD 48
8 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
9 50B34 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD 12
10 2011861 PZ789EXPR RING, VALVE COVER GASKET EXPANDER 6
11 2011862 7916749 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
12 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
13 2011860 PZ789VC COVER, VALVE 6
14 2011699 PZ789FLG RING, VALVE COVER THREADED (2 1/2" THICK) 6
14A   PZ789HFLG RING, HEAVY VALVE COVER THREADED (3" THICK) 6
15 2011857 PZ789CAP CAP, VALVE COVER LOCK 6
16 2011701 PZ789PL PLATE, RETAINER 6
17 2011700 PZ789LVG GUIDE, LOWER VALVE SUCTION 3
18 95W2 PZLVGAWASHER WASHER, VALVE GUIDE LOCK 6
19 655EE06S PZLVGABOLT SCREW 1/2"x1 3/4" 316SS HX HD C/S 6
20 25AL35 7916747 GASKET, DISCHARGE MANIFOLD 3
21 25G41 7923283 GASKET, SUCTION MANIFOLD 3
22 1PV14 PZ789LC CLAMP, LINER 3
23   PZ910WPINTL PLATE, WEAR 3
24   20100019 SEAL, WEAR PLATE 3
25 2011706 PZ789LVGA ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) 3
26 75A74N 700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
27   7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24
    7924509 MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) 3





National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 5









CONTINENTAL EMSCO FC-2200 FLUID END MODULE & ACCESSORIES
ITEM # PART # DESCRIPTION QTY PER PUMP
- 0-6323-0100-20 ASSY, FLUID END COMPLETE (INCLUDES DISCHARGE MANIFOLD) 1
1 0-6323-0108-00 MODULE, DISCHARGE STUDDED 3
2 0-6323-0109-00 MODULE, SUCTION STUDDED 3
3 0-6323-0087-90 RETAINER, THREADED 6
4 0-6323-0086-90 RING, THREADED 6
5 0-6323-0083-00 COVER, VALVE POT 6
6 0-6323-0103-00 GUIDE W/ BUSHING, VALVE 6
7 0-6323-0126-00 HANDLER, VALVE POT 6
8 0-6323-0107-20 COVER, LINER END 3
9 0-6323-0129-00 DISC, BAFFLE 3
10 0-6323-0085-00 MANIFOLD, SUCTION 1
11 0-6316-0105-95 FLANGE, SUCTION 1
12 0-6317-0074-95 FLANGE, BLIND 1
13 0-6323-0084-10 DISCHARGE MANIFOLD, 7500 PSI 1
14 0-6323-0097-90 WEAR PLATE 3
15 0-6323-0096-00 RING, LINER THREAD 3
16 0-6323-0099-00 LINER LOCK 3
17 0-6323-0093-00 RETAINER, VALVE GUIDE 6
18 0-6323-0128-00 SEAL, SUCTION TO DISCHAGE MODULE 3
19 0-6323-0127-00 SEAL, WEAR PLATE & LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
20 0-7602-1600-47 O-RING (LINER LOCK RING) 3
21 7817600456 O-RING (SUCTION MANIFOLD) 3
22 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F.E.) 3
23 0-7602-1600-30 O-RING (DISCHARGE MANIFOLD TO F.E.) 3
24 0-7501-0051-00 SCREW, RETAINER 24
25 7822095 WIRE, SAFETY SST 72
26 0-6323-0101-00 RING, LINER LOCK 3
27 7000534 SCREW, SUCTION FLANGE HEX HD 36
28 0-7601-0630-20 NUT, HEX 1" - 8 36
29 0-6323-0125-00 SEAL, VALVE POT COVER 6
30 0-7601-0333-30 SCREW, SUCTION MANIFOLD TO F.E. 18



National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 6

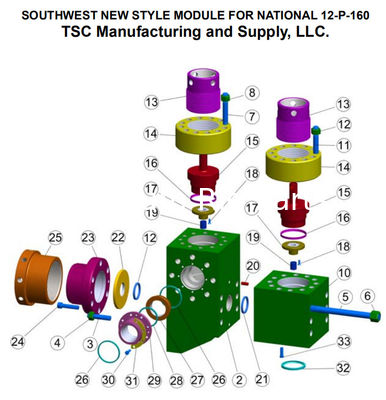

MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # QTY PER PUMP
  80704032 ASSY, FLUID END COMPLETE (INCLUDES ITEMS 1-27) ENOUGH FOR 1 PUMP 1
  80704035 ASSY, FLUID END COMPLETE W/ BLAK-JAK LINER RETENTION SYSTEM 1
  80704038 ASSY, FLUID END COMPLETE W/ ROUGHNECK VALVES L/ LINER BUSHING & NUT (#'S 19, 20) 1
1 /80704000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-10) 3
2 80704001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 7-8) 3
3 80704002 STUD, DISCHARGE TO SUCTION MODULE 24
4 75510126 NUT, HEAVY HEX 24
5 80704003 THREADED RING 6
6 80704004 THREADED CAP 6
7 /80704005 VALVE COVER 6
8 80704006 DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) 1
9 80702011 STUD, DISCHARGE MANIFOLD 12
10 0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
11 12PVGASW GUIDE, VALVE 6
12 PZ789VGI* BUSHING, VALVE GUIDE 6
13 7007303 SCREW, VALVE GUIDE 12
13 PZ789VGI* BUSHING, VALVE GUIDE 6
14 PEP75 CAPSCREW, LINER RETAINER 18
15 2408029
16 6300220 NUT, POWER FRAME STUD 30
17 PEP70 DOWELL PIN 6
18 80700014 STUD, THREADED RING 72
19 6300240 NUT, THREADED RING STUD 72
20   SUCTION MANIFOLD 1
21 1290344 SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
22 7207119 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
23 99609235 SEAL, DISCHARGE MANIFOLD 3
24 1540851 SEAL, SUCTION MANIFOLD 3
25 700048511 CAPSCREW, SUCTION MANIFOLD 3
26 PP6021260SW PLATE, WEAR 3
27 12PLASW RETAINER, LINER FLANGE 3
28 12PLANSW NUT, LINER RETAINER 3

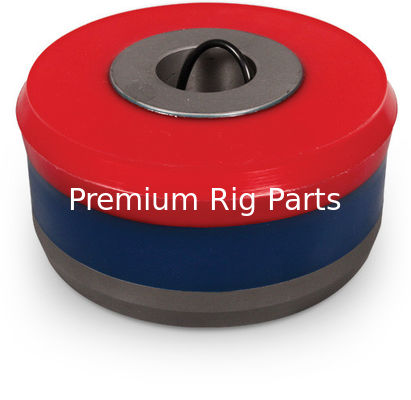

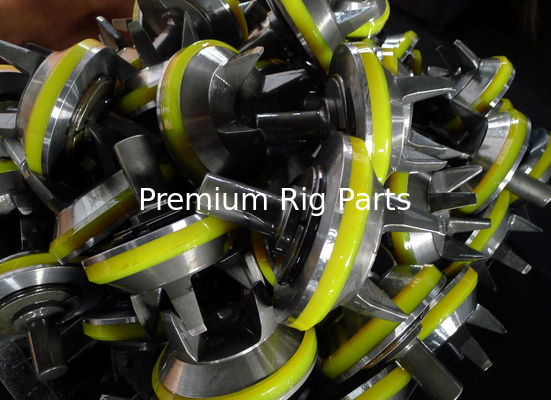

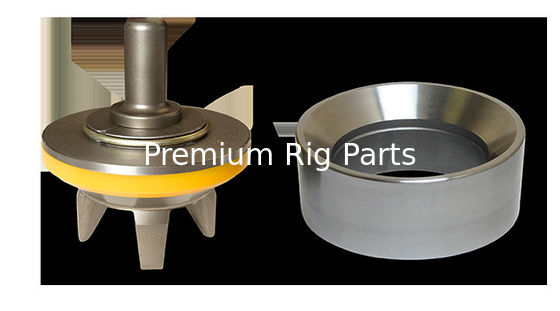

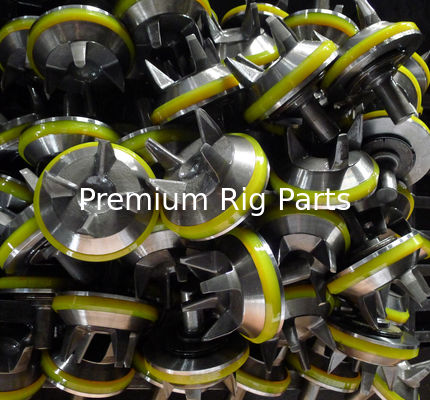

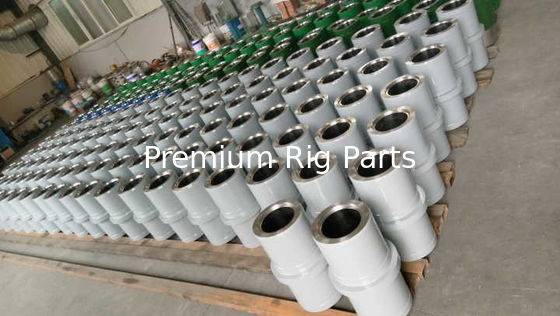

National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P-160 mud pump, National 9P-100 mud pump, NOV 10P-130 mud pump 7

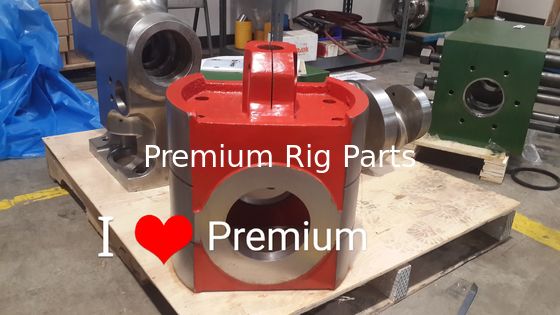

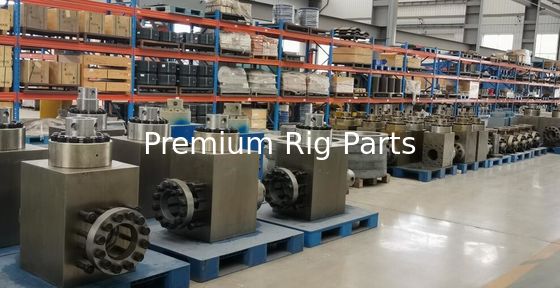

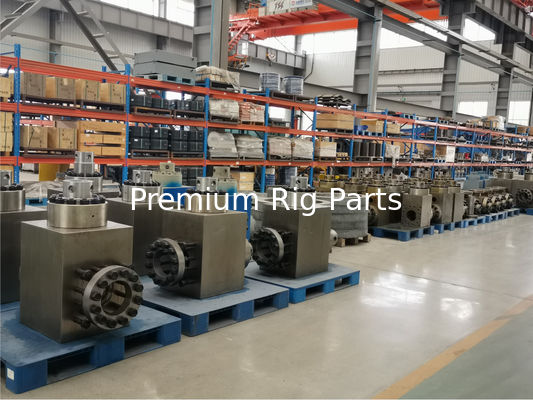

MISSION "L" MODULE FOR NATIONAL 12-P-160 (NEW STYLE) FLUID END MODULE & ACCESSORIES

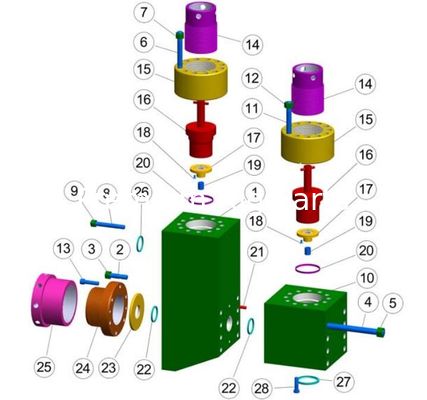

ITEM # SW PART # MISSION PART # DESCRIPTION QTY PER PUMP
  8476-4A FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22) 3
1 8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) 3
2 8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) 3
3 4018-17 12PDSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
4   6300281 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 2408029 STUD, POWER END 30
6   6300220 NUT, POWER END STUD 30
7 4015-54 12PTRSSW STUD, THREADED RING 72
8   6300240 NUT, THREADED RING STUD 72
9 /8488-5 6511416 PIN, DOWELL 6
10 4017-65 PEP75 CAPSCREW, LINER RETAINER FLANGE 18
11 /8476-3 PP6021260SW PLATE, LINER WEAR 3
12 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
13 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
14 6576 12PLANSW NUT, LINER RETAINER 3
15 4676-6A 12PVCASSYSWNS ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) 6
15a   12PVCSWNS PLUG, VALVE COVER 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-119 7207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) 6
20 4700-I PZ789VGI* BUSHING, VALVE GUIDE 6
21 4016-98 50C125KFCYB SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 /8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 /2976-2 2410031437 SEAL, DISCHARGE ADAPTER AND DISCHARGE CONNECTOR 4
26 /8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 /2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR(W /LOCKWASHER) 16
29 /8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
30 4018-39 7006685 CAPSCREW, SPACER FLANGE 16





Description F500 mud pump F800 mud pump F1000 mud pump FB1300 mud pump FB1600 mud pump
Liner of Crosshead Upper 6322-0063-00 6320-0043-00 6319-0015-00 6316-0024-00 6316-0024-00
Liner of Crosshead Lower
Pin of Crosshead 6322-0066-00 6320-0011-00 6319-0017-00 6316-0087-00 6316-0087-00
Extension Rod 6322-0068-00 6320-0041-00 6319-0020-00 6316-0028-00 6316-0028-00
Crosshead 6322-0063-00 6320-0012-00 6319-0014-00 6316-0022-00 6316-0022-00
Pinion Shaft 6322-0022-00 6320-0039-00 6319-0012-00 6317-0021-00 6316-0027-00
Wear Ring of Pinion shaft 6322-0023-00 6320-0031-00 6319-0022-00 6301-0002-00 6301-0002-00
Carrier, Bearing Left 6322-0119-00 6320-0018-00 6319-0043-00 6317-0028-00 6316-0037-00
Carrier, Bearing Right 6322-0045-00 63230-0149-00 6319-0176-00 6317-0177-00 6316-0288-00
Connecting Rod 6322-0053-00 6320-0039-00 6319-0035-00 6317-0026-00 6316-0023-00

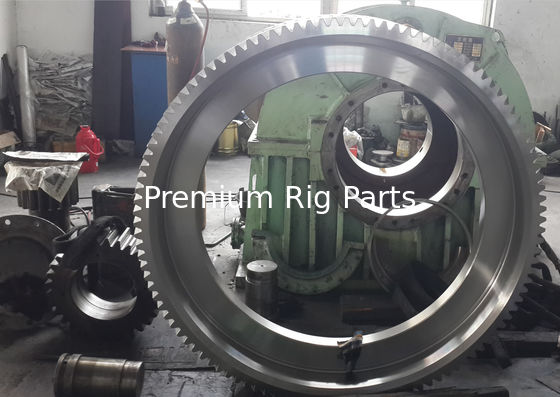

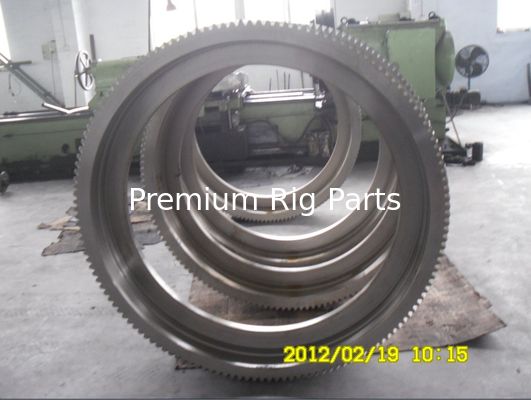

Bull Gear 6322-0012-00 6320-0017-00 6319-0011-00 6317-0022-00 6316-0030-00
Bolt, Main Bearing 7501-1281-00 6320-0044-00 6319-0034-00 6316-0077-00 6316-0077-00
Bearing, Crosshead 7602-021291 7602-021290 6397-0267-00 6301-0038-00 6301-0038-00
Bearing, Pinion Shanft 7602-021037 7602-021109 7602-021288 7602-021267 7602-021267
Bearing, Eccentric 6310-0012-00 7602-021289 6319-0078-00 7602-021269 7602-021268
Bearing, Main 7602-020053 7602-020054 7602-020147 7602-020138 7602-020137





Description F500 F800 F1000 F1300/1600 F1600HL F2200HL
Liner of Crosshead Upper AH0501010402 AH0801010402 AH1001010402 AH1301010402 AH1301010402 AH2202010402
Liner of Crosshead Lower   AH0801010408 AH1001010409 AH1301010412 AH1301010412 AH2202010403
Pin of Crosshead AH0501010404 AH0801010407 AH1001010408 AH1301010410 AH1301010410 AH2202010410
Extension Rod AH0501010410 AH0801010406 AH1001010407 AH1301010409 AH1301010409 AH2202010409
Sub Rod
Crosshead AH0501010401 AH0801010401 AH1001010401 AH1301010401 AH1301010401 AH2202010401
Pinion Shaft AH0501010302 AH0801010302 AH1001010302 AH1601010201 AH1601010201
Wear Ring of Pinion shaft AH0501010303 AH0801010303 AH1001010303 AH1301010303 AH1301010303 AH2202010306
Carrier, Bearing Left AH0501010212 AH0801010213 AH1001010212 AH1601010105 AH1601010105 AH2202010212
Carrier, Bearing Right AH0501010202 AH0801010202 AH1001010202 AH1601010101 AH1601010101 AH2202010202
Connecting Rod AH0501010206 AH0801010206 AH1001010206 AH1601010103 AH1601010103 AH2202010206
Bull Gear AH0501010210 AH0801010210 AH1001010219 AH160101010400 AH160101010400 AH220201021000
Bolt, Main Bearing AH051020207 AH0801020206 AH1001010215 AH1301010215 AH1301010215 AH2202010215
Bearing, Crosshead 5G354920Q 4G254735Q 5G254936Q AH1301010414 AH1301010414
Bearing, Pinion Shanft 4G32828H 4G32836H 4G32840H AH1301010312 AH1301010312 AH2202010315
Bearing, Eccentric 92984QU 928/508QU 929/558.8QU AH160101010700 AH160101010700 AH2202010217
Bearing, Main 3053738U 3053748H 4053156H AH160101010800 AH160101010800 AH2202010218
