Product Details:
Payment & Shipping Terms:
|
Usage: | Oil,Water,drill Rig | Power: | Electric |
---|---|---|---|
Pressure: | High Pressure | Structure: | Piston Pump |
Fuel: | Diesel | Standard Or Nonstandard: | Standard |
Type: | Mud Pump | Color: | Red And So On |
Material: | Cast Iron/stainless Steel Mud Suction Pump,Chrome Alloy | Warranty: | 12 Months |
Product Name: | Mud Pump | Oem: | Can Be Accept |
Condition: | New |
Qingdao National Premium Oilwell Machinery Co.,Ltd
www.premiumrigparts.com www.premiummudpump.com

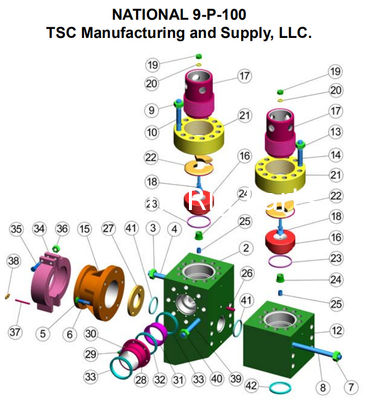

NATIONAL 9-P-100 | ||||
FLUID END MODULE & ACCESSORIES | ||||
ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
# | # | # | RETURN TO: NATIONAL INDEX | |
FEMNAT9PCA | FLUID END MODULE COMPLETE ASSEMBLY | |||
1 | 1293240 | FEMNATDIS9P | FLUID END MODULE DISCH. (STUDDED) (INCLUDES ITEMS 1, 3-6, 9, 10, 31, 31A) | 3 |
2 | 1290338 | FEMNATSUC8P9P | FLUID END MODULE SUCTION. (STUDDED) - (INCLUDES ITEMS 2-4 & 35) | 3 |
3 | 2408019 | 8P80TRS | STUD, THREADED RING 1 3/8 X 7 1/4 TP TPR LK | 72 |
4 | 6300220 | 8P80TRSN | NUT 1 3/8 | 72 |
5 | 2408030 | 9P100PFS | STUD, FRAME 1 1/4 X 6 TOP TAPER LK | 24 |
6 | 6300200 | PZ789LCSN | NUT (FOR ABOVE) 11/4 HEAVY HX | 24 |
7 | 2402560 | 8P80DMS | STUD,1 1/4-7 X 6 1/4 TOP TAPER LK | 16 |
8 | 6300200 | PZ789LCSN | NUT 1 1/4-7 HEAVY HEX | 16 |
9 | 2408034 | 8P80DSUCS | STUD, DISCHARGE TO SUCTION 1/2X19 1/8 | 18 |
10 | 6300241 | NUT, 1 1/2 8 UN-3A HEAVY HEX NUT | 18 | |
11 | 6511416 | PEP70 | PIN, DOWELL 7/8 X 2 (STANDARD DOWELL) | 6 |
12 | 1292141 | NATVGB | BUSHING, VALVE GUIDE | 6 |
13 | 1292140 | NATVGBR | RETAINER, VALVE GUIDE BUSHING | 6 |
14 | 1540126 | 077970076800 | GASKET, VALVE COVER | |
15 | 1290174 | NAT8PRETSEAL | SEAL, RETAINER | 6 |
16 | 1290178 | NATAWS | SCREW, ADJUSTING WEDGE | 6 |
17 | G-1290376 | 8P80LW | WEDGE ASSEMBLY IND. WEDGES G-1290179-P | 6 |
18 | 1290181 | 8P80WS | SPRING, WEDGE | 6 |
19 | 1290308 | NAT8PFLG | RING, THREADED | 6 |
20 | 1290307 | NAT8PCAP | CAP, VALVE COVER (THREADED0 | 6 |
21 | 1290315 | 8PAWSW | WASHER | 6 |
22 | 6300160 | 8PAWSN | NUT- 1-8UNC HEAVY HEX | 6 |
23 | 2410031427 | 2410031427 | SEAL, DISHARGE CONNECTOR & ADAPTER | 4 |
24 | 1290343 | NAT8PDSMA | ADAPTER, DISCHARGE CONNECTOR | 2 |
25 | 2410031348 | 2410031348 | DISCHARGE CONNECTOR SEAL | 2 |
26 | 1290342 | NAT8PDSMC | CONNECTOR, DISCHARGE | 2 |
27 | 2410031427 | 2410031427 | SEAL, DISCHARGE CONNECTOR | 2 |
28 | 700030510 | CAPSCREW, 1/2 X 1/2 LG GR5 HX HD | 16 | |
29 | 1290357 | PP602000 | PLATE, WEAR | 3 |
30 | 1293165 | 9PLCA | LINER BUSHING | 3 |
31 | 2408018 | STUD, LINER BUSHING 1 1/4 X 6 TOP TAPER LK | 18 | |
31A | 6300200 | PZ789LCSN | NUT, 1 1/4-7 HEAVY HEX FOR ABOVE | 18 |
32 | 1293166 | 9PLC | CLAMP, LINER | 3 |
32A | 7000448 | 9P100LCS | 3/4 X 4 GR 5 CAD PLT HEX HD CAPSCREW | 6 |
32B** | ** | ** LOCK WASHER,(OPTIONAL) 3/4 LW | 6 | |
32C | 6309120 | NUT (FOR ABOVE) 3/4 LOCKNUT | 6 | |
32D | 1290169 | PIN, LINER CLAMP | 6 | |
32E | G-1290087-P | PIN CONNECTER | 6 | |
32F | 6571420 | PIN, 7/32 X 1-1/4 SPRING SLOT | 12 | |
33 | 1290344 | SEAL, MODULE | 6 | |
34 | 1590051 | SEAL, SUCTION MANIFOLD | 3 | |
35 | 7000483-11 | SCREW, 7/8 X 2-1/2 GR. 5 CAD PLATED HEX CAP | 24 |
MISSION "L" MODULE FOR T-1300/T-1600 | ||||
FLUID END MODULE & ACCESSORIES | ||||
ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
# | # | # | RETURN TO IDECO INDEX | |
8407-7A | FEMT1316ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 | |
1 | 8407-7D | FEMT1316DISSW | DISCHARGE MODULE, STUDDED | 3 |
2 | 8407-11S | FEMT1316SUCSW | SUCTION MODULE, STUDDED | 3 |
3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
4 | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION MODULE STUD | 42 | |
5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
6 | PZ789LCSN | NUT, THREADED RING STUD | 72 | |
7 | 4018-68 | T1316PFSSW | STUD, POWER FRAME | 24 |
8 | 4017-50 | T1316DMSSW | STUD, DISCHARE MANIFOLD | 12 |
9 | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 | |
10 | 8488-5 | PEP70 | DOWELL PIN | 6 |
11 | 2988 | 1290344 | SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE | 6 |
12 | 8407-10 | T1316WPSW | LINER WEAR PLATE | 3 |
13 | 6407 | T1316LRFLGSW | LINER RETAINER FLANGE | 3 |
14 | 6507 | T1316LLNSW | LINER LOCK NUT | 3 |
15 | P-129 | SWP129 | VALVE COVER GASKET | 6 |
16 | 4016-99 | PEP73 | VALVE GUIDE CAPSCREW | 12 |
17 | 4700I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
18 | 4775-2R | EMSF1000VGASW | VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) | 6 |
19 | 4675-2A | EMSF1000VCASSYSW | VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) | 6 |
20 | 4475 | OWA17FLGSW | THREADED RING | 6 |
21 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
22 | 568-339 | 99609339 | DISCHARGE MANIFOLD GASKET | 3 |
23 | 568-447 | 99609447 | SUCTION MANIFOLD GASKET | 3 |
24 | 4017-59 | PEP84 | SUCTION MANIFOLD CAPSCREW | 24 |
25 | PEP65 | LOCK WASHER | 24 |
MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 | ||||
FLUID END MODULE & ACCESSORIES | ||||
ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
# | # | # | RETURN TO: NATIONAL INDEX | |
FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23) | 3 | ||
1 | 8476-6S | FEM12PSUCSWNS | SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22) | 3 |
2 | 8476-5D | FEM12PDISSWNS | DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14) | 3 |
3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
4 | PEP55 | NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H | 18 | |
5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
6 | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 | |
7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
14 | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 | |
15 | 4676-6A | 12PVGASWNS | PLUG (INCLUDES ITEMS 15, 19, 20, & 21) | 6 |
16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
18 | P-119 | 07207119 | VALVE COVER PLUG SEAL | 6 |
19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
21 | 4016-98 | PEP73 | VALVE GUIDE SCREW | 12 |
22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
28 | 80852292 | 1292258 | DISCHARGE SPACER FLANGE SEAL | 2 |
29 | 4018-18 | 700030711 | DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER) | 16 |
30 | 8376-3 | 1292175 | BACKUP RING-(DISCHARGE CONNECTOR) | 4 |
31 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3 | 16 |
MISSION "L" MODULE FOR NATIONAL12-P-160 | ||||
FLUID END MODULE & ACCESSORIES | ||||
ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
# | # | # | RETURN TO: NATIONAL INDEX | |
8476-A | FEM12PASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 | |
1 | 8476-2S | FEM12PSUCSW | SUCTION MODULE-STUDDED - (INCLUDES ITEMS 1, 7, 13, 14, 22) | 3 |
2 | 8476-1D | FEM12PDISSW | DISCHARGE MODULE (INCLUDES 2-6, 8, 13, 14) | 3 |
3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
4 | PEP55 | NUT, DISCHARGE TO SUCTION STUD (1 3/4"-8 2H) | 18 | |
5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
6 | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 | |
7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
14 | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 | |
15 | 4676-2A | 12PVCSW | PLUG (INCLUDES ITEMS 15, 19-21) | 6 |
16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
18 | P-107 | 07207107 | VALVE COVER SEAL | 6 |
19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
21 | 4016-98 | PEP73 | VALVE GUIDE RETAINER SCREW | 12 |
22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
28 | 2976-3 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR | 16 |
29 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
30 | 8376-3 | DISCHARGE FLANGE STUD | 16 | |
32 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
# | # | # | ||
1 | EMSFEMF1000CA | FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) | 3 | |
1A | 6999008602 | EMSFEMF1000 | FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) | 3 |
2 | 7507220500 | EMSF100PFS | STUD FRAME | 18 |
3 | 7601063017 | EMSF1000PFSN | NUT (FOR ABOVE) | 18 |
4 | 7507215000 | EMSF100TRS | STUD, THREADED RING | 30 |
5 | 7601063028 | EMSF1000TRSN | NUT (FOR ABOVE) | 30 |
6 | 7507210800 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
7 | 7601063024 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
8 | 6319002600 | EMSF1000LC | CAGE, LINER | 3 |
9 | 6319008700 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
10 | 6319008900 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
11 | 7602220032 | 078070028200 | GASKET, LINER | 6 |
12 | 6319003100 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
13 | 6999008900 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
14 | 6319009000 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
15 | 6319007600 | 077170074001 | GASKET, VALVE COVER | 3 |
16 | 7501005100 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
17 | 6397060300 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
18 | 6397057500 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
19 | 6319002700 | EMSF1000CAP | COVER, VALVE POT | 3 |
20 | 7602161046 | 1902415 | GASKET, DISCHARGE MANIFOLD | 3 |
21 | 7602160061 | 1904426 | GASKET, SUCTION MANIFOLD | 3 |
22 | 6316009600 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
23 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |||
07924503 | MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) | 3 | ||
CONTINENTAL EMSCO F-800, F-1000 | ||||
FLUID END MODULE & ACCESSORIES | ||||
ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
# | # | # | RETURN TO: EMSCO INDEX | |
1 | EMSFEMF1000CA | FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) | 3 | |
1A | 6999008602 | EMSFEMF1000 | FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) | 3 |
2 | 7507220500 | EMSF100PFS | STUD FRAME | 18 |
3 | 7601063017 | EMSF1000PFSN | NUT (FOR ABOVE) | 18 |
4 | 7507215000 | EMSF100TRS | STUD, THREADED RING | 30 |
5 | 7601063028 | EMSF1000TRSN | NUT (FOR ABOVE) | 30 |
6 | 7507210800 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
7 | 7601063024 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
8 | 6319002600 | EMSF1000LC | CAGE, LINER | 3 |
9 | 6319008700 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
10 | 6319008900 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
11 | 7602220032 | 078070028200 | GASKET, LINER | 6 |

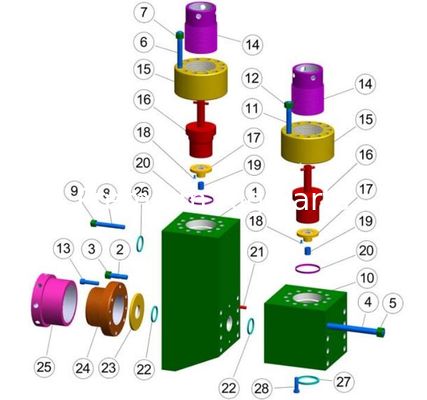

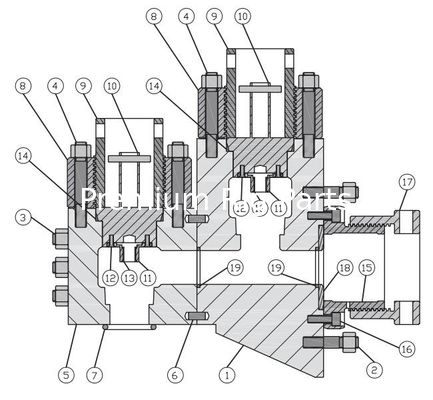

12 | 6319003100 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
13 | 6999008900 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
14 | 6319009000 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
15 | 6319007600 | 077170074001 | GASKET, VALVE COVER | 3 |
16 | 7501005100 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
17 | 6397060300 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
18 | 6397057500 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
19 | 6319002700 | EMSF1000CAP | COVER, VALVE POT | 3 |
20 | 7602161046 | 1902415 | GASKET, DISCHARGE MANIFOLD | 3 |
21 | 7602160061 | 1904426 | GASKET, SUCTION MANIFOLD | 3 |
22 | 6316009600 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
23 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |||
07924503 | MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) | 3 | ||
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

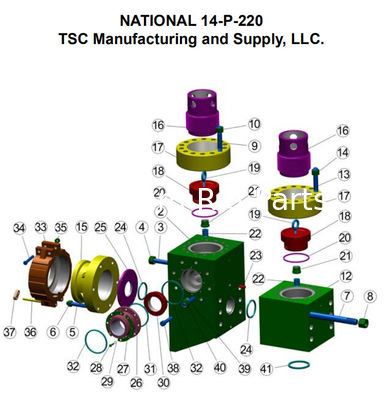

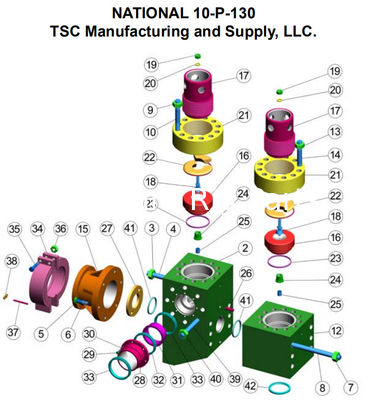

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Contact Person: Mr. Eric
Tel: 0086-15376875239
