Place of Origin China
Brand Name DRILLMEC
Certification API
Model Number 14T2200 MUD PUMP
Minimum Order Quantity 1
Price USD
Packaging Details Long term shipment by sea and air
Delivery Time Some in stock
Payment Terms T/T
Supply Ability 3000 pieces
Product Details
Usage Water Structure Centrifugal Mud Suction Pump
Product Name Mini Lime Mud Transfer Double Diaphragm Pump Manufacturers Application Mining,oil
Standard Or Nonstandard Standard Type Mud Pump
Color Blue Material Cast Iron/stainless Steel Mud Suction Pump
Warranty 12 Months Oem Can Be Accept
Condition New
Leave a Message
Product Description

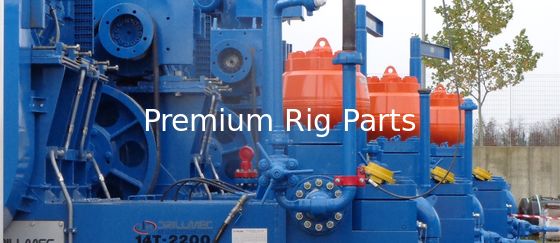

Drillmec 14T2200 mud pump liner, Drillmec 12T1600 mud pump, Drillmec 9T1000 mud pump, mud pumps for drilling rigs, Ideco mud pump, Drillmec 7TS600 mud pump, 0



Premium can make all model mud pump liners of Drillmec 7TS500, 7TS600, 9T800, 9T1000, 12T1600 and 14T2200 mud pump.



Part number of 14T2200 mud pump liner:





Drillmec 14T2200 / 01919528 01919522 01919523 01919524 01919511 01919525

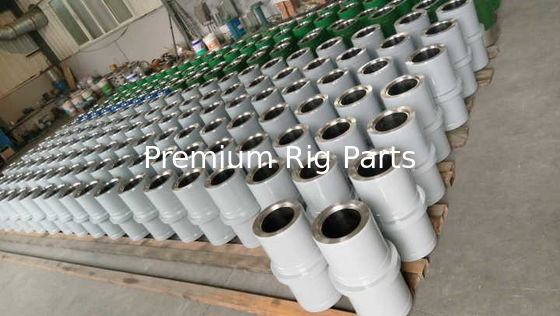

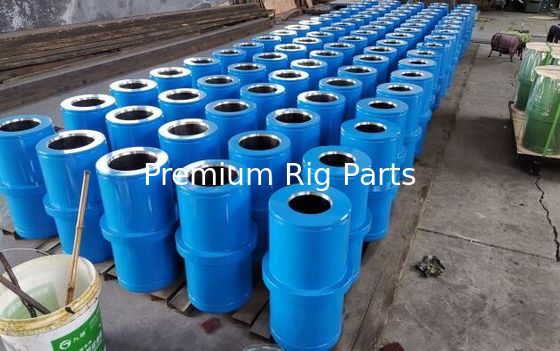

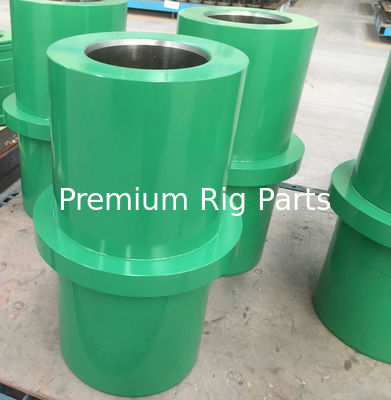

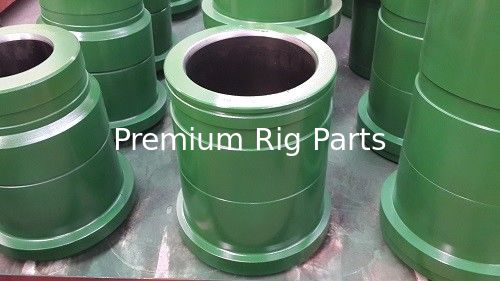

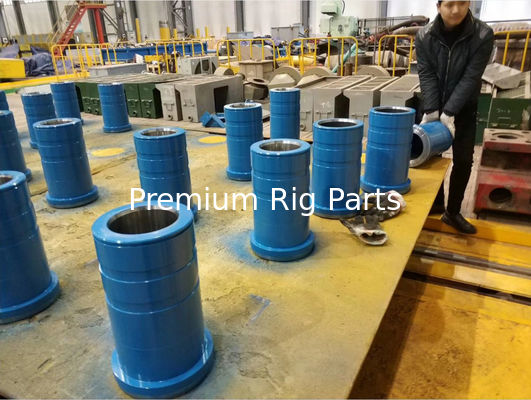

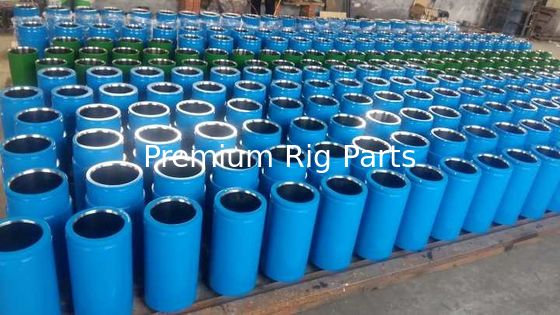

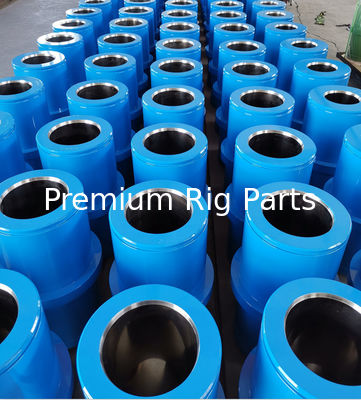

High Chrome Sleeve Liner



The outer hull, or body, of the liner is a high strength forging. Premium uses forgings exclusively to ensure the consistent quality. The sleeve is centrifugally cast in the Premium facilities by skilled craftsmen. It has the maximum amount of chrome for the base metal and Premium adds molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness that exceeds its counterparts. The liner is rated to match the pressure rating of the pump per liner size.



Features:

High Strength forged steel outer hull

Rated for all drilling operations up to 5,000 PSI and above

Bore hardness is 62 - 69 Rockwell

HP design to prevent inner sleeve slippage

Extremely long service life



Drillmec is a global contractor in the design and construction of drilling and work over rigs for the Onshore and Offshore Oil & Gas industries. Drillmec manufacture 7T450 mud pump, 7TS600 mud pump, 9T1000 mud pump, 12T1600 mud pump and 14T2200 mud pump.

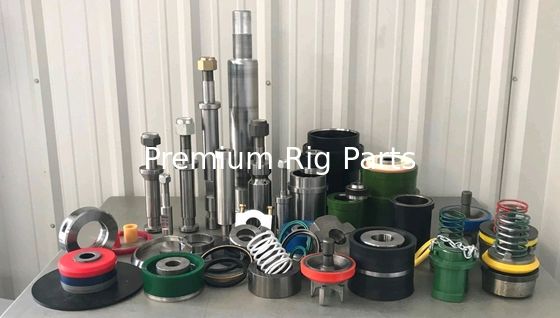

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600

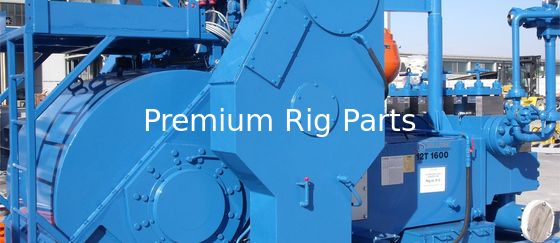

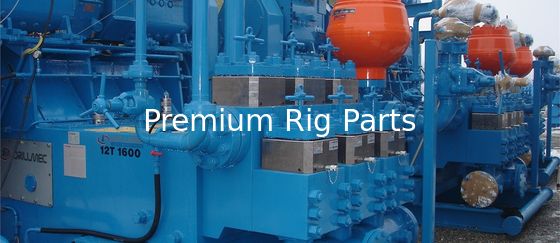

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200



Romania: 3PN-1000, 3PN-1600, 3PN-2000





Description

7P50

mud pump

8P80

mud pump

9P100

Mud pump

10P130

Mud pump

12P160

Mud pump

14P220

Mud pump
Liner of Crosshead Upper   1291017 1293017 1290017 1292017 1295017
Liner of Crosshead Lower
Pin of Crosshead 1294028 1291028 1293028 1290028 1292028 1295028
Extension Rod 1294083 1291083 1293083 1290083 1292083 1295083
Crosshead   1291090 1293090 1290015 1292090 1295015
Crosshead 1294015 1291015 1293015 1290090 1292015 1295090
Pinion Shaft 1294010 1291010 1293010 1290358 1292010 1295010
Cage, Main Bearing 1294011 1291011 1293011 1290011 1292011 1295011
Cap, Bearing Right 1294012 1291012 1293012 12960012 1292012 1295012
Connecting Rod 1294007 1291007 1293007 1290007 1292007 1295007
Bull Gear 1294008 1291008 1293008 1290008 1292008 1295008
Crankshaft   1291005 1293005 1290005 1292005 1295005
Bearing, Crosshead ZB-5620 ZB-6751 ZB-7120 ZB-7370 ZB-8253 ZB-9005
Bearing, Pinion Shanft ZB-6292 ZB-7081 ZB-7873 ZB-8662 ZB-10236
Bearing, Eccentric ZB-22000 ZB-23500 ZB-25500 ZB-26250 ZB-28515 ZB-32000
Bearing, Main ZT-10003 ZT-11812 ZT-13127 ZT-14500 ZT-15000 ZT-16125





Description F500 F800 F1000 F1300/1600 F1600HL F2200HL
Liner of Crosshead Upper AH0501010402 AH0801010402 AH1001010402 AH1301010402 AH1301010402 AH2202010402
Liner of Crosshead Lower   AH0801010408 AH1001010409 AH1301010412 AH1301010412 AH2202010403
Pin of Crosshead AH0501010404 AH0801010407 AH1001010408 AH1301010410 AH1301010410 AH2202010410
Extension Rod AH0501010410 AH0801010406 AH1001010407 AH1301010409 AH1301010409 AH2202010409
Sub Rod
Crosshead AH0501010401 AH0801010401 AH1001010401 AH1301010401 AH1301010401 AH2202010401
Pinion Shaft AH0501010302 AH0801010302 AH1001010302 AH1601010201 AH1601010201
Wear Ring of Pinion shaft AH0501010303 AH0801010303 AH1001010303 AH1301010303 AH1301010303 AH2202010306
Carrier, Bearing Left AH0501010212 AH0801010213 AH1001010212 AH1601010105 AH1601010105 AH2202010212
Carrier, Bearing Right AH0501010202 AH0801010202 AH1001010202 AH1601010101 AH1601010101 AH2202010202
Connecting Rod AH0501010206 AH0801010206 AH1001010206 AH1601010103 AH1601010103 AH2202010206
Bull Gear AH0501010210 AH0801010210 AH1001010219 AH160101010400 AH160101010400 AH220201021000
Bolt, Main Bearing AH051020207 AH0801020206 AH1001010215 AH1301010215 AH1301010215 AH2202010215
Bearing, Crosshead 5G354920Q 4G254735Q 5G254936Q AH1301010414 AH1301010414
Bearing, Pinion Shanft 4G32828H 4G32836H 4G32840H AH1301010312 AH1301010312 AH2202010315
Bearing, Eccentric 92984QU 928/508QU 929/558.8QU AH160101010700 AH160101010700 AH2202010217
Bearing, Main 3053738U 3053748H 4053156H AH160101010800 AH160101010800 AH2202010218







Continental Emsco F-800 / 1000 6999-0086-02 National 12-P-160 Discharge 1292240
Continental Emsco FB-1300 / 1600 6316-0357-00 National 12-P-160 Suction 1292243
Gardner Denver TEE 200PJH029B National 14-P-220 Discharge 1295601
Gardner Denver PAH 200PJH029B National 14-P-220 Suction 1295604
Gardner Denver PZ-7/8/9 205PZL029D Module, WF400 TSC-SP-WF400-01
Gardner Denver PZ-10/11 202PZL029B Module, WF700 TSC-SP-WF700-01
Ideco T-800 / 1000 551-458 Module, WF1300B TSC-SP-WF1300-01
Ideco T-1000 / 1300 551-122-01 Module, WF1300C TSC-SP-WF1300-02
Oilwell A-850-PT / A-1100-PT 10300181 Module, WF1300BH TSC-SP-WF1300-03
Oilwell A-1400-PT / A-1700-PT 10300181 Module, WF1600A TSC-SP-WF700-01
National 8-P-80 Discarge 1291280 Module, WF1600B TSC-SP-WF1600-01
National 8-P-80 Suction 1290338 Module, WF1600BH TSC-SP-WF1600-02
National 9-P-100 Discharge 1293240 Module, WF1600L TSC-SP-WF1600-03
National 9-P-100 Suction 1290338 Module, WF1600LH TSC-SP-WF1600-05
National 10-P-130 Discharge 1290335 Module, WF1600S TSC-SP-WF1600-06
National 10-P-130 Suction 1290338 Module, WF2000 TSC-SP-WF2000-01
    Module, WF2200 TSC-SP-WF2200-01



Drillmec 14T2200 mud pump liner, Drillmec 12T1600 mud pump, Drillmec 9T1000 mud pump, mud pumps for drilling rigs, Ideco mud pump, Drillmec 7TS600 mud pump, 1





GARDNER DENVER

PZ7/8/9 Mud Pump



Item P/N Description Qty. Price$ Weight kgs
1 205PZL029D Fluid Module Studded, (incl. Items 2-9) 3 　 　
2 　 Fluid Module, Only 3 3186 472
3 79L188 Stud, Moudle to Frame & Liner Clamp 24 12.3 2.3
4 750B38 Nut, Module to Frame & Liner Clamp 48 3.2 0.13
5 79L73 Stud, Moudle to Frame 12 12.0 2.1
6 750AQ30 Nut, Moudle to Frame 12 3.0 0.12
7 79AL6 Stud, Valve Cover to Moudle 48 6.8 1.3
8 50B34 Nut, Valve Cover to Moudle & Module to Discharge 60 3.0 0.1
9 202PZL110 Stud, Module to Discharge Manifold 12 12.3 0.15
10 2011857 Cap, Valve Lock 6 237.4 17.5
11 2011699 Thread Ring 6 224.4 26
12 2011860 Cover, Valve 6 123.5 12.4
13 2007674 Bushing, Valve Guide,Discharge 3 2.8 0.02
14 2011862 Gasket, Valve Cover 6 6 0.1
15 2011861 Ring, Retaining 6 6 0.1
　 2011706 Valve Guide Assembly (incl.Items 16-20) 3
16 2011701 Plate, Retainer 1 48.6 2.0
17 2011700 Valve Guide, Suction 1 52.0 2.2
18 2007674 Bushing, Valve Guide,Suction 1 3.0 0.02
19 95W2 Lock Washer,Valve Guide 2 0.5 0.01
20 655EE06S Screw, Valve Guide 2 5.2 0.12
21 25A135 Gasket, Discharge Manifold to Module 3 2.5 0.09
22 25G41 Gasket, Suction Manifold to Moudule 3 3.2 0.12
23 IPV14 Liner Clamp 3 247.2 34
24 PREM-3130-44 Liner 4-1/2" 3 166.8 54.79
25 PREM-3130-50 Liner 5" 3 160.0 48.96
26 PREM-3130-54 Liner 5-1/2" 3 152.3 42.53
27 PREM-3130-60 Liner 6" 3 144.7 35.48
28 PREM-3130-64 Liner 6-1/2" 3 139.5 27.81
29 PREM-3130-66 Liner 6-3/4" 3 130.0 23.75
30 PREM-3130-70 Liner 7" 3 120.0 19.54
31 012180196 Piston 4-1/2" 3 39.8 3.6
32 012180253 Piston 5" 3 41.5 4.2
33 012180337 Piston 5-1/2" 3 45.3 5.7
34 012180394 Piston 6" 3 47.2 6.5
35 012180535 Piston 6-1/2" 3 55.2 7.6
36   Piston 6-3/4" 3 58 8.5
37 012180618 Piston 7" 3 61.8 9.8
38 9700250 Valve Full Open 7FO-V1 6 39.8 4.9
39 9702504 Seat 7S1 6 29.26 4.8
40 HD7I Valve Insert 6 24.4 0.24
41 060155041 Valve Cross arms 6 29.6 4.6
42 061101507 Seat Cross arms 6 29 4.4
43 UDD7B Valve Insert 6 26 0.23
44   Piston rod 3 79.7 9.2
45   Clamp 3 75 6.5
46 　 Pony rod 3 221.2 32.5



Drillmec 14T2200 mud pump liner, Drillmec 12T1600 mud pump, Drillmec 9T1000 mud pump, mud pumps for drilling rigs, Ideco mud pump, Drillmec 7TS600 mud pump, 2



Item OEM P/N Description Qty. Price $ Weight
1 551-458 Fluid Moudle Only 3 5120 1340
2 551-410-01 Stud 24 12.5 1.60
3 551-410-02 Stud 12 12.0 1.52
4 551-410-03 Stud 48 10.2 1.30
5 IN-416 Nut 84 2.3 0.12
6 551-405-04 Threaded Plug Retainer 6 238.5 24.2
7 551-405-03 Threaded Ring 9 286.2 37.4
8 551-422-02 Cylinder Head Plug 3 222.2 25.8
9 551-422-03 Cylinder Head Plug (Top) 3 256.0 34.5
10 551-405-05 Threaded Liner Retainer 3 540.0 68.5
11 551-405-07 Lower Valve Cover 3 74.6 2.9
12 551-422-04 Lower Valve Guide Retainer 3 67.3 2.7
13 BMT-1669-63-09 Plug & Liner Seal 9 6.1 0.13
14 IO-548 Seal, Discharge 3 2.6 0.04
15 IO-521 Seal, Suction 3 4.5 0.06
16 PREM-4110-44 Liner 4-1/2" 3 260.0 116.87
17 PREM-4110-50 Liner 5" 3 251.8 108.45
18 PREM-4110-54 Liner 5-1/2" 3 243.3 99.14
19 PREM-4110-60 Liner 6" 3 239.0 88.95
20 PREM-4110-64 Liner 6-1/2" 3 230.2 77.87
21　 PREM-4110-70 Liner 7" 3 222.6 65.91
22 012180196 Piston 4-1/2" 3 39.8 3.6
23 012180253 Piston 5" 3 41.5 4.2
24 012180337 Piston 5-1/2" 3 45.3 5.7
25 012180394 Piston 6" 3 47.2 6.5
26 012180535 Piston 6-1/2" 3 55.2 7.6
27　 012180618 Piston 7" 　 61.8 9.8
28 9700250 Valve Full Open 7FO-V1 6 39.8 4.9
29 9702504 Seat 7S1 6 29.26 4.8
30 HD7I Valve Insert 6 24.4 0.24
31 060155041 Valve Cross arms 6 29.6 4.6
32 061101507 Seat Cross arms 6 29 4.4
33 UDD7B Valve Insert 6 26 0.23
34 1551715 Piston rod 3 91.0 14.2
35 PPT604130 Clamp 3 84.6 8.6
36 07913081 Pony rod 3 265 74.2
