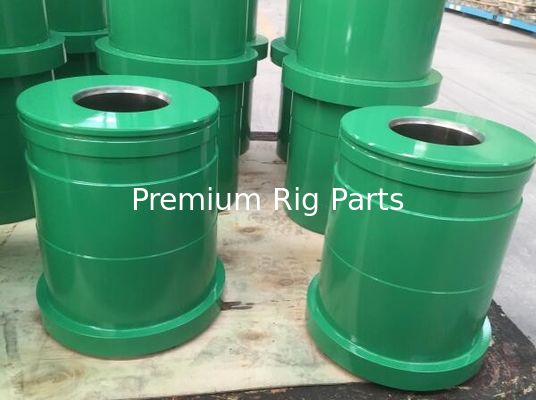

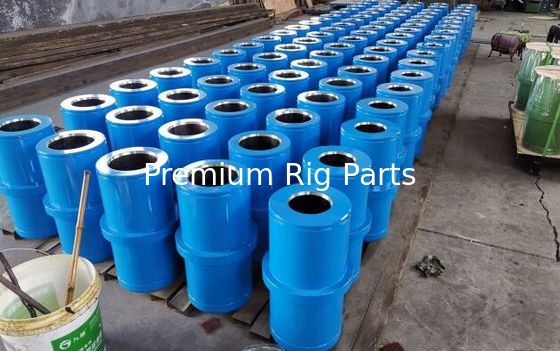

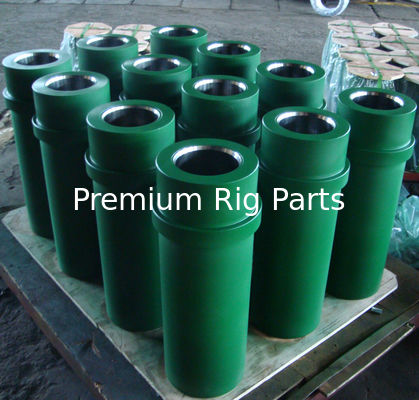

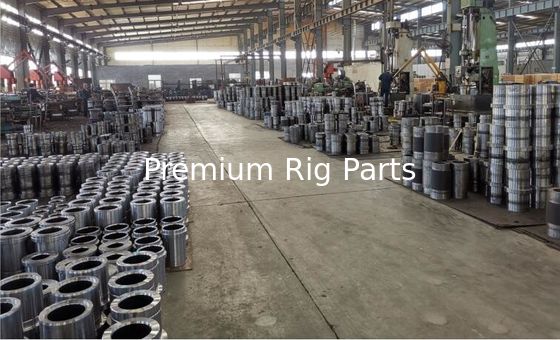

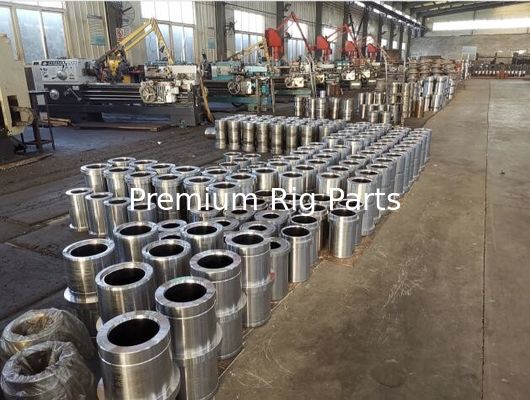

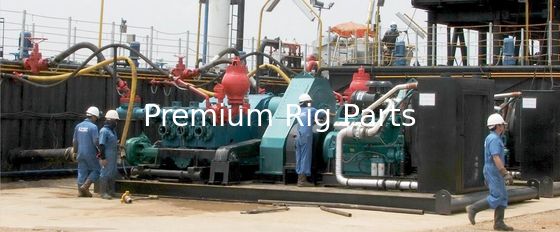

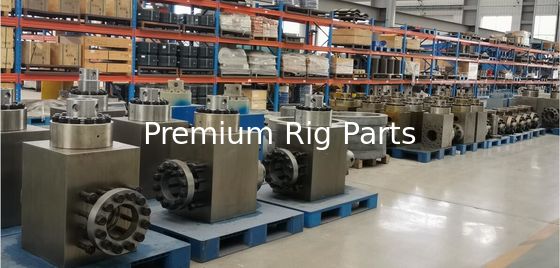

Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP

  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
  • Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP
Place of Origin China
Brand Name Ideco, National, Southwest, Bomco, Ideco, BOMCO, EMSCO, OPI,
Certification API
Model Number MM-550-F/ MM-700-F, FD-FXD, FY-FXY
Minimum Order Quantity 1 piece
Price 1 to 500 usd
Packaging Details Suitable to shipment by sea and air
Delivery Time Some in stock
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 3000 pieces per month
Product Details
Usage Oil,Water,drill Rig Power Electric,diesel
Pressure High Pressure,Low Pressure Application Mining,oil
Structure Piston Pump Fuel Diesel
Standard Or Nonstandard Standard Type Mud Pump
Color Green Or Per Customer Design Material Cast Iron/stainless Steel Mud Suction Pump
Product Name Mud Pump Oem Applicable
Condition New
Leave a Message
Product Description

        Premium can make and supply Hy-Chrome liners and Zicornia/Ceramic Liners for Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete mud pumps and their parts. Our reach extends to customers around the world.



  4” 4-1/2” 5” 5-1/2” 6” 6-1/2” 7”
Emsco D375 / / 05419500 05419550 05419600 05419650 05419700
Emsco D300/500 05421400 05421450 05421500 05421550 05421600 05421650 05421700
Gardner Denver FO-FXO

7-1/2”

FY45675

05441450

FZ45645

05441500

FZ45650

05441550

FX45655

05441600

FZ45660

05441650

FZ45665

05441700

FZ45670
Gardner Denver FY-FXD

7-1/2”

FY45675

05441450

FZ45645

05441500

FZ45650

05441550

FX45655

05441600

FZ45660

05441650

FZ45665

05441700

FZ45670
Gardner Denver FK-FXK / 05442450 05442500 05442550 05442600 05442650 05442700
Gardner Denver FXN

7-1/2”

FK45675

05442450

FK45645

05442500

FK45650

05442550

FK45655

05442600

FK45660

05442650

FK45665

05442700

FK45670
Gardner Denver FQ-FXQ   05443450 05443500 05443550 05443600 05443650 05443700
Gardner Denver FG-FXG FG45640 FG45645 FG45650 / / / /
Gardner Denver FD-FXD FD45640 FD45645 FD45650 FD45655 FD45660 / /
Gardner Denver TEE 306TEE456 302TEE456 301TEE456 300TEE456 / / /
Gaso 1860 100134600 05483010 / / / / /
Gaso 1753 / 05483060 05483059 05483057 05483055 05483051 05483052
Gaso 1742 100133602 100133701 100133800 100133909 / / /
Gaso 2652 / 1233580 1212737 1211145 1211153 1233629 1233637
Emsco DB550 DC700 / / 05422500 05422550 05422600 05422650 05422700
Ideco MM-550-F/ MM-700-F / 05476450 05476500 05476550 05476600 05476650 05476700
National C-150-B / / 05452500 05452550 05452600 05452650 05452700
National C-250 05453400 05453450 05453500 05453550 05453600 05453650 05453700
Oilwell 214-P / 05303725 05303500 05303550 05303600 05303650 05303700
Oilwell 218-P / 05302725 05302500 05302550 05302600 05302650 05302700
OPI-350 05501400 05501450 05501500 05501550 05501600 05501650 05501700
OPI-700-HDL 05503400 05503450 05503500 05503550 05503600 05503650 05503700
OPI-1000-HDL 05514400 05514450 05514500 05514550 05514600 05514650 05514700
Wirth TPK-1000 / 05542450 05542500 05542550 05542600 05542650 /
Wirth TPK-1600 / / 07529500 07529550 07529600 07529650 07529700
Wirth TPK-2200 / / 07557500 07557550 07557600 07557650 07557700
Gardner Denver FD-FXX FD45640 FD45645 FD45650 FD45655 FD45660 / /
Gardner Denver FC-FXD 1EF45640 1EF45645 1EF45650 1EF45625 1EF45630 1EF45655 /
Gardner Denver FY-FXX

7-1/2”

FY45675

05441450

FZ45645

05441500

FZ45650

05441550

FX45655

05441600

FZ45660

05441650

FZ45665

05441700

FZ45670
Gardner Denver FZ-FXZ

7-1/2”

FY45675

05441450

FZ45645

05441500

FZ45650

05441550

FX45655

05441600

FZ45660

05441650

FZ45665

05441700

FZ45670



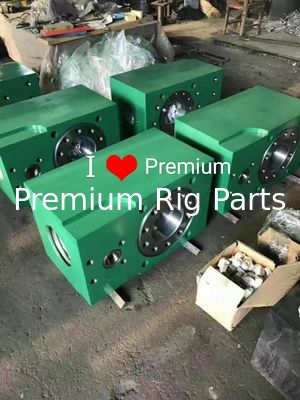

GARDNER DENVER
PZ-7 FLUID END REBUILD KIT
Qty Description Part No.



3 Liner 5" Bore PPGD 200PZG456
3 Piston 5"B PPGD 241TBB045A
3 Piston Rubber Kit 5"B PPGD TBB76024
OR
3 Liner 5.1/2" Bore PPGD PY13955
3 Piston 5.1/2"B PPGD 243TBB045A
3 Piston Rubber Kit 5.1/2"B PPGD TBB76026
OR
3 Liner 6" Bore PPGD PY13960
3 Piston 6"B PPGD 253TBB045A
3 Piston Rubber Kit 6"B PPGD TBB76028
OR
3 Liner 6.1/2" Bore PPGD PY13965
3 Piston 6.1/2"L PPGD 204TBL045A
3 Piston Rubber Kit 6.1/2"L PPGD TBL77585
3 Liner Gasket PPGD 25AT37
6 Valve Cover Gasket PPGD 2011862
6 Retainer Ring PPGD 2011861
6 Valve Spring PPGD 78H44
6 Valve Stem Guided PPNO 060155041
6 Valve Insert PPNO 062400338
6 Valve Seat PPNO 061101507
6 Gasket Valve Cover PPGD 1540138
3 Piston Rod Threaded Type PPGD 200PYG060A
OR
3 Piston Rod Clamp Type PPGD 201PZG060A









GARDNER DENVER
PZ-8, PZ-9 FLUID END REBUILD KIT
Qty Description Part No.



3 Liner 5.1/2" Bore PPGD 203PZJ456
3 Piston 5.1/2"B PPGD 243TBB045A
3 Piston Rubber Kit 5.1/2"B PPGD TBB76026
OR
3 Liner 6" Bore PPGD 202PZJ456
3 Piston 6"B PPGD 253TBB045A
3 Piston Rubber Kit 6"B PPGD TBB76028
OR
3 Liner 6.1/2" Bore PPGD 200PZJ456
3 Piston 6.1/2"L PPGD 204TBL045A
3 Piston Rubber Kit 6.1/2"L PPGD TBL77585
OR
3 Liner 7" Bore PPGD 207PZJ456
3 Piston 7"L PPGD 202TBL045A
3 Piston Rubber Kit 7"L PPGD TBL77586
3 Piston Rod Threaded Type PPGD 200PZJ060A
3 Piston Rod Clamp Type PPGD 1PZ183A
3 Gasket Liner to Cylilnder PPGD 25AT37
6 Valve Cover Gasket PPGD 2011861
6 Gasket Valve Cover PPGD 2011862
6 Valve Bushing PPGD 2007674
3 Gasket Suction Manifold PPGD 25G41
3 Gasket Discharge Manifold PPGD 25AL35
3 Valve Guide PPGD 2011706
6 Valve Spring PPGD 78H44
6 Valve Stem Guided PPGD 202PZL482A
6 Valve Gravel Insert PPGD 201PZL106
6 Valve Seat PPGD 202PZL039

















GARDNER DENVER
PZ-10 FLUID END REBUILD KIT
Qty Description Part No.



3 Liner 4.1/2" Bore PPNO 05496450
3 Piston 4.1/2"B PPGD 239TBB045A
3 Piston Rubber Kit 4.1/2"B PPGD TBB76022
OR
3 Liner 5" Bore PPNO 05496500
3 Piston 5"B PPGD 241TBB045A
3 Piston Rubber Kit 5"B PPGD TBB76024
OR
3 Liner 5.1/2" Bore PPGD 203PZL456
3 Piston 5.1/2"B PPGD 243TBB045A
3 Piston Rubber Kit 5.1/2"B PPGD TBB76026
OR
3 Liner 6" Bore PPGD 202PZL456
3 Piston 6"B PPGD 253TBB045A
3 Piston Rubber Kit 6"B PPGD TBB76028
OR
3 Liner 6.1/2" Bore PPGD 201PZL456
3 Piston 6.1/2"L PPGD 204TBL045A
3 Piston Rubber Kit 6.1/2"L PPGD TBL77585
OR
3 Liner 7" Bore PPGD 200PZL456
3 Piston 7"L PPGD 206TBL045A
3 Piston Rubber Kit 7" PPGD TBL77586
3 Liner Gasket PPGD 25AT37
6 Valve Cover Gasket PPGD 204PZL715
6 Valve Spring PPGD 78H44
6 Valve Stem Guided PPNO 060155041
6 Valve Insert PPNO 062400338
6 Valve Seat PPNO 061101507
3 Piston Rod Clamp Type PPGD 200PZL060A













GARDNER DENVER
PZ-11 FLUID END REBUILD KIT
Qty Description Part No.



3 Liner 4.1/2" Bore PPNO 05496450
3 Piston 4.1/2"B PPGD 239TBB045A
3 Piston Rubber Kit 4.1/2"B PPGD TBB76022
OR
3 Liner 5" Bore PPNO 05496500
3 Piston 5"B PPGD 241TBB045A
3 Piston Rubber Kit 5"B PPGD TBB76024
OR
3 Liner 5.1/2" Bore PPGD 203PZL456
3 Piston 5.1/2"B PPGD 243TBB045A
3 Piston Rubber Kit 5.1/2"B PPGD TBB76026
OR
3 Liner 6" Bore PPGD 202PZL456
3 Piston 6"B PPGD 253TBB045A
3 Piston Rubber Kit 6"B PPGD TBB76028
OR
3 Liner 6.1/2" Bore PPGD 201PZL456
3 Piston 6.1/2"L PPGD 204TBL045A
3 Piston Rubber Kit 6.1/2"L PPGD TBL77585
OR
3 Liner 7" Bore PPGD 200PZL456
3 Piston 7"L PPGD 206TBL045A
3 Piston Rubber Kit 7" PPGD TBL77586
3 Liner Gasket PPGD 25AT37
6 Valve Cover Gasket PPGD 204PZL715
6 Valve Spring PPGD 78H44
6 Valve Stem Guided PPNO 060155041
6 Valve Insert PPNO 062400338
6 Valve Seat PPNO 061101507
3 Piston Rod Clamp Type PPGD 200PZL060A













GARDNER DENVER
4X5 FF FXF GD FLUID END REBUILD KIT
Qty Description Part No.



2 LINER PPGD FF45640
2 LINER PACKING PPGD 2FF519
2 HEAD GASKET PPGD 25G29
2 PISTON GD-1 PPGD 205TBA045A
2 PISTON RUBBER KIT PPGD TBA75998
2 PISTON ROD GD-1 PPGD 21FXF183
2 JUNK RING PPGD FF317
2 OILSTOP HEAD WASHER PPGD AF318
2 PACKING STUFFING BOX PPGD 60BH14
8 VALVE COVER GASKET PPGD 25G27
8 VALVE SPRING BRASS PPGD 78D22
4 PACKING LINER SET SCREW PPGD 60BQ1

8
VALVE GRAVEL
PPGD 200FFF482A
8 VALVE GRAVEL INSERT PPGD 200FFF106
8 VALVE SEAT PPGD 202FFF039
OR
8 VALVE STD PPGD FF928
8 VALVE STD INSERT PPGD 1FF452
8 VALVE STD SEAT PPGD 11FF39
OPTIONAL
2 NUT CROSSHEAD PPGD 50B9
5 PLUG DRAIN PPGD 64AU5
4 LINER SET SCREW PPGD 76N8
4 WASHER LINER SET SCREW PPGD 95F7
4 NUT LINER SET SCREW PPGD 50B7C
1 PULLER, LINER PPGD FF284
1 PULLER, SEAT PPGD 201FFF219

















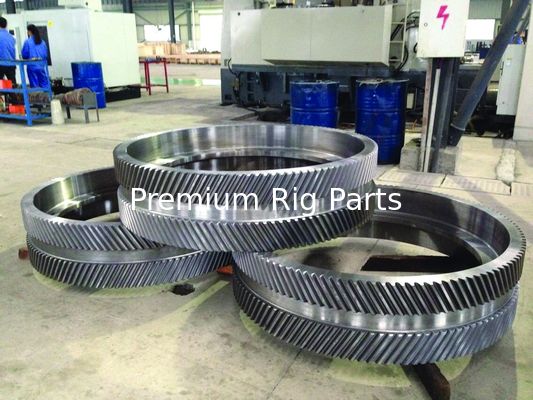

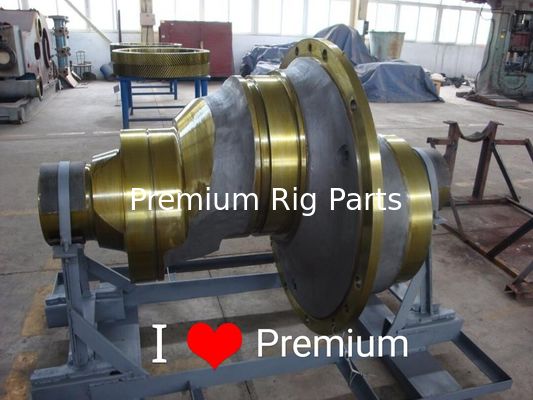

GARDNER DENVER
4X5 FF FXF GEAR END REBUILD KIT
Qty Description Part No.



1 JACKSHAFT PPGD FXF371
1 PINION -GEAR DRIVE PPGD FXF181
1 KEY PPGD 35C46
2 SLEEVE-SHAFT PPGD FXF289
2 SEAL-OIL PPGD 60G3
2 BEARING-JACKSHAFT PPGD 12W1
1 SHIM KIT PPGD 77G14
2 SEAL-OIL PPGD 60G38

1
SHAFT-ECCENTRIC
PPGD 1FXF367
1 KEY PPGD 35C70
1 ECCENTRIC-GEAR PPGD 1FXF255
2 SLEEVE-SHAFT PPGD 15AUX18
2 SEAL-OIL PPGD 60G220
2 BEARING PPGD 12C28
2 ECCENTRIC-BUSHING PPGD 2FXF421
2 CROSSHEAD-BUSHING PPGD AXF229
2 CROSSHEAD PPGD 1FXF175X
2 CROSSHEAD-PIN PPGD FXF189
2 PACKING OIL STOP HEAD PPGD 60BG23
2 WASHER OIL STOP HEAD PPGD AF318
2 OIL STOP HEAD PPGD 2FXF495
2 OIL STOP HEAD GLAND PPGD AXF238
2 PLATE BEARING COVER PPGD FXF366
1 GASKET, HOOD PPGD 2009457
8 SCREW, HOOD PPGD 75A130
1 PLUG PPGD 64AA4
2 BAFFLE, PISTON ROD PPGD 2FXF840
1 KEY, JACKSHAFT PPGD 35B101
4 CROSSHEAD SET SCREW PPGD 76J6
2 SET SCREW PPGD 76U32
2 SET SCREW LOCK NUT PPGD 50F3
4 PIN, SET SCREW PPGD 62A153







GARDNER DENVER
4-1/2X5 GD FLUID END REBUILD KIT
Qty Description Part No.



2 LINER PPGD 200FFF456
2 LINER PACKING PPGD 200FFF519
2 HEAD GASKET PPGD 25G29
2 PISTON GD-1 PPGD 207TBA045A
2 PISTON RUBBER KIT PPGD TBA76000
2 PISTON ROD GD-1 PPGD 21FXF183
2 JUNK RING PPGD FF317
2 OILSTOP HEAD WASHER PPGD AF318
2 PACKING STUFFING BOX PPGD 60BH14
8 VALVE COVER GASKET PPGD 25G27
8 VALVE SPRING BRASS PPGD 78D22
4 PACKING LINER SET SCREW PPGD 60BQ1
1 PULLER, LINER PPGD FF284
1 PULLER, SEAT PPGD 201FFF219A

8
VALVE GRAVEL
PPGD 200FFF482A
8 VALVE GRAVEL INSERT PPGD 200FFF106
8 VALVE SEAT PPGD 202FFF039
OR
8 VALVE STD PPGD FF928
8 VALVE STD INSERT PPGD 1FF452
8 VALVE STD SEAT PPGD 11FF39
OPTIONAL
2 NUT CROSSHEAD PPGD 50B9
5 PLUG DRAIN PPGD 64AU5
4 LINER SET SCREW PPGD 76N8
4 WASHER LINER SET SCREW PPGD 95F7
4 NUT LINER SET SCREW PPGD 50B7C




^-- return to top :: Parts Home




GARDNER DENVER
4-1/2 X 5 FF FXF GEAR END REBUILD KIT
Qty Description Part No.



1 JACKSHAFT PPGD FXF371
1 PINION -GEAR DRIVE PPGD FXF181
1 KEY PPGD 35C46
2 SLEEVE-SHAFT PPGD FXF289
2 SEAL-OIL PPGD 60G3
2 BEARING-JACKSHAFT PPGD 12W1
1 SHIM KIT PPGD 77G14
2 SEAL-OIL PPGD 60G38

1
SHAFT-ECCENTRIC
PPGD 1FXF367
1 KEY PPGD 35C70
1 ECCENTRIC-GEAR PPGD 1FXF255
2 SLEEVE-SHAFT PPGD 15AUX18
2 SEAL-OIL PPGD 60G220
2 BEARING PPGD 12C28
2 ECCENTRIC-BUSHING PPGD 2FXF421
2 CROSSHEAD-BUSHING PPGD AXF229
2 CROSSHEAD PPGD 1FXF175X
2 CROSSHEAD-PIN PPGD FXF189
2 PACKING OIL STOP HEAD PPGD 60BG23
2 WASHER OIL STOP HEAD PPGD AF318
2 OIL STOP HEAD PPGD 2FXF495
2 OIL STOP HEAD GLAND PPGD AXF238
2 PLATE BEARING COVER PPGD FXF366
1 GASKET, HOOD PPGD 2009457
8 SCREW, HOOD PPGD 75A130
1 PLUG PPGD 64AA4
2 BAFFLE, PISTON ROD PPGD 2FXF840
1 KEY, JACKSHAFT PPGD 35B101
2 CROSSHEAD SET SCREW PPGD 76U32
2 SET SCREW LOCK NUT PPGD 50F3
4 PIN, SET SCREW PPGD 62A153
























GARDNER DENVER
4-1/2X6 FG FXG FLUID END REBUILD KIT
Qty Description Part No.



2 LINER PPGD FG45645
2 LINER PACKING PPGD 1FG519
6 PACKING LINER SET SCREW PPGD 60BQ1
2 PISTON API-1 PPGD 217TBA045A
2 PISTON RUBBER KIT PPGD TBA76000
2 PISTON ROD API-1 PPGD 25FXG183
2 PISTON ROD API-1 CHROME PPGD 25FXG183C
2 PISTON ROD BAFFLE PPGD 1FXG840
2 JUNK RING PPGD FG317
2 PACKING STUFFING BOX PPGD 60BH13
8 VALVE COVER GASKET PPGD 25G18
8 VALVE SPRING BRASS PPGD 78D22
8 VALVE GRAVEL PPGD 200FGG482A
8 VALVE GRAVEL INSERT PPGD 200FGG106
8 VALVE SEAT PPGD 200FGG039
OR
8 VALVE STD PPGD 1FG928
8 VALVE STD INSERT PPGD 1FG452
8 VALVE STD SEAT PPGD 11FG39
OPTIONAL
**6 LINER SET SCREW PPGD 76N14
**6 WASHER LINER SET SCREW PPGD 95F7
**6 NUT LINER SET SCREW PPGD 50B7C
**2 NUT PISTON ROD PPGD 50T67
**2 STUFFING BOX PPGD 1FG1538
**2 GASKET STUFFING BOX PPGD 25C658
**2 GLAND STUFFING BOX PPGD FG21
**2 GLAND STUFFING BOX PPGD 200FXG008A
**2 PACKING STUFFING BOX PPGD 60A222
**16 STUD, VALVE COVER PPGD 79L40C
**10 SCREW, CYLINDER HEAD PPGD 655EG09Z
**1 HEAD CYLINDER 5X6 PPGD 1FG41
**1 PULLER, SEAT STANDARD PPGD 1AUX545
**1 PULLER, SEAT GRAVEL PPGD 200FGG219A
**1 PULLER, LINER PPGD FF284




























GARDNER DENVER
4-1/2X6 FG FXG GEAR END REBUILD KIT
Qty Description Part No.



1 JACKSHAFT (STANDARD TYPE) PPGD FXG371
1 JACKSHAFT (MAYHEW TYPE) PPGD 19FXG371
1 PINION -GEAR DRIVE PPGD FXG181
1 KEY PPGD 35C48
2 SLEEVE-SHAFT PPGD FXG289
2 SEAL-OIL PPGD 60G39
2 BEARING-JACKSHAFT PPGD 12W2
5 GASKET PPGD 25C657
2 SEAL-OIL PPGD 60G40
2 JACKSHAFT BEARING PLATE PPGD FXG370
1 SHAFT-ECCENTRIC PPGD 1FXG367
1 KEY PPGD 35C70
1 ECCENTRIC-GEAR PPGD 1FXG255
2 SLEEVE-SHAFT PPGD 16AUX18
2 SEAL-OIL PPGD 60G221
2 BEARING PPGD 12C30
1 SHIM-KIT PPGD 77G16
2 ECCENTRIC-BUSHING PPGD 3FXG421
2 CROSSHEAD-BUSHING PPGD AXG229
2 CROSSHEAD PPGD FXG175X
2 CROSSHEAD-PIN PPGD FXG189
2 PACKING OIL STOP HEAD PPGD 60BG24
2 WASHER OIL STOP HEAD PPGD AG318
2 OIL STOP HEAD PPGD 2FXG495
2 OIL STOP HEAD GLAND PPGD AXG238
2 OIL STOP HEAD GLASKET PPGD 25C656
2 HOUSING BEARING PPGD FXG368
2 PLATE BEARING COVER PPGD FXG366
2 CONNECTING ROD PPGD 1FXG417
8 STUD, OIL STOPHEAD PPGD 79A69
8 NUT, OIL STOPHEAD PPGD 50B5
1 GASKET, HOOD PPGD 2009457
2 BAFFLE, ROD PPGD 1FXG840
2 NUT, CROSSHEAD PPGD 50T67
1 KEY, JACKSHAFT PPGD 35B166
4 FITTING, LUBE PPGD 40E5














GARDNER DENVER
5X6 FG FXG FLUID END REBUILD KIT
Qty Description Part No.



2 LINER PPGD FG45650
2 LINER CHROME PPGD FG45650C
4 LINER PACKING PPGD 25T27
6 PACKING LINER SET SCREW PPGD 60BQ1
2 HEAD GASKET PPGD 25G24
2 PISTON API-1 PPGD 219TBA045A
2 PISTON RUBBER KIT PPGD TBA76002
2 PISTON ROD API-1 PPGD 25FXG183
2 PISTON ROD API-1 CHROME PPGD 25FXG183C
2 PISTON ROD BAFFLE PPGD 1FXG840
2 JUNK RING PPGD FG317
2 PACKING STUFFING BOX PPGD 60BH13
8 VALVE COVER GASKET PPGD 25G18
8 VALVE SPRING BRASS PPGD 78D22

8
VALVE GRAVEL
PPGD 200FGG482A
8 VALVE GRAVEL INSERT PPGD 200FGG106
8 VALVE SEAT PPGD 200FGG039
OR
8 VALVE STD PPGD 1FG928
8 VALVE STD INSERT PPGD 1FG452
8 VALVE STD SEAT PPGD 11FG39
OPTIONAL
**2 LANTERN RING PPGD 1FG445
**2 LINER CLAMP PPGD 2FG217
**6 LINER SET SCREW PPGD 76N14
**6 WASHER LINER SET SCREW PPGD 95F7
**6 NUT LINER SET SCREW PPGD 50B7C
**2 NUT PISTON ROD PPGD 50T67
**2 STUFFING BOX PPGD 1FG1538
**2 GASKET STUFFING BOX PPGD 25C658
**2 GLAND STUFFING BOX PPGD FG21
**2 GLAND STUFFING BOX PPGD 200FXG008A
**2 PACKING STUFFING BOX PPGD 60A222
**16 STUD, VALVE COVER PPGD 79L40C
**10 SCREW, CYLINDER HEAD PPGD 655EG09Z
**1 HEAD CYLINDER 5X6 PPGD 1FG41
**1 PULLER, SEAT STANDARD PPGD 1AUX545
**1 PULLER, SEAT GRAVEL PPGD 200FGG219A
**1 PULLER, LINER PPGD 1FG284






^-- return to top :: Parts Home




GARDNER DENVER
5X6 FG FXG GEAR END REBUILD KIT
Qty Description Part No.



1 JACKSHAFT (STANDARD TYPE) PPGD FXG371
1 JACKSHAFT (MAYHEW TYPE) PPGD 19FXG371
1 PINION-GEAR DRIVE PPGD FXG181
1 KEY PPGD 35C48
2 SLEEVE-SHAFT PPGD FXG289
2 SEAL-OIL PPGD 60G39
2 BEARING-JACKSHAFT PPGD 12W2
5 GASKET PPGD 25C657
2 SEAL-OIL PPGD 60G40
2 JACKSHAFT BEARING PLATE PPGD FXG370
1 SHAFT-ECCENTRIC PPGD 1FXG367
1 KEY PPGD 35C70
1 ECCENTRIC-GEAR PPGD 1FXG255
2 SLEEVE-SHAFT PPGD 16AUX18
2 SEAL-OIL PPGD 60G221
2 BEARING PPGD 12C30
1 SHIM-KIT PPGD 77G16
2 ECCENTRIC-BUSHING PPGD 3FXG421
2 CROSSHEAD-BUSHING PPGD AXG229
2 CROSSHEAD PPGD FXG175X
2 CROSSHEAD-PIN PPGD FXG189
2 PACKING OIL STOP HEAD PPGD 60BG24
2 WASHER OIL STOP HEAD PPGD AG318
2 OIL STOP HEAD PPGD 2FXG495
2 OIL STOP HEAD GLAND PPGD AXG238
2 OIL STOP HEAD GLASKET PPGD 25C656
2 HOUSING BEARING PPGD FXG368
2 PLATE BEARING COVER PPGD FXG366
2 CONNECTING ROD PPGD 1FXG417
8 STUD, OIL STOPHEAD PPGD 79A69
8 NUT, OIL STOPHEAD PPGD 50B5
1 GASKET, HOOD PPGD 2009457
2 BAFFLE, ROD PPGD 1FXG840
2 NUT, CROSSHEAD PPGD 50T67
1 KEY, JACKSHAFT PPGD 35B166
4 FITTING, LUBE PPGD 40E5












GARDNER DENVER
5X8 FD FXX FLUID END REBUILD KIT
Qty Description Part No.



2 Liner PPGD FD45650
2 Liner Chrome PPGD FD45650C
4 Liner Packing PPGD 4EF519
2 Lantern Ring PPGD FC957
2 Head Gasket PPGD 25G12
2 Piston PPGD 202TBB045A
2 Piston Rubber Kit PPGD TBB76011
2 Piston Rod PPGD 5EF183 (5X8)
2 Piston Rod Chrome PPGD 5EF183C (5X8)
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
2 Bushing Gland PPGD 1FD152
8 Valve Cover Gasket PPGD 25G18
8 Valve Spring PPGD 78D22
8 Valve Gravel PPGD 200FGG482A
8 Valve Gravel Insert PPGD 200FGG106
8 Valve Seat PPGD 200FGG039
OR
8 Valve Standard PPGD 1FG928
8 Valve Standard Insert PPGD 1FG452
8 Valve Standard Seat PPGD 11FG39
OPTIONAL
8 Valve Cover PPGD FD147
16 Stud, Valve Cover PPGD 79A559
16 Nut, Valve Cover PPGD 50B13
12 Nut, Cylinder head PPGD 50B10
2 Liner Set Screw PPGD 76W3
2 Nut, Liner Set Screw PPGD 50B12
2 Washer, Liner Set PPGD 95F12
2 Packing, Liner Set PPGD 60BQ6
5 Plug PPGD 64AU5
1 Puller, Seat Stand. PPGD 1AUX545
1 Puller, Seat Gravel PPGD 200FGG219A
1 Puller, Liner PPGD FD284
32 Stud, Flange & Head PPGD 79A183
32 Nut, Flange & Head PPGD 50B8
1 Gasket, Discharge Fla PPGD 25BE4






^-- return to top :: Parts Home




GARDNER DENVER
8" FXX GEAR END REBUILD KIT
Qty Description Part No.



1 Jackshaft PPGD FXX371
1 Pinion PPGD FXX181
1 Key PPGD 35C68
2 Sleeve-Shaft PPGD FXX289
2 Seal-Oil PPGD 60G5
2 Spacer PPGD FXX376
2 Bearing-Jackshaft PPGD 12W4
5 Gasket PPGD 25C973
2 Seal-Oil PPGD 60G19
1 Shaft-Eccentric PPGD 1FXX367
1 Key PPGD 35C68
1 Eccentric-Gear PPGD 1FXX255
2 Sleeve-Shaft PPGD 20AUX18
2 Seal-Oil PPGD 60G7
2 Bearing PPGD 12C33
1 Shim Kit PPGD 77B20
2 Eccentric Bushing PPGD 2FXX421
2 Crosshead Bushing PPGD FXX229
2 Crosshead PPGD FXX175
2 Crosshead Pin PPGD 1FXX189
2 Crosshead Plate Retainer PPGD 1FXX281
4 Screws 1-1/4" Retainer Plate PPGD 75B11
4 Screws 1-1/2" Retainer Plate PPGD 75B13
1 48" Wire PPGD 97A29
2 Packing Oil Stop Head PPGD 60BG26
2 Washer Oil Stop Head PPGD BC318
2 Rod Baffle PPGD 1FXX840
1 Gasket, Hood PPGD 2009457
1 Plate, Inspection PPGD 1PXD237
8 Nut PPGD 50B5
4 Fitting, Lube PPGD 40E5
2 Oil Stop Head PPGD FXX495
4 Stud, Oil Stop Head PPGD 79A69
2 Gland, Oil Stop Head PPGD PXD238
2 Gasket, Oil Stop Head PPGD 25C974
2 Stuffing Box PPGD 2007956
2 Gland Stuffing Box PPGD FD21
2 Gasket Stuffing Box PPGD 25C1737










GARDNER DENVER
5X10 FD FXD FLUID END REBUILD KIT
Qty Description Part No.



2 Liner PPGD FD45650
2 Liner Chrome PPGD FD45650C
4 Liner Packing PPGD 4EF519
2 Lantern Ring PPGD FC957
2 Head Gasket PPGD 25G12
2 Piston PPGD 202TBB045A
2 Piston Rubber Kit PPGD TBB76011
2 Piston Rod PPGD 5FD183 (5X10)
2 Piston Rod Chrome PPGD 5FD183C (5X10)
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
2 Bushing Gland PPGD 1FD152
8 Valve Cover Gasket PPGD 25G18
8 Valve Spring PPGD 78D22
8 Valve Gravel PPGD 200FGG482A
8 Valve Gravel Insert PPGD 200FGG106
8 Valve Seat PPGD 200FGG039
OR
8 Valve Standard PPGD 1FG928
8 Valve Standard Insert PPGD 1FG452
8 Valve Standard Seat PPGD 11FG39
OPTIONAL
8 Valve Cover PPGD FD147
16 Stud, Valve Cover PPGD 79A559
16 Nut, Valve Cover PPGD 50B13
12 Nut, Cylinder head PPGD 50B10
2 Liner Set Screw PPGD 76W3
2 Nut, Liner Set Screw PPGD 50B12
2 Washer, Liner Set PPGD 95F12
2 Packing, Liner Set PPGD 60BQ6
5 Plug PPGD 64AU5
1 Puller, Seat Stand. PPGD 1AUX545
1 Puller, Seat Gravel PPGD 200FGG219A
1 Puller, Liner PPGD FD284
32 Stud, Flange & Head PPGD 79A183
32 Nut, Flange & Head PPGD 50B8
1 Gasket, Discharge Fla PPGD 25BE4







GARDNER DENVER
5-1/2X8 FD FXX FLUID END REBUILD KIT
Qty Description Part No.



2 Liner PPGD FD45655
2 Liner Chrome PPGD FD45655C
4 Liner Packing PPGD 25T32
2 Lantern Ring PPGD FD445
2 Head Gasket PPGD 25G43
2 Piston PPGD 204TBB045A
2 Piston Rubber Kit PPGD TBB76013
2 Piston Rod PPGD 5EF183 (5.1/2X8)
2 Piston Rod Chrome PPGD 5EF183C (5.1/2X8)
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
2 Bushing Gland PPGD 1FD152
8 Valve Cover Gasket PPGD 25G18
8 Valve Spring PPGD 78D22
8 Valve Gravel PPGD 200FGG482A
8 Valve Gravel Insert PPGD 200FGG106
8 Valve Seat PPGD 200FGG039
OR
8 Valve Standard PPGD 1FG928
8 Valve Standard Insert PPGD 1FG452
8 Valve Standard Seat PPGD 11FG39
OPTIONAL
8 Valve Cover PPGD FD147
16 Stud, Valve Cover PPGD 79A559
16 Nut, Valve Cover PPGD 50B13
12 Nut, Cylinder head PPGD 50B10
2 Liner Set Screw PPGD 76W3
2 Nut, Liner Set Screw PPGD 50B12
2 Waher, Liner Set Screw PPGD 95F12
2 Packing, Liner Set Screw PPGD 60BQ6
5 Plug PPGD 64AU5
1 Puller, Seat Standard PPGD 1AUX545
1 Puller, Seat Gravel PPGD 200FGG219A
1 Puller, Liner PPGD FD284
32 Stud, Flange & Head PPGD 79A183
32 Nut, Flange & head PPGD 50B8
1 Gasket, Discharge Flange PPGD 25BE4






^-- return to top :: Parts Home




GARDNER DENVER
8" FXX GEAR END REBUILD KIT
Qty Description Part No.



1 Jackshaft PPGD FXX371
1 Pinion PPGD FXX181
1 Key PPGD 35C68
2 Sleeve-Shaft PPGD FXX289
2 Seal-Oil PPGD 60G5
2 Spacer PPGD FXX376
2 Bearing-Jackshaft PPGD 12W4
5 Gasket PPGD 25C973
2 Seal-Oil PPGD 60G19
1 Shaft-Eccentric PPGD 1FXX367
1 Key PPGD 35C68
1 Eccentric-Gear PPGD 1FXX255
2 Sleeve-Shaft PPGD 20AUX18
2 Seal-Oil PPGD 60G7
2 Bearing PPGD 12C33
1 Shim Kit PPGD 77B20
2 Eccentric Bushing PPGD 2FXX421
2 Crosshead Bushing PPGD FXX229
2 Crosshead PPGD FXX175
2 Crosshead Pin PPGD 1FXX189
2 Crosshead Plate Retainer PPGD 1FXX281
4 Screws 1-1/4" Retainer Plate PPGD 75B11
4 Screws 1-1/2" Retainer Plate PPGD 75B13
1 48" Wire PPGD 97A29
2 Packing Oil Stop Head PPGD 60BG26
2 Washer Oil Stop Head PPGD BC318
2 Rod Baffle PPGD 1FXX840
1 Gasket, Hood PPGD 2009457
1 Plate, Inspection PPGD 1PXD237
8 Nut PPGD 50B5
4 Fitting, Lube PPGD 40E5
2 Oil Stop Head PPGD FXX495
4 Stud, Oil Stop Head PPGD 79A69
2 Gland, Oil Stop Head PPGD PXD238
2 Gasket, Oil Stop Head PPGD 25C974
2 Stuffing Box PPGD 2007956
2 Gland Stuffing Box PPGD FD21
2 Gasket Stuffing Box PPGD 25C1737








GARDNER DENVER
5X10 FC FXD FLUID END REBUILD KIT
Qty Description Part No.



2 Liner Chrome PPGD 1EF45650C
2 Liner PPGD 1EF45650
4 Liner Packing PPGD 4EF519
2 Lantern Ring PPGD FC957
2 Head Gasket PPGD 25T40
2 Piston PPGD 202TBB045A
2 Piston Rubber Kit PPGD TBB76011
2 Piston Rod PPGD 5FD183 (5x10)
2 Piston Rod Chrome PPGD 5FD183C (5X10)
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
8 Valve Cover Gasket PPGD 25AL36
8 Valve Spring PPGD 78D22
8 Valve Standard w/Rubber Insert PPGD 11EF206A
8 Valve Standard Insert PPGD 5EF452
8 Valve Standard Seat PPGD 4PA39






^-- return to top :: Parts Home




GARDNER DENVER
FXD GEAR END REBUILD KIT
Qty Description Part No.



1 Jackshaft PPGD FXD371
2 Sleeve-Shaft PPGD FXD289
2 Seal-Oil PPGD 60G63
2 Spacer PPGD FXD376
2 Bearing-Jackshaft PPGD 12W6
5 Gasket PPGD 25C1085
2 Seal-Oil PPGD 60G221
2 Bearing Housing PPGD FXD368
1 Shaft-Eccentric PPGD FXD367
1 Key PPGD 35C68
1 Eccentric-Gear PPGD FXD255
2 Sleeve-Shaft PPGD 23AUX18
2 Seal-Oil PPGD 60G17
2 Bearing PPGD 12C34
1 Shim Kit PPGD 77B22
2 Eccentric Bushing PPGD 3FXD421
2 Crosshead Bushing PPGD FXD229
2 Crosshead PPGD 200FXE005
2 Crosshead Pin PPGD FXD189
2 Crosshead Plate Retainer PPGD 1FXX281
4 Retainer Plate Screws 1-1/4" PPGD 75B11
4 Retainer Plate Screws 1-1/2" PPGD 75B10
1 48" Wire PPGD 97A29
2 Packing Oil Stop Head PPGD 60BG26
2 Washer Oil Stop Head PPGD BC318
2 Rod Baffle PPGD 1FXX840
1 Gasket, Hood PPGD 2009457
16 Nut PPGD 50B5
4 Fitting, Lube PPGD 40E5
2 Plate, Bearing PPGD 3FXD370
2 Housing, Bearing PPGD 1FXD368
2 Gland Oil Stop Head PPGD PXD495
2 Oil Stop Head PPGD FXD495
4 Stud PPGD 79A69
2 Plate, Bearing Cover PPGD FXD366
2 Connecting Rod PPGD FXD417
2 Stuffing Box PPGD 2007956
2 Gland Stuffing Box PPGD FD21
2 Gasket Stuffing Box PPGD 25C1737








GARDNER DENVER
6X8 FD FXX FLUID END REBUILD KIT
Qty Description Part No.



2 Liner PPGD FD45660
4 Liner Packing PPGD FD45660LP
2 Lantern Ring PPGD FD45660LR
2 Head Gasket PPGD 25G43
2 Piston PPGD 204TBB045A
2 Piston Rubber Kit PPGD TBB76013
2 Piston Rod PPGD 5EF183
2 Piston Rod Chrome PPGD 5EF183C
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
2 Bushing Gland PPGD 1FD152
8 Valve Cover Gasket PPGD 25G18
8 Valve Spring PPGD 78D22
8 Valve Gravel PPGD 200FGG482A
8 Valve Gravel Insert PPGD 200FGG106
8 Valve Seat PPGD 200FGG039
OR
8 Valve Standard PPGD 1FG928
8 Valve Standard Insert PPGD 1FG452
8 Valve Standard Seat PPGD 11FG39
OPTIONAL
8 Valve Cover PPGD FD147
16 Stud, Valve Cover PPGD 79A559
8 Valve Cover PPGD FD147
16 Nut, Valve Cover PPGD 50B13
2 Cylinder head PPGD 4FD41
12 Nut, Cylinder head PPGD 50B10
2 Liner Clamp PPGD FD45660-L-CLAMP
2 Liner Set Screw PPGD 76W3
2 Nut, Liner Set Screw PPGD 50B12
2 Waher, Liner Set Screw PPGD 95F12
2 Packing, Liner Set Screw PPGD 60BQ6
5 Plug PPGD 64AU5
1 Puller, Seat Standard PPGD 1AUX545
1 Puller, Seat Gravel PPGD 200FGG219A
1 Puller, Liner PPGD FD284
32 Stud, Flange & Head PPGD 79A183
32 Nut, Flange & head PPGD 50B8
1 Gasket, Discharge Flange PPGD 25BE4






^-- return to top :: Parts Home




GARDNER DENVER
8" FXX GEAR END REBUILD KIT
Qty Description Part No.



1 Jackshaft PPGD FXX371
1 Pinion PPGD FXX181
1 Key PPGD 35C68
2 Sleeve-Shaft PPGD FXX289
2 Seal-Oil PPGD 60G5
2 Spacer PPGD FXX376
2 Bearing-Jackshaft PPGD 12W4
5 Gasket PPGD 25C973
2 Seal-Oil PPGD 60G19
1 Shaft-Eccentric PPGD 1FXX367
1 Key PPGD 35C68
1 Eccentric-Gear PPGD 1FXX255
2 Sleeve-Shaft PPGD 20AUX18
2 Seal-Oil PPGD 60G7
2 Bearing PPGD 12C33
1 Shim Kit PPGD 77B20
2 Eccentric Bushing PPGD 2FXX421
2 Crosshead Bushing PPGD FXX229
2 Crosshead PPGD FXX175
2 Crosshead Pin PPGD 1FXX189
2 Crosshead Plate Retainer PPGD 1FXX281
4 Screws 1-1/4" Retainer Plate PPGD 75B11
4 Screws 1-1/2" Retainer Plate PPGD 75B13
1 48" Wire PPGD 97A29
2 Packing Oil Stop Head PPGD 60BG26
2 Washer Oil Stop Head PPGD BC318
2 Rod Baffle PPGD 1FXX840
1 Gasket, Hood PPGD 2009457
1 Plate, Inspection PPGD 1PXD237
8 Nut PPGD 50B5
4 Fitting, Lube PPGD 40E5
2 Oil Stop Head PPGD FXX495
4 Stud, Oil Stop Head PPGD 79A69
2 Gland, Oil Stop Head PPGD PXD238
2 Gasket, Oil Stop Head PPGD 25C974
2 Stuffing Box PPGD 2007956
2 Gland Stuffing Box PPGD FD21
2 Gasket Stuffing Box PPGD 25C1737








GARDNER DENVER
6X10 FD FXD FLUID END REBUILD KIT
Qty Description Part No.



2 Liner PPGD FD45660
4 Liner Packing PPGD FD45660LP
2 Lantern Ring PPGD FD45660LR
2 Head Gasket PPGD 25G43
2 Piston PPGD 204TBB045A
2 Piston Rubber Kit PPGD TBB76013
2 Piston Rod PPGD 5FD183
2 Piston Rod Chrome PPGD 5FD183C
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
2 Bushing Gland PPGD 1FD152
8 Valve Cover Gasket PPGD 25G18
8 Valve Spring PPGD 78D22
8 Valve Gravel PPGD 200FGG482A
8 Valve Gravel Insert PPGD 200FGG106
8 Valve Seat PPGD 200FGG039
OR
8 Valve Standard PPGD 1FG928
8 Valve Standard Insert PPGD 1FG452
8 Valve Standard Seat PPGD 11FG39
OPTIONAL
2 Valve Cover PPGD FD152
16 Stud, Valve Cover PPGD 79A559
8 Valve Cover PPGD FD147
16 Nut, Valve Cover PPGD 50B13
2 Cylinder head PPGD 4FD41
12 Nut, Cylinder head PPGD 50B10
2 Liner Clamp PPGD FD45660-L-CLAMP
2 Liner Set Screw PPGD 76W3
2 Nut, Liner Set Screw PPGD 50B12
2 Waher, Liner Set Screw PPGD 95F12
2 Packing, Liner Set Screw PPGD 60BQ6
5 Plug PPGD 64AU5
1 Puller, Seat Standard PPGD 1AUX545
1 Puller, Seat Gravel PPGD 200FGG219A
1 Puller, Liner PPGD FD284
32 Stud, Flange & Head PPGD 79A183
32 Nut, Flange & head PPGD 50B8
1 Gasket, Discharge Flange PPGD 25BE4






^-- return to top :: Parts Home




GARDNER DENVER
FXD GEAR END REBUILD KIT
Qty Description Part No.



1 Jackshaft PPGD FXD371
2 Sleeve-Shaft PPGD FXD289
2 Seal-Oil PPGD 60G63
2 Spacer PPGD FXD376
2 Bearing-Jackshaft PPGD 12W6
5 Gasket PPGD 25C1085
2 Seal-Oil PPGD 60G221
2 Bearing Housing PPGD FXD368
1 Shaft-Eccentric PPGD FXD367
1 Key PPGD 35C68
1 Eccentric-Gear PPGD FXD255
2 Sleeve-Shaft PPGD 23AUX18
2 Seal-Oil PPGD 60G17
2 Bearing PPGD 12C34
1 Shim Kit PPGD 77B22
2 Eccentric Bushing PPGD 3FXD421
2 Crosshead Bushing PPGD FXD229
2 Crosshead PPGD 200FXE005
2 Crosshead Pin PPGD FXD189
2 Crosshead Plate Retainer PPGD 1FXX281
4 Retainer Plate Screws 1-1/4" PPGD 75B11
4 Retainer Plate Screws 1-1/2" PPGD 75B10
1 48" Wire PPGD 97A29
2 Packing Oil Stop Head PPGD 60BG26
2 Washer Oil Stop Head PPGD BC318
2 Rod Baffle PPGD 1FXX840
1 Gasket, Hood PPGD 2009457
16 Nut PPGD 50B5
4 Fitting, Lube PPGD 40E5
2 Plate, Bearing PPGD 3FXD370
2 Housing, Bearing PPGD 1FXD368
2 Gland Oil Stop Head PPGD PXD495
2 Oil Stop Head PPGD FXD495
4 Stud PPGD 79A69
2 Plate, Bearing Cover PPGD FXD366
2 Connecting Rod PPGD FXD417
2 Stuffing Box PPGD 2007956
2 Gland Stuffing Box PPGD FD21
2 Gasket Stuffing Box PPGD 25C1737








GARDNER DENVER
5X8 FC FXX FLUID END REBUILD KIT
Qty Description Part No.



2 Liner Chrome PPGD 1EF45650C
2 Liner PPGD 1EF45650
4 Liner Packing PPGD 4EF519
2 Lantern Ring PPGD FC957
2 Head Gasket PPGD 25T40
2 Piston PPGD 202TBB045A
2 Piston Rubber Kit PPGD TBB76011
2 Piston Rod PPGD 5EF183
2 Piston Rod Chrome PPGD 5EF183C (5X8)
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
8 Valve Cover Gasket PPGD 25AL36
8 Valve Spring PPGD 78D22
8 Valve Standard w/Rubber Insert PPGD 11EF206A
8 Valve Standard Insert PPGD 5EF452
8 Valve Standard Seat PPGD 4PA39






^-- return to top :: Parts Home




GARDNER DENVER
8" FXX GEAR END REBUILD KIT
Qty Description Part No.



1 Jackshaft PPGD FXX371
1 Pinion PPGD FXX181
1 Key PPGD 35C68
2 Sleeve-Shaft PPGD FXX289
2 Seal-Oil PPGD 60G5
2 Spacer PPGD FXX376
2 Bearing-Jackshaft PPGD 12W4
5 Gasket PPGD 25C973
2 Seal-Oil PPGD 60G19
1 Shaft-Eccentric PPGD 1FXX367
1 Key PPGD 35C68
1 Eccentric-Gear PPGD 1FXX255
2 Sleeve-Shaft PPGD 20AUX18
2 Seal-Oil PPGD 60G7
2 Bearing PPGD 12C33
1 Shim Kit PPGD 77B20
2 Eccentric Bushing PPGD 2FXX421
2 Crosshead Bushing PPGD FXX229
2 Crosshead PPGD FXX175
2 Crosshead Pin PPGD 1FXX189
2 Crosshead Plate Retainer PPGD 1FXX281
4 Screws 1-1/4" Retainer Plate PPGD 75B11
4 Screws 1-1/2" Retainer Plate PPGD 75B13
1 48" Wire PPGD 97A29
2 Packing Oil Stop Head PPGD 60BG26
2 Washer Oil Stop Head PPGD BC318
2 Rod Baffle PPGD 1FXX840
1 Gasket, Hood PPGD 2009457
1 Plate, Inspection PPGD 1PXD237
8 Nut PPGD 50B5
4 Fitting, Lube PPGD 40E5
2 Oil Stop Head PPGD FXX495
4 Stud, Oil Stop Head PPGD 79A69
2 Gland, Oil Stop Head PPGD PXD238
2 Gasket, Oil Stop Head PPGD 25C974
2 Stuffing Box PPGD 2007956
2 Gland Stuffing Box PPGD FD21
2 Gasket Stuffing Box PPGD 25C1737






Gardner Denver 5.5" x 10" FD FXD Mud Pump

Replacement parts for the Gardner Denver 5.5" x 10" FD FXD mud pump.

· Download the service manual

Fluid End Rebuild Kit

  Gardner Denver 5.5" x 10" FD FXD Fluid End Rebuild Kit
Qty. Description Part No.
2 Liner PPGD FD45655
2 Liner Chrome PPGD FD45655C
4 Liner Packing PPGD 25T32
2 Lantern Ring PPGD FD445
2 Head Gasket PPGD 25G43
2 Piston PPGD 204TBB045A
2 Piston Rubber Kit PPGD TBB76013
2 Piston Rod PPGD 5FD183
2 Piston Rod Chrome PPGD 5FD183C
2 Junk Ring PPGD BC317
2 Packing PPGD 60BH2
2 Bushing Gland PPGD 1FD152



Fluid End Valves, Seats and Springs

  Gardner Denver 5.5" x 10" FD FXD Fluid End Valves, Seats and Springs
Qty. Description Part No.
8 Valve Cover Gasket PPGD 25G18
8 Valve Spring PPGD 78D22
8 Spring SS PPGD 78A171SS
8 Spring Steel PPGD 78A171ST

8 Valve Gravel PPGD 200FGG482A
8 Valve Gravel Insert PPGD 200FGG106
8 Valve Seat PPGD 200FGG039
OR
8 Valve Standard PPGD 1FG928
8 Valve Standard Insert PPGD 1FG452
8 Valve Standard Seat PPGD 11FG39
OR
8 Seat Valve PPGD 200FDD039
8 Valve-Ball PPGD 200FDD481
8 Cover-Valve PPGD 200FDD147A

Fluid End Stuffing Box

  Gardner Denver 5.5" x 10" FD FXD Fluid End Stuffing Box
Qty. Description Part No.
4 Stud, Stuffing Box PPGD 79A183
4 Nut, Stuffing Box Stud PPGD 50B8
2 ASM, Stuffing Box PPGD 2007956
2 Packing, Braided Asbestos PPGD 60BG13
2 Packing, Oil Res Molded Convex PPGD 60BH2
2 Packing, Molded Rubber & Duck PPGD 60DA415
2 Ring-Junk PPGD BC317
2 Gasket PPGD 25C1737
2 Bushing-Gland PPGD 1FD152
2 Gland, Stuffing Box PPGD FD21
2 ASM Gland PPGD 200FXX008A
2 Packing-Ring PPGD 60DD75
2 Nut PPGD 200FXX086

Fluid End Cylinder

  Gardner Denver 5.5" x 10" FD FXD Fluid End Cylinder
Qty. Description Part No.
1 ASM Fluid Cylinder PPGD 6FD29B
12 Stud, Cylinder to Frame PPGD 79L92
12 Nut, Cylinder to Frame Stud PPGD 50B10
16 Stud, Valve Cover PPGD 79A559
16 Nut, Valve Cover Stud PPGD 50B13
8 Stud, Discharge Flange PPGD 79A183
8 Nut, Discharge Flange Stud PPGD 50B8
24 Stud, Cylinder Head PPGD 79A183
24 Nut, Cylinder Head Stud PPGD 50B8
8 Stud, Suction Flange PPGD 79A183
8 Nut, Suction Flange Stud PPGD 50B8
1 Flange, Discharge PPGD 64DA5
1 Gasket, Discharge Flange PPGD 25G4
2 Head Cylinder PPGD 4FD41
2 Gasket, Cylinder Head PPGD 25G43
2 Clamp Liner PPGD 3FD217
4 Sleeve Liner PPGD 25T32
2 Spacer Liner PPGD FD445
2 Set Screw, Liner PPGD 76W3
2 Nut, Liner Set Screw PPGD 50B12
2 Washer, Liner Set Screw PPGD 95F12
2 Packing, Liner Set Screw PPGD 60BQ6
1 Flange, Suction PPGD FD77
1 Gasket, Suction Flange PPGD 25C320
5 Plug, Cylinder Cleanout PPGD 64AU5
8 Valve Cover PPGD FD147

· back to top



Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 5.5" x 10" FD FXD Fluid End Optional Liners, Pistons, Piston Rubber Kits
Qty. Description Part No.
2 Liner 5.5" x 10" 5.5" Bore PPGD FD45655
2 Piston 5.5" B API-3 PPGD 204TBB045A
2 Piston Rubber Kit 5.5" B PPGD TBB76013
2 Liner 5.5" x 10" 5" Bore PPGD 1FD45650
2 Piston 5" B API-3 PPGD 202TBB045A
2 Piston Rubber Kit 5" B PPGD TBB76011
2 Liner 4.5" Bore for 5.5" x 10" PPGD 2FD45645
2 Piston 4.5" B API-3 PPGD 200TBB045A
2 Piston Rubber Kit 4.5" B PPGD TBB76009
2 Liner 5.5" x 10" 4" Bore PPGD 1FD45640
2 Piston 4" K API-3 PPGD 221TBK045A
2 Piston Rubber Kit 4" K PPGD TBK90423
2 Liner 3.5" Bore PPGD 200FDD456
2 Piston 3.5" K API-3 PPGD 220TBK045A
2 Piston Rubber Kit 3.5" K PPGD TBK90422

· back to top



Gear End Pullers

  Gardner Denver 5.5" x 10" FD FXD Gear End Pullers
Qty. Description Part No.
1 Puller, Seat Standard PPGD 1AUX545
1 Puller, Seat Gravel PPGD 200FGG219A
1 Puller, Liner PPGD FD284

· back to top



Oil Stop Head

  Gardner Denver 5.5" x 10" FD FXD聽Oil Stop Head
Qty. Description Part No.
2 Oil Stop Head PPGD FXD495
4 Stud, Oil Stop Head PPGD 79A69
4 Nut, Oil Stop Head Stud PPGD 50B5
2 Gland, Oil Stop Head PPGD PXD238
2 Packing, Oil Stop Head PPGD 60BG26
2 Washer, Oil Stop Head PPGD BC318
2 Gasket, Oil Stop Head PPGD 25C974

· back to top



Gear End JackShaft

  Gardner Denver 5.5" x 10" FD FXD Gear End JackShaft
Qty. Description Part No.
1 JackShaft PPGD聽FXD371
2 Sleeve鈥怱haft PPGD聽FXD289
2 Seal鈥怬il,聽Bearing聽Housing PPGD聽60G63
4 Spacer,聽Bearing PPGD聽FXD376
2 Bearing,聽JackShaft PPGD聽12W6
2 Housing鈥怋earing PPGD聽1FXD368
2 Spacer鈥怋earing PPGD聽FXD376
4 Gasket,聽Housing聽&聽Retaining聽Plate PPGD聽25C1085
2 Plate鈥怋earing聽Retaining PPGD聽3FXD370
12 Screw,聽Housing聽&聽Retaining聽Plate PPGD聽75A43
4 Screw,聽Shaft聽Extension Cover PPGD聽75A192
1 Cover鈥怱haft聽Extension PPGD聽200FXD490
1 Key,聽JackShaft PPGD聽35B167
2 Seal鈥怬il,聽Bearing聽Retaining聽Plate PPGD聽60G221
2 Fitting鈥怢ube PPGD聽40E5

· back to top



Gear End Eccentric聽Shaft

  Gardner Denver 5.5" x 10" FD FXD Gear End Eccentric聽Shaft
Qty. Description Part No.
1 Shaft鈥怑ccentric PPGD聽FXD367
1 Key,聽Eccentric聽Shaft PPGD聽35C68
1 Eccentric PPGD聽FXD255
2 Sleeve鈥怱haft PPGD聽23AUX18
2 Seal鈥怬il PPGD聽60G17
2 Bearing,聽Eccentric聽Shaft PPGD聽12C34
2 Shim,聽Bearing聽Cover聽Plate PPGD聽77B22
12 Screw,聽Bearing聽Cover聽Plate PPGD聽75A18
2 Plate鈥怋earing聽Cover PPGD聽FXD366
1 Gasket,聽Bearing聽Cover聽Plate PPGD聽25C1084
2 Fitting鈥怢ube,聽Bearing聽CVR聽Plate PPGD聽40E5

· back to top



Gear End Connecting Rod Crosshead

  Gardner Denver 5.5" x 10" FD FXD Gear End Connecting Rod Crosshead
Qty. Description Part No.
2 ASM聽Connecting聽Rod PPGD聽FXD417
2 Bushing聽(Eccentric聽End) PPGD聽FXD421
2 Bushing聽(Crosshead聽End) PPGD聽FXD229
2 Crosshead PPGD聽FXD175
2 Pin鈥怌rosshead PPGD聽FXD189
2 Plate鈥怰etainer PPGD聽FXD281
4 Screw (1.25"聽LG)聽Retainer聽Plate PPGD聽75B11
4 Screw聽1.5"聽Retainer聽Plate PPGD聽75B10
48" Wire PPGD聽97A29

· back to top



Gear End Frame

  Gardner Denver 5.5" x 10" FD FXD Gear End Frame
Qty. Description Part No.
1 ASM聽Frame PPGD聽FXD172A
2 Plug鈥怱QHD聽Pipe,聽Oil聽Drain PPGD聽64A6
2 Elbow鈥怭ipe聽Street,聽Oil聽Level PPGD聽64D4
2 Plug鈥怱QHD聽Pipe,聽Oil聽Level PPGD聽64AA4
1 Hood PPGD聽200FXD053
110" Gasket,聽Hood PPGD聽2009457
12 Screw,聽Hood PPGD聽75AA1
1 Cover鈥怓iller PPGD聽FXX880
2 Plug鈥怱QHD聽Pipe,聽Crosshead Oil PPGD聽64AA5
4 Stud,聽Crosshead聽Inspect聽Plate PPGD聽79A6
4 Nut,聽Crosshead聽Insp.聽Pl.聽Stud PPGD聽50B5
2 Plate鈥怚nspection PPGD聽200FXD052
2 Gasket,聽Crosshead聽INS.聽Plate PPGD聽25C1083
4 Screw,聽Crosshead聽Ins.聽Plate PPGD聽75AA1
4 Stud,聽Plate聽Inspection PPGD聽79A438
4 Nut,聽Plate聽Inspection聽Stud PPGD聽50B5



Gardner Denver 7.5” x 8” FY FXX Mud Pump

Replacement parts for the 7.5" x 8" FY FXX mud pump.

· Download the service manual

Fluid End Rebuild Kit

  Gardner Denver 7.5” x 8” FY FXX Fluid End Rebuild Kit
Qty. Description Part No.
2 Liner PPGD FY45675
4 Liner Packing PPGD 3EN519
2 Lantern Ring PPGD EN957
2 Head Gasket PPGD 25G8
2 Piston PPGD 212TBB045A
2 Piston Rubber Kit PPGD TBB76021
2 Piston Rod PPGD FXX183
2 Piston Rod Chrome PPGD 5FXX183
2 Junk Ring PPGD BC317
2 Gland Bushing PPGD 1FD152
2 Packing PPGD 60BH2



Fluid End Valves, Seats and Springs

  Gardner Denver 7.5” x 8” FY FXX Fluid End Valves, Seats and Springs
Qty. Description Part No.
8 Valve Cover Gasket PPGD 25G32
8 Valve Spring PPGD 78A139

8 Valve Gravel PPGD 200FYY482A
8 Valve Gravel Insert PPGD 200FYY106
8 Valve Seat PPGD 200FYY039
OR
8 Valve Stem Guided PPGD 202PZL482B
8 Valve Stem Guided Insert PPGD 202PZL106
8 Valve Seat Stem Guided PPGD 201FYY039

Fluid End Stuffing Box

  Fluid End Stuffing Box
Qty. Description Part No.
4 Stud, Stuffing Box Gland PPGD 79A183
4 Nut, Stuffing Box Gland Stud PPGD 50B8
2 Gland, Stuffing Box PPGD FD21
2 ASM Stuffing Box PPGD 2007956
2 Packing, Braided Asbestos PPGD 60BG13
2 Packing, Oil Resistant PPGD 60BH2
2 Packing, Molded Rubber & Duck PPGD 60DA415
2 Ring-Junk, Stuffing Box PPGD BC317
2 Gasket, Stuffing Box PPGD 25C1737
2 Bushing-Gland PPGD 1FD152

· back to top



Fluid End Cylinder

  Fluid End Cylinder
Qty. Description Part No.
1 ASM Fluid Cylinder PPGD 200FYY029B
12 Stud, Cylinder to Frame PPGD 79A557
12 Nut, Cylinder to Frame Stud PPGD 50B10
32 Stud, Valve Cover PPGD 79A92
32 Stud, Valve Cover Stainless PPGD 79A92SS
32 Nut, Valve Cover Stud PPGD 50B9
16 Stud, Discharge Manifold PPGD 79L4
16 Nut, Discharge Manifold Stud PPGD 50B8
18 Stud, Cylinder Head PPGD 79A183
18 Nut, Cylinder Head Stud PPGD 50B8
2 Head-Cylinder PPGD FY41
2 Gasket, Cylinder Head PPGD 25G8
6 Set Screw, Liner Clamp PPGD 1FY207
6 Nut, Liner Clamp Set Screw PPGD 50B9
6 Packing, Liner Clamp Set Screw PPGD 60BQ3
6 Washer, Liner Clamp Set Screw PPGD 95F9
2 Clamp-Liner PPGD F0217
4 Sleeve, Liner PPGD 3EN519
2 Spacer, Liner Sleeve PPGD EN957
1 Manifold-Suction PPGD 200FYY069
16 Screw, Suction Man. to Cylinder PPGD 75A74
2 Gasket, Suction Man. to Cylinder PPGD 25BC105
1 Flange, Suction Manifold PPGD 64EB131
12 Screw, Suction Man. Flange PPGD 75A150
12 Nut, Suction Man. Flange Screw PPGD 50B9
1 Gasket, Suction Man. Flange PPGD 25C1154N
1 Discharge Manifold PPGD 2F0280
8 Stud, Discharge Man. Flange PPGD 79L4
8 Nut, Disch. Man. Flange Stud PPGD 50B8
1 Flange, Discharge Manifold PPGD 64DA12
1 Gasket, Discharge Man. Flange PPGD 25T34
1 Plug, SQHD Pipe Discharge Man. PPGD 64AA5
1 Gasket, Discharge Man. to Cyl. PPGD 25T34
2 Liner Clamp PPGD FO217
6 Plug, Cylinder Priming & Drain PPGD 64AU5

· back to top



Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 7.5” x 8” FY FXX Fluid End Optional Liners, Pistons, Piston Rubber Kits
Qty. Description Part No.
2 Liner 7.5 x 8" - 7.5" Bore PPGD FY45675
2 Piston 7.5" Bore API-3 PPGD 212TBB045A
2 Piston Rubber Kit 7.5" Bore PPGD TBB76021
2 Liner 7.5 x 8" - 7.25" Bore PPGD FZ45672
2 Piston 7.25" Bore API-3 PPGD 211TBB045A
2 Piston Rubber Kit 7.25" Bore PPGD TBB76020
2 Liner 7.5 x 8" - 7" Bore PPGD FZ45670
2 Piston 7" Bore API-3 PPGD 210TBB045A
2 Piston Rubber Kit 7" Bore PPGD TBB76019
2 Liner 7.5 x 8" - 6.75" Bore PPGD FZ45667
2 Piston 6.75" Bore API-3 PPGD 209TBB045A
2 Piston Rubber Kit 6.75" Bore PPGD TBB76018
2 Liner 7.5 x 8" - 6.5" Bore PPGD FZ45665
2 Piston 6.5" Bore API-3 PPGD 208TBB045A
2 Piston Rubber Kit 6.5" Bore PPGD TBB76017
2 Liner 7.5 x 8" - 6" Bore PPGD FZ45660
2 Piston 6" Bore API-3 PPGD 206TBB045A
2 Piston Rubber Kit 6" Bore PPGD TBB76015
2 Liner 7.5 x 8" - 5.5" Bore PPGD FX45655
2 Piston 5.5" Bore API-3 PPGD 204TBB045A
2 Piston Rubber Kit 5.5" Bore PPGD TBB76013
2 Liner 7.5 x 8 5" Bore PPGD FZ45650
2 Piston 5" Bore API-3 PPGD 202TBB045A
2 Piston Rubber Kit 5" Bore PPGD TBB76011
2 Liner 4.5" Bore for 7.5" x 8" FY PPGD FZ45645
2 Piston 4.5" Bore API-3 PPGD 200TBB045A
2 Piston Rubber Kit 4.5"Bore PPGD TBB76009
2 Liner 7.5" x 8" FY 4" Bore PPGD FZ45640
2 Piston 4" Kit API-3 PPGD 221TBK045A
2 Piston Rubber Kit 4" Kit PPGD TBK90423

· back to top



Gear End Oil Stop Head 2 Bolt

  Gardner Denver 7.5” x 8” FY FXX Gear End Oil Stop Head 2 Bolt
Qty. Description Part No.
2 Oil Stop Head PPGD FXX495
4 Stud, Oil Stop Head PPGD 79A69
4 Nut, Oil Stop Head Stud PPGD 50B5
2 Gland, Oil Stop Head PPGD PXD238
2 Packing, Oil Stop Head PPGD 60BG26
2 Washer, Oil Stop Head PPGD BC318
2 Gasket, Oil Stop Head PPGD 25C974

· back to top



Gear End Oil Stop Head 4 Bolt

  Gardner Denver 7.5” x 8” FY FXX Gear End Oil Stop Head 4 Bolt
Qty. Description Part No.
2 Oil Stop Head PPGD 200FXX051A
4 Plate‐Retaining PPGD 201FXX168
8 Screw‐Hex Cap PPGD 75A54
2 Gland PPGD PXD238
4 Nut‐Hex PPGD 50B5
4 Stud PPGD 79A69
2 Packing PPGD 60BG26
2 Ring‐Junk PPGD BC318
8 Gasket‐Ring PPGD 25F9
2 Gasket PPGD 25BC177

· back to top



Gear End Jackshaft

  Gardner Denver 7.5” x 8” FY FXX Gear End Jackshaft
Qty. Description Part No.
1 ASM JackShaft PPGD FXX374
1 JackShaft PPGD FXX371
1 Key, JackShaft to Gear PPGD 35C56
1 Gear‐Driver PPGD FXX181
2 Sleeve‐Shaft PPGD FXX289
2 Seal‐Oil, Bearing Housing PPGD 60G5
2 Spacer, Bearing PPGD FXX376
2 Bearing, JackShaft PPGD 12W4
2 Housing‐Bearing PPGD 1FXX368
4 Gasket, Housing & Retain Plate PPGD 25C973
2 Plate‐Bearing Retaining PPGD 4FXX370
12 Screw, Housing & Retain Plate PPGD 655EF070
4 Screw, Shaft Extension Cover PPGD 75A5
1 Cover‐Shaft Extension PPGD 200FXX490
1 Key, JackShaft PPGD 35B99
2 Seal‐Oil, Bearing Retaining Plate PPGD 60G19
2 Fitting Lube PPGD 40E5

· back to top



Gear End Eccentric Shaft

  Gardner Denver 7.5” x 8” FY FXX Gear End Eccentric Shaft
Qty. Description Part No.
1 Shaft‐Eccentric PPGD 1FXX367
1 Key, Eccentric Shaft PPGD 35C68
1 Eccentric PPGD 1FXX255
2 Sleeve‐Shaft PPGD 20AUX18
2 Seal‐Oil PPGD 60G7
2 Bearing, Eccentric Shaft PPGD 12C33
2 Shim, Bearing Cover Plate PPGD 77B20
12 Screw, Bearing Cover Plate PPGD 75A18
2 Plate‐Bearing Cover PPGD FXX366
1 Gasket, Bearing Cover Plate PPGD 25C973
2 Fitting-Lube, Bearing CVR Plate PPGD 40E5

· back to top



Connecting Rod CrossHead

  Gardner Denver 7.5” x 8” FY FXX Connecting Rod CrossHead
Qty. Description Part No.
2 ASM Connecting Rod PPGD 2FXX417
2 Bushing (Eccentric End) PPGD 2FXX421
2 Bushing (CrossHead End) PPGD FXX229
2 CrossHead PPGD FXX175
2 Plate‐Retainer PPGD 1FXX281
4 Screw(1.25" LG.) Retainer Plate PPGD 75B11
  Screw 1" LG Retainer Plate PPGD 75B13
48 Wire PPGD 97A29

· back to top



Gear End Frame

  Gardner Denver 7.5” x 8” FY FXX Gear End Frame
Qty. Description Part No.
1 ASM Frame PPGD 200FXX001A
1 Plug‐SQHD Pipe, Oil Drain PPGD 64A5
1 Elbow‐Pipe Street, Oil Level PPGD 64D4
1 Plug‐SQHD Pipe, Oil Level PPGD 64AA4
1 Hood PPGD 200FXX053
96 Gasket, Hood PPGD 2009457
12 Screw, Hood PPGD 75AA1
1 Cover‐Filler PPGD FXX880
2 Plug‐SQHD Pipe, CrossHead PPGD 64AA7
4 Stud, CrossHead INSPECT. Plate PPGD 79A6
4 Nut, CrossHead INSP. PL. Stud PPGD 50B5
2 Plate‐Inspection, CrossHead PPGD FXX723
2 Gasket, CrossHead INS. Plate PPGD 25C1180
4 Screw, CrossHead INS. Plate PPGD 75A4
1 Stud, Plate Inspection PPGD 79A338
1 Nut, Plate Inspection Stud PPGD 50B3
1 Plate‐Inspection PPGD 1PXD237
1 Manifold‐Water PPGD 1FXX315
2 Screw, Water Manifold PPGD 75A5
2 Valve‐Angle PPGD 90F4
2 Nipple‐Pipe PPGD 63D9
2 Nipple‐Pipe PPGD 63D14
2 Baffle, Piston Rod PPGD 1FXX840





Gardner Denver 7.5" x 10" FY FXD Mud Pump

Replacement parts for the Gardner Denver 7.5" x 10" FY FXD mud pump.

· Download the service manual

Fluid End Rebuild Kit

  Gardner Denver 7.5" x 10" FY FXD Fluid End Rebuild Kit
Qty. Description Part No.
2 Liner PPGD FY45675
4 Liner Packing PPGD 3EN519
2 Lantern Ring PPGD EN957
2 Head Gasket PPGD 25G8
2 Piston PPGD 212TBB045A
2 Piston Rubber Kit PPGD TBB76021
2 Piston Rod PPGD FY183
2 Piston Rod Chrome PPGD FY183C
2 Junk Ring PPGD BC317
2 Gland Bushing PPGD 1FD152
2 Packing PPGD 60BH2

Fluid End Valves, Seats and Springs

  Gardner Denver 7.5" x 10" FY FXD Fluid End Valves, Seats and Springs
Qty. Description Part No.
8 Valve Cover Gasket PPGD 25G32
8 Valve Spring PPGD 78A139
聽
8 Valve Gravel PPGD 200FYY482A
8 Valve Gravel Insert PPGD 200FYY106
8 Valve Seat PPGD 200FYY039
OR
8 Valve Stem Guided PPGD 202PZL482B
8 Valve Stem Guided Insert PPGD 202PZL106
8 Valve Seat Stem Guided PPGD 201FYY039

Fluid End Stuffing Box

  Gardner Denver 7.5" x 10" FY FXD Fluid End Stuffing Box
Qty. Description Part No.
4 Stud, Stuffing Box Gland PPGD 79L11
4 Nut, Stuffing Box Gland Stud PPGD 50B9
2 Gland, Stuffing Box PPGD 1FC21
2 ASM Stuffing Box PPGD 16FC14B
2 Packing, Braided Asbestos PPGD 60BG13
2 Packing, Oil Resistant PPGD 60BH2
2 Packing, Molded Rubber & Duck PPGD 60DA415
2 Ring-Junk, Stuffing Box PPGD BC317
2 Gasket, Stuffing Box PPGD 25AL35
2 Bushing-Gland PPGD 1FD152

Fluid End Cylinder

  Gardner Denver 7.5" x 10" FY FXD Fluid End Cylinder
Qty. Description Part No.
1 ASM Fluid Cylinder PPGD 200FYY029B
1 ASM Fluid Cylinder PPGD 201FYY029B
12 Stud, Cylinder to Frame PPGD 79A557
12 Nut, Cylinder to Frame Stud PPGD 50B10
32 Stud, Valve Cover PPGD 79A92
32 Stud, Valve Cover Stainless PPGD 79A92SS
32 Nut, Valve Cover Stud PPGD 50B9
16 Stud, Discharge Manifold PPGD 79L4
16 Nut, Discharge Manifold Stud PPGD 50B8
18 Stud, Cylinder Head PPGD 79A183
18 Nut, Cylinder Head Stud PPGD 50B8
2 Head-Cylinder PPGD FY41
2 Gasket, Cylinder Head PPGD 25G8
6 Set Screw, Liner Clamp PPGD 1FY207
6 Nut, Liner Clamp Set Screw PPGD 50B9
6 Packing, Liner Clamp Set Screw PPGD 60BQ3
6 Washer, Liner Clamp Set Screw PPGD 95F9
2 Clamp-Liner PPGD F0217
4 Sleeve, Liner PPGD 3EN519
2 Spacer, Liner Sleeve PPGD EN957
1 Manifold-Suction PPGD 200FYY069
16 Screw, Suction Man. to Cylinder PPGD 75A74
2 Gasket, Suction Man. to Cylinder PPGD 25BC105
1 Flange, Suction Manifold PPGD 64EB131
12 Screw, Suction Man. Flange PPGD 75A150
12 Nut, Suction Man. Flange Screw PPGD 50B9
1 Gasket, Suction Man. Flange PPGD 25C1154N
1 Discharge Manifold PPGD 2F0280
8 Stud, Discharge Man. Flange PPGD 79L4
8 Nut, Disch. Man. Flange Stud PPGD 50B8
1 Flange, Discharge Manifold PPGD 64DA12
1 Gasket, Discharge Man. Flange PPGD 25T34
1 Plug, SQHD Pipe Discharge Man. PPGD 64AA5
1 Gasket, Discharge Man. to Cyl. PPGD 25T34
2 Liner Clamp PPGD FO217
6 Plug, Cylinder Priming & Drain PPGD 64AU5

Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 7.5" x 10" FY FXD Fluid End Optional Liners, Pistons, Piston Rubber Kits
Qty. Description Part No.
2 Liner 7.1/2 x 10 7.1/2" Bore PPGD FY45675
2 Piston 7.1/2" Bore API-3 PPGD 212TBB045A
2 Piston Rubber Kit 7.1/2" Bore PPGD TBB76021
2 Liner 7.1/2 x 10 7-1/4" Bore PPGD FZ45672
2 Piston 7.1/4" Bore API-3 PPGD 211TBB045A
2 Piston Rubber Kit 7-1/4" Bore PPGD TBB76020
2 Liner 7.1/2 x 10 7" Bore PPGD FZ45670
2 Piston 7" Bore API-3 PPGD 210TBB045A
2 Piston Rubber Kit 7" Bore PPGD TBB76019
2 Liner 7.1/2 x 10 6.3/4" Bore PPGD FZ45667
2 Piston 6.3/4" Bore API-3 PPGD 209TBB045A
2 Piston Rubber Kit 6.3/4" Bore PPGD TBB76018
2 Liner 7.1/2 x 10 6.5" Bore PPGD FZ45665
2 Piston 6.1/2" Bore API-3 PPGD 208TBB045A
2 Piston Rubber Kit 6.1/2" Bore PPGD TBB76017
2 Liner 7.1/2 x 10 6" Bore PPGD FZ45660
2 Piston 6" Bore API-3 PPGD 206TBB045A
2 Piston Rubber Kit 6" Bore PPGD TBB76015
2 Liner 7.1/2 x 10 5.5" Bore PPGD FX45655
2 Piston 5.1/2" Bore API-3 PPGD 204TBB045A
2 Piston Rubber Kit 5.1/2" Bore PPGD TBB76013
2 Liner 7.1/2 x 10 5" Bore PPGD FZ45650
2 Piston 5" Bore API-3 PPGD 202TBB045A
2 Piston Rubber Kit 5" Bore PPGD TBB76011
2 Liner 4.1/2" Bore for 7.5"X8" FY PPGD FZ45645
2 Piston 4.1/2" Bore API-3 PPGD 200TBB045A
2 Piston Rubber Kit 4.1/2"Bore PPGD TBB76009
2 Liner 7.5" x 8" FY 4" Bore PPGD FZ45640
2 Piston 4" Kit API-3 PPGD 221TBK045A
2 Piston Rubber Kit 4" Kit PPGD TBK90423

Oil Stop Head

  Gardner Denver 7.5" x 10" FY FXD Oil Stop Head
Qty. Description Part No.
2 Oil Stop Head PPGD FXD495
4 Stud, Oil Stop Head PPGD 79A69
4 Nut, Oil Stop Head Stud PPGD 50B5
2 Gland, Oil Stop Head PPGD PXD238
2 Packing, Oil Stop Head PPGD 60BG26
2 Washer, Oil Stop Head PPGD BC318
2 Gasket, Oil Stop Head PPGD 25C974

· back to top



Gear End JackShaft

  Gardner Denver 7.5" x 10" FY FXD Gear End JackShaft
Qty. Description Part No.
1 JackShaft PPGD FXD371
2 Sleeve‐Shaft PPGD FXD289
2 Seal‐Oil, Bearing Housing PPGD 60G63
4 Spacer, Bearing PPGD FXD376
2 Bearing, JackShaft PPGD 12W6
2 Housing‐Bearing PPGD 1FXD368
2 Spacer‐Bearing PPGD FXD376
4 Gasket, Housing & Retaining Plate PPGD 25C1085
2 Plate‐Bearing Retaining PPGD 3FXD370
12 Screw, Housing & Retaining Plate PPGD 75A43
4 Screw, Shaft Extension Cover PPGD 75A192
1 Cover‐Shaft Extension PPGD 200FXD490
1 Key, JackShaft PPGD 35B167
2 Seal‐Oil, Bearing Retaining Plate PPGD 60G221
2 Fitting‐Lube PPGD 40E5

Gear End Eccentric Shaft

  Gardner Denver 7.5" x 10" FY FXD Gear End Eccentric Shaft
Qty. Description Part No.
1 Shaft‐Eccentric PPGD FXD367
1 Key, Eccentric Shaft PPGD 35C68
1 Eccentric PPGD FXD255
2 Sleeve‐Shaft PPGD 23AUX18
2 Seal‐Oil PPGD 60G17
2 Bearing, Eccentric Shaft PPGD 12C34
2 Shim, Bearing Cover Plate PPGD 77B22
12 Screw, Bearing Cover Plate PPGD 75A18
2 Plate‐Bearing Cover PPGD FXD366
1 Gasket, Bearing Cover Plate PPGD 25C1084
2 Fitting‐Lube, Bearing CVR Plate PPGD 40E5

· back to top



Gear End Connecting Rod Crosshead

  Gardner Denver 7.5" x 10" FY FXD Gear End Connecting Rod Crosshead
Qty. Description Part No.
2 ASM Connecting Rod PPGD FXD417
2 Bushing (Eccentric End) PPGD FXD421
2 Bushing (Crosshead End) PPGD FXD229
2 Crosshead PPGD FXD175
2 Pin‐Crosshead PPGD FXD189
2 Plate‐Retainer PPGD FXD281
4 Screw (1.25" LG) Retainer Plate PPGD 75B11
4 Screw 1.5" Retainer Plate PPGD 75B10
48" Wire PPGD 97A29

· back to top



Gear End Frame

  Gardner Denver 7.5" x 10" FY FXD Gear End Frame
Qty. Description Part No.
1 ASM Frame PPGD FXD172A
2 Plug‐SQHD Pipe, Oil Drain PPGD 64A6
2 Elbow‐Pipe Street, Oil Level PPGD 64D4
2 Plug‐SQHD Pipe, Oil Level PPGD 64AA4
1 Hood PPGD 200FXD053
110" Gasket, Hood PPGD 2009457
12 Screw, Hood PPGD 75AA1
1 Cover‐Filler PPGD FXX880
2 Plug‐SQHD Pipe, Crosshead Oil PPGD 64AA5
4 Stud, Crosshead Inspect Plate PPGD 79A6
4 Nut, Crosshead Insp. Pl. Stud PPGD 50B5
2 Plate‐Inspection PPGD 200FXD052
2 Gasket, Crosshead INS. Plate PPGD 25C1083
4 Screw, Crosshead Ins. Plate PPGD 75AA1
4 Stud, Plate Inspection PPGD 79A438
4 Nut, Plate Inspection Stud PPGD 50B5



Gardner Denver 7.25" x 14" FXN Mud Pump

Replacement parts for the 7.25" x 14" FXN mud pump.

Fluid End Rebuild Kit

  Gardner Denver 7.25" x 14 FXN Fluid End Rebuild Kit
Qty. Description Part No.
  2 Liner 7.1/4" Bore PPGD FK45672
  2 Piston 7.1/4"B API-4 PPGD 224TBB045A
  2 Piston Rubber Kit 7.1/4"B PPGD TBB76020
  2 Liner 7.1/4x14 7.1/2" Bore PPGD FK45675
  2 Piston 7.1/2"B API-4 PPGD 225TBB045A
  2 Piston Rubber Kit 7.1/2"B PPGD TBB76021
  2 Liner 7.1/4x14 7" Bore PPGD FK45670
  2 Piston 7"B API-4 PPGD 223TBB045A
  2 Piston Rubber Kit 7" B PPGD TBB76019
  2 Liner 7.1/4x14 6.1/2" Bore PPGD FK45665
  2 Piston 6.1/2"B API-4 PPGD 221TBB045A
  2 Piston Rubber Kit 6.1/2"B PPGD TBB76017
  2 Liner 7.1/4x14 6" Bore PPGD FK45660
  2 Piston 6"B API-4 PPGD 219TBB045A
  2 Piston Rubber Kit 6"B PPGD TBB76015
  2 Liner 7.1/4 x 14 5.1/2" Bore PPGD FK45655
  2 Piston 5.1/2"B API-4 PPGD 217TBB045A
  2 Piston Rubber Kit 5.1/2"B PPGD TBB76013
  2 Liner 5" Bore for 7.1/4x14 FKFXK PPGD FK45650
  2 Piston 5"B API-4 PPGD 215TBB045A
  2 Piston Rubber Kit 5"B PPGD TBB76011
  2 Liner 7.1/4x14 4.1/2" Bore PPGD FK45645
  2 Piston 4.1/2"B API-4 PPGD 213TBB045A
  2 Piston Rubber Kit 4.1/2"B PPGD TBB76009
  2 Liner 7.1/4x14 4" Bore PPGD FK45640
  2 Piston 4"K API-4 PPGD 45B253
  2 Piston Rubber Kit 4"K PPGD 45C9
  4 Liner Packing PPGD 60AM29
  2 Lantern Ring PPGD GN957
  2 Piston Rod PPGD 8FXK183
  2 Nut, Piston Rod X-Head PPGD FXZ837
  2 Junk Ring PPGD 200FXN317
  2 Packing, Rod PPGD 60DA120
  2 Spacer - Lantern PPGD 200FXN445
  8 Gasket Valve Cover PPGD 200FXN715
  8 Bushing, Valve Cover PPGD 2007674
  2 Gasket, Man. To Cylinder PPGD 25AL36
  2 Gasket, Head PPGD 60AM32
  2 Gasket, Liner To Cylinder PPGD 25AT37
  2 Gasket, Flange PPGD 25BC105
  1 Gasket, Flange PPGD 25C1154N
  8 Stem Guided Valve w/ Poly PPGD 202PZL482A
  8 Inserts, Valve Poly PPGD 201PZL106
  8 Seats Stem Guided PPGD 202PZL039
  8 Springs PPGD 78H44

· back to top



Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 7.25" x 14 FXN Fluid End Optional Parts
Qty. Description Part No.
  4 Drain Plug PPGD 64AU5
  8 Valve Cover PPGD 200FXN147
  8 Ring - Valve Cover PPGD 2011699
  8 Lock Cover PPGD 2011857
  2 Fluid Cylinder w/ Studs PPGD 200FXN029B
  4 Plug PPGD 64AA5
  64 Stud PPGD 79L63
  80 Nut PPGD 50B10
  48 Stud, FXN PPGD 79L161
  48 Nut, Heavy Hex PPGD 50B11
  16 Stud PPGD 79L80
  2 Gasket - Hyd. Ring PPGD 25AL25
  2 Cylinder Spacer ASM PPGD 200FXN200
  12 Stud PPGD 79L3
  12 Nut PPGD 50B8
  2 Gasket, Stuffing Box to Spacer Hydraulic Ring PPGD 25AL1
  2 Stuffing Box FXN PPGD 200FXN014
  2 Gland, Stuffing Box FXN PPGD 200FXN008
  8 Eye Bolt for FXN Valve Cover PPGD 15P28
  2 Plug, SQHD Pipe PPGD 64AA9
  16 Stud PPGD 208PZL110
  32 Nut PPGD 50AW13
  3 Ring Joint Gasket PPGD 25V19
  8 Stud Top Flange PPGD 201FXN110
  1 Strainer PPGD 1GXR208
  2 Clamp, Liner FXN PPGD 200FXN455
  2 Cylinder Head FXN PPGD 200FXN007
  2 Valve Cover FXN PPGD GN147
  2 Cover-Lock PPGD 200FXN587
  16 Screw, Suction Manifold PPGD 75A74
  1 Flange, Weld PPGD 64CU12
  12 Screw, Suction Flange to Manifold PPGD 75A150
  12 Nut PPGD 50B9

· back to top



Gear End Rebuild Kit

  Gardner Denver 7.25" x 14 FXN Gear End Rebuild Kit
Qty. Description Part No.
  1 Gasket, Hood PPGD 2009592
  1 Jackshaft PPGD 200FXN371
  2 Bearing, Jackshaft PPGD 12BA70
  2 Spacer, Shaft PPGD 200FXN600
  2 Sleeve, Wear Seal PPGD 80M11
  2 Seal-Oil PPGD 60DD64
  2 Bearing, connecting rod PPGD 12W85
  2 Bearing, Crosshead Pin PPGD 12BA19
  2 Crosshead Pinl PPGD 201FXN189
  2 Crosshead Pin Retainer PPGD 201FXN168
  2 Nut, Piston Rod X-Head End PPGD FXK837
  2 Extension Rod PPGD 1FXK839
  2 Oil Stop Head PPGD 200FXN051B
  2 Washer Oil Stop Head PPGD FXQ318
  2 Packing Oil Stop Head PPGD 60BG29
  2 Gland, Oil Stop Head PPGD FXQ238
  4 Nut PPGD 50B8
  2 Baffle PPGD 2FXK840





Gardner Denver 7.25" x 14" FK FXK Mud Pump

Replacement parts for the 7.25" x 14" FK FXK mud pump.

Fluid End Rebuild Kit

  Gardner Denver 7.25" x 14" FK FXK Fluid End Rebuild Kit
Qty. Description Part No.
  2 Liner PPGD FK45672
  4 Liner Packing PPGD 3EN519
  2 Lantern Ring PPGD EN957
  2 Head Gasket PPGD 25G26
  2 Piston PPGD 224TBB045A
  2 Piston Rubber Kit PPGD TBB76020
  2 Piston Rod PPGD 8FXK183
  2 Packing PPGD 60DA220
  8 Valve Cover Gasket PPGD 25G10
  8 Valve Spring PPGD 78A128
  8 Valve Stem Guided PPGD 5FK482E
  8 Valve Stem Guided Insert PPGD 10FK452
  8 Valve Seat Stem Guided PPGD 3FK451

· back to top



Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 7.25" x 14" FK FXK Fluid End Optional Liners, Pistons, Piston Rubber Kits
Qty. Description Part No.
  2 Junk Ring PPGD EN317
  2 Packing PPGD 60DA220
  2 Bushing, Gland PPGD EN152
  36 Stud, Suction Flange PPGD 79L11
  36 Nut, Suction Flange PPGD 50B9
  3 Gasket, Surge Chamber PPGD 25G5





Gardner Denver 7.25" x 12" FZ FXZ

Replacement parts for the Gardner Denver 7.25" x 12" FZ FXZ.

Fluid Cylinder

  Gardner Denver 7.25" x 12" FZ FXZ Fluid End Fluid Cylinder
Qty. Description Part No.
  1 ASM Fluid Cylinder (LH) PPGD 1FZ388L
  1 ASM Fluid Cylinder (RH) PPGD 1FZ388R
  1 Head-Cylinder (LH) PPGD 2FO41
  1 Head-Cylinder (RH) PPGD 3FO41
  18 Nut, Cylinder Head Stud PPGD 50B9
  18 Stud, Cylinder Head Stud PPGD 79L11
  2 Gasket, Cylinder Head Stud PPGD 25T42
  3 Gasket, Suction & Blank Flange PPGD 25G9
  36 Stud, Suction & Blank Flange PPGD 79L73
  36 Nut, Suction & Blank Flange PPGD 50B9
  1 Flange, Suction PPGD 64CC11
  2 Flange, Suction Blank PPGD Fq92
  1 Asm Suction Manifold PPGD 1FZ499
  16 Nut, Cylinder To Suction Manifold PPGD 50B8
  16 Stud, Cylinder To Suction Manifold PPGD 79L4
  2 Gasket, Cylinder To Suction Manifold PPGD 25G3
  6 Plug, Cylinder PPGD 64AU5
  32 Nut, Cylinder To Frame & Stuffing Box Stud PPGD 50B9
  20 Stud, Cylinder To Frame PPGD 79L47
  2 Gasket, Stuffing Box PPGD 25C1046
  4 Stud, (Short) Stuffing Box PPGD 79L11
  2 Box-Stuffing, Piston Rod PPGD FZ14
  2 Bushing, Gland PPGD EN152
  4 Stud, (Long) Stuffing Box PPGD 79L126
  2 Gland PPGD FZ21
  2 Packing PPGD 60DA220
  2 Ring-Junk PPGD EN317
  48 Stud, Valve Cover PPGD 79L11
  48 Nut, Valve Cover Stud PPGD 50B9
  16 Stud, Discharge Manifold PPGD 79L4
  16 Nut, Discharge Manifold Stud PPGD 50B8
  2 Gasket, Discharge Manifold PPGD 25T34
  1 Strainer, Suction PPGD 82A9

· back to top



Fluid End Piston Rods and Pistons

  Gardner Denver 7.25" x 12" FZ FXZ Fluid End Piston Rods and Pistons
Qty. Description Part No.
  2 Piston Rod Assy PPGD 10FXZ183
  2 Piston Rod Assy Chrome PPGD 10FXZ183C
  4 Nut, Piston Rod PPGD 50V14
  Slushproof Pistons
  2 Piston 7.1/4"B API-4 PPGD 224TBB045A
  2 Piston Rubber Kit 7-1/4"B PPGD TBB76020
  2 Piston 7"B API-4 PPGD 223TBB045A
  2 Piston Rubber Kit 7"B PPGD TBB76019
  2 Piston 6.3/4"B API-4 PPGD 209TBB045A-4
  2 Piston Rubber Kit 6.3/4"B PPGD TBB76018
  2 Piston 6.1/2"B API-4 PPGD 221TBB045A
  2 Piston Rubber Kit 6.1/2"B PPGD TBB76017
  2 Piston 6"B API-4 PPGD 219TBB045A
  2 Piston Rubber Kit 6"B PPGD TBB76015
  2 Piston 5.1/2"B API-4 PPGD 217TBB045A
  2 Piston Rubber Kit 5.1/2"B PPGD TBB76013
  2 Piston 5"B API-4 PPGD 215TBB045A
  2 Piston Rubber Kit 5"B PPGD TBB76011
  Solid Pistons
  2 Ring-Piston 7.1/4" PPGD 65A92
  2 Piston SOLID 7" API-4 PPGD 7FQ350
  2 Ring, FOR 7" Piston PPGD 65A39
  2 Ring, Piston 6.3/4", 1/4" Wide PPGD 65A101
  2 Ring, Piston 6.1/2" 1/4" Wide PPGD 65A17
  2 Piston Solid 6" API-4 PPGD 3FZ350
  2 Ring, Piston 6" PPGD 65A8
  2 Ring Solid Piston 5.1/2" PPGD 65A6
  2 Ring, Piston 5 " PPGD 65A3

· back to top



Fluid End Liner, Clamp & Set Screws

  Gardner Denver 7.25" x 12" FZ FXZ Liner, Clamp & Set Screws
Qty. Description Part No.
  4 Sleeve, Liner PPGD 3EN519
  2 Spacer PPGD EN957
  2 Clamp-Liner PPGD FO217
  6 Nut, Set Screw PPGD 50B10
  6 Screw-Liner Set PPGD FZ207
  6 Washer, Set Screw PPGD 95F10
  6 Packing-Ring, Set Screw PPGD 60BQ4
  2 Liner, 7.1/4" PPGD FZ45672
  2 Liner, 7." PPGD FZ45670
  2 Liner, 6.3/4" PPGD FZ45667
  2 Liner, 6.5" PPGD FZ45665
  2 Liner, 6." PPGD FZ45660
  2 Liner, 5.5" PPGD FZ45655
  2 Liner, 5" PPGD FZ45650

· back to top



Fluid End Slush Service Valve

  Gardner Denver 7.25" x 12" FZ FXZ Fluid End Slush Service Valve
Qty. Description Part No.
  8 Valve Stem Guided w/ Poly Insert PPGD 202PZL482A
  8 Valve Stem Guided Body PPGD 202PZL482
  8 Valve Insert Poly Stem Guided PPGD 201PZL106
  8 Valve Top Plate Stem Guided PPGD 201PZL279
  8 Lock Nut PPGD 50V27
  8 Seat Stem Guided PPGD 201FYY039
  8 Spring - Steel PPGD 78A139
  8 Guide Valve PPGD 1FO290
  8 Pin, Valve Guide for 1FO290 PPGD 62A17
  8 Gasket, Valve Cover PPGD 25T33
  8 Cover, Valve PPGD 4FO147

· back to top



Gear End JackShaft & Bearings

  Gardner Denver 7.25" x 12" FZ FXZ Gear End JackShaft & Bearings
Qty. Description Part No.
  1 ASM JackShaft PPGD FXZ374
  1 JackShaft PPGD FXZ371
  1 Key PPGD 35B113
  2 Seal, Oil PPGD 60G60
  2 Fitting, Lube PPGD 40E5
  2 Bearing PPGD 12W5
  2 Spacer, Bearing PPGD FXZ376
  2 Seal, Oil Bearing Housing PPGD 60G13
  1 Key, Pinion PPGD 35C64
  1 Pinion, Gear PPGD FXZ181
  2 Sleeve, Shaft PPGD FXZ289
  2 Housing, Bearing PPGD 1FXZ368
  4 Gasket, Bearing Housing & Retainer PPGD 25C1045
  12 Screw, Bearing Housing & Retainer PPGD 75A43
  2 Plate, Bearing Retainer PPGD FXZ370
  4 Screw, Shaft Extension Cover PPGD 75A18
  1 Cover - Shaft Extension PPGD FXZ850

· back to top



Gear End Eccentric Group

  Gardner Denver 7.25" x 12" FZ FXZ Gear End Eccentric Group
Qty. Description Part No.
  1 Eccentric PPGD 4FXZ255
  1 Key, Eccentric PPGD 35C65
  2 Bushing, Shaft Seal PPGD 22AUX18
  2 Seal, Oil PPGD 60G13
  2 Bearing PPGD 12L9
  1 Plate, Bearing Cover PPGD 1FXZ366
  1 Shaft, Eccentric PPGD FXZ367
  2 Plate, Bearing Adjusting PPGD FXZ848
  12 Screw, Cover Plate PPGD 75A29
  2 Gasket, Cover Plate PPGD 25C1044
  1 Plate, Bearing Cover PPGD FXZ366
  6 Screw, Adjusting Plate PPGD 75AG5
  8 Screw, Gear & Eccentric Clamp PPGD 75S17
  8 Nut, Clamp Screw PPGD 50E9
  8 Pin, Cotter PPGD 62E8
  1 Gear, Driven, Eccentric PPGD 1FXZ180
  2 Fitting - Lube PPGD 40E5

· back to top



Gear End Eccentric Group

  Gardner Denver 7.25" x 12" FZ FXZ Gear End Eccentric Group
Qty. Description Part No.
  1 Eccentric (w/ Bushings & Keys) PPGD 3FXZ255
  2 Bushing PPGD 1FXZ1202
  2 Key PPGD 35C91
  2 Plate-Bearing Cover PPGD 5FXZ366
  12 Screw, Cover Plate To Frame PPGD 75A29
  16 Screw, Plate To Wedge PPGD 75P56
  2 Plate-Retainer, Adjusting PPGD 1FXZ1206
  4 Screw, Plate To Collar PPGD FXZ1207
  2 Gasket, Bearing Cover Plate PPGD 25C1587
  2 Bearing-Thrust PPGD FXZ1201
  2 Screw-Adjusting PPGD 1FXZ1208
  2 Wedge-Shaft PPGD 3FXZ1205
  1 Shaft-Eccentric PPGD 1FXZ367
  6 Screw, Plate TO Shaft PPGD 75B135
  1 Wire, Screw Locking PPGD 97A8
  2 Collar, Thrust Bearing PPGD 1FXZ1204
  2 Pin-Dowel, Adjusting Nut To Wedge PPGD 62M14
  6 Screw, Thrust Bearing PPGD 75P56
  2 Nut-Bearing Adjusting PPGD 1FXZ1203
  8 Pin-Cotter PPGD 62E8
  8 Nut, Gear & Clamp PPGD 50E9
  1 Gear-Drive, Eccentric PPGD 1FXZ180
  8 Screw, Gear & Clamp PPGD 75S17

· back to top



Gear End Connecting Rod

  Gardner Denver 7.25" x 12" FZ FXZ Gear End Connecting Rod
Qty. Description Part No.
  2 Bushing, Crosshead Pin PPGD FXZ229
  2 Bushing, Connecting Rod PPGD FXZ421
  4 Dowel PPGD 8AUX60
  4 Bolt, Connecting Rod PPGD FXZ890
  8 Nut PPGD 50T3
  4 Pin-Cotter PPGD 62E25
  16 Clamp, Liner PPGD 1FXO899
  16 Screw, Clamp PPGD 75AG6
  16 Washer, Clamp PPGD 95H7
  4 Shim, Connecting Rod PPGD 77A197
  Connecting Rod
  2 ASM Connecting Rod PPGD 1FXZ417A
  2 Bushing, Connecting Rod PPGD 2FXZ421
  2 Retainer, Bushing PPGD FXZ1400
  2 Washer, Retainer PPGD 95D105
  2 Bushing, Crosshead Pin PPGD 1FXZ229

· back to top



Gear End Crosshead

  Gardner Denver 7.25" x 12" FZ FXZ Gear End Crosshead
Qty. Description Part No.
  2 ASM Crosshead PPGD FXZ712
  2 Pin-Crosshead PPGD 2FXQ189
  2 Plate-Retainer PPGD FXZ281
  4 Screw, Crosshead Pin PPGD 75AG4
  4 Screw, Retainer Plate PPGD 75AG3
  4 ASM Crosshead Shoe PPGD FXZ761
  16 Stud, Crosshead Shoe PPGD 79G10
  16 Nut, Crosshead Shoe PPGD 50AF1
  Piston Rod Extension
  2 Nut-Piston Rod (Crosshead End) PPGD 1FXZ837
  2 ROD-Extension PPGD FXZ839
  2 Clamp PPGD 29B26
  2 Baffle PPGD 3FXK840
  2 Nut-Piston Rod (Extension End) PPGD FXZ837

· back to top



Gear End Oil Stop Head & Baffle

  Gardner Denver 7.25" x 12" FZ FXZ Gear End Oil Stop Head & Baffle
Qty. Description Part No.
  2 ASM Oil Stop Head PPGD FXZ495
  2 Packing PPGD 60BG28
  2 Ring-Junk PPGD FXZ318
  8 Bolt PPGD 15BB9
  8 Washer PPGD 95A7
  8 Nut PPGD 50B7
  2 Gland PPGD FXZ238
  4 Stud, Oil Stop Head PPGD 79A172
  4 Nut, Oil Stop Head PPGD 50B8
  2 Baffle PPGD FXZ846
  4 Bolt PPGD 15BB9
  4 Washer PPGD 95A7
  4 Nut PPGD 50B7

· back to top



Gear End Frame

  Gardner Denver 7.25" x 12" FZ FXZ Gear End Frame
Qty. Description Part No.
  1 ASM. Frame PPGD FXZ172A
  1 Hood PPGD FXZ246
  8 Screw, Name Plate PPGD 75K1
  1 Plate - Name PPGD 2009111
  1 Cover - Filler PPGD FXK880
  1 Breather, with Chain PPGD 5C10
  1 Screw, Breather PPGD 75G48
  14 Screw, Hood PPGD 75AA1
  1 Gasket, Hood PPGD 25J25
  2 Plate, Inspection Crosshead PPGD FXK723
  2 Gasket, Crosshead Inspection Plate PPGD 25C623
  4 Stud, Inspection Plate PPGD 79A238
  4 Nut, Inspection Plate PPGD 50B5
  12 Screw, Inspection Plate PPGD 75A12
  1 Plug, Sqhd Pipe, Oil Drain PPGD 64A8
  1 Plug, Sqhd Pipe, Sludge Drain PPGD 64A11
  1 Elbow, Pipe ST., Oil Level PPGD 64D6
  1 Plug, Sqhd Pipe, Oil Level PPGD 64A5
  2 ASM Inspection Plate PPGD 1FXZ844
  4 Screw, Inspection Plate PPGD 75A18
  4 Washer, Inspection Plate PPGD 95B7
  1 ASM Rod Washing PPGD 1EL315A
  1 Manifold - Water PPGD 1EL315
  2 Screw, Manifold To Frame PPGD 75A29
  2 Nipple, Manifold PPGD 63F5
  2 Nipple, Manifold PPGD 63F8
  2 Valve, Angle PPGD 90F1





Gardner Denver 7.25" x 10" FO FXO Mud Pump

Replacement parts for the Gardner Denver 7.25" x 10" FO FXO mud pump.

Fluid End Rebuild Kit

  Gardner Denver 7.25" x 10" FO FXO Fluid End Rebuild Kit
Qty. Description Part No.
  2 Liner PPGD FZ45672
  4 Liner Packing PPGD 3EN519
  2 Lantern Ring PPGD EN957
  2 Head Gasket PPGD 25T42
  2 Piston PPGD 211TBB045A
  2 Piston Rubber Kit PPGD TBB76020
  2 Piston Rod PPGD 15FXO183
  2 Packing PPGD 60BH11
  2 Packing Oilstop Head PPGD 60BG32
  2 Stuffing Box PPGD FO14
  2 Gland Bushing,Stuffing Box PPGD EK152
  2 Junk Ring PPGD EK317
  2 Liner Clamp PPGD FO217

· back to top



Fluid End Valves, Seats and Springs

  Gardner Denver 7.25" x 10" FO FXO Fluid End Valves, Seats and Springs
Qty. Description Part No.
  8 Valve Cover Gasket PPGD 25T33
  8 Valve Spring PPGD 78A139

  8 Valve Gravel PPGD 200FYY482P
  8 Valve Gravel Insert PPGD 200FYY106P
  8 Valve Seat PPGD 200FYY039
  OR
  8 Valve Stem Guided PPGD 202PZL482A
  8 Valve Stem Guided Insert PPGD 201PZL106
  8 Valve Seat Stem Guided PPGD 201FYY039

· back to top



Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 7.25" x 10" FO FXO Fluid End Optional Parts
Qty. Description Part No.
  2 Packing Stuffing Box PPGD 60DA517
  6 washer, Liner Set Screw PPGD 95F10
  6 Liner Set Screw PPGD FZ207
  6 Nut, Liner Set Screw PPGD 50B10
  6 Plug PPGD 64AU5
  66 Stud, Valve Cover & head PPGD 79L11
  66 Nut, Valve Cover & head PPGD 50B9
  16 Stud, Discharge Flange PPGD 655EG09Z
  16 Nut, discharge Flange PPGD 50B8
  2 Gasket, Discharge Manifold PPGD 25T34

· back to top



Gear End Rebuild Kit

  Gardner Denver FXO Gear End Rebuild Kit
Qty. Description Part No.
  1 Jackshaft PPGD 4FXO371
  1 Pinion Gear PPGD FXO1
  12 Seal-Oil PPGD 60G5
  2 Spacer PPGD FXO376
  2 Bearing-Jackshaft PPGD 12W9
  2 Key PPGD 35C70
  2 Seal-Oil PPGD 60G7
  4 Fitting, Lube PPGD 40E5
  1 Shaft-Eccentric PPGD 1FXO367
  1 Gear Drive PPGD 2FXO180
  1 Eccentric PPGD 1FXO255
  2 Sleeve-Shaft PPGD 11AUX18
  2 Seal-Oil PPGD 60G28
  2 Bearing PPGD 12C24
  20 Screw PPGD 75A43
  2 Eccentric Bushing PPGD 2FXO421
  2 Crosshead Bushing PPGD FXO229
  2 Crosshead PPGD FXO175
  2 Crosshead Pin PPGD 1FXO189
  2 Packing Oil Stop Head PPGD 60BG32
  2 Washer Oil Stop Head PPGD FXO318
  2 Rod Baffle PPGD 4FXk840
  1 Gasket, Hood PPGD 2009457
  8 Nut PPGD 50E9
  8 Screw Gear to Eccentric PPGD 75S22
  2 Plate, Bearing PPGD FXO370
  2 Housing, Bearing PPGD FXO368
  2 Oil Stop Head PPGD 1FXO495
  2 Nut PPGD 50T2
  2 Plate, Bearing Cover PPGD 1FXO366
  2 Sleeve-Shaft PPGD 12AUX18
  12 Screw Hood PPGD 655EE140
  16 Screw PPGD 75A29
  8 Cotter, Clamp Screw PPGD 62E8
  4 Bolt PPGD 1FXO890
  4 Nut PPGD 50T161
  4 Cotter Pin PPGD 62E25
  2 Retainer Plate PPGD FXO281
  2 Nut PPGD 1FXO839
  2 Nut Extension Rod PPGD FXO837
  12 Nut PPGD 50B7C
  2 Gland, Oil Stop Head PPGD FXO238

· back to top





Gardner Denver 7.5" x 10" FY FXD Mud Pump

Replacement parts for the Gardner Denver 7.5" x 10" FY FXD mud pump.

· Download the service manual

Fluid End Rebuild Kit

  Gardner Denver 7.5" x 10" FY FXD Fluid End Rebuild Kit
Qty. Description Part No.
  2 Liner PPGD FY45675
  4 Liner Packing PPGD 3EN519
  2 Lantern Ring PPGD EN957
  2 Head Gasket PPGD 25G8
  2 Piston PPGD 212TBB045A
  2 Piston Rubber Kit PPGD TBB76021
  2 Piston Rod PPGD FY183
  2 Piston Rod Chrome PPGD FY183C
  2 Junk Ring PPGD BC317
  2 Gland Bushing PPGD 1FD152
  2 Packing PPGD 60BH2

· back to top



Fluid End Valves, Seats and Springs

  Gardner Denver 7.5" x 10" FY FXD Fluid End Valves, Seats and Springs
Qty. Description Part No.
  8 Valve Cover Gasket PPGD 25G32
  8 Valve Spring PPGD 78A139

  8 Valve Gravel PPGD 200FYY482A
  8 Valve Gravel Insert PPGD 200FYY106
  8 Valve Seat PPGD 200FYY039
  OR
  8 Valve Stem Guided PPGD 202PZL482B
  8 Valve Stem Guided Insert PPGD 202PZL106
  8 Valve Seat Stem Guided PPGD 201FYY039

· back to top



Fluid End Stuffing Box

  Gardner Denver 7.5" x 10" FY FXD Fluid End Stuffing Box
Qty. Description Part No.
  4 Stud, Stuffing Box Gland PPGD 79L11
  4 Nut, Stuffing Box Gland Stud PPGD 50B9
  2 Gland, Stuffing Box PPGD 1FC21
  2 ASM Stuffing Box PPGD 16FC14B
  2 Packing, Braided Asbestos PPGD 60BG13
  2 Packing, Oil Resistant PPGD 60BH2
  2 Packing, Molded Rubber & Duck PPGD 60DA415
  2 Ring-Junk, Stuffing Box PPGD BC317
  2 Gasket, Stuffing Box PPGD 25AL35
  2 Bushing-Gland PPGD 1FD152

· back to top



Fluid End Cylinder

  Gardner Denver 7.5" x 10" FY FXD Fluid End Cylinder
Qty. Description Part No.
  1 ASM Fluid Cylinder PPGD 200FYY029B
  1 ASM Fluid Cylinder PPGD 201FYY029B
  12 Stud, Cylinder to Frame PPGD 79A557
  12 Nut, Cylinder to Frame Stud PPGD 50B10
  32 Stud, Valve Cover PPGD 79A92
  32 Stud, Valve Cover Stainless PPGD 79A92SS
  32 Nut, Valve Cover Stud PPGD 50B9
  16 Stud, Discharge Manifold PPGD 79L4
  16 Nut, Discharge Manifold Stud PPGD 50B8
  18 Stud, Cylinder Head PPGD 79A183
  18 Nut, Cylinder Head Stud PPGD 50B8
  2 Head-Cylinder PPGD FY41
  2 Gasket, Cylinder Head PPGD 25G8
  6 Set Screw, Liner Clamp PPGD 1FY207
  6 Nut, Liner Clamp Set Screw PPGD 50B9
  6 Packing, Liner Clamp Set Screw PPGD 60BQ3
  6 Washer, Liner Clamp Set Screw PPGD 95F9
  2 Clamp-Liner PPGD F0217
  4 Sleeve, Liner PPGD 3EN519
  2 Spacer, Liner Sleeve PPGD EN957
  1 Manifold-Suction PPGD 200FYY069
  16 Screw, Suction Man. to Cylinder PPGD 75A74
  2 Gasket, Suction Man. to Cylinder PPGD 25BC105
  1 Flange, Suction Manifold PPGD 64EB131
  12 Screw, Suction Man. Flange PPGD 75A150
  12 Nut, Suction Man. Flange Screw PPGD 50B9
  1 Gasket, Suction Man. Flange PPGD 25C1154N
  1 Discharge Manifold PPGD 2F0280
  8 Stud, Discharge Man. Flange PPGD 79L4
  8 Nut, Disch. Man. Flange Stud PPGD 50B8
  1 Flange, Discharge Manifold PPGD 64DA12
  1 Gasket, Discharge Man. Flange PPGD 25T34
  1 Plug, SQHD Pipe Discharge Man. PPGD 64AA5
  1 Gasket, Discharge Man. to Cyl. PPGD 25T34
  2 Liner Clamp PPGD FO217
  6 Plug, Cylinder Priming & Drain PPGD 64AU5

· back to top



Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 7.5" x 10" FY FXD Fluid End Optional Liners, Pistons, Piston Rubber Kits
Qty. Description Part No.
  2 Liner 7.1/2 x 10 7.1/2" Bore PPGD FY45675
  2 Piston 7.1/2" Bore API-3 PPGD 212TBB045A
  2 Piston Rubber Kit 7.1/2" Bore PPGD TBB76021
  2 Liner 7.1/2 x 10 7-1/4" Bore PPGD FZ45672
  2 Piston 7.1/4" Bore API-3 PPGD 211TBB045A
  2 Piston Rubber Kit 7-1/4" Bore PPGD TBB76020
  2 Liner 7.1/2 x 10 7" Bore PPGD FZ45670
  2 Piston 7" Bore API-3 PPGD 210TBB045A
  2 Piston Rubber Kit 7" Bore PPGD TBB76019
  2 Liner 7.1/2 x 10 6.3/4" Bore PPGD FZ45667
  2 Piston 6.3/4" Bore API-3 PPGD 209TBB045A
  2 Piston Rubber Kit 6.3/4" Bore PPGD TBB76018
  2 Liner 7.1/2 x 10 6.5" Bore PPGD FZ45665
  2 Piston 6.1/2" Bore API-3 PPGD 208TBB045A
  2 Piston Rubber Kit 6.1/2" Bore PPGD TBB76017
  2 Liner 7.1/2 x 10 6" Bore PPGD FZ45660
  2 Piston 6" Bore API-3 PPGD 206TBB045A
  2 Piston Rubber Kit 6" Bore PPGD TBB76015
  2 Liner 7.1/2 x 10 5.5" Bore PPGD FX45655
  2 Piston 5.1/2" Bore API-3 PPGD 204TBB045A
  2 Piston Rubber Kit 5.1/2" Bore PPGD TBB76013
  2 Liner 7.1/2 x 10 5" Bore PPGD FZ45650
  2 Piston 5" Bore API-3 PPGD 202TBB045A
  2 Piston Rubber Kit 5" Bore PPGD TBB76011
  2 Liner 4.1/2" Bore for 7.5"X8" FY PPGD FZ45645
  2 Piston 4.1/2" Bore API-3 PPGD 200TBB045A
  2 Piston Rubber Kit 4.1/2"Bore PPGD TBB76009
  2 Liner 7.5" x 8" FY 4" Bore PPGD FZ45640
  2 Piston 4" Kit API-3 PPGD 221TBK045A
  2 Piston Rubber Kit 4" Kit PPGD TBK90423

· back to top



Oil Stop Head

  Gardner Denver 7.5" x 10" FY FXD Oil Stop Head
Qty. Description Part No.
  2 Oil Stop Head PPGD FXD495
  4 Stud, Oil Stop Head PPGD 79A69
  4 Nut, Oil Stop Head Stud PPGD 50B5
  2 Gland, Oil Stop Head PPGD PXD238
  2 Packing, Oil Stop Head PPGD 60BG26
  2 Washer, Oil Stop Head PPGD BC318
  2 Gasket, Oil Stop Head PPGD 25C974

· back to top



Gear End JackShaft

  Gardner Denver 7.5" x 10" FY FXD Gear End JackShaft
Qty. Description Part No.
  1 JackShaft PPGD FXD371
  2 Sleeve‐Shaft PPGD FXD289
  2 Seal‐Oil, Bearing Housing PPGD 60G63
  4 Spacer, Bearing PPGD FXD376
  2 Bearing, JackShaft PPGD 12W6
  2 Housing‐Bearing PPGD 1FXD368
  2 Spacer‐Bearing PPGD FXD376
  4 Gasket, Housing & Retaining Plate PPGD 25C1085
  2 Plate‐Bearing Retaining PPGD 3FXD370
  12 Screw, Housing & Retaining Plate PPGD 75A43
  4 Screw, Shaft Extension Cover PPGD 75A192
  1 Cover‐Shaft Extension PPGD 200FXD490
  1 Key, JackShaft PPGD 35B167
  2 Seal‐Oil, Bearing Retaining Plate PPGD 60G221
  2 Fitting‐Lube PPGD 40E5

· back to top



Gear End Eccentric Shaft

  Gardner Denver 7.5" x 10" FY FXD Gear End Eccentric Shaft
Qty. Description Part No.
  1 Shaft‐Eccentric PPGD FXD367
  1 Key, Eccentric Shaft PPGD 35C68
  1 Eccentric PPGD FXD255
  2 Sleeve‐Shaft PPGD 23AUX18
  2 Seal‐Oil PPGD 60G17
  2 Bearing, Eccentric Shaft PPGD 12C34
  2 Shim, Bearing Cover Plate PPGD 77B22
  12 Screw, Bearing Cover Plate PPGD 75A18
  2 Plate‐Bearing Cover PPGD FXD366
  1 Gasket, Bearing Cover Plate PPGD 25C1084
  2 Fitting‐Lube, Bearing CVR Plate PPGD 40E5

· back to top



Gear End Connecting Rod Crosshead

  Gardner Denver 7.5" x 10" FY FXD Gear End Connecting Rod Crosshead
Qty. Description Part No.
  2 ASM Connecting Rod PPGD FXD417
  2 Bushing (Eccentric End) PPGD FXD421
  2 Bushing (Crosshead End) PPGD FXD229
  2 Crosshead PPGD FXD175
  2 Pin‐Crosshead PPGD FXD189
  2 Plate‐Retainer PPGD FXD281
  4 Screw (1.25" LG) Retainer Plate PPGD 75B11
  4 Screw 1.5" Retainer Plate PPGD 75B10
  48" Wire PPGD 97A29

· back to top



Gear End Frame

  Gardner Denver 7.5" x 10" FY FXD Gear End Frame
Qty. Description Part No.
  1 ASM Frame PPGD FXD172A
  2 Plug‐SQHD Pipe, Oil Drain PPGD 64A6
  2 Elbow‐Pipe Street, Oil Level PPGD 64D4
  2 Plug‐SQHD Pipe, Oil Level PPGD 64AA4
  1 Hood PPGD 200FXD053
  110" Gasket, Hood PPGD 2009457
  12 Screw, Hood PPGD 75AA1
  1 Cover‐Filler PPGD FXX880
  2 Plug‐SQHD Pipe, Crosshead Oil PPGD 64AA5
  4 Stud, Crosshead Inspect Plate PPGD 79A6
  4 Nut, Crosshead Insp. Pl. Stud PPGD 50B5
  2 Plate‐Inspection PPGD 200FXD052
  2 Gasket, Crosshead INS. Plate PPGD 25C1083
  4 Screw, Crosshead Ins. Plate PPGD 75AA1
  4 Stud, Plate Inspection PPGD 79A438
  4 Nut, Plate Inspection Stud PPGD 50B5













Gardner Denver 7.5” x 8” FY FXX Mud Pump

Replacement parts for the 7.5" x 8" FY FXX mud pump.

· Download the service manual

Fluid End Rebuild Kit

  Gardner Denver 7.5” x 8” FY FXX Fluid End Rebuild Kit
Qty. Description Part No.
  2 Liner PPGD FY45675
  4 Liner Packing PPGD 3EN519
  2 Lantern Ring PPGD EN957
  2 Head Gasket PPGD 25G8
  2 Piston PPGD 212TBB045A
  2 Piston Rubber Kit PPGD TBB76021
  2 Piston Rod PPGD FXX183
  2 Piston Rod Chrome PPGD 5FXX183
  2 Junk Ring PPGD BC317
  2 Gland Bushing PPGD 1FD152
  2 Packing PPGD 60BH2

· back to top



Fluid End Valves, Seats and Springs

  Gardner Denver 7.5” x 8” FY FXX Fluid End Valves, Seats and Springs
Qty. Description Part No.
  8 Valve Cover Gasket PPGD 25G32
  8 Valve Spring PPGD 78A139

  8 Valve Gravel PPGD 200FYY482A
  8 Valve Gravel Insert PPGD 200FYY106
  8 Valve Seat PPGD 200FYY039
  OR
  8 Valve Stem Guided PPGD 202PZL482B
  8 Valve Stem Guided Insert PPGD 202PZL106
  8 Valve Seat Stem Guided PPGD 201FYY039

· back to top



Fluid End Stuffing Box

  Fluid End Stuffing Box
Qty. Description Part No.
  4 Stud, Stuffing Box Gland PPGD 79A183
  4 Nut, Stuffing Box Gland Stud PPGD 50B8
  2 Gland, Stuffing Box PPGD FD21
  2 ASM Stuffing Box PPGD 2007956
  2 Packing, Braided Asbestos PPGD 60BG13
  2 Packing, Oil Resistant PPGD 60BH2
  2 Packing, Molded Rubber & Duck PPGD 60DA415
  2 Ring-Junk, Stuffing Box PPGD BC317
  2 Gasket, Stuffing Box PPGD 25C1737
  2 Bushing-Gland PPGD 1FD152

· back to top



Fluid End Cylinder

  Fluid End Cylinder
Qty. Description Part No.
  1 ASM Fluid Cylinder PPGD 200FYY029B
  12 Stud, Cylinder to Frame PPGD 79A557
  12 Nut, Cylinder to Frame Stud PPGD 50B10
  32 Stud, Valve Cover PPGD 79A92
  32 Stud, Valve Cover Stainless PPGD 79A92SS
  32 Nut, Valve Cover Stud PPGD 50B9
  16 Stud, Discharge Manifold PPGD 79L4
  16 Nut, Discharge Manifold Stud PPGD 50B8
  18 Stud, Cylinder Head PPGD 79A183
  18 Nut, Cylinder Head Stud PPGD 50B8
  2 Head-Cylinder PPGD FY41
  2 Gasket, Cylinder Head PPGD 25G8
  6 Set Screw, Liner Clamp PPGD 1FY207
  6 Nut, Liner Clamp Set Screw PPGD 50B9
  6 Packing, Liner Clamp Set Screw PPGD 60BQ3
  6 Washer, Liner Clamp Set Screw PPGD 95F9
  2 Clamp-Liner PPGD F0217
  4 Sleeve, Liner PPGD 3EN519
  2 Spacer, Liner Sleeve PPGD EN957
  1 Manifold-Suction PPGD 200FYY069
  16 Screw, Suction Man. to Cylinder PPGD 75A74
  2 Gasket, Suction Man. to Cylinder PPGD 25BC105
  1 Flange, Suction Manifold PPGD 64EB131
  12 Screw, Suction Man. Flange PPGD 75A150
  12 Nut, Suction Man. Flange Screw PPGD 50B9
  1 Gasket, Suction Man. Flange PPGD 25C1154N
  1 Discharge Manifold PPGD 2F0280
  8 Stud, Discharge Man. Flange PPGD 79L4
  8 Nut, Disch. Man. Flange Stud PPGD 50B8
  1 Flange, Discharge Manifold PPGD 64DA12
  1 Gasket, Discharge Man. Flange PPGD 25T34
  1 Plug, SQHD Pipe Discharge Man. PPGD 64AA5
  1 Gasket, Discharge Man. to Cyl. PPGD 25T34
  2 Liner Clamp PPGD FO217
  6 Plug, Cylinder Priming & Drain PPGD 64AU5

· back to top



Fluid End Optional Liners, Pistons, Piston Rubber Kits

  Gardner Denver 7.5” x 8” FY FXX Fluid End Optional Liners, Pistons, Piston Rubber Kits
Qty. Description Part No.
  2 Liner 7.5 x 8" - 7.5" Bore PPGD FY45675
  2 Piston 7.5" Bore API-3 PPGD 212TBB045A
  2 Piston Rubber Kit 7.5" Bore PPGD TBB76021
  2 Liner 7.5 x 8" - 7.25" Bore PPGD FZ45672
  2 Piston 7.25" Bore API-3 PPGD 211TBB045A
  2 Piston Rubber Kit 7.25" Bore PPGD TBB76020
  2 Liner 7.5 x 8" - 7" Bore PPGD FZ45670
  2 Piston 7" Bore API-3 PPGD 210TBB045A
  2 Piston Rubber Kit 7" Bore PPGD TBB76019
  2 Liner 7.5 x 8" - 6.75" Bore PPGD FZ45667
  2 Piston 6.75" Bore API-3 PPGD 209TBB045A
  2 Piston Rubber Kit 6.75" Bore PPGD TBB76018
  2 Liner 7.5 x 8" - 6.5" Bore PPGD FZ45665
  2 Piston 6.5" Bore API-3 PPGD 208TBB045A
  2 Piston Rubber Kit 6.5" Bore PPGD TBB76017
  2 Liner 7.5 x 8" - 6" Bore PPGD FZ45660
  2 Piston 6" Bore API-3 PPGD 206TBB045A
  2 Piston Rubber Kit 6" Bore PPGD TBB76015
  2 Liner 7.5 x 8" - 5.5" Bore PPGD FX45655
  2 Piston 5.5" Bore API-3 PPGD 204TBB045A
  2 Piston Rubber Kit 5.5" Bore PPGD TBB76013
  2 Liner 7.5 x 8 5" Bore PPGD FZ45650
  2 Piston 5" Bore API-3 PPGD 202TBB045A
  2 Piston Rubber Kit 5" Bore PPGD TBB76011
  2 Liner 4.5" Bore for 7.5" x 8" FY PPGD FZ45645
  2 Piston 4.5" Bore API-3 PPGD 200TBB045A
  2 Piston Rubber Kit 4.5"Bore PPGD TBB76009
  2 Liner 7.5" x 8" FY 4" Bore PPGD FZ45640
  2 Piston 4" Kit API-3 PPGD 221TBK045A
  2 Piston Rubber Kit 4" Kit PPGD TBK90423

· back to top



Gear End Oil Stop Head 2 Bolt

  Gardner Denver 7.5” x 8” FY FXX Gear End Oil Stop Head 2 Bolt
Qty. Description Part No.
  2 Oil Stop Head PPGD FXX495
  4 Stud, Oil Stop Head PPGD 79A69
  4 Nut, Oil Stop Head Stud PPGD 50B5
  2 Gland, Oil Stop Head PPGD PXD238
  2 Packing, Oil Stop Head PPGD 60BG26
  2 Washer, Oil Stop Head PPGD BC318
  2 Gasket, Oil Stop Head PPGD 25C974

· back to top



Gear End Oil Stop Head 4 Bolt

  Gardner Denver 7.5” x 8” FY FXX Gear End Oil Stop Head 4 Bolt
Qty. Description Part No.
  2 Oil Stop Head PPGD 200FXX051A
  4 Plate‐Retaining PPGD 201FXX168
  8 Screw‐Hex Cap PPGD 75A54
  2 Gland PPGD PXD238
  4 Nut‐Hex PPGD 50B5
  4 Stud PPGD 79A69
  2 Packing PPGD 60BG26
  2 Ring‐Junk PPGD BC318
  8 Gasket‐Ring PPGD 25F9
  2 Gasket PPGD 25BC177

· back to top



Gear End Jackshaft

  Gardner Denver 7.5” x 8” FY FXX Gear End Jackshaft
Qty. Description Part No.
  1 ASM JackShaft PPGD FXX374
  1 JackShaft PPGD FXX371
  1 Key, JackShaft to Gear PPGD 35C56
  1 Gear‐Driver PPGD FXX181
  2 Sleeve‐Shaft PPGD FXX289
  2 Seal‐Oil, Bearing Housing PPGD 60G5
  2 Spacer, Bearing PPGD FXX376
  2 Bearing, JackShaft PPGD 12W4
  2 Housing‐Bearing PPGD 1FXX368
  4 Gasket, Housing & Retain Plate PPGD 25C973
  2 Plate‐Bearing Retaining PPGD 4FXX370
  12 Screw, Housing & Retain Plate PPGD 655EF070
  4 Screw, Shaft Extension Cover PPGD 75A5
  1 Cover‐Shaft Extension PPGD 200FXX490
  1 Key, JackShaft PPGD 35B99
  2 Seal‐Oil, Bearing Retaining Plate PPGD 60G19
  2 Fitting Lube PPGD 40E5

· back to top



Gear End Eccentric Shaft

  Gardner Denver 7.5” x 8” FY FXX Gear End Eccentric Shaft
Qty. Description Part No.
  1 Shaft‐Eccentric PPGD 1FXX367
  1 Key, Eccentric Shaft PPGD 35C68
  1 Eccentric PPGD 1FXX255
  2 Sleeve‐Shaft PPGD 20AUX18
  2 Seal‐Oil PPGD 60G7
  2 Bearing, Eccentric Shaft PPGD 12C33
  2 Shim, Bearing Cover Plate PPGD 77B20
  12 Screw, Bearing Cover Plate PPGD 75A18
  2 Plate‐Bearing Cover PPGD FXX366
  1 Gasket, Bearing Cover Plate PPGD 25C973
  2 Fitting-Lube, Bearing CVR Plate PPGD 40E5

· back to top



Connecting Rod CrossHead

  Gardner Denver 7.5” x 8” FY FXX Connecting Rod CrossHead
Qty. Description Part No.
  2 ASM Connecting Rod PPGD 2FXX417
  2 Bushing (Eccentric End) PPGD 2FXX421
  2 Bushing (CrossHead End) PPGD FXX229
  2 CrossHead PPGD FXX175
  2 Plate‐Retainer PPGD 1FXX281
  4 Screw(1.25" LG.) Retainer Plate PPGD 75B11
    Screw 1" LG Retainer Plate PPGD 75B13
  48 Wire PPGD 97A29

· back to top



Gear End Frame

  Gardner Denver 7.5” x 8” FY FXX Gear End Frame
Qty. Description Part No.
  1 ASM Frame PPGD 200FXX001A
  1 Plug‐SQHD Pipe, Oil Drain PPGD 64A5
  1 Elbow‐Pipe Street, Oil Level PPGD 64D4
  1 Plug‐SQHD Pipe, Oil Level PPGD 64AA4
  1 Hood PPGD 200FXX053
  96 Gasket, Hood PPGD 2009457
  12 Screw, Hood PPGD 75AA1
  1 Cover‐Filler PPGD FXX880
  2 Plug‐SQHD Pipe, CrossHead PPGD 64AA7
  4 Stud, CrossHead INSPECT. Plate PPGD 79A6
  4 Nut, CrossHead INSP. PL. Stud PPGD 50B5
  2 Plate‐Inspection, CrossHead PPGD FXX723
  2 Gasket, CrossHead INS. Plate PPGD 25C1180
  4 Screw, CrossHead INS. Plate PPGD 75A4
  1 Stud, Plate Inspection PPGD 79A338
  1 Nut, Plate Inspection Stud PPGD 50B3
  1 Plate‐Inspection PPGD 1PXD237
  1 Manifold‐Water PPGD 1FXX315
  2 Screw, Water Manifold PPGD 75A5
  2 Valve‐Angle PPGD 90F4
  2 Nipple‐Pipe PPGD 63D9
  2 Nipple‐Pipe PPGD 63D14
  2 Baffle, Piston Rod PPGD 1FXX840





Gardner Denver 5" x 10" FD FXD Mud Pump

Replacement parts for the Gardner Denver 5" x 10" FD FXD mud pump.

· Download the service manual

Fluid End Rebuild Kit

  Gardner Denver 5" x 10" FD FXD Fluid End Rebuild Kit
Qty. Description Part No.
  2 Liner PPGD FD45650
  2 Liner Chrome PPGD FD45650C
  2 Piston PPGD 202TBB045A
  2 Piston Rubber Kit PPGD TBB76011
  2 Piston Rod PPGD 5FD183
  2 Piston Rod Chrome PPGD FD183C
  2 Junk Ring PPGD BC317
  2 Packing PPGD 60BH2
  2 Bushing Gland PPGD 1FD152

· back to top



Valves, Seats and Springs

  Gardner Denver 5" x 10" FD FXD Valves, Seats and Springs
Qty. Description Part No.
  8 Valve Cover Gasket PPGD 25G18
  8 Valve Spring PPGD 78D22
  8 Spring SS PPGD 78A171SS
  8 Spring Steel PPGD 78A171ST

  8 Valve Gravel PPGD 200FGG482A
  8 Valve Gravel Insert PPGD 200FGG106
  8 Valve Seat PPGD 200FGG039
  OR
  8 Valve Standard PPGD 1FG928
  8 Valve Standard Insert PPGD 1FG452
  8 Valve Standard Seat PPGD 11FG39
  OR
  8 Seat Valve PPGD 200FDD039
  8 Valve-Ball PPGD 200FDD481
  8 Cover-Valve PPGD 200FDD147A

· back to top



Stuffing Box

  Gardner Denver 5" x 10" FD FXD Stuffing Box
Qty. Description Part No.
  4 Stud, Stuffing Box PPGD 79A183
  4 Nut, Stuffing Box Stud PPGD 50B8
  2 ASM Stuffing Box PPGD 2007956
  2 Packing, Braided Asbestos PPGD 60BG13
  2 Packing, Oil Res Molded Convex PPGD 60BH2
  2 Packing, Molded Rubber & Duck PPGD 60DA415
  2 Ring-Junk PPGD BC317
  2 Gasket PPGD 25C1737
  2 Bushing-Gland PPGD 1FD152
  2 Gland, Stuffing Box PPGD FD21
  2 ASM Gland PPGD 200FXX008A
  2 Packing-Ring PPGD 60DD75
  2 Nut PPGD 200FXX086

Fluid Cylinder

  Gardner Denver 5" x 10" FD FXD Fluid Cylinder
Qty. Description Part No.
  1 ASM Fluid Cylinder PPGD 1FD388
  12 Stud, Cylinder to Frame PPGD 79L92
  12 Nut, Cylinder to Frame Stud PPGD 50B10
  16 Stud, Valve Cover PPGD 79A559
  16 Nut, Valve Cover Stud PPGD 50B13
  8 Stud, Discharge Flange PPGD 79A183
  8 Nut, Discharge Flange Stud PPGD 50B8
  24 Stud, Cylinder Head PPGD 79A183
  24 Nut, Cylinder Head Stud PPGD 50B8
  8 Stud, Suction Flange PPGD 79A183
  8 Nut, Suction Flange Stud PPGD 50B8
  1 Flange, Discharge PPGD 64DA5
  1 Gasket, Discharge Flange PPGD 25G4
  2 Head Cylinder PPGD 5FD41
  2 Gasket, Cylinder Head PPGD 25G12
  2 Clamp Liner PPGD FD217
  4 Sleeve Liner PPGD 4EF519
  2 Spacer Liner PPGD FC957
  2 Set Screw, Liner PPGD 76W3
  2 Nut, Liner Set Screw PPGD 50B12
  2 Washer, Liner Set Screw PPGD 95F12
  2 Packing, Liner Set Screw PPGD 60BQ6
  1 Flange, Suction PPGD FD77
  1 Gasket, Suction Flange PPGD 25C320
  5 Plug, Cylinder Cleanout PPGD 64AU5
  8 Valve Cover PPGD FD147
  32 Stud, Suction Flange PPGD 79A183
  32 Nut, Suction Flange Stud PPGD 50B8
  1 Gasket, Discharge Flange PPGD 25BE4
  5 Plug, Cylinder Cleanout PPGD 64AU5

Liners, Pistons and Piston Rubber Kits

  Gardner Denver 5" x 10" FD FXD Liners, Pistons and Piston Rubber Kits
Qty. Description Part No.
  2 Liner 5" x 10" 5" Bore PPGD FD45650
  2 Piston 5" B API-3 PPGD 202TBB045A
  2 Piston Rubber Kit 5" B PPGD TBB76011
  2 Liner 4.5" Bore for 5" x 10" PPGD FD45645
  2 Piston 4.5" B API-3 PPGD 200TBB045A
  2 Piston Rubber Kit 4.5" Bore PPGD TBB76009
  2 Liner 5" x 10" 4" Bore PPGD FD45640
  2 Piston 4" K API-3 PPGD 221TBK045A
  2 Piston Rubber Kit 4" K PPGD TBK90423
  2 Liner 3.5" Bore PPGD FD45635
  2 Piston 3.5" K API-3 PPGD 220TBK045A
  2 Piston Rubber Kit 3.5" K PPGD TBK90422

Pullers

  Gardner Denver 5" x 10" FD FXD Pullers
Qty. Description Part No.
  1 Puller, Seat Standard PPGD 1AUX545
  1 Puller, Seat Gravel PPGD 200FGG219A
  1 Puller, Liner PPGD FD284

· back to top



Oil Stop Head

  Gardner Denver 5" x 10" FD FXD Oil Stop Head
Qty. Description Part No.
  2 Oil Stop Head PPGD FXD495
  4 Stud, Oil Stop Head PPGD 79A69
  4 Nut, Oil Stop Head Stud PPGD 50B5
  2 Gland, Oil Stop Head PPGD PXD238
  2 Packing, Oil Stop Head PPGD 60BG26
  2 Washer, Oil Stop Head PPGD BC318
  2 Gasket, Oil Stop Head PPGD 25C974

· back to top



Gear End JackShaft

  Gardner Denver 5" x 10" FD FXD Gear End JackShaft
Qty. Description Part No.
  1 JackShaft PPGD FXD371
  2 Sleeve‐Shaft PPGD FXD289
  2 Seal‐Oil, Bearing Housing PPGD 60G63
  4 Spacer, Bearing PPGD FXD376
  2 Bearing, JackShaft PPGD 12W6
  2 Housing‐Bearing PPGD 1FXD368
  2 Spacer‐Bearing PPGD FXD376
  4 Gasket, Housing & Retaining Plate PPGD 25C1085
  2 Plate‐Bearing Retaining PPGD 3FXD370
  12 Screw, Housing & Retaining Plate PPGD 75A43
  4 Screw, Shaft Extension Cover PPGD 75A192
  1 Cover‐Shaft Extension PPGD 200FXD490
  1 Key, JackShaft PPGD 35B167
  2 Seal‐Oil, Bearing Retaining Plate PPGD 60G221
  2 Fitting‐Lube PPGD 40E5

· back to top



Gear End Eccentric Shaft

  Gardner Denver 5" x 10" FD FXD Gear End Eccentric Shaft
Qty. Description Part No.
  1 Shaft‐Eccentric PPGD FXD367
  1 Key, Eccentric Shaft PPGD 35C68
  1 Eccentric PPGD FXD255
  2 Sleeve‐Shaft PPGD 23AUX18
  2 Seal‐Oil PPGD 60G17
  2 Bearing, Eccentric Shaft PPGD 12C34
  2 Shim, Bearing Cover Plate PPGD 77B22
  12 Screw, Bearing Cover Plate PPGD 75A18
  2 Plate‐Bearing Cover PPGD FXD366
  1 Gasket, Bearing Cover Plate PPGD 25C1084
  2 Fitting‐Lube, Bearing CVR Plate PPGD 40E5

· back to top



Gear End Connecting Rod Crosshead

  Gardner Denver 5" x 10" FD FXD Gear End Connecting Rod Crosshead
Qty. Description Part No.
  2 ASM Connecting Rod PPGD FXD417
  2 Bushing (Eccentric End) PPGD FXD421
  2 Bushing (Crosshead End) PPGD FXD229
  2 Crosshead PPGD FXD175
  2 Pin‐Crosshead PPGD FXD189
  2 Plate‐Retainer PPGD FXD281
  4 Screw (1.25" LG) Retainer Plate PPGD 75B11
  4 Screw 1.5" Retainer Plate PPGD 75B10
  48" Wire PPGD 97A29

· back to top



Gear End Frame

  Gardner Denver 5" x 10" FD FXD Gear End Frame
Qty. Description Part No.
  1 ASM Frame PPGD FXD172A
  2 Plug‐SQHD Pipe, Oil Drain PPGD 64A6
  2 Elbow‐Pipe Street, Oil Level PPGD 64D4
  2 Plug‐SQHD Pipe, Oil Level PPGD 64AA4
  1 Hood PPGD 200FXD053
  110" Gasket, Hood PPGD 2009457
  12 Screw, Hood PPGD 75AA1
  1 Cover‐Filler PPGD FXX880
  2 Plug‐SQHD Pipe, Crosshead Oil PPGD 64AA5
  4 Stud, Crosshead Inspect Plate PPGD 79A6
  4 Nut, Crosshead Insp. Pl. Stud PPGD 50B5
  2 Plate‐Inspection PPGD 200FXD052
  2 Gasket, Crosshead INS. Plate PPGD 25C1083
  4 Screw, Crosshead Ins. Plate PPGD 75AA1
  4 Stud, Plate Inspection PPGD 79A438
  4 Nut, Plate Inspection Stud PPGD 50B5







3 Liner 5" Bore PPGD 200PZG456
3 Piston 5"B PPGD 241TBB045A
3 Piston Rubber Kit 5"B PPGD TBB76024
OR
3 Liner 5.1/2" Bore PPGD PY13955
3 Piston 5.1/2"B PPGD 243TBB045A
3 Piston Rubber Kit 5.1/2"B PPGD TBB76026
OR
3 Liner 6" Bore PPGD PY13960
3 Piston 6"B PPGD 253TBB045A
3 Piston Rubber Kit 6"B PPGD TBB76028
OR
3 Liner 6.1/2" Bore PPGD PY13965
3 Piston 6.1/2"L PPGD 204TBL045A
3 Piston Rubber Kit 6.1/2"L PPGD TBL77585
3 Liner Gasket PPGD 25AT37
6 Valve Cover Gasket PPGD 2011862
6 Retainer Ring PPGD 2011861
6 Valve Spring PPGD 78H44
6 Valve Stem Guided PPNO 060155041
6 Valve Insert PPNO 062400338
6 Valve Seat PPNO 061101507
6 Gasket Valve Cover PPGD 1540138
3 Piston Rod Threaded Type PPGD 200PYG060A
OR
3 Piston Rod Clamp Type PPGD 201PZG060A











Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 0

Chrome Alloy Sleeve Liners



• High Strength forged steel outer hull.



• High Chrome alloy inner sleeve honed to mirror finishes.



• Minimum uniform bore hardness 62 RC.



• HP design to prevent inner sleeve slippage.





Hardened Liners



  • Single high strength forged steel hull construction.



  • Inner bore is nitro carburized and quenched to reach hardness of 60 RC.



  • Optional chrome plating to reach hardness of 62 RC.



  • Corrosion resistance, free deformation.
  •

 Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 1

Zirconia Liner



  • High strength forged steel outer hull.



  • Zirconia inner sleeve.



  • Significant longer service and lifetime cost saving.



  • Better resistance to heat and corrosion.



  • Smoothness of Zirconia inner bore translates into long service lifetime for pistons.

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts





Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL



Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000



National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A



National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160



Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P



Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT



Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT



OPI Mud Pumps

350-D | 700-HDL | 1000-HDL



Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036



Wilson Mud Pumps

600 | 900



Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 2





ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
  8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72




FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”



ITEM NO.



PART NO.



DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12





Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 3



SOUTHWEST “OLD STYLE” 8476-A FLUID END

FOR NATIONAL 12-P-160



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST (OLD STYLE) NATIONAL 12-P-160 7-1/2” X 12”





ITEM . P/N DESCRIPTION QTY. REQ’D
  8476-A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1200140 PIPE 3
10C 4018-92 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12   VALVE 6
13   VALVE INSERT (IF REQUIRED) 6
14   VALVE SPRING 6
15   VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
  4476-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-2A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P107 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-2S SUCTION MODULE (STUDDED ONLY) 3
33 8476-1D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16





Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 4





SOUTHWEST 8482-25A FLUID END

FOR NATIONAL 14-P-220

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. NATIONAL 14-P-220 9” X 14”





ITEM P/N DESCRIPTION QTY. REQ’D
  8482-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34)
1 6382G-XX LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL 3
3 8482-5 WEARPLATE 3
4 2988 WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 6282W32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 6282-1 SUB ROD 3
10 6282CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) 6
10A 1200H30 HOSE 3
10B 1200160 PIPE 3
10C 4019-77 ROD CLAMP BOLT 12
11 6200G82 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4609-25 PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 84
24 4019-24 POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 30
25 6482 LINER RETAINER FLANGE 3
26 4015-52 LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
27 6582 LINER RETAINER NUT 3
28 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW 24
30 8582 SUCTION MANIFOLD 1
31 AJO326 SUCTION MANIFOLD SEAL 3
32 8482-26 SUCTION MODULE 3
33 8482-27 DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
36 8382-25 DISCHARGE MANIFOLD 1







Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 5





SOUTHWEST 8476-25A FLUID END

FOR NATIONAL 12-P-160



FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. NATIONAL 12P-160 7-1/2” X 12”





ITEM P/N DESCRIPTION QTY. REQ’D
  8476-25A FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)
1 1376YXX LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE, AND DISCHARGE MANIFOLD SEAL 6
5 XX-BYY PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) 3
10C 4020-29 BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
  SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
16 4488-25 THREADED FLANGE 6
17 4588-25 SCREW GLAND 6
18 4690-25A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) 6
19 P115 HP VALVE COVER PLUG NITRILE SEAL 6
20 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4018-88 VALVE GUIDE SCREW 12
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-26S SUCTION MODULE 3
33 8476-27D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 8376-25MOD DISCHARGE MANIFOLD 1
36 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 18
37 LW500 LOCKWASHER 12
38 LW875 LOCKWASHER 24
39 9070012 PONY ROD SEAL 12
40 80491292 SPLASH GUARD 3
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18







Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 6





Item Description Part Number Type of pump
1 Discahrge Module 01913275 9T1000/9T800
2 Suction Module 01913274 9T1000
6 Plug 01913304 9T1000
7 Valve guide bushing 01913305 9T1000
8 Flange 01913396 9T1000
9 Valve kit 40390796 9T1000
10 Cross head 01913260 9T1000
11 Crosshead slipper guide 01913261 9T1000
12 Extension rod 01913263 9T1000
13 2-half tie collar 01913266 9T1000
14 Counter rod 01913267 9T1000
15 Piston rod 01913298 9T1000
16 Hydraulic cylinder for extractor 01913133 9T1000
17 Complete valve 40390797 9T1000
18 Valve seat 40390798 9T1000
19 Spring RI40390796-03 9T1000
20 Valve insert RI40390797-01 9T1000
21 Pulsations damper 40391524 - 1 9T1000
22 4-1/2" Liner 01913505 9T1000
23 4-1/2" Piston 01910970 9T1000
24 5" Liner 01913503 9T1000
25 5" Piston 01910862 9T1000
26 5-1/2" Liner 01913288 9T1000
27 5-1/2" Piston 01910938 9T1000
28 6" Liner 01913293 9T1000
29 6" Piston 01910863 9T1000
30 6-1/2" Liner 01913290 9T1000
31 6-1/2" Piston 01911061 9T1000
32 7" Liner 01913294 9T1000
33 7" Piston 01920592 9T1000





Product Description

· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 7

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)



Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 8



TECHNICAL PARAMETERS



Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)





Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 9



In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.



Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.





Technical Features



· F-1300, F-1600, F-1300L and F-1600L mud pump

Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 10has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.





· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.





· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.





· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.





Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 11F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.



A1. Power End



Power end features:

· Continuous tooth herringbone gear.

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 12

Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 13A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· L fluid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

filter are fitted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

4. Pistons and Piston Rods

They are slide fitted, sealed with rubber seal ring and finally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

fluid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.



A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and flush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling fluid can rinse the contact surface between the piston and liner all the time. The durable fixed spray pipe may be used, too.



A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.



F1 -Series Drilling Mud Pumps



F1-series drilling mud pumps include power end, fluid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.



Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 14



Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.



Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· Discharge damper, shear relief valve and five way discharge are fitted at the discharge outlet.



Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.



Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.



Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.





Ⅵ.Specifications



Model F1-800 F1-1600
Type Triplex single acting piston Triplex single acting piston
Max. Liner size × strength

170×216mm

(6 3/4″×8.5″)

180×280mm

(7″×11″)
Strokes rating 160 r/min 130 r/min
Power Rating 597kW (800 hp) 1193kW (1600 hp)
Type of gear Herringbone gear Herringbone gear
Gear ratio 3.3143:1 3.7381:1
Lubrication Forcing and splashing Forcing and splashing
Suction inlet 8″flange(203mm) 10″flange(254mm)
Discharge outlet 4″Flange, 5000 psi 4″Flange, 5000 psi
Pinion Shaft Dia. 177.8mm(7″) 215.9mm(8-1/2″)
Key

44.45×44.45mm

(1 3/4″×1 3/4″)

 50.8×50.8mm (2″×2″)
Valve Pots valve-over-valve,API #6 valve-over-valve,API #7
Approx. Weight 11536kg (25430lb) 20700kg (45635lb)





Liners for Ideco MM-550-F/ MM-700-F Mud Pump, National 214P, 218P, k-380, k-500,K-700A, C-150, C-250 MUD PUMP, GD FD-FXD MUD PUMP, FY-FXY MUD PUMP, FY-FXD MUD PUMP 15



Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine
